Image Processing Module A (IPMA): Installation

WARNING: This page is about a different car, the 2020 Lincoln Corsair. However, it is still accessible from the selected car via links, so may be relevant.

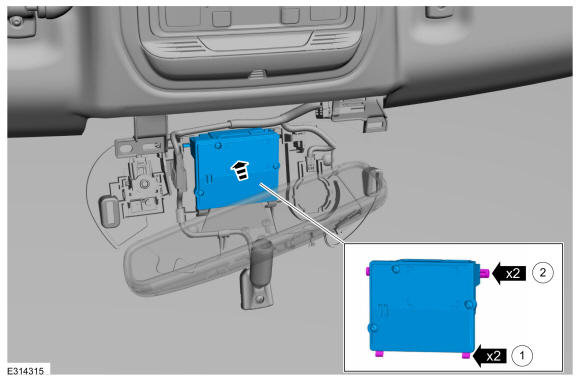

  1. Install the IPMA.

    1. Install the lower tabs.
    2. Install the upper tabs.

    GFD549939Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.

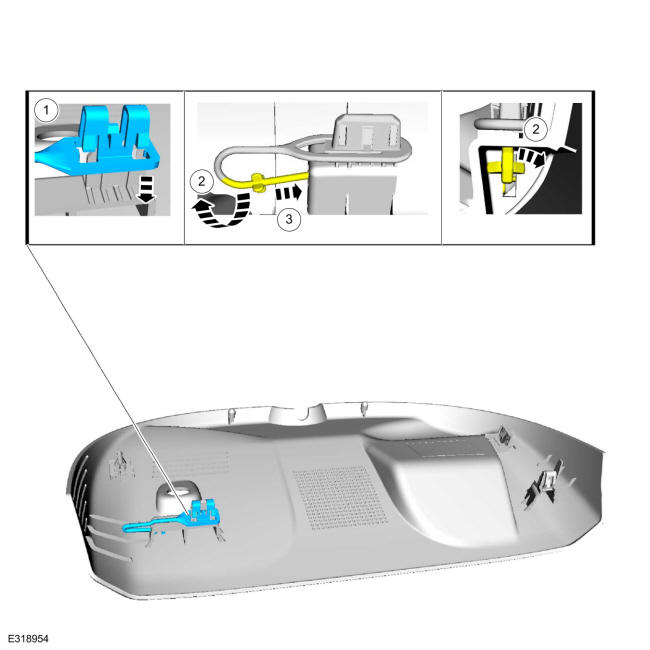

  3. Connect the tether clip to the IPMA cover.

    1. Install the tether clip onto the IPMA cover.
    2. Rotate the tether clip line to align the end with the opening in the IPMA cover.
    3. Slide the tether clip end into the IPMA cover.

    GFD549940Courtesy of FORD MOTOR COMPANY
    • If a new IPMA has been installed, using a diagnostic scan tool, complete the PMI process for the IPMA following the on-screen instructions.

    • If a new IPMA has been installed, carry out the camera alignment using a diagnostic scan tool.
