Image Processing Module A (IPMA): Removal

WARNING: This page is about a different car, the 2020 Lincoln Corsair. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Interior rear view mirror removed for clarity.

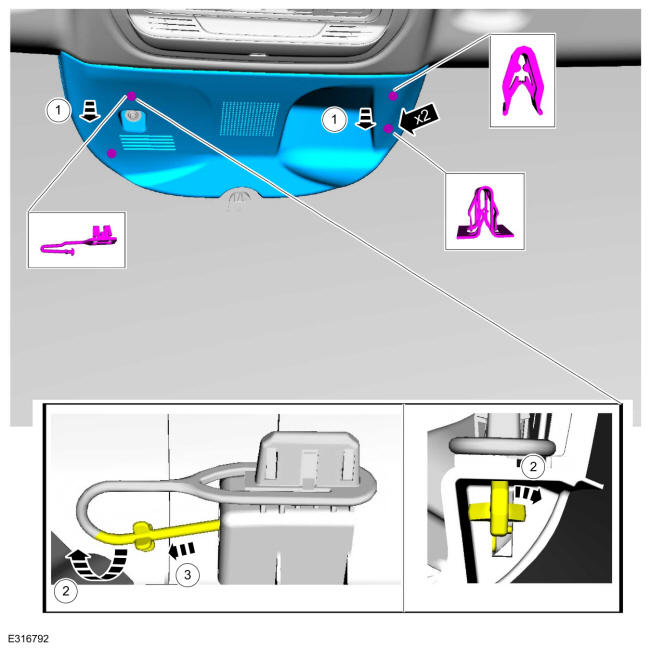

Remove the IPMA cover.
1. Release the IPMA clips and the tether clip from the IPMA cover. Use the General Equipment: Interior Trim Remover
2. Rotate the tether clip line to align the end with the opening in the IPMA cover.
3. Slide the tether clip end out of the IPMA cover.
Courtesy of FORD MOTOR COMPANY
NOTE: Interior rear view mirror removed for clarity.

NOTE: Follow the unique instructions or graphic for this step in the installation.

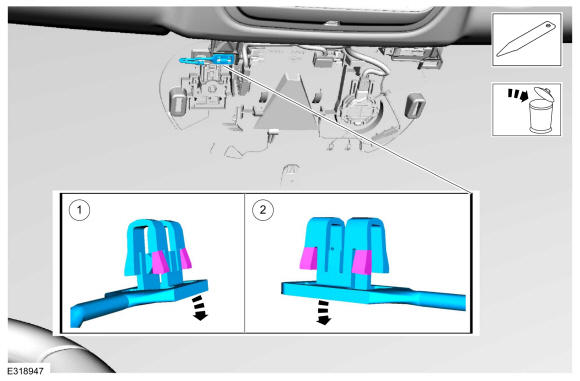

Remove and discard the IPMA cover tether clip.
1. Release the IPMA cover tether clip front tabs. Use the General Equipment: Interior Trim Remover
2. Release the IPMA cover tether clip rear tabs. Use the General Equipment: Interior Trim Remover
Courtesy of FORD MOTOR COMPANY

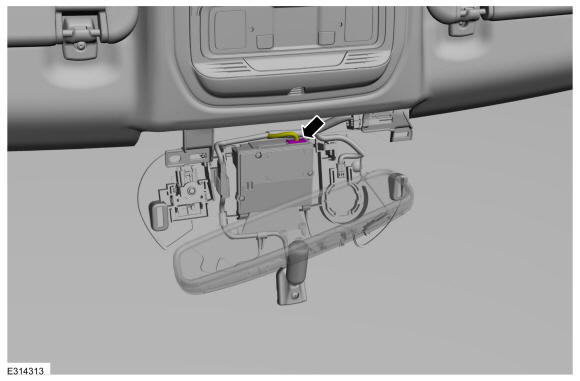

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

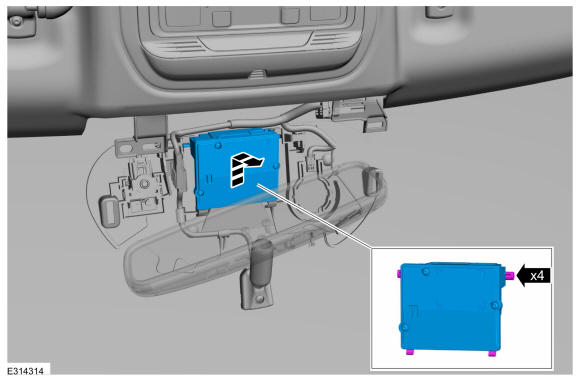

Release the tabs and remove the IPMA.

Courtesy of FORD MOTOR COMPANY
