OEM Ground Distribution: Grounds

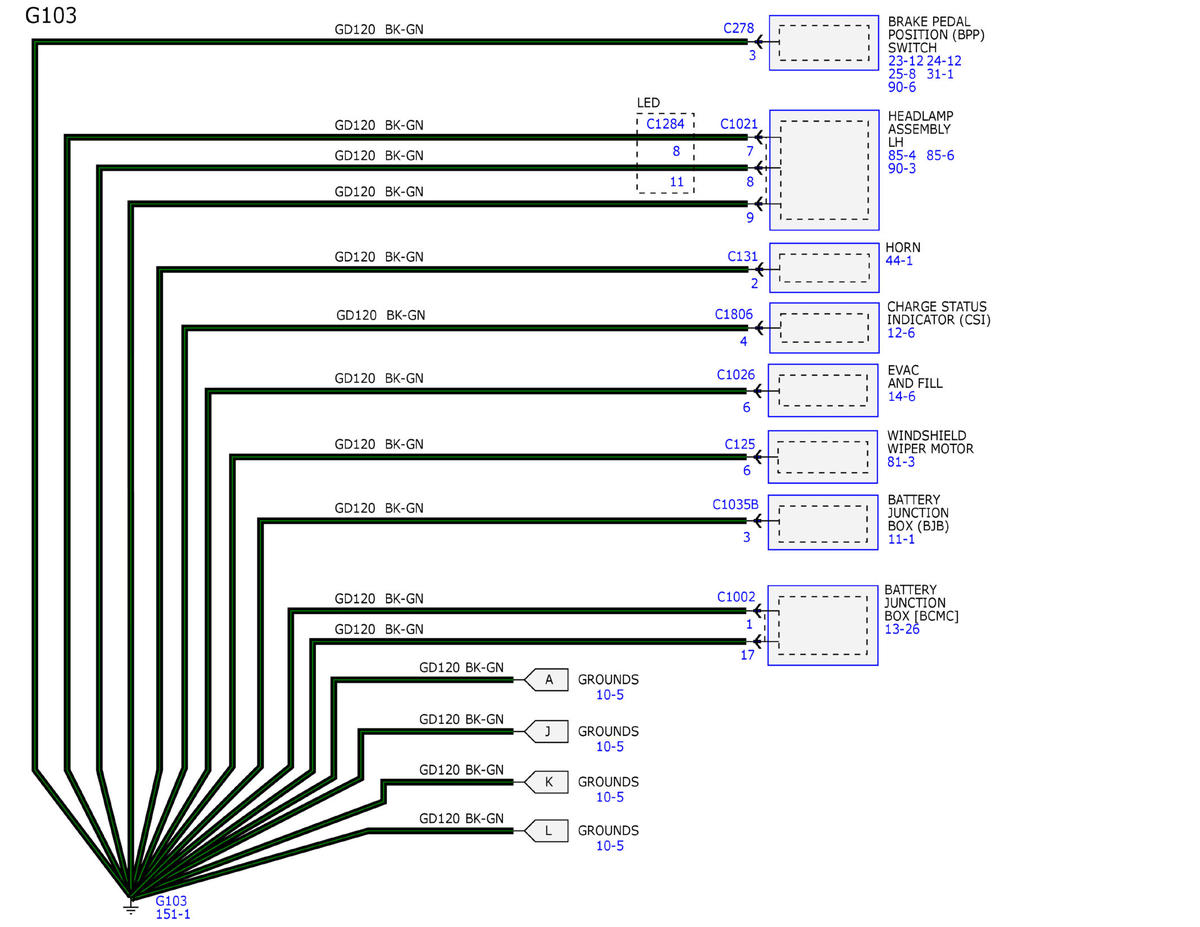

GFDWR91473Courtesy of FORD MOTOR COMPANY

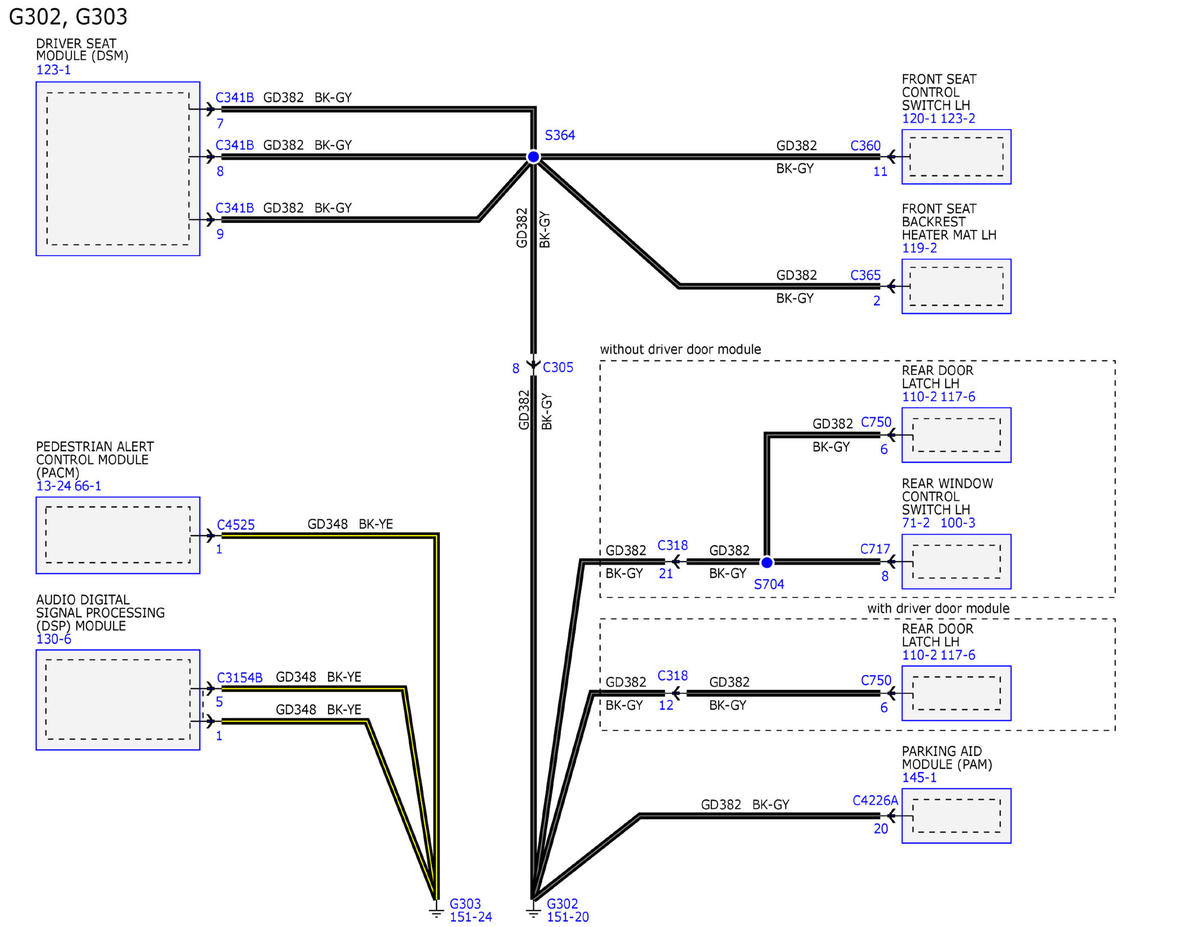

GFDWR91474Courtesy of FORD MOTOR COMPANY

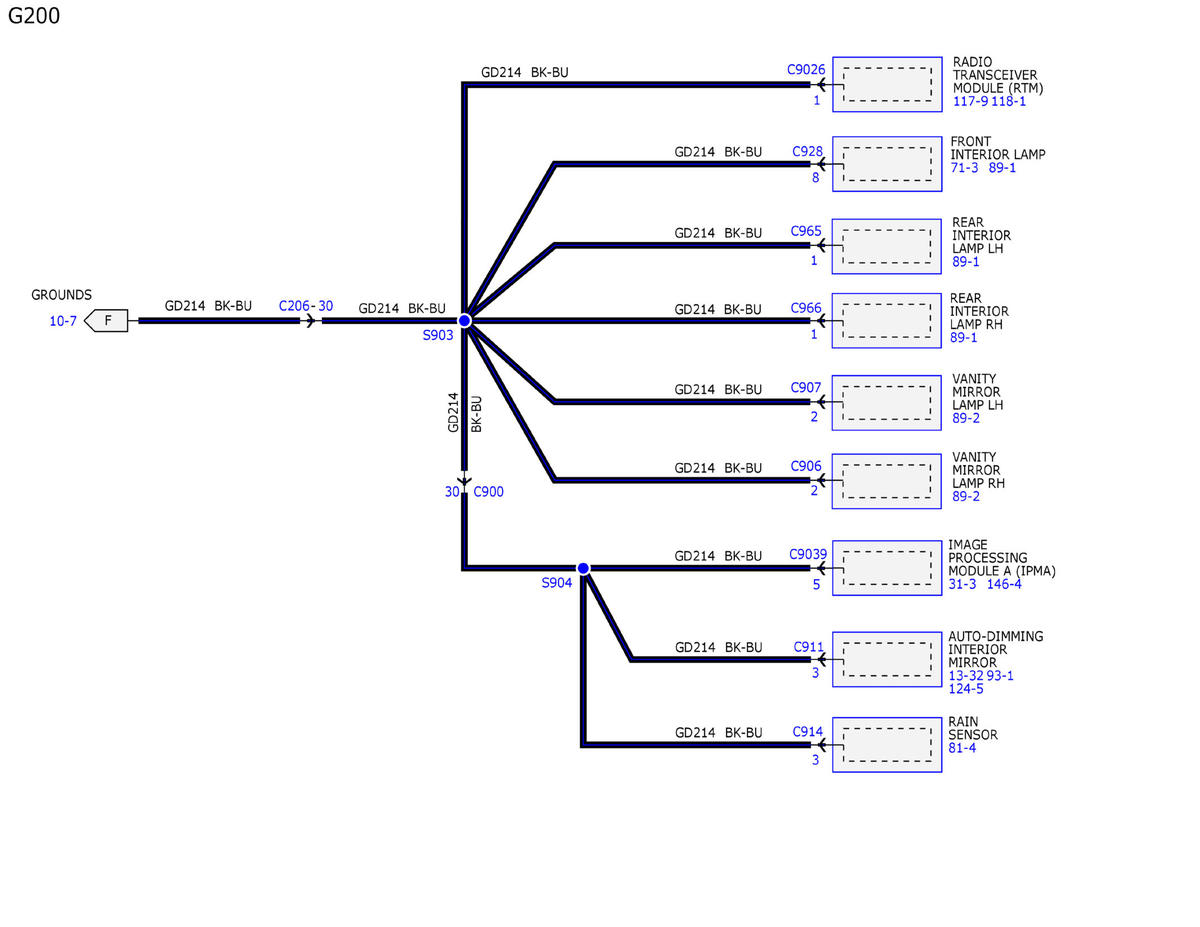

GFDWR91475Courtesy of FORD MOTOR COMPANY

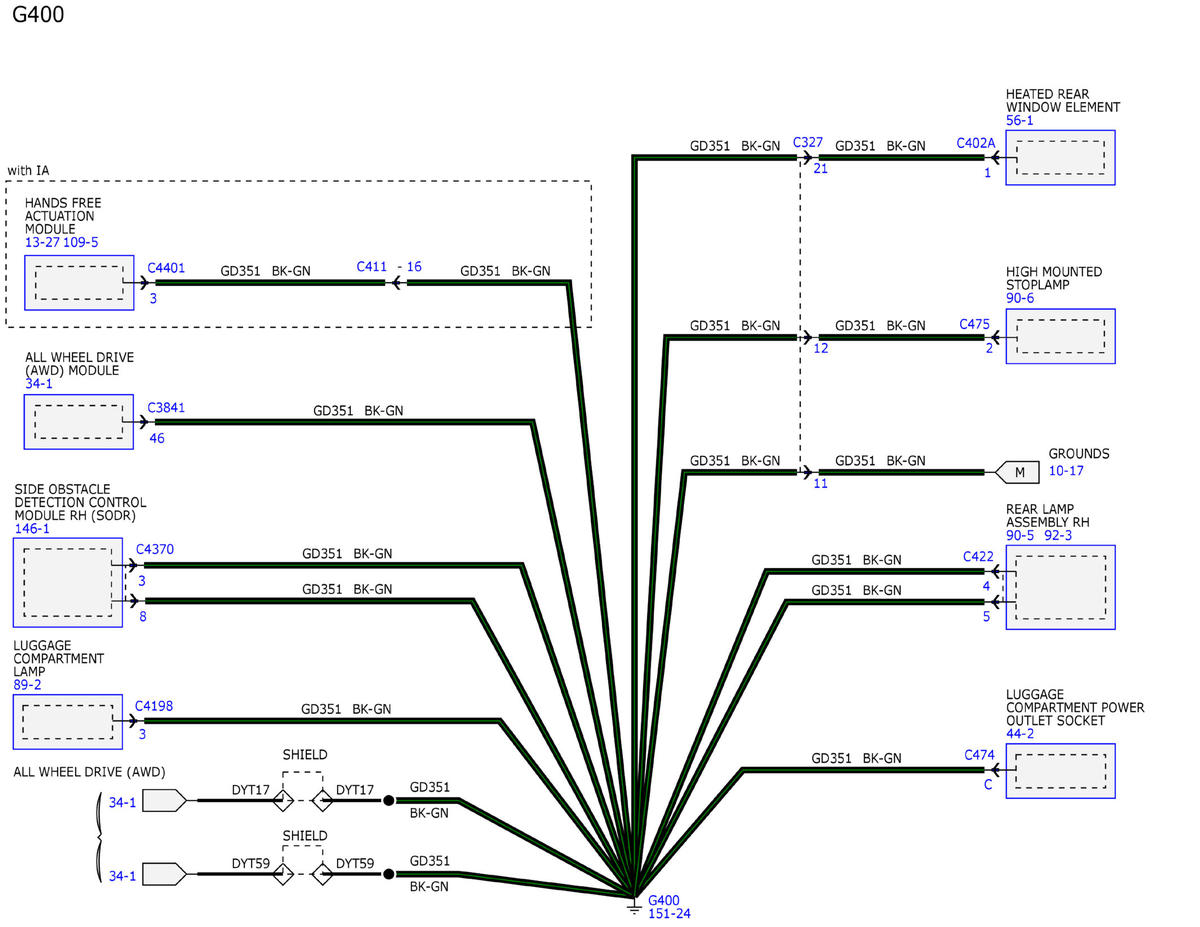

GFDWR91476Courtesy of FORD MOTOR COMPANY

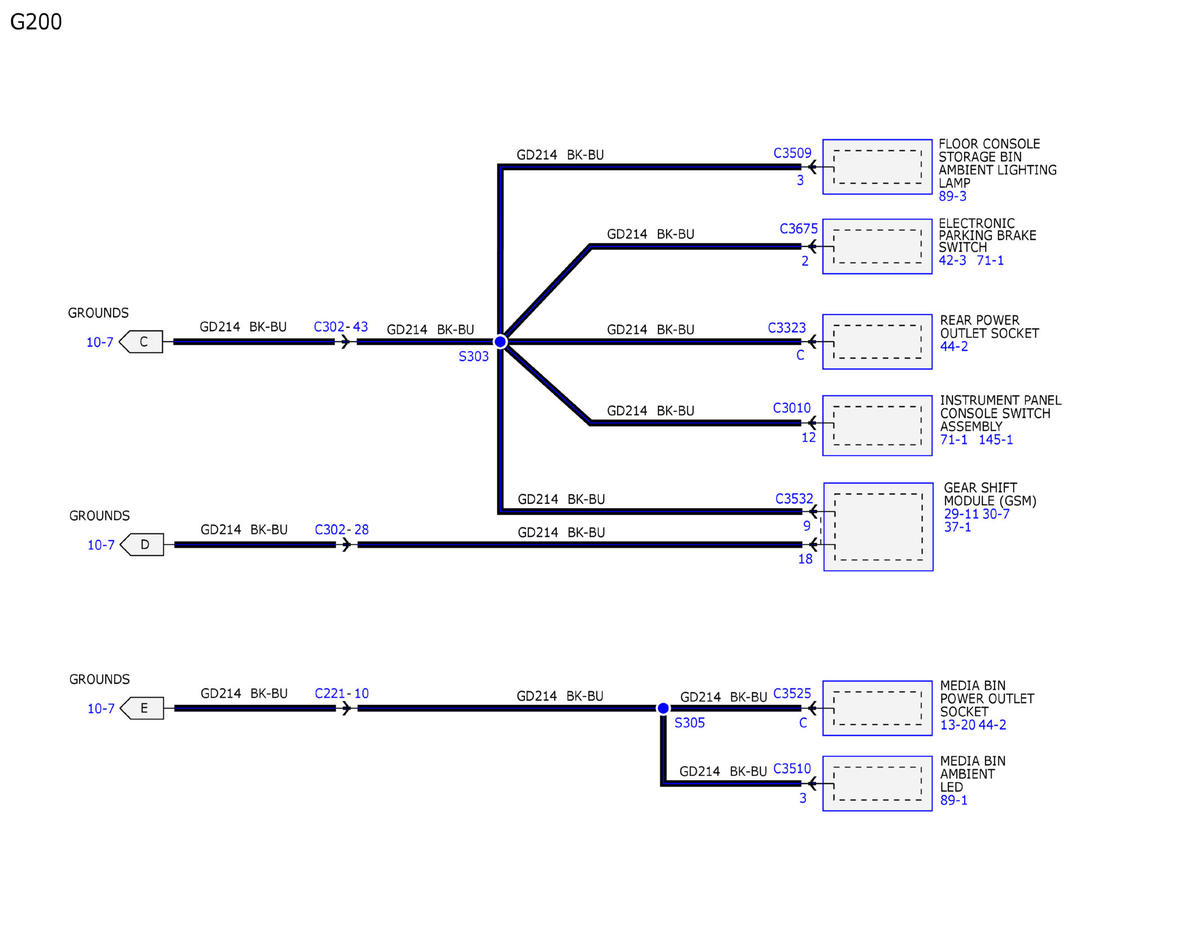

GFDWR91477Courtesy of FORD MOTOR COMPANY

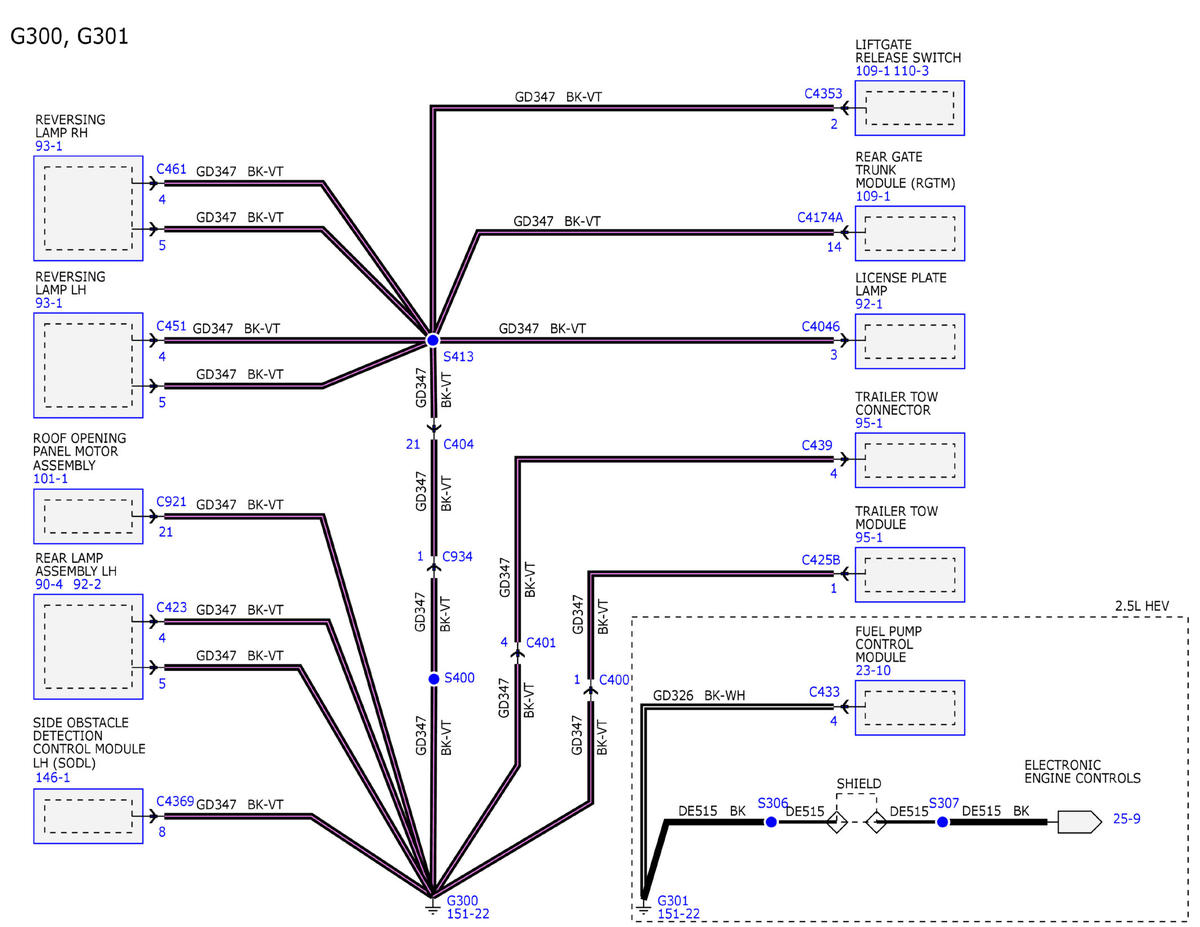

GFDWR91478Courtesy of FORD MOTOR COMPANY

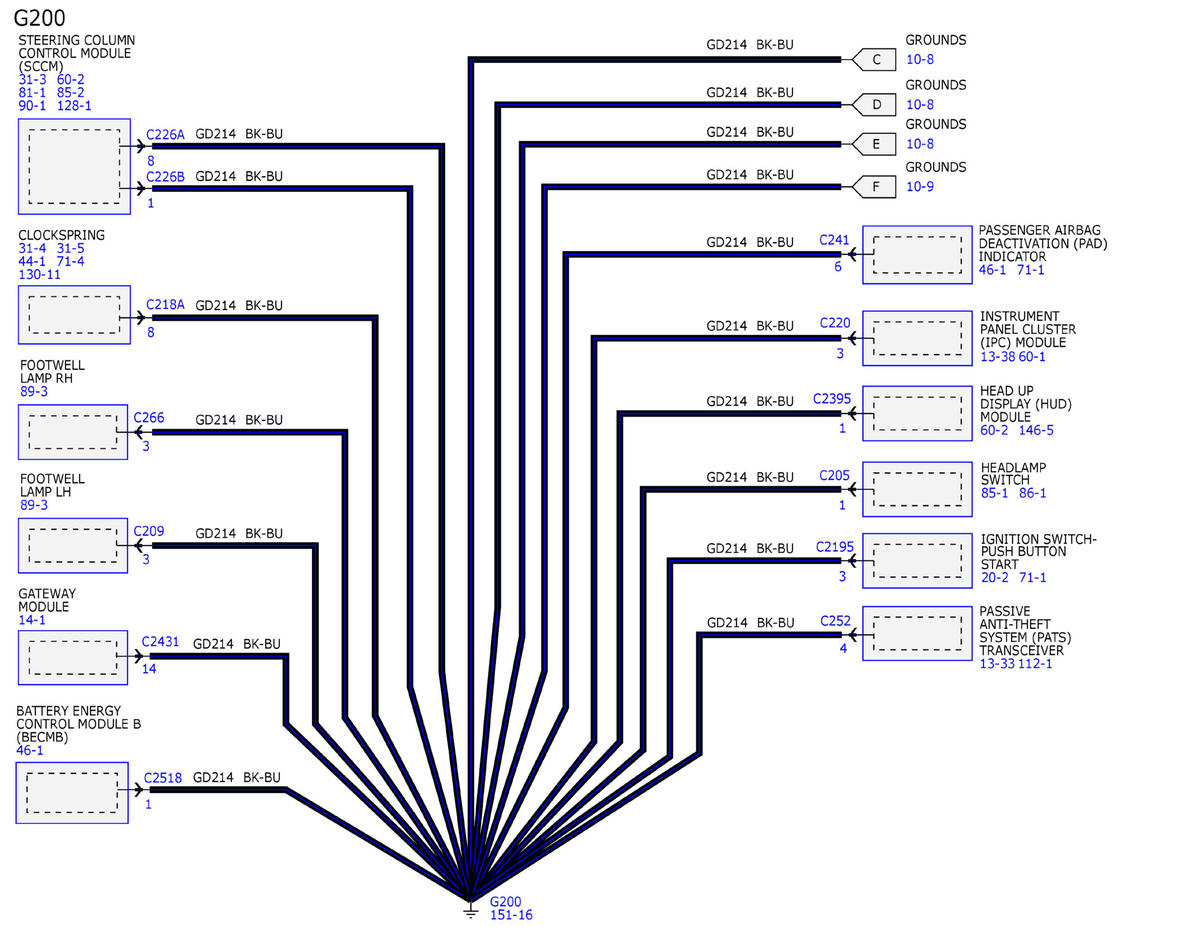

GFDWR91479Courtesy of FORD MOTOR COMPANY

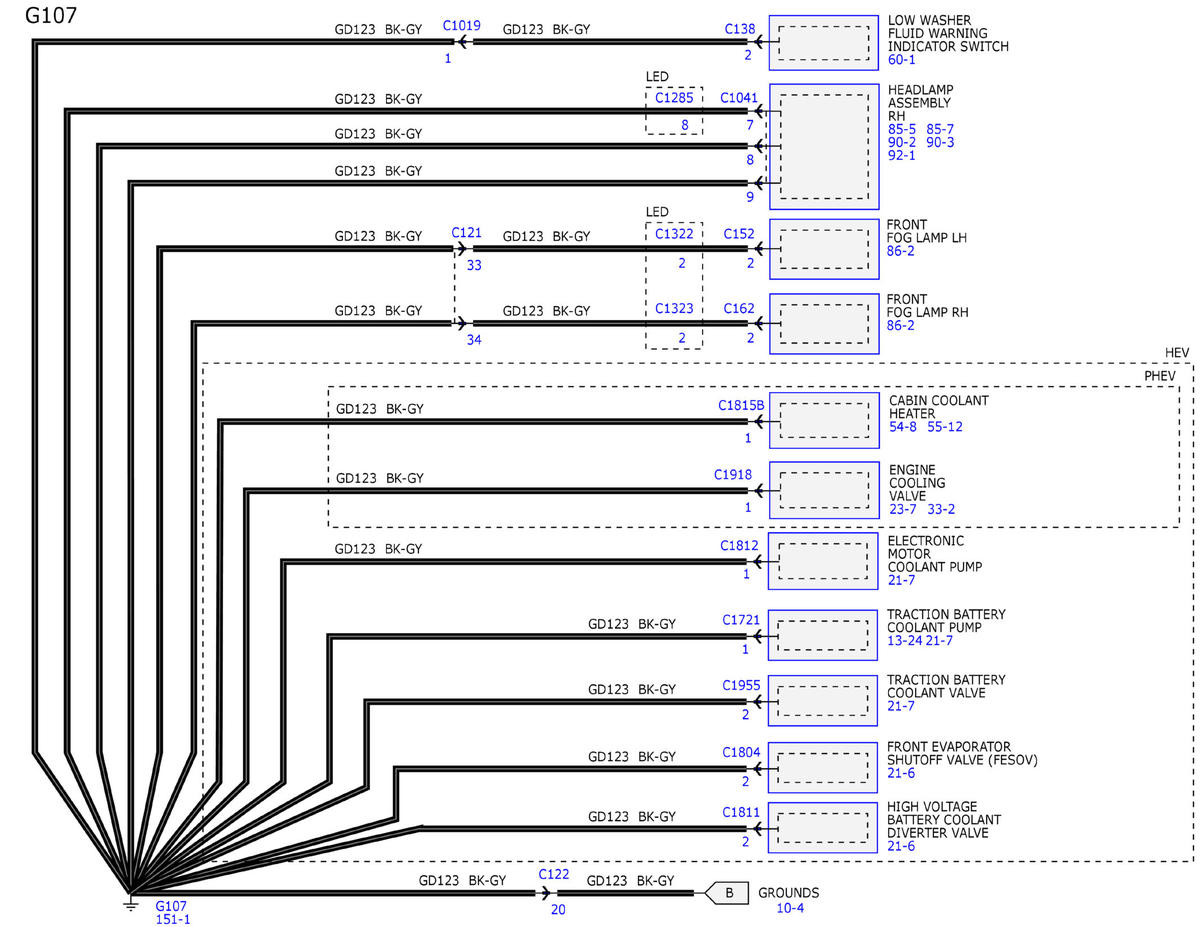

GFDWR91480Courtesy of FORD MOTOR COMPANY

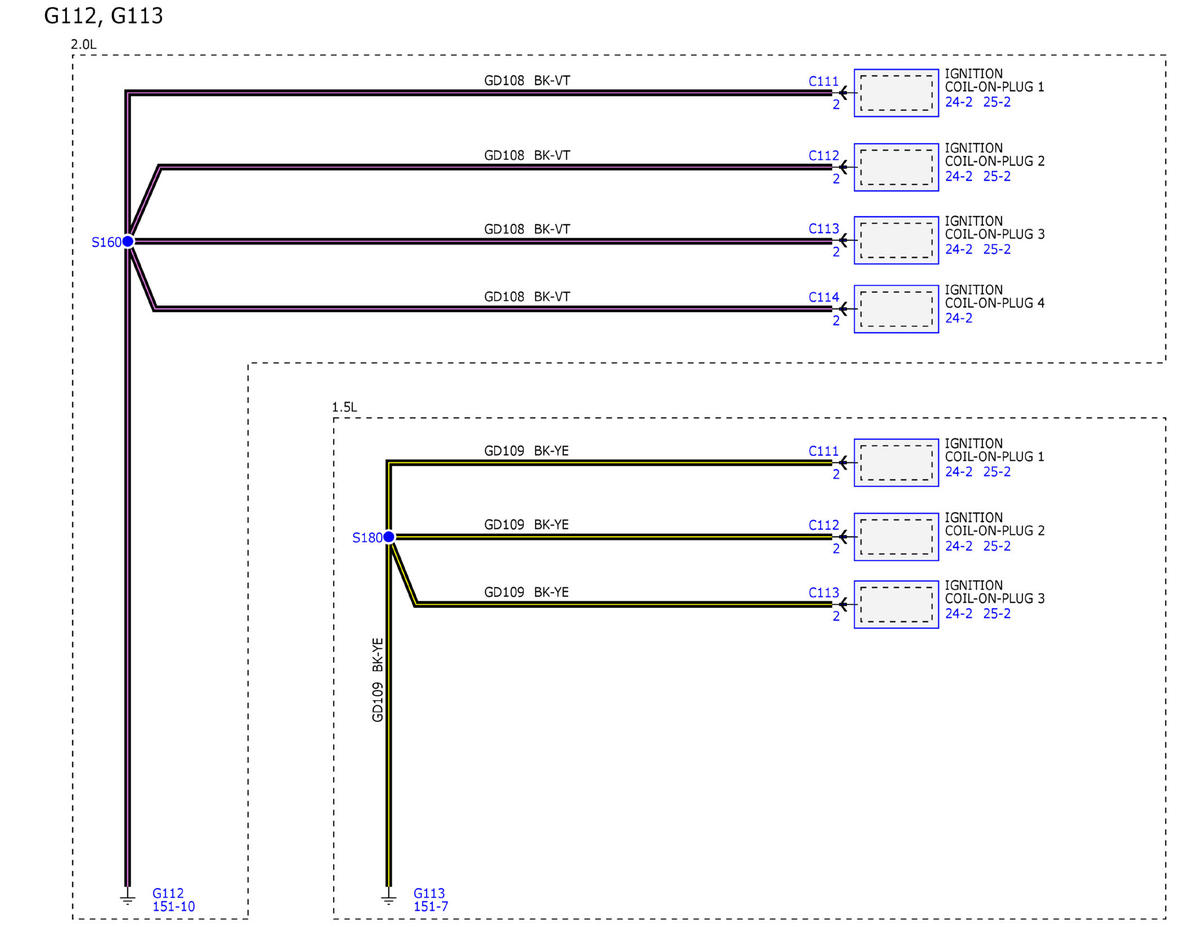

GFDWR91481Courtesy of FORD MOTOR COMPANY

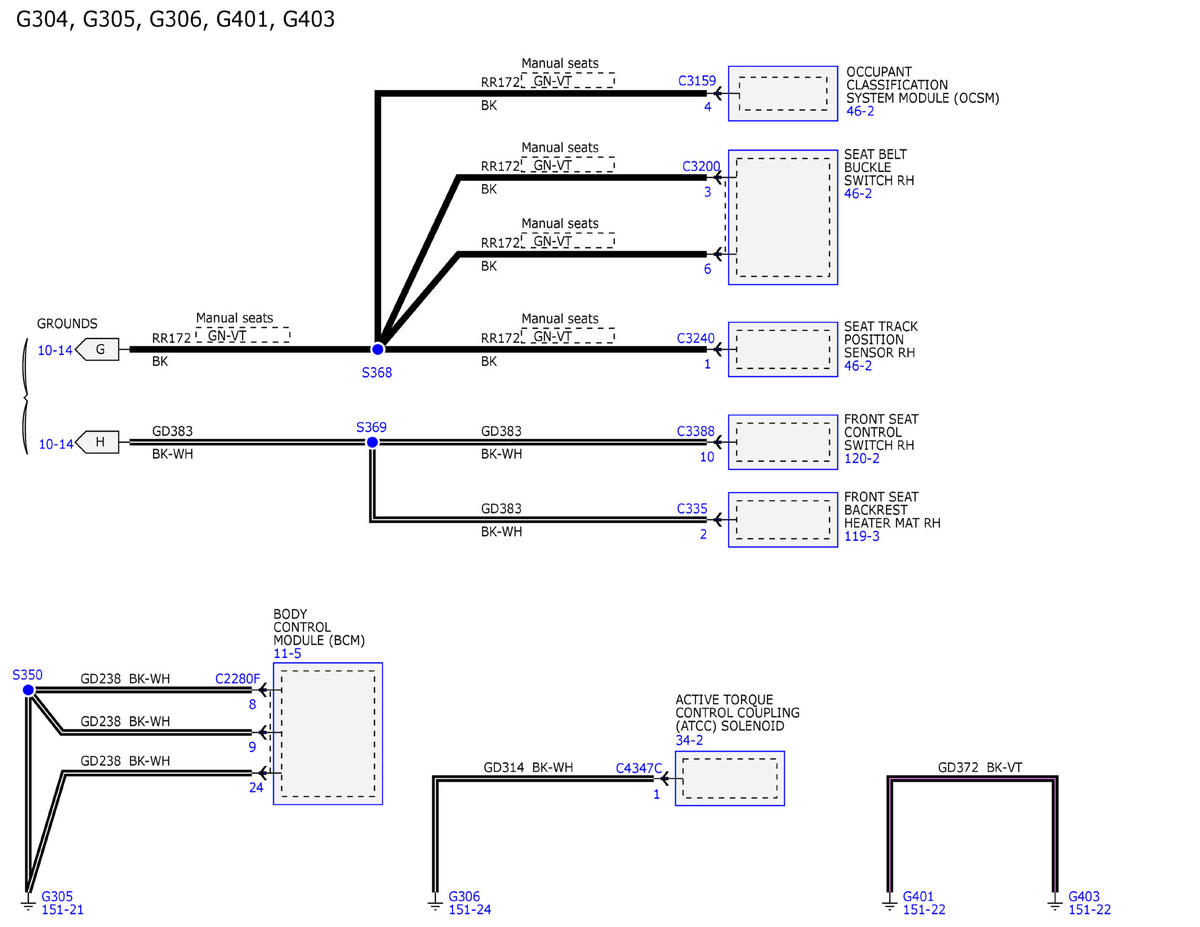

GFDWR91482Courtesy of FORD MOTOR COMPANY

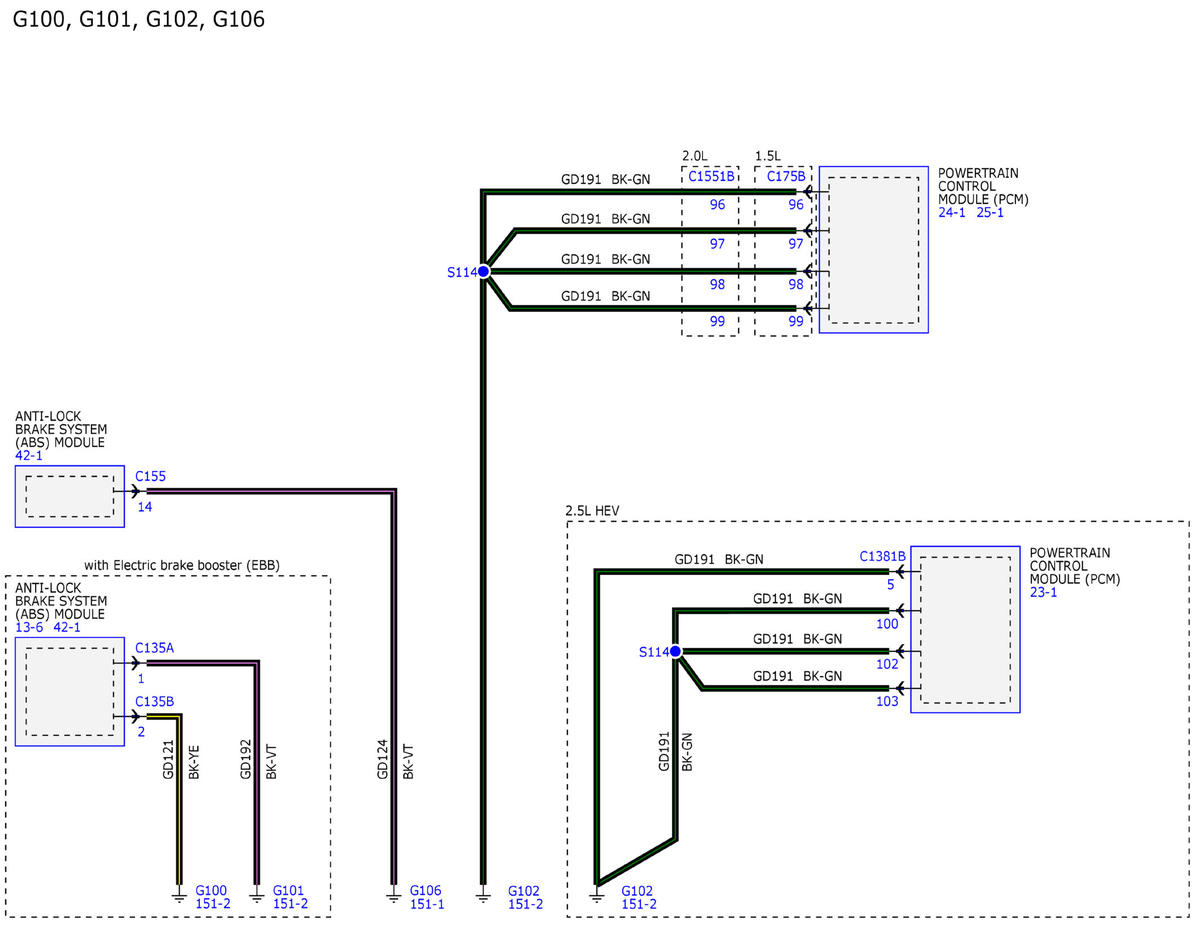

GFDWR91483Courtesy of FORD MOTOR COMPANY

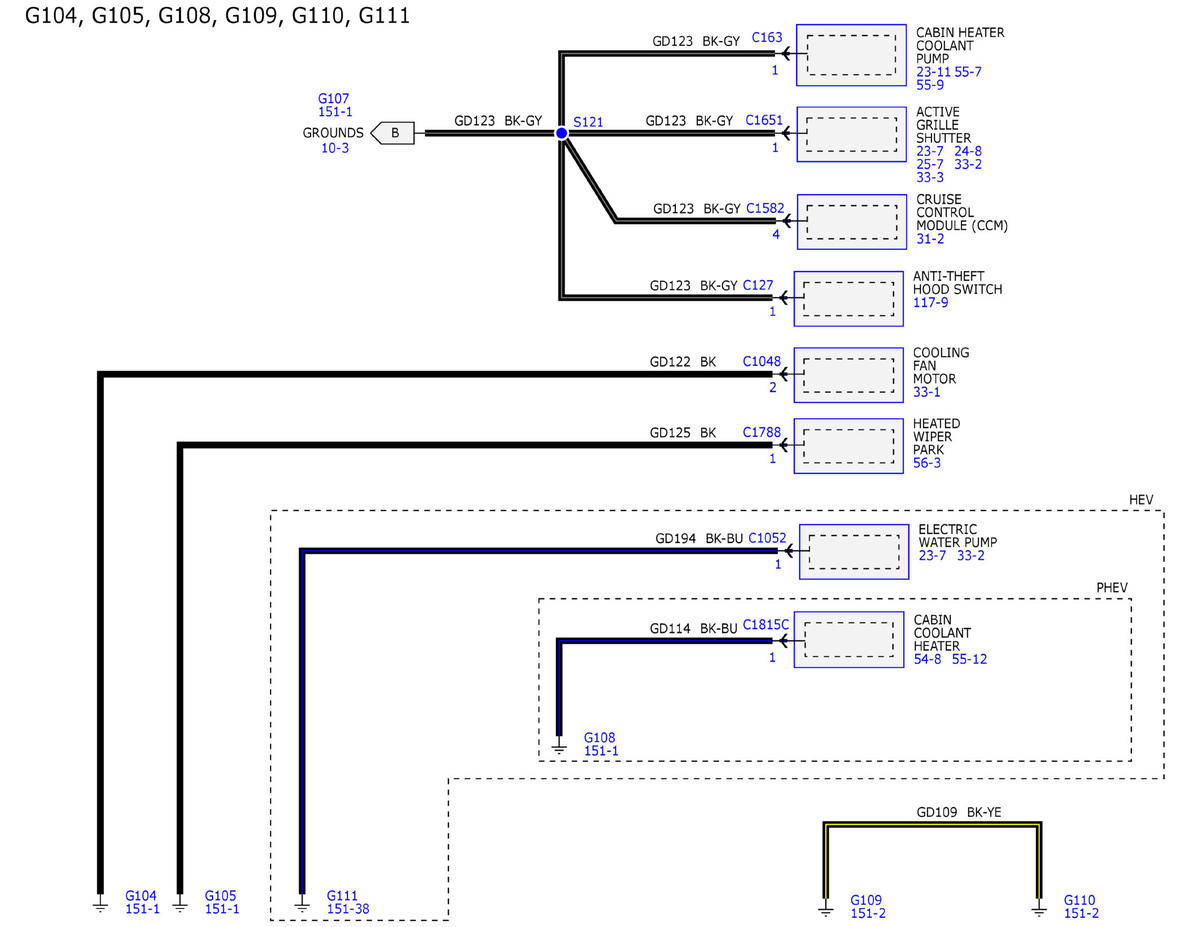

GFDWR91484Courtesy of FORD MOTOR COMPANY

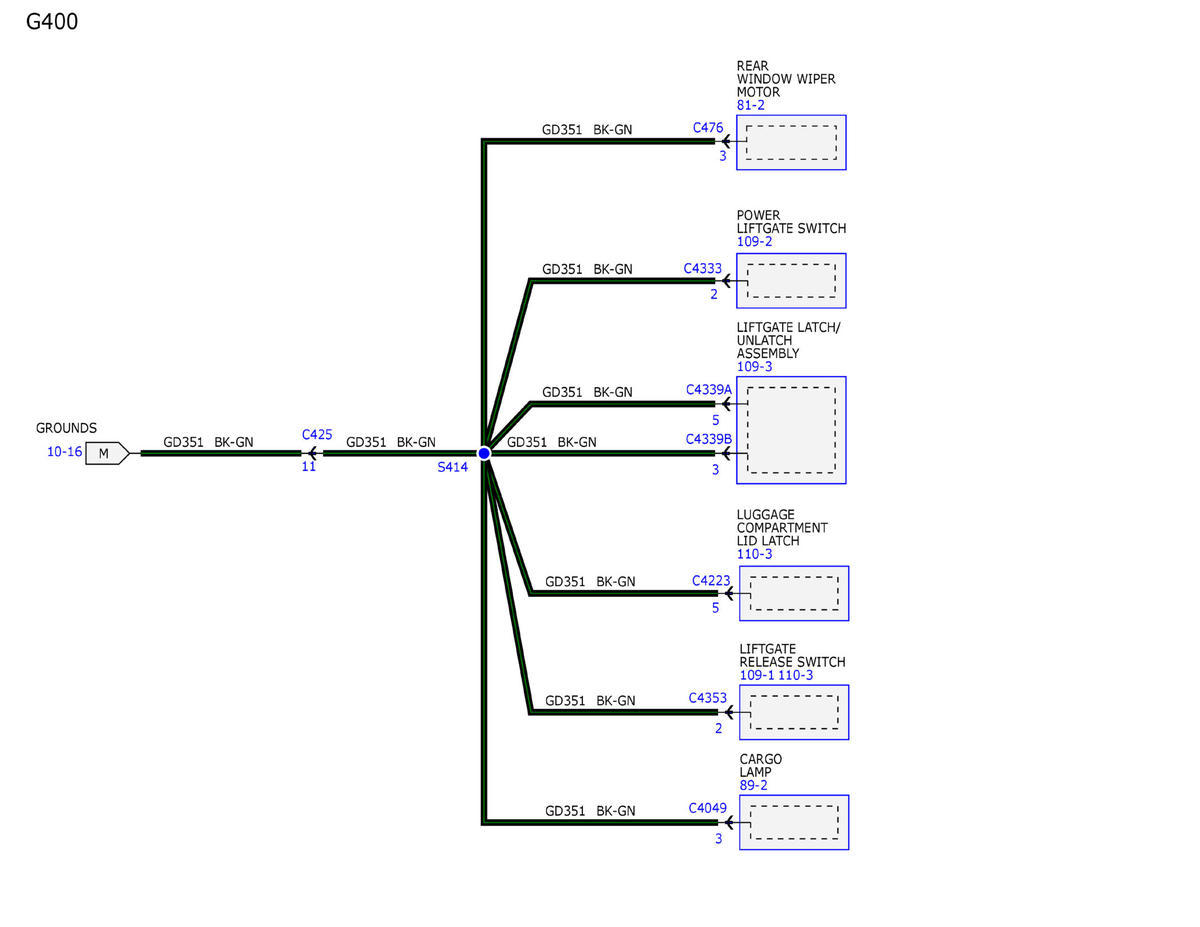

GFDWR91485Courtesy of FORD MOTOR COMPANY

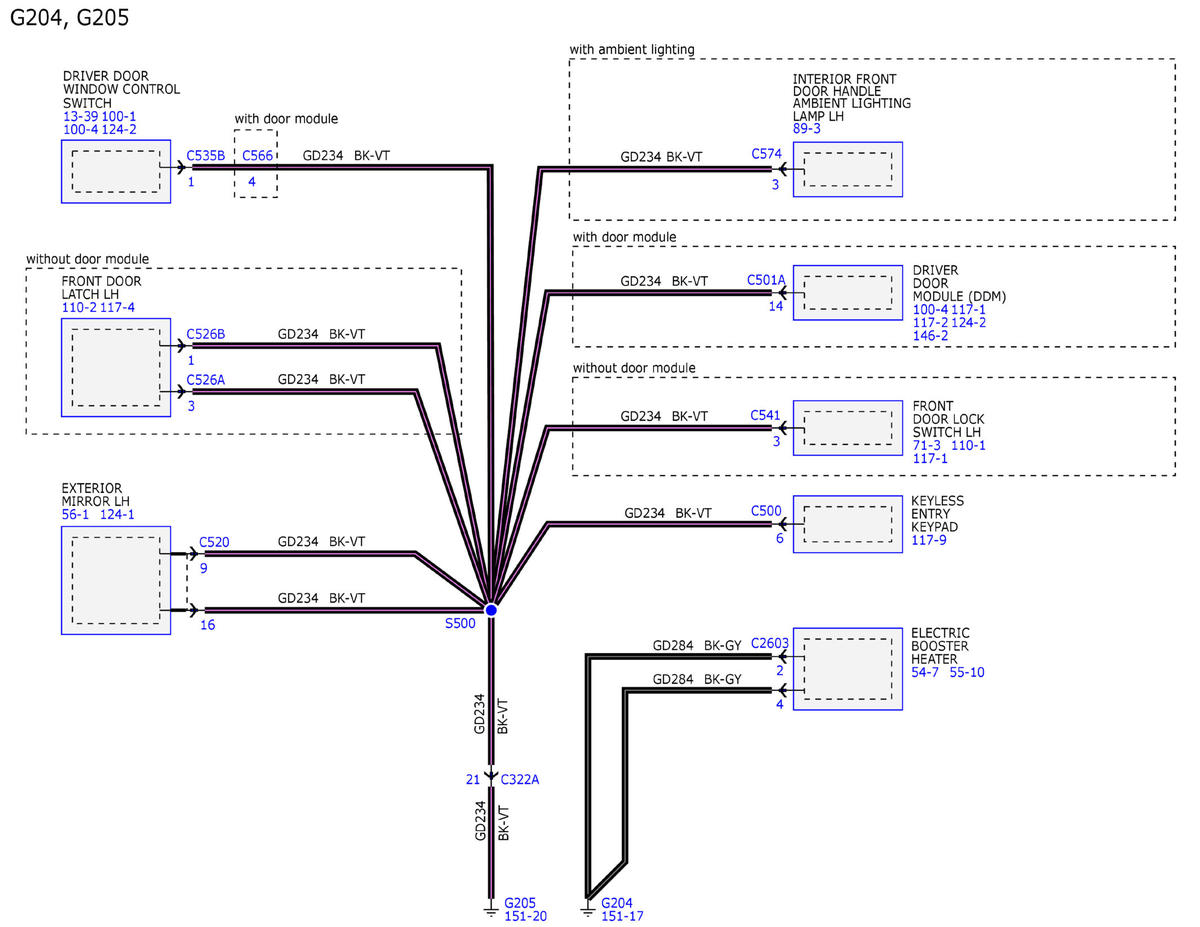

GFDWR91486Courtesy of FORD MOTOR COMPANY

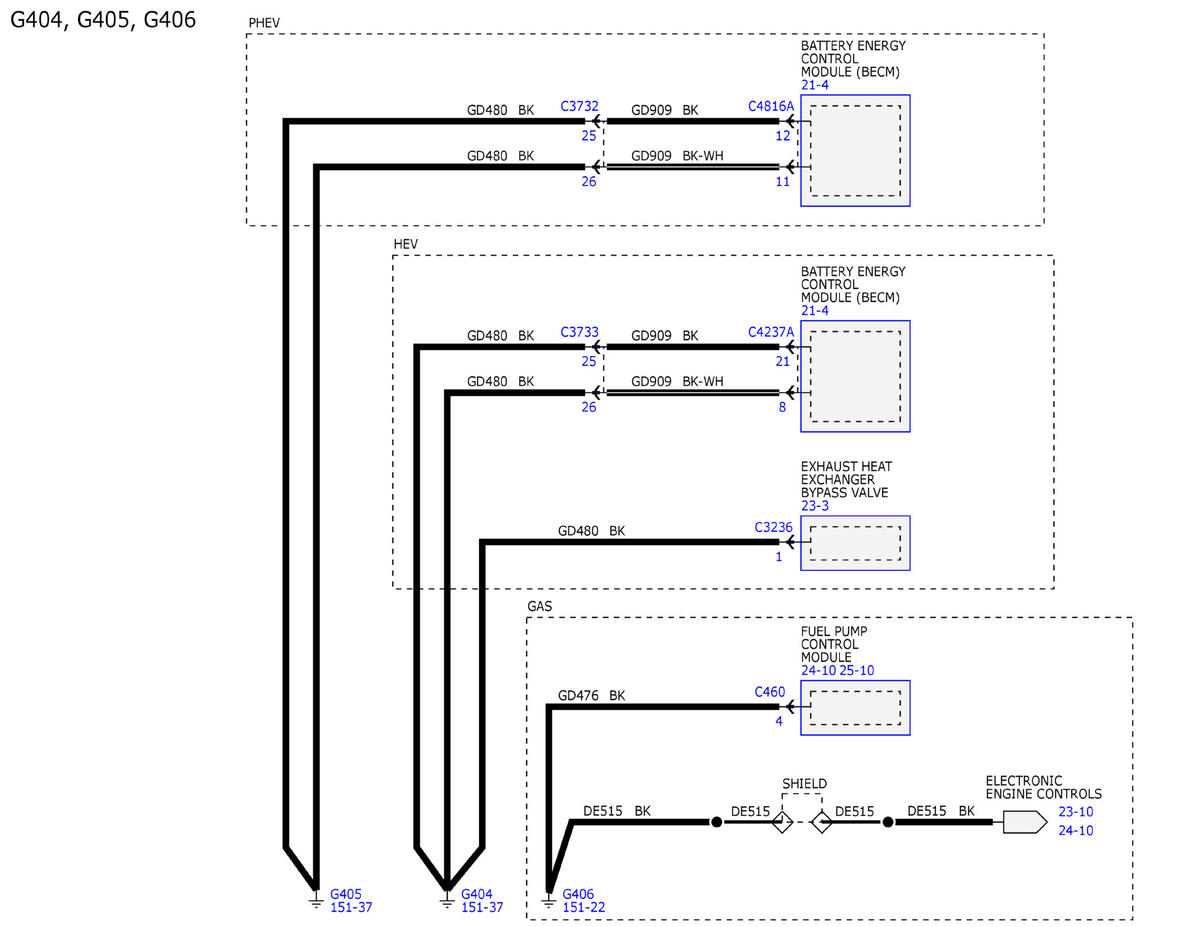

GFDWR91487Courtesy of FORD MOTOR COMPANY

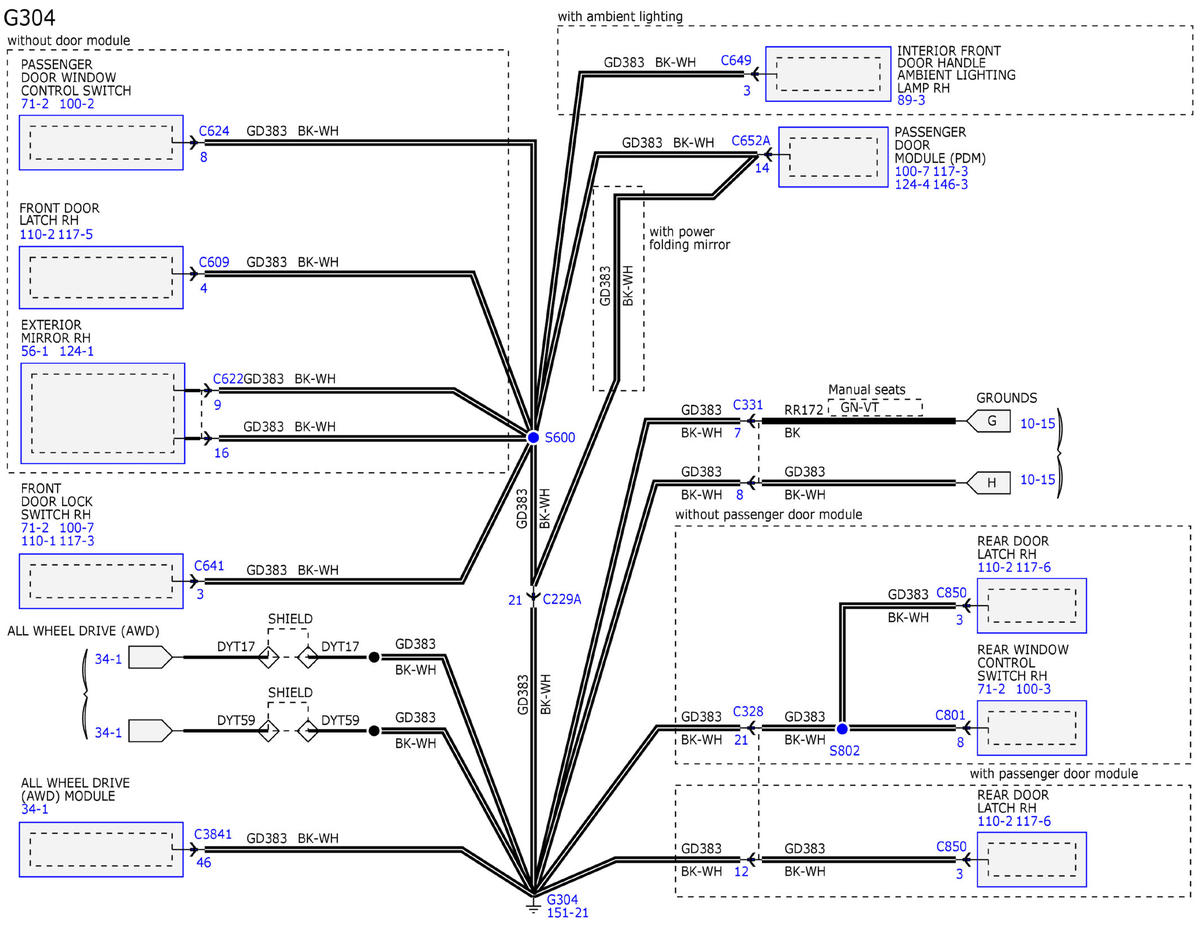

GFDWR91488Courtesy of FORD MOTOR COMPANY

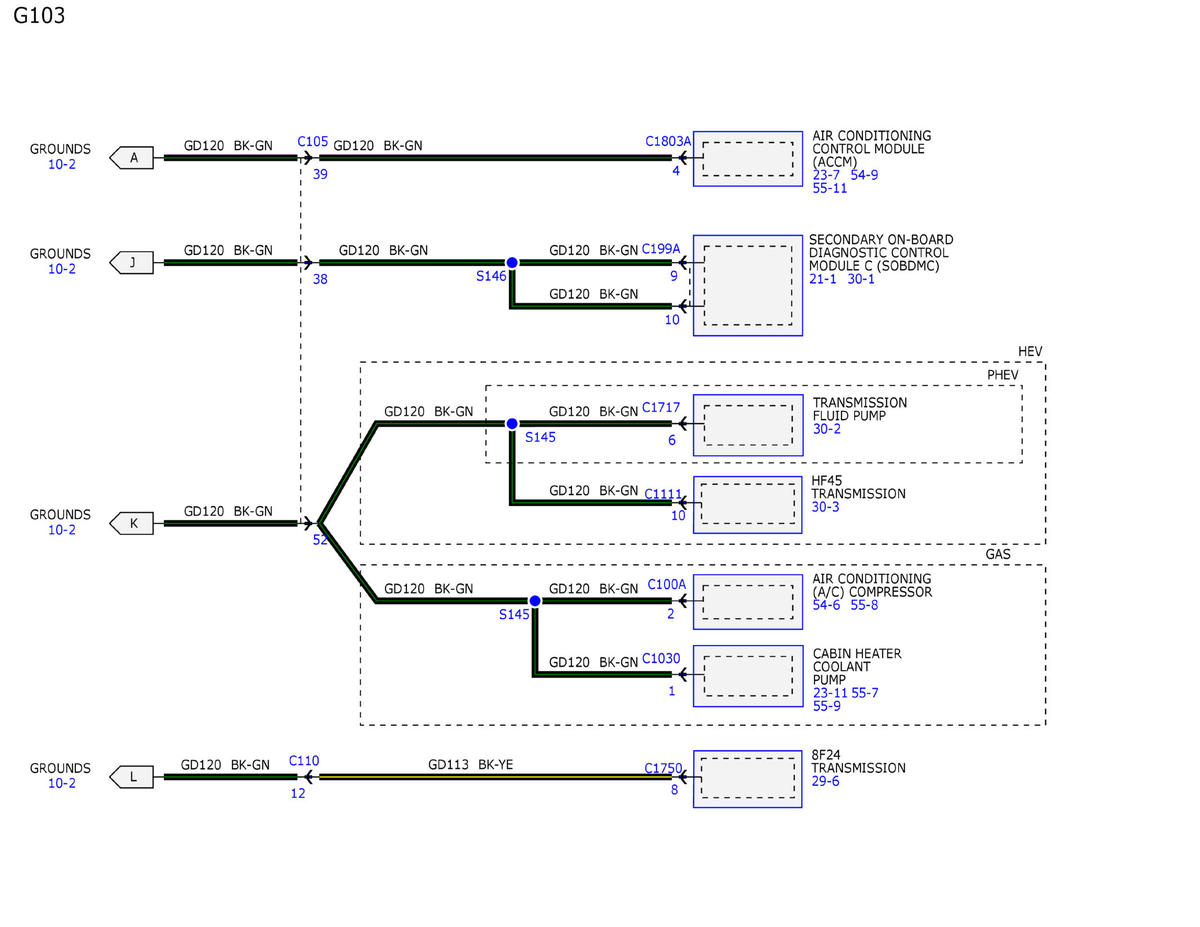

GFDWR91489Courtesy of FORD MOTOR COMPANY

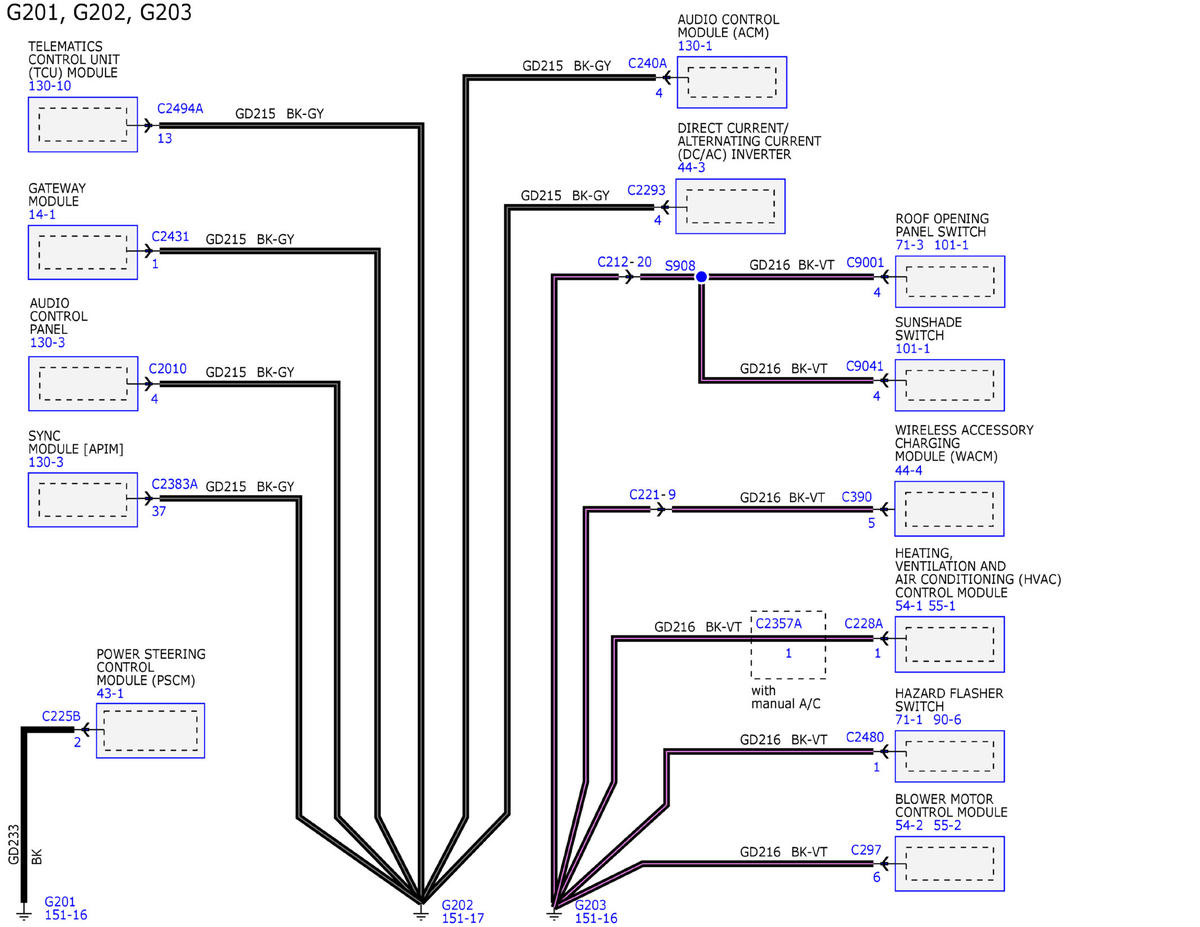

GFDWR91490Courtesy of FORD MOTOR COMPANY
