Front Subframe: Installation

All vehicles

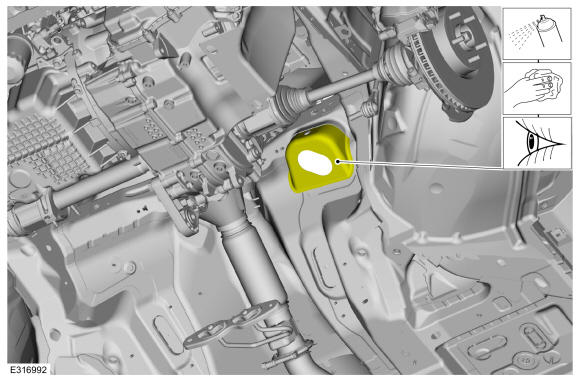

1. NOTE: The steering column floor seal mounting surface must be cleaned using solvent before reinstallation.

   Clean and inspect the steering column floor seal mounting surface before reinstallation.

   Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

   Courtesy of FORD MOTOR COMPANY

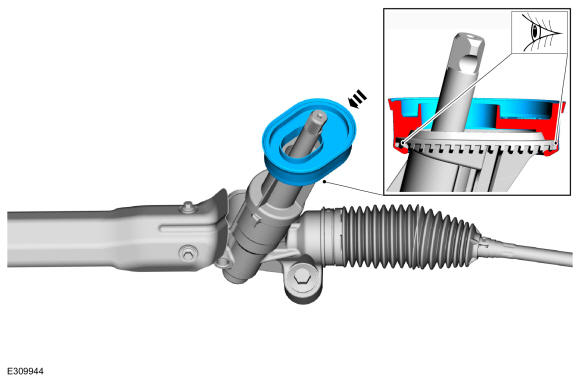

2. NOTE: Make sure that the floor seal lip is fully wrapped around the carrier on the steering gear.

   Install the new steering column floor seal.

   Courtesy of FORD MOTOR COMPANY

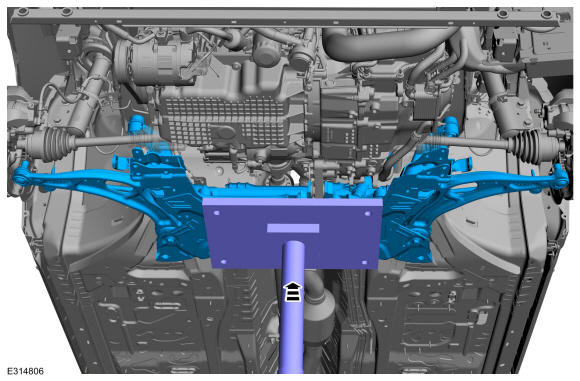

3. Partially raise the subframe and position it to the vehicle. Use the General Equipment: Transmission Jack

   Courtesy of FORD MOTOR COMPANY

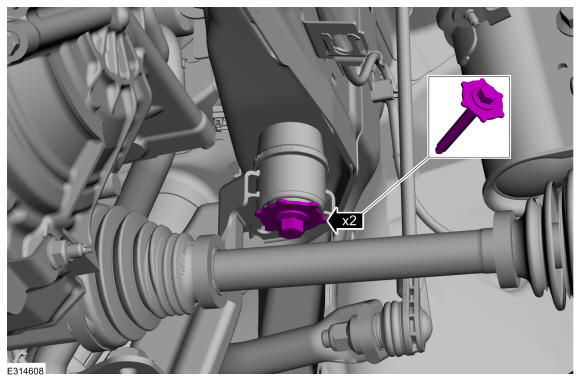

4. On both sides Install the new forward subframe bolts finger tight.

   Courtesy of FORD MOTOR COMPANY

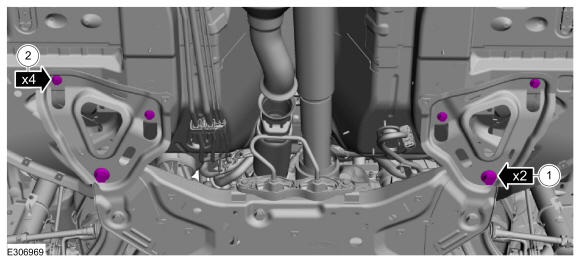

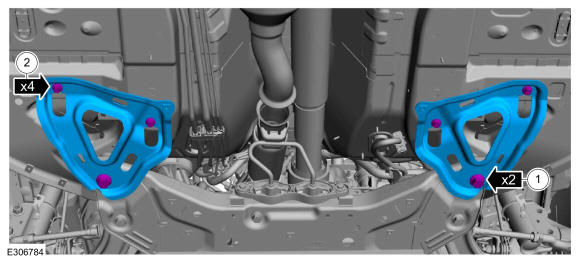

5. 1. Install the subframe brackets and the new rearward subframe bolts finger tight.
   2. Install the new subframe bracket bolts finger tight.

   Courtesy of FORD MOTOR COMPANY

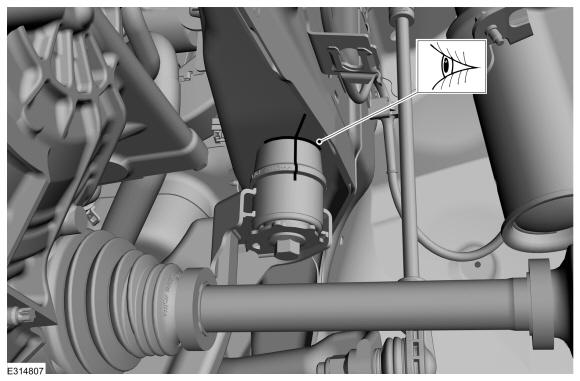

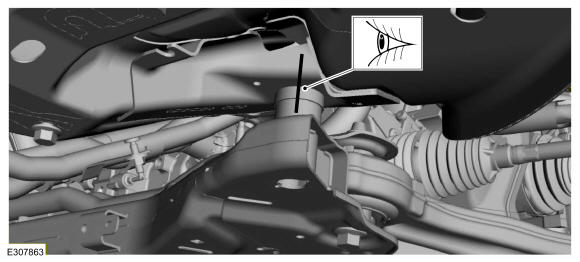

6. NOTE: Rear mounting location shown.

   On both sides Align index-mark made during removal.

   Courtesy of FORD MOTOR COMPANY

7. NOTE: Front mounting location shown.

   On both sides Align index-mark made during removal.

   Courtesy of FORD MOTOR COMPANY

8. On both sides Tighten the forward subframe bolts.

   Torque: 85 lb.ft (115 Nm)

   Courtesy of FORD MOTOR COMPANY

9. 1. Tighten the bolts.

      Torque: Stage 1: 159 lb.ft (215 Nm) | Stage 2: 120°

   2. Tighten the bolts.

      Torque: 46 lb.ft (63 Nm)

   Courtesy of FORD MOTOR COMPANY

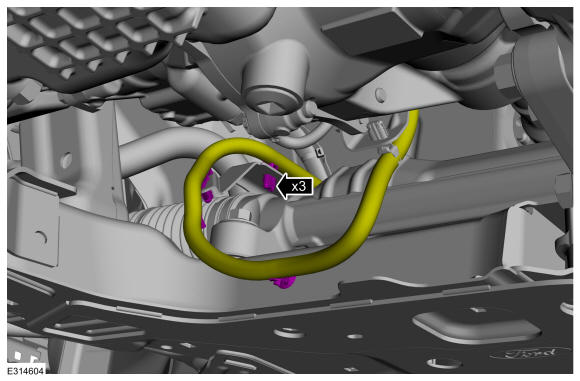

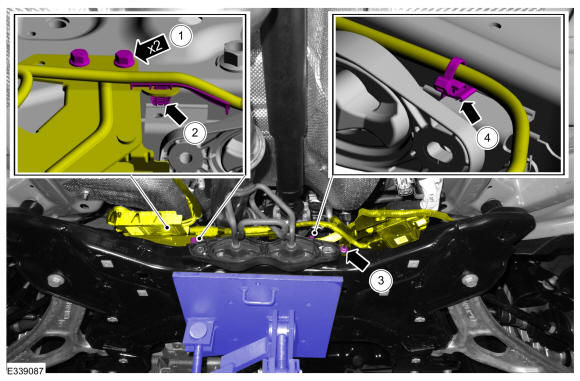

10. Clip the wire harness retainers.

    Courtesy of FORD MOTOR COMPANY

11. Clip the wire harness retainers.

    Courtesy of FORD MOTOR COMPANY

    Diesel

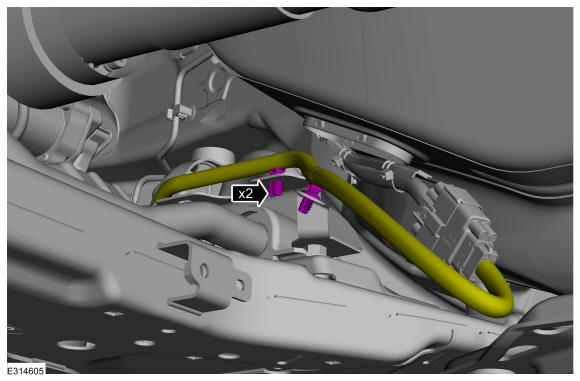

12. 1. Install the bolts.

       Torque: 71 lb.in (8 Nm)

    2. Clip the wire harness retainer.
    3. Install the new nut.

       Torque: 71 lb.in (8 Nm)

    4. Clip the wire harness retainer.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

13. NOTE: 2.0L GTDI shown, others similar.

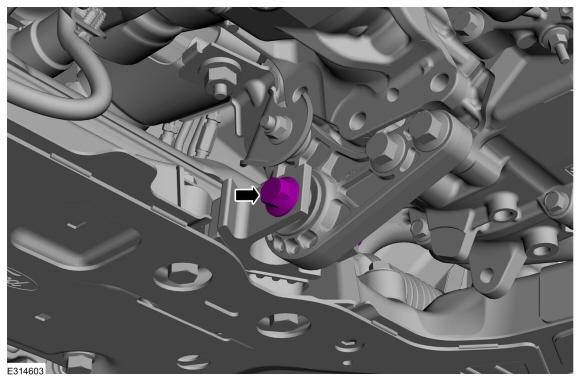

    Install the new roll restrictor bolt.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

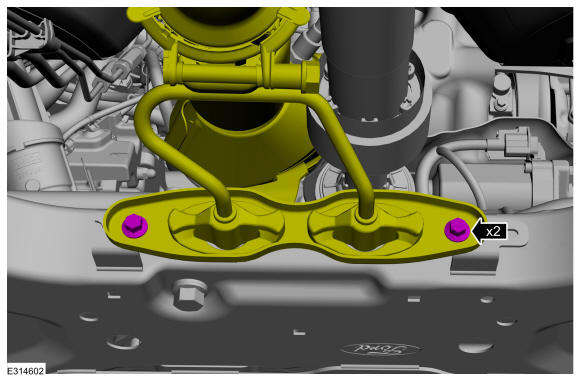

14. Install the exhaust support bracket bolts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

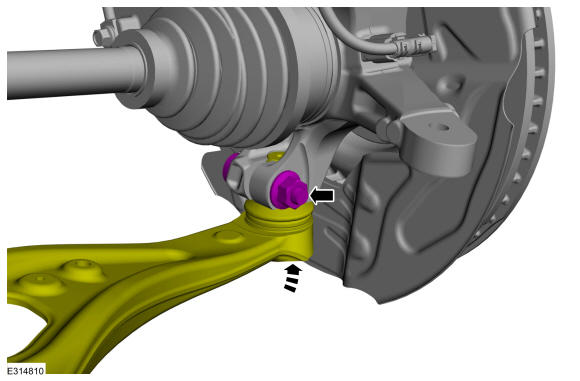

15. On both sides. Connect the lower ball joint to the wheel knuckle and install the new ball joint pinch bolt and nut.

    Torque: 81 lb.ft (110 Nm)

    Courtesy of FORD MOTOR COMPANY

16. NOTE: Make sure that the ball joint ball does not rotate.

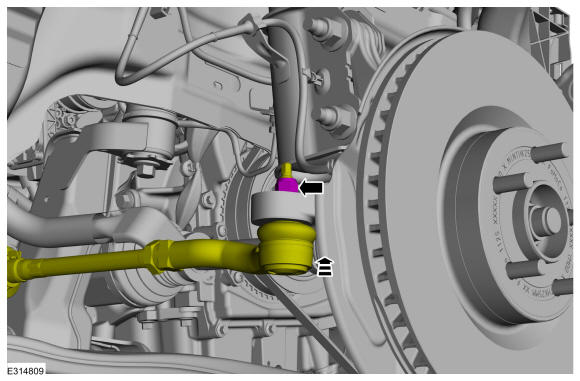

    On both sides. Connect the tie rod end to the wheel knuckle and install the new tie rod end nut.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

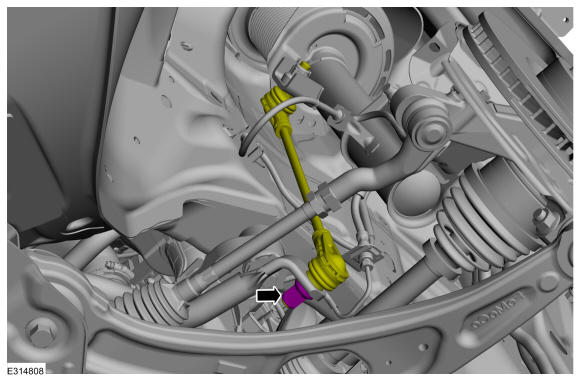

17. NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.
    NOTE: Use the hex-holding feature to prevent the ball stud from turning while removing or installing the stabilizer bar link nut.

    On both sides. Position the stabilizer bar links and install the new stabilizer bar link lower nut.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

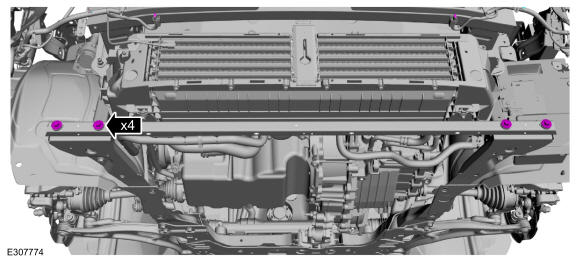

18. On both sides. Install the front outer side member with new bolts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

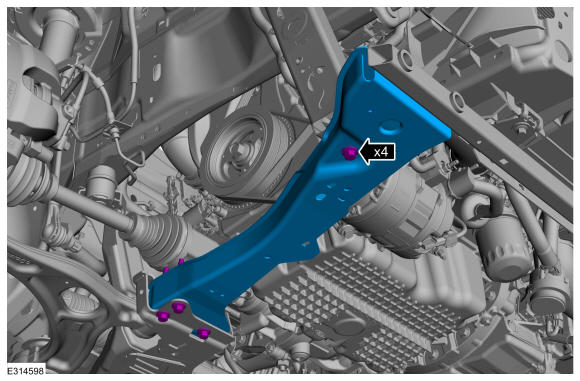

19. Install the subframe support bracket bolts.

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

20. Install the front bumper cover. Refer to: Front Bumper Cover .

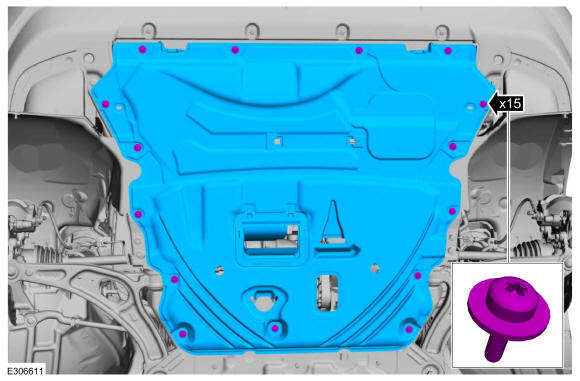

21. Install the underbody shield and the retainers.

    Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

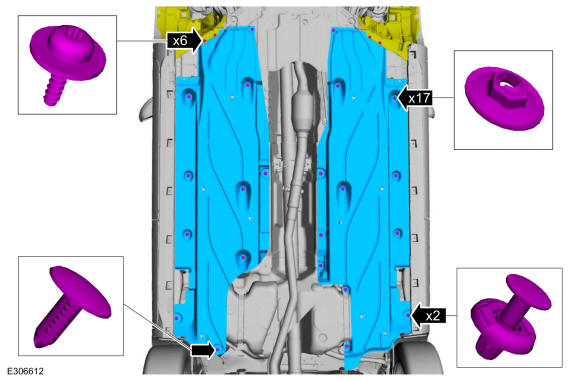

22. Install the underbody shields and the retainers.

    Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

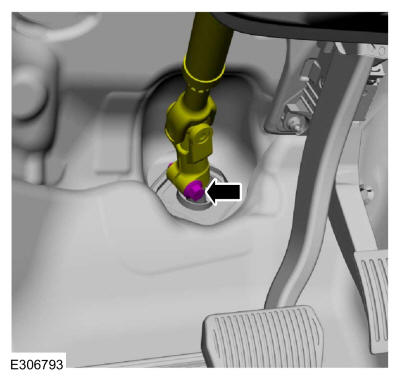

23. Position the steering shaft coupler and install the new steering shaft coupler bolt.

    Torque: 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

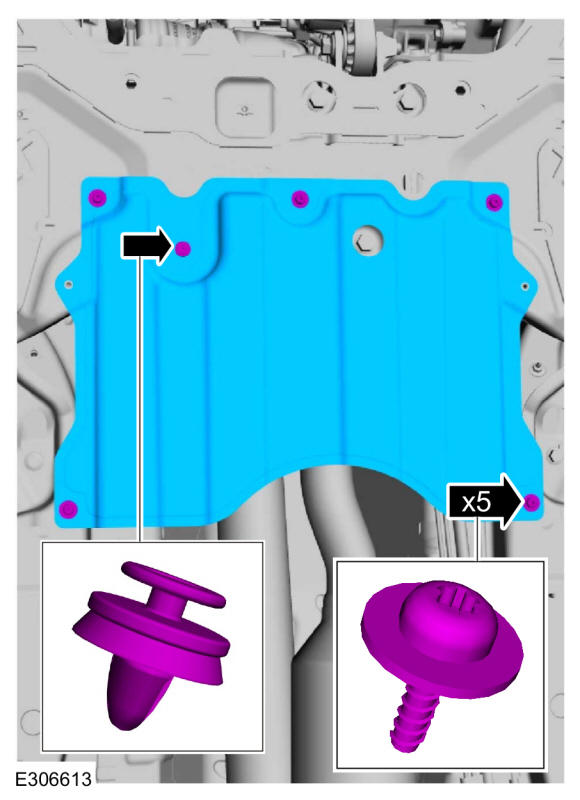

24. Install the underbody shield and the retainers.

    Torque: 13 lb.in (1.5 Nm)

    Courtesy of FORD MOTOR COMPANY

25. Install the fender splash shield. Refer to: Fender Splash Shield .
26. Install the wheels and tires. Refer to: Wheel and Tire .

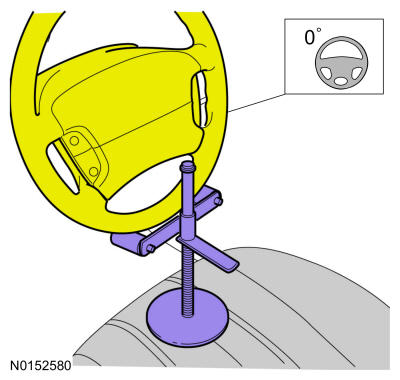

27. Remove the holding device.

    Courtesy of FORD MOTOR COMPANY

28. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
29. Check and if necessary adjust front toe. Refer to: Front Toe Adjustment .
