OEM Electrical Wiring Diagram Introduction: Introduction

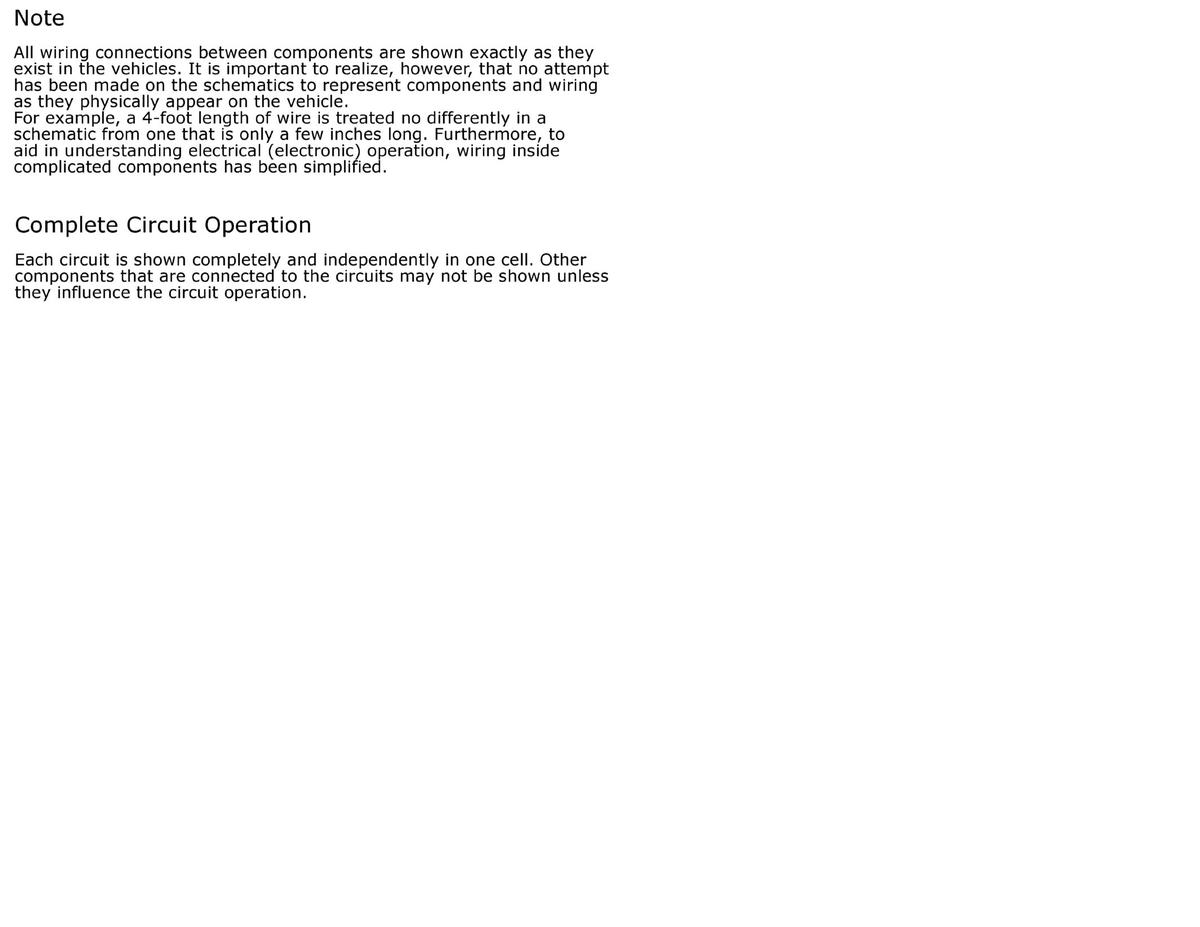

GFDWR91462Courtesy of FORD MOTOR COMPANY

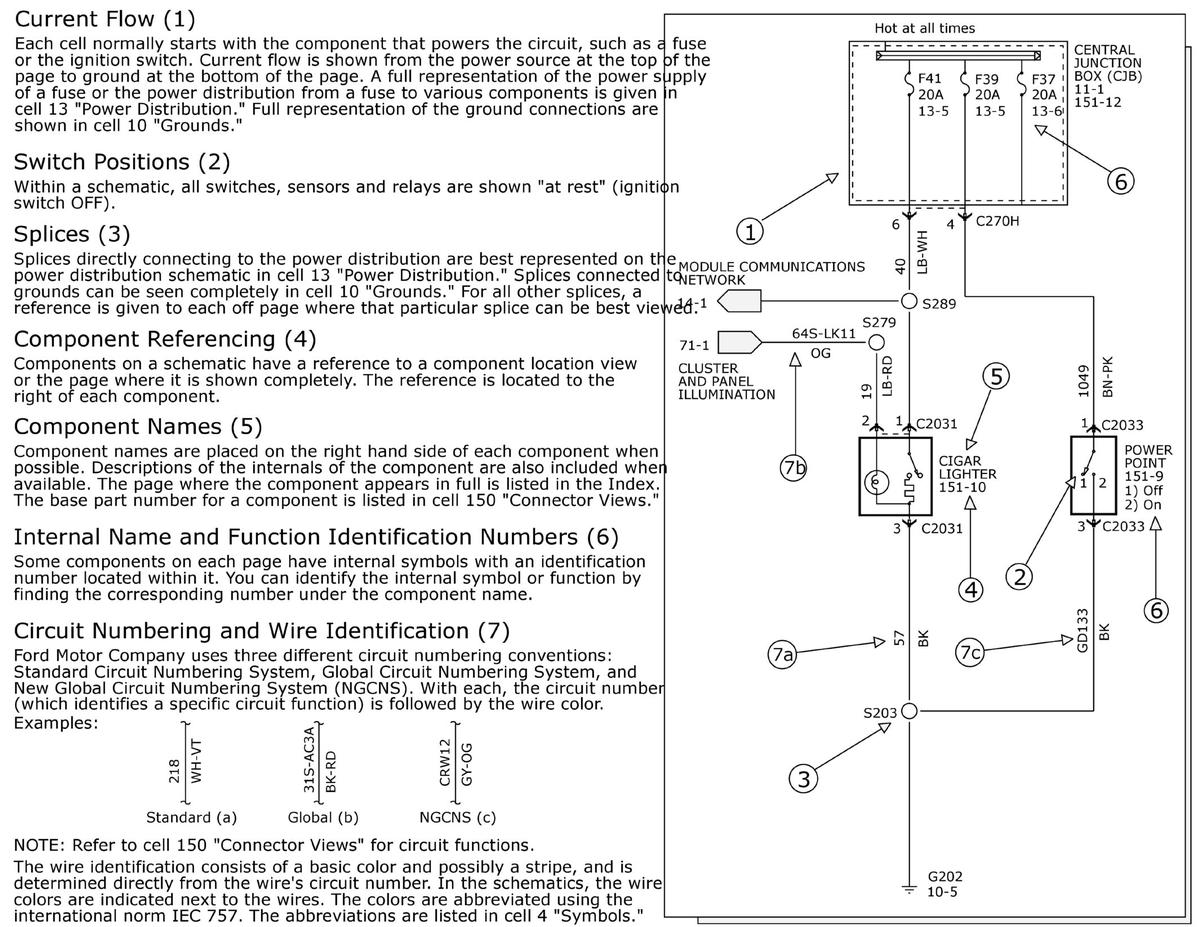

GFDWR91460Courtesy of FORD MOTOR COMPANY

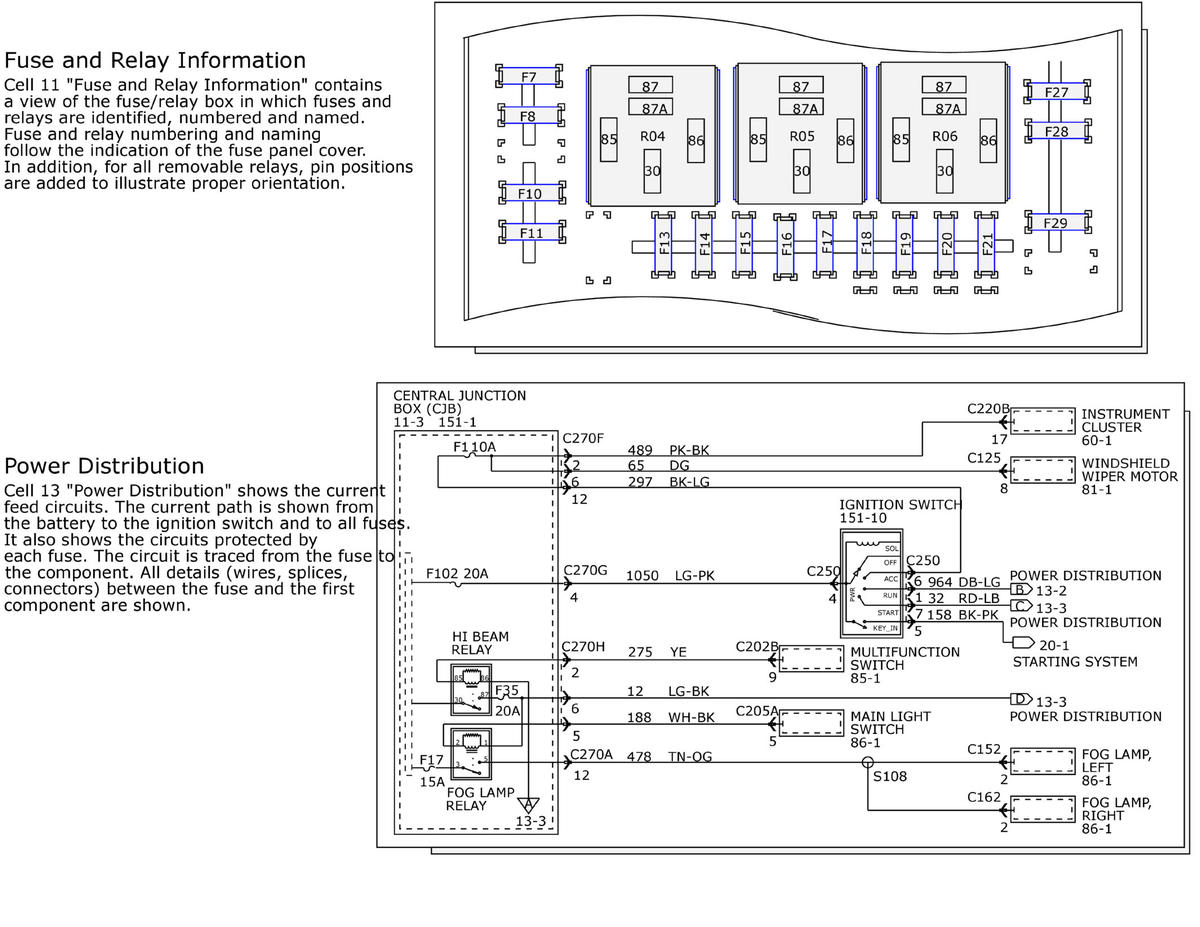

GFDWR91461Courtesy of FORD MOTOR COMPANY

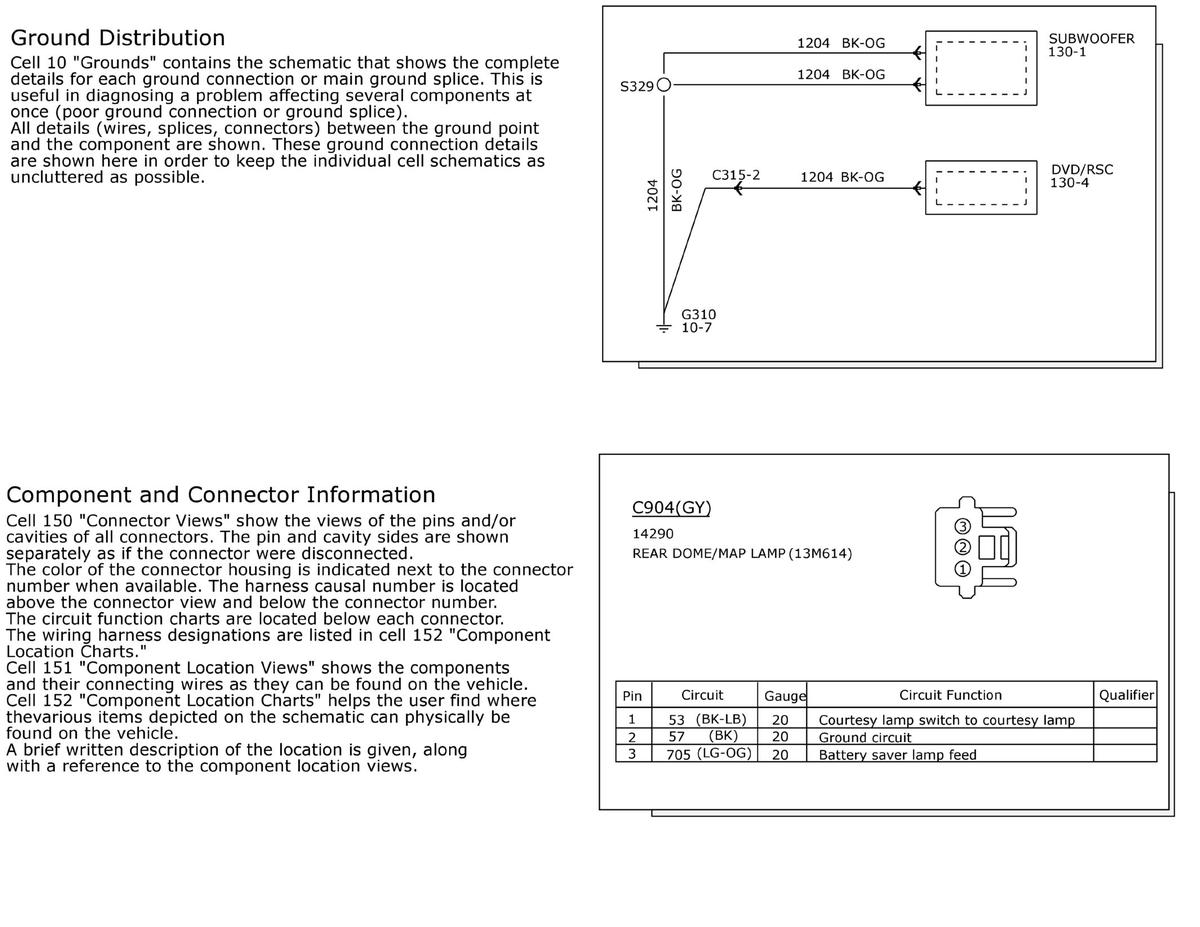

GFDWR91463Courtesy of FORD MOTOR COMPANY

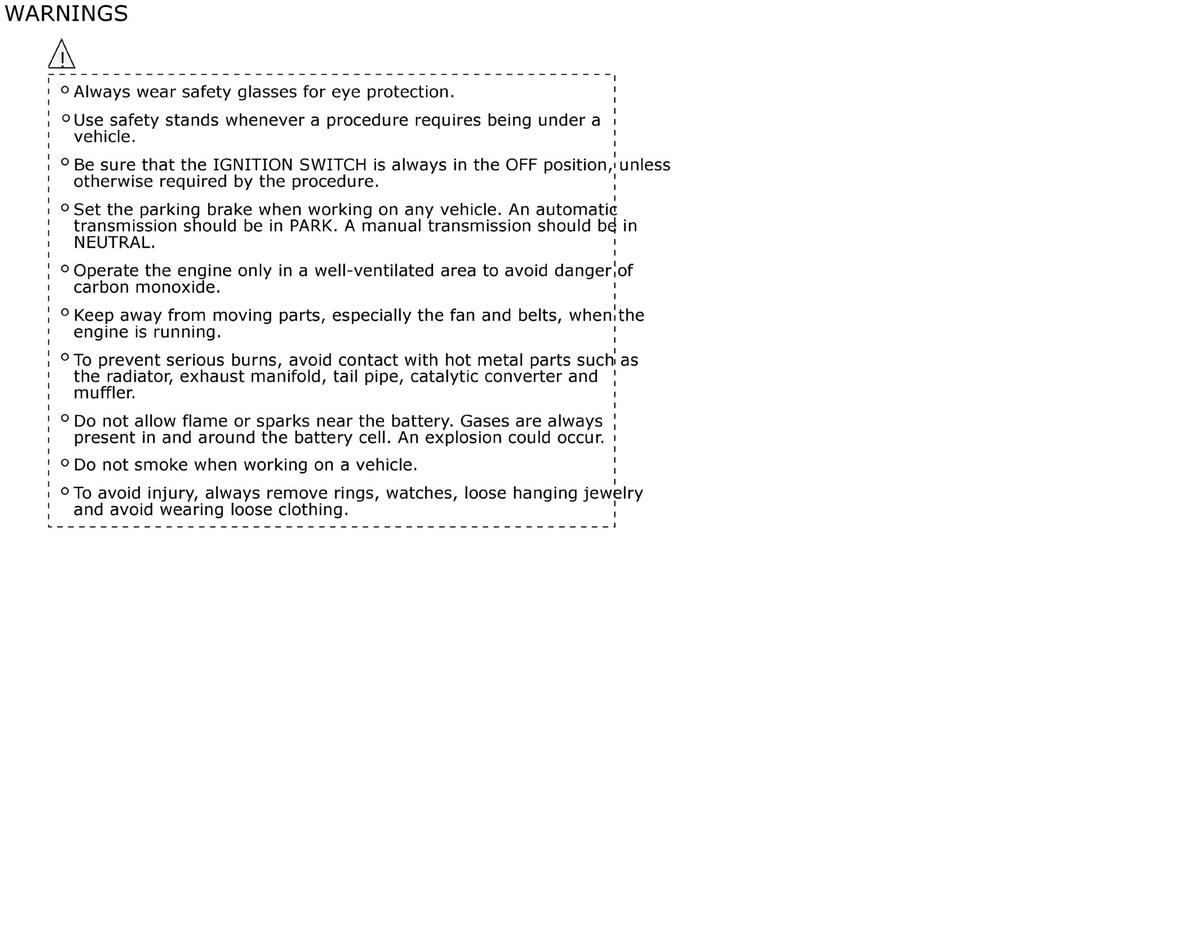

GFDWR91464Courtesy of FORD MOTOR COMPANY
