OEM Ground Distribution: Grounds

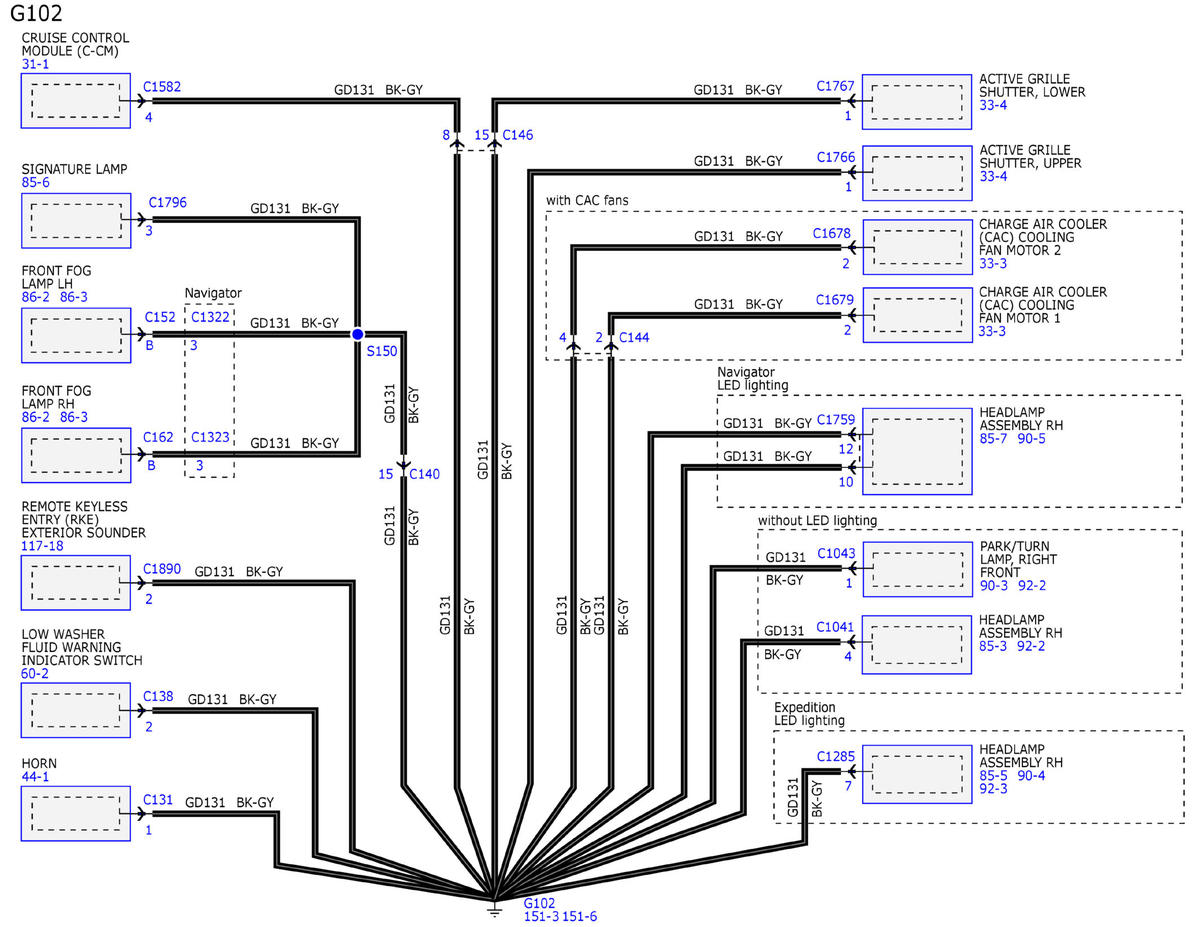

GFDWR102583Courtesy of FORD MOTOR COMPANY

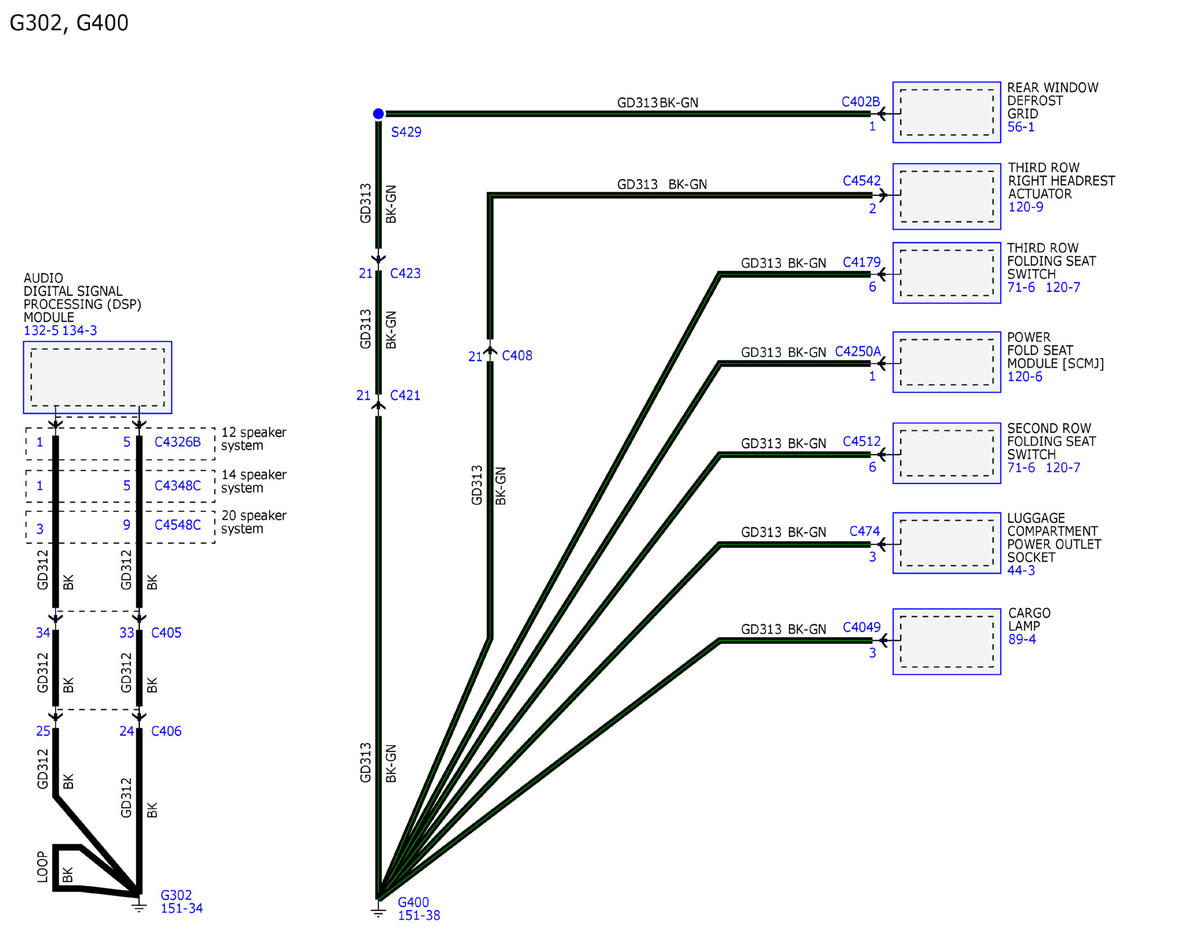

GFDWR102584Courtesy of FORD MOTOR COMPANY

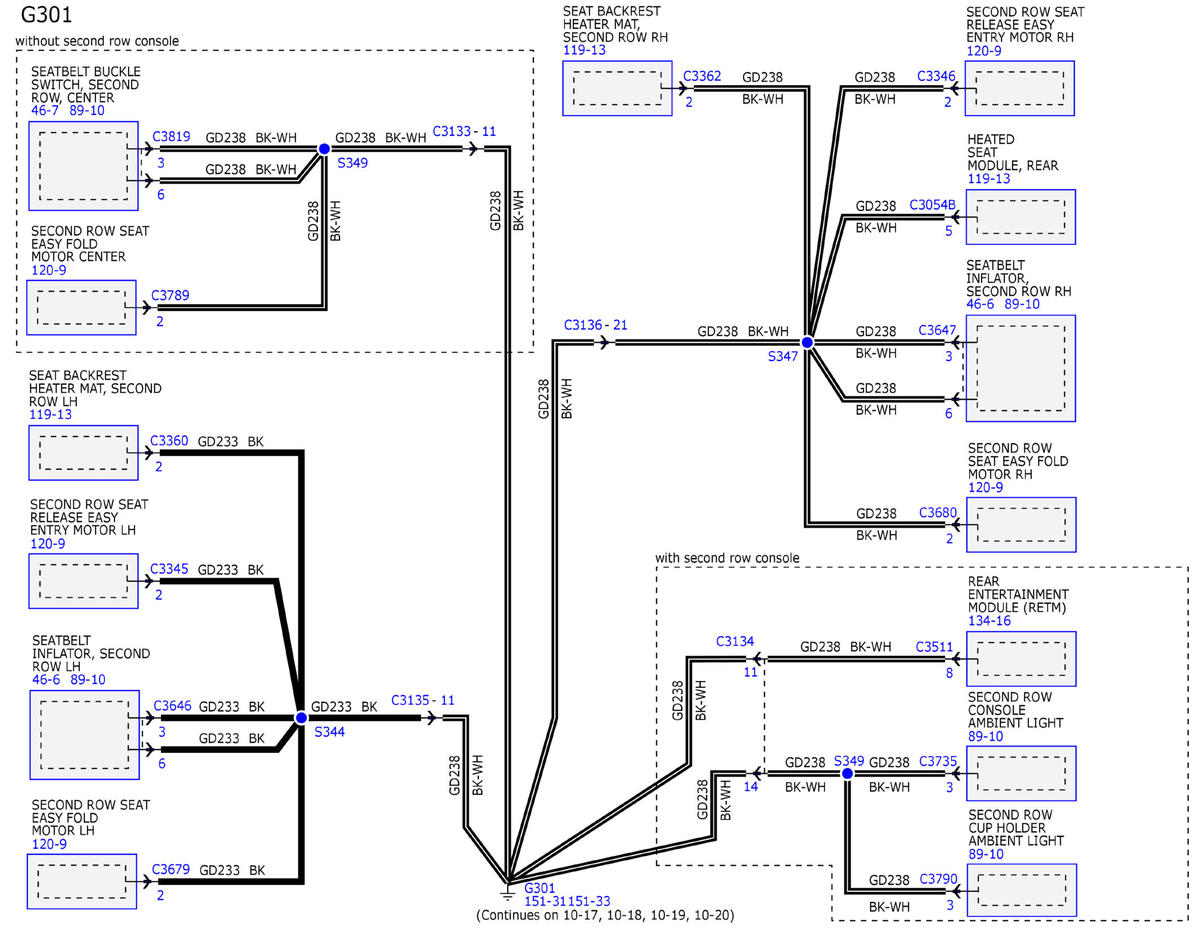

GFDWR102585Courtesy of FORD MOTOR COMPANY

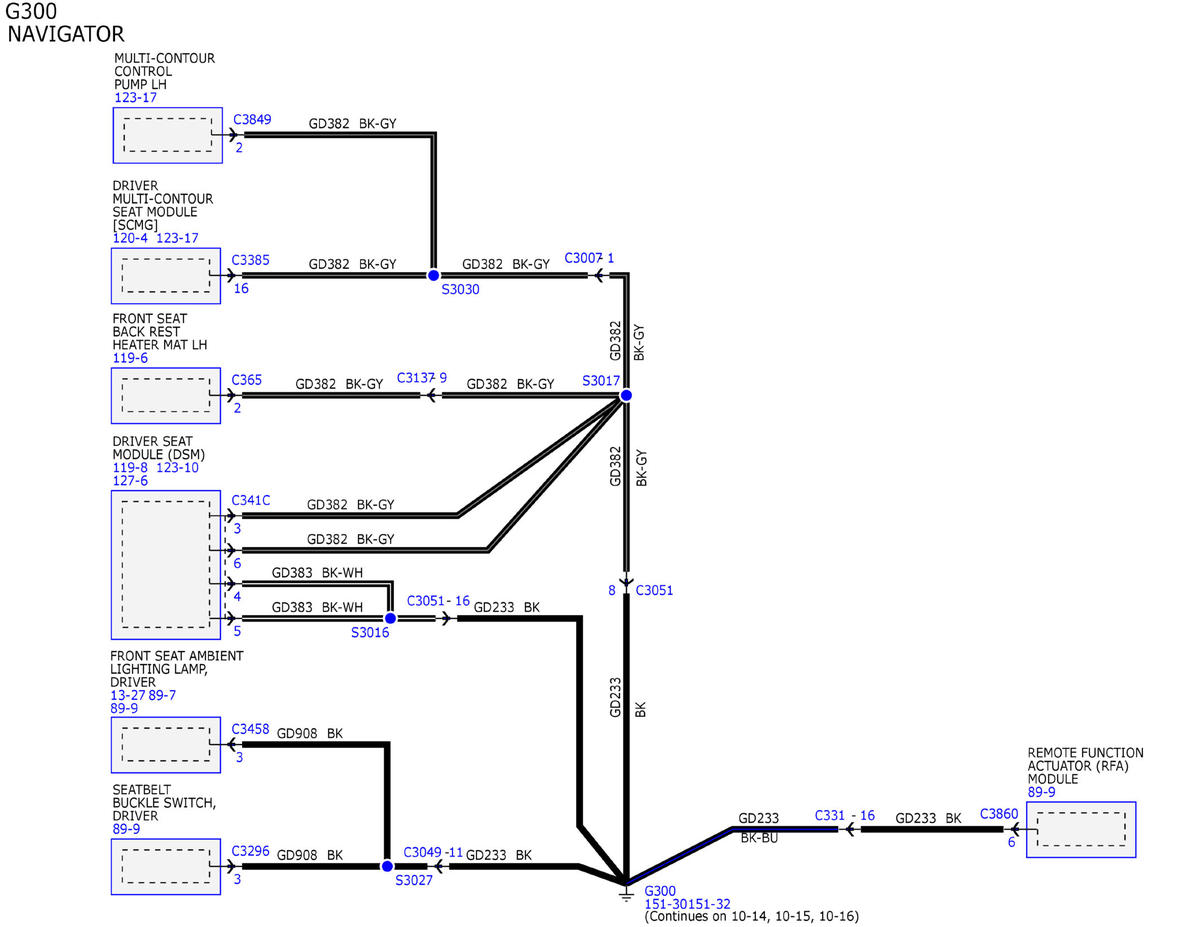

GFDWR102586Courtesy of FORD MOTOR COMPANY

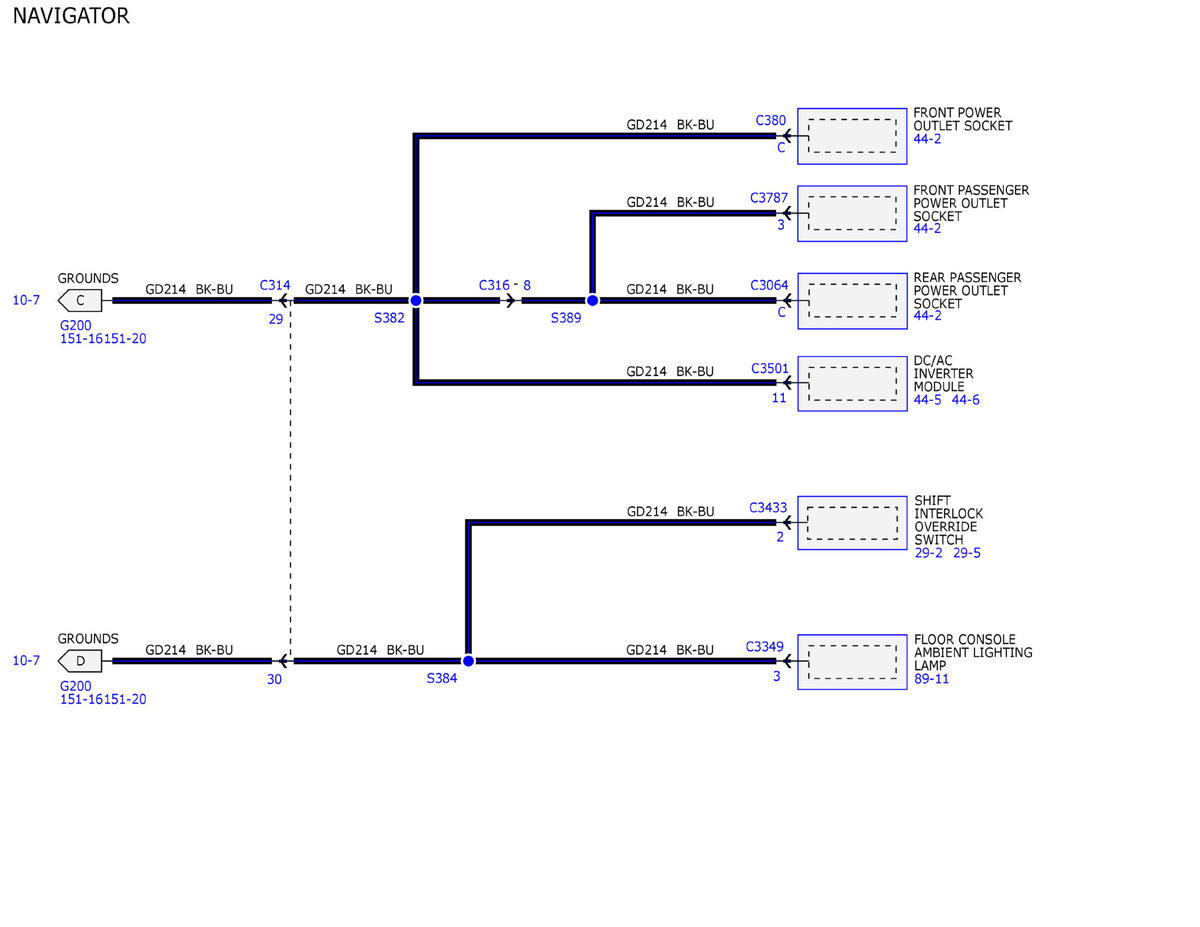

GFDWR102587Courtesy of FORD MOTOR COMPANY

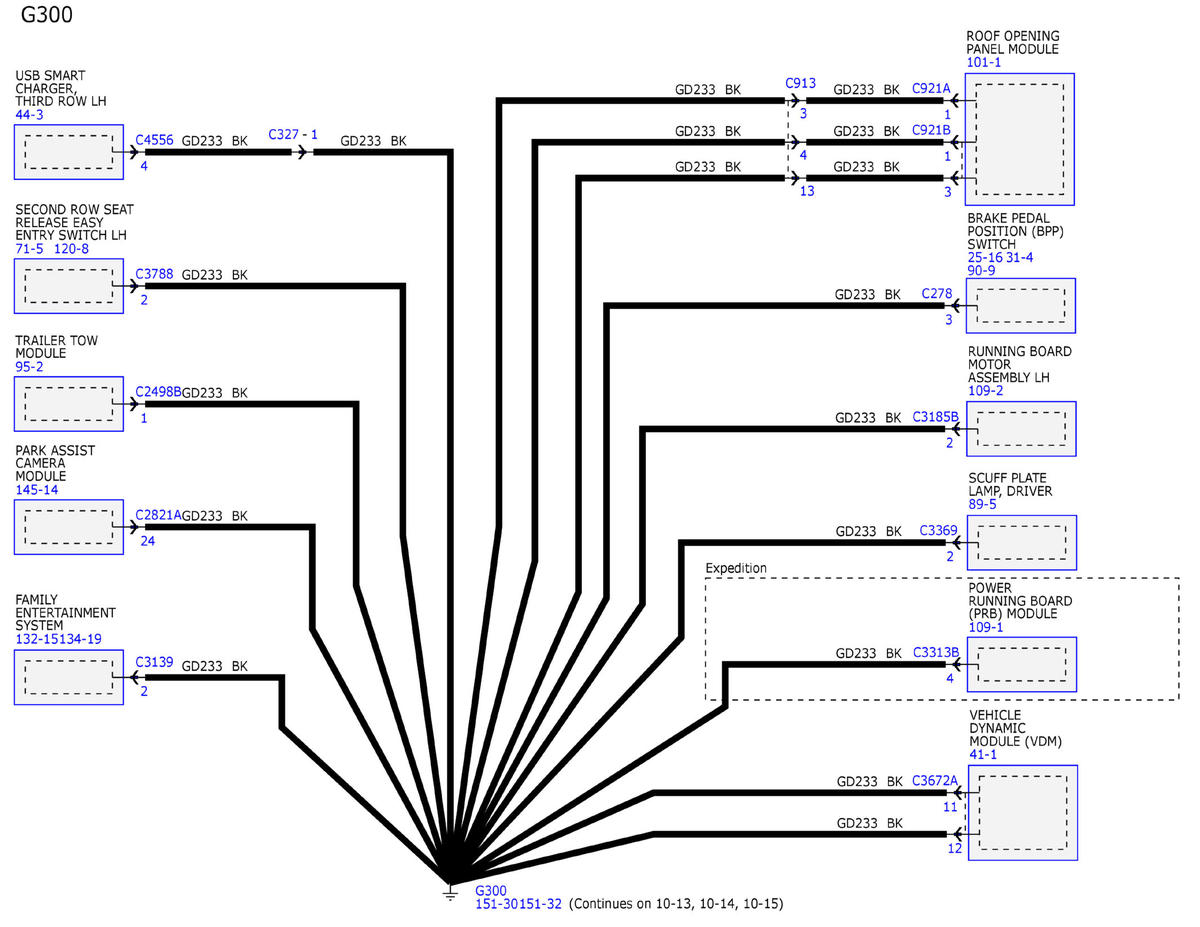

GFDWR102588Courtesy of FORD MOTOR COMPANY

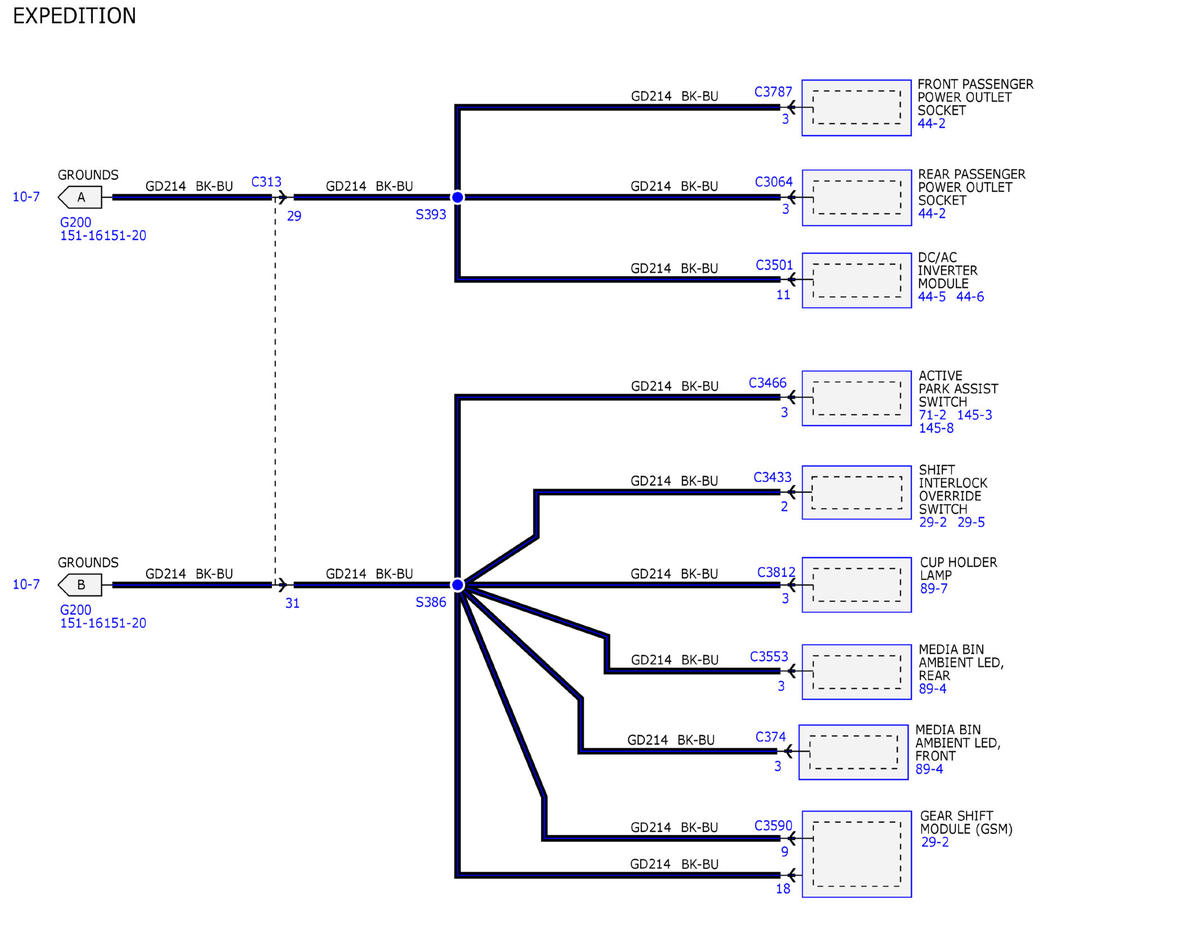

GFDWR102589Courtesy of FORD MOTOR COMPANY

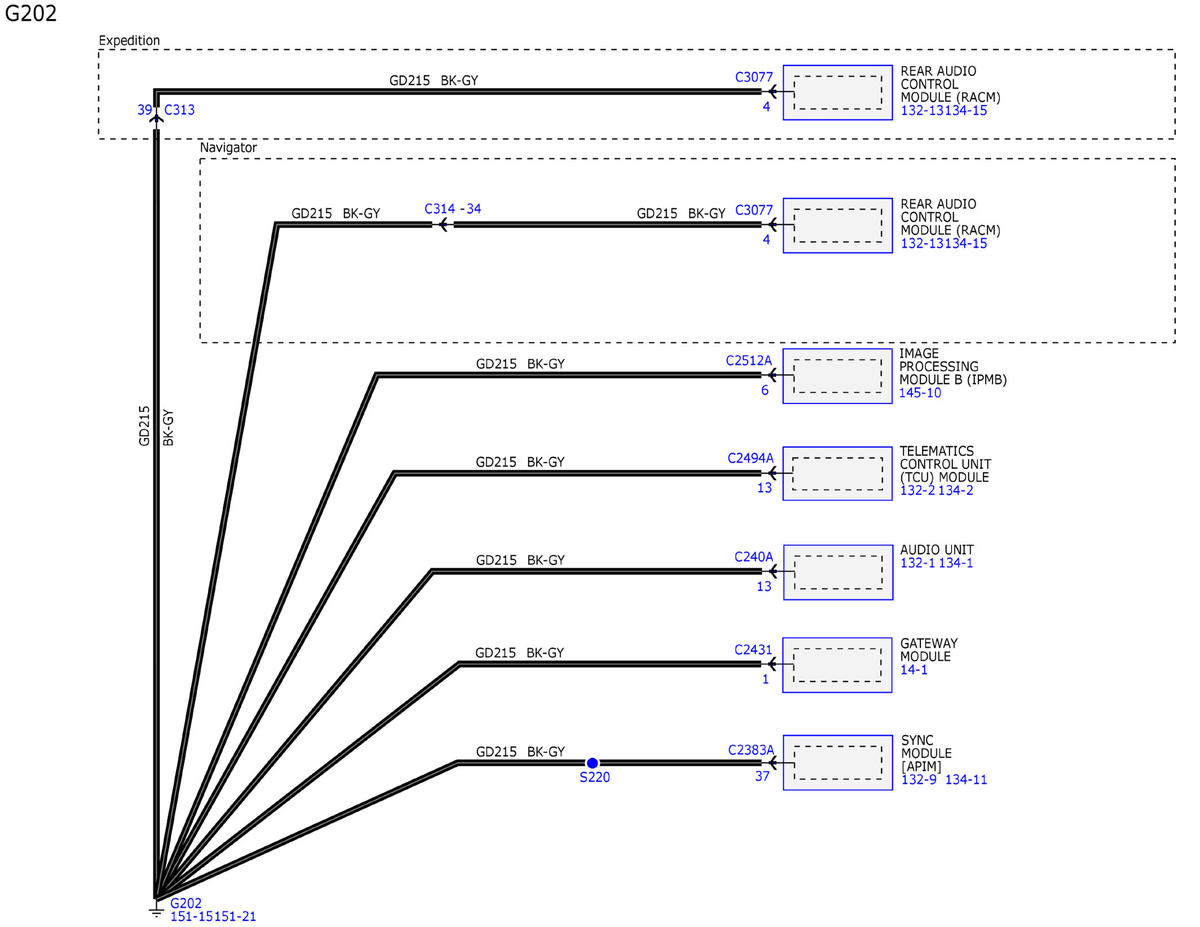

GFDWR102590Courtesy of FORD MOTOR COMPANY

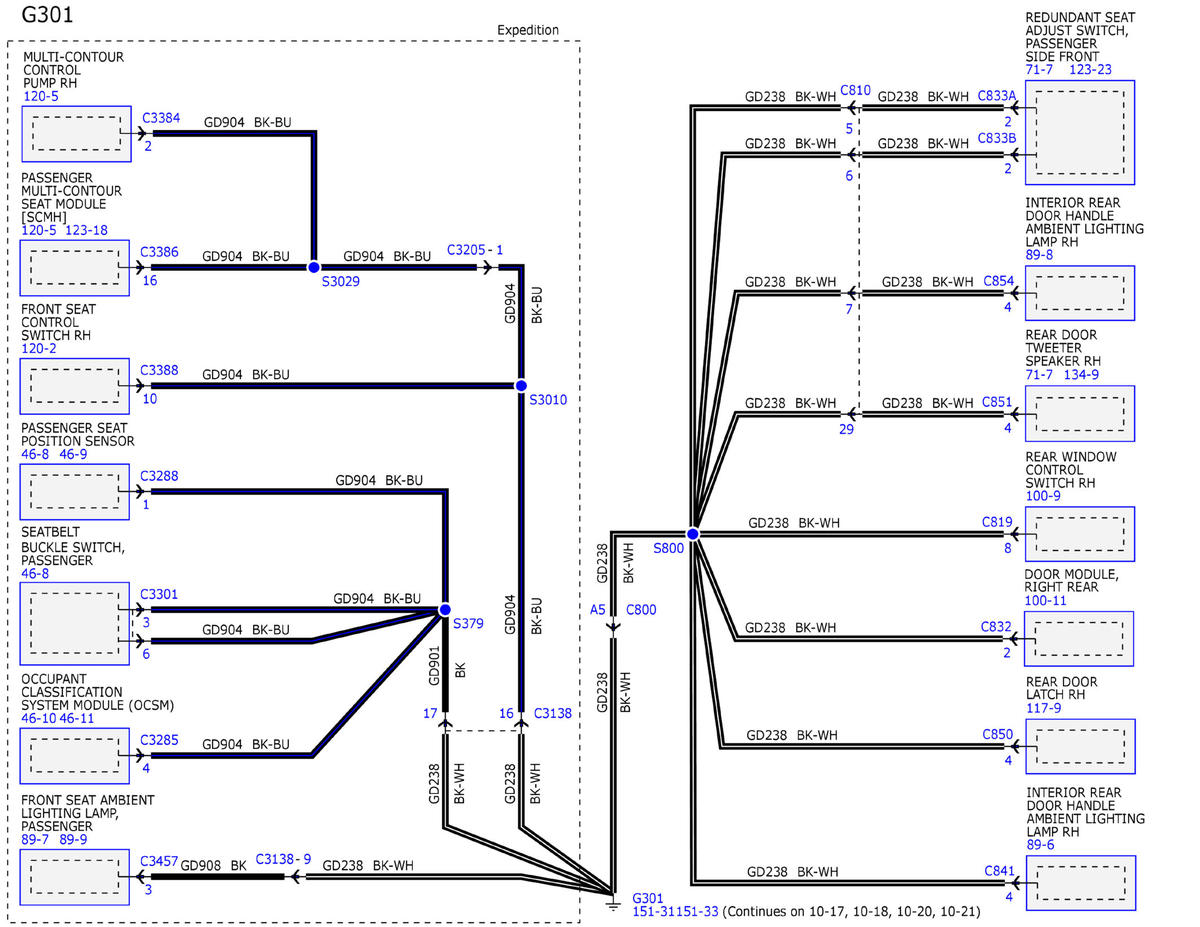

GFDWR102591Courtesy of FORD MOTOR COMPANY

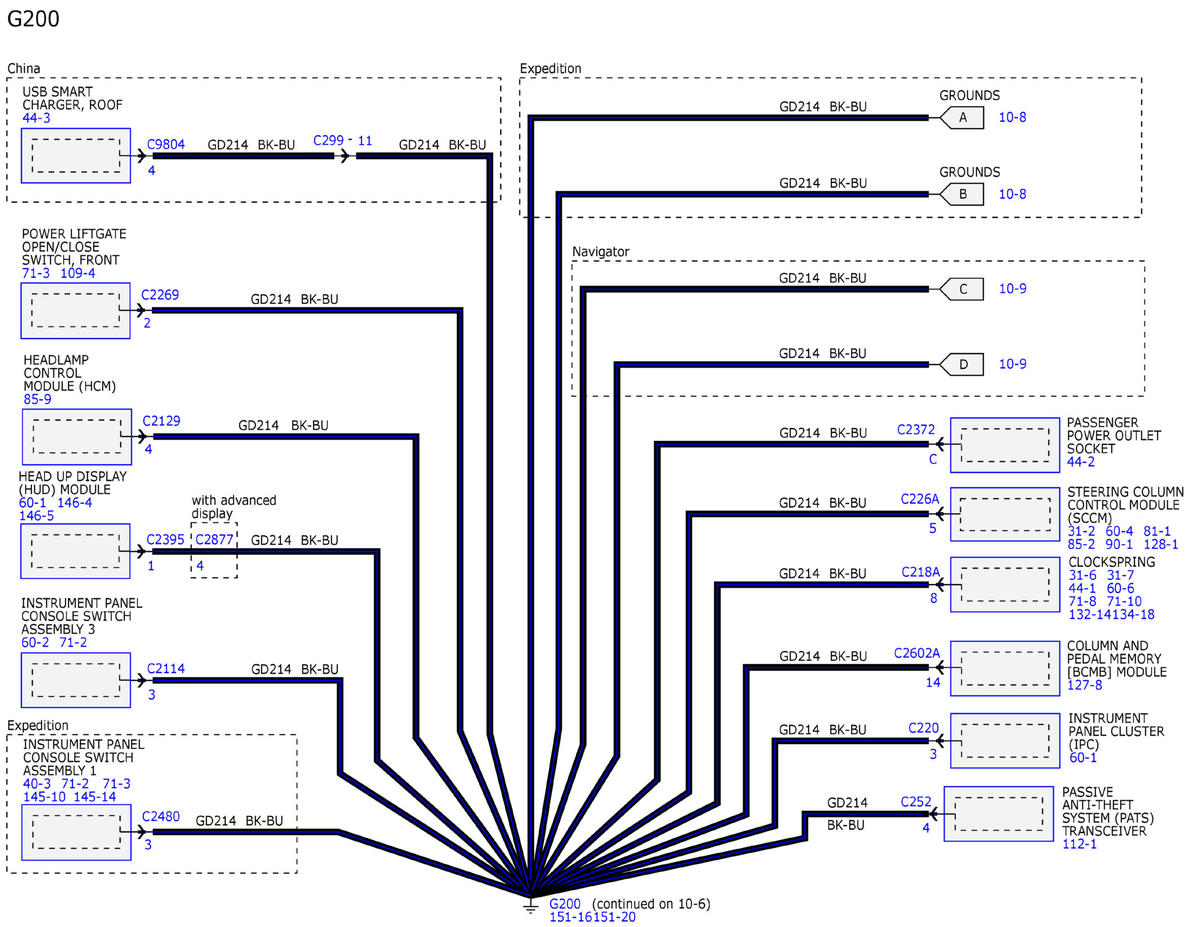

GFDWR102592Courtesy of FORD MOTOR COMPANY

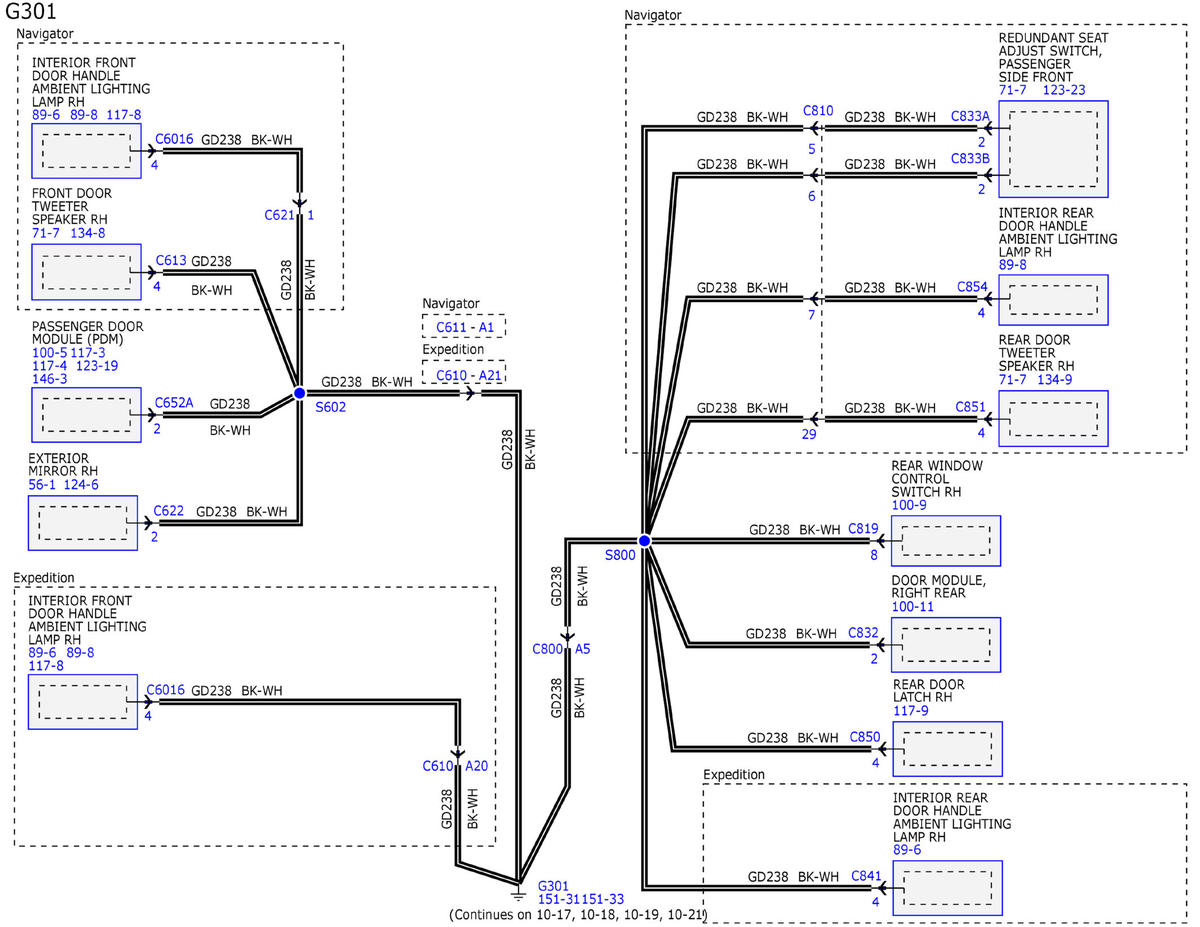

GFDWR102593Courtesy of FORD MOTOR COMPANY

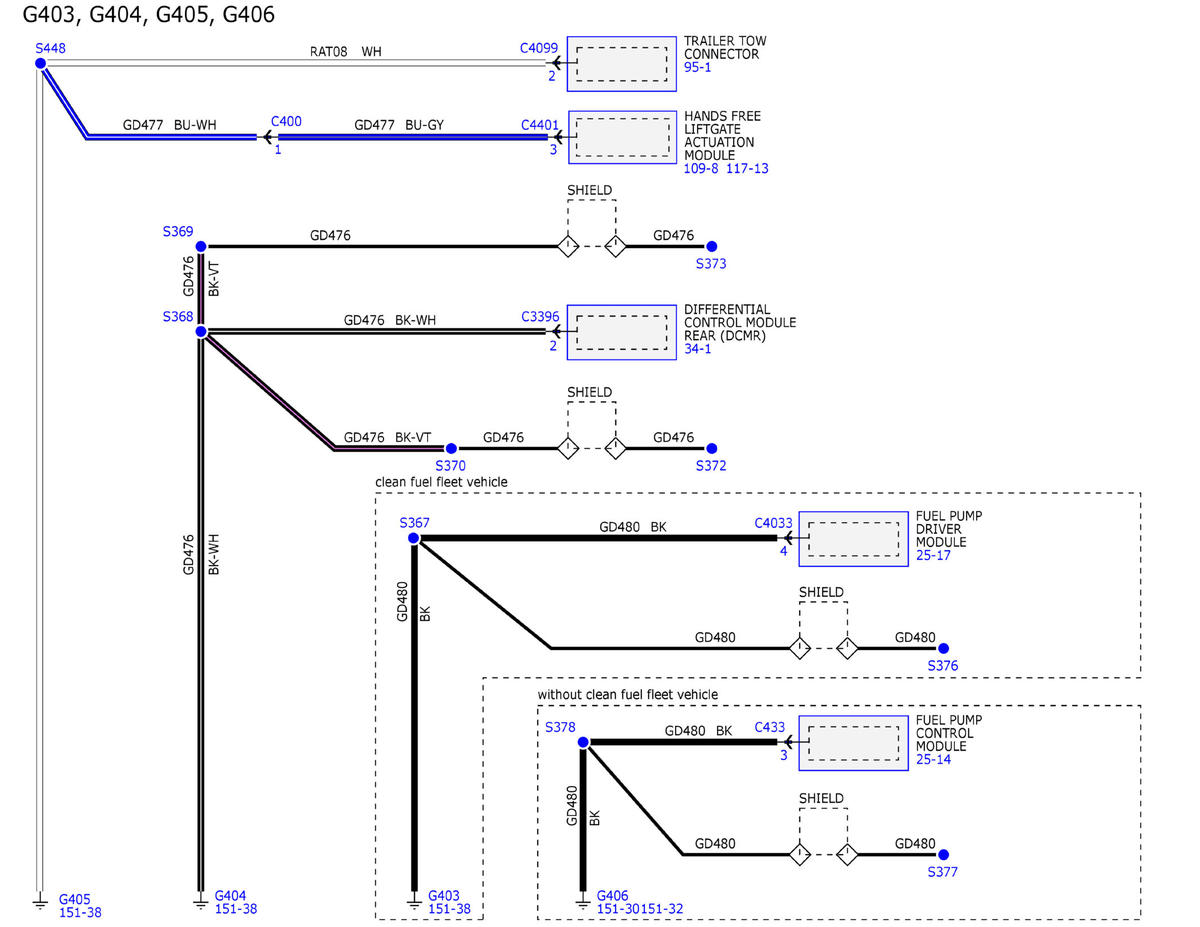

GFDWR102594Courtesy of FORD MOTOR COMPANY

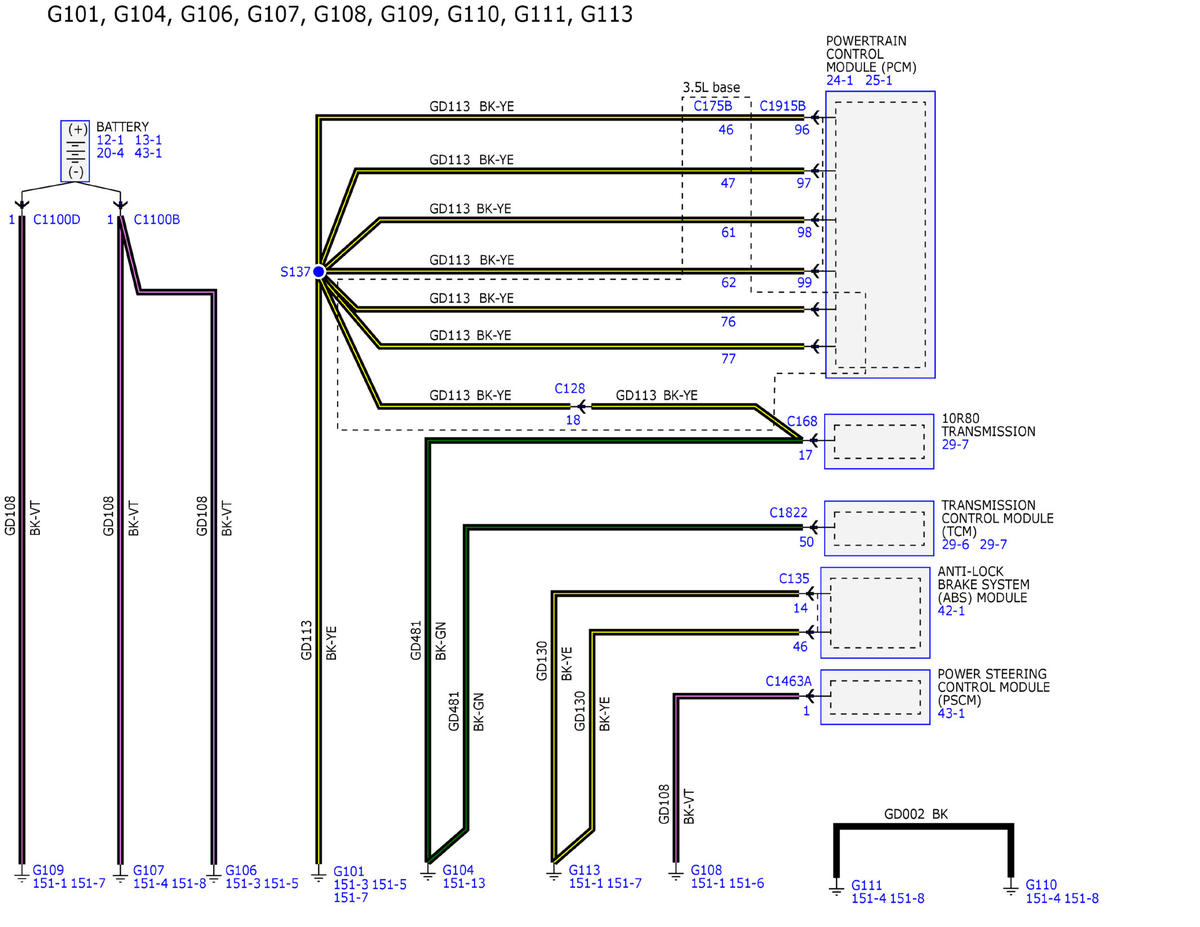

GFDWR102595Courtesy of FORD MOTOR COMPANY

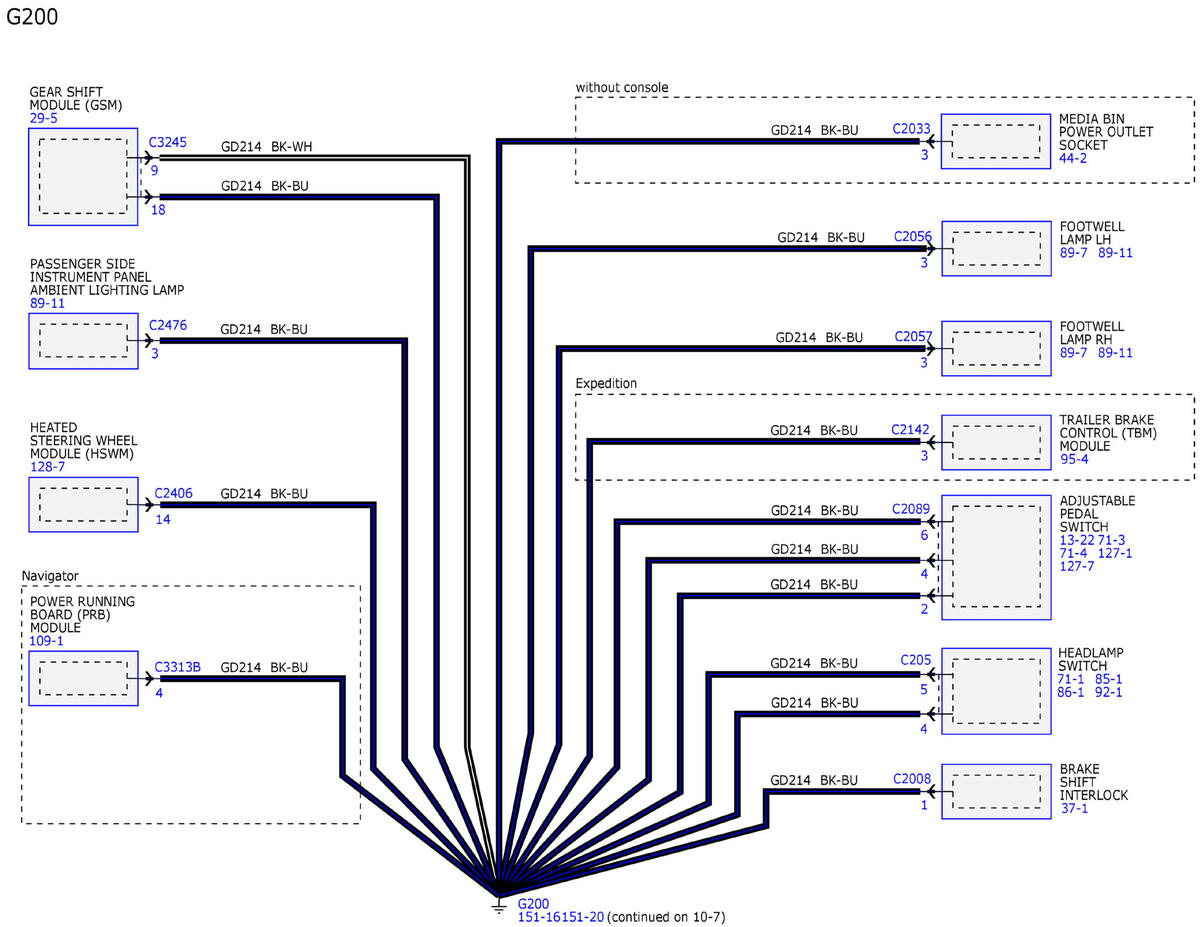

GFDWR102596Courtesy of FORD MOTOR COMPANY

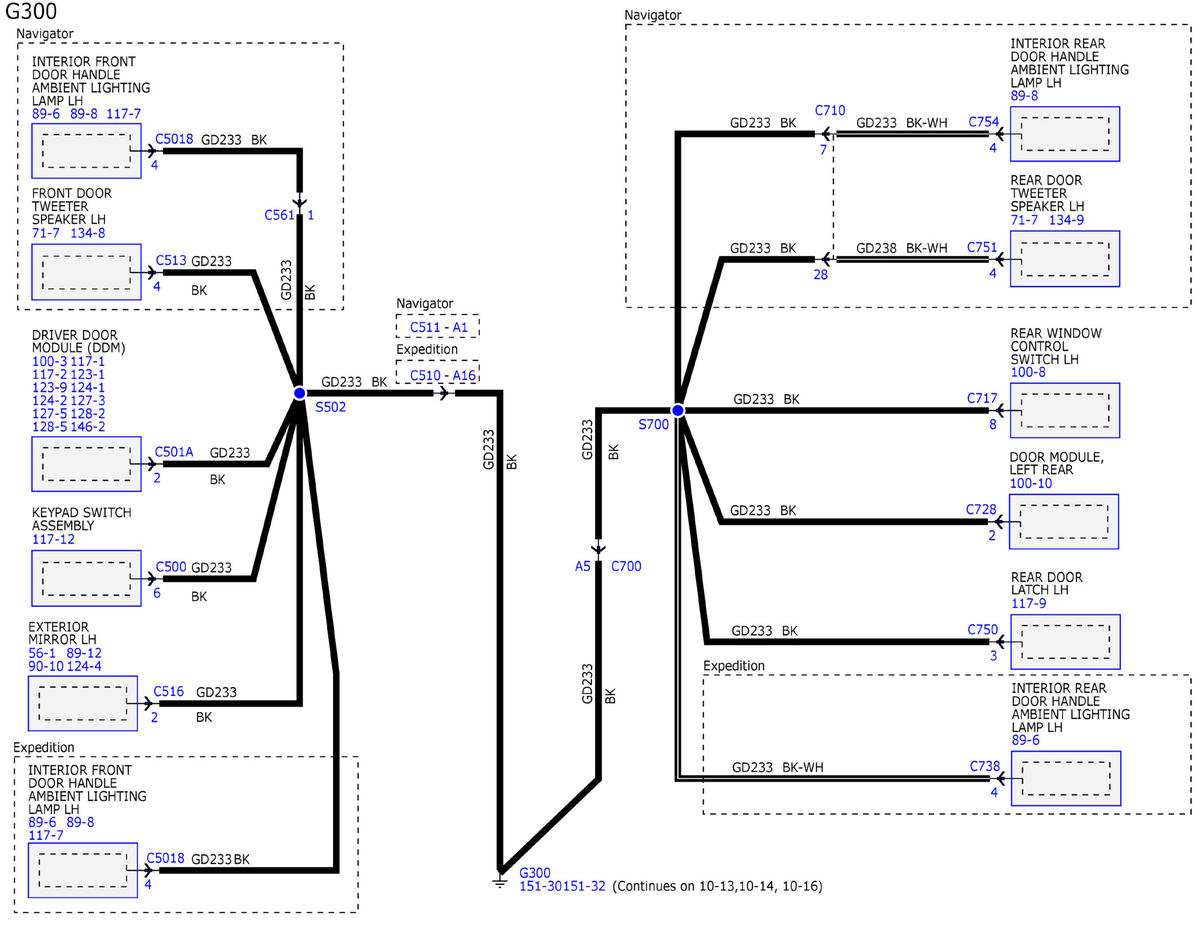

GFDWR102597Courtesy of FORD MOTOR COMPANY

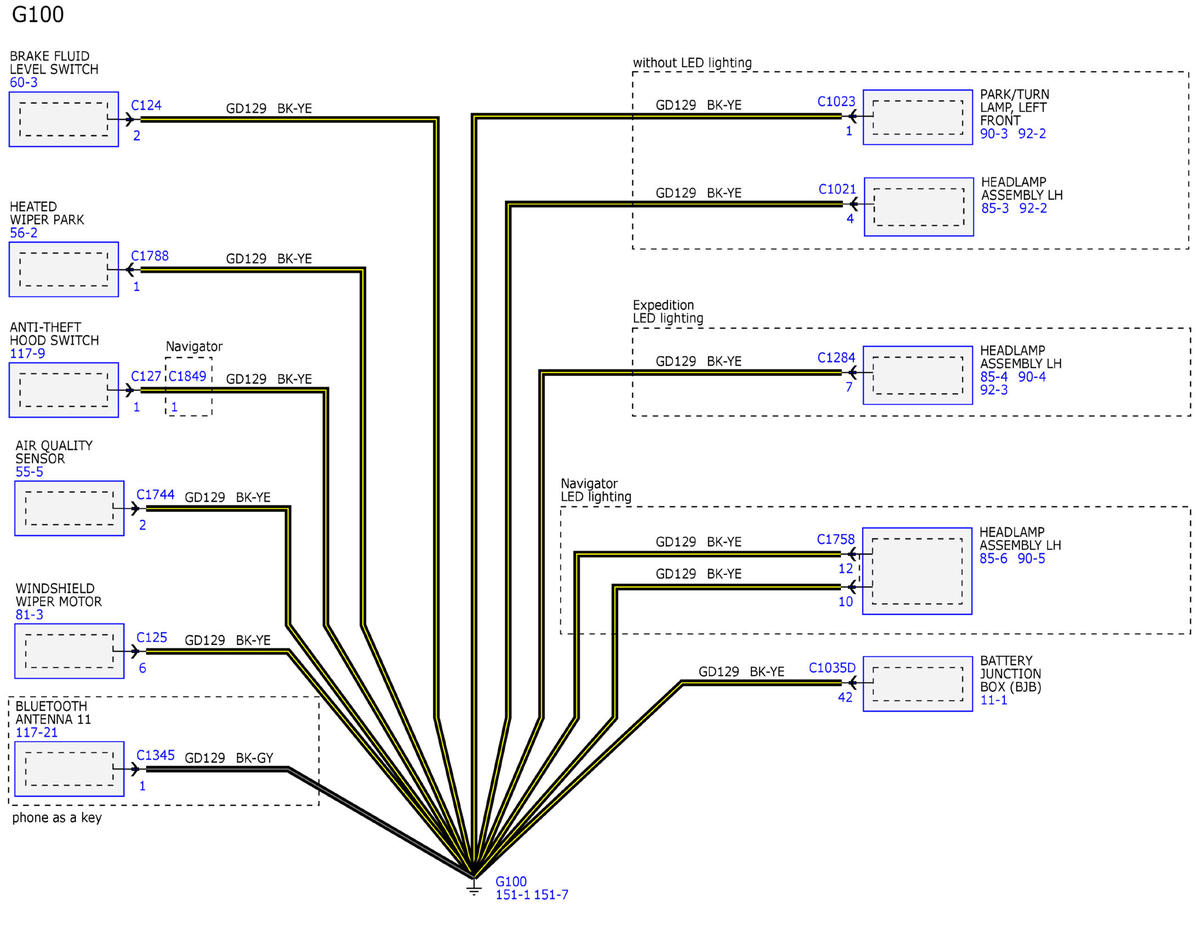

GFDWR102598Courtesy of FORD MOTOR COMPANY

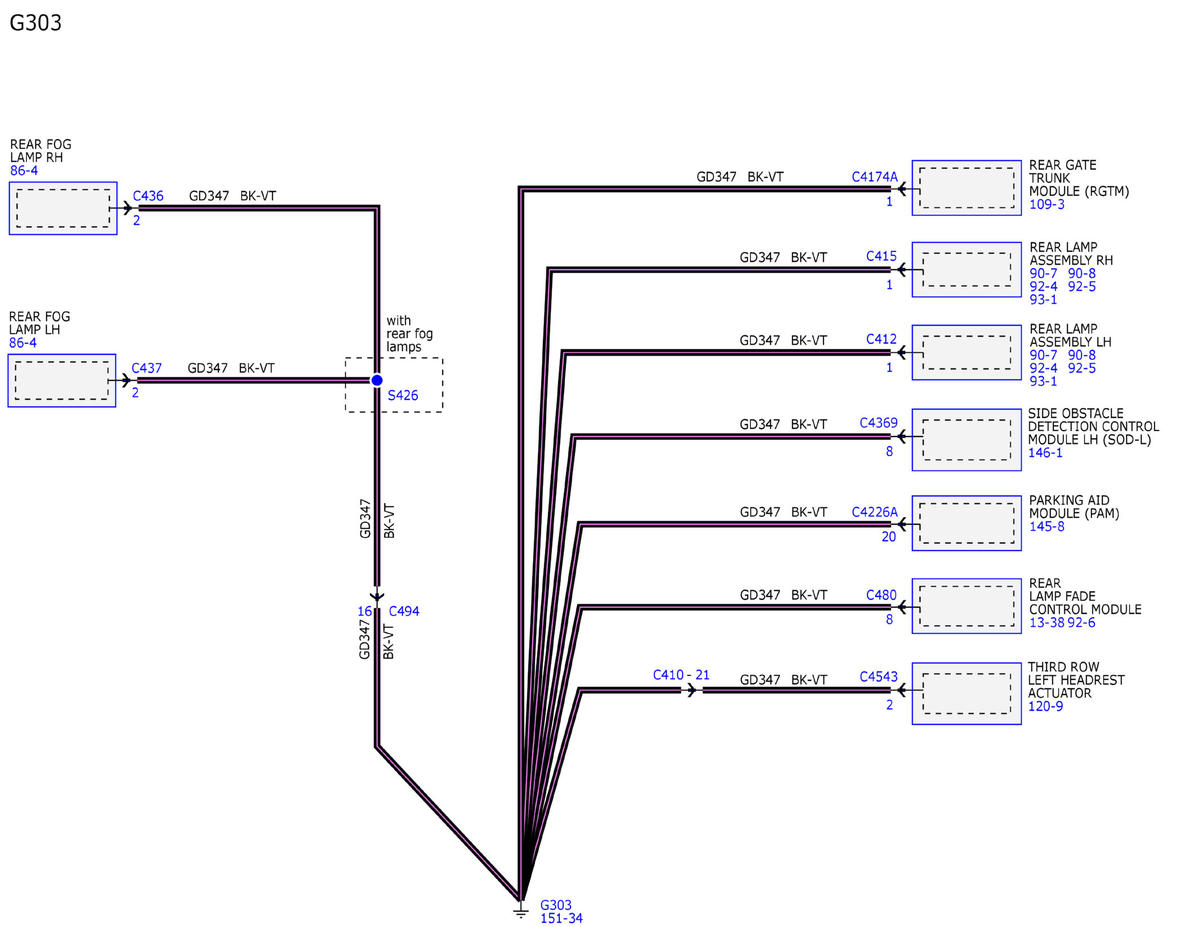

GFDWR102599Courtesy of FORD MOTOR COMPANY

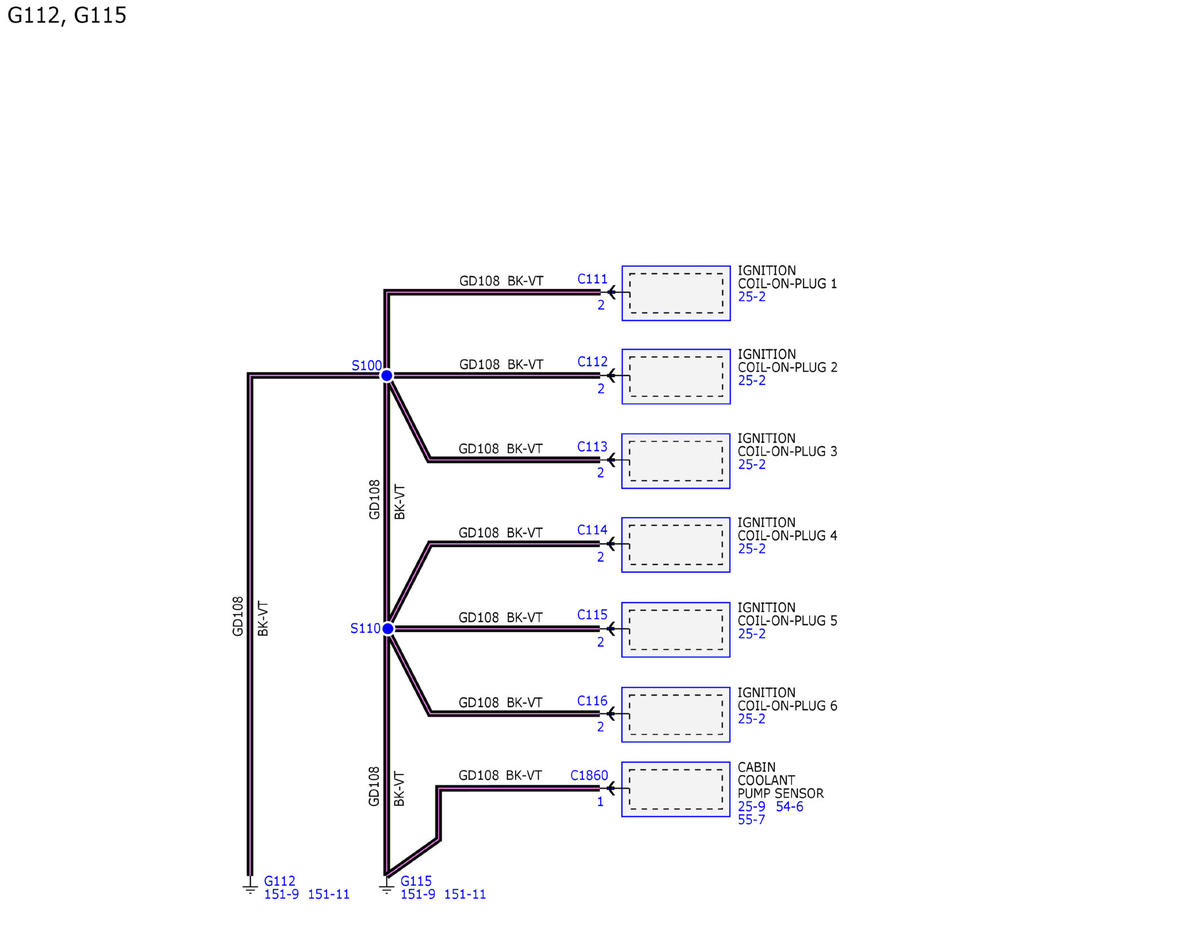

GFDWR102600Courtesy of FORD MOTOR COMPANY

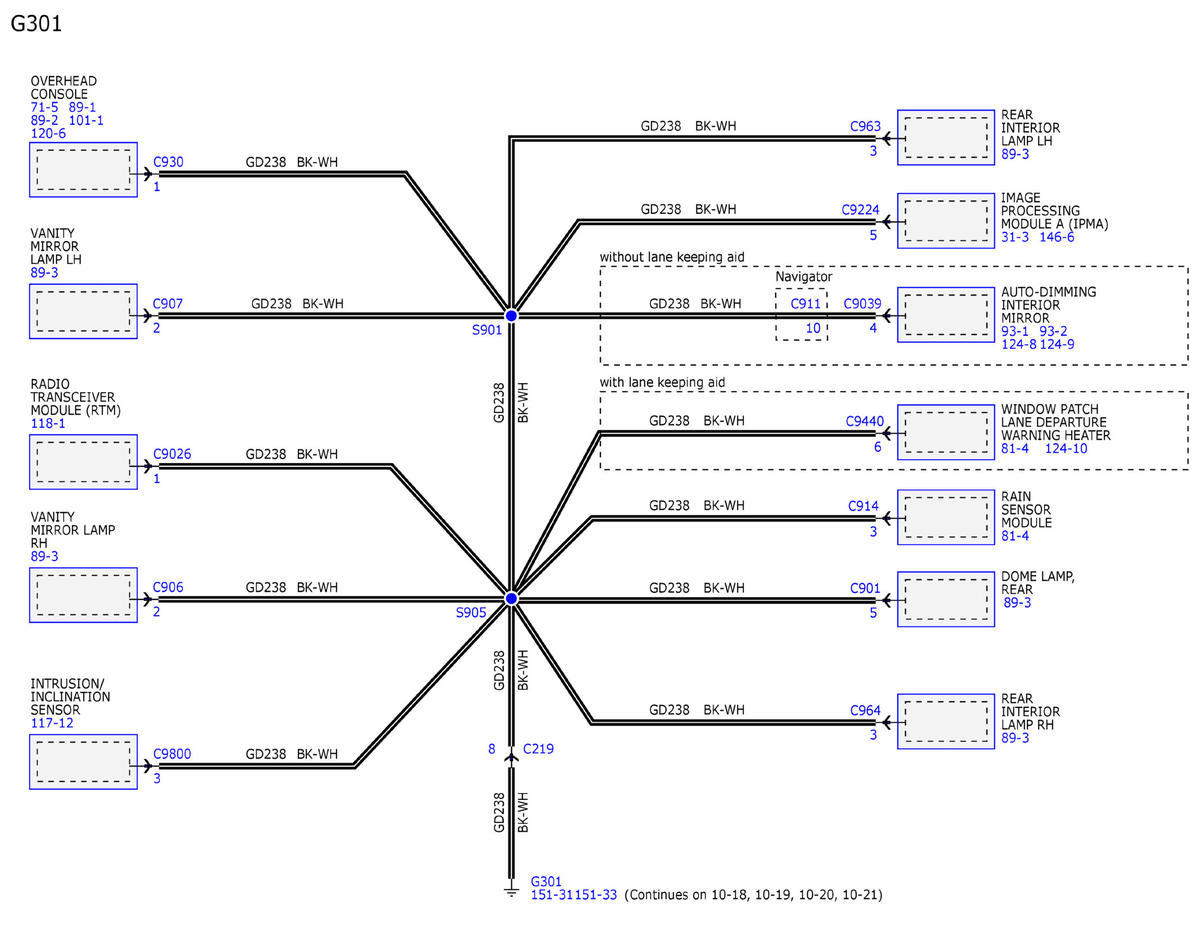

GFDWR102601Courtesy of FORD MOTOR COMPANY

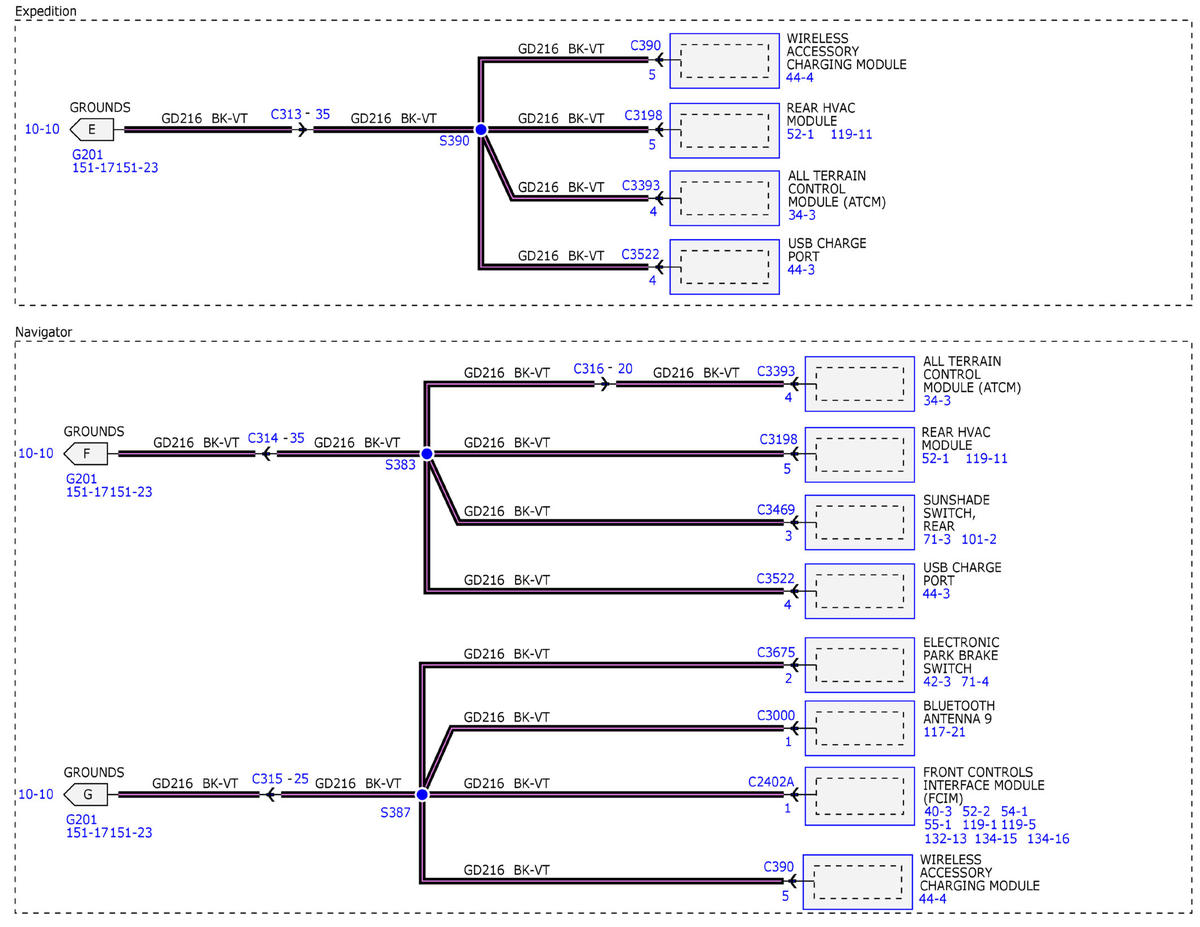

GFDWR102602Courtesy of FORD MOTOR COMPANY

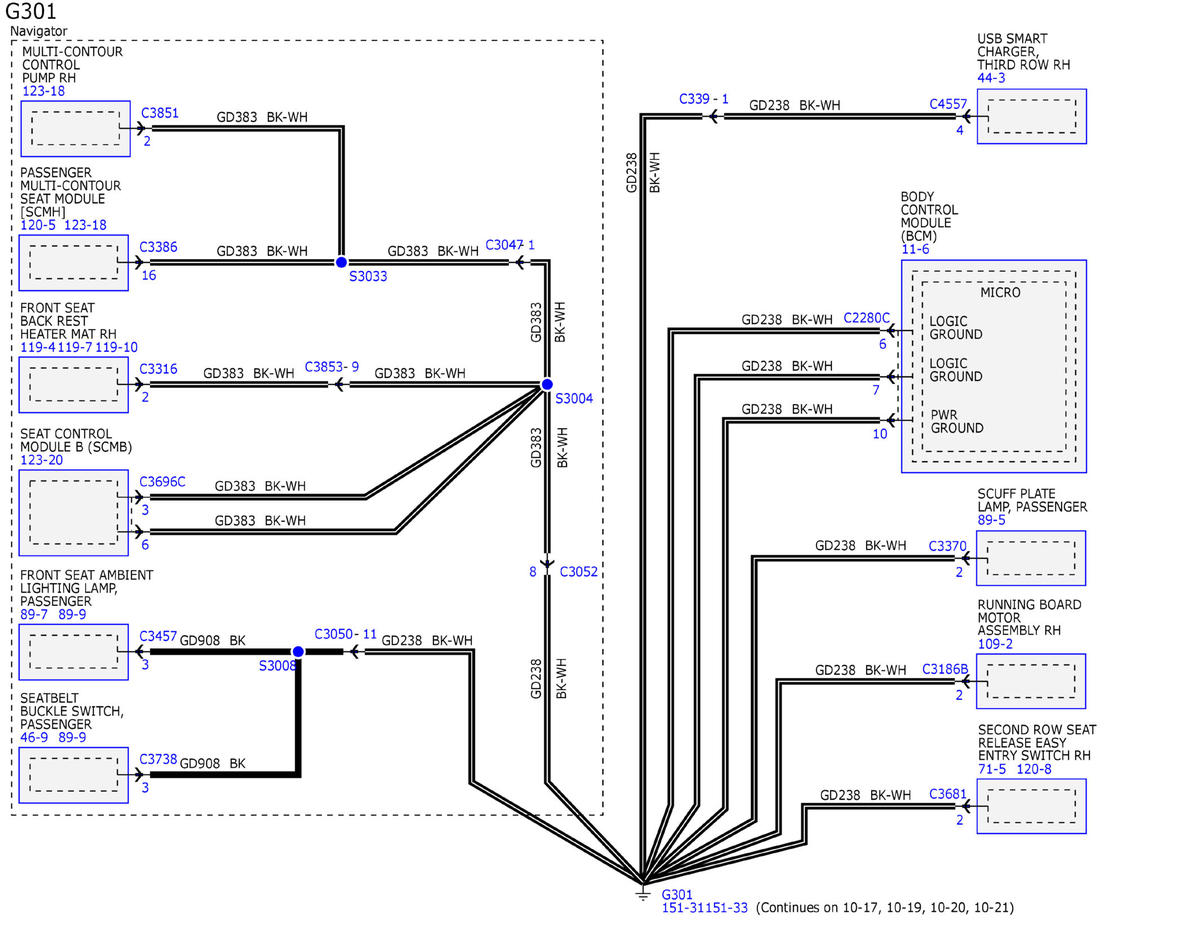

GFDWR102603Courtesy of FORD MOTOR COMPANY

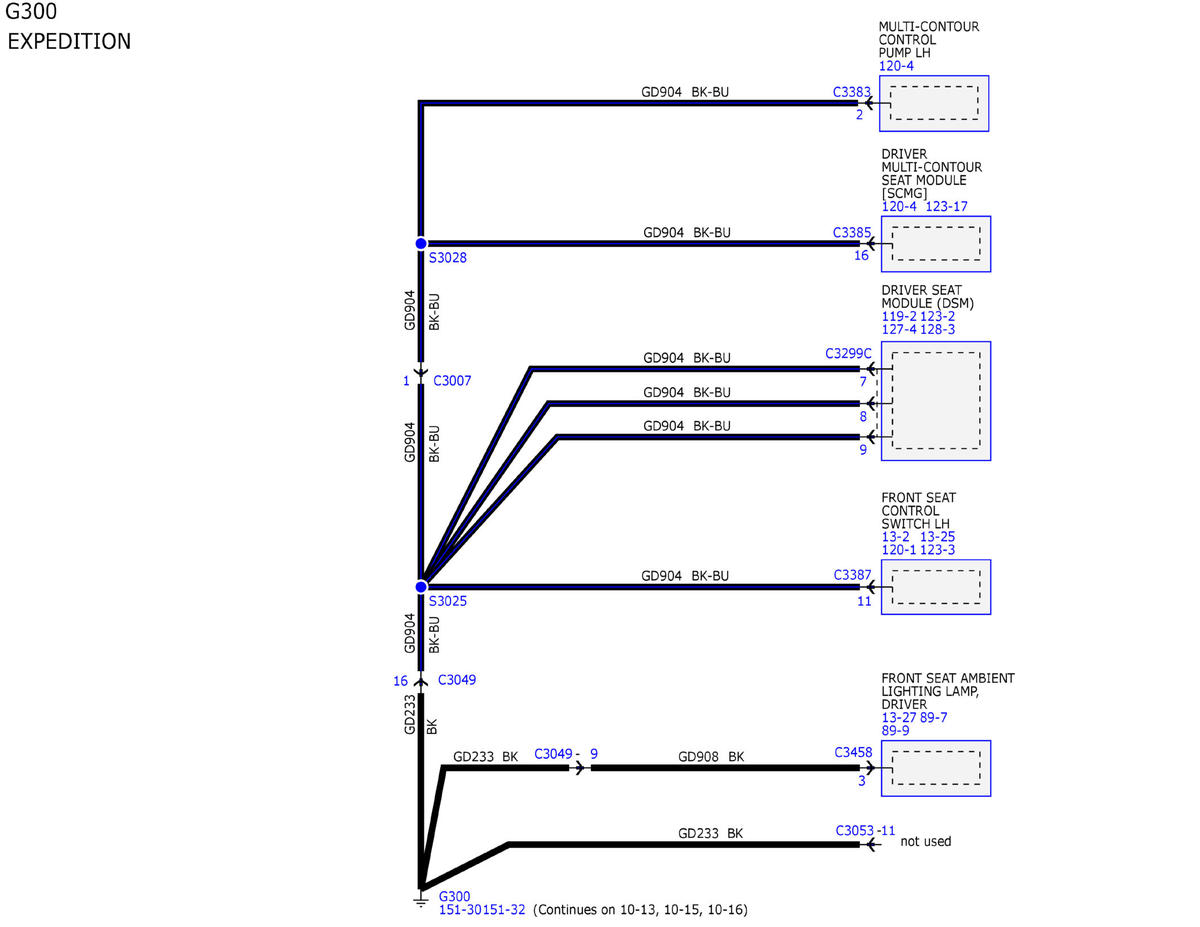

GFDWR102604Courtesy of FORD MOTOR COMPANY

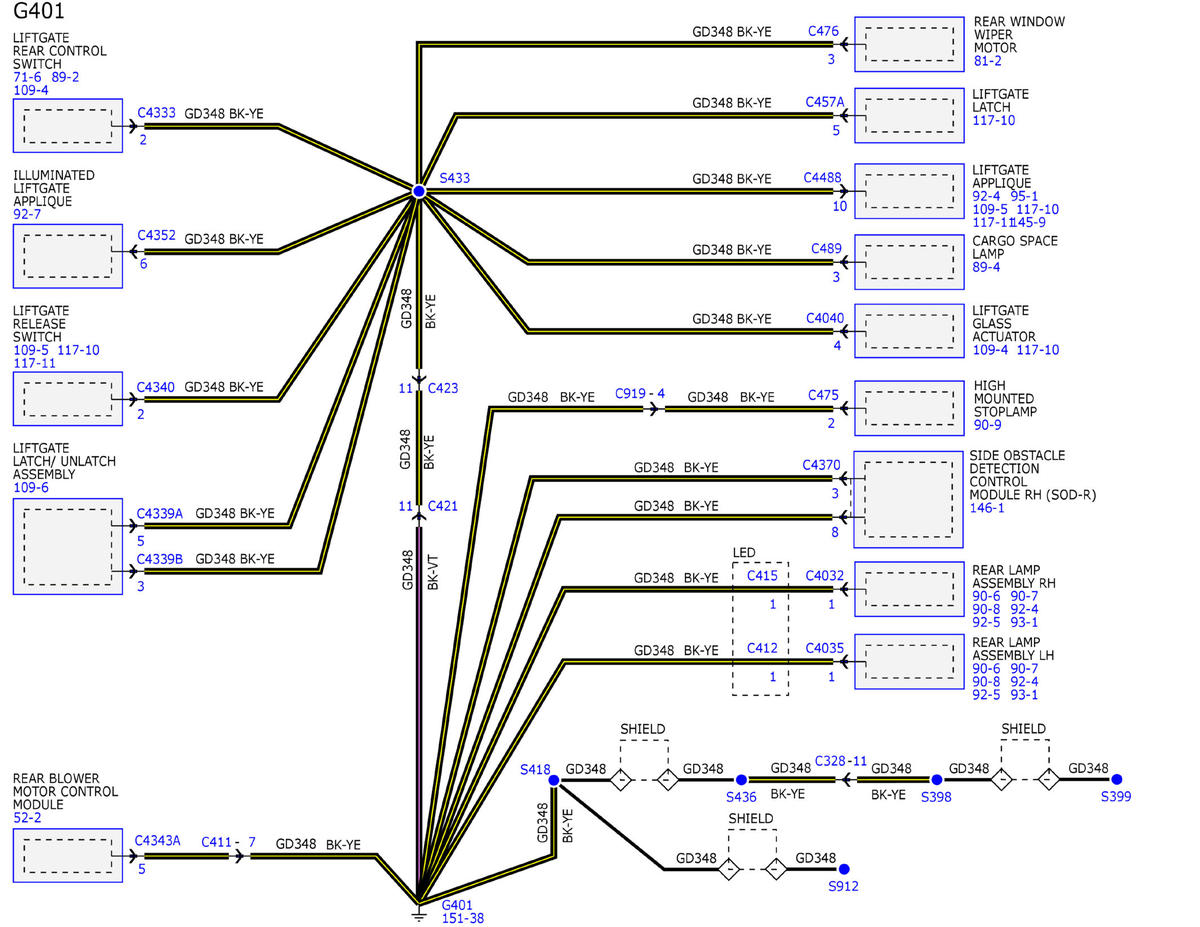

GFDWR102605Courtesy of FORD MOTOR COMPANY

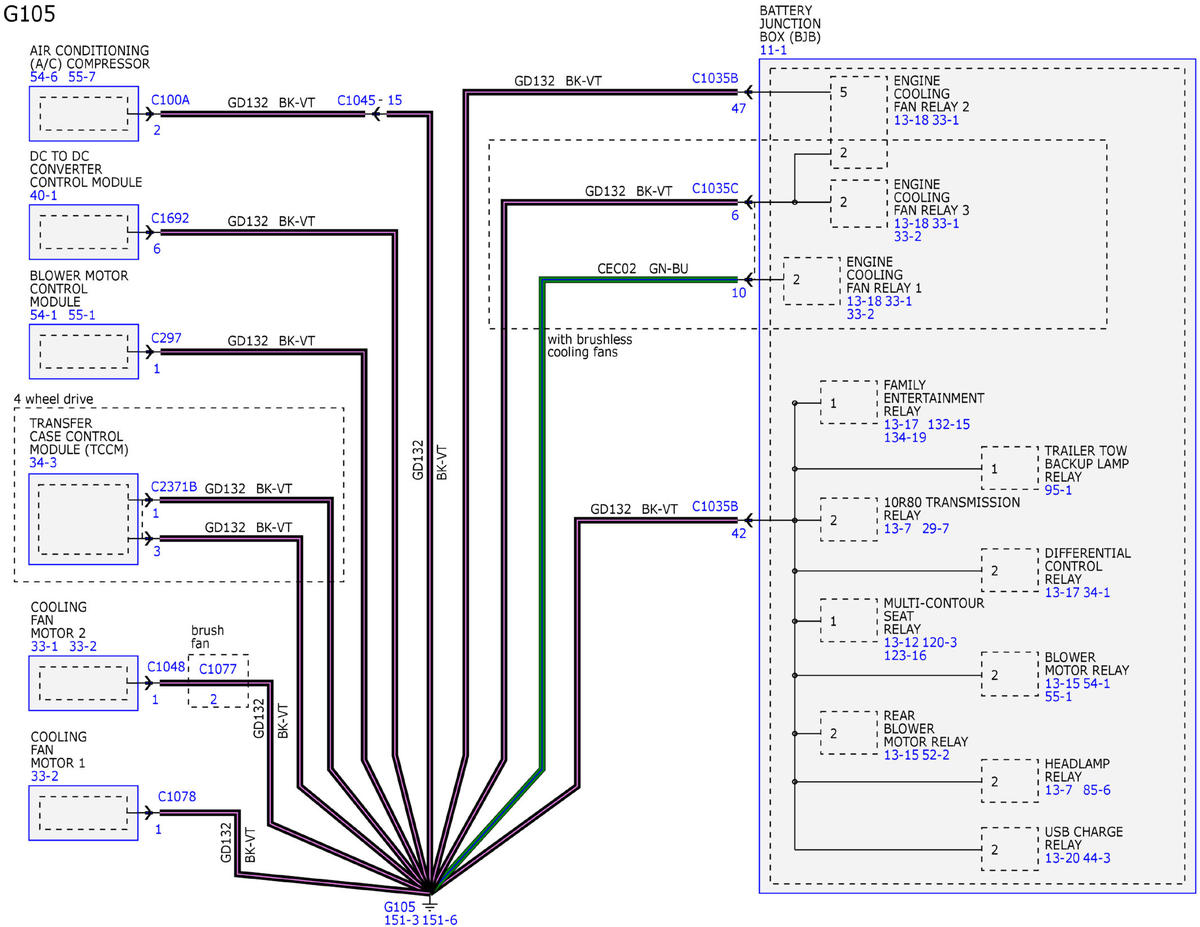

GFDWR102606Courtesy of FORD MOTOR COMPANY

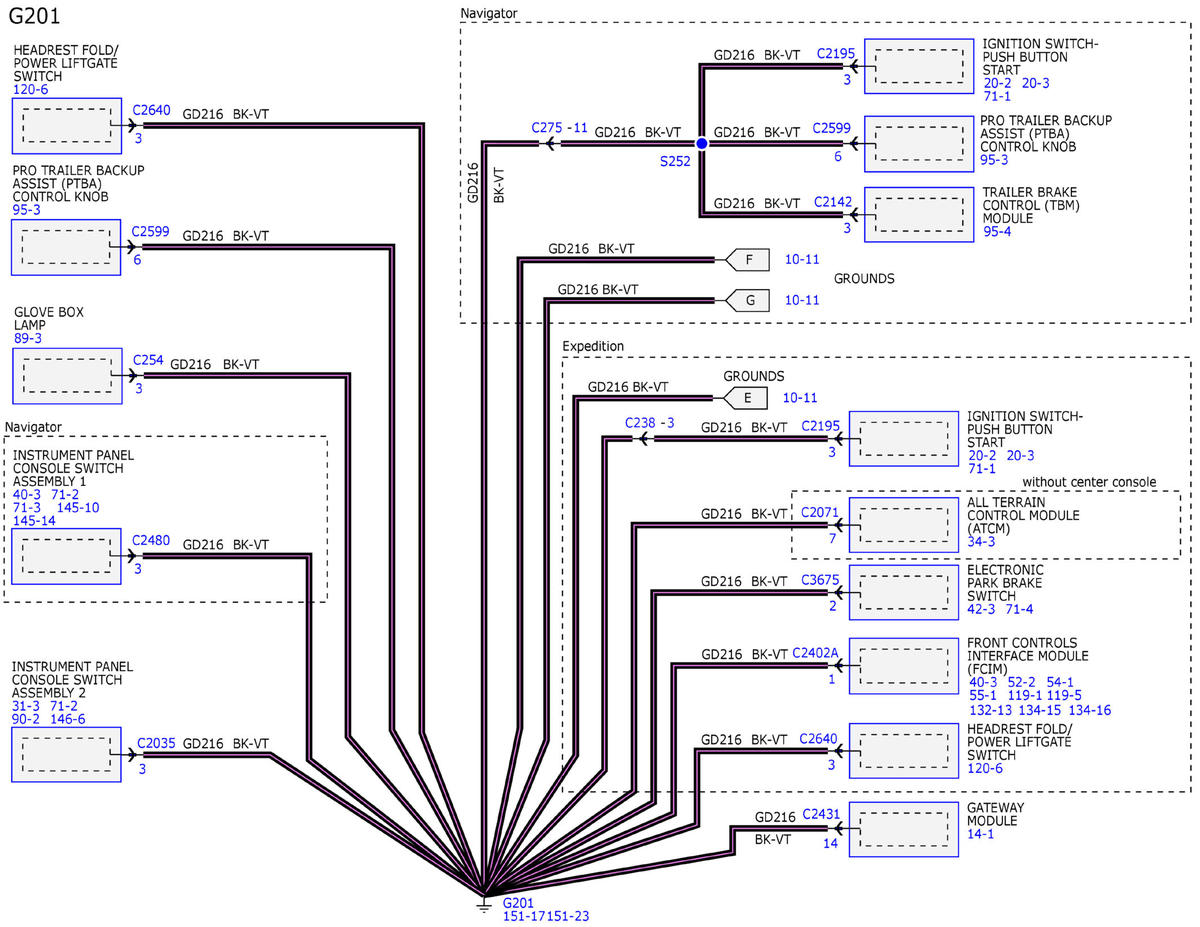

GFDWR102607Courtesy of FORD MOTOR COMPANY
