Third Row Seat Backrest: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the third row seat cushion. Refer to: Third Row Seat Cushion .

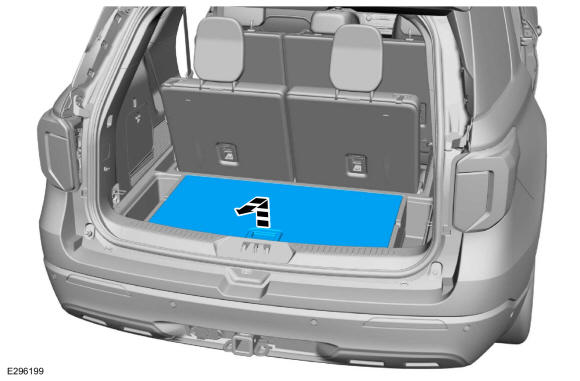

Remove the luggage compartment floor covering.

Courtesy of FORD MOTOR COMPANY

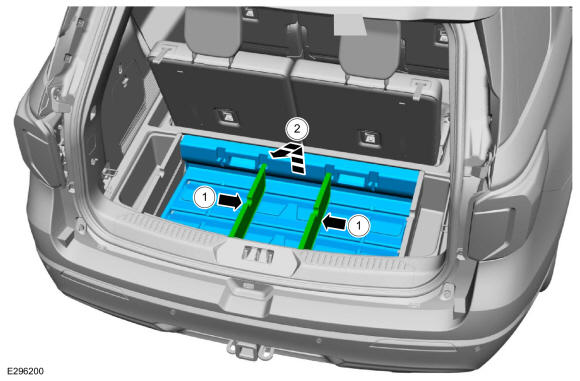

Remove the luggage compartment storage bin.
1. If equipped. Remove the luggage compartment storage bin dividers.
2. Remove the luggage compartment storage bin.
Courtesy of FORD MOTOR COMPANY

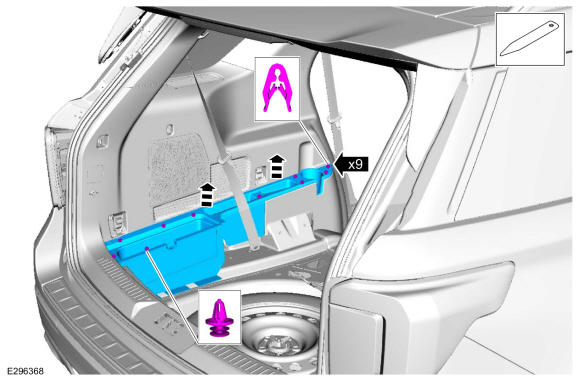

NOTE: LH (left hand) shown, RH (right hand) similar.

NOTE: Third row seats removed for clarity.

NOTE: Pin-type retainers are located in the rear bin floor of the loadspace armrest trim panel.

Release the clips and pin-type retainers and remove the loadspace armrest trim panels. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

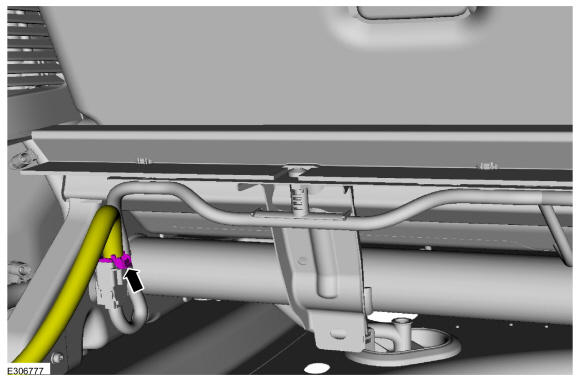

Disconnect the third row seat backrest electrical connector.

Courtesy of FORD MOTOR COMPANY

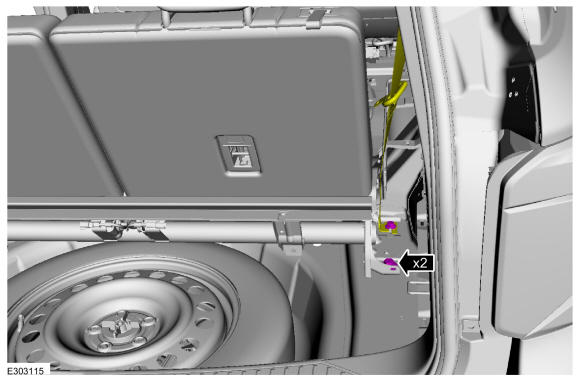

Remove the third row seat backrest RH bolts and position aside the seatbelt.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

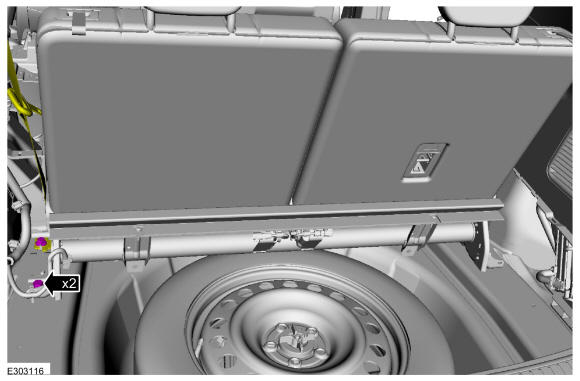

Remove the third row seat backrest LH bolts and position aside the seatbelt.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

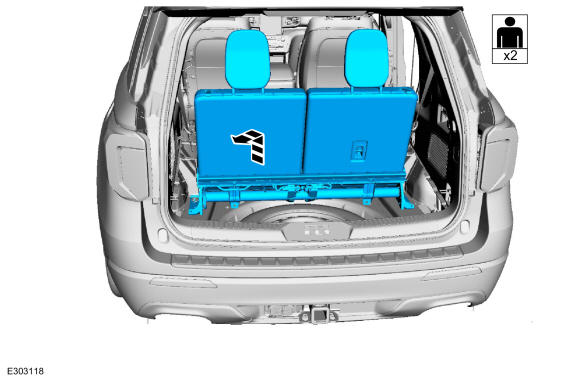

Remove the third row seat backrest.

Courtesy of FORD MOTOR COMPANY
