1.5L ECOSPORT: Notes

198 Pin PCM Automatic Transmission

Fig 1: 1.5L EcoSport PCM Connector (198 Pin PCM Automatic Transmission)
G07431621Courtesy of FORD MOTOR CO.

112 Pin PCM Manual Transmission

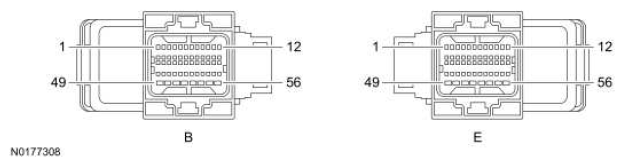

Fig 2: 1.5L EcoSport PCM Connector (112 Pin PCM Manual Transmission)
G12083863Courtesy of FORD MOTOR CO.
