Front Door Alignment
WARNING: This page is about a different car, the 2019 Ford Police Interceptor Utility and 2019 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Wiring Diagrams
Inspection
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
- Inspect the front door-to-body dimensions. Refer to: Body and Frame .
Adjustment
All alignments

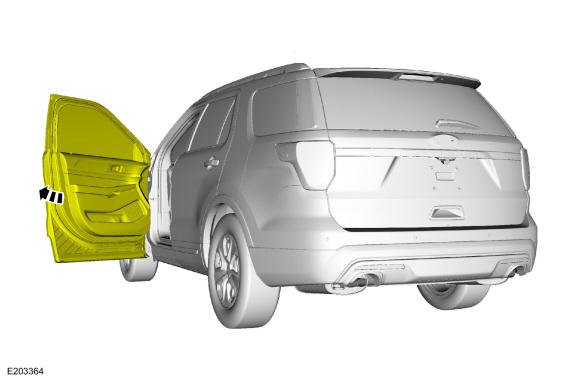

- Open the door.

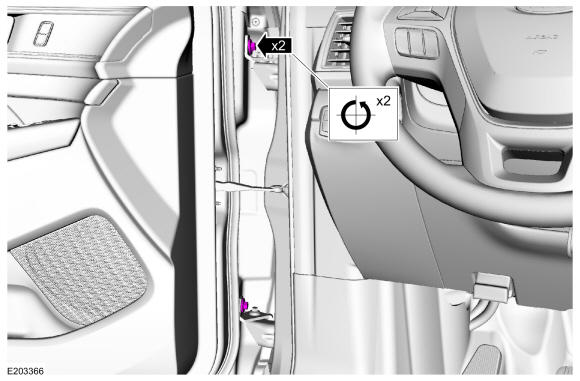

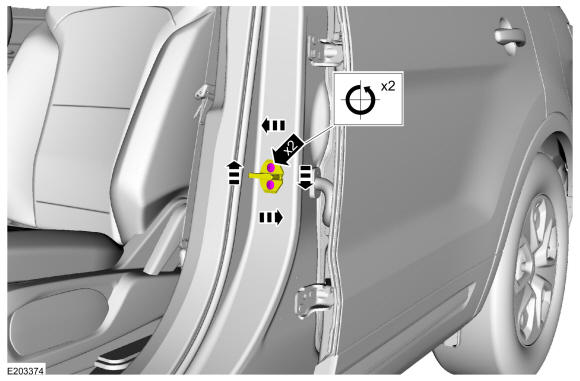

- Remove the bolts and the striker assembly.
Torque: 17 lb.ft (22.5 Nm)

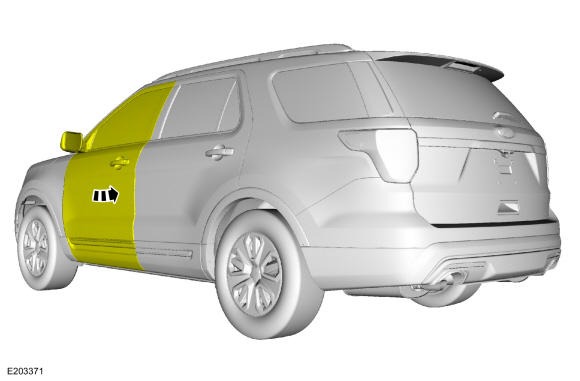

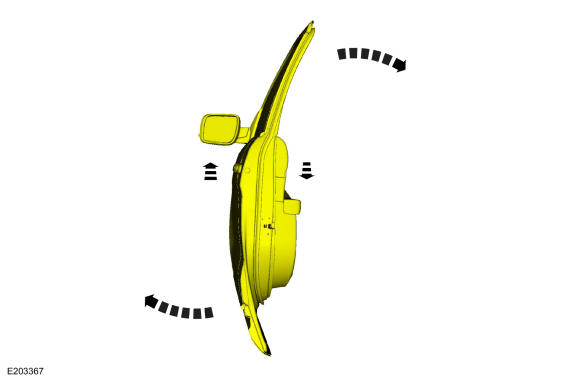

Front door in and out, up and down alignment

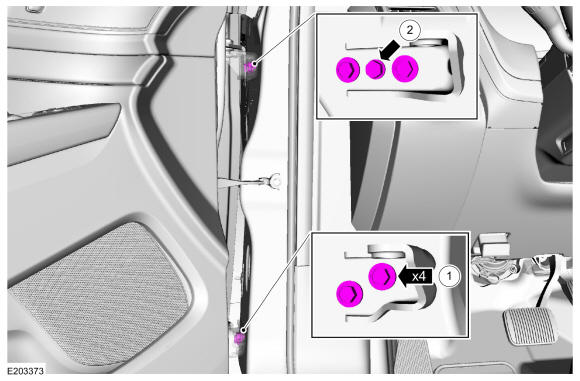

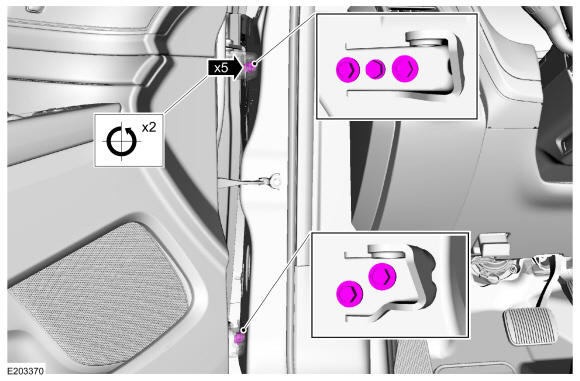

- Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)
- Adjust the door to specification. Refer to: Body and Frame
.
- Tighten the bolts.
Torque: 41 lb.ft (55 Nm)

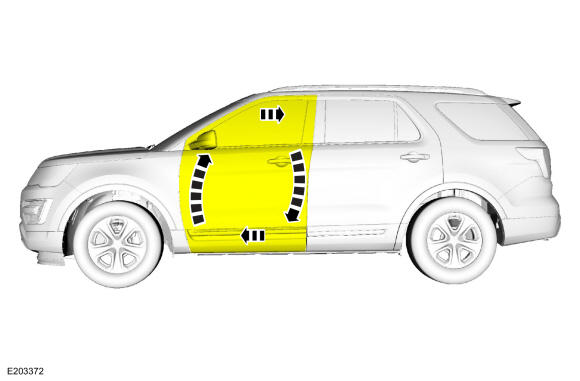

Front door fore, aft and tilt alignment

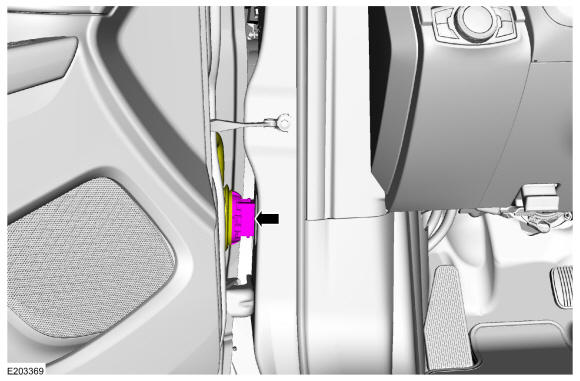

- Disconnect the front door electrical connector.

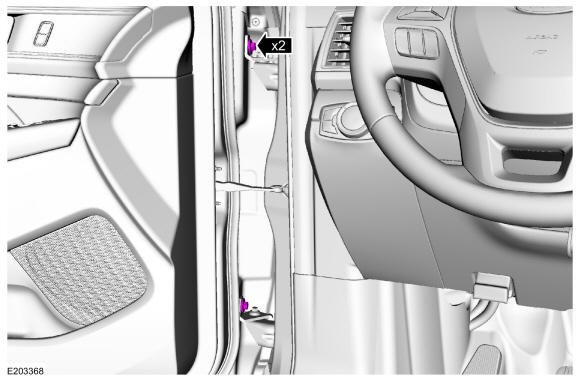

- Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)
- Carefully close the door.
- Adjust the door to specification. Refer to: Body and Frame
.
- Carefully open the door.
- Tighten the bolts.
Torque: 1.: 22 lb.ft (30 Nm) 2.: 89 lb.in (10 Nm)
- Connect the front door electrical connector.
All alignments

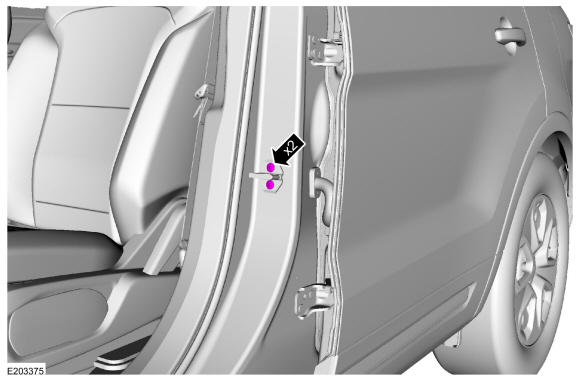

- Install the striker assembly.
Torque: 17 lb.ft (22.5 Nm)
- Loosen the bolts to permit movement of the striker assembly. Loosen: : 2 turn(s)
- Tighten the bolts.
Torque: 17 lb.ft (22.5 Nm)

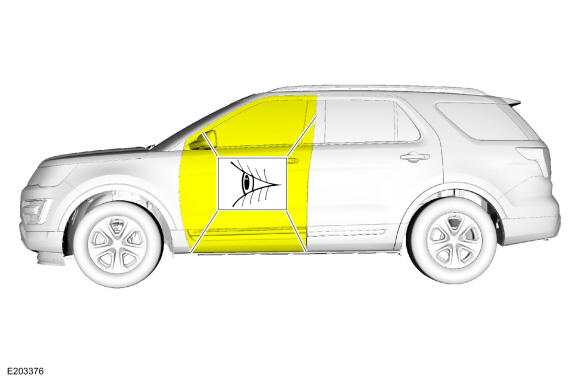

- Inspect the body-to-front door dimensions. Refer to: Body and Frame .
