Differential Fluid Level Check
WARNING: This page is about a different car, the 2019 Ford Police Interceptor Utility and 2019 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
Special Tool(s) / General Equipment
| Fluid Suction Gun |
|---|
Materials
| Name | Specification |
|---|---|
| Motorcraft® SAE 80W-90 Premium Rear Axle LubricantXY-80W90-QL | WSP-M2C197-A |
Check
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

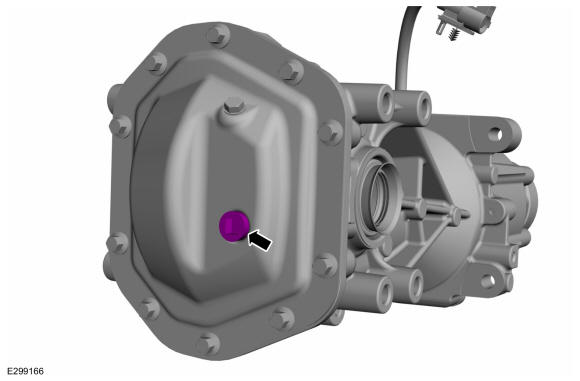

- Remove the differential fluid fill plug.

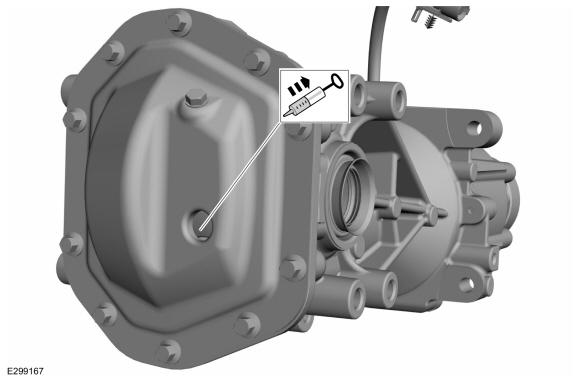

- If draining is needed. Using a general equipment, remove as much fluid as possible from the RDU. Use the General Equipment: Fluid Suction Gun

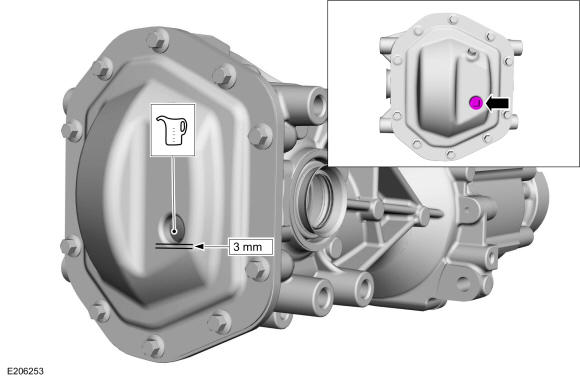

- Remove the filler plug. If empty, fill the rear axle with 0.55L (1.15 pt) of rear axle lubricant. If fluid level is low, fill to 3-5 mm (0.118-0.196 in) below the bottom of the filler hole and install the filler plug.
Material: Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant / XY-80W90-QL (WSP-M2C197-A)
Torque: 21 lb.ft (29 Nm)
