Trough Assembly: Installation
WARNING: This page is about a different car, the 2019 Ford Police Interceptor Utility and 2019 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
- To install, reverse the removal procedure.
-

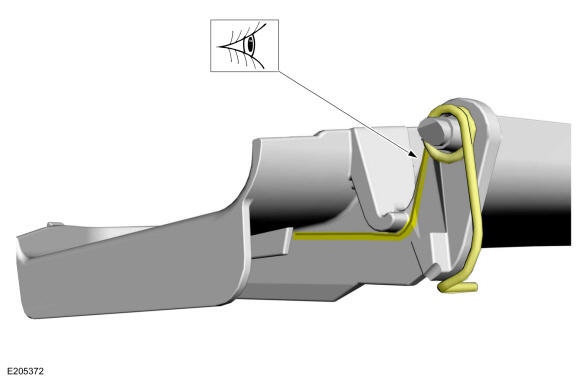

NOTE: Spring position before installing the trough.
If installing a new drain trough, the spring will need to be transferred to the new drain trough.
LH side shown, RH side similar.
-

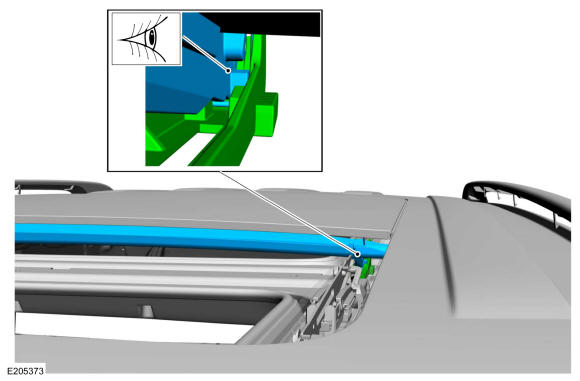

NOTE: The tab on the trough must be positioned behind the tab on the bracket when installing.
LH side shown, RH side similar.
