Heated Second Row Seat Module: Removal
WARNING: This page is about a different car, the 2019 Ford Police Interceptor Utility and 2019 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Second row single seat shown, second row double seat similar.
NOTE:
Removal steps in this procedure may contain installation details.

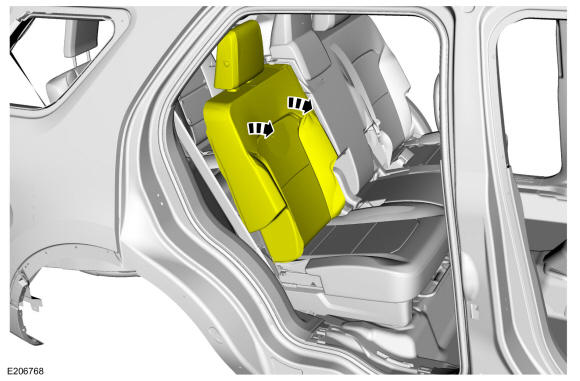

- Place the backrest in the fold flat position.

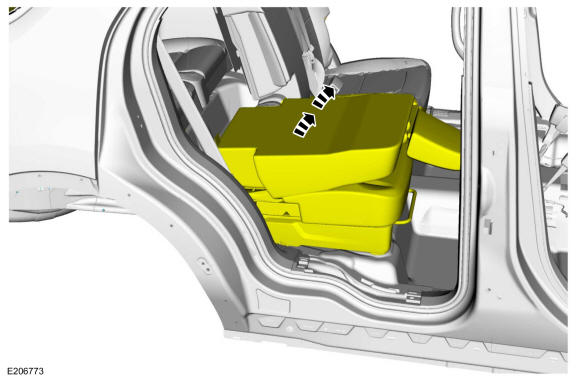

- Place the seat in the easy entry position.

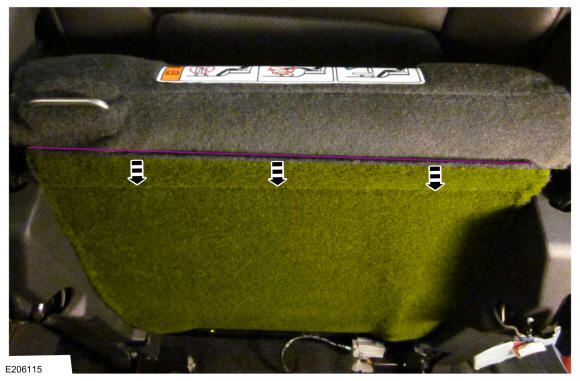

- Release the seat cushion cover J-clip.

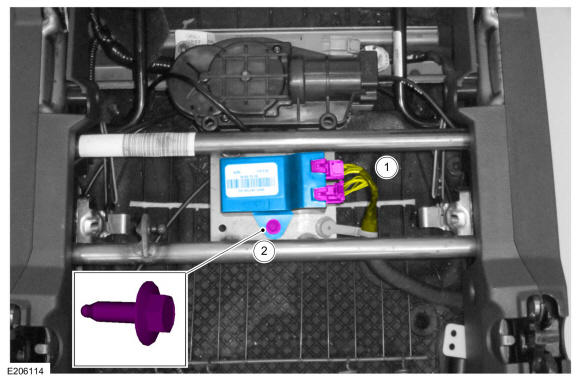

- Remove the heated seat module.
- Disconnect the electrical connectors.
- Remove the fastener.
Torque: 89 lb.in (10 Nm)
