Transfer Case Draining and Filling: Draining

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
If equipped.
Torque: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY

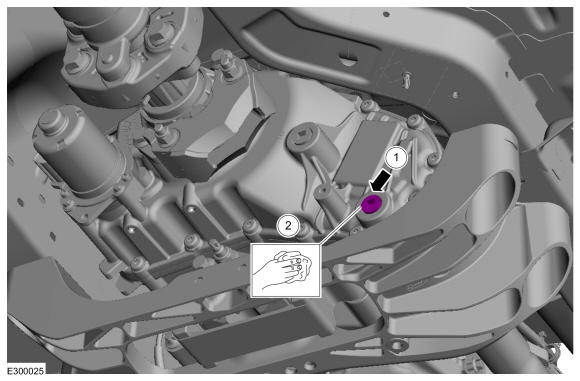

1. Remove the drain plug and drain the fluid.
2. Clean the drain plug and the area around drain plug.
3. Install the drain plug.
  Torque: 142 lb.in (16 Nm)

Courtesy of FORD MOTOR COMPANY
