Transfer Case Rear Seal: Installation

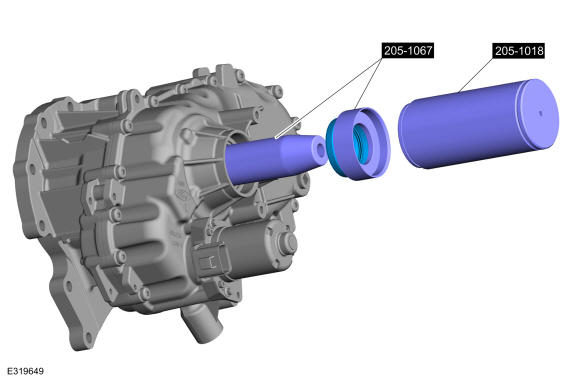

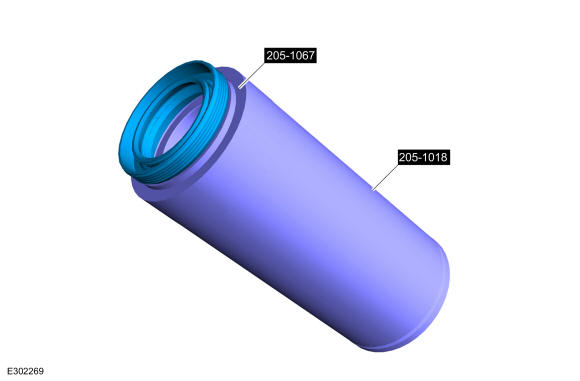

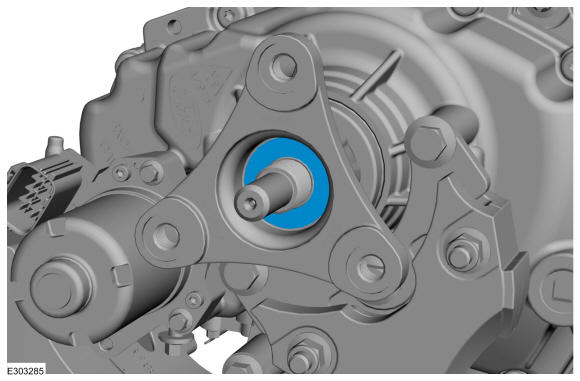

- Install the special tool to the seal. Use Special Service Tool: 205-1018 Installation Tube, 205-1067 Installer, Output Shaft AWD.

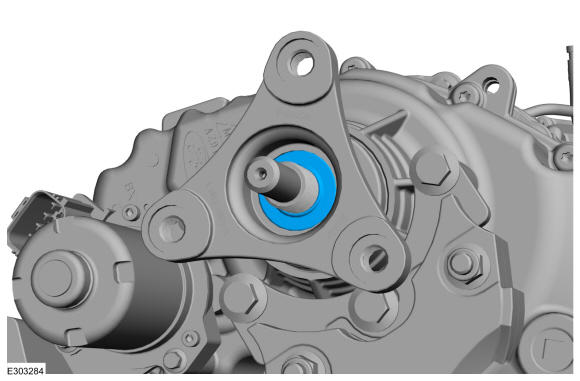

- Using the special tool, install the transfer case rear seal. Use Special Service Tool: 205-1018 Installation Tube, 205-1067 Installer, Output Shaft AWD.

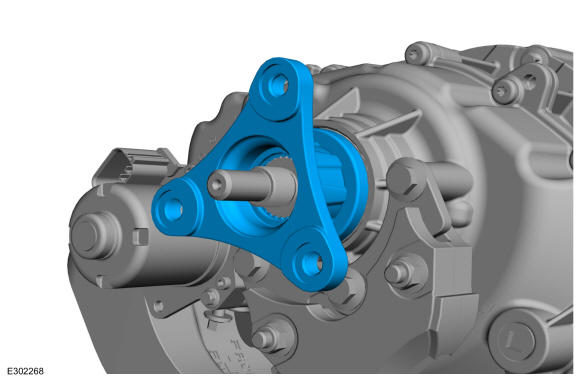

- Install the transfer case output flange.
- Install the flange nut seal.
- Install the flange nut washer.

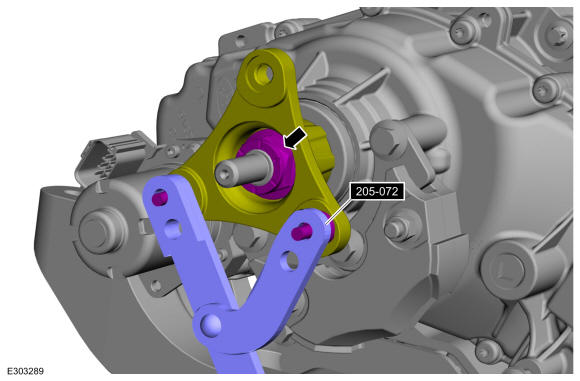

- Using the tool, hold the flange and install the flange nut. Use Special Service Tool: 205-072 Universal Flange Holding Wrench.
Torque: 203 lb.ft (275 Nm)
- Refill the transfer case. Refer to: Transfer Case Draining and Filling .
- Install the muffler and tailpipe. Refer to: Muffler and Tailpipe - 2.3L . Refer to: Muffler and Tailpipe - 3.0L . Refer to: Muffler and Tailpipe - 3.3L . Refer to: Muffler and Tailpipe - 3.3L Hybrid .
- Install the exhaust flexible pipe. Refer to: Exhaust Flexible Pipe - 2.3L . Refer to: Exhaust Flexible Pipe - 3.0L . Refer to: Exhaust Flexible Pipe - 3.3L . Refer to: Exhaust Flexible Pipe - 3.3L Hybrid .
- Install the rear driveshaft. Refer to: Rear Driveshaft .
