Selector Lever Cable Adjustment

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Adjustment

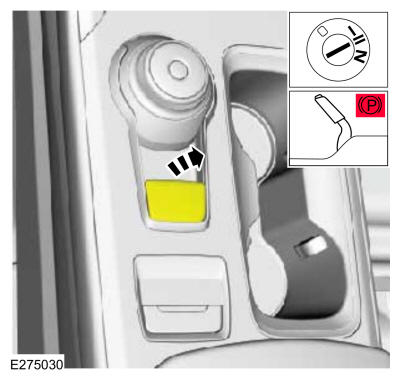

1. Turn the ignition switch to the KOEO position and apply the parking brake.

   Courtesy of FORD MOTOR COMPANY

2. Using the diagnostic scan tool select the cable adjustment mode.
3. NOTE: The GSM will alternate flashing D or N and L (if equipped) or S (if equipped) simultaneously.

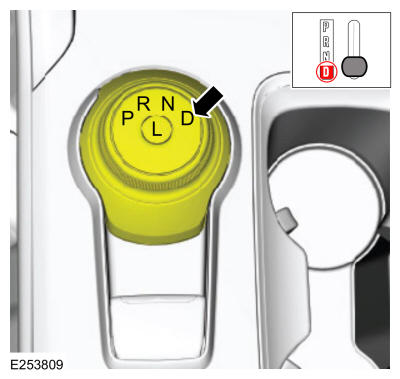

   Rotate the shifter to the D position.

   Courtesy of FORD MOTOR COMPANY

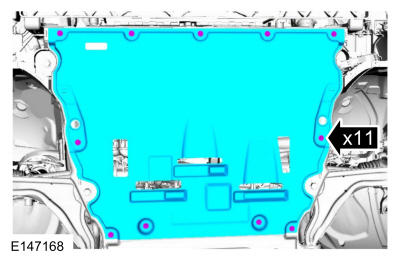

4. Remove the retainers and the engine undershield.

   Courtesy of FORD MOTOR COMPANY

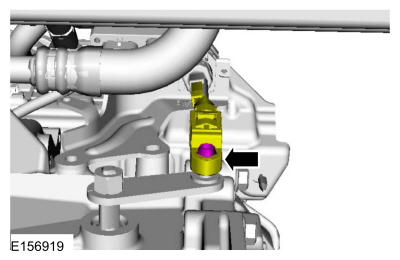

5. Disconnect the selector lever cable from the transmission manual lever.

   Courtesy of FORD MOTOR COMPANY

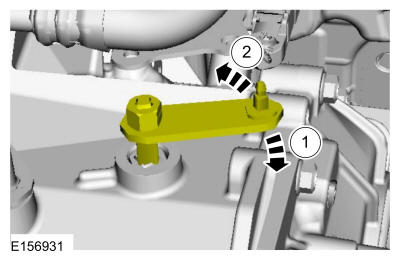

6. Position the transmission manual lever in D
   1. Rotate the selector shaft lever clockwise until it stops.
   2. Rotate the selector shaft lever counterclockwise 3 detents.

   Courtesy of FORD MOTOR COMPANY

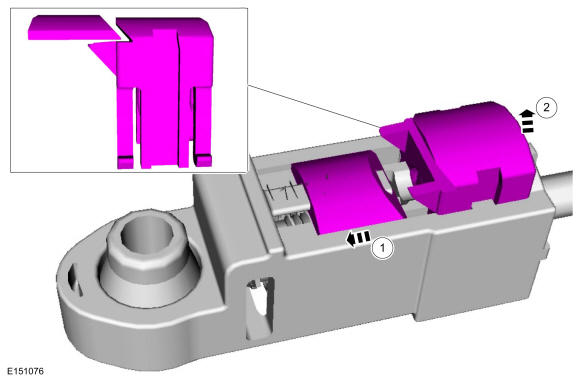

7. Unlock the adjuster.
   1. Move the slide to the left.
   2. While holding the slide, position the adjuster lock upward.

   Courtesy of FORD MOTOR COMPANY

8. Attach the selector lever cable to the transmission manual lever.

   Courtesy of FORD MOTOR COMPANY

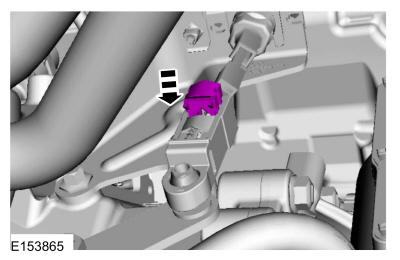

9. Snap the selector lever cable adjuster lock into place.

   Courtesy of FORD MOTOR COMPANY

10. Install the engine undershield and the retainers.

    Courtesy of FORD MOTOR COMPANY

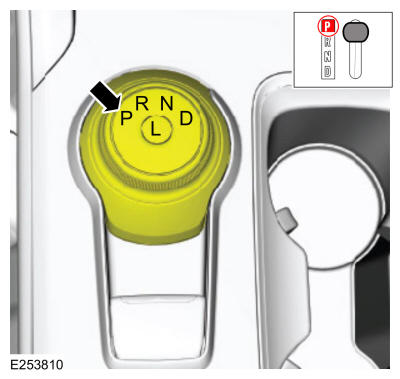

11. Choose P on the GSM.

    Courtesy of FORD MOTOR COMPANY

12. Clear any DTCs.
13. Shift the transmission through the ranges starting in P, then R, then N, then D, then N, then R and then back to P.
14. Check for DTCs.
15. Disconnect the scan tool.
16. Verify that the vehicle starts in P and N only and that the reverse lamps illuminate in R.
