Lighting Control Module (LCM): Removal
WARNING: This page is about a different car, the 2020 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

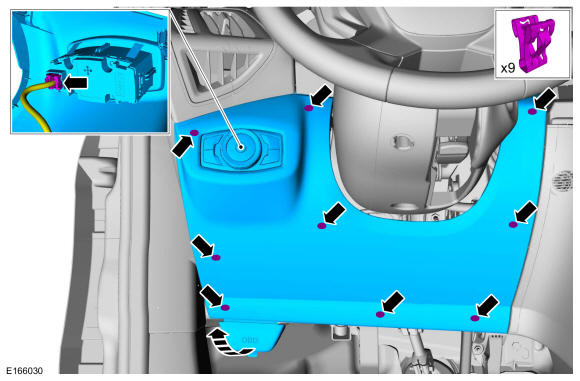

- Release the clips and remove the lower steering column shroud.
- Disconnect the electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

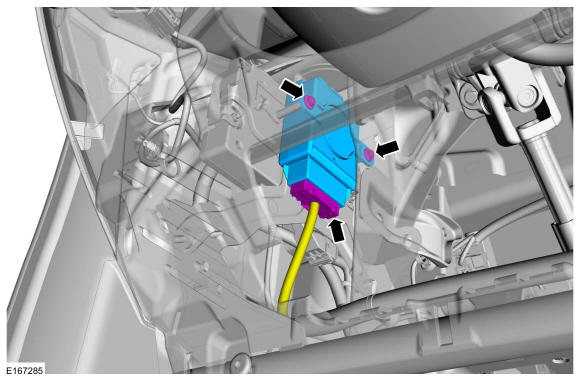

- Disconnect the electric connector, remove the retainers and the LCM.
 Courtesy of FORD MOTOR COMPANY
|
