Cruise Control Module (CCM): Removal
WARNING: This page is about a different car, the 2020 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Bumpers .

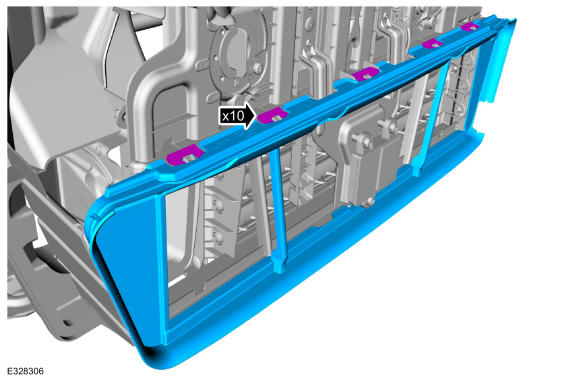

- Release the radiator lower air deflector clips on top and bottom. Remove the radiator lower air deflector.

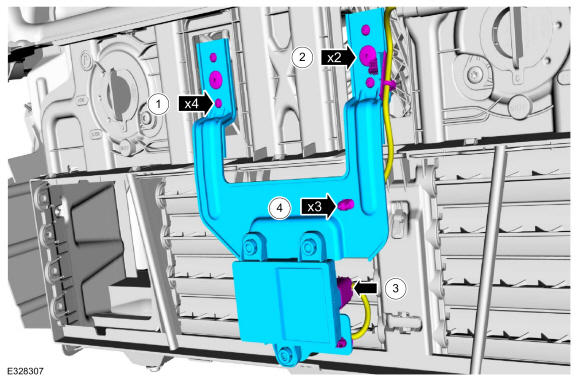

- Remove the CCM and bracket.
- Remove the screws,
- Remove the push pin retainers.
- Disconnect the CCM electrical connector.
- Detach the wiring harness retainers and remove the CCM and bracket.
