Front Door Window Control Switch: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Both doors

1. Remove the front door trim panel. Refer to: Front Door Trim Panel .

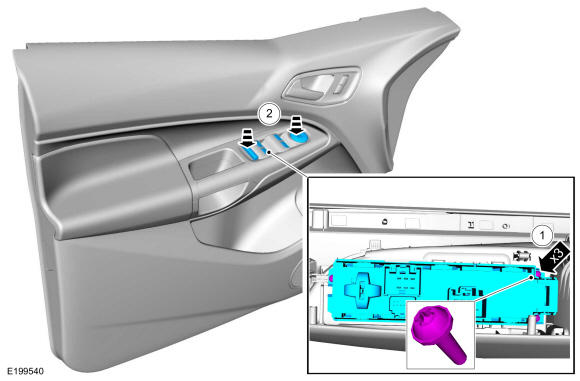

   Driver door

2. Remove the front door window control switch.
   1. Remove the retainers.
   2. Remove the front door window control switch from the front door trim panel.

   Courtesy of FORD MOTOR COMPANY

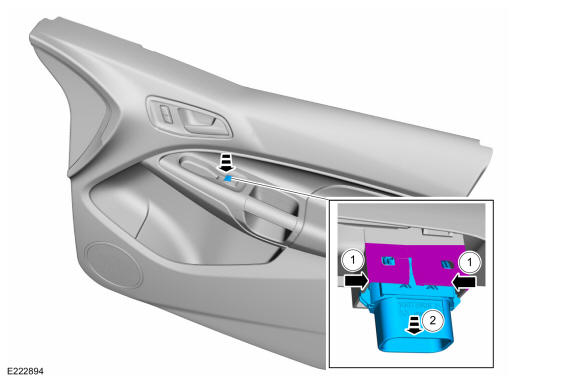

   Passenger door

3. Remove the front door window control switch.
   1. Release the front door window control switch retaining clips.
   2. Remove the front door window control switch from the door trim panel.

Courtesy of FORD MOTOR COMPANY
