Body Control Module (BCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

If installing a new BCM, connect a battery charger to the battery to make sure it is charged to maintain proper battery voltage. Refer to: Battery Charging
NOTE: If the BCM (body control module) did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair. This step is only necessary if the BCM (body control module) is being replaced.

Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions. Refer to: Module Configuration - System Operation and Component Description

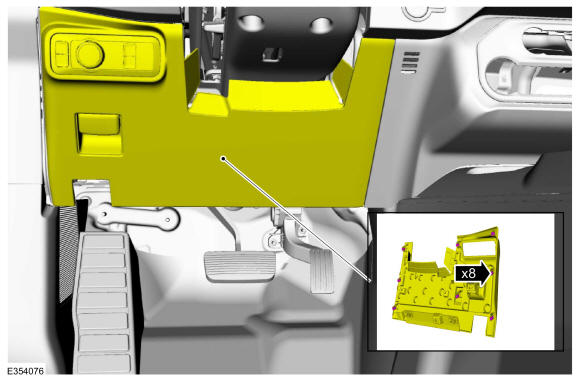

Release the clips and position down the lower steering column panel.

Courtesy of FORD MOTOR COMPANY

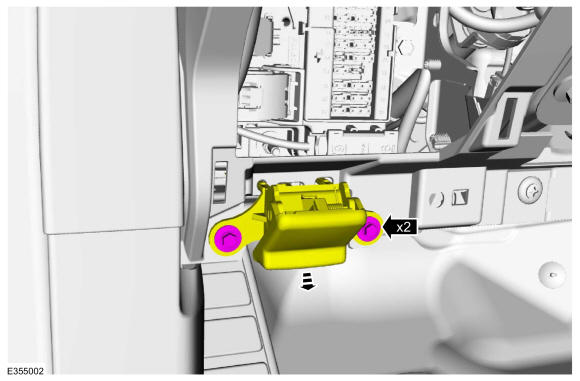

Remove the screws and position the hood latch handle downward.

Courtesy of FORD MOTOR COMPANY

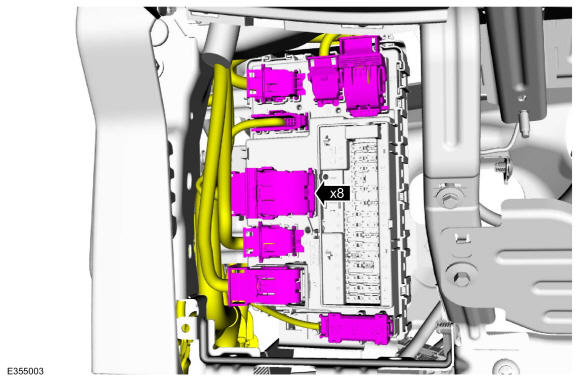

Disconnect the BCM electrical connectors.

Courtesy of FORD MOTOR COMPANY

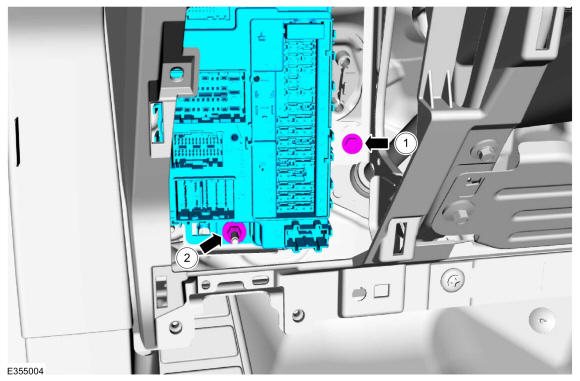

Remove the BCM.
1. Remove the bracket bolt.
2. Remove the BCM nut.
  Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY
