Component Location Views

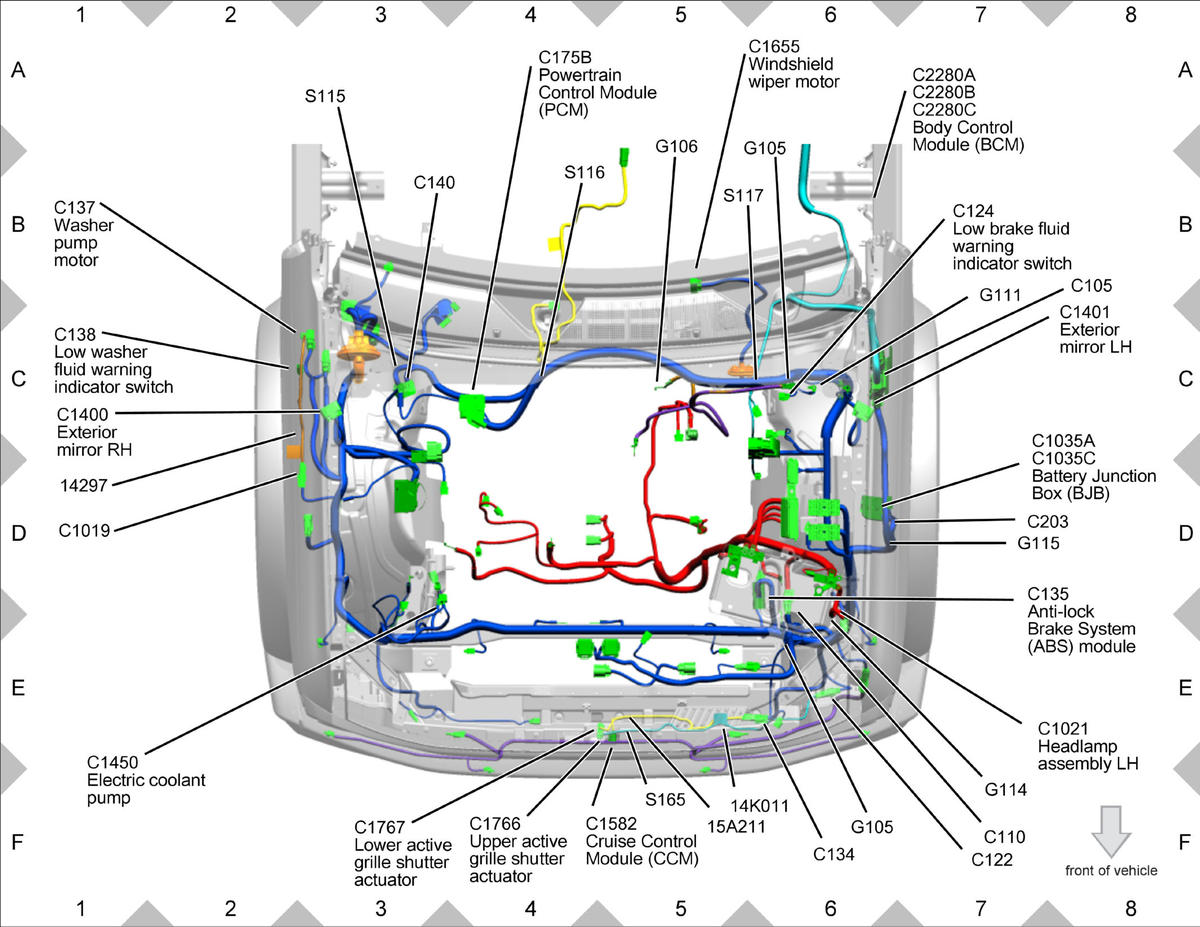

GFDWR151066Courtesy of FORD MOTOR COMPANY

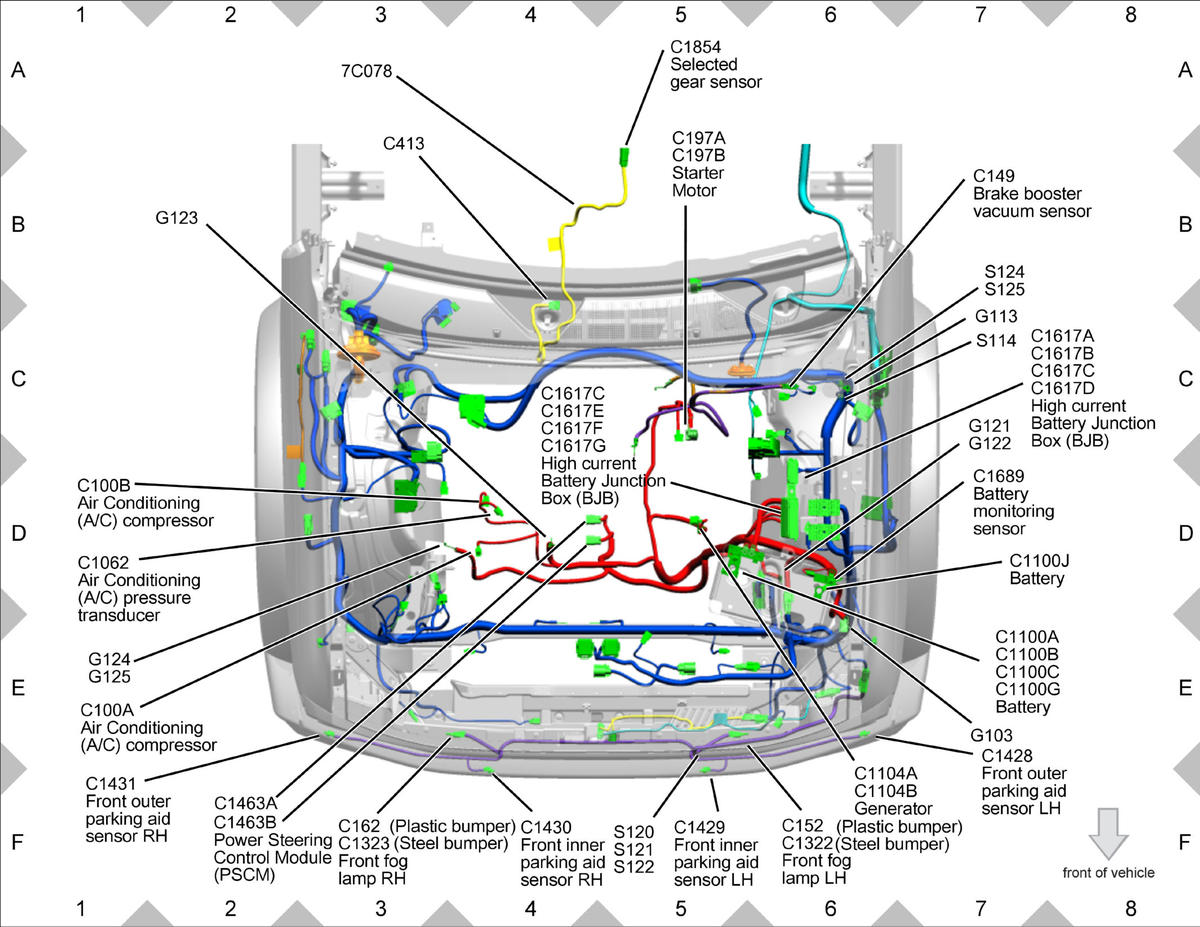

GFDWR151077Courtesy of FORD MOTOR COMPANY

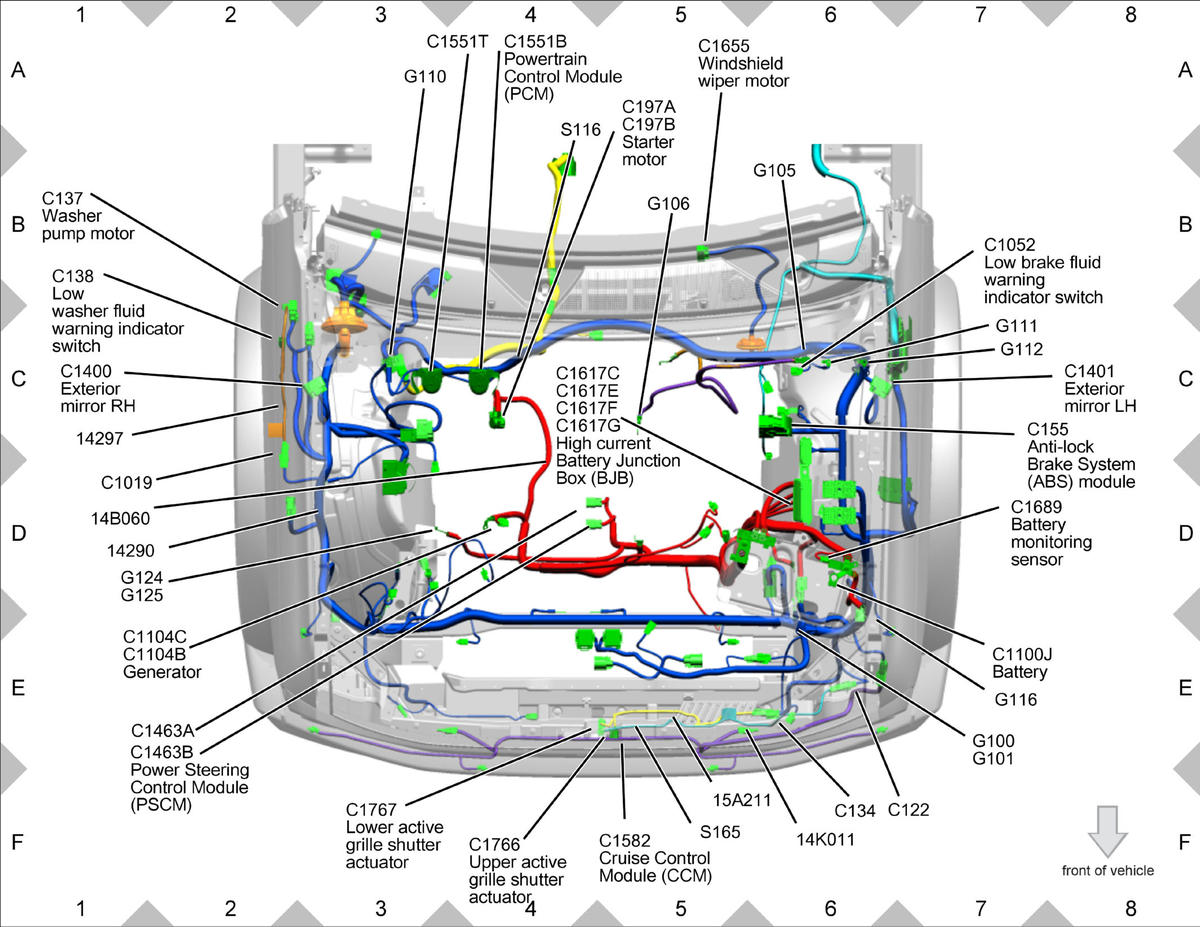

GFDWR151088Courtesy of FORD MOTOR COMPANY

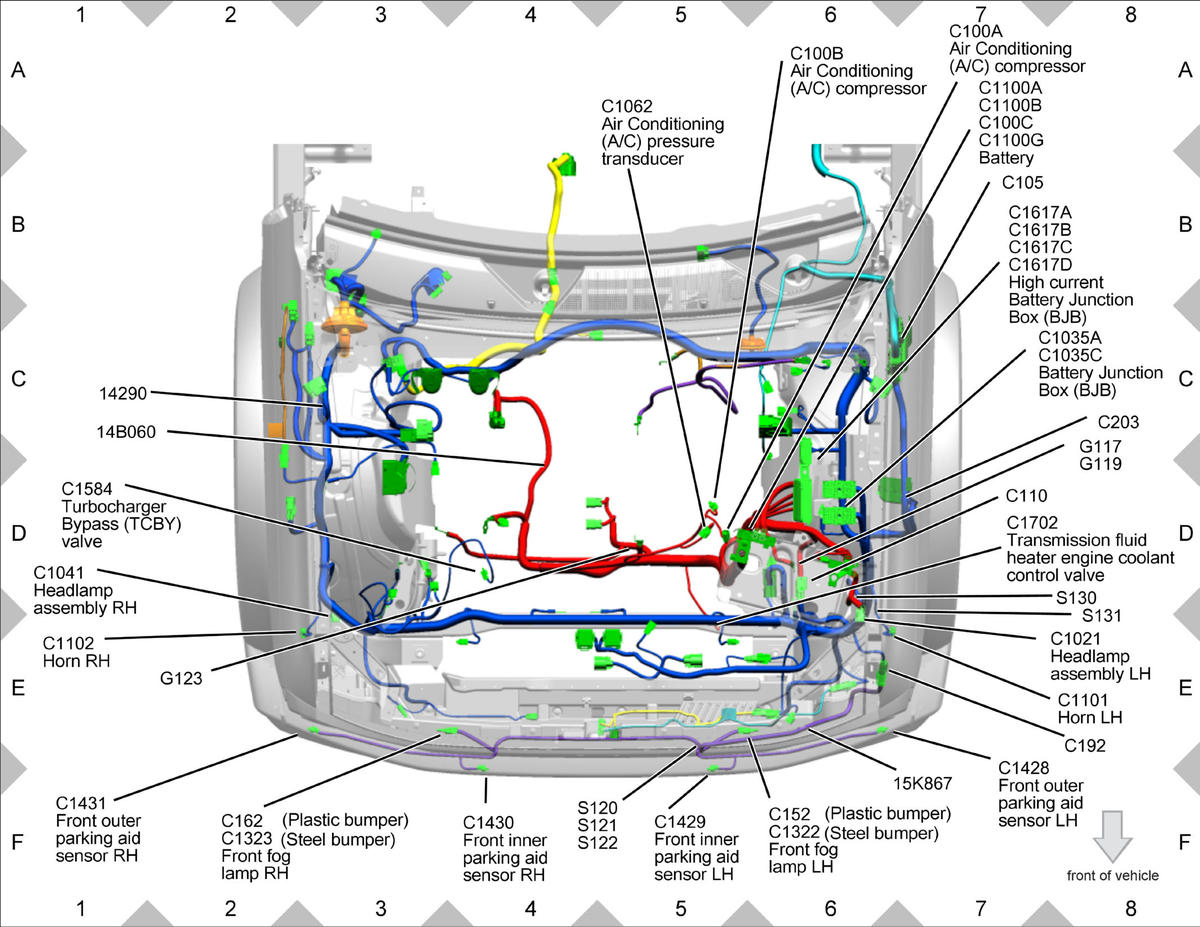

GFDWR151099Courtesy of FORD MOTOR COMPANY

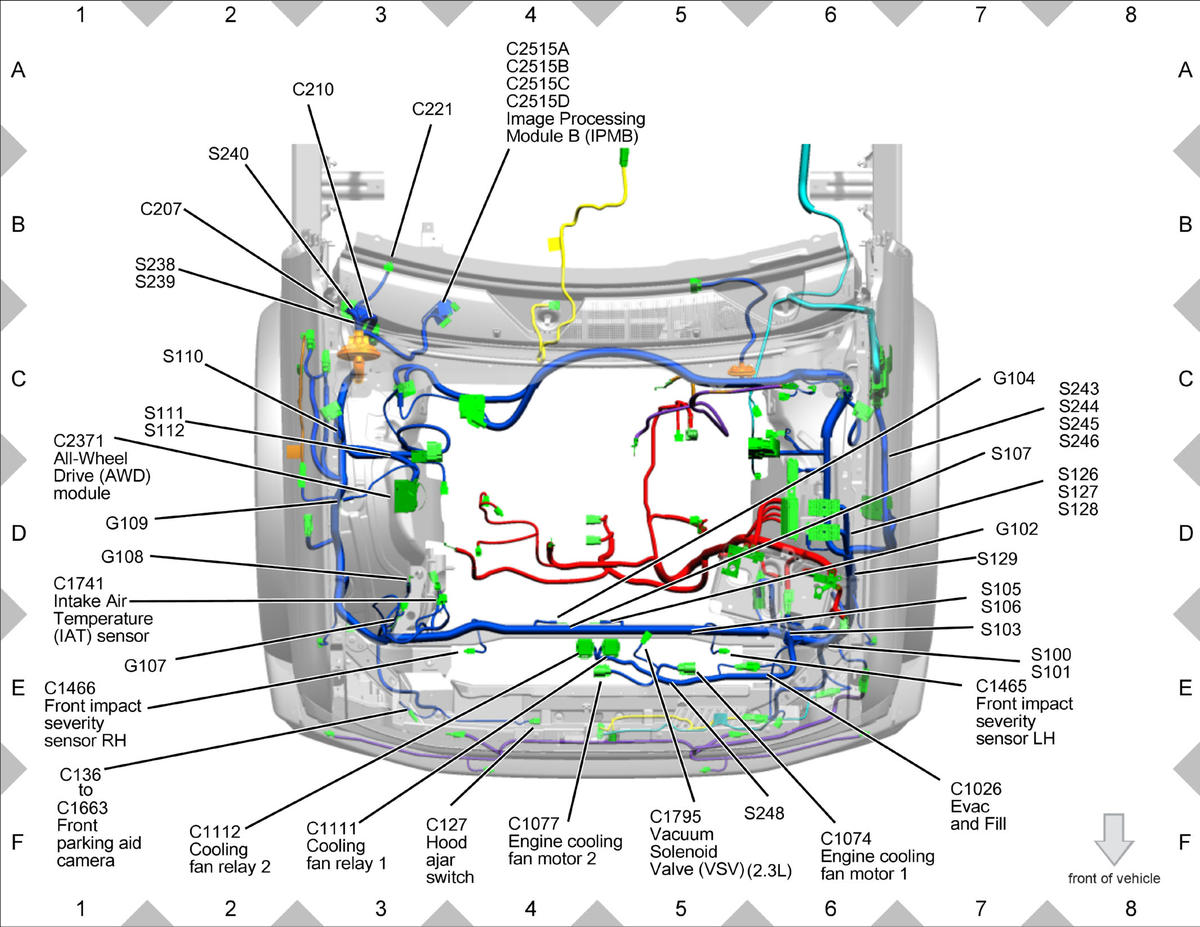

GFDWR151101Courtesy of FORD MOTOR COMPANY

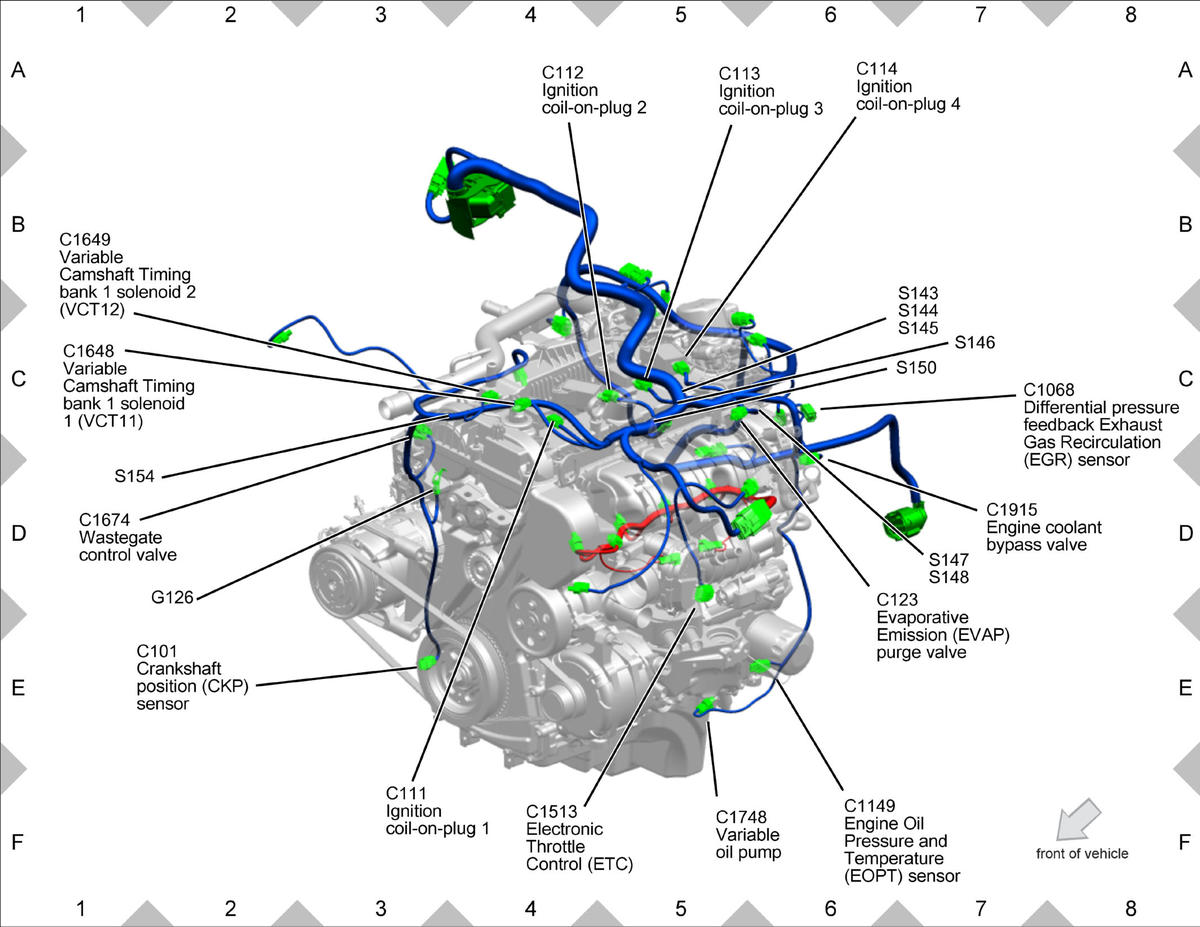

GFDWR151102Courtesy of FORD MOTOR COMPANY

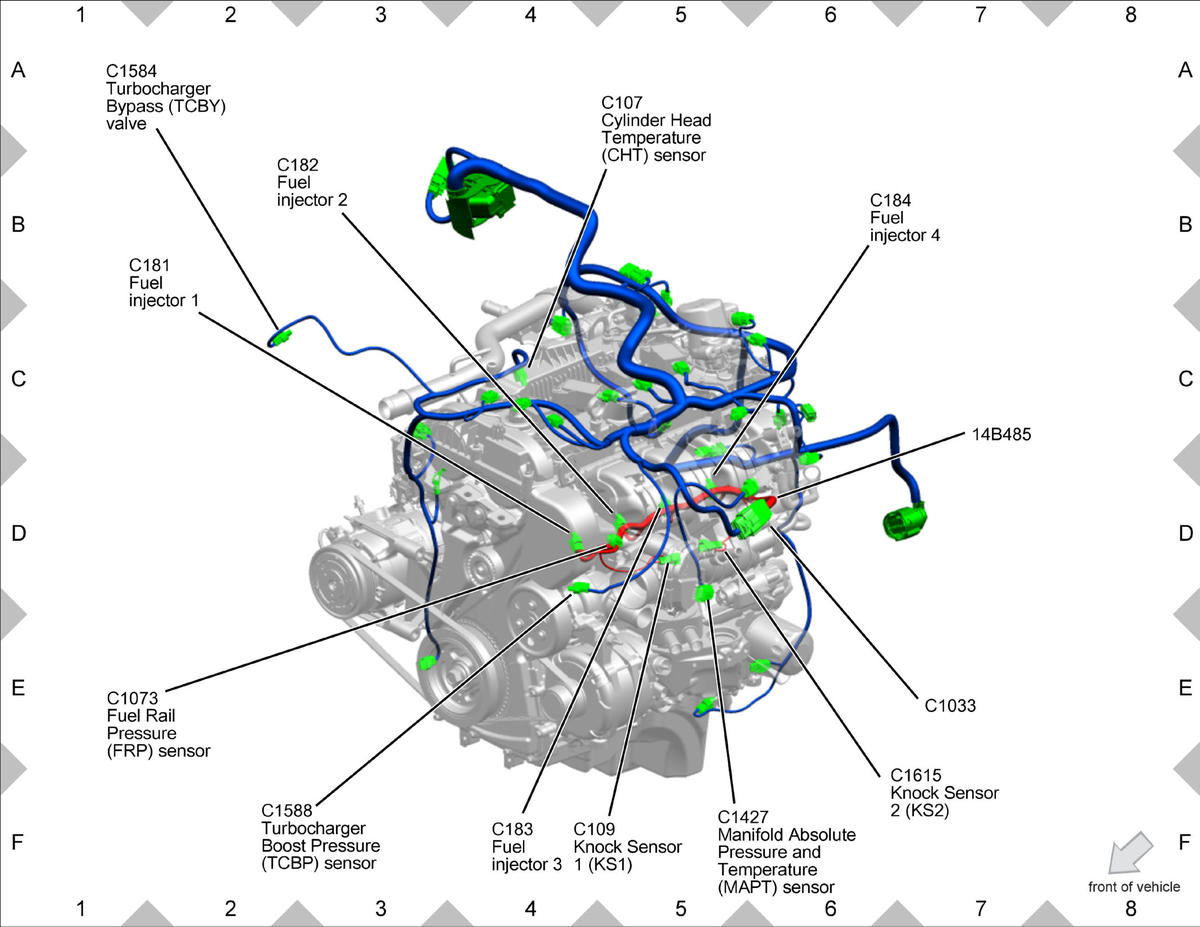

GFDWR151103Courtesy of FORD MOTOR COMPANY

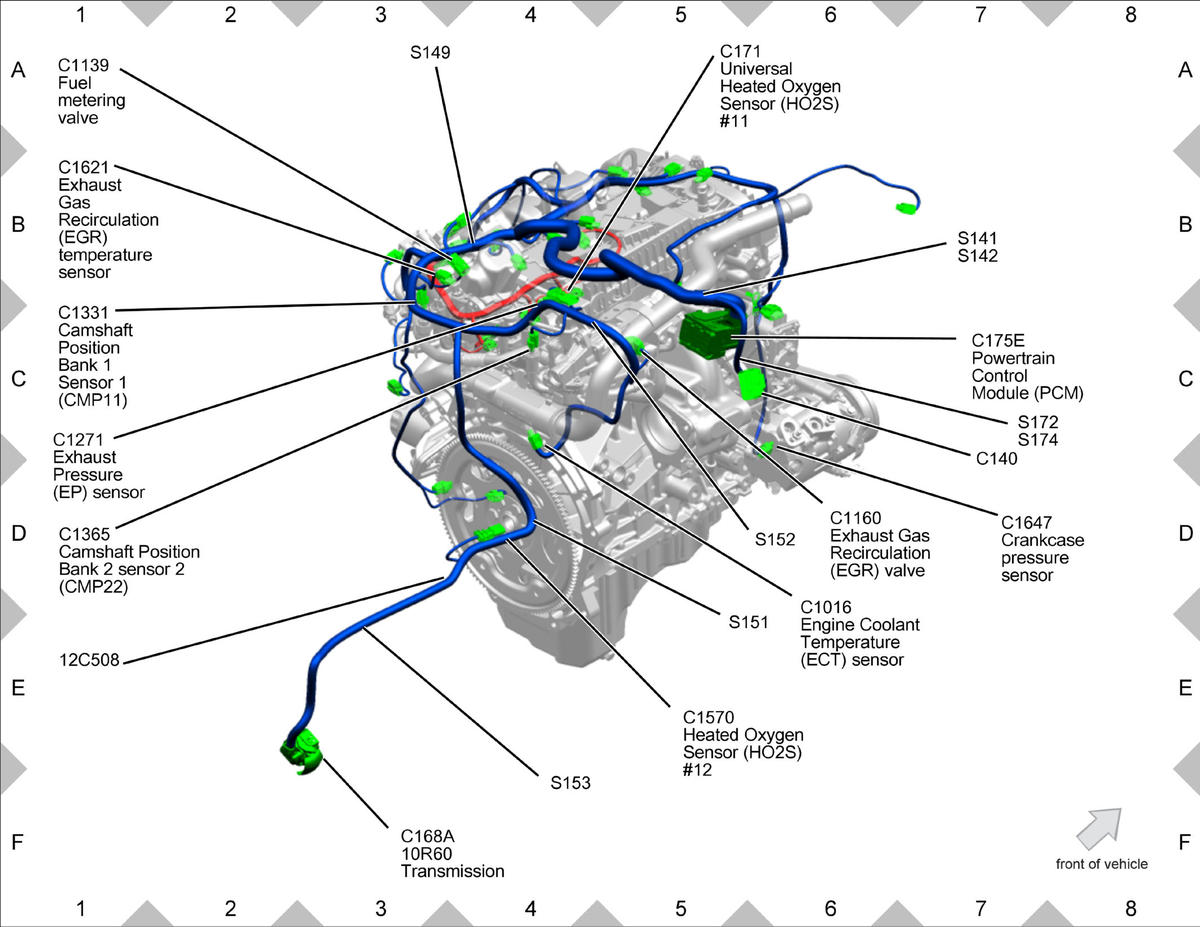

GFDWR151104Courtesy of FORD MOTOR COMPANY

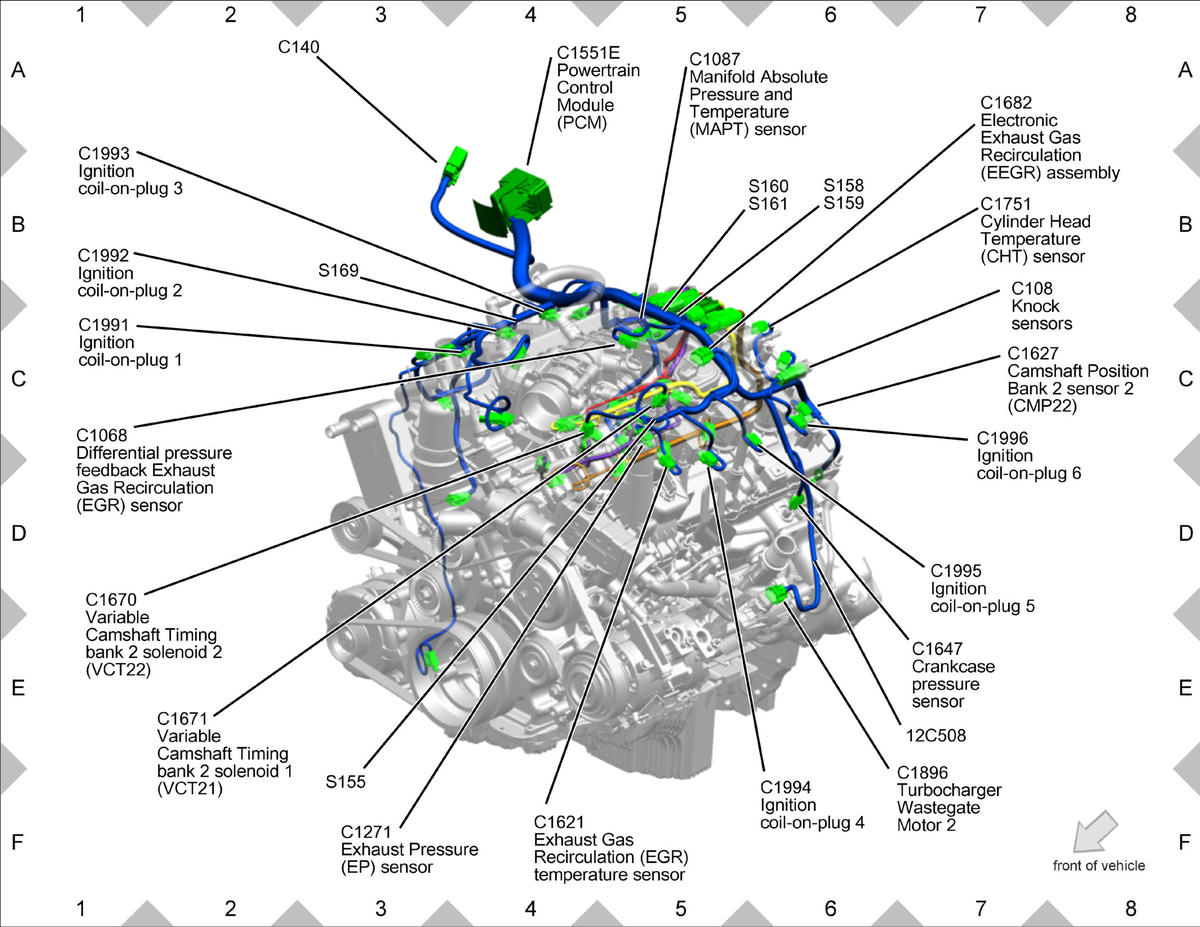

GFDWR151105Courtesy of FORD MOTOR COMPANY

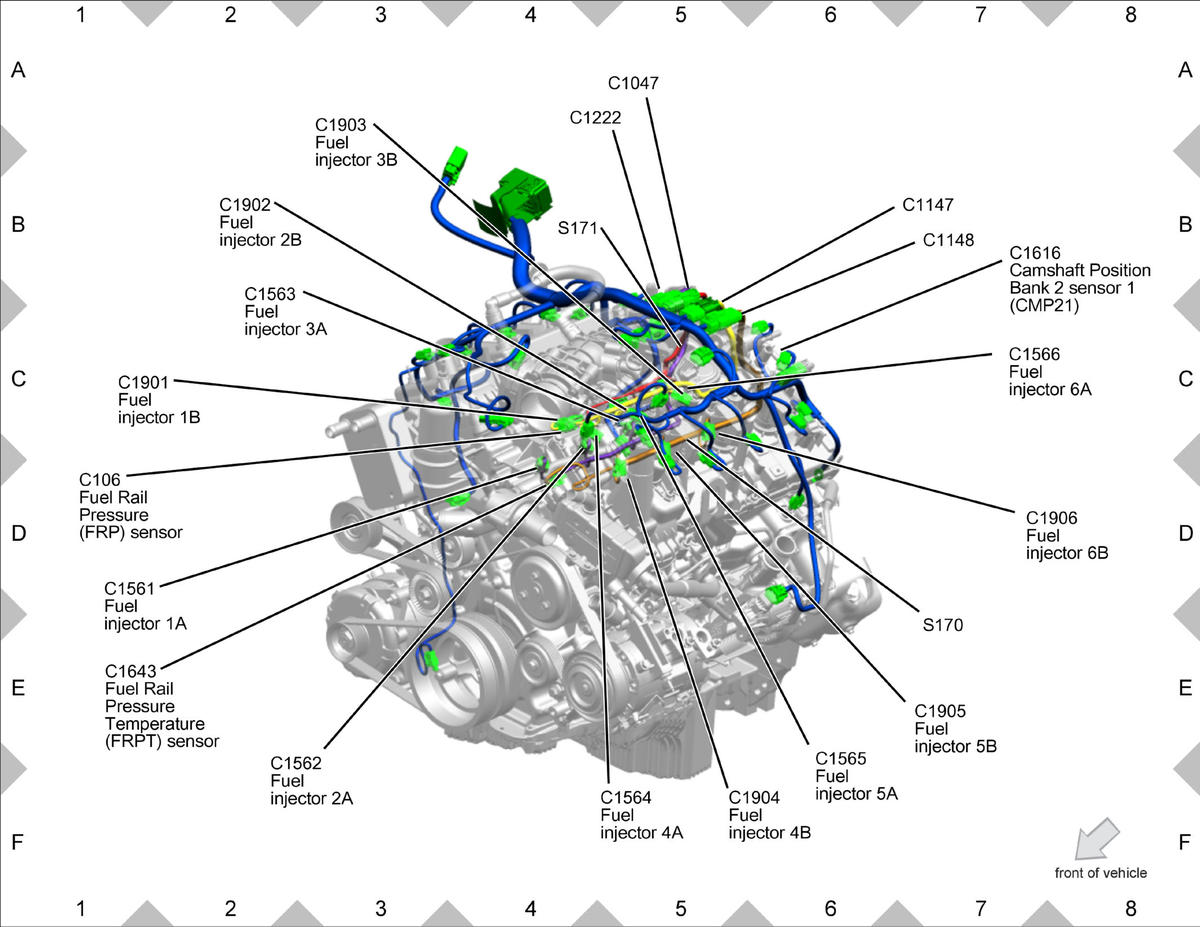

GFDWR151067Courtesy of FORD MOTOR COMPANY

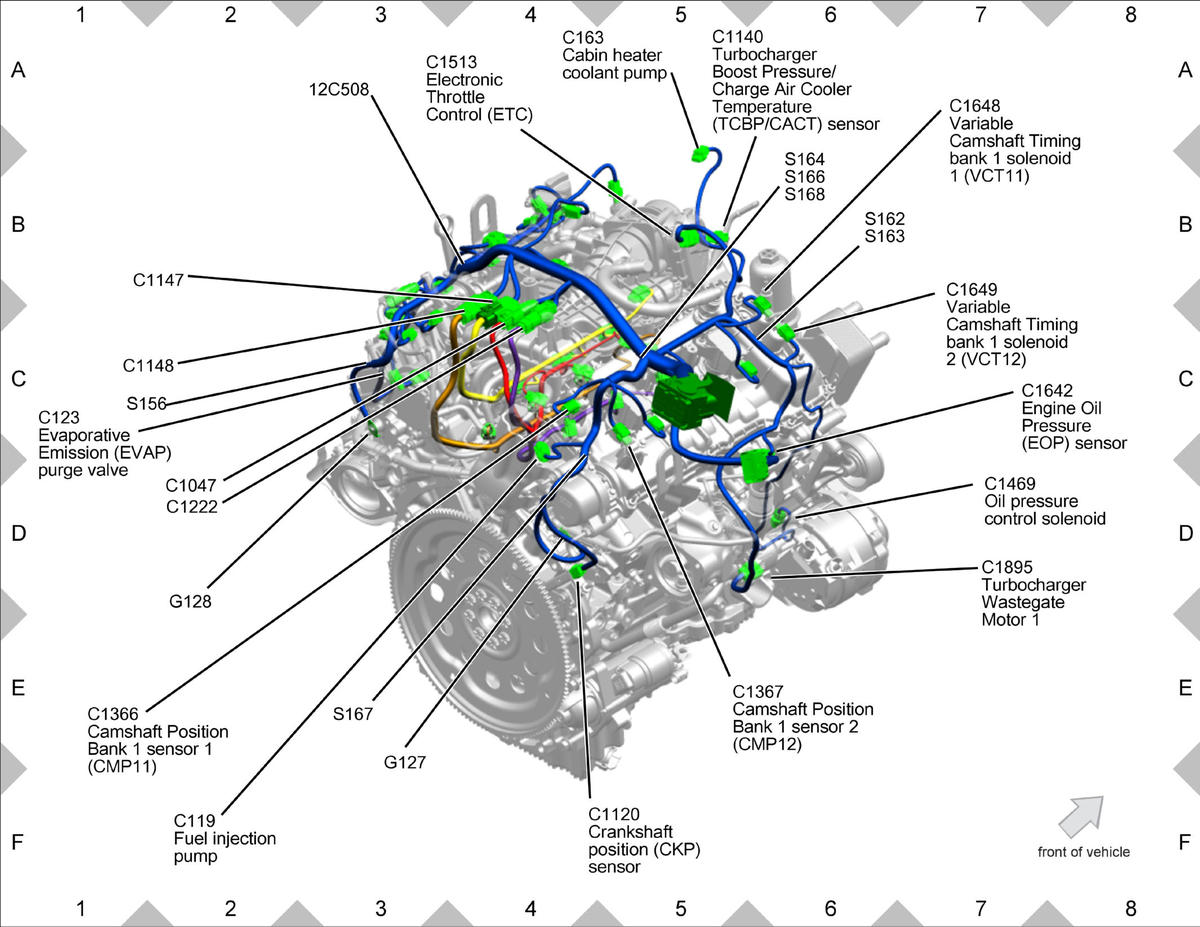

GFDWR151068Courtesy of FORD MOTOR COMPANY

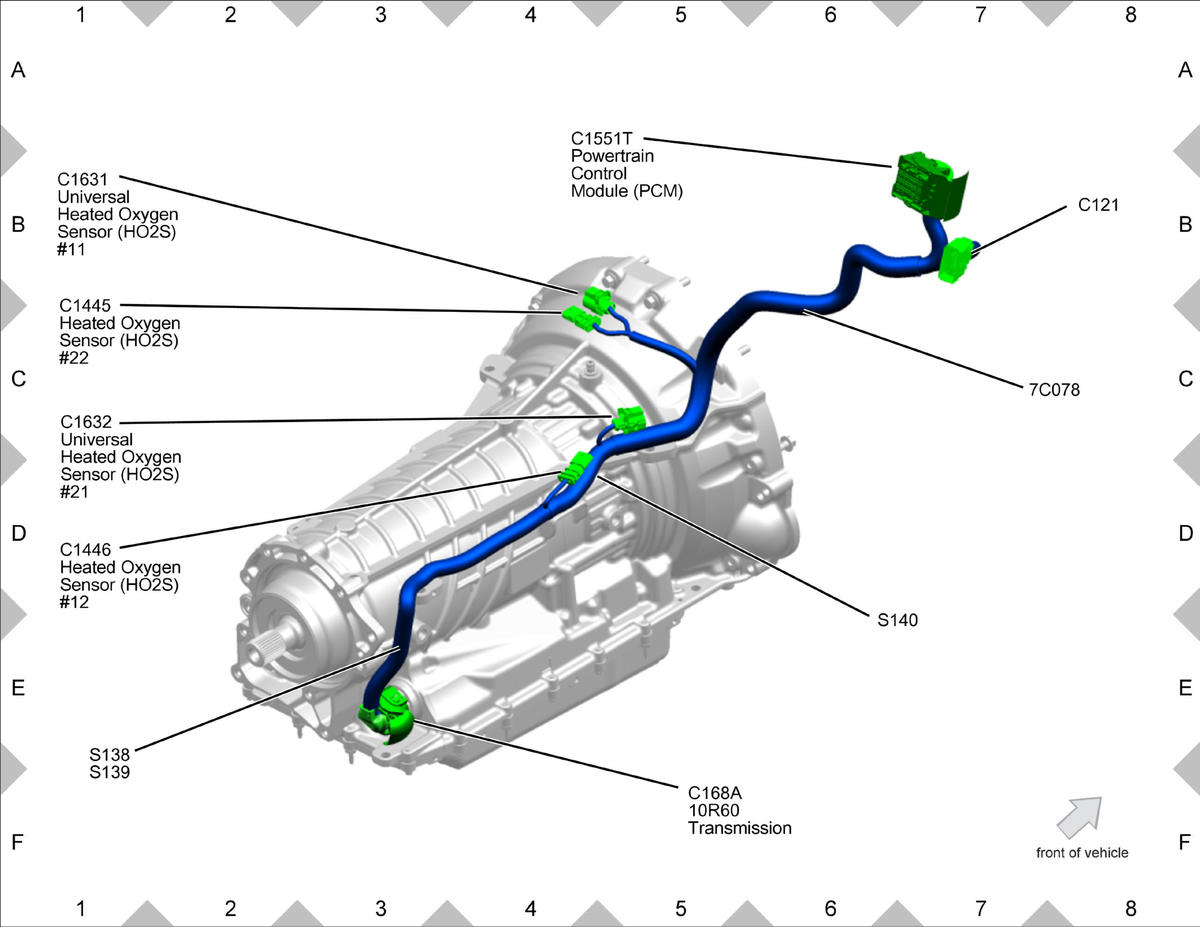

GFDWR151069Courtesy of FORD MOTOR COMPANY

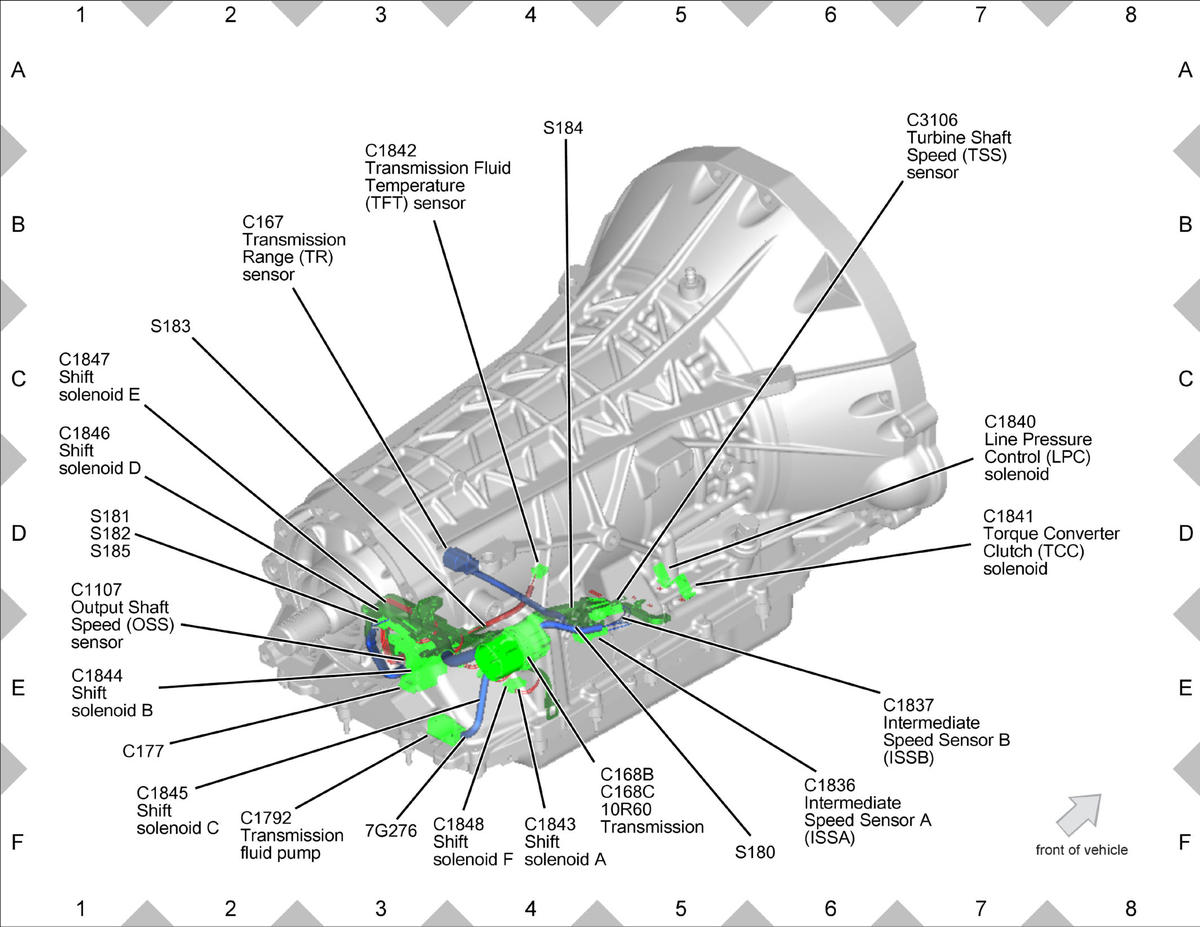

GFDWR151070Courtesy of FORD MOTOR COMPANY

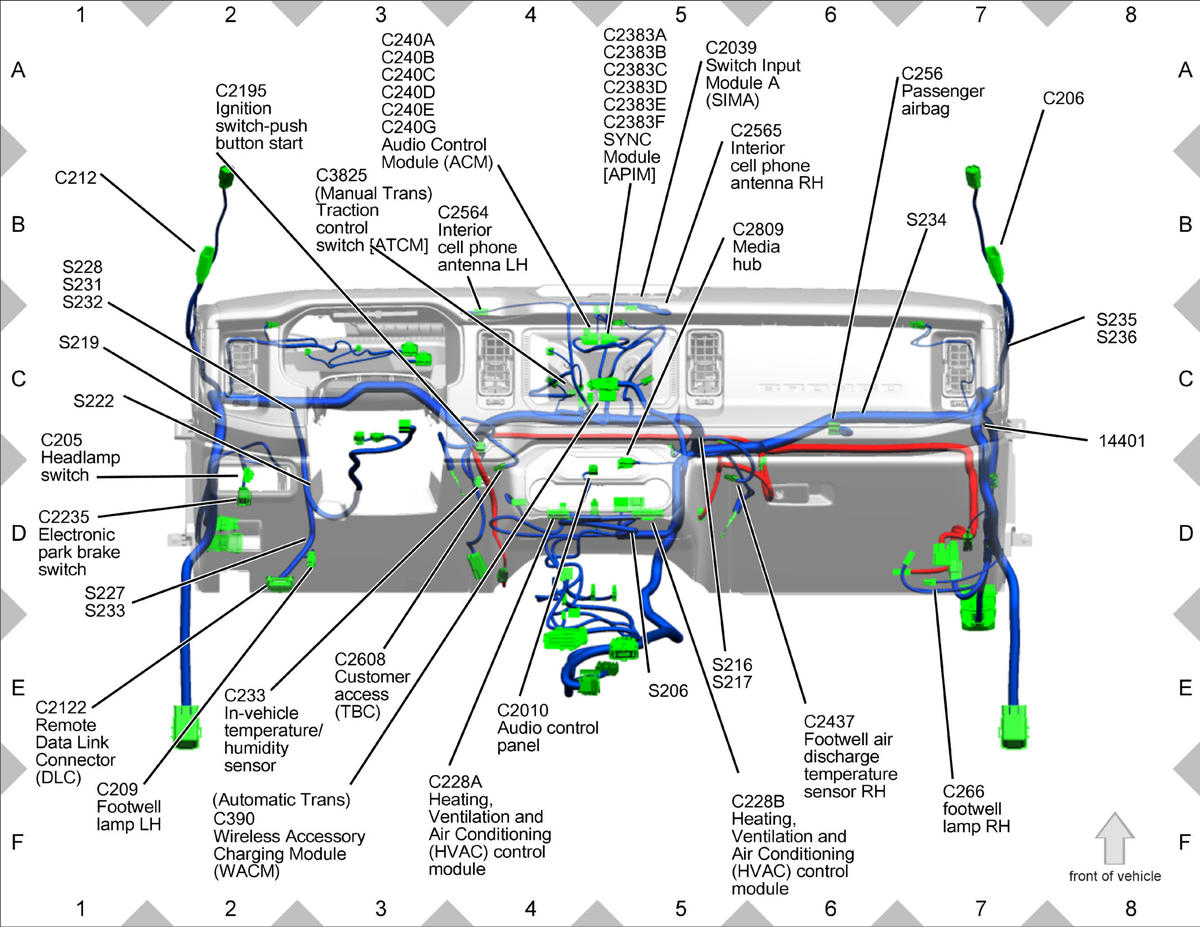

GFDWR151071Courtesy of FORD MOTOR COMPANY

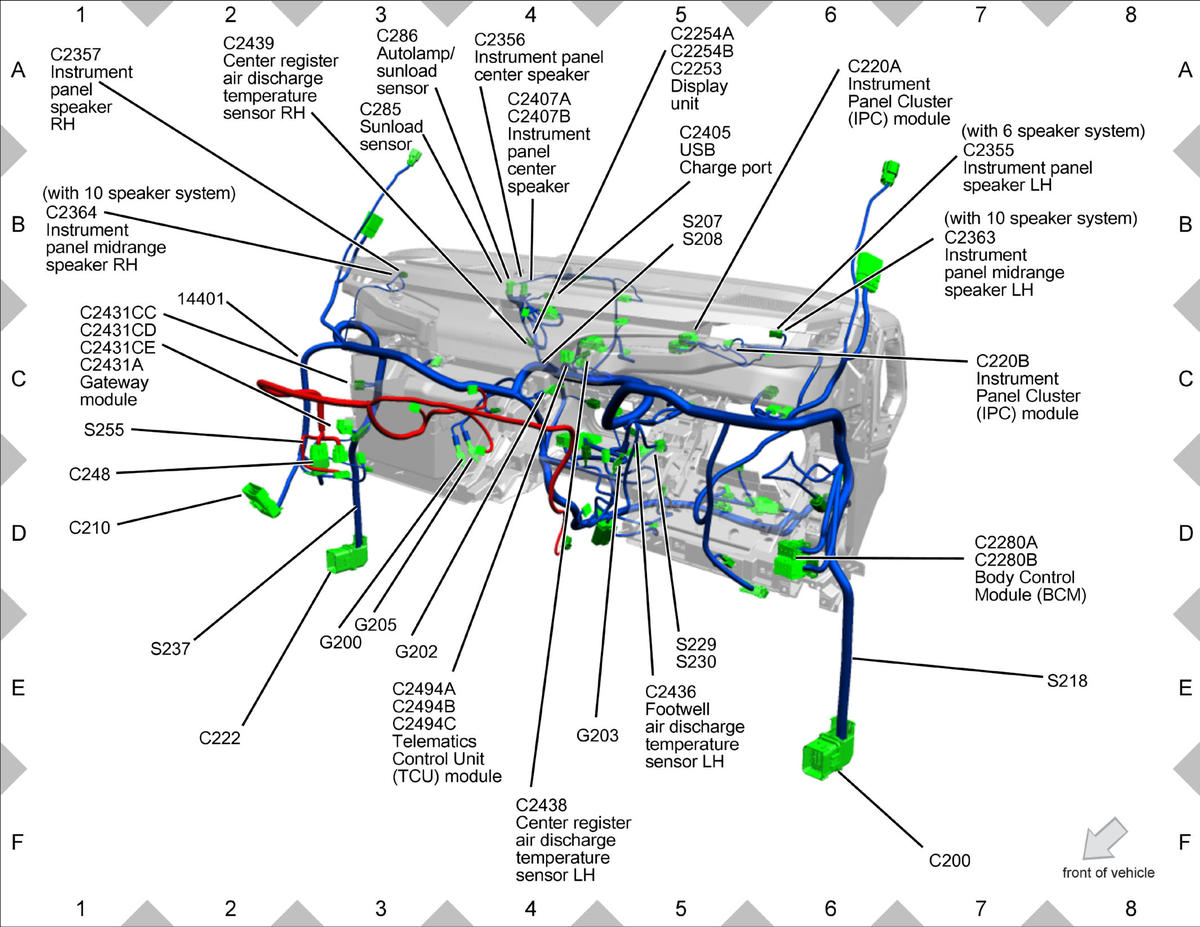

GFDWR151072Courtesy of FORD MOTOR COMPANY

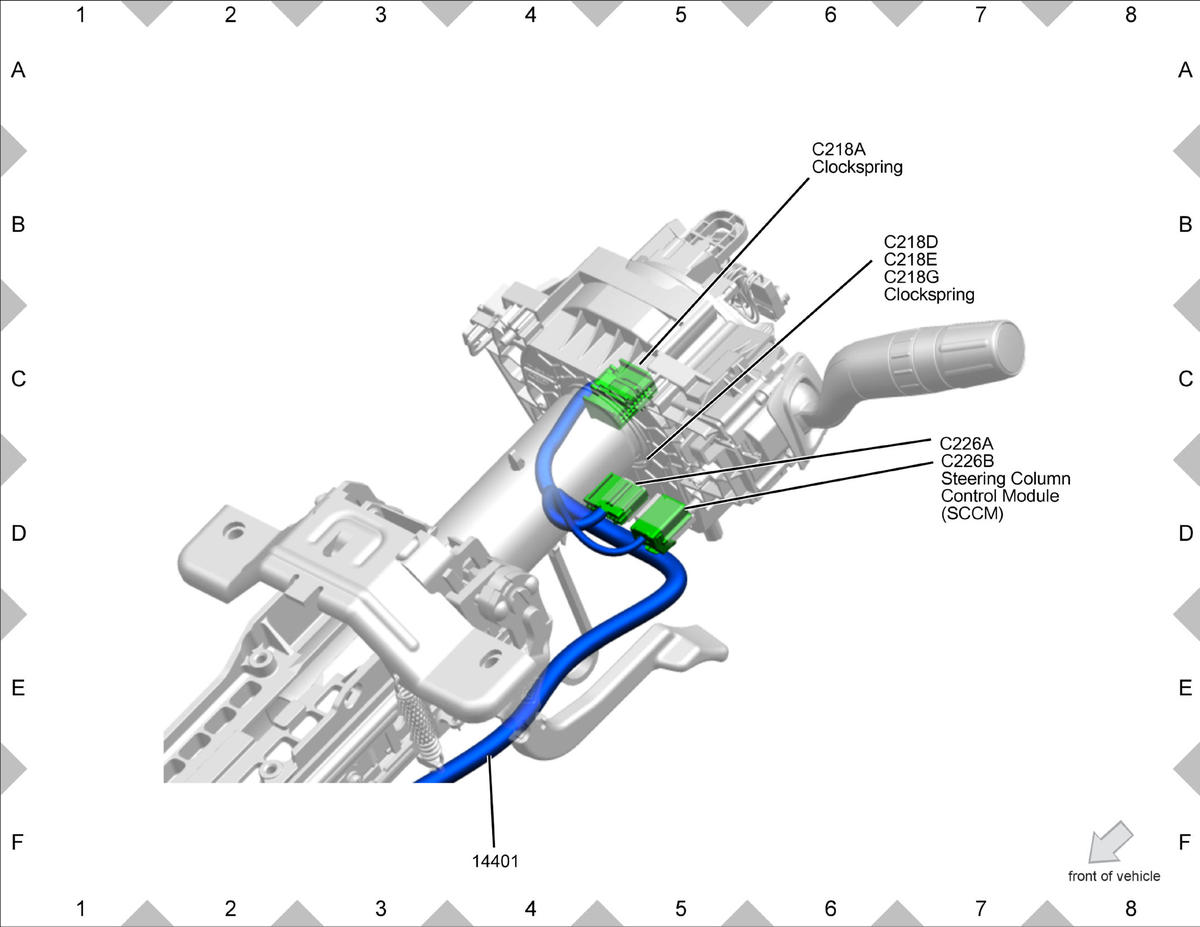

GFDWR151073Courtesy of FORD MOTOR COMPANY

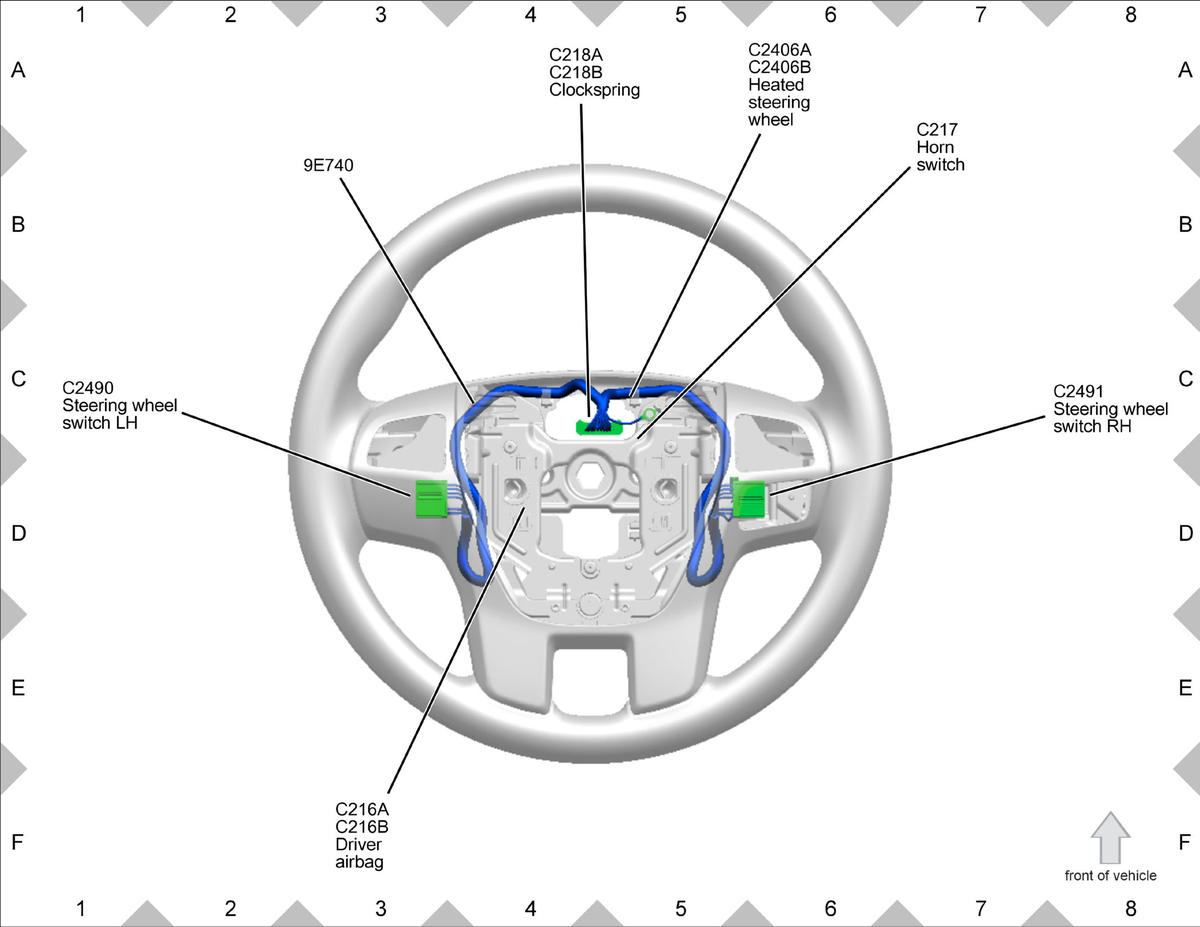

GFDWR151074Courtesy of FORD MOTOR COMPANY

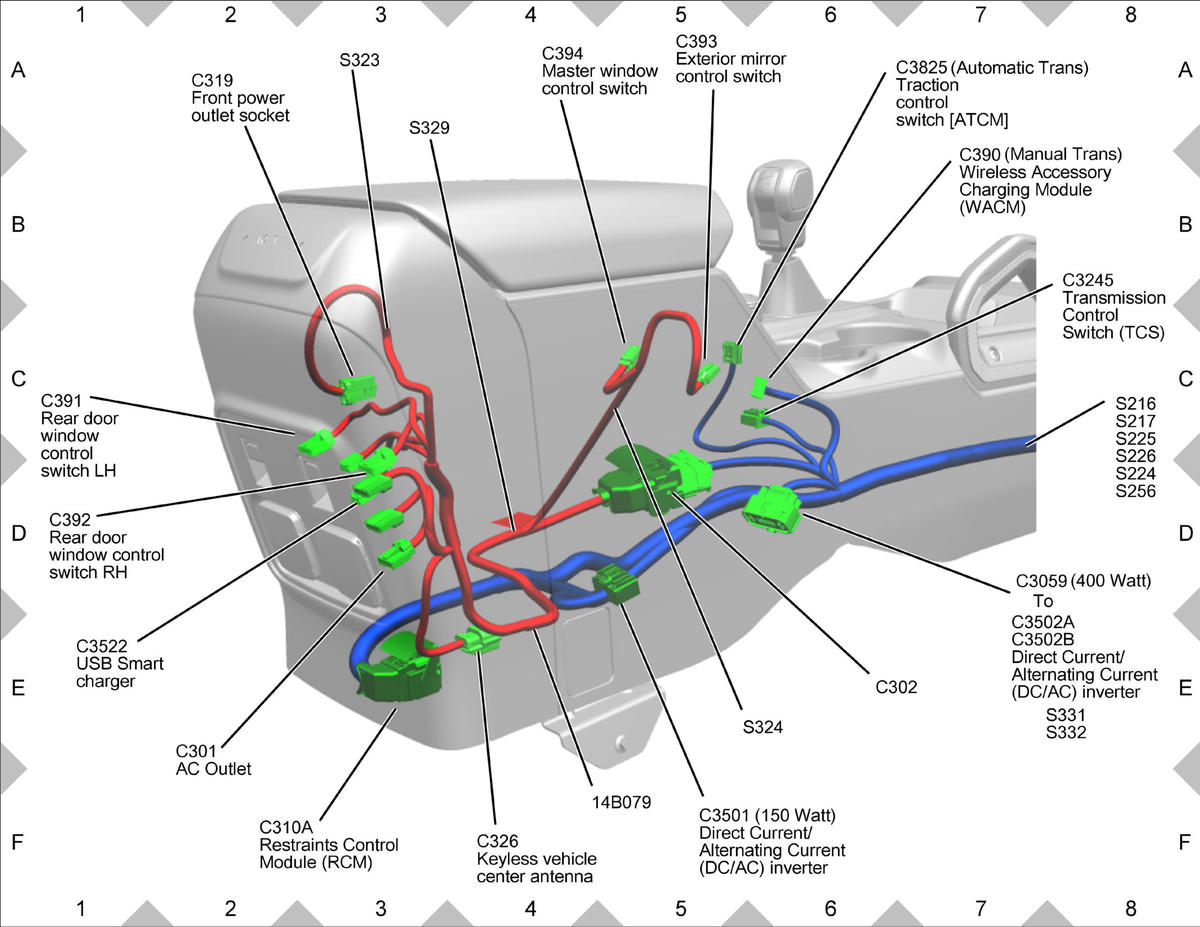

GFDWR151075Courtesy of FORD MOTOR COMPANY

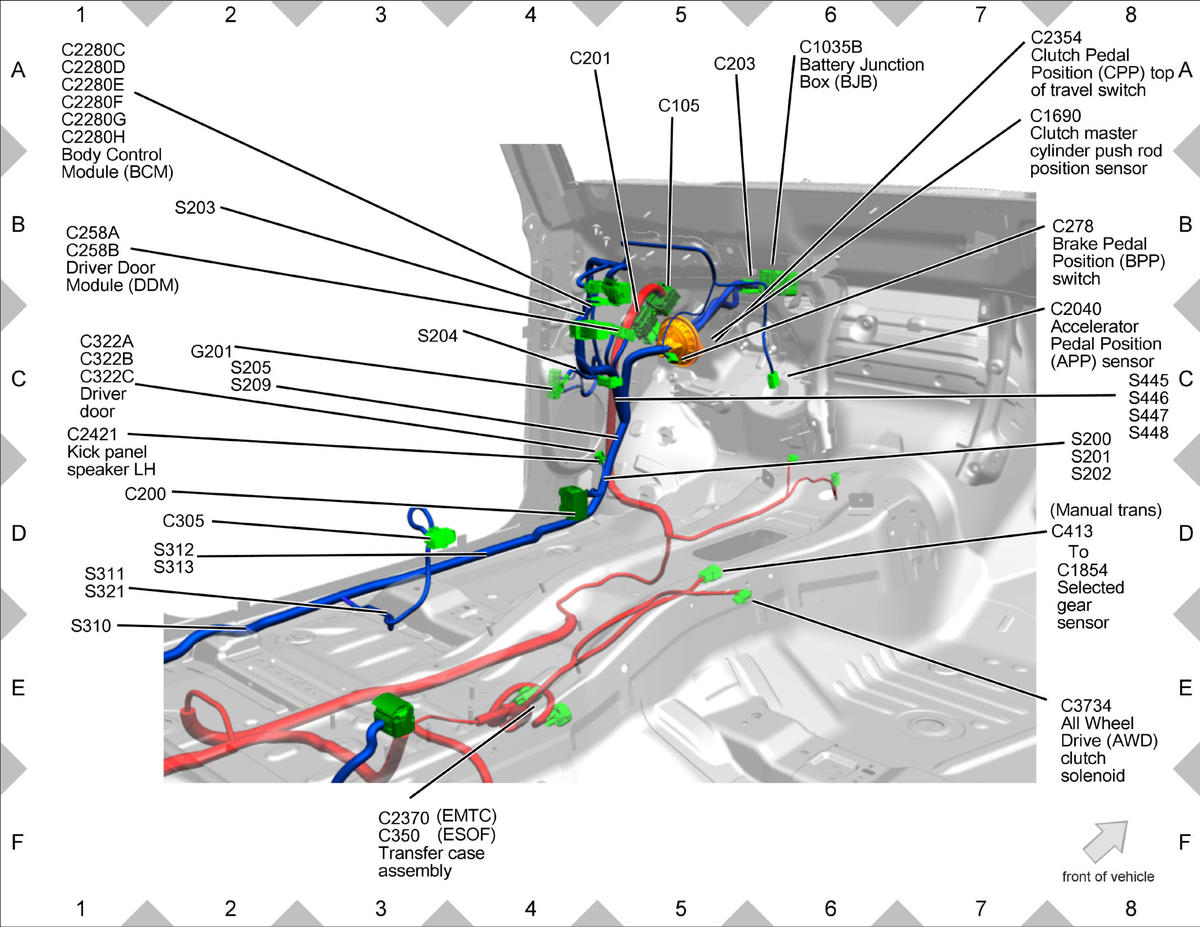

GFDWR151076Courtesy of FORD MOTOR COMPANY

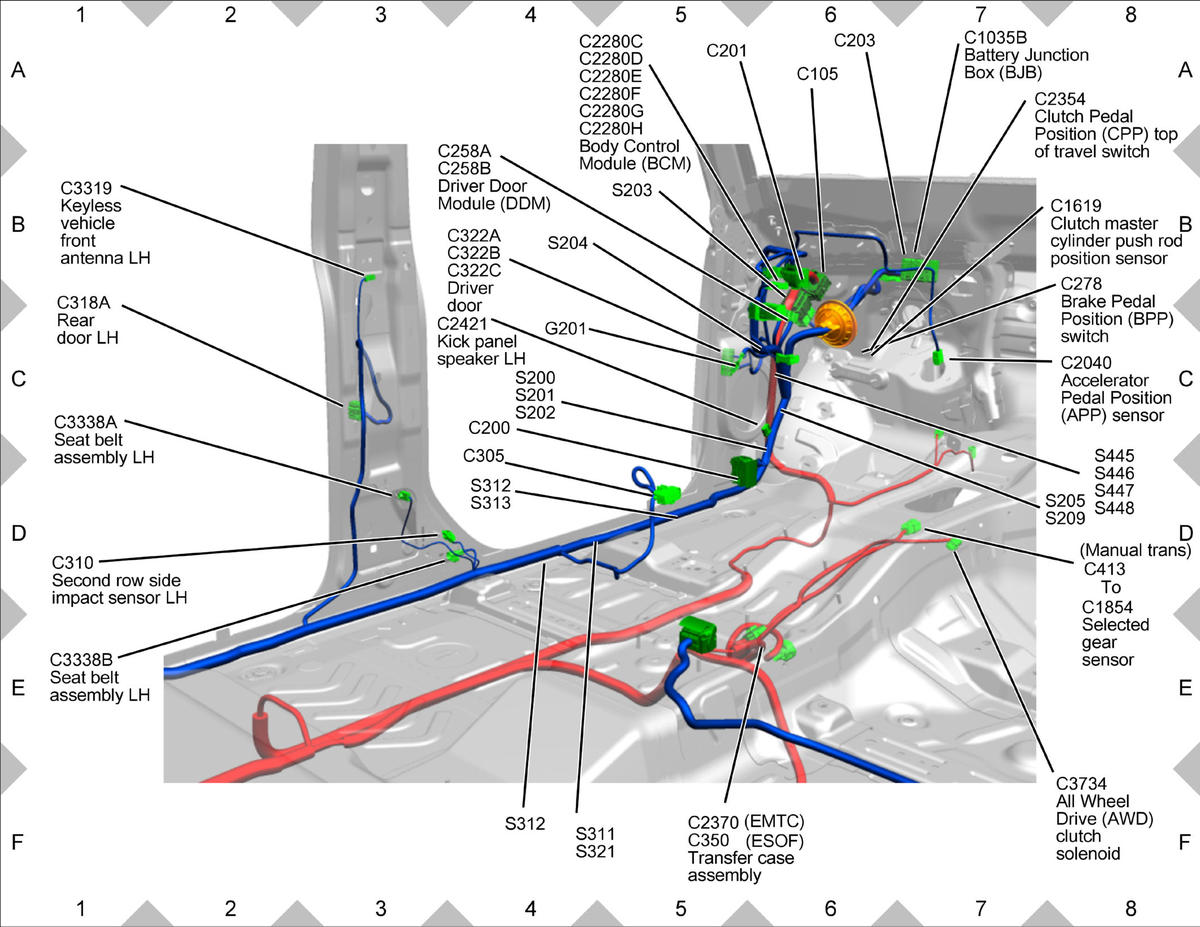

GFDWR151078Courtesy of FORD MOTOR COMPANY

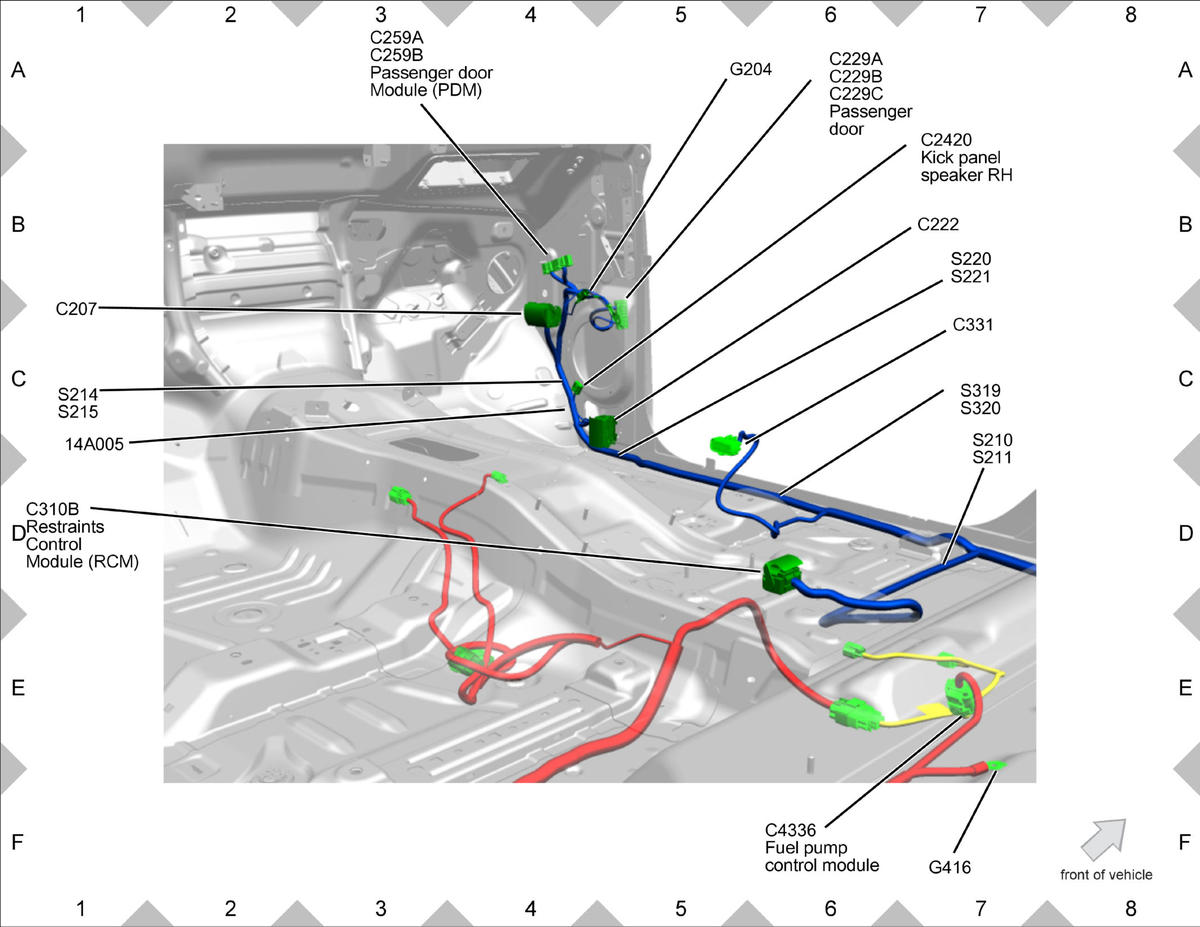

GFDWR151079Courtesy of FORD MOTOR COMPANY

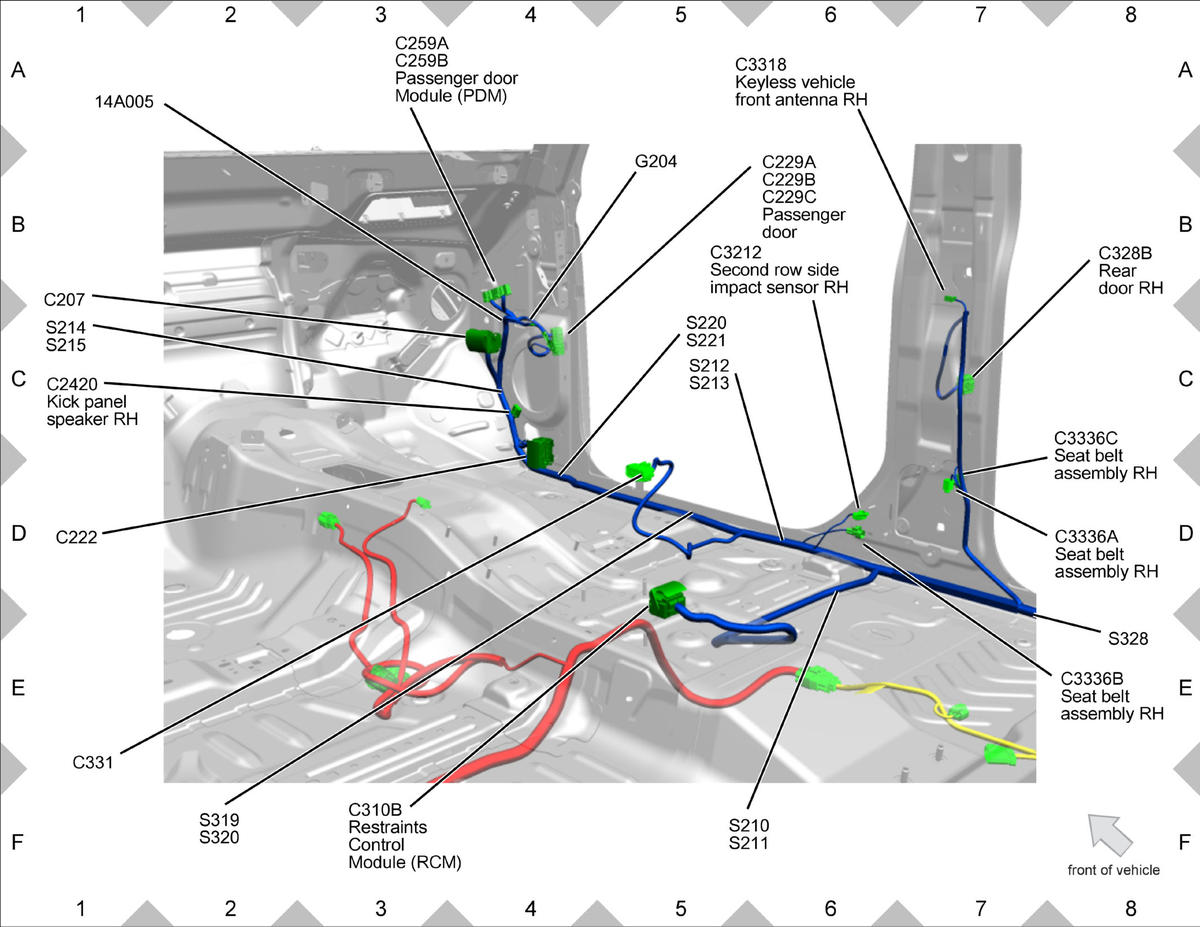

GFDWR151080Courtesy of FORD MOTOR COMPANY

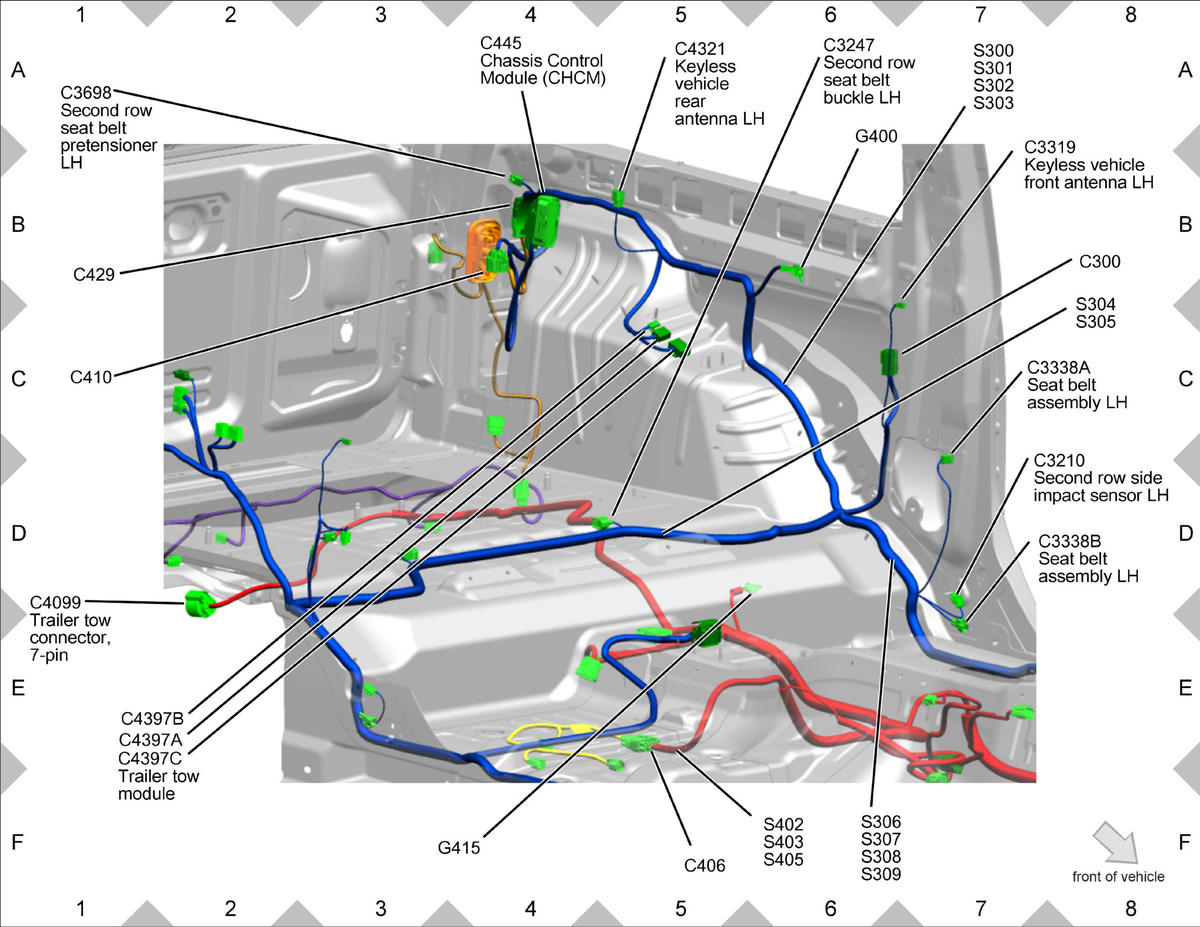

GFDWR151081Courtesy of FORD MOTOR COMPANY

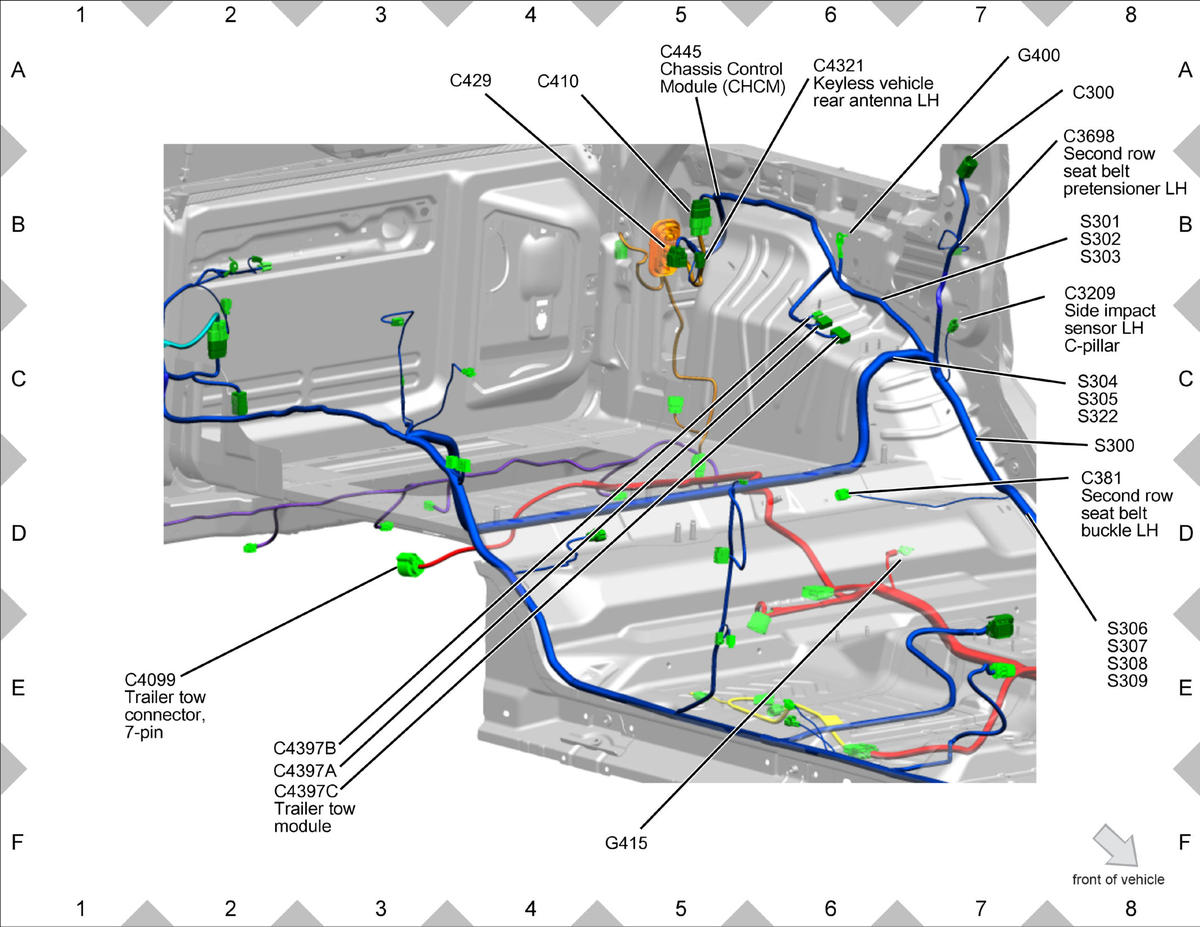

GFDWR151082Courtesy of FORD MOTOR COMPANY

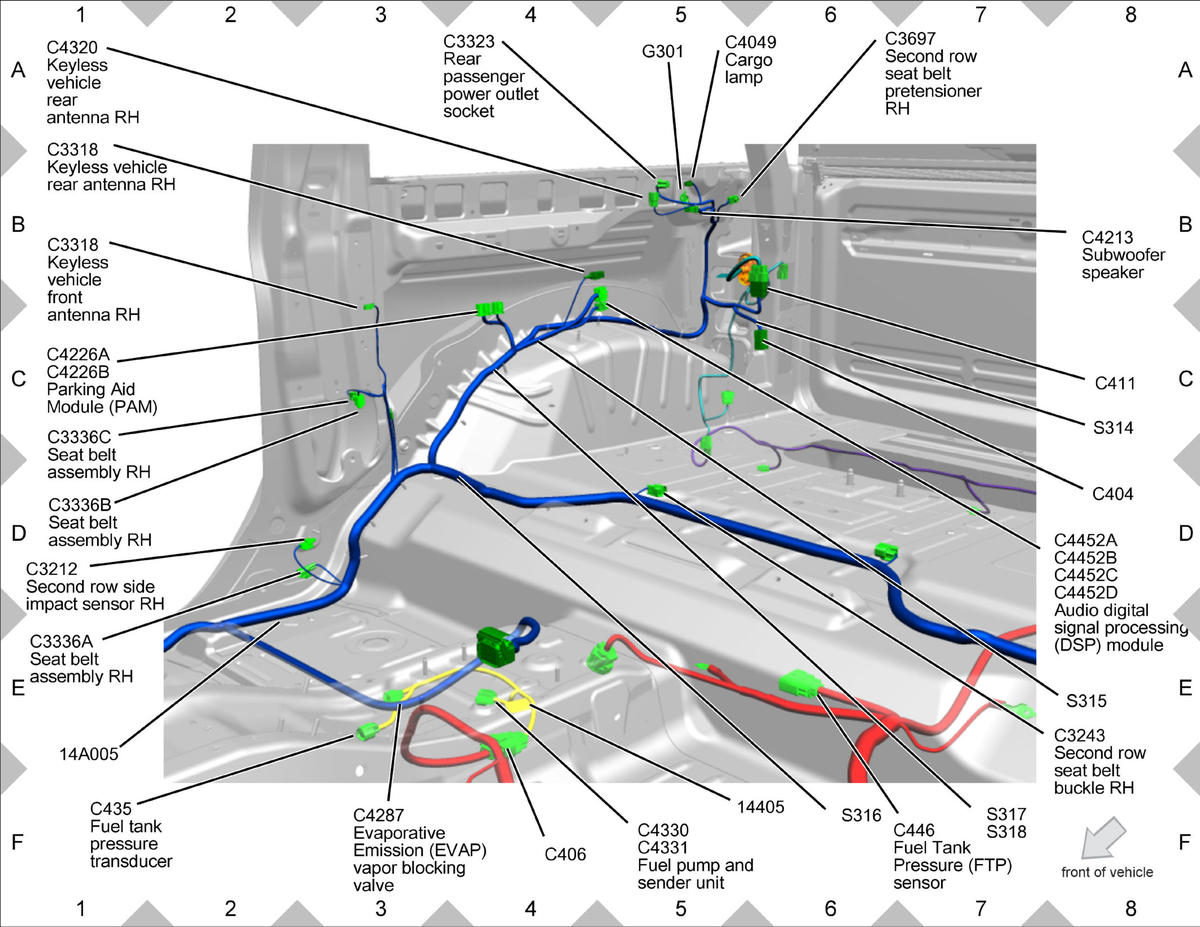

GFDWR151083Courtesy of FORD MOTOR COMPANY

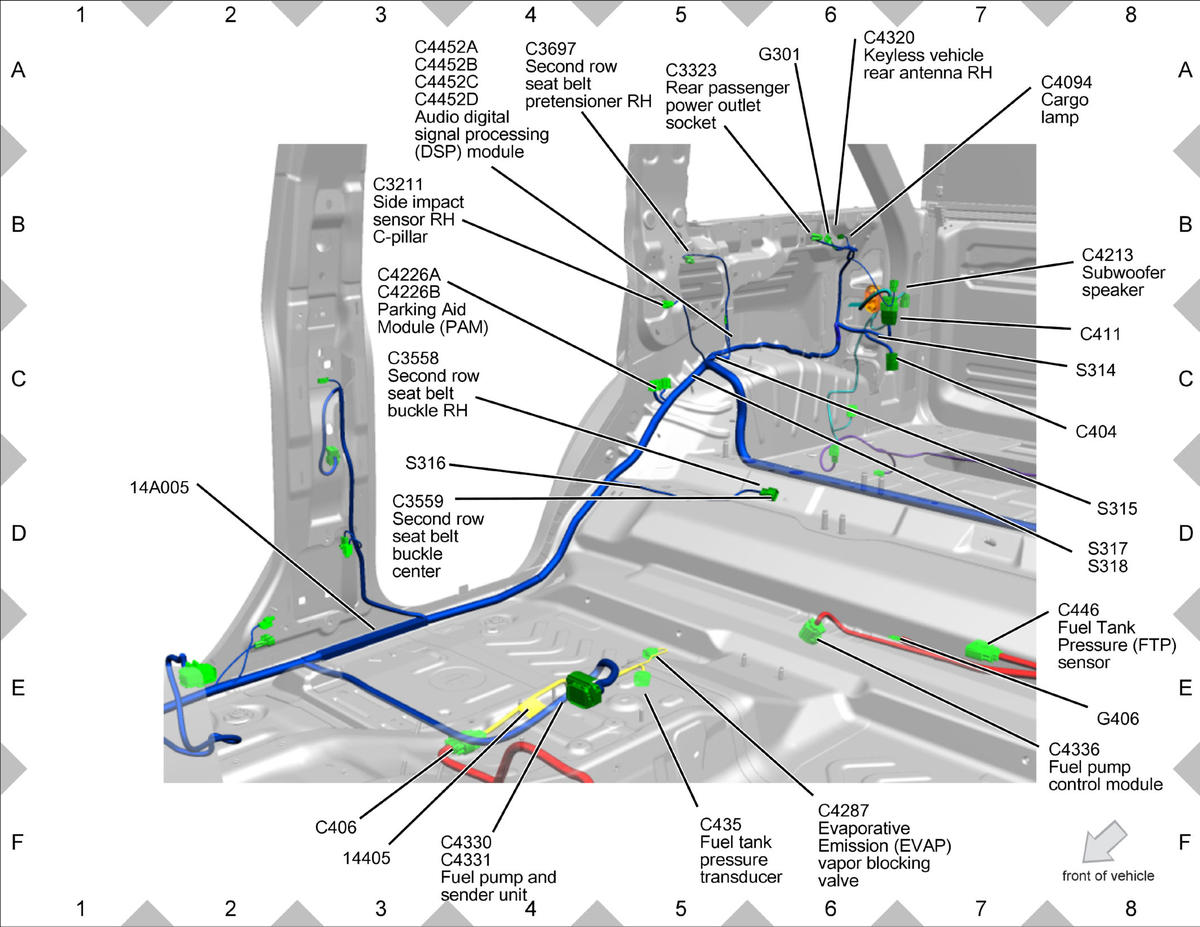

GFDWR151084Courtesy of FORD MOTOR COMPANY

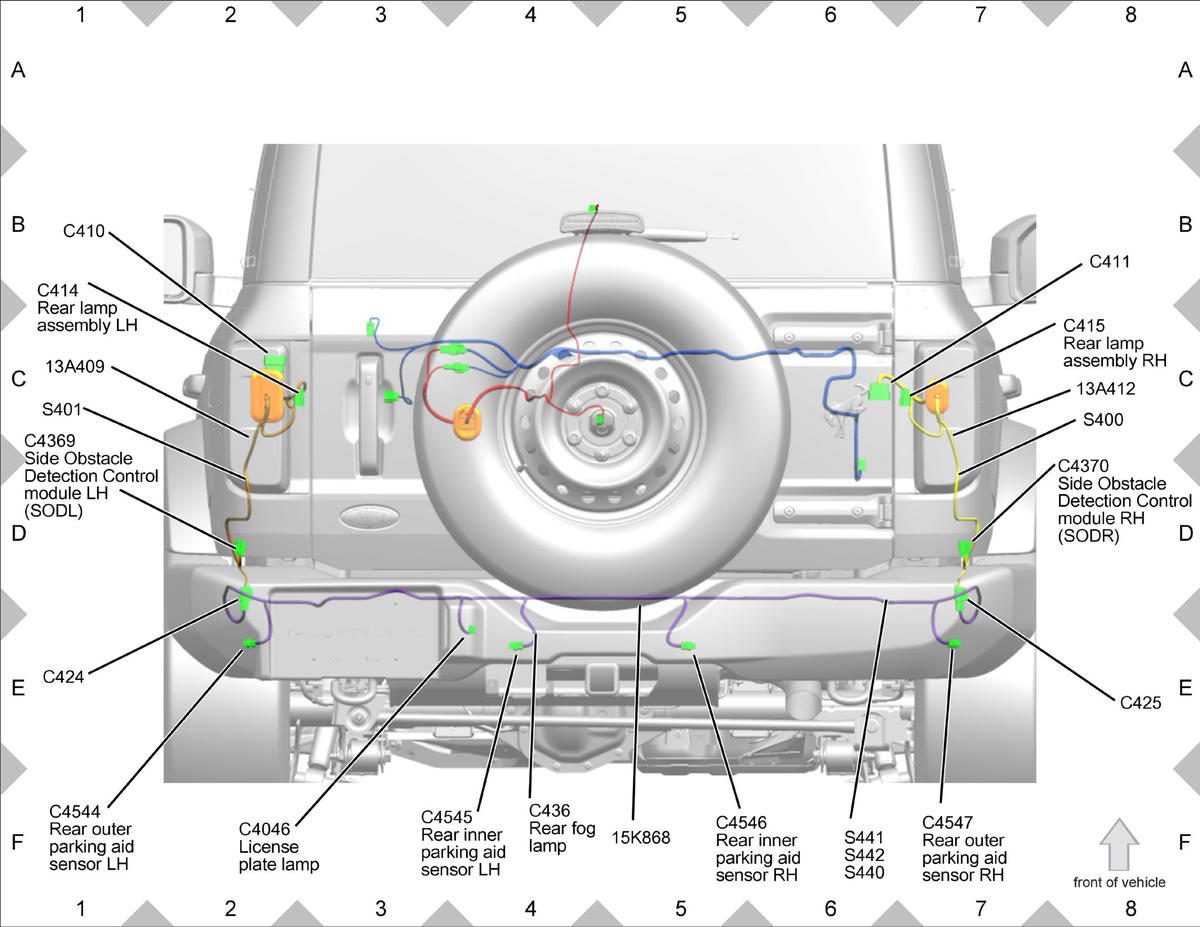

GFDWR151085Courtesy of FORD MOTOR COMPANY

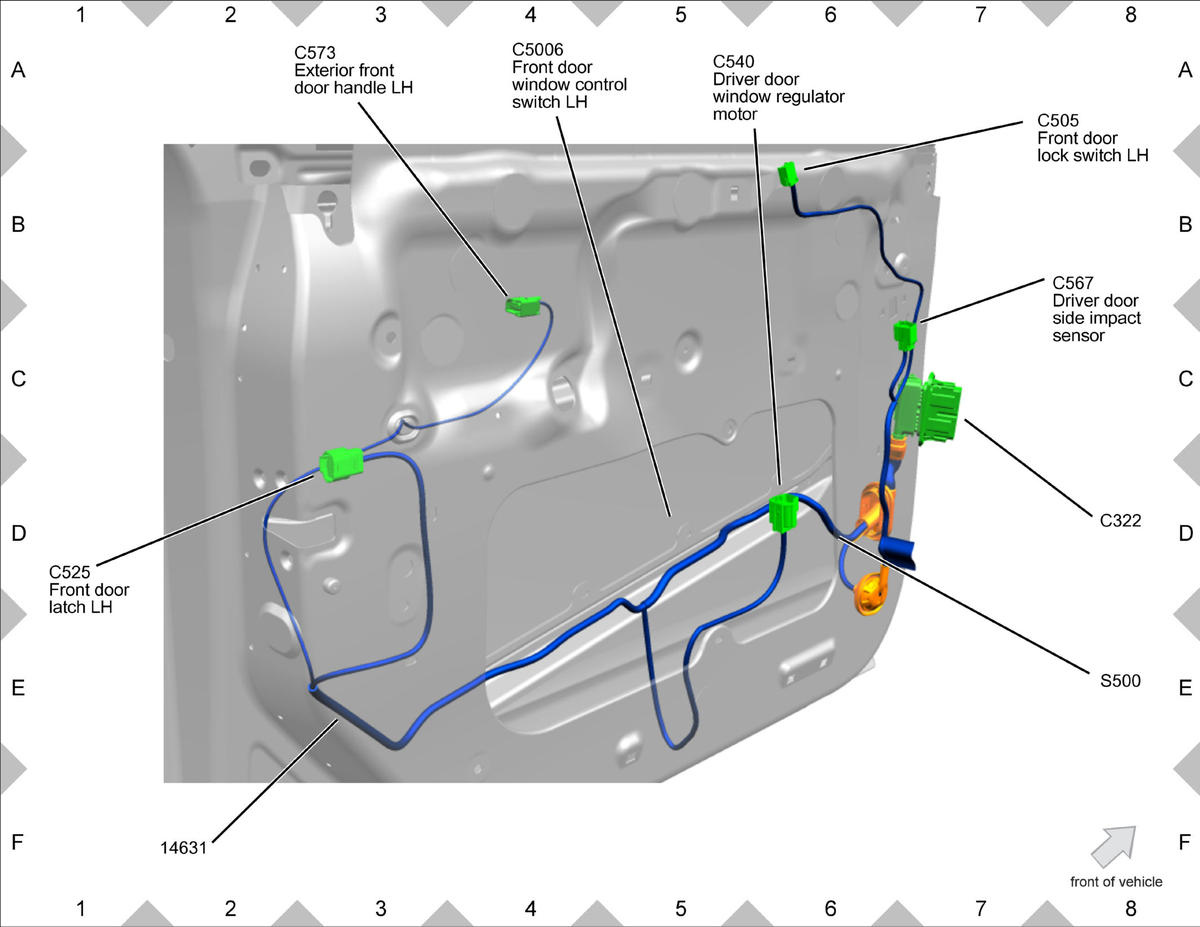

GFDWR151086Courtesy of FORD MOTOR COMPANY

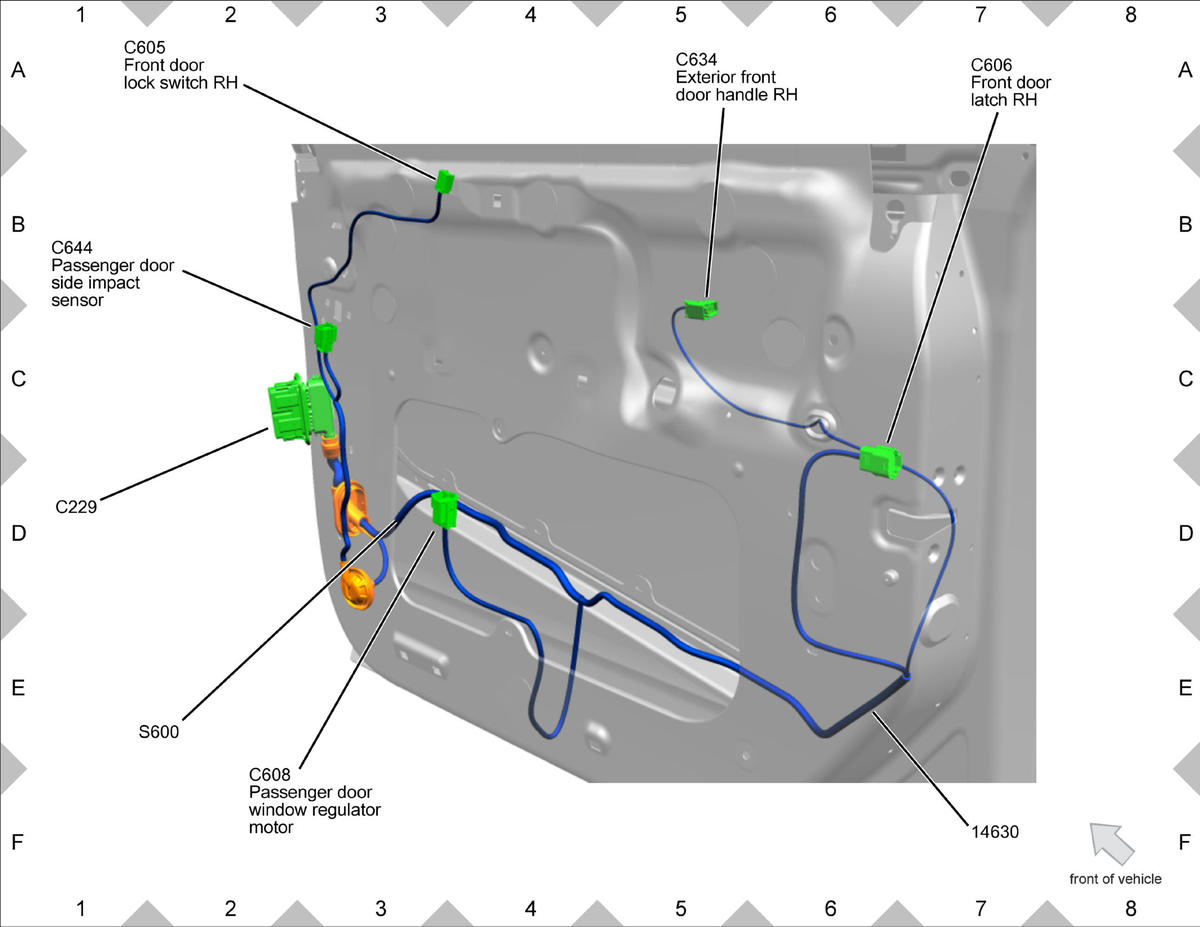

GFDWR151087Courtesy of FORD MOTOR COMPANY

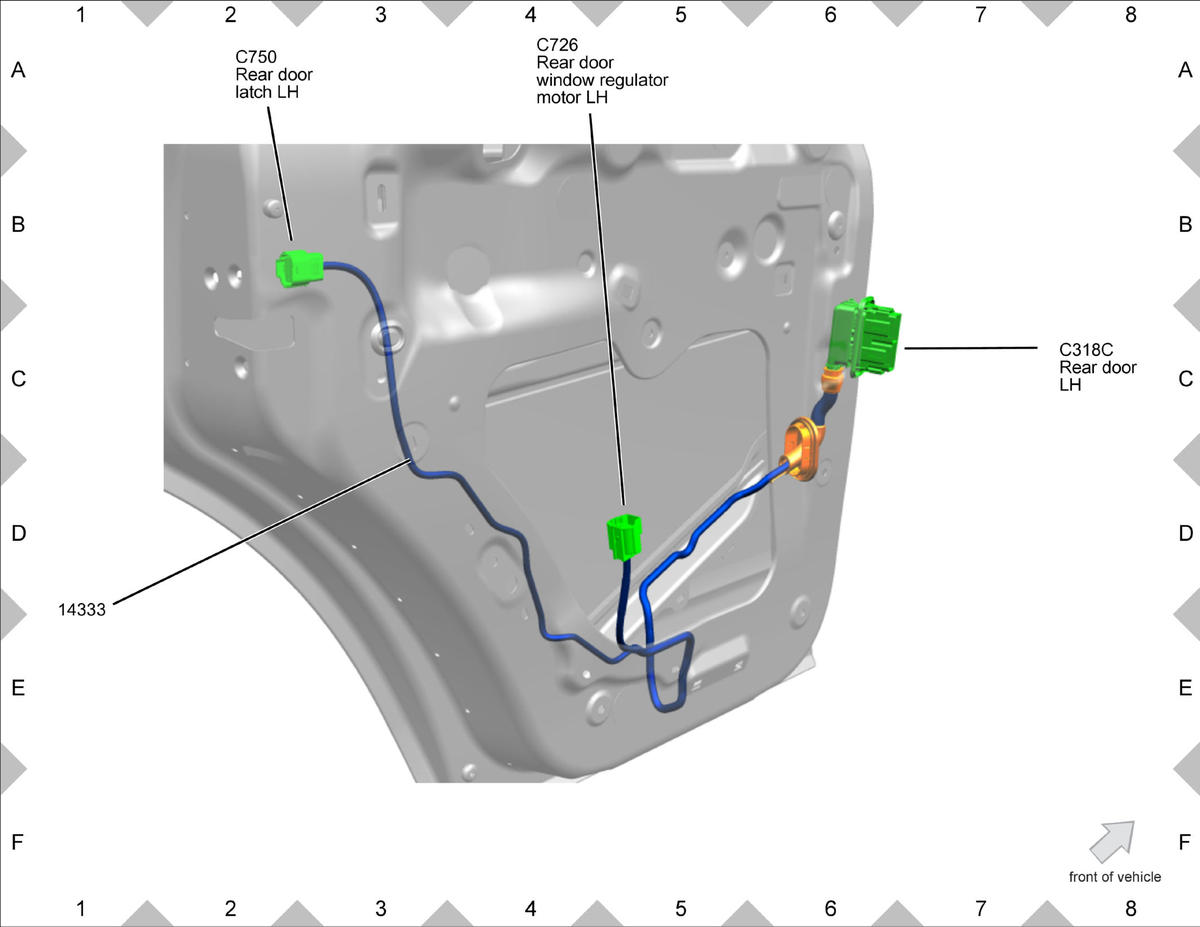

GFDWR151089Courtesy of FORD MOTOR COMPANY

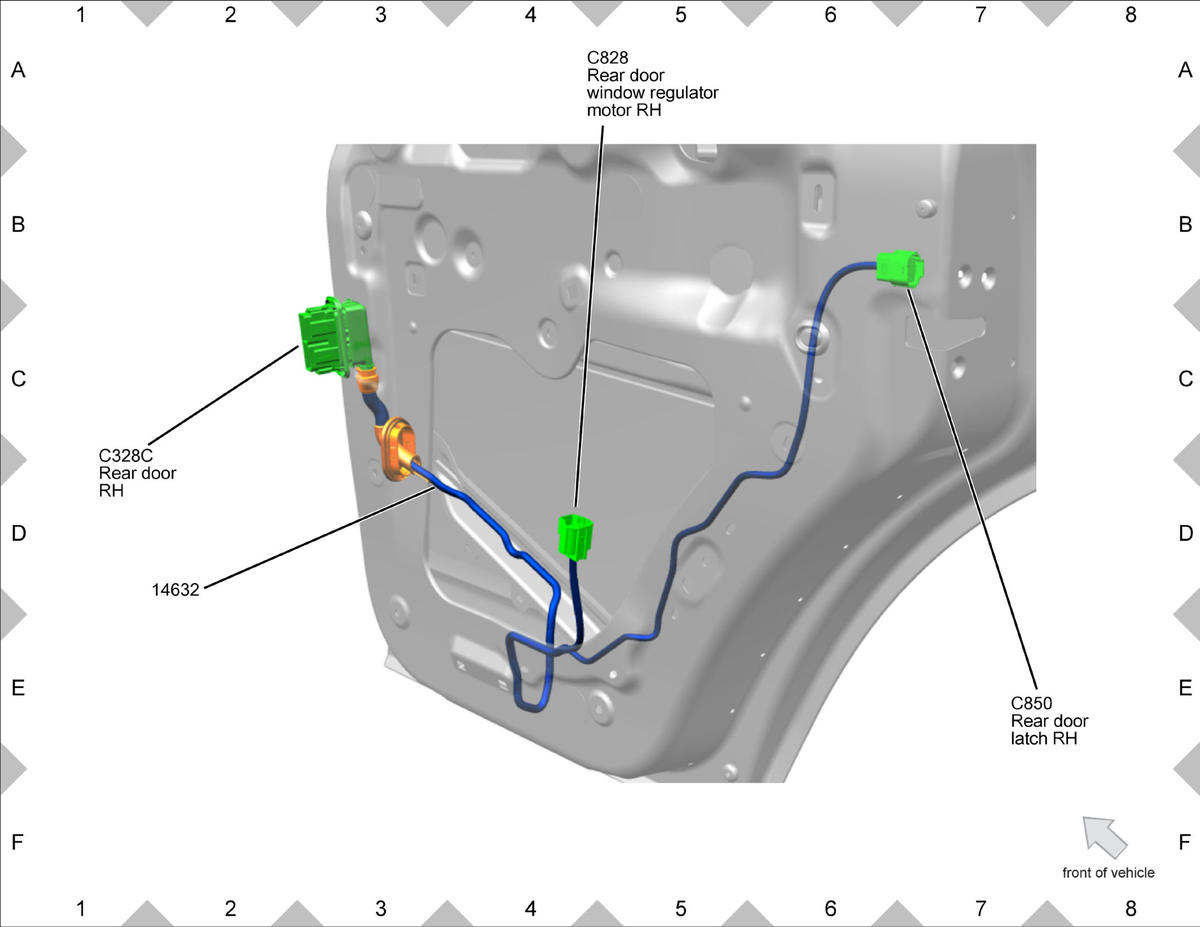

GFDWR151090Courtesy of FORD MOTOR COMPANY

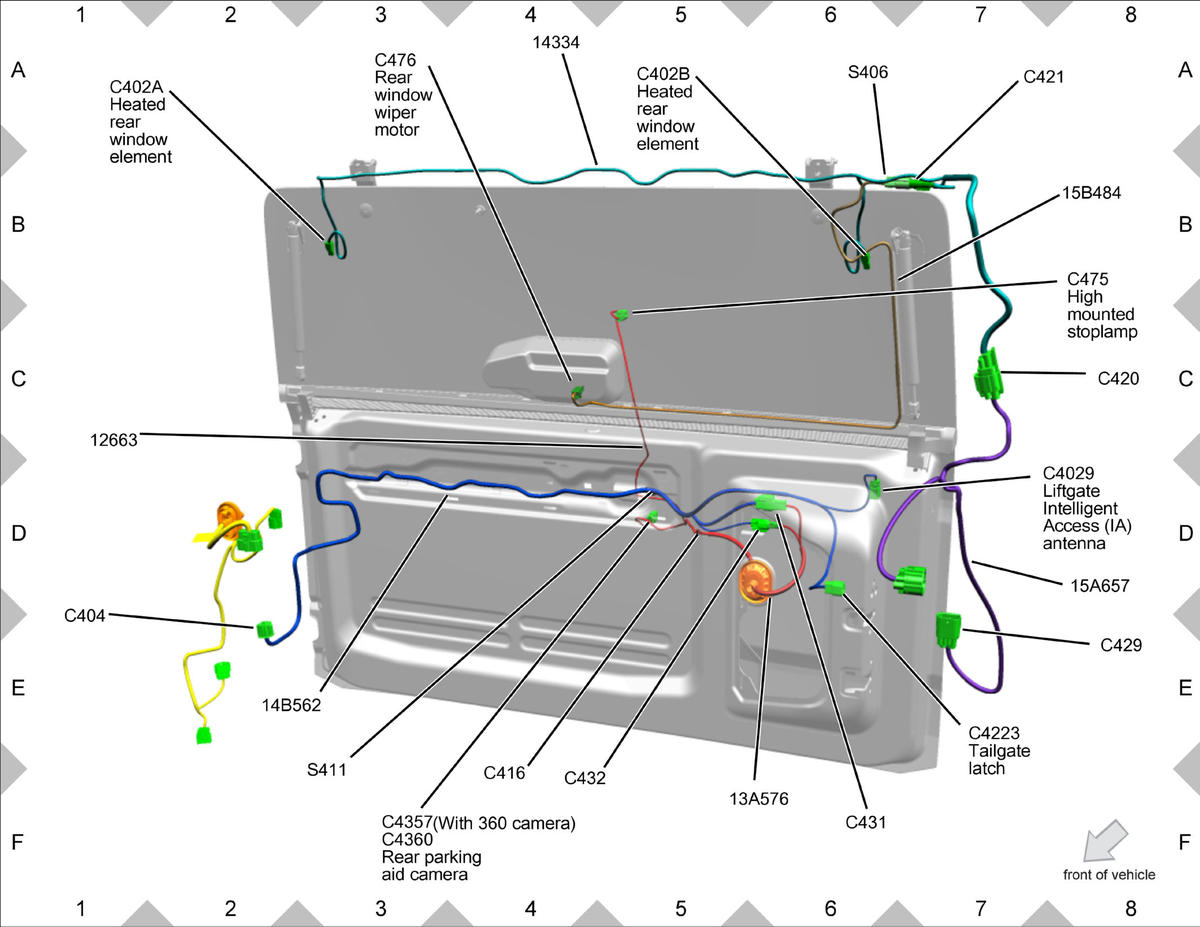

GFDWR151091Courtesy of FORD MOTOR COMPANY

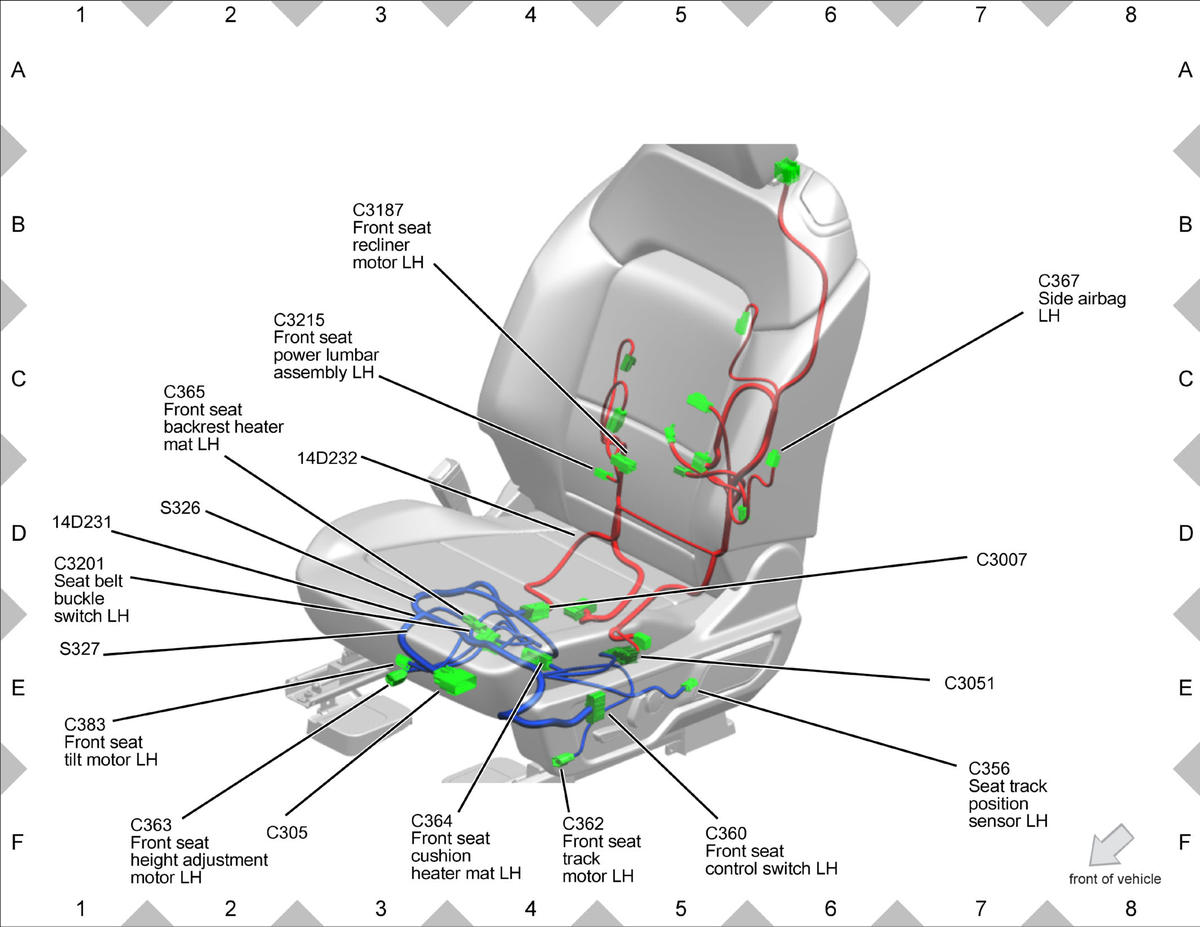

GFDWR151092Courtesy of FORD MOTOR COMPANY

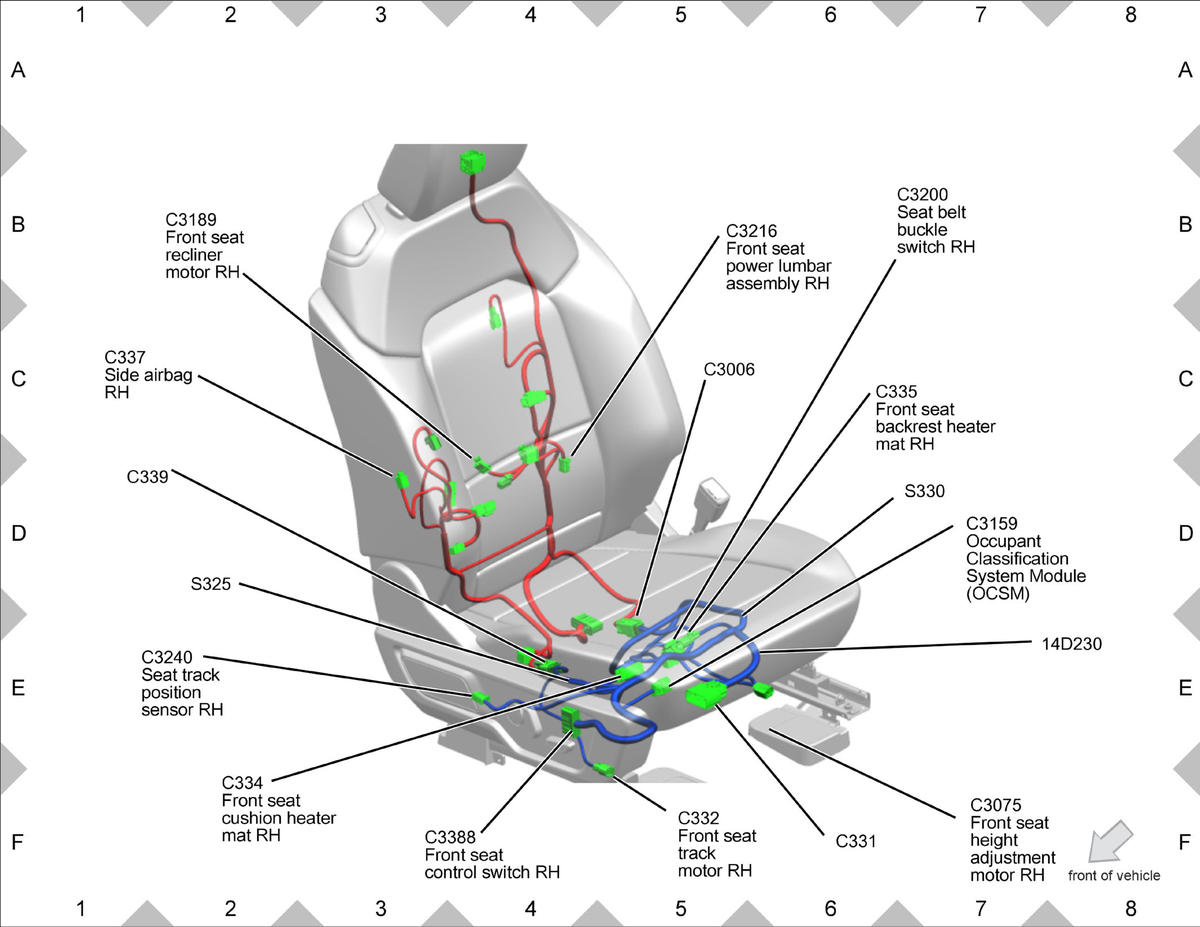

GFDWR151093Courtesy of FORD MOTOR COMPANY

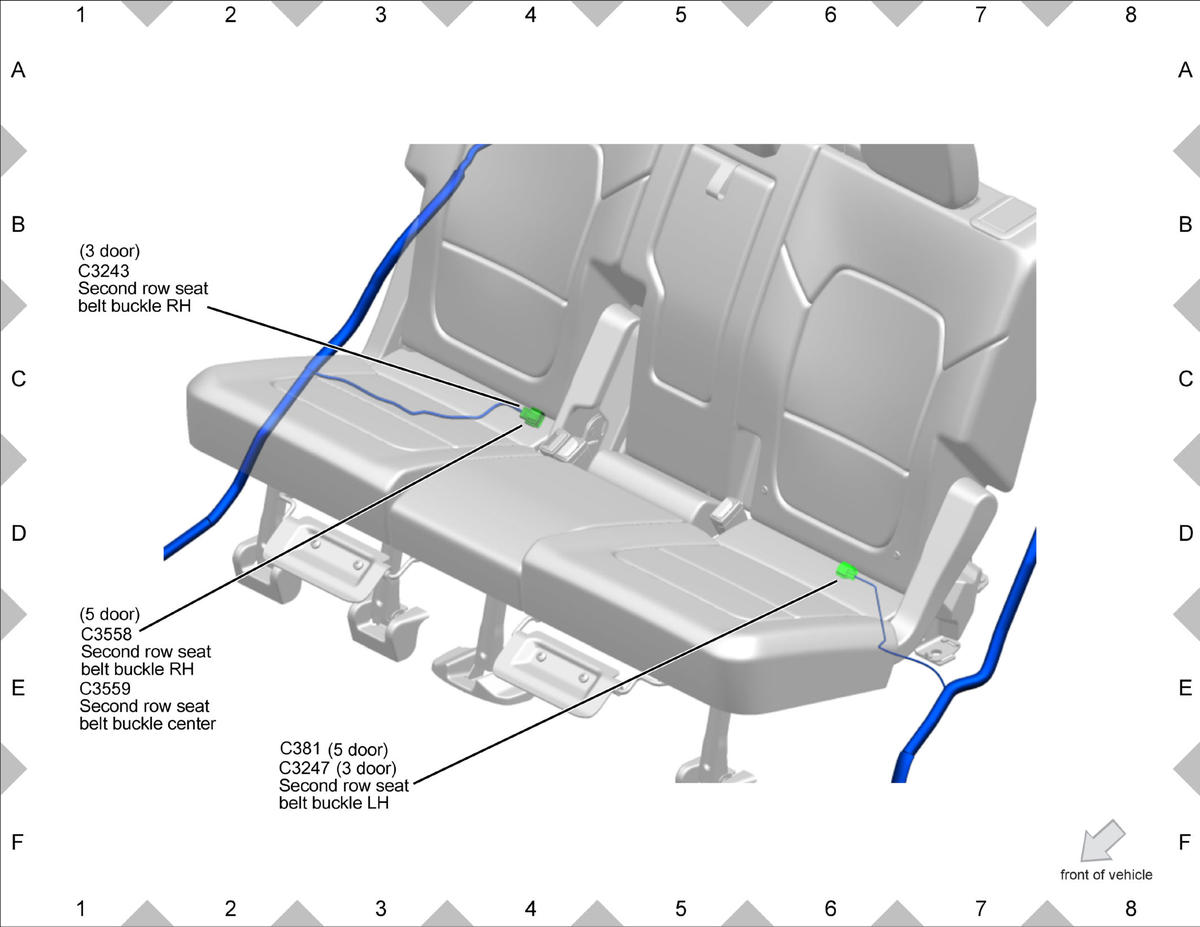

GFDWR151094Courtesy of FORD MOTOR COMPANY

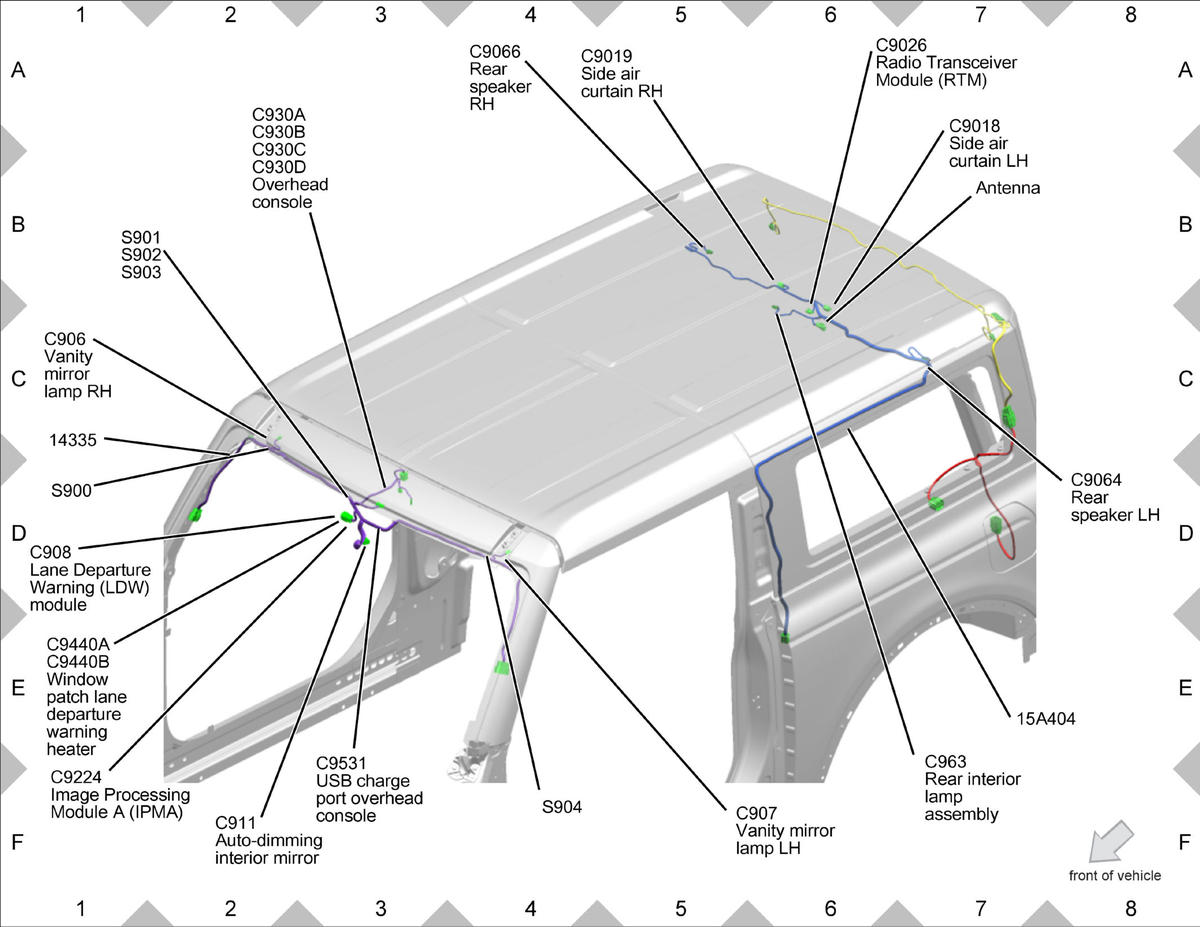

GFDWR151095Courtesy of FORD MOTOR COMPANY

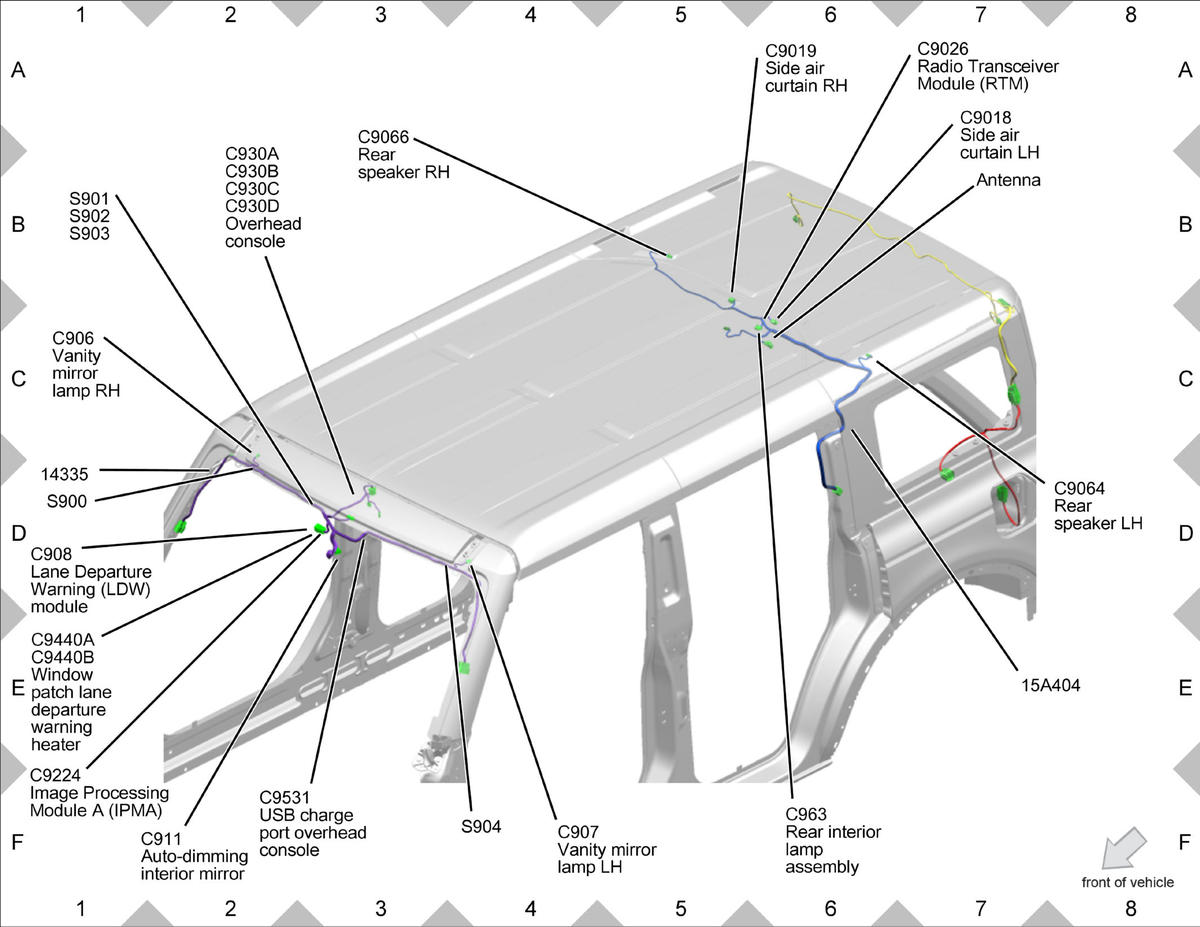

GFDWR151096Courtesy of FORD MOTOR COMPANY

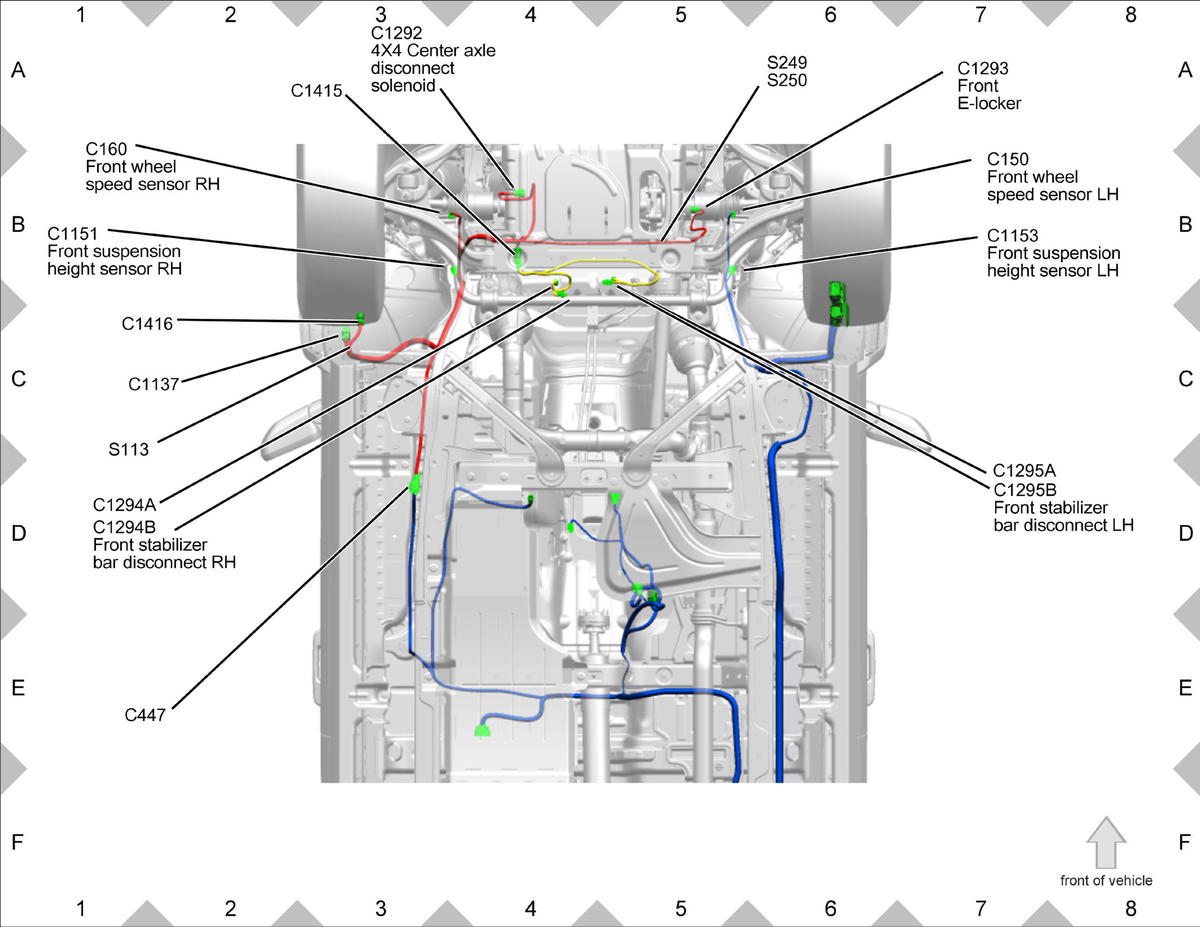

GFDWR151097Courtesy of FORD MOTOR COMPANY

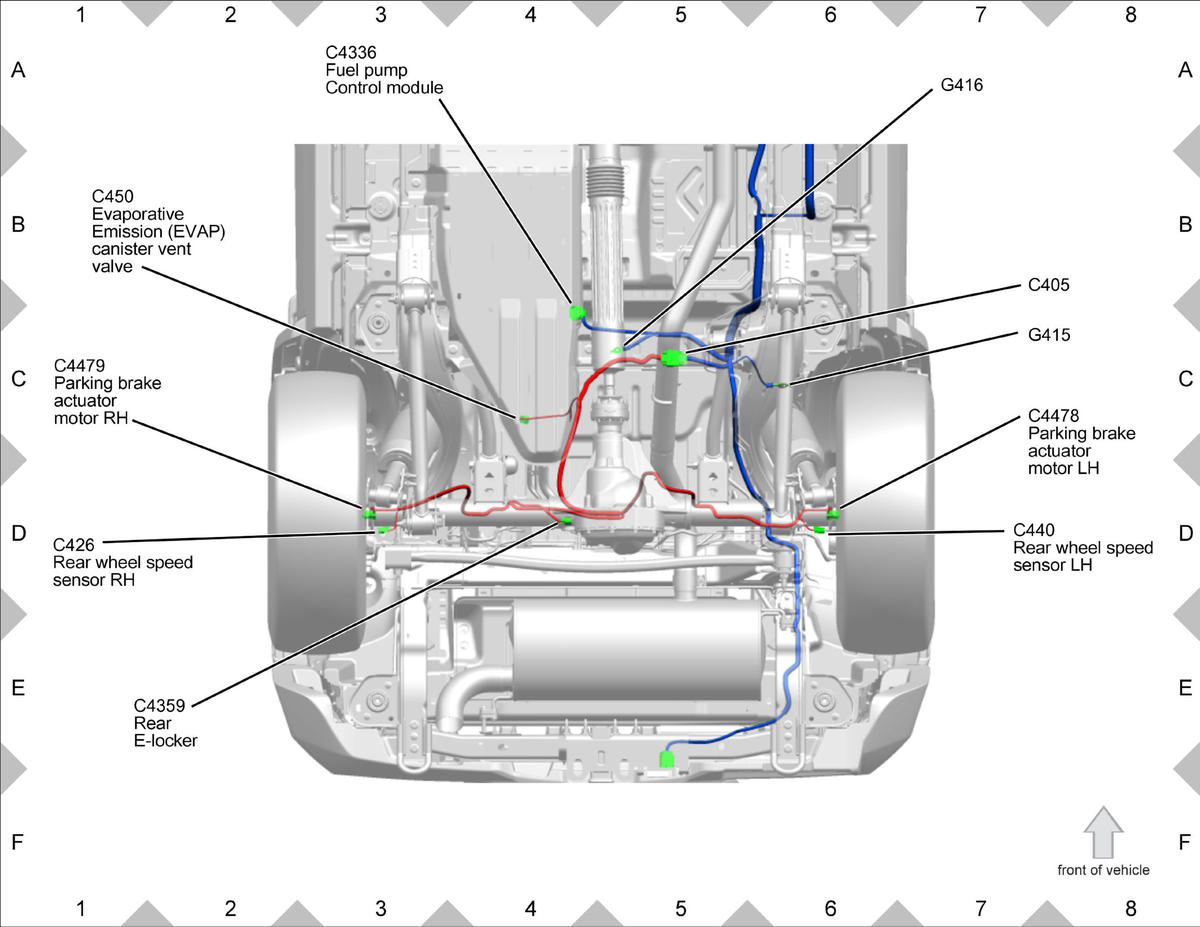

GFDWR151098Courtesy of FORD MOTOR COMPANY

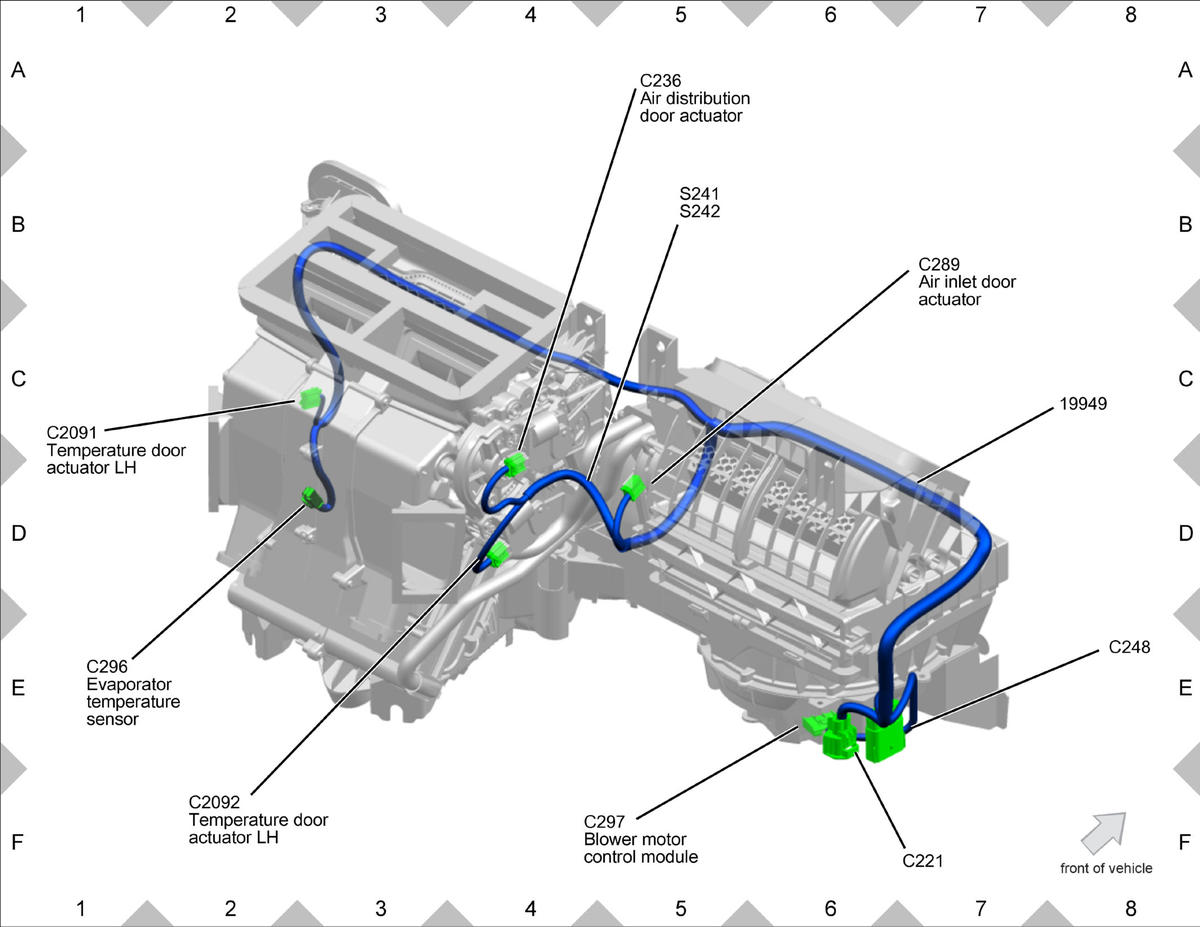

GFDWR151100Courtesy of FORD MOTOR COMPANY
