Component Testing

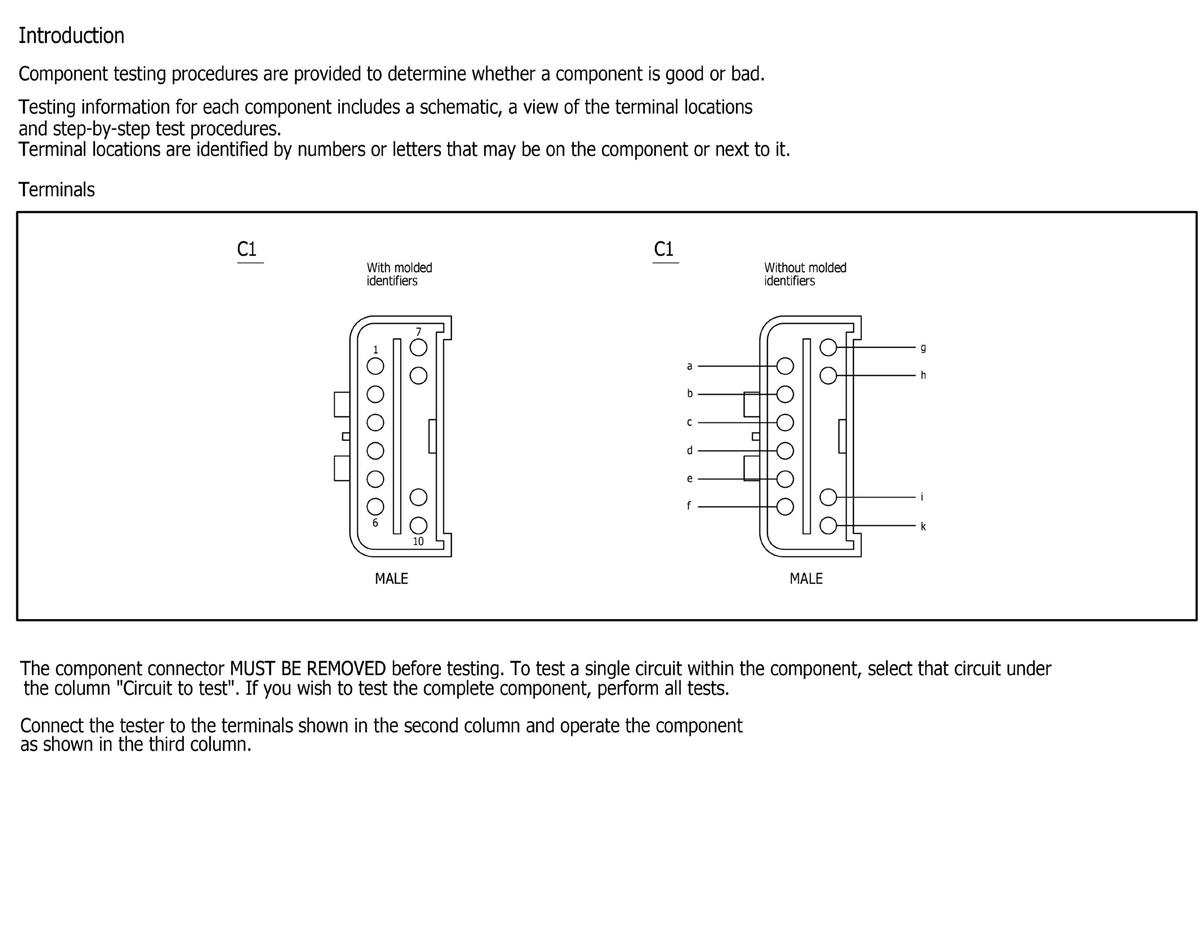

Fig 1: Component Testing Introduction

Courtesy of FORD MOTOR COMPANY

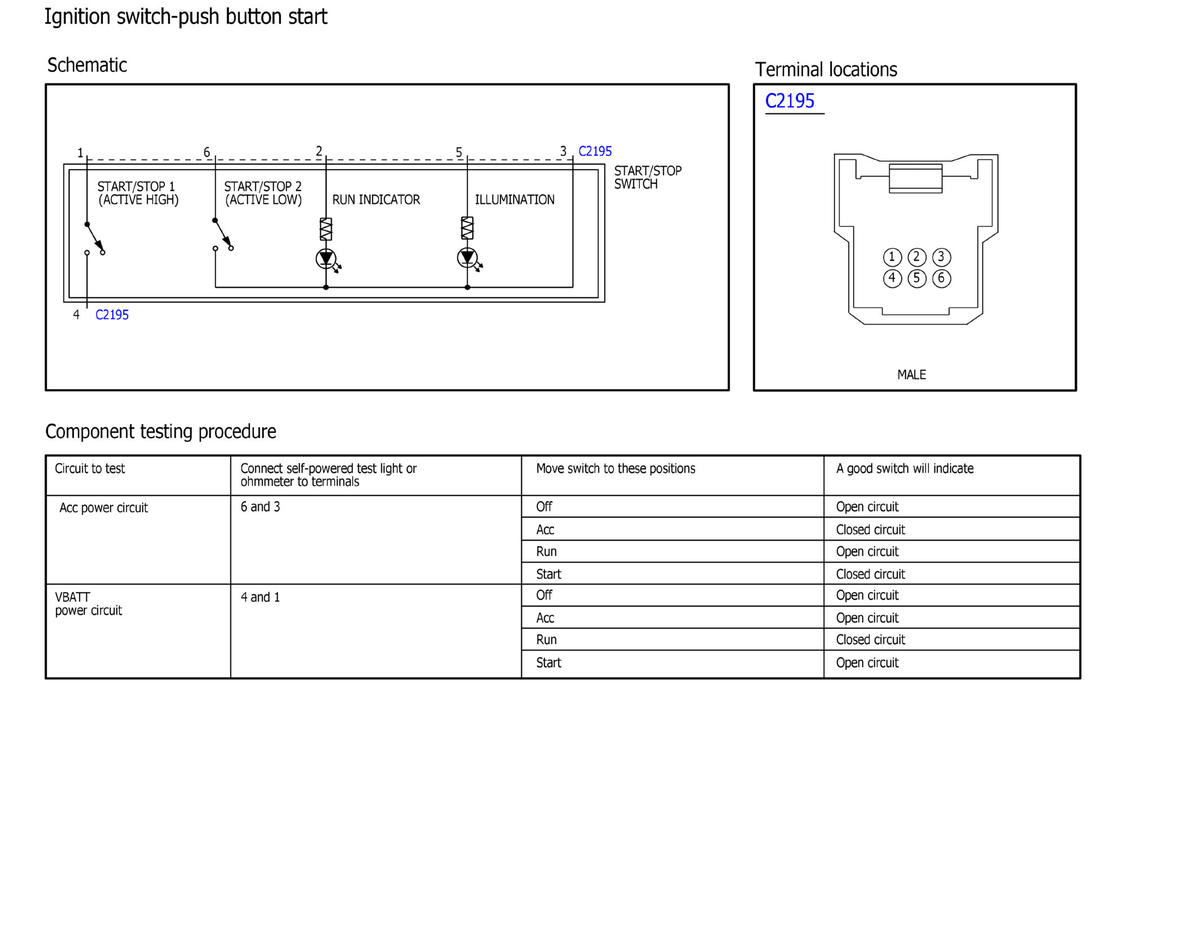

Fig 2: Ignition Switch-Push Button Start Component Testing

Courtesy of FORD MOTOR COMPANY

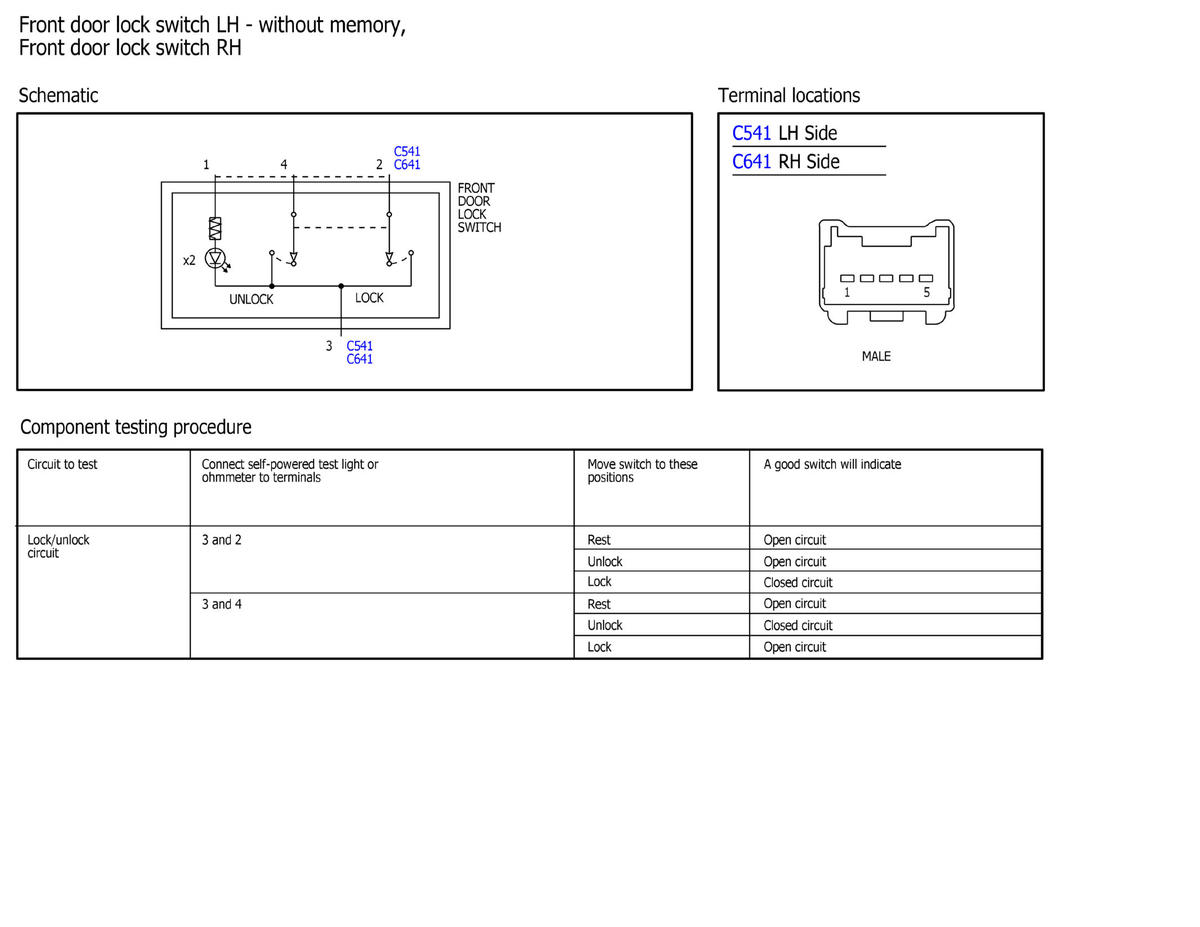

Fig 3: Front Door Lock Switch - LH Without Memory Component Testing

Courtesy of FORD MOTOR COMPANY

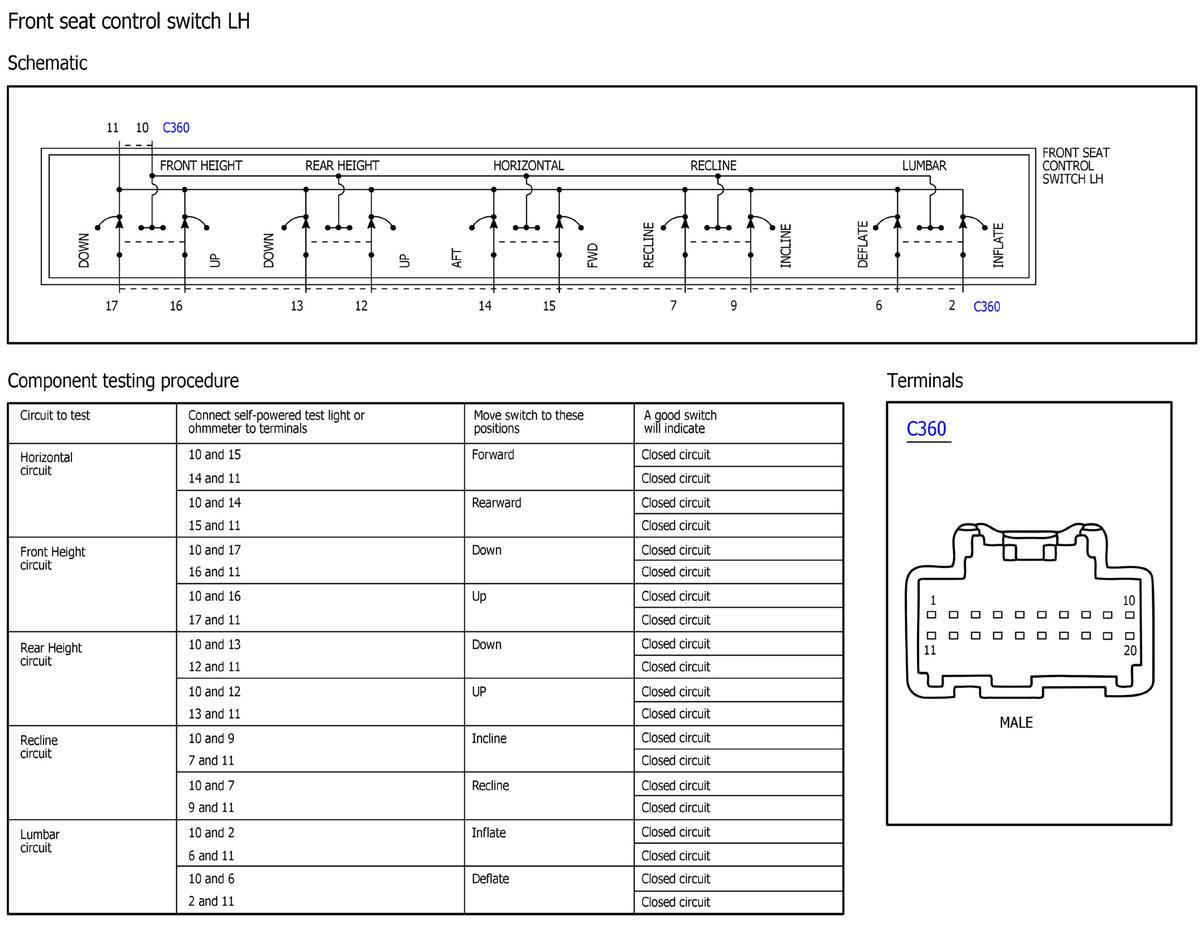

Fig 4: Front Seat Control Switch LH Component Testing

Courtesy of FORD MOTOR COMPANY

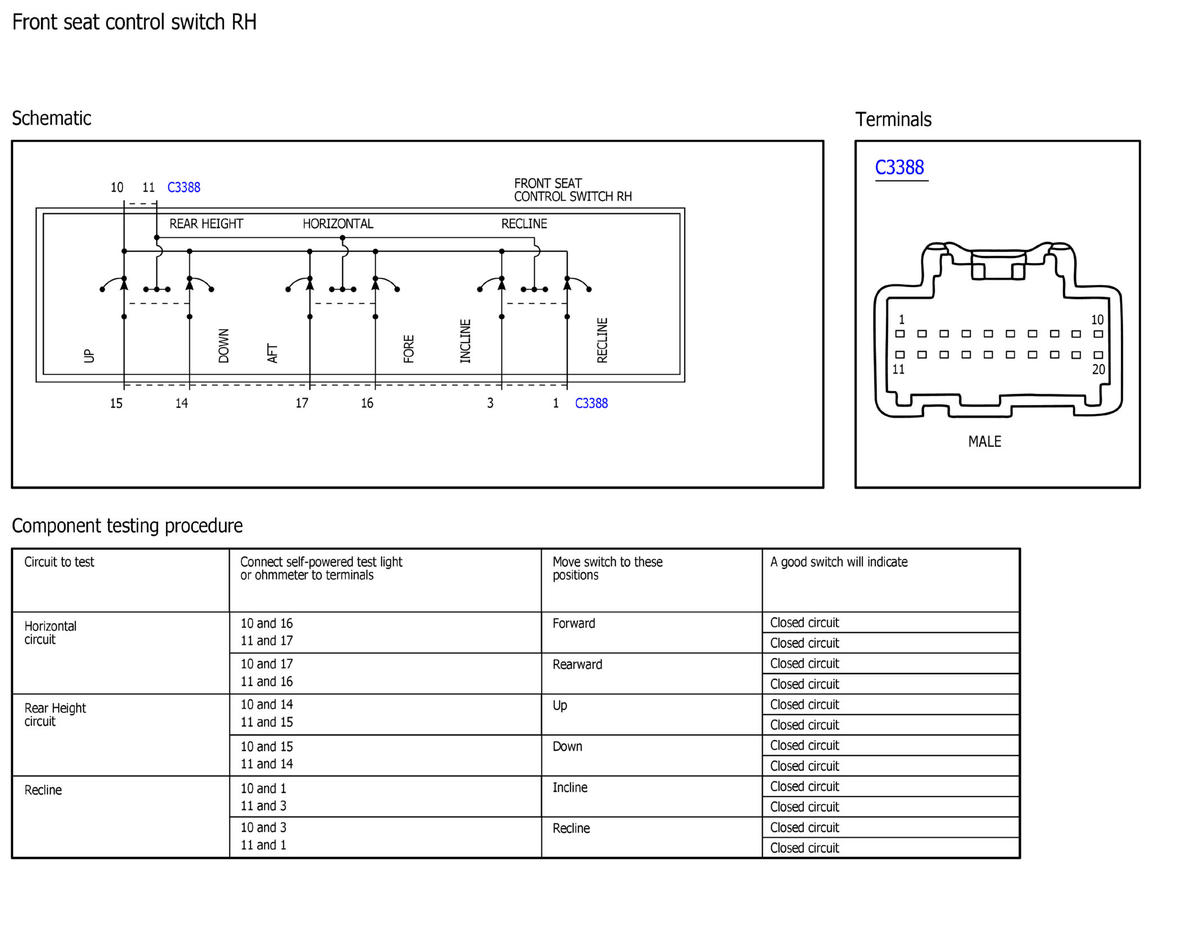

Fig 5: Front Seat Control Switch RH Component Testing

Courtesy of FORD MOTOR COMPANY

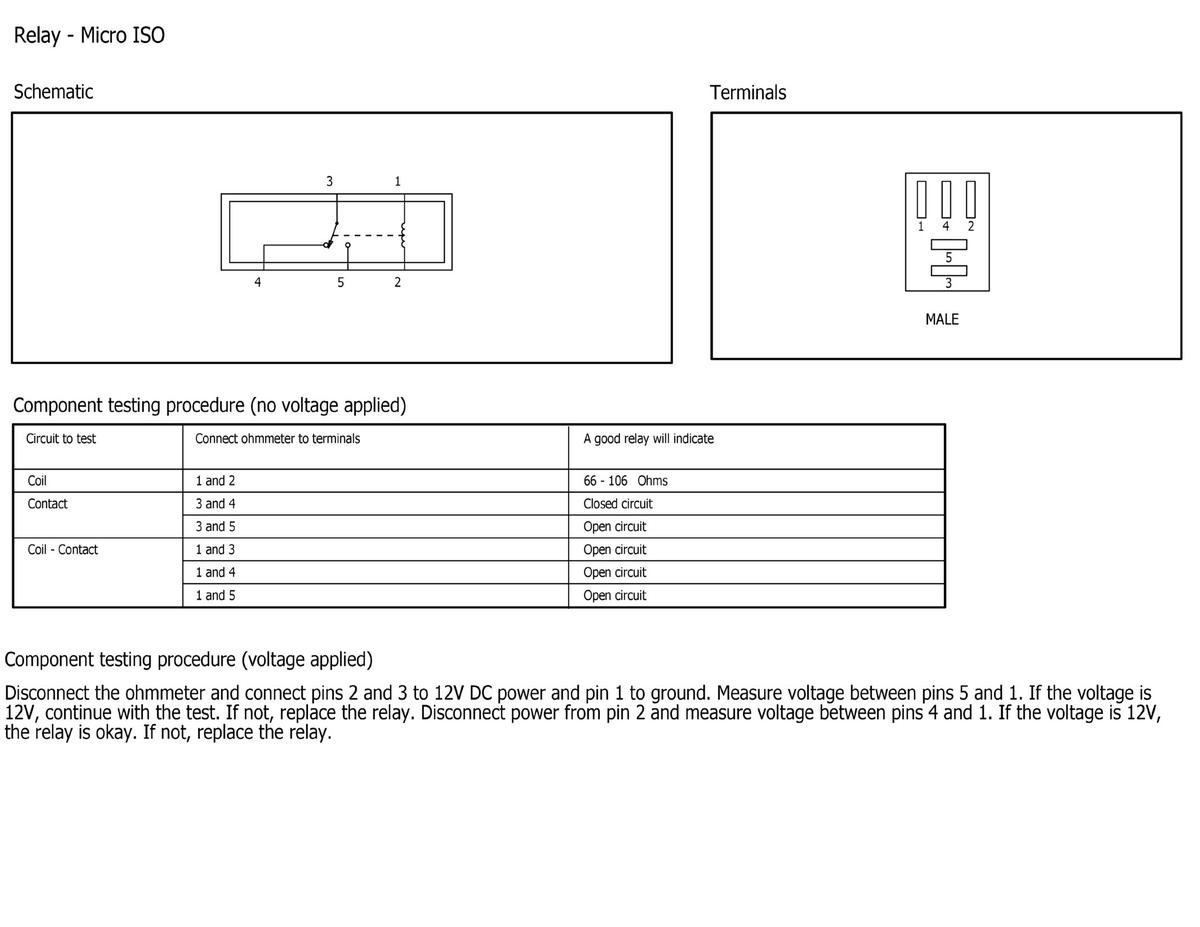

Fig 6: Relay - Micro ISO Component Testing

Courtesy of FORD MOTOR COMPANY

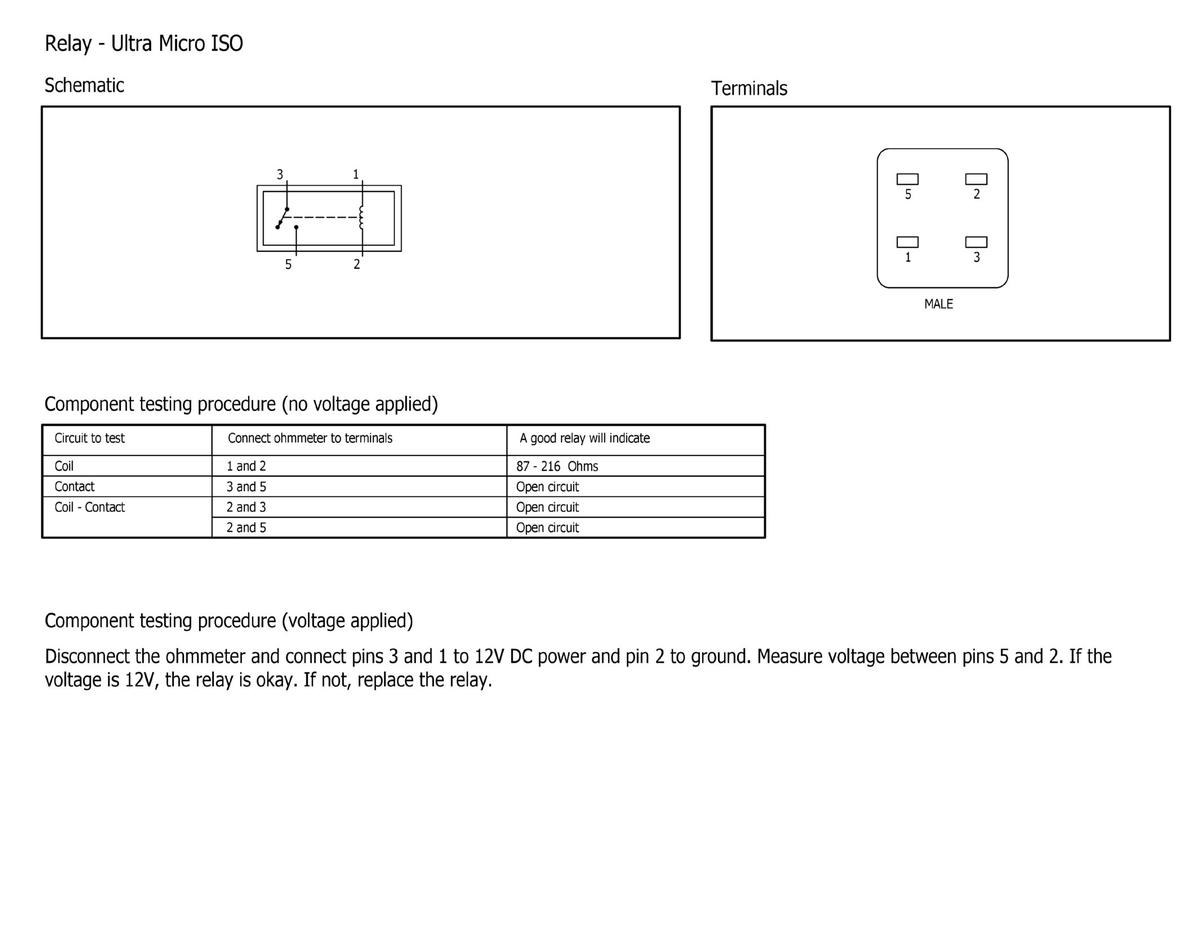

Fig 7: Relay - Ultra Micro ISO Component Testing

Courtesy of FORD MOTOR COMPANY

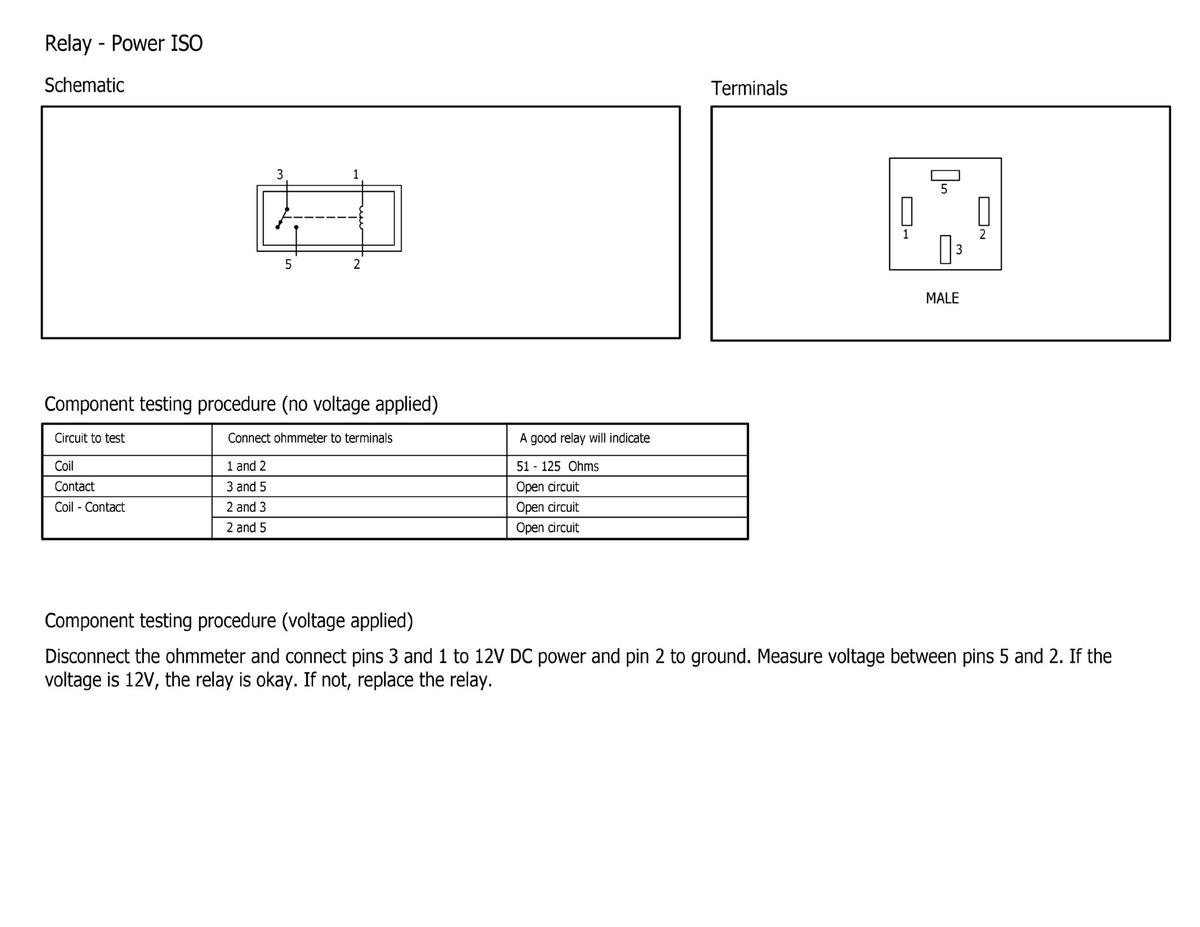

Fig 8: Relay - Power ISO Component Testing

Courtesy of FORD MOTOR COMPANY
