OEM Ground Distribution: Grounds

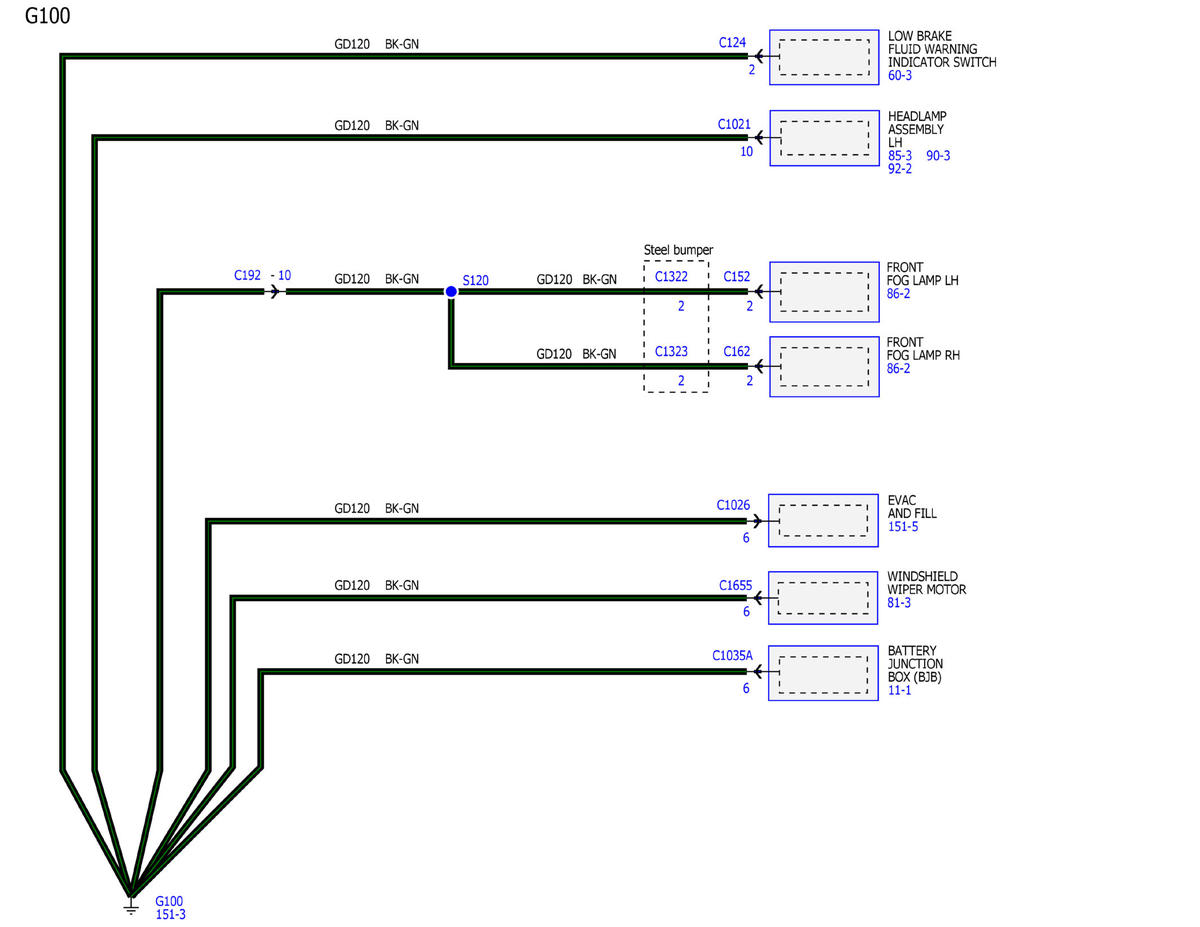

GFDWR151660Courtesy of FORD MOTOR COMPANY

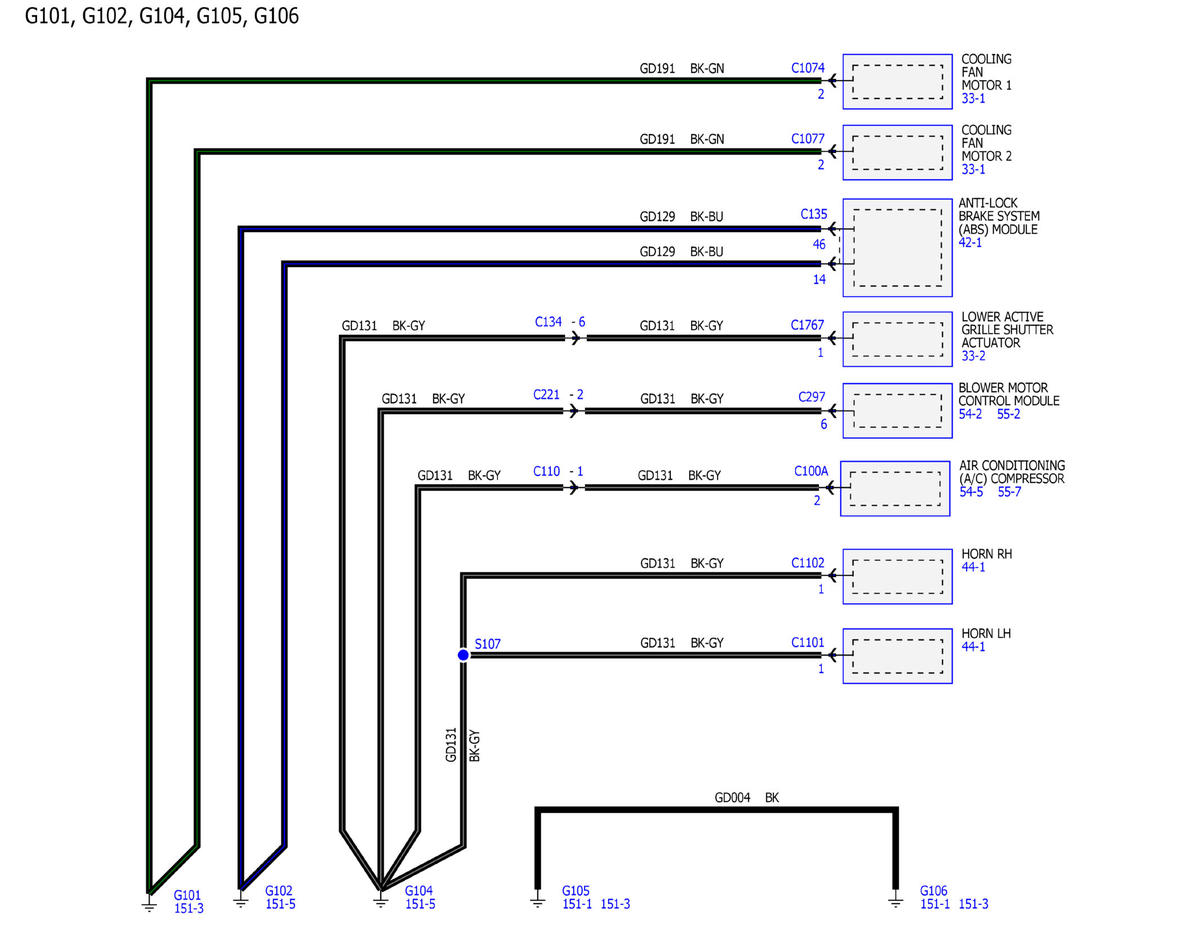

GFDWR151666Courtesy of FORD MOTOR COMPANY

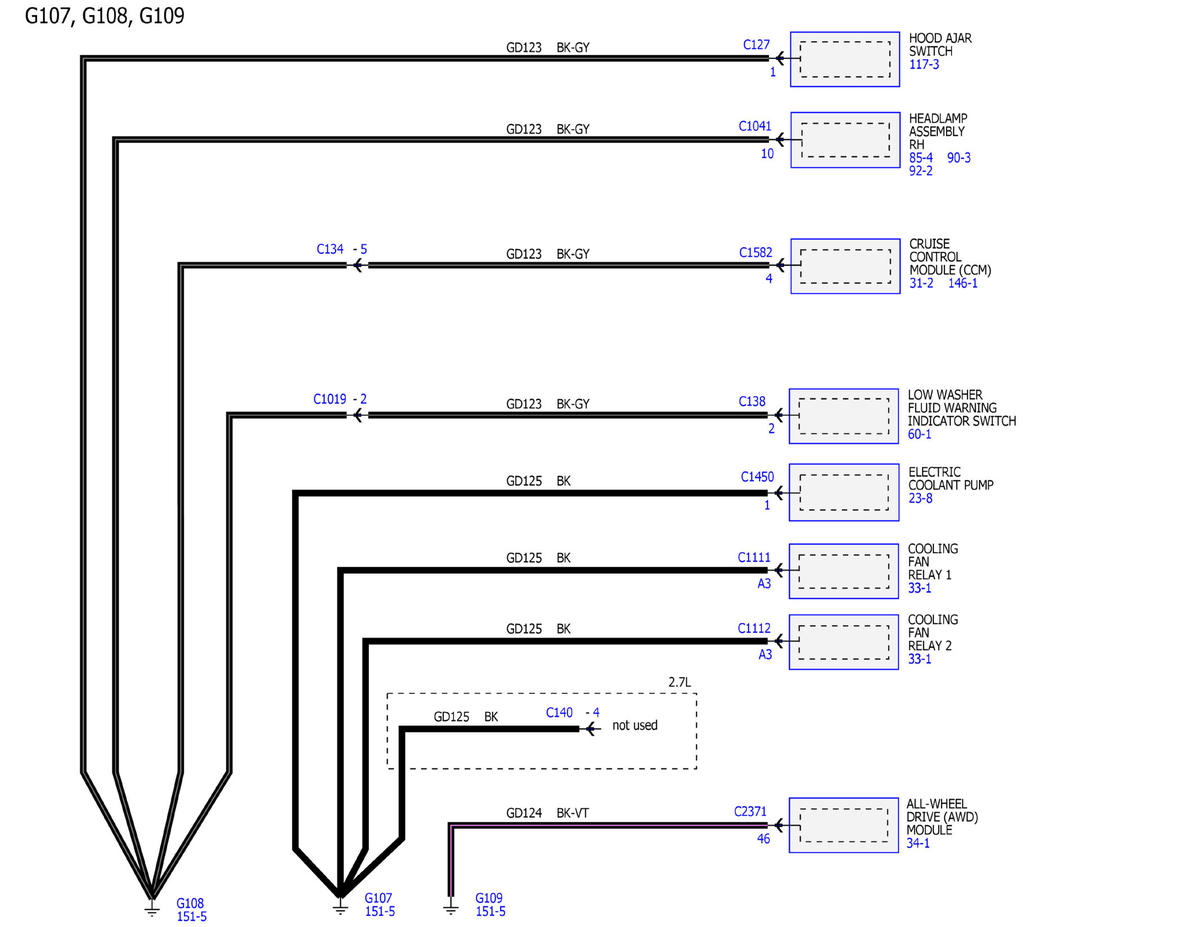

GFDWR151667Courtesy of FORD MOTOR COMPANY

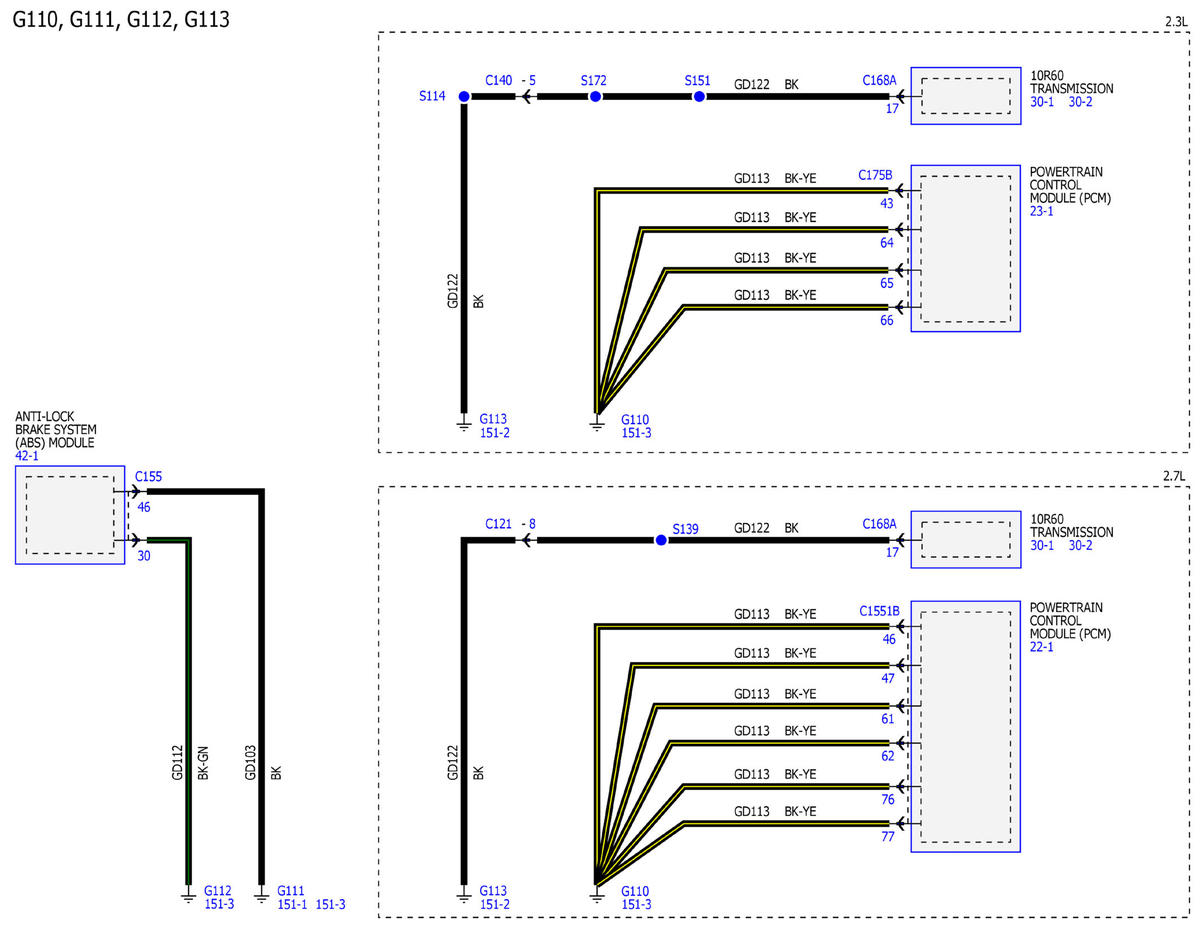

GFDWR151668Courtesy of FORD MOTOR COMPANY

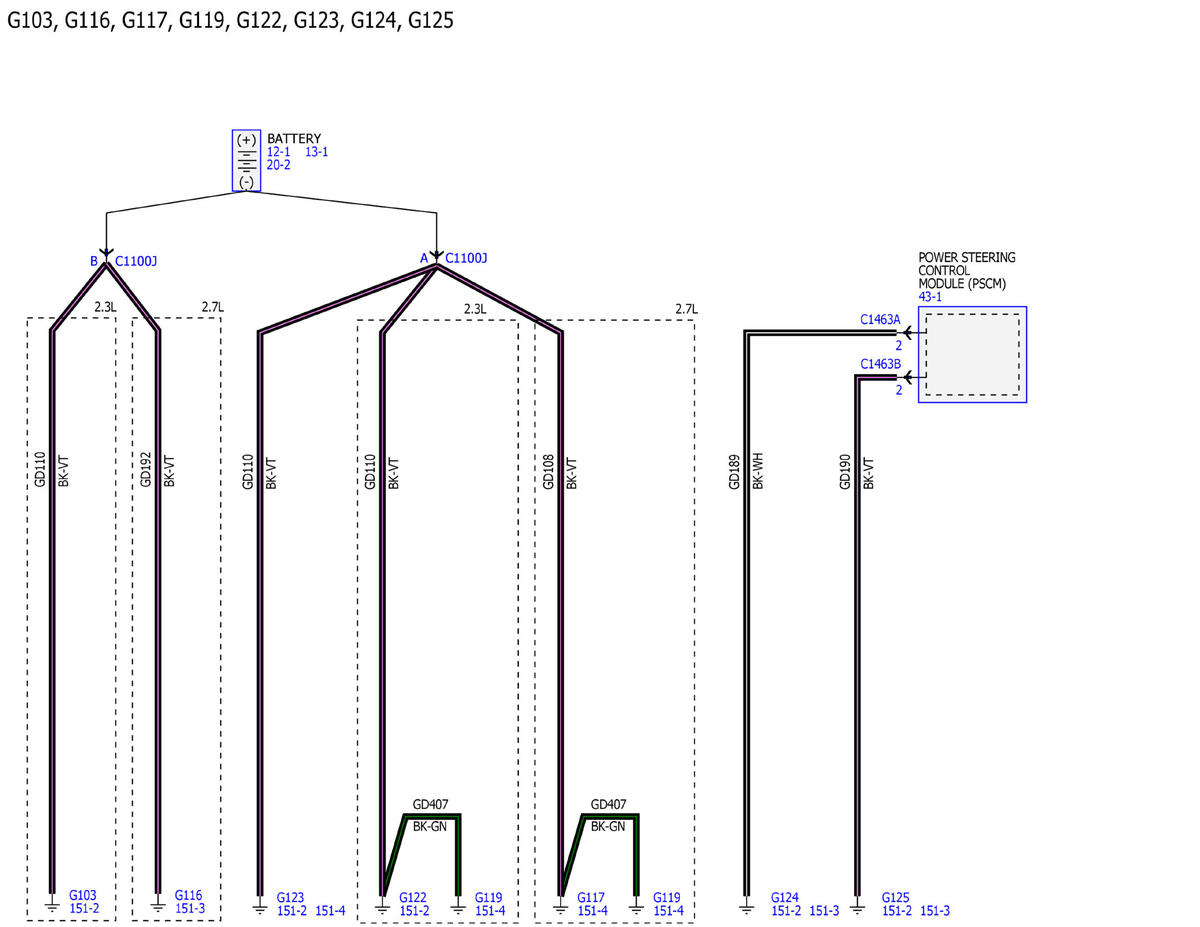

GFDWR151669Courtesy of FORD MOTOR COMPANY

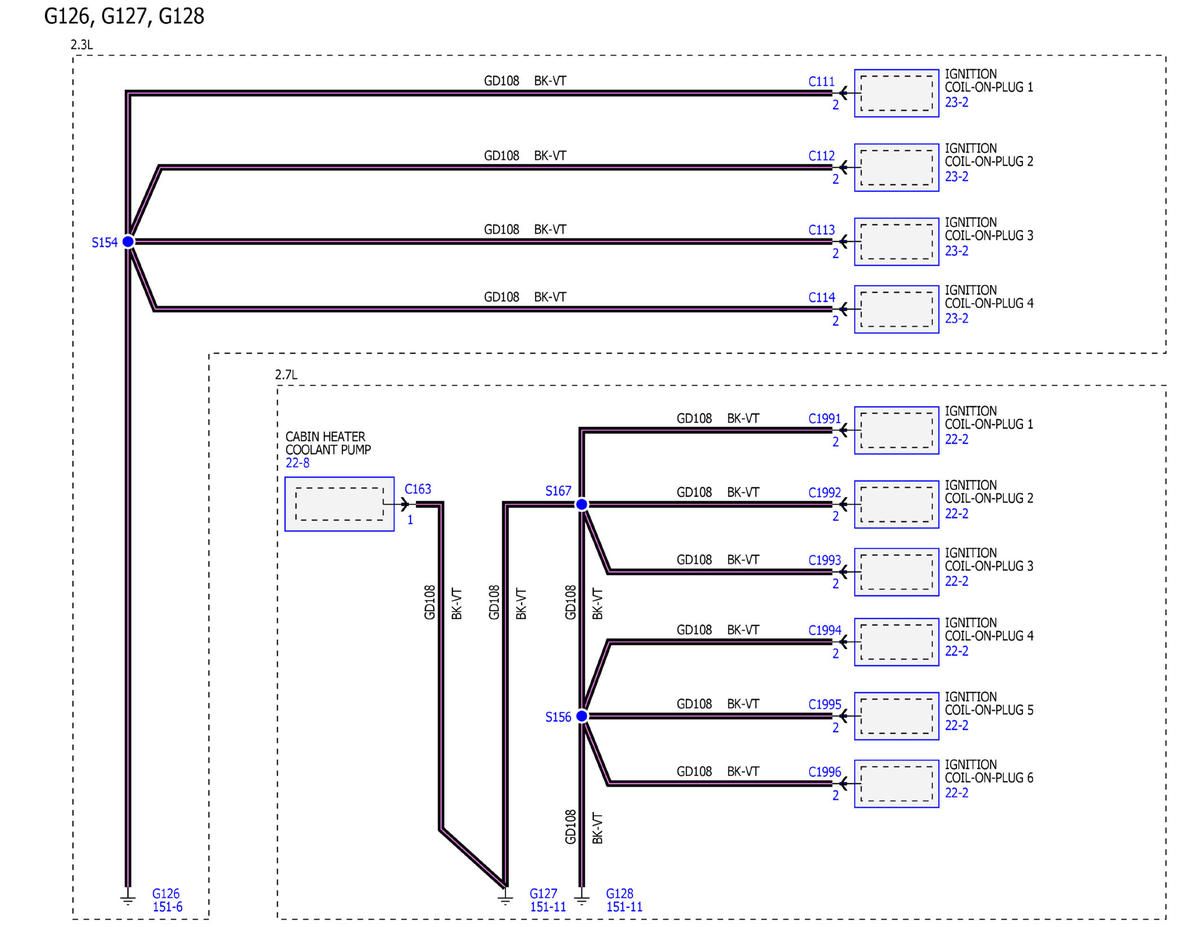

GFDWR151670Courtesy of FORD MOTOR COMPANY

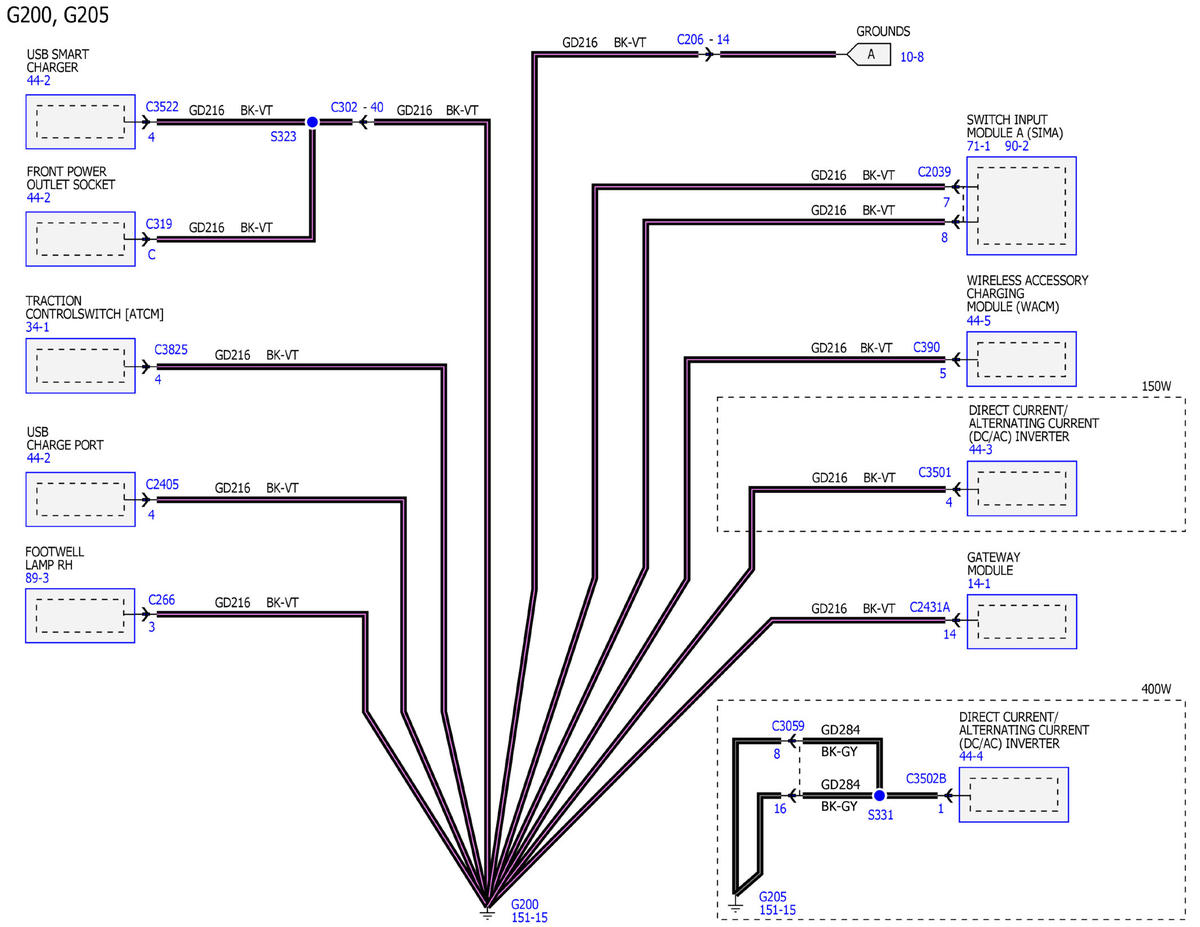

GFDWR151671Courtesy of FORD MOTOR COMPANY

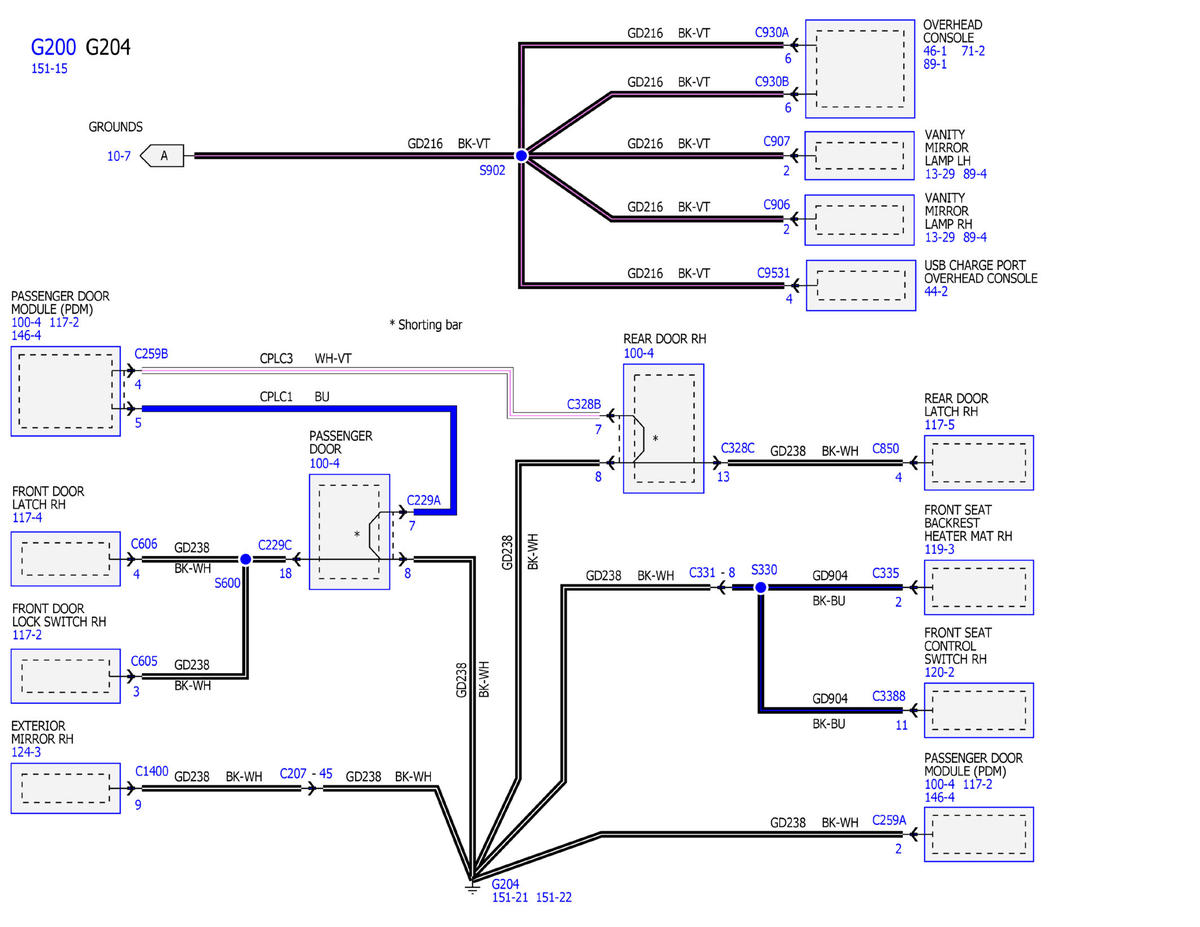

GFDWR151672Courtesy of FORD MOTOR COMPANY

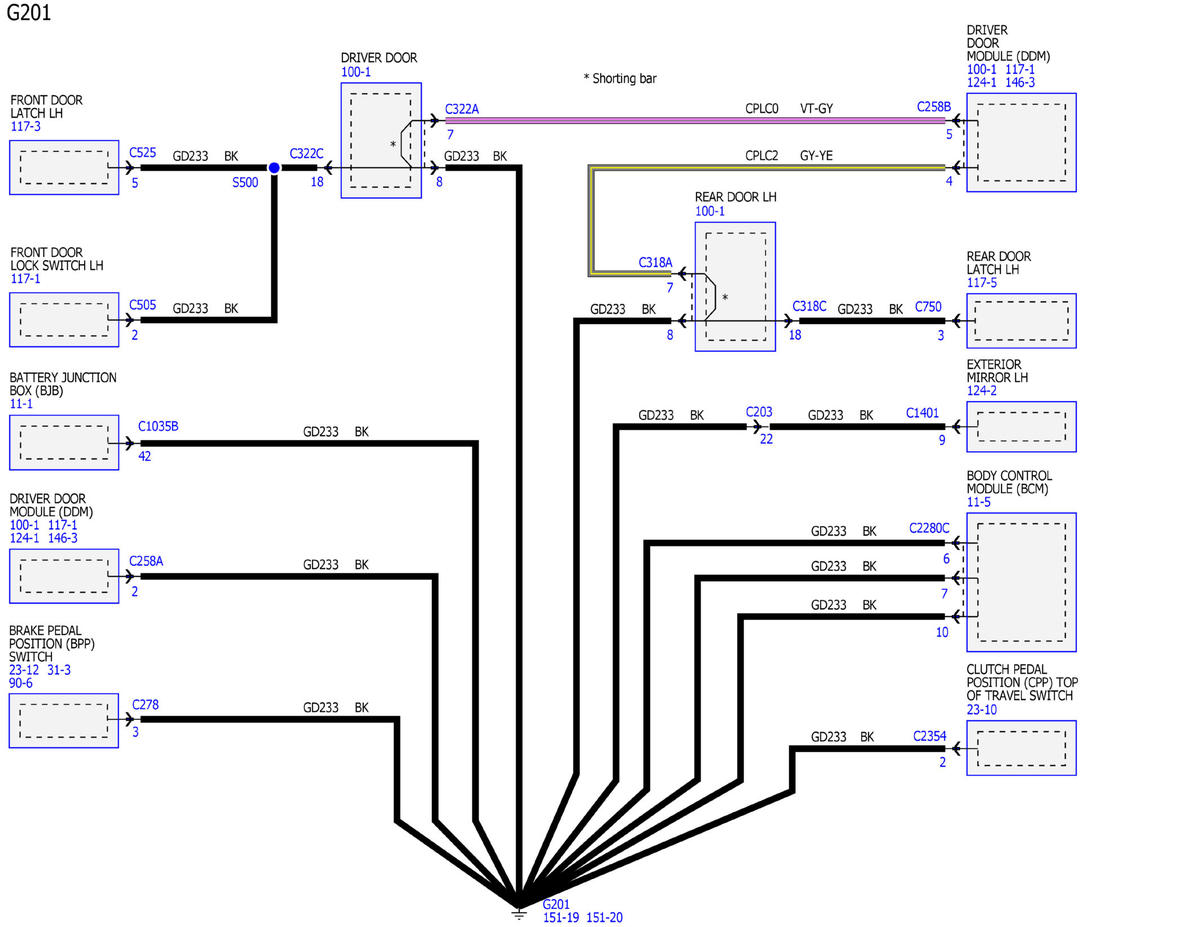

GFDWR151673Courtesy of FORD MOTOR COMPANY

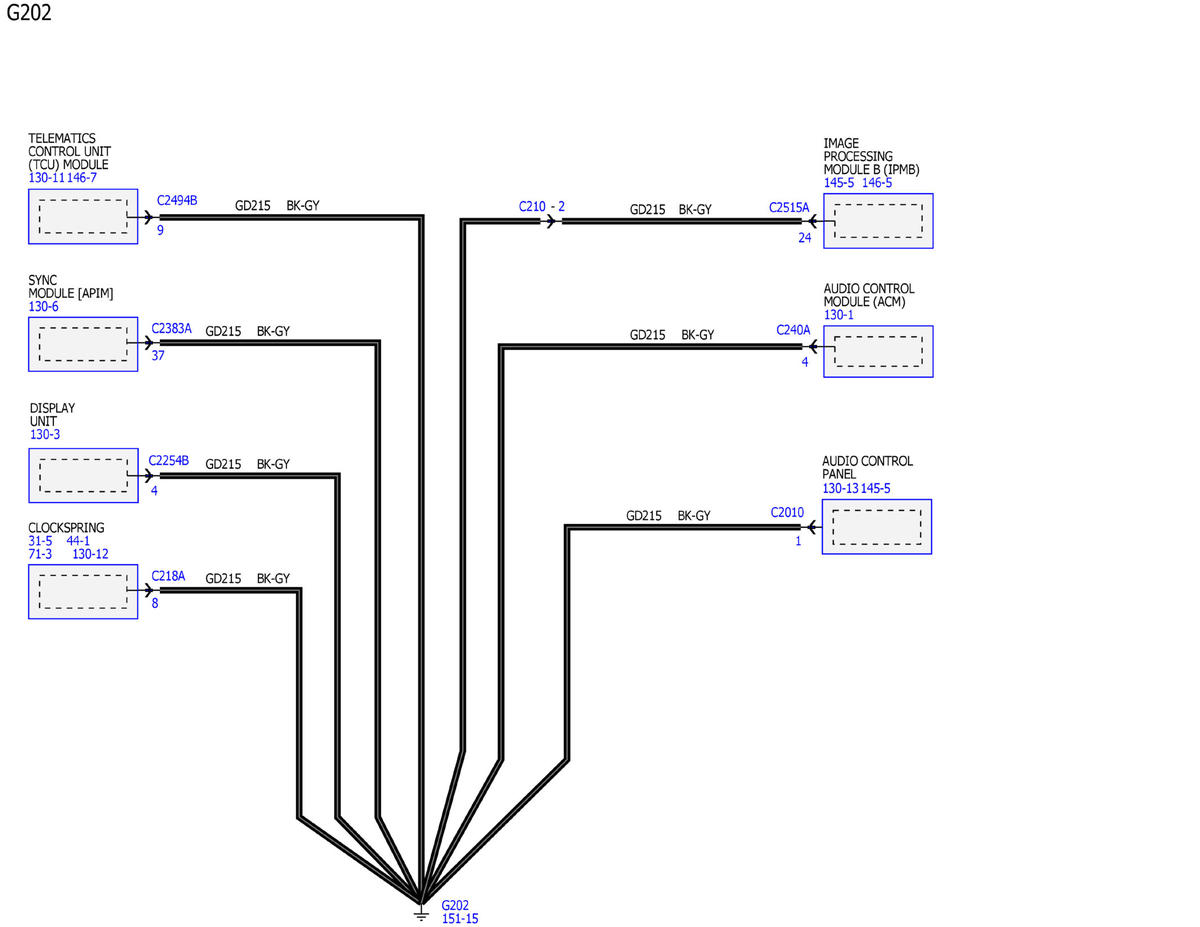

GFDWR151661Courtesy of FORD MOTOR COMPANY

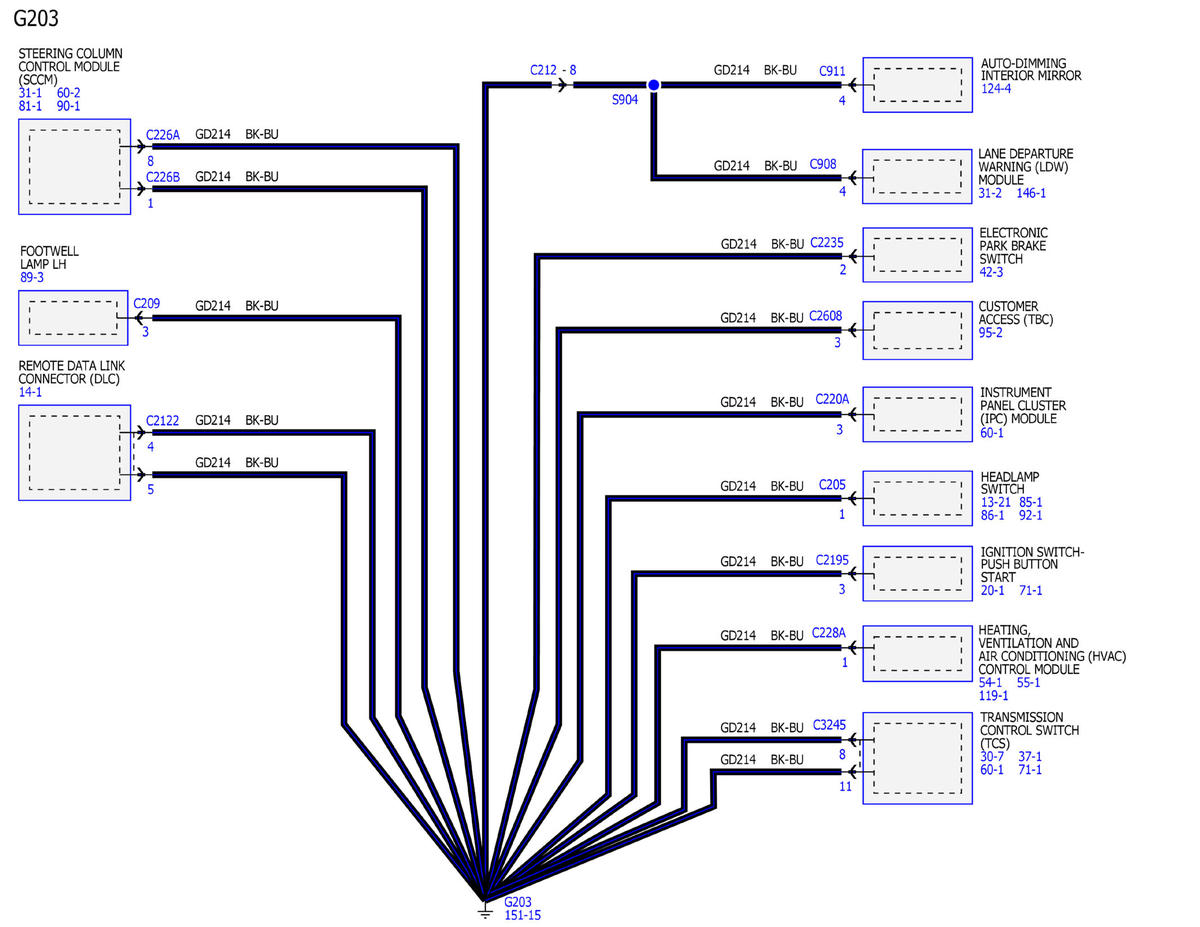

GFDWR151662Courtesy of FORD MOTOR COMPANY

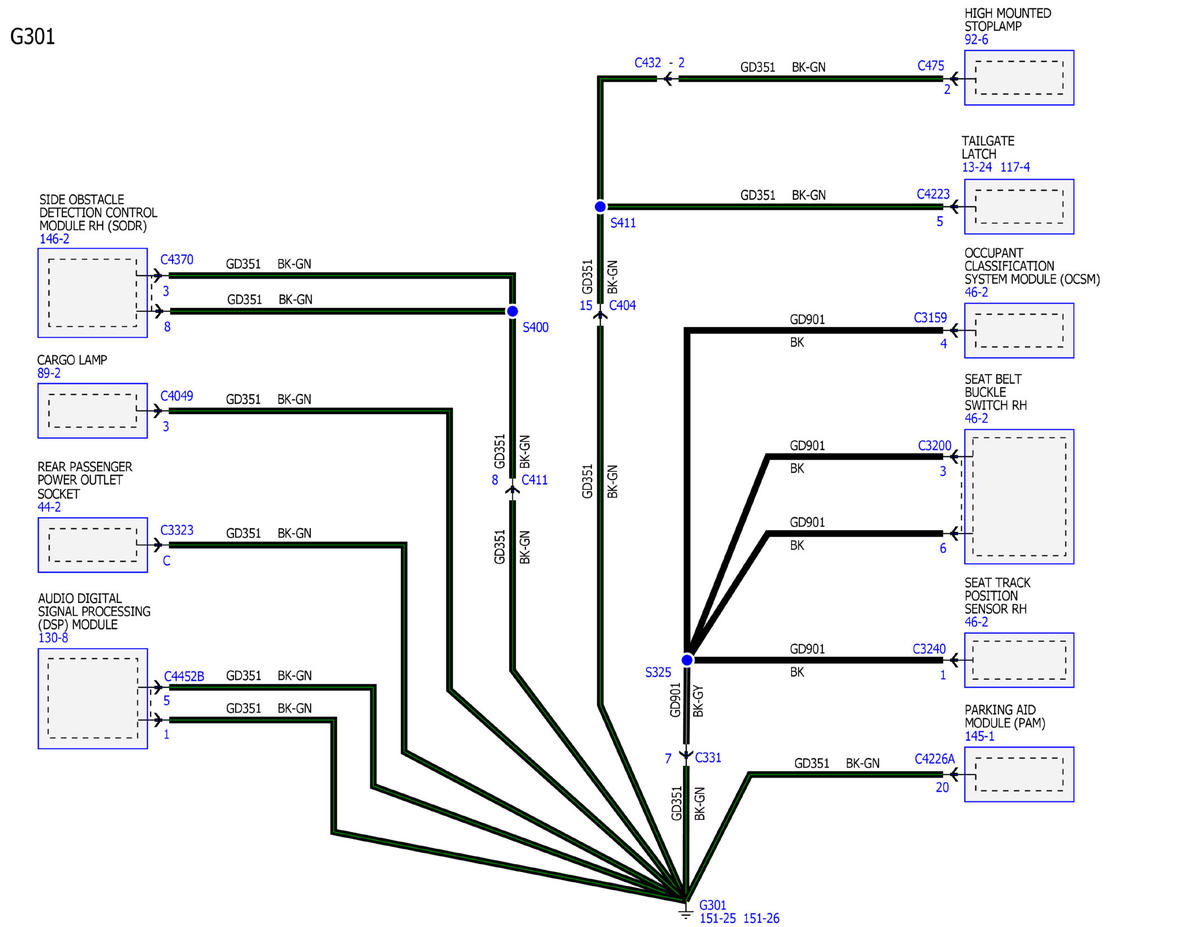

GFDWR151663Courtesy of FORD MOTOR COMPANY

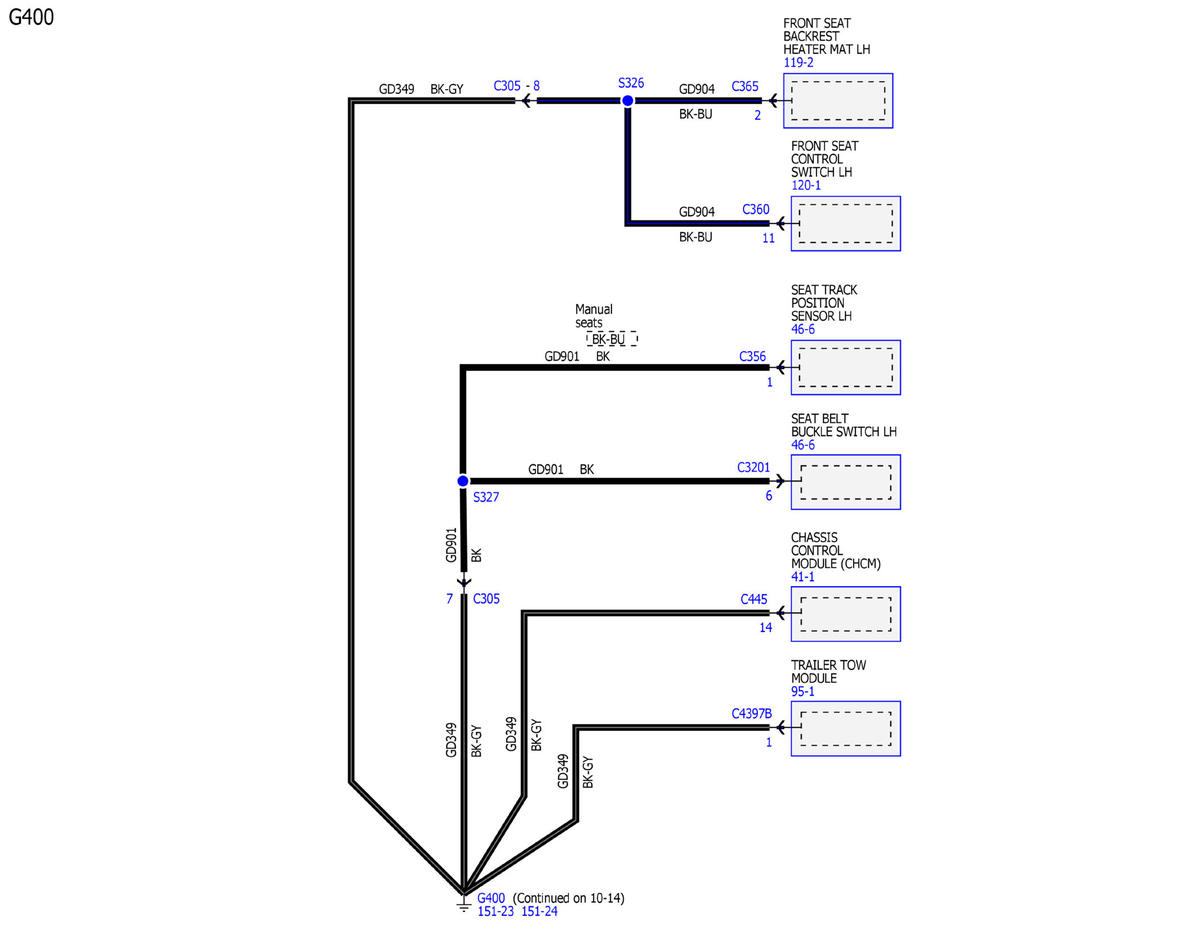

GFDWR151664Courtesy of FORD MOTOR COMPANY

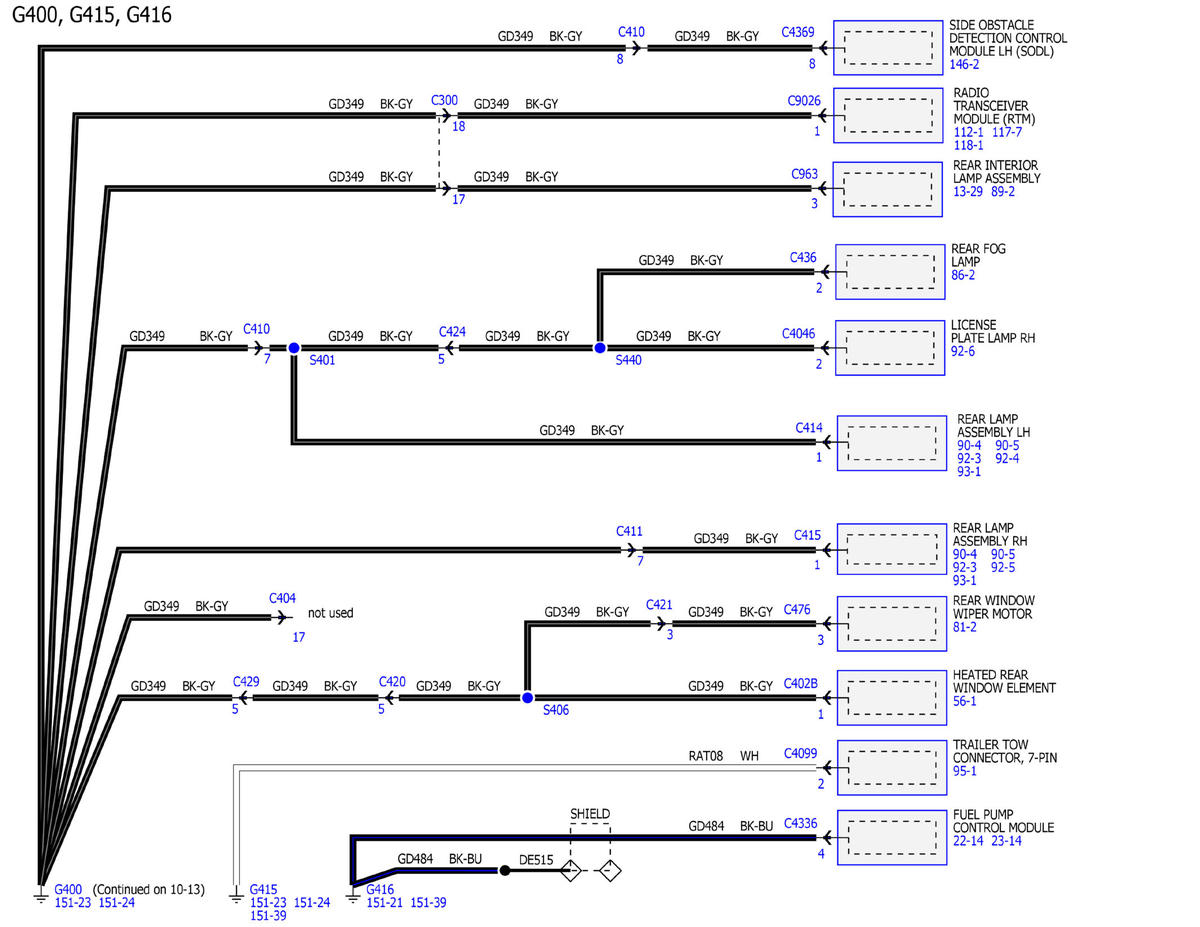

GFDWR151665Courtesy of FORD MOTOR COMPANY
