OEM Ground Distribution: Grounds

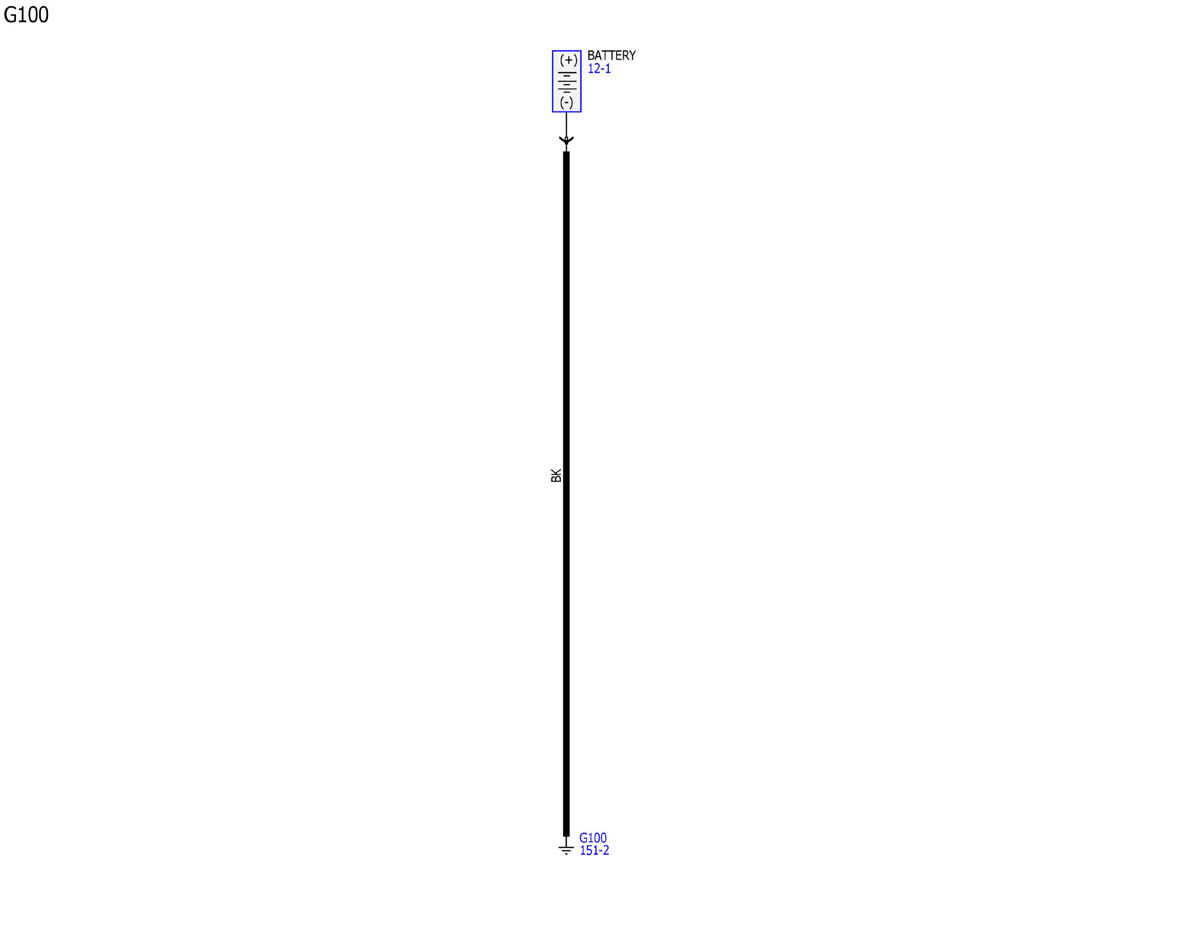

GFDWR131762Courtesy of FORD MOTOR COMPANY

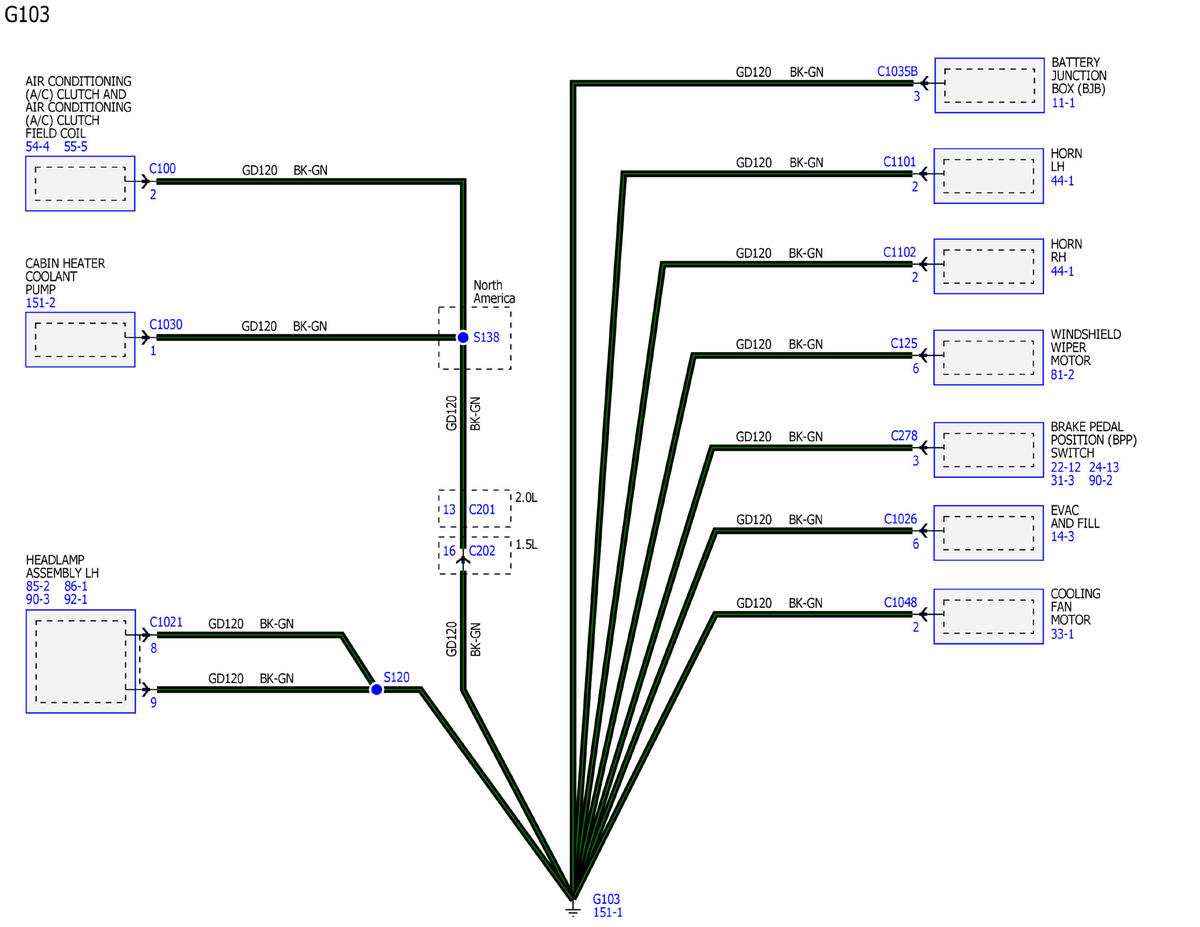

GFDWR131773Courtesy of FORD MOTOR COMPANY

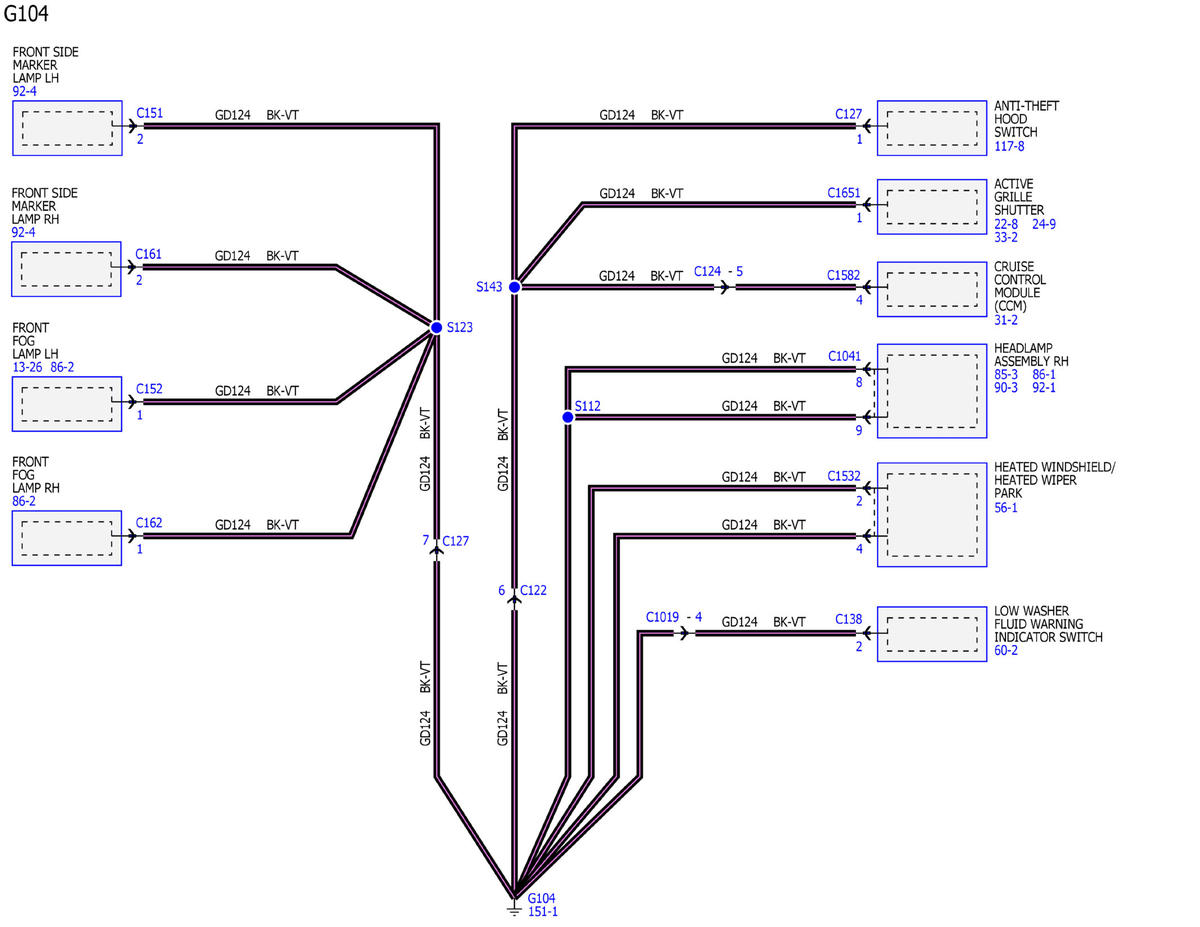

GFDWR131777Courtesy of FORD MOTOR COMPANY

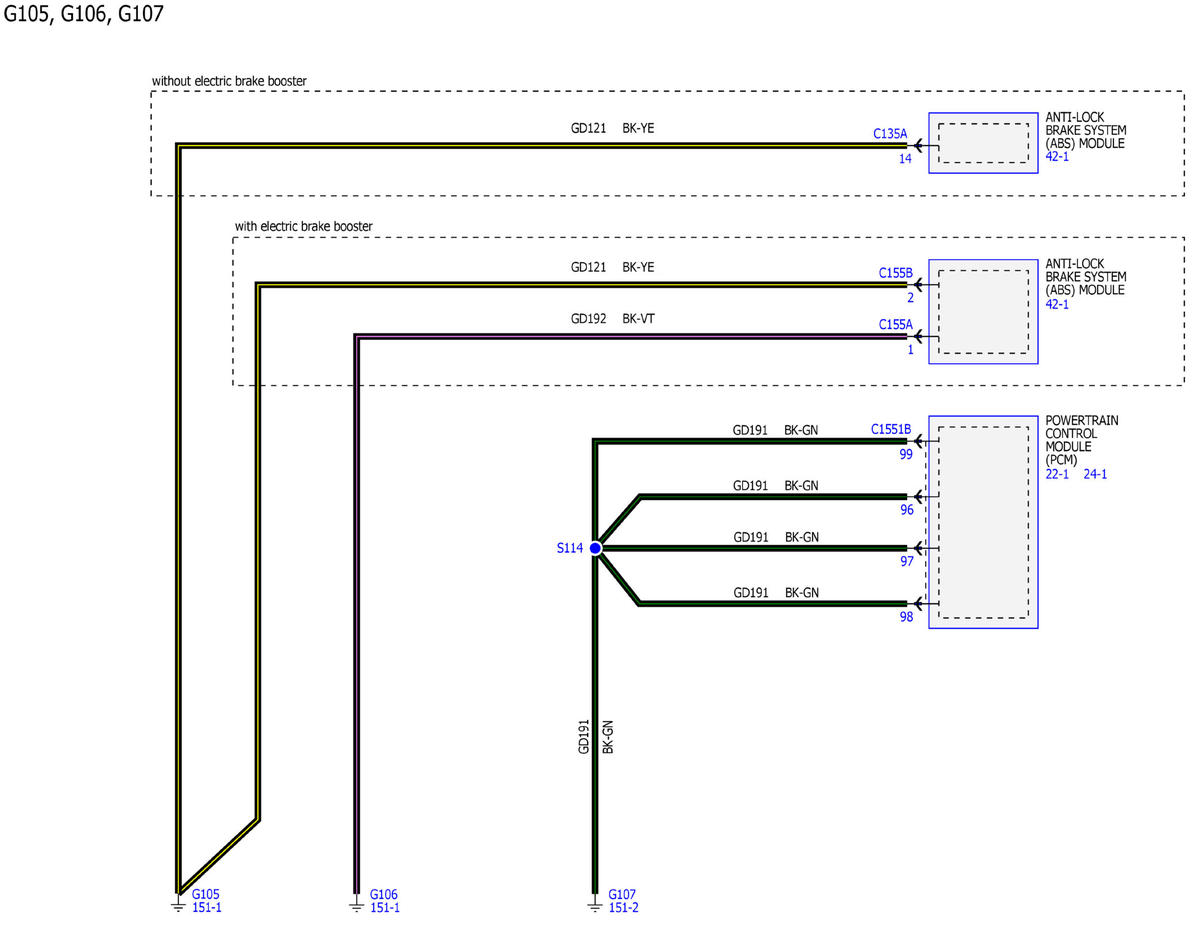

GFDWR131778Courtesy of FORD MOTOR COMPANY

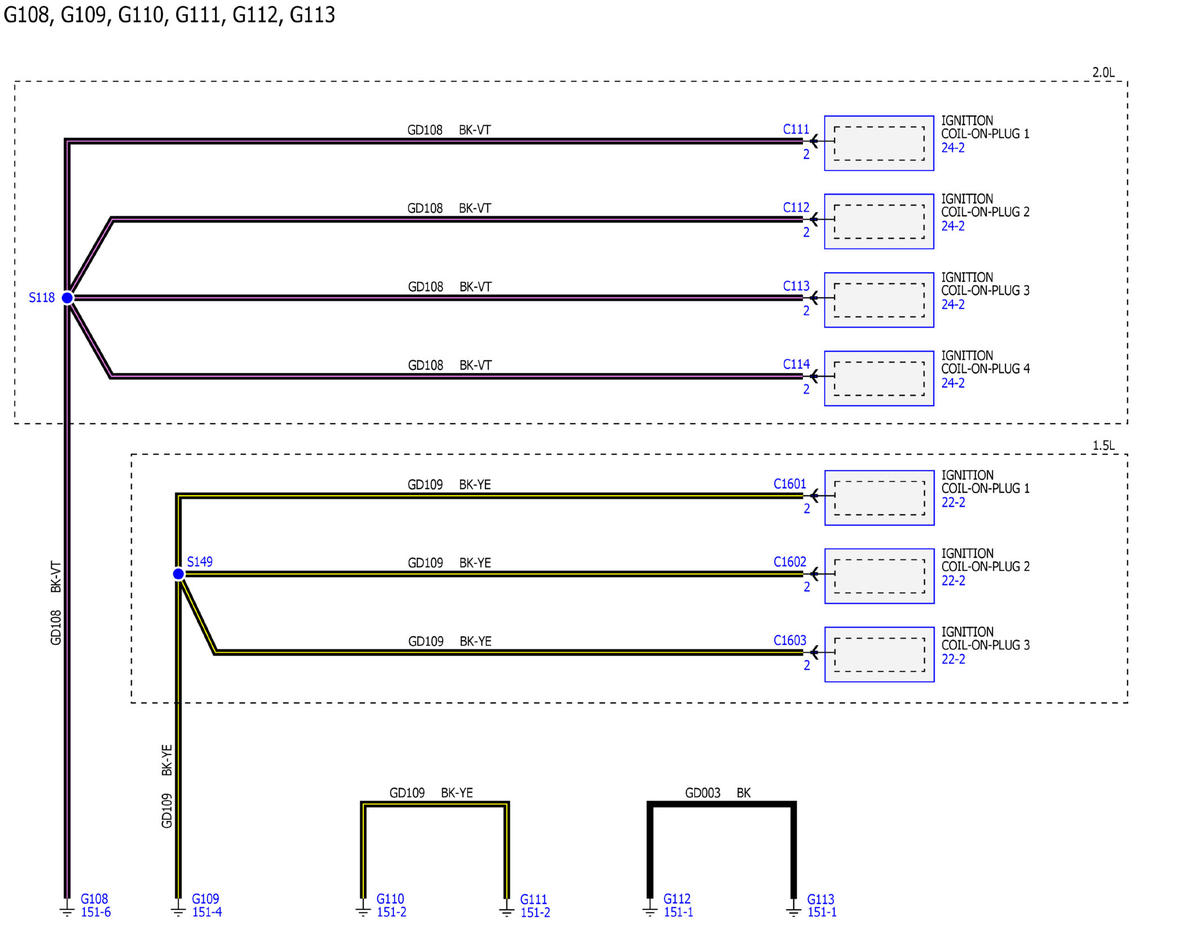

GFDWR131779Courtesy of FORD MOTOR COMPANY

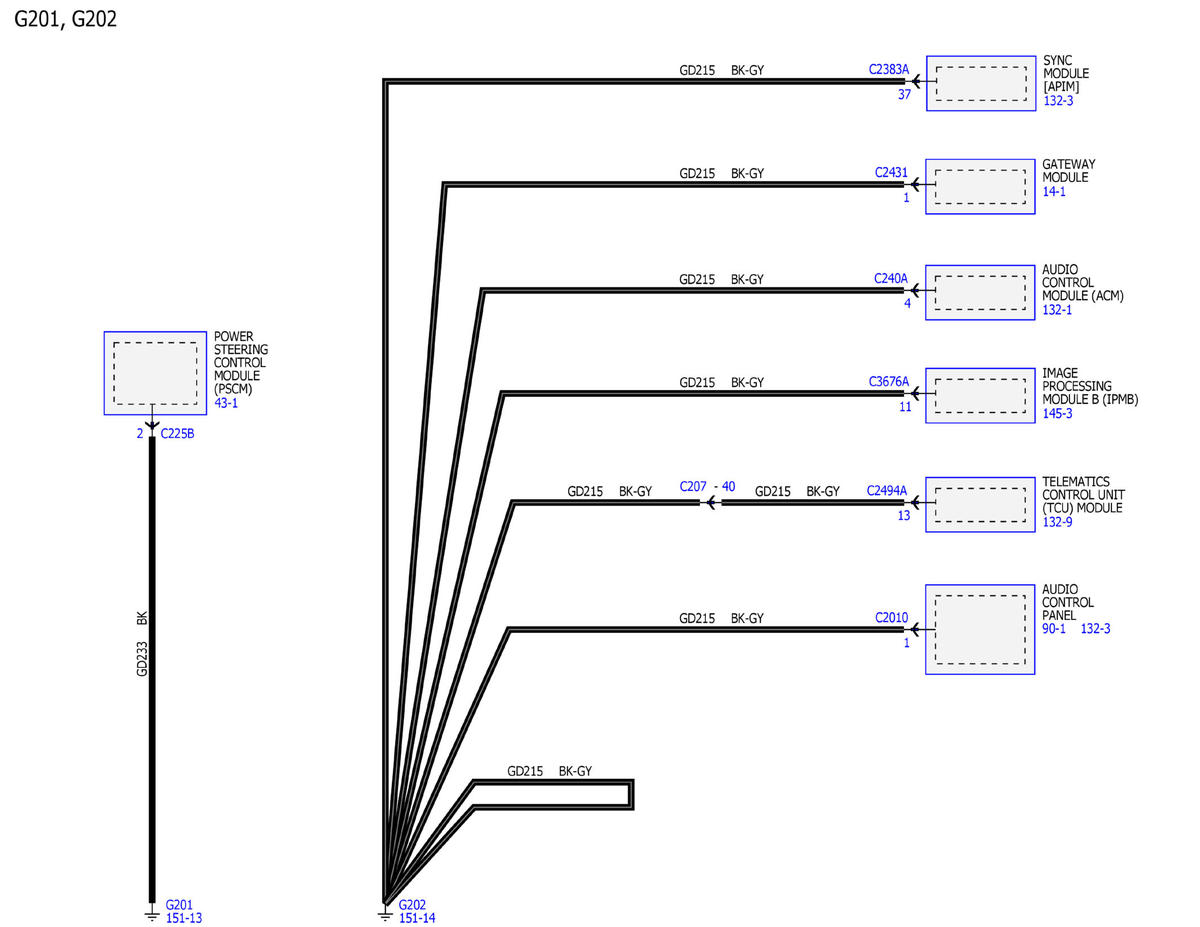

GFDWR131780Courtesy of FORD MOTOR COMPANY

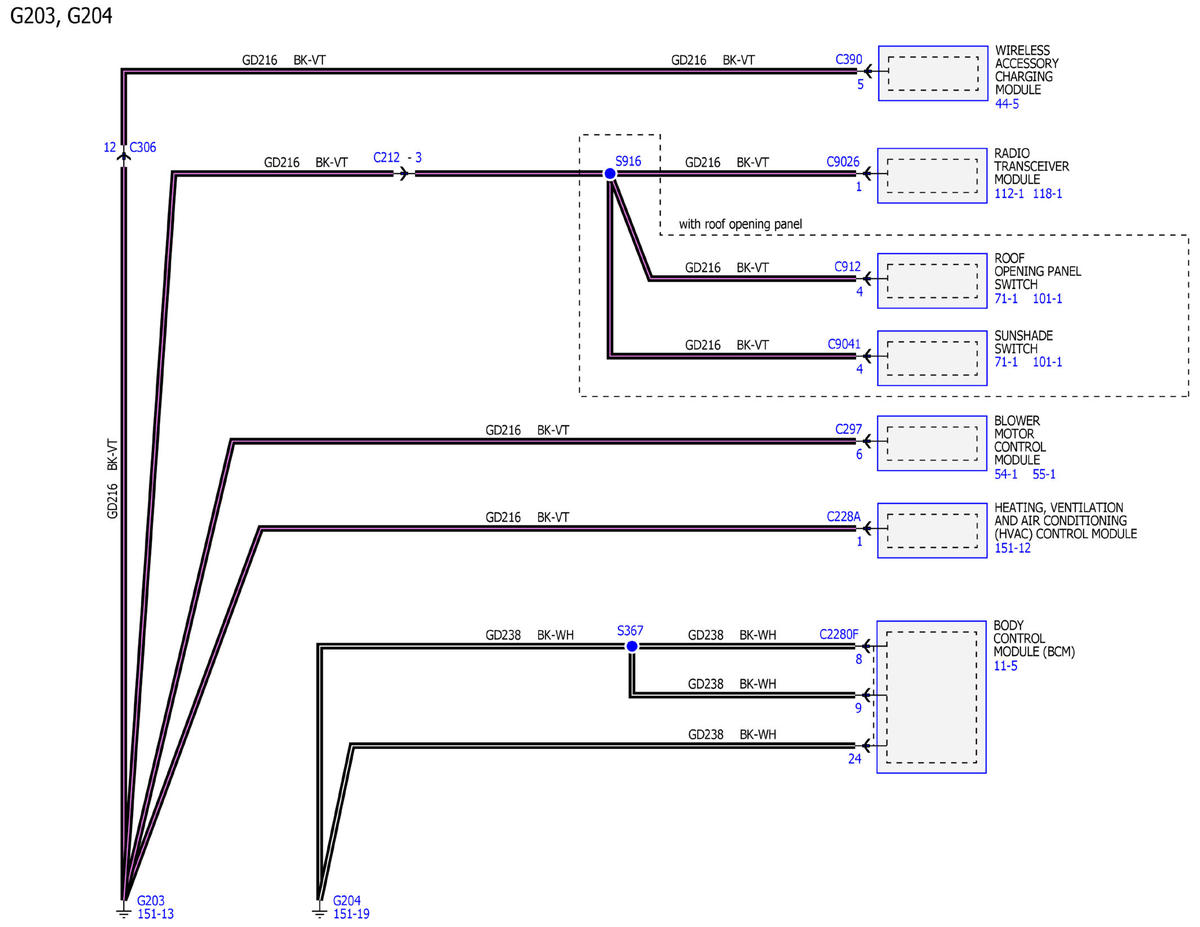

GFDWR131781Courtesy of FORD MOTOR COMPANY

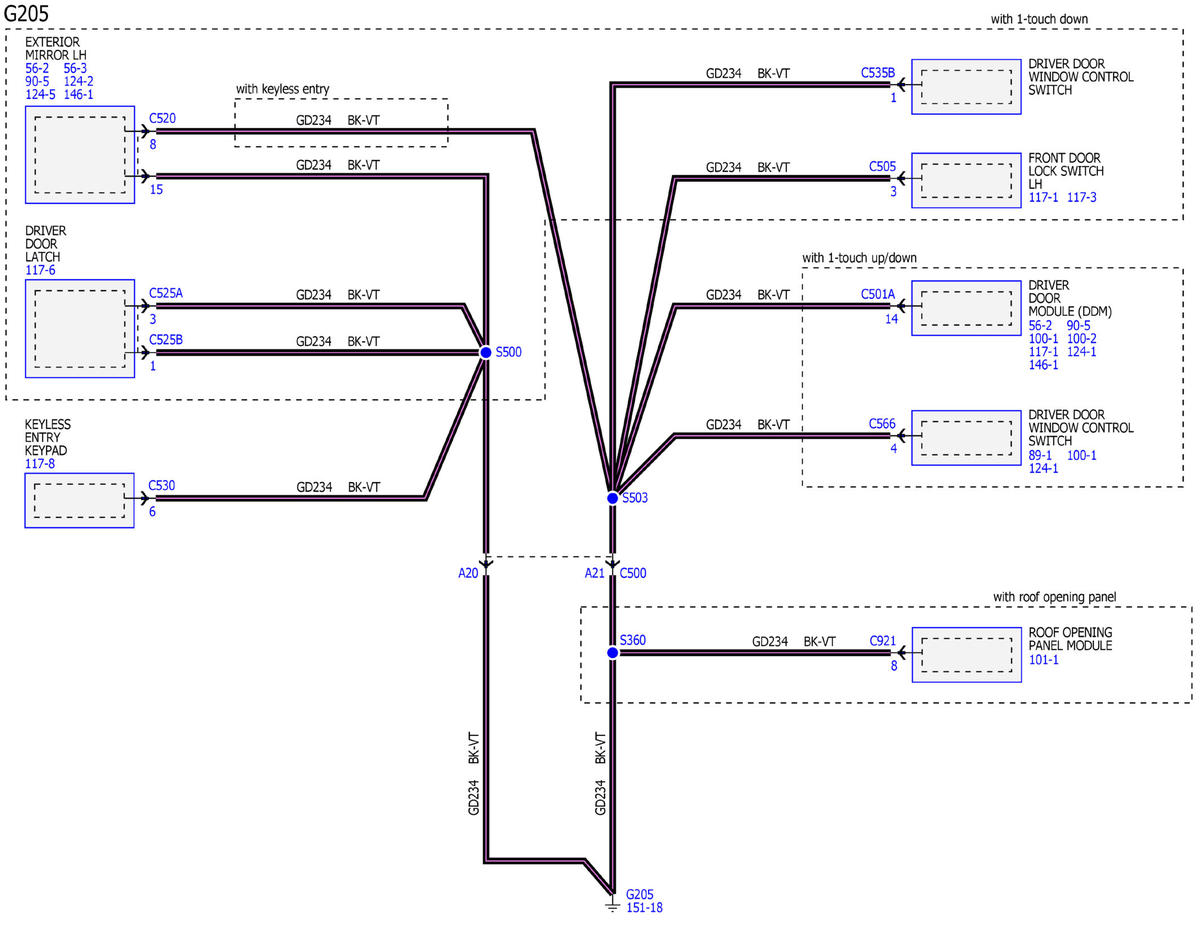

GFDWR131782Courtesy of FORD MOTOR COMPANY

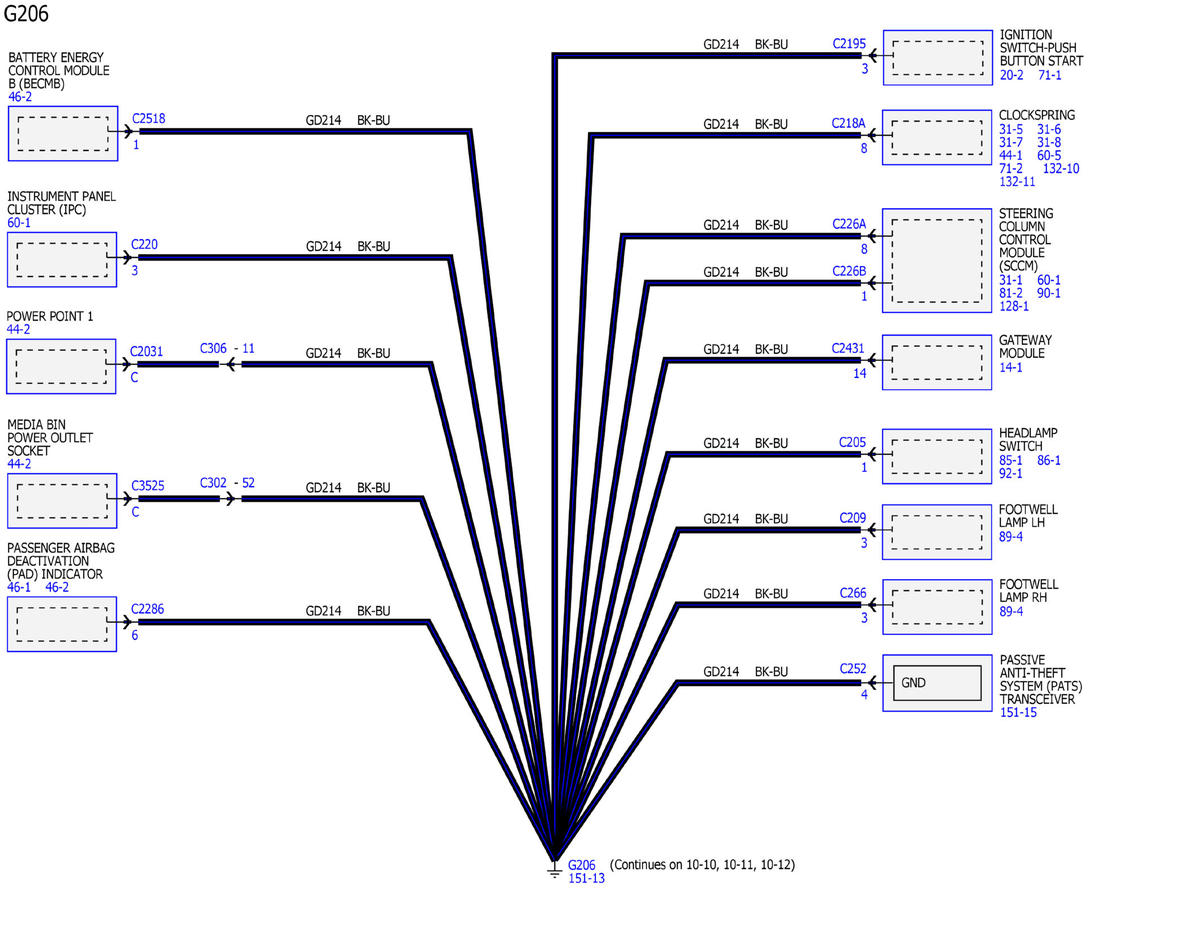

GFDWR131783Courtesy of FORD MOTOR COMPANY

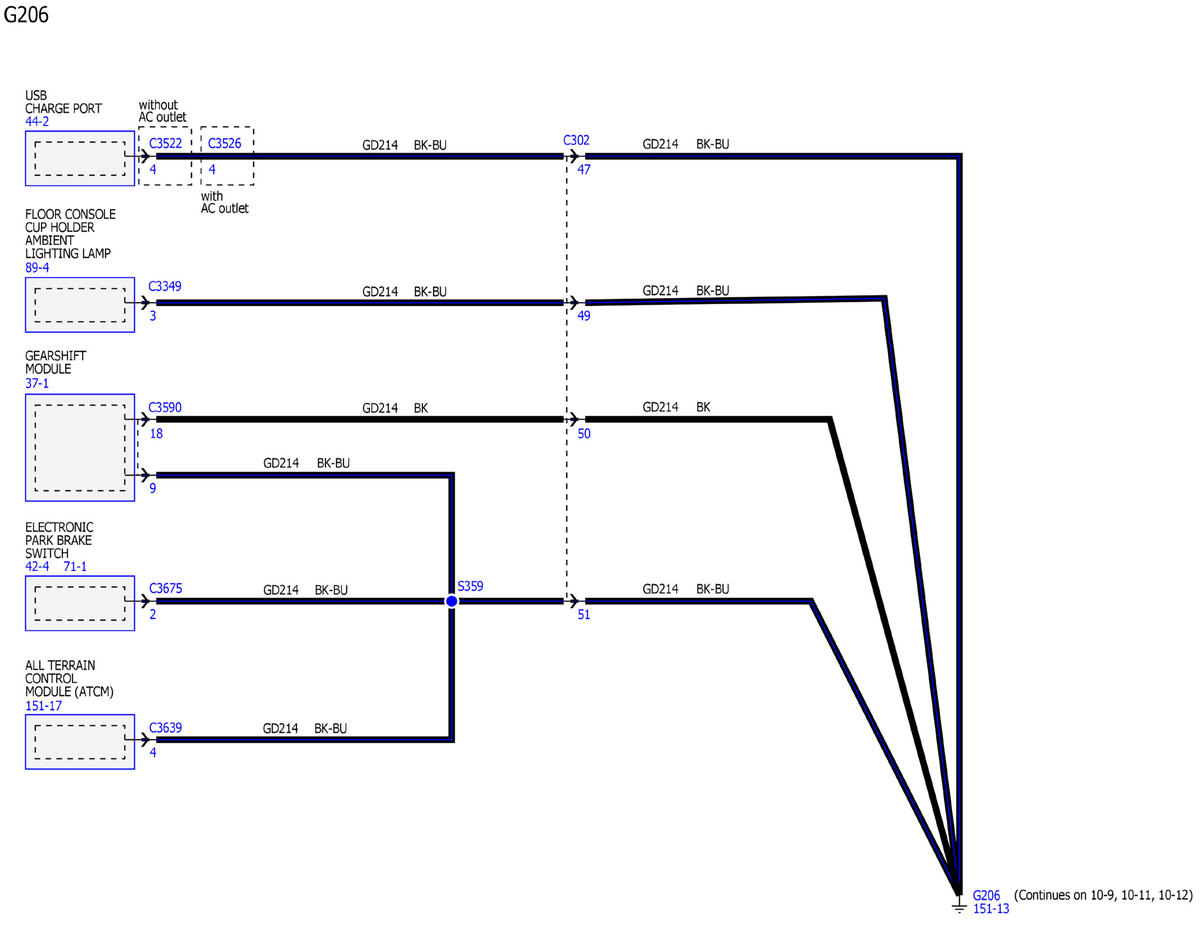

GFDWR131763Courtesy of FORD MOTOR COMPANY

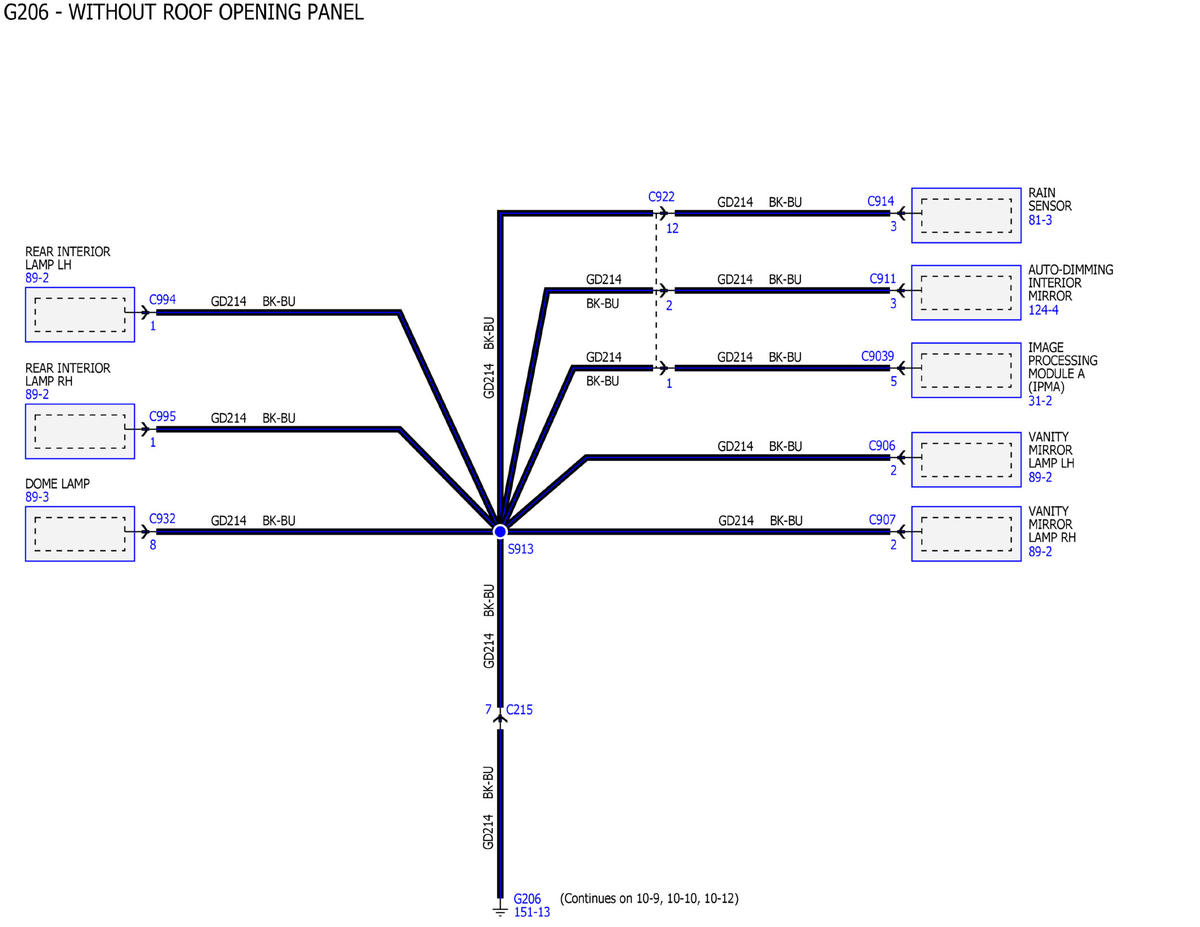

GFDWR131764Courtesy of FORD MOTOR COMPANY

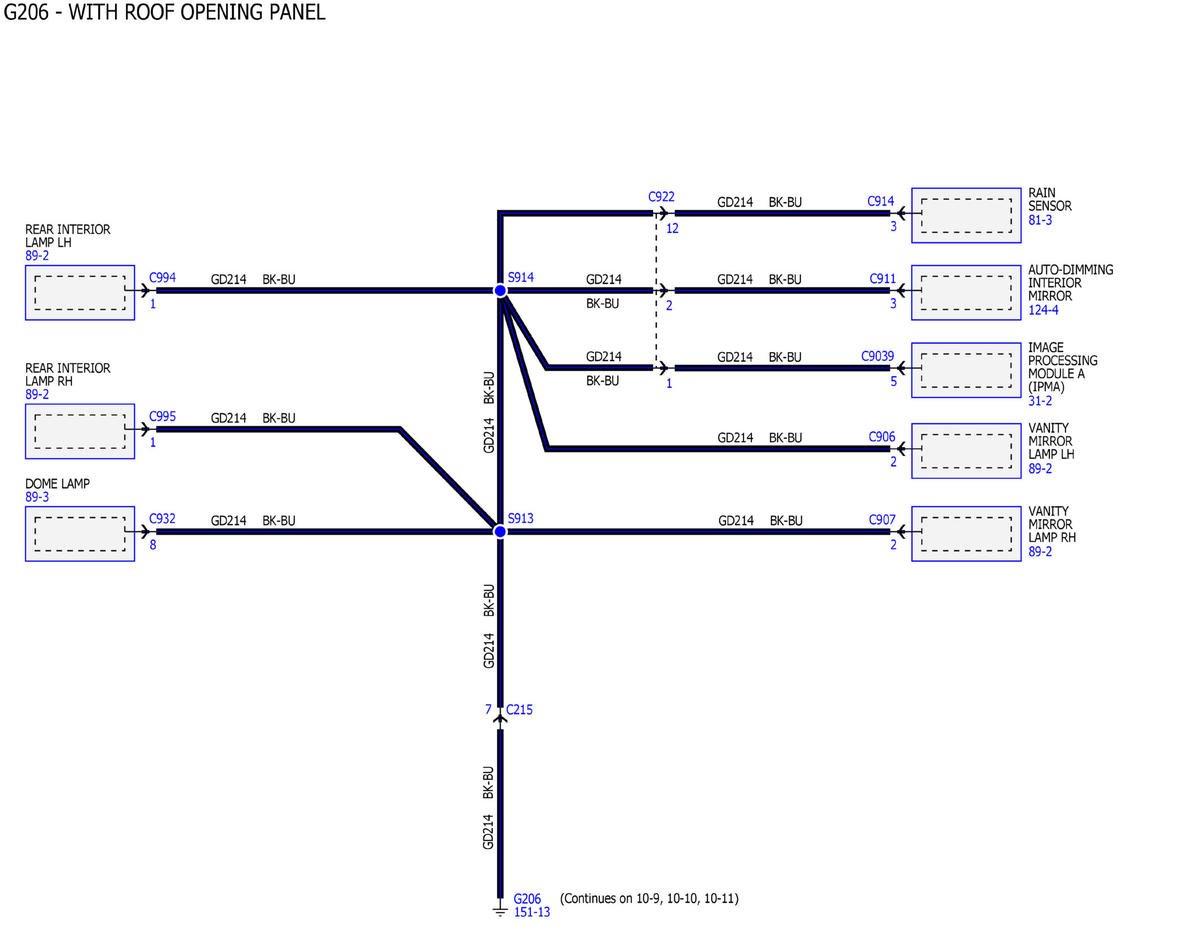

GFDWR131765Courtesy of FORD MOTOR COMPANY

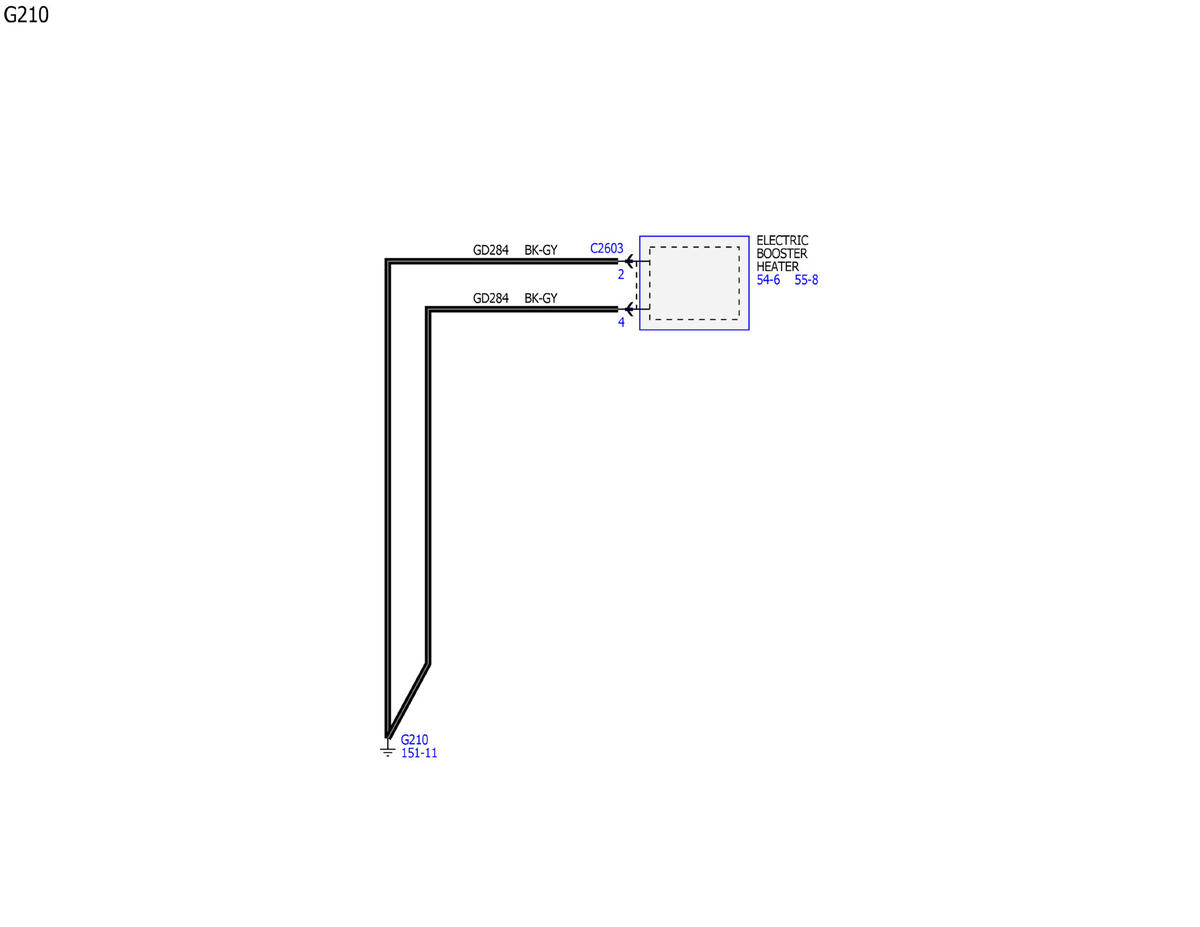

GFDWR131766Courtesy of FORD MOTOR COMPANY

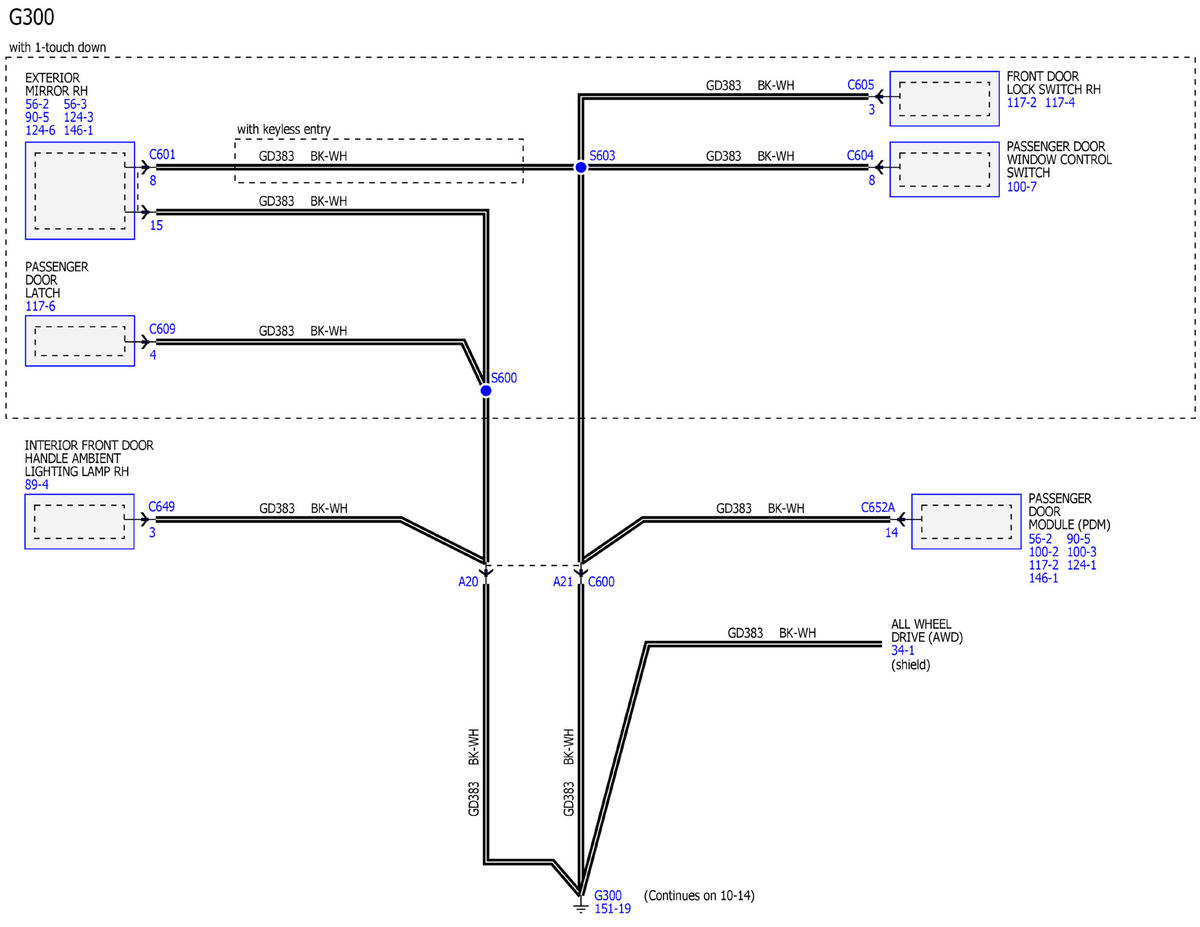

GFDWR131767Courtesy of FORD MOTOR COMPANY

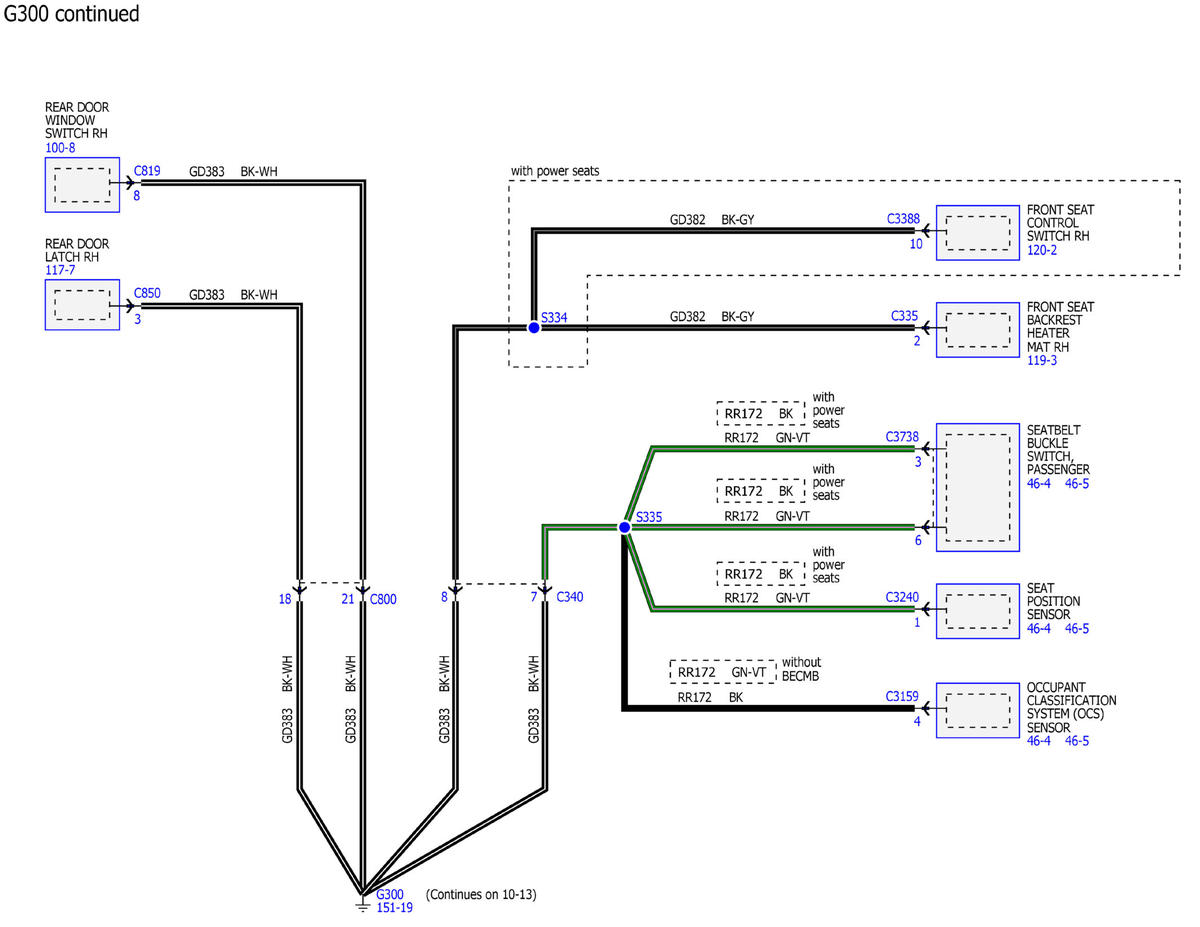

GFDWR131768Courtesy of FORD MOTOR COMPANY

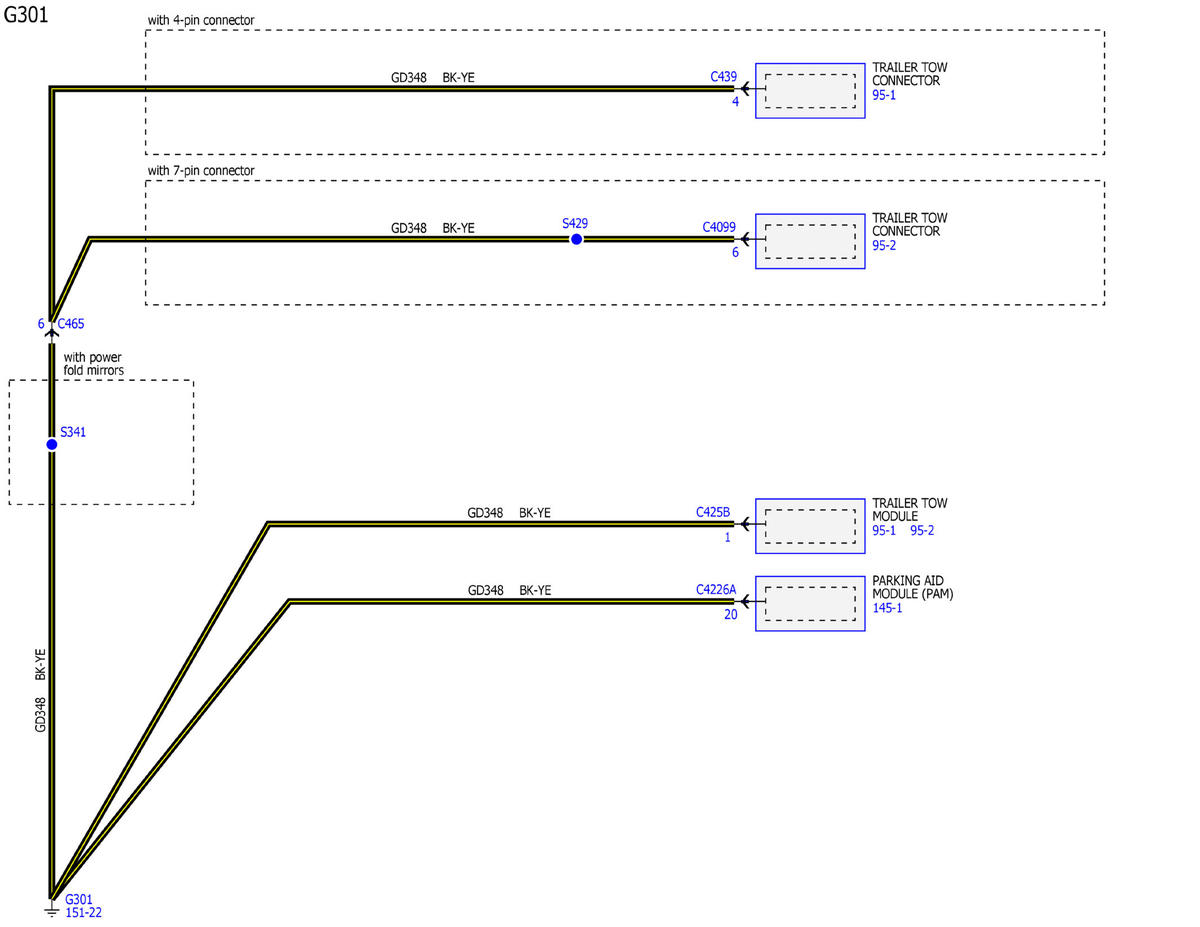

GFDWR131769Courtesy of FORD MOTOR COMPANY

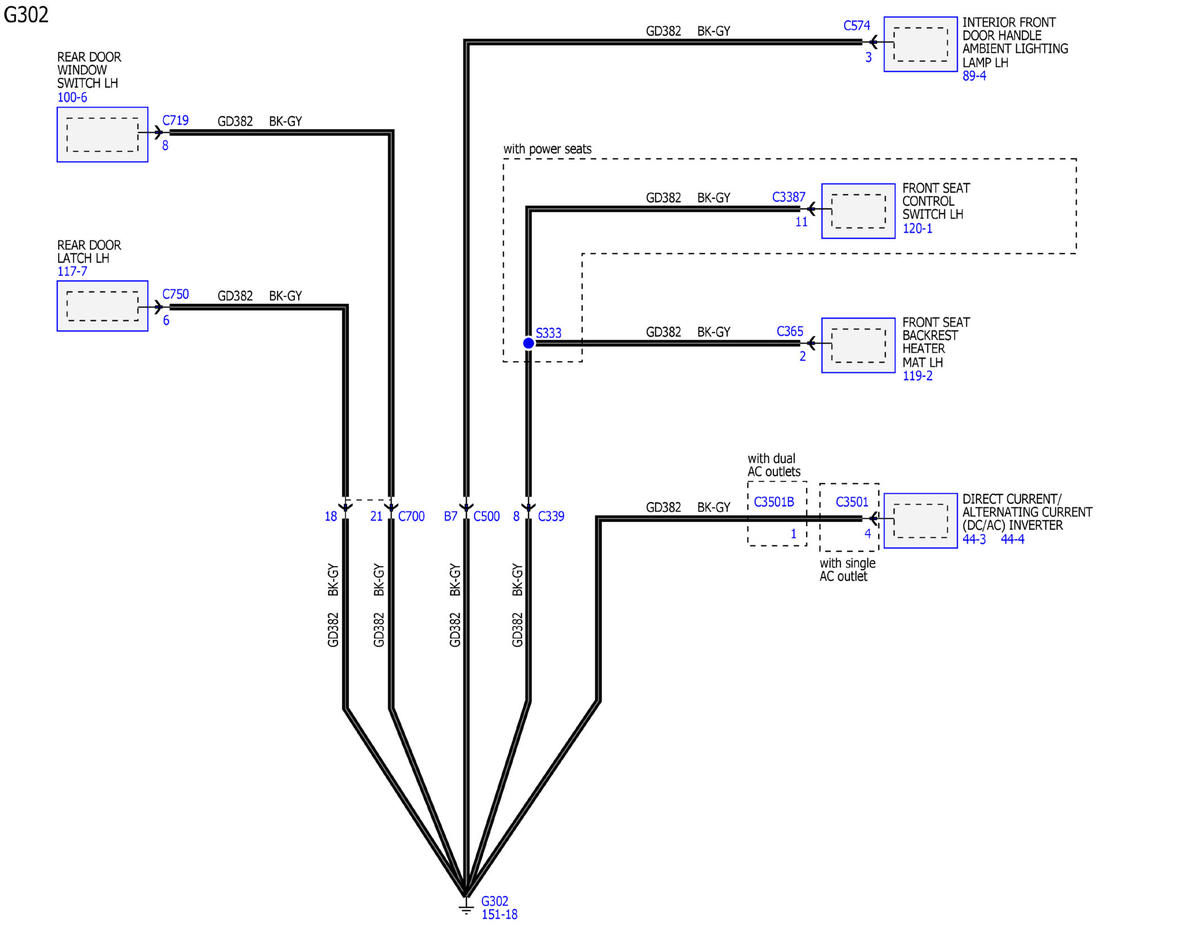

GFDWR131770Courtesy of FORD MOTOR COMPANY

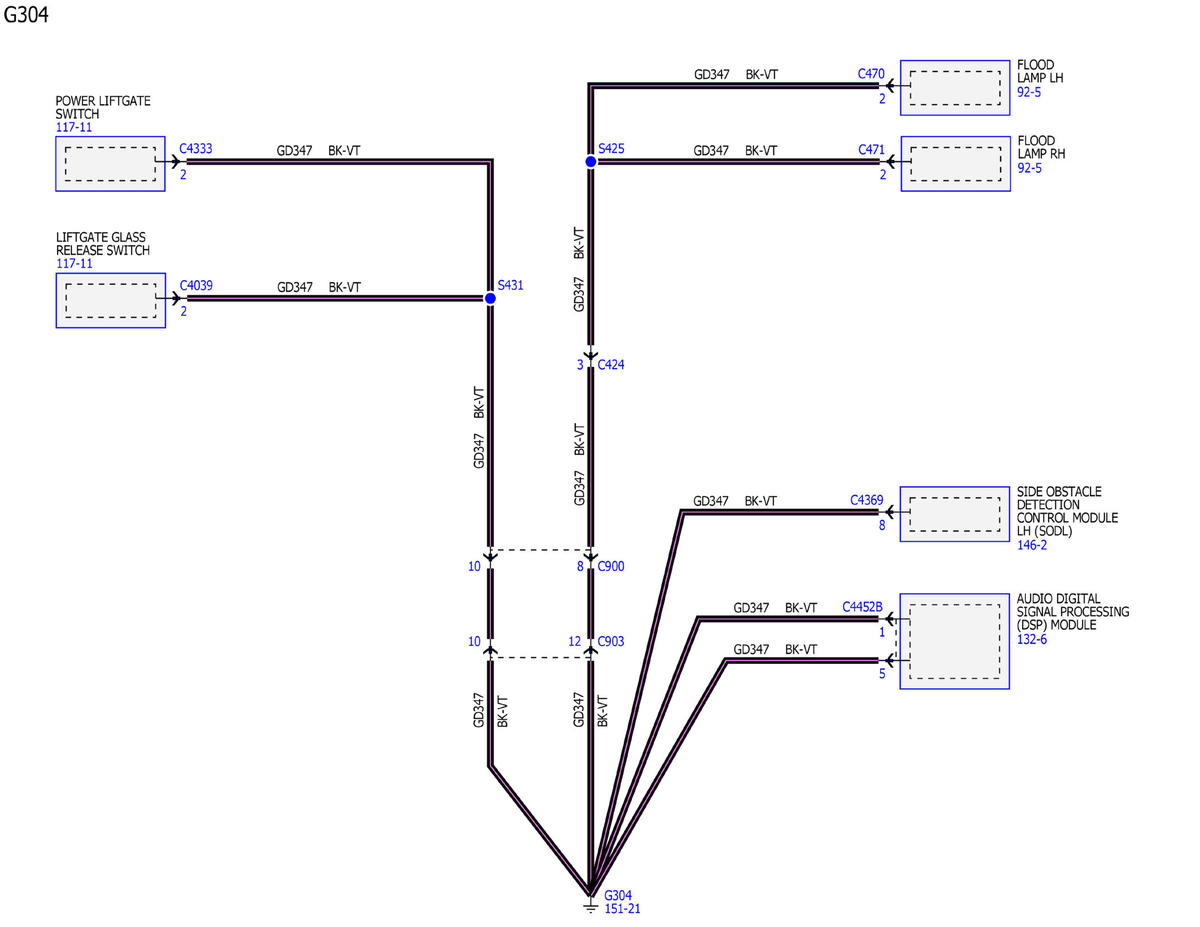

GFDWR131771Courtesy of FORD MOTOR COMPANY

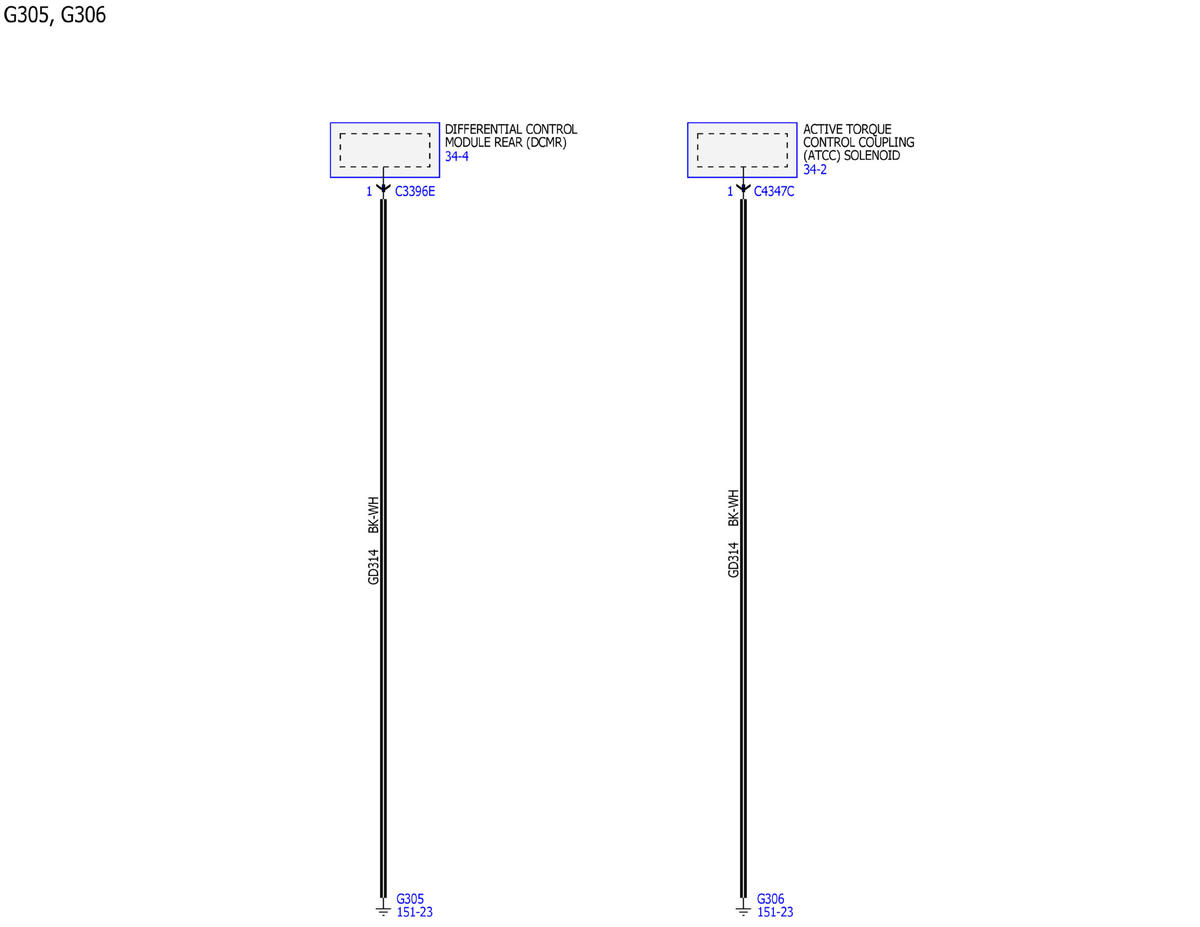

GFDWR131772Courtesy of FORD MOTOR COMPANY

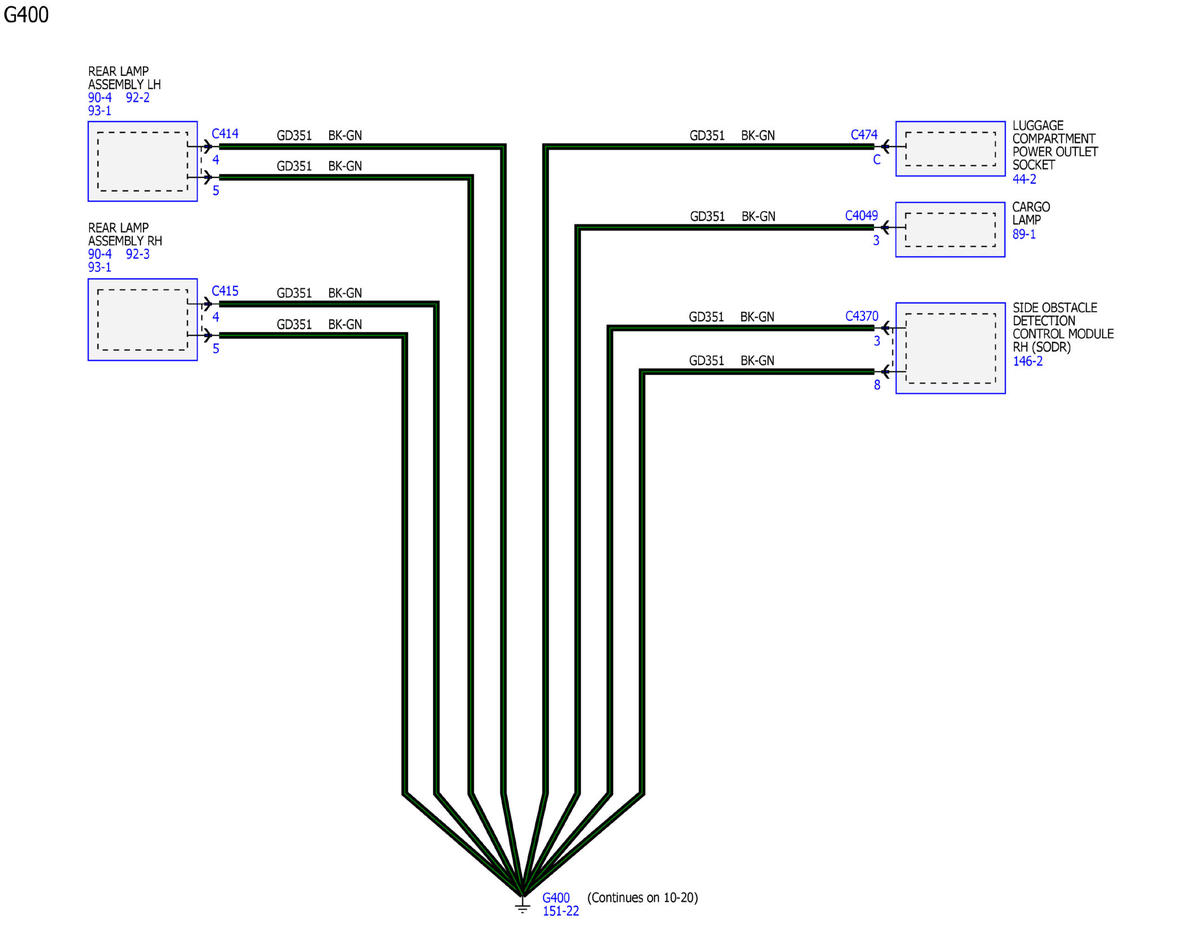

GFDWR131774Courtesy of FORD MOTOR COMPANY

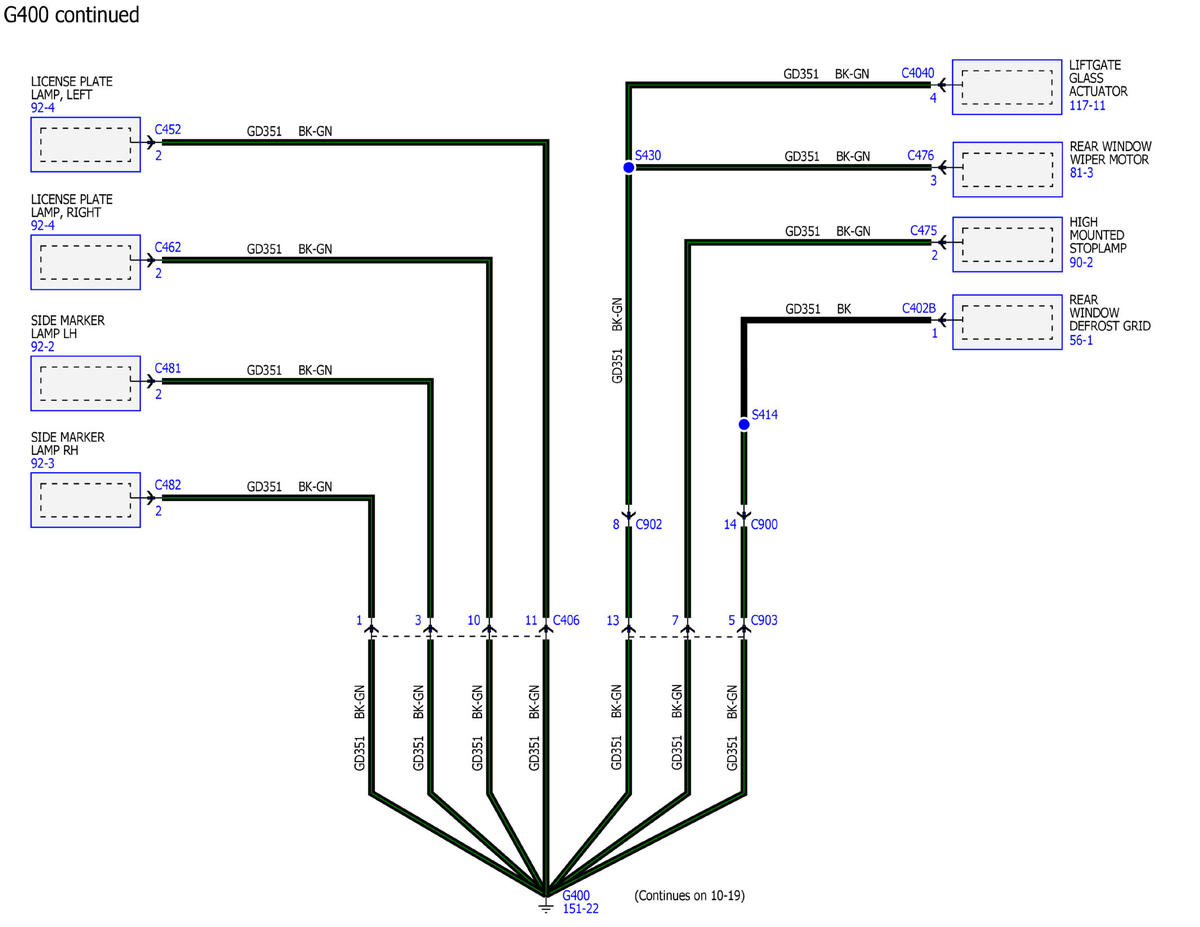

GFDWR131775Courtesy of FORD MOTOR COMPANY

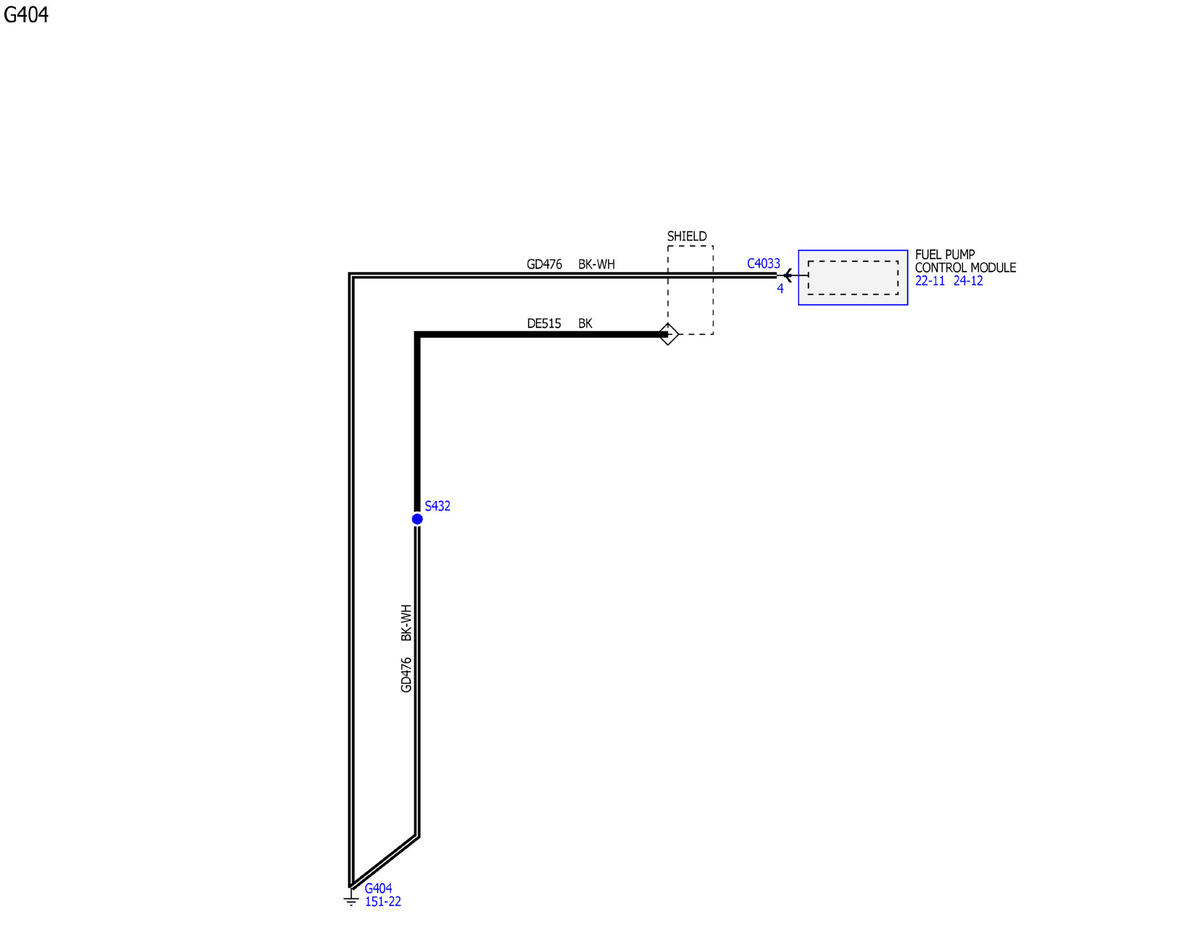

GFDWR131776Courtesy of FORD MOTOR COMPANY
