All-Wheel Drive (AWD) Module: Installation
- To install, reverse the removal procedure.NOTE: Carry out the remaining steps only if installing a new AWD module.

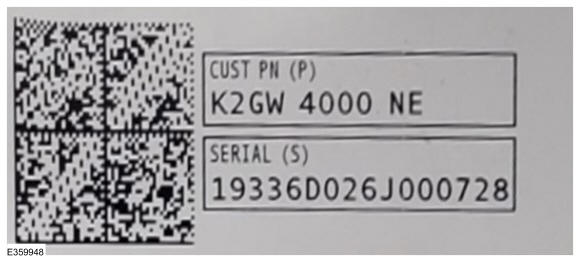

- Using the diagnostic scan tool, carry out the AWD - Active Torque Coupling Configuration routine. The RDU 16-digit alpha numeric bar code is located on the label attached to the RDU.
- Using a diagnostic scan tool, complete the PMI process for the AWD module following the on-screen instructions.
