Connector Repair Procedures

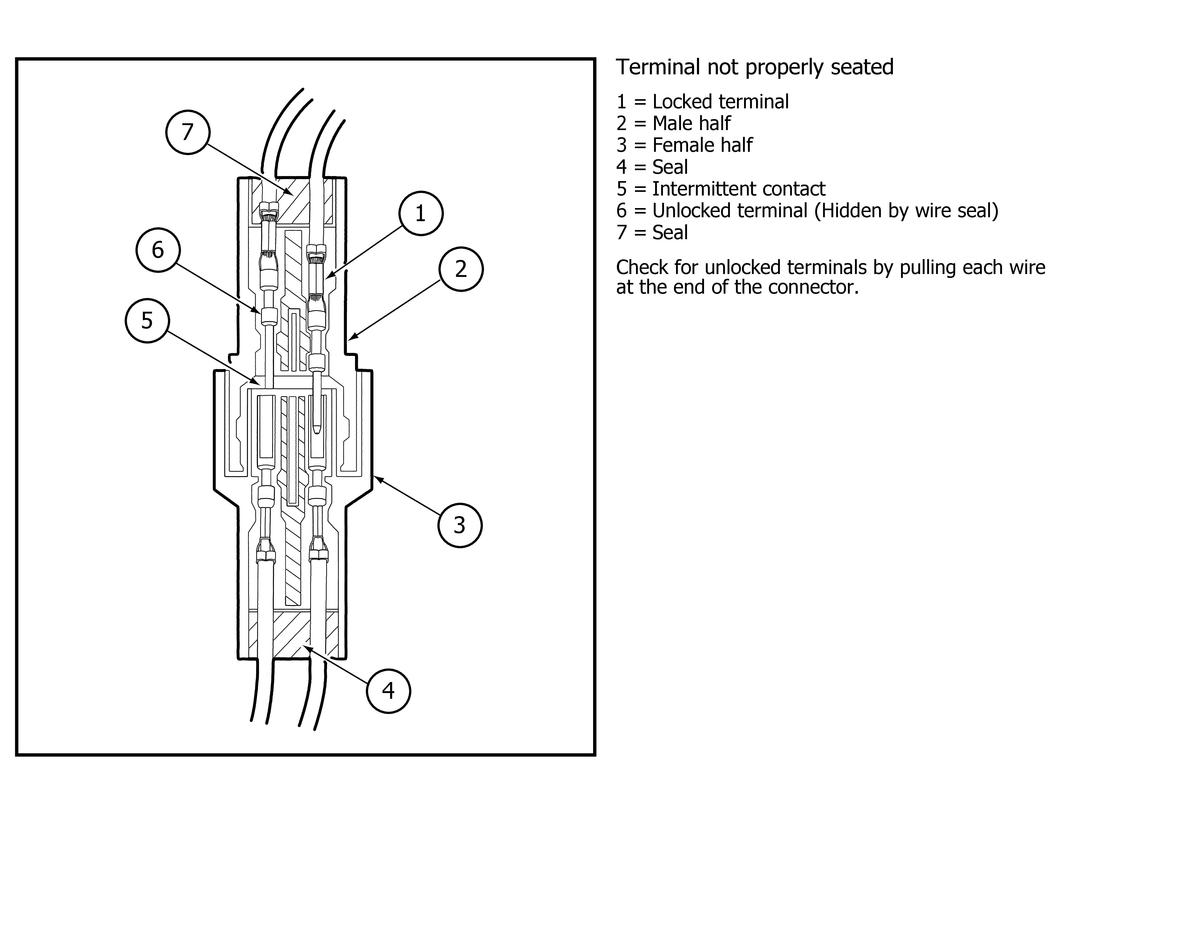

Fig 1: Connector Repair Procedures (1 Of 9)

GFDWR26903

Courtesy of FORD MOTOR COMPANY

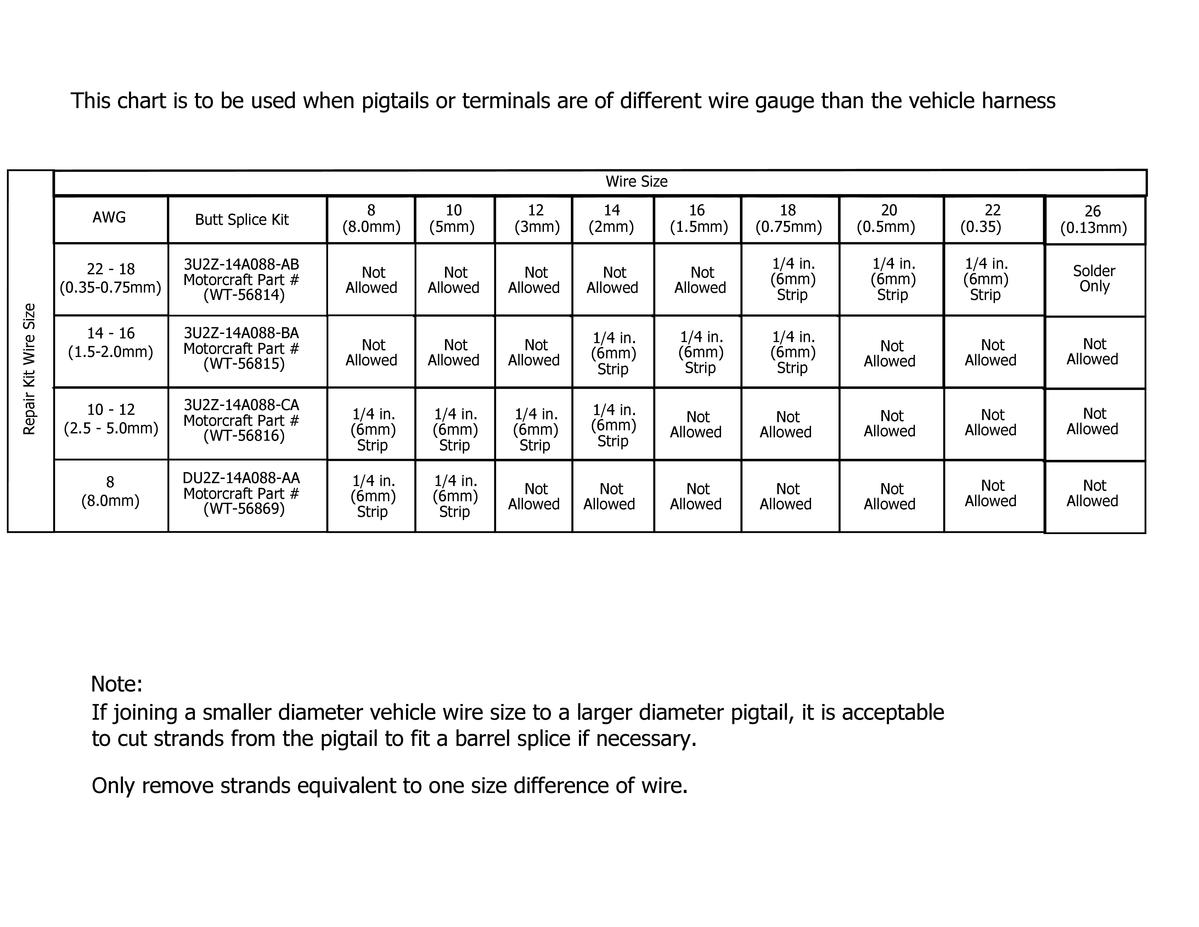

Fig 2: Connector Repair Procedures (2 Of 9)

GFDWR26904

Courtesy of FORD MOTOR COMPANY

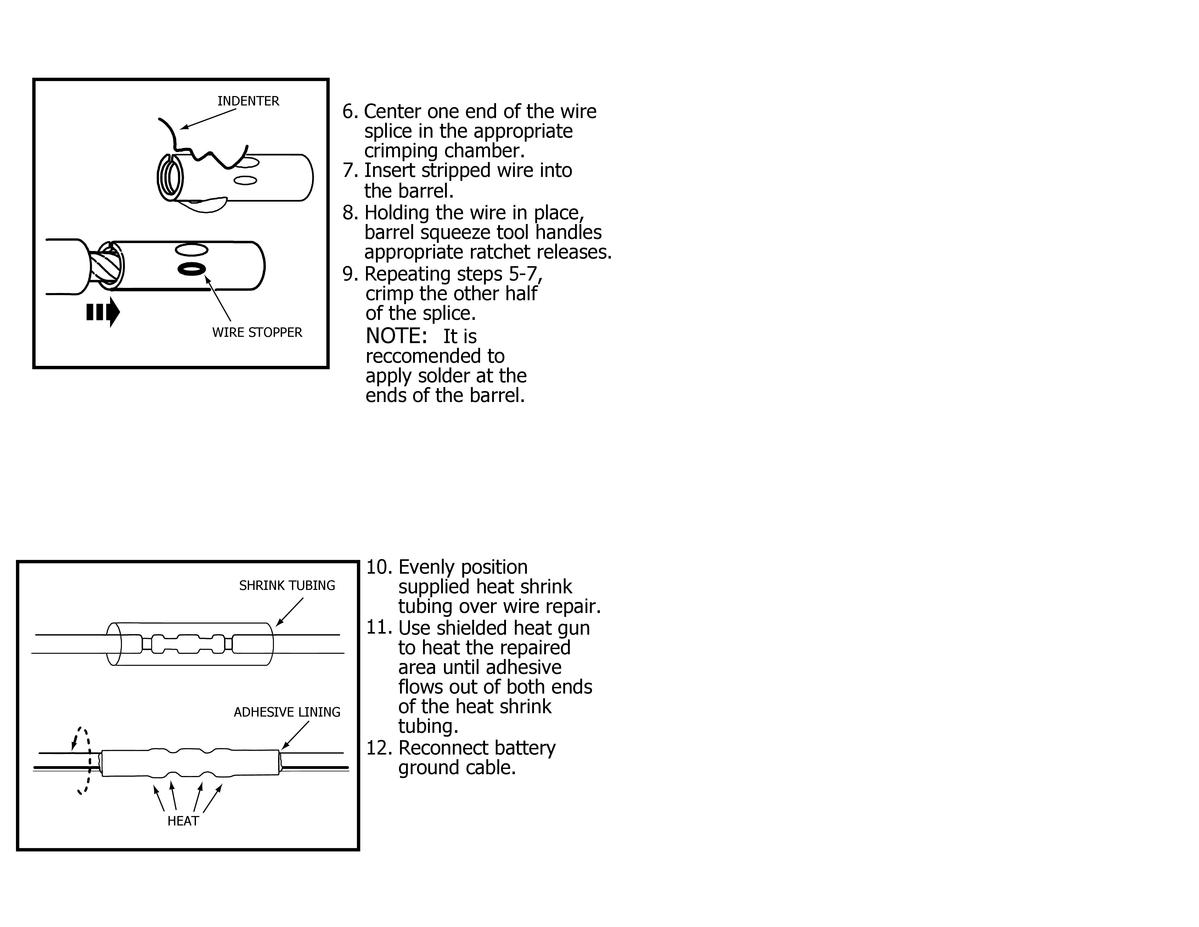

Fig 3: Connector Repair Procedures (3 Of 9)

GFDWR26905

Courtesy of FORD MOTOR COMPANY

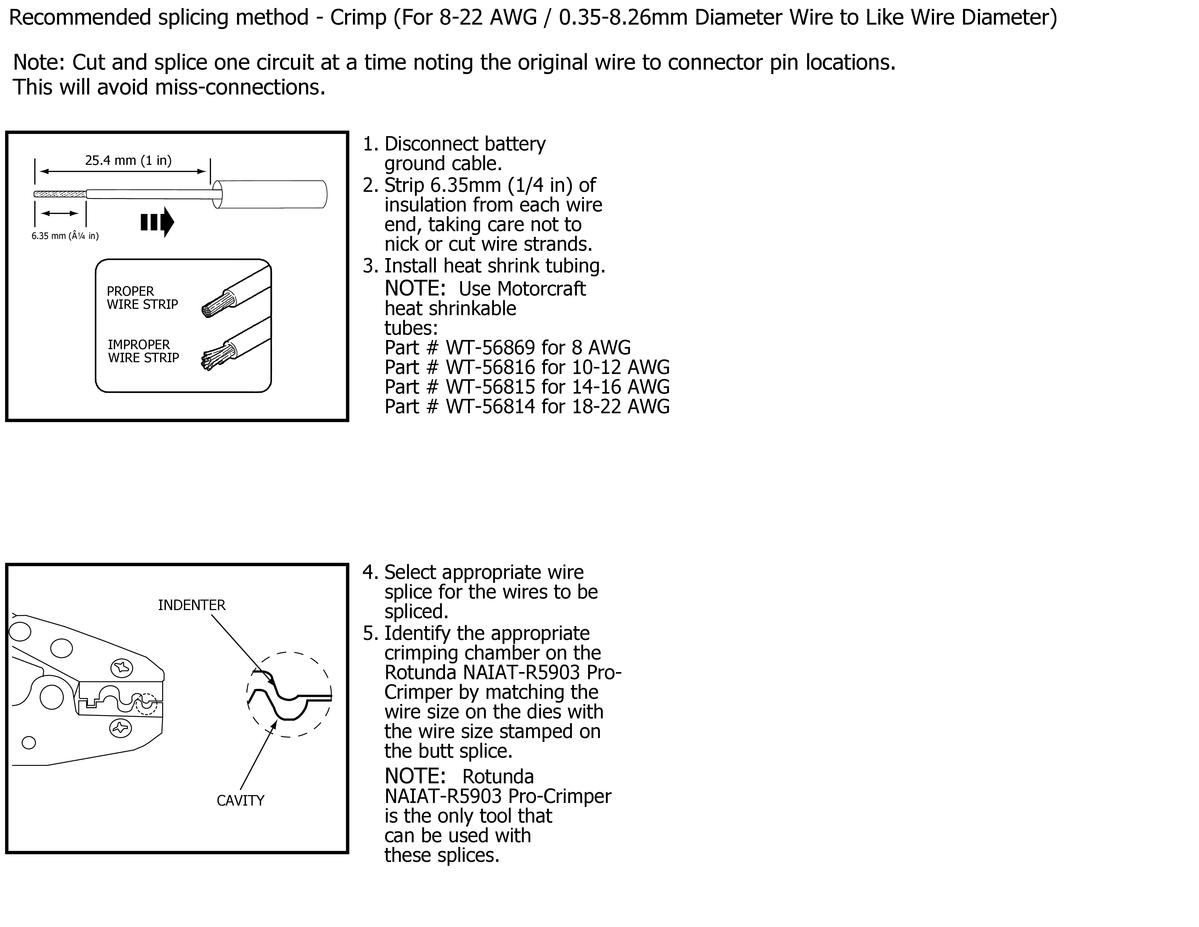

Fig 4: Connector Repair Procedures (4 Of 9)

GFDWR26906

Courtesy of FORD MOTOR COMPANY

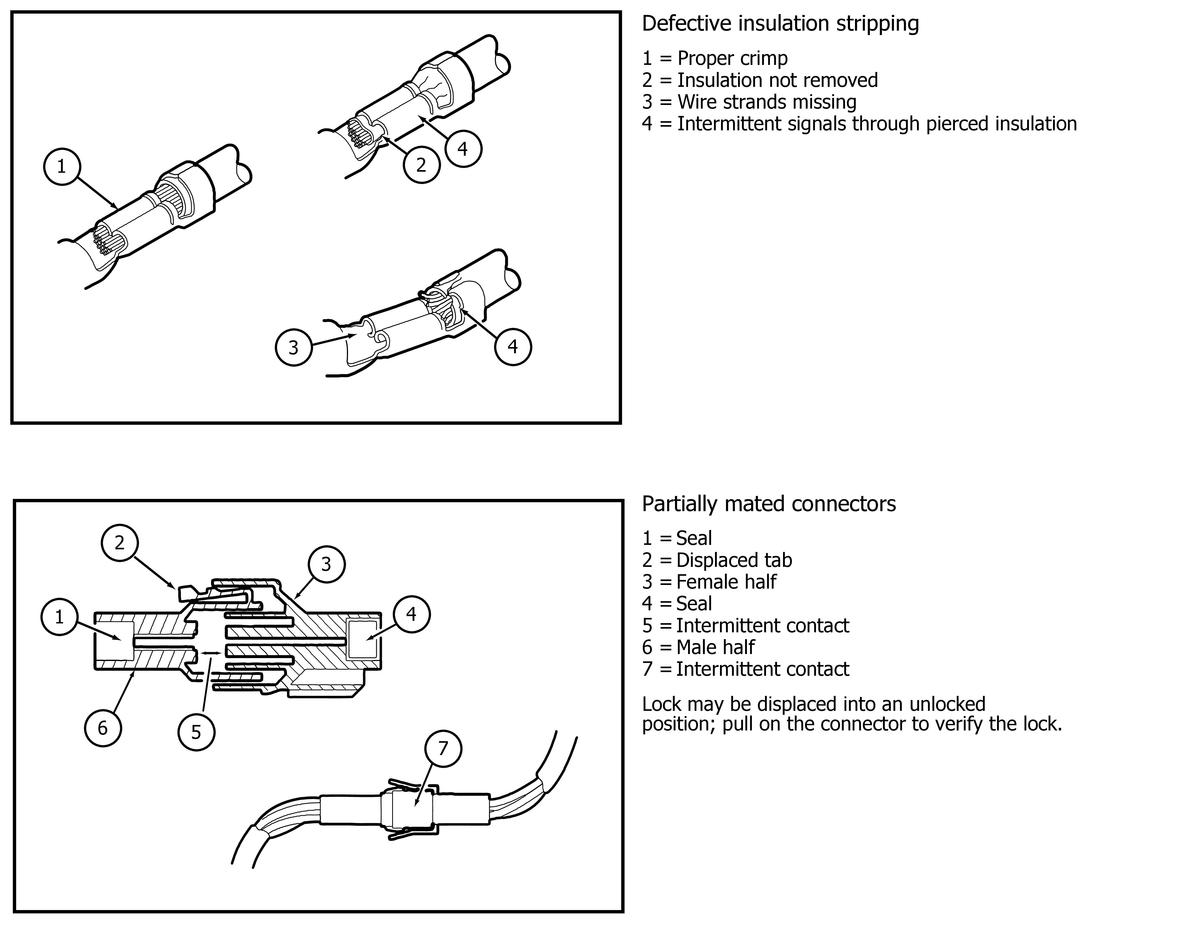

Fig 5: Connector Repair Procedures (5 Of 9)

GFDWR26907

Courtesy of FORD MOTOR COMPANY

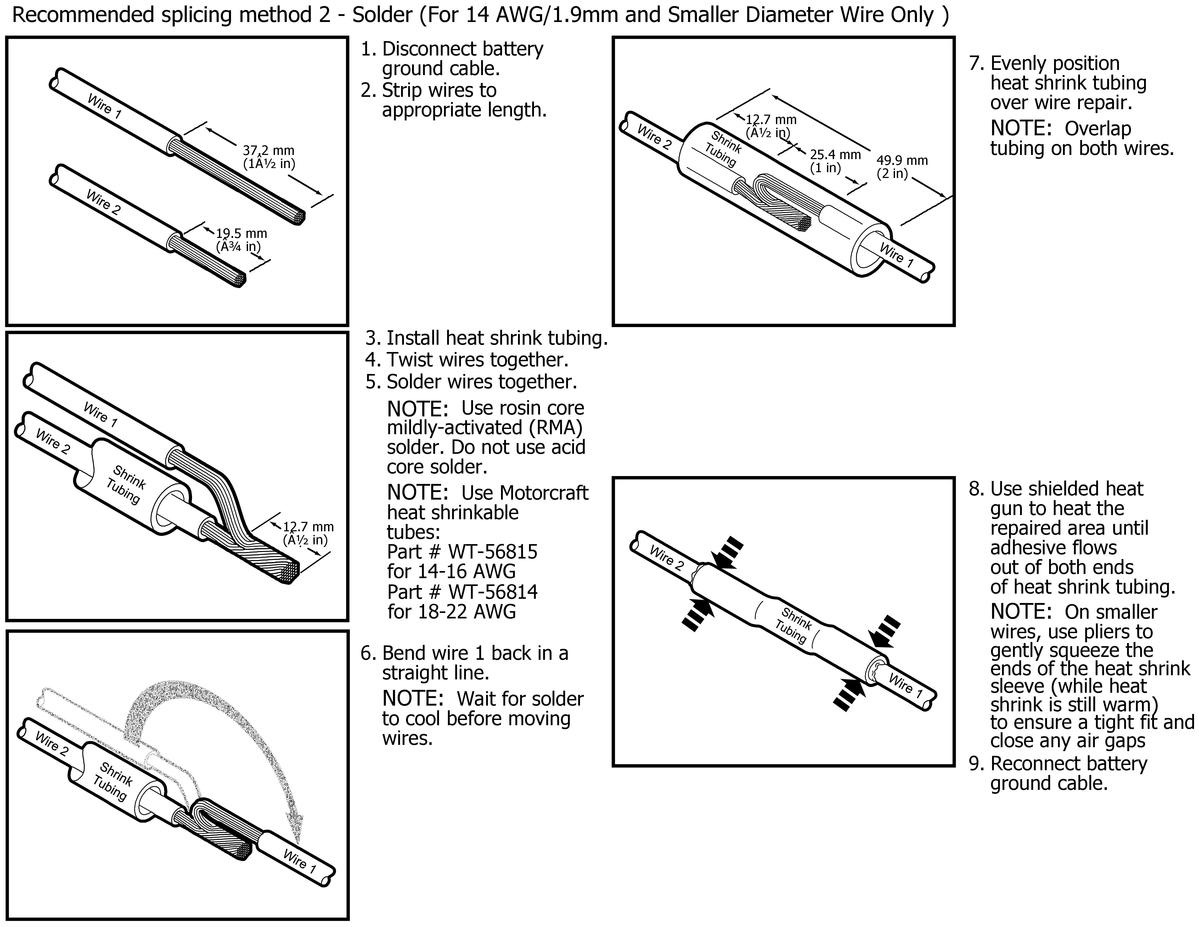

Fig 6: Connector Repair Procedures (6 Of 9)

GFDWR26908

Courtesy of FORD MOTOR COMPANY

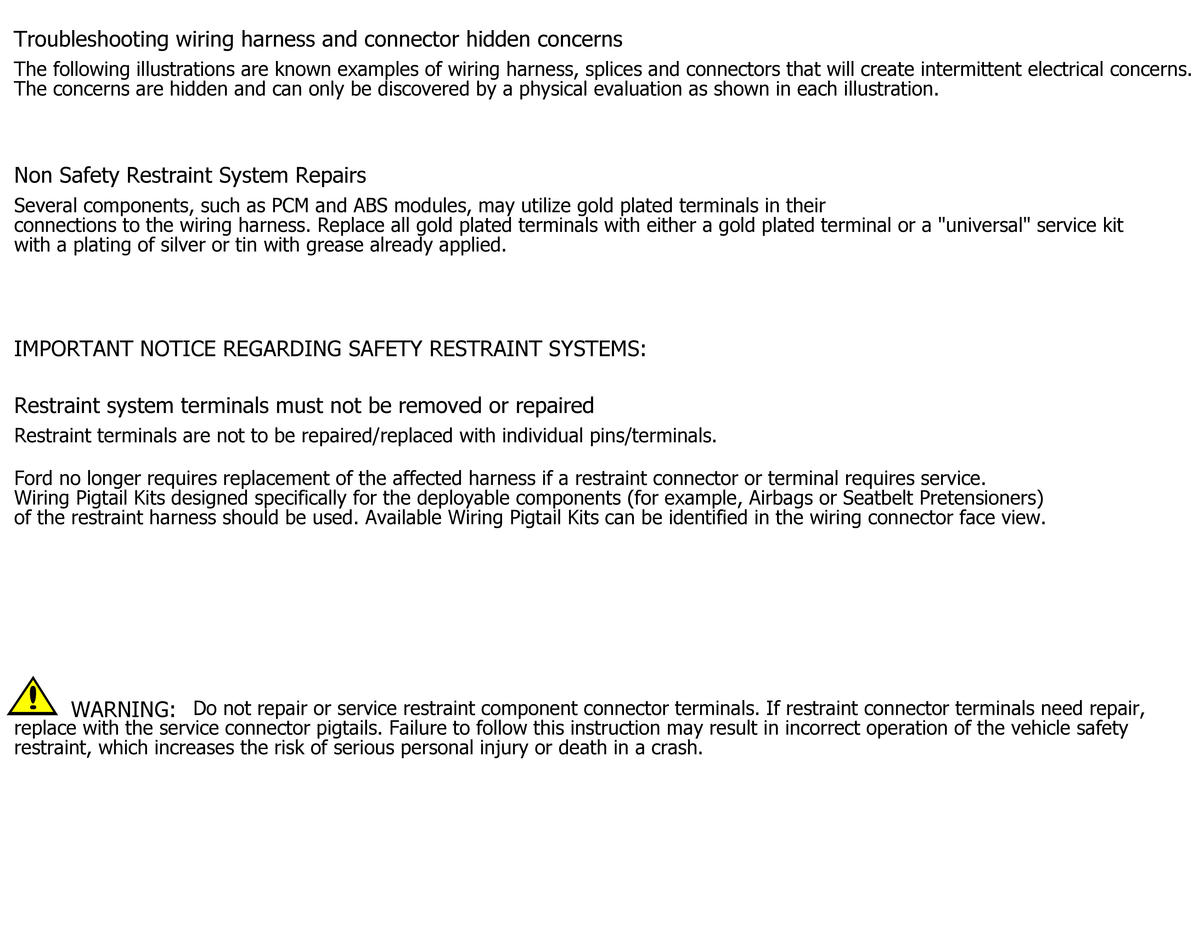

Fig 7: Connector Repair Procedures (7 Of 9)

GFDWR26909

Courtesy of FORD MOTOR COMPANY

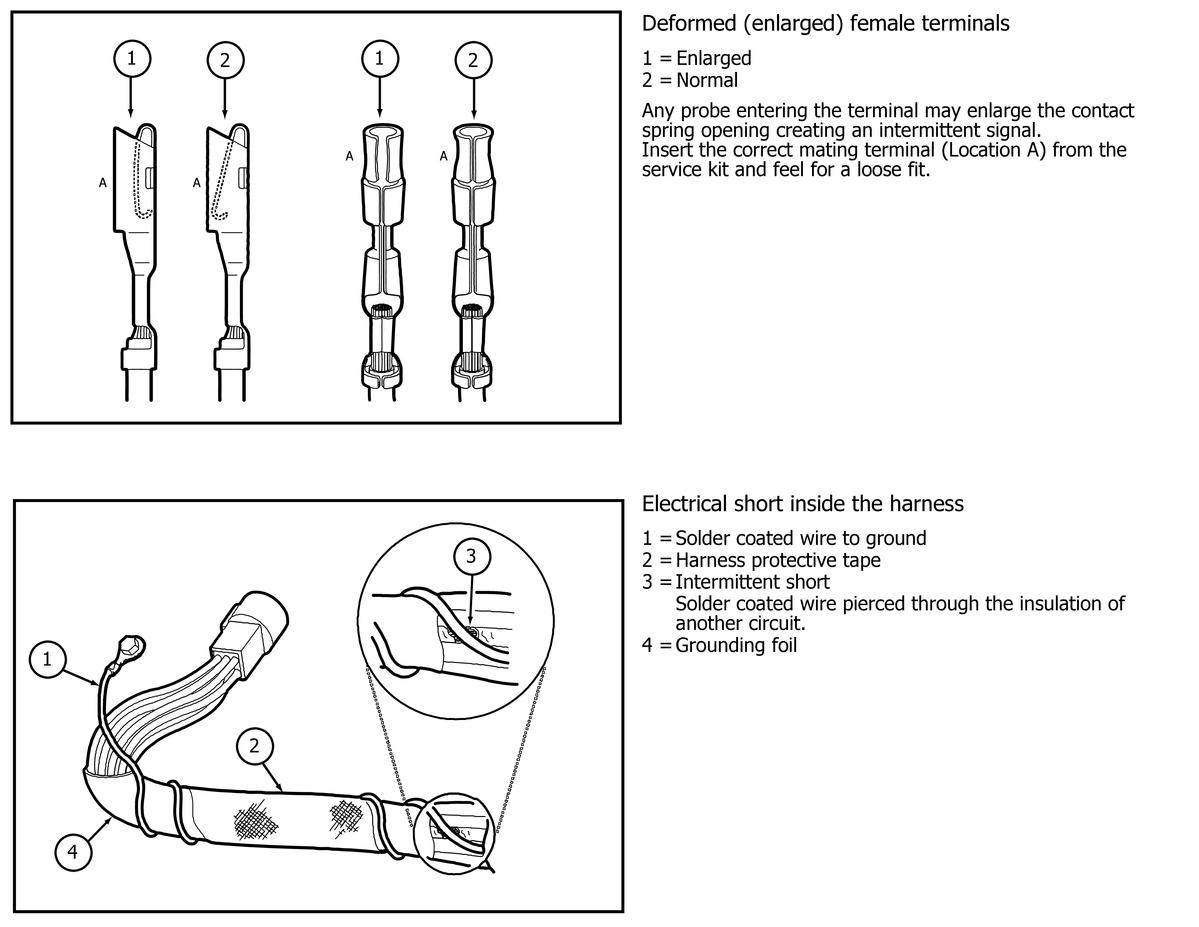

Fig 8: Connector Repair Procedures (8 Of 9)

GFDWR26910

Courtesy of FORD MOTOR COMPANY

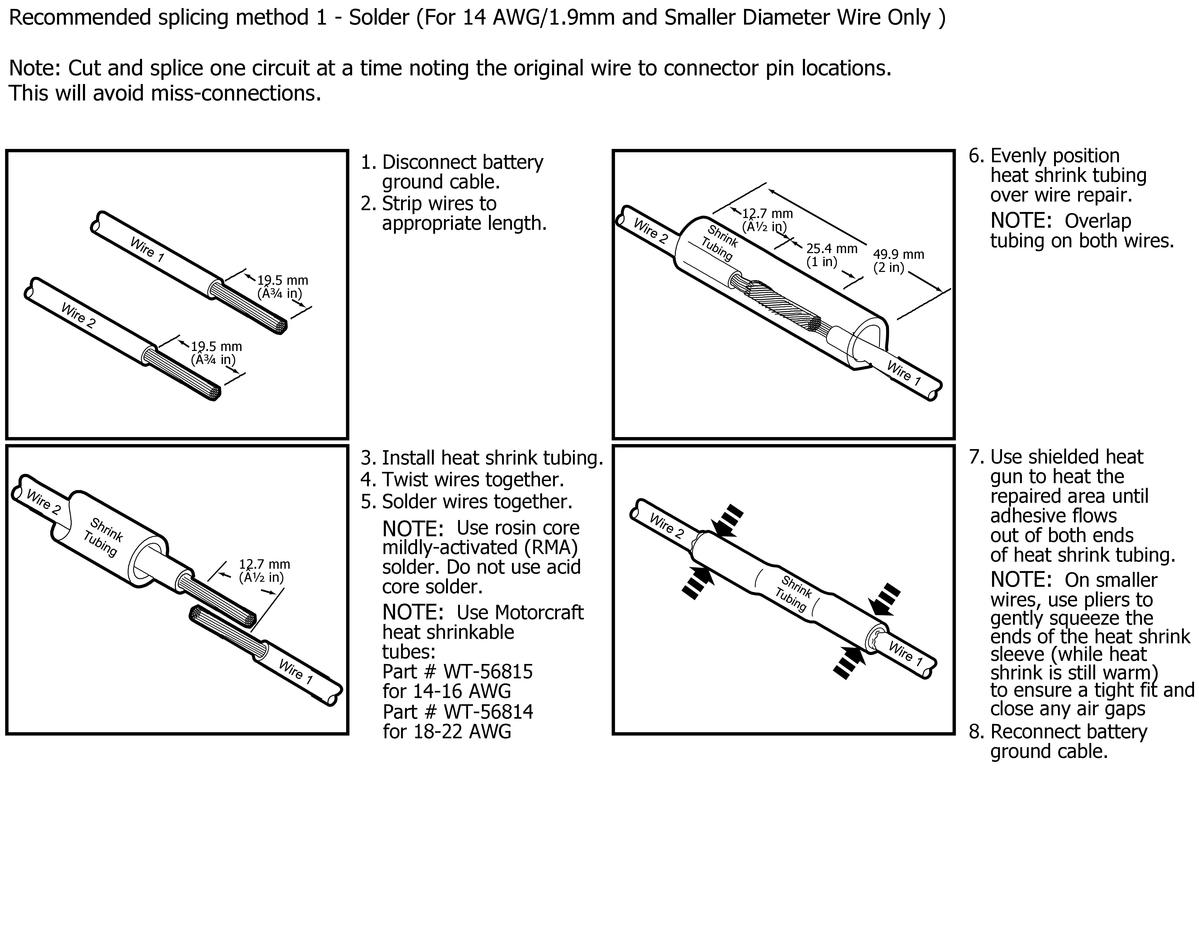

Fig 9: Connector Repair Procedures (9 Of 9)

GFDWR26911

Courtesy of FORD MOTOR COMPANY
