Brake Shift Interlock Actuator: Installation
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Install the park position switch and the brake shift interlock actuator as an assembly.

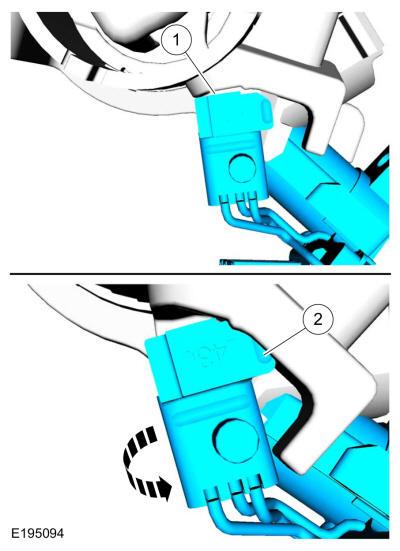

- Place the large plunger on the park position switch in the locating hole and position the switch as shown.
- Rotate the park position switch counterclockwise making sure the tab locks under the housing lip.

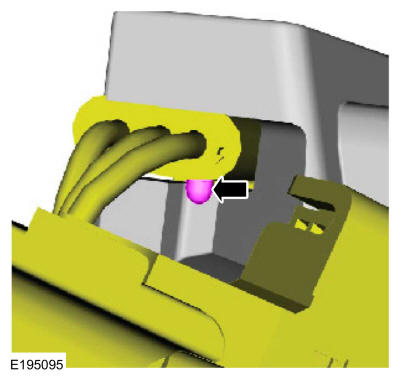

- Verify the park position switch spring loaded pin is fully extended.

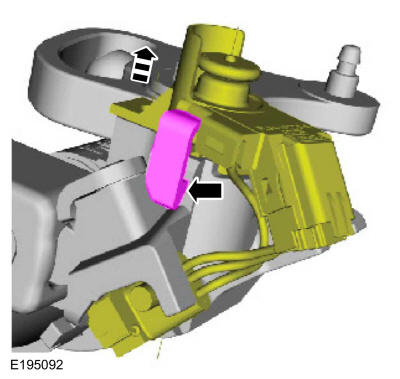

- Install the brake shift interlock actuator in the selector lever mechanism.

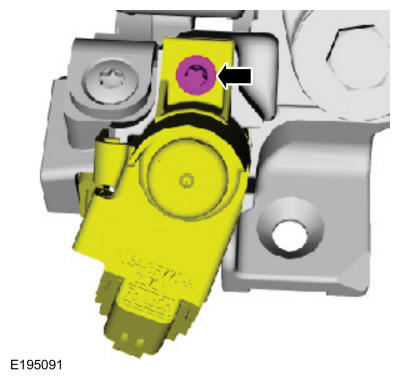

- Install the brake shift interlock actuator screw.
Torque: 18 lb.in (2 Nm)
- Install the selector lever mechanism. Refer to: Selector Lever Mechanism .
