Steering Column Multifunction Switch LH: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column shrouds. Refer to: Steering Column Shrouds .
  2. If equipped, remove the steering column control switch. Refer to: Steering Column Control Switch .
  3. NOTE: If equipped with steering column control switch, lower retainer will be removed in referenced procedure.

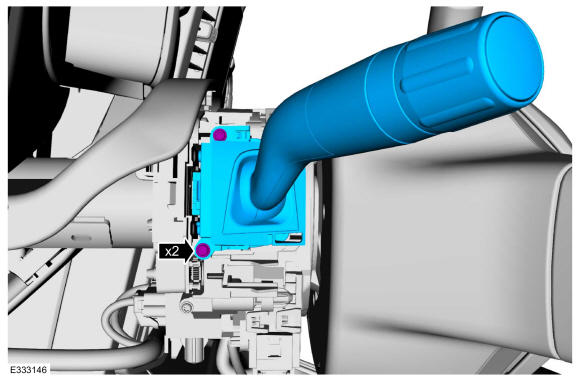

    Remove the retainer(s) and the steering column multifunction switch.

GFD552352Courtesy of FORD MOTOR COMPANY
