Cruise Control Module (CCM): Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the front bumper cover. Refer to: Front Bumper Cover

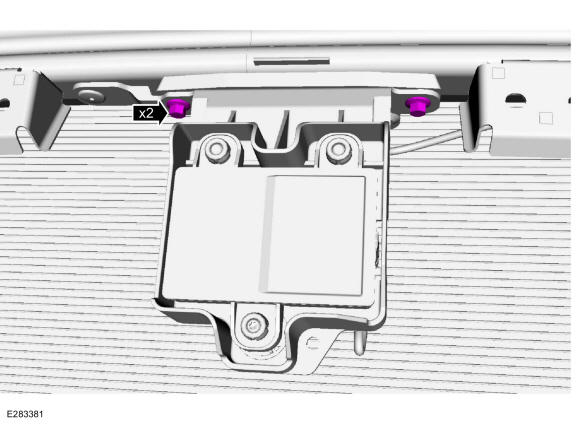

- Remove the CCM bolts.
Torque
: 119 lb.in (13.5 Nm)
- Remove the CCM and bracket.

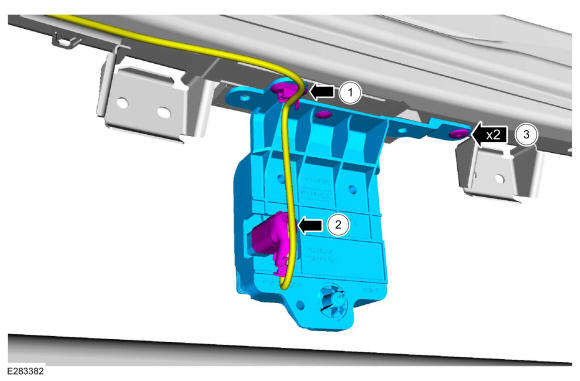

- Detach the wiring harness retainer from the bracket.
- Disconnect the CCM electrical connector.
- Detach the CCM bracket push pins and remove the CCM and bracket.
