Floor Console: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

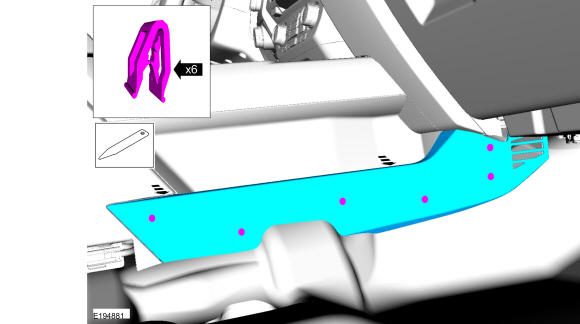

Release the clips and remove the RH lower floor console trim panel.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

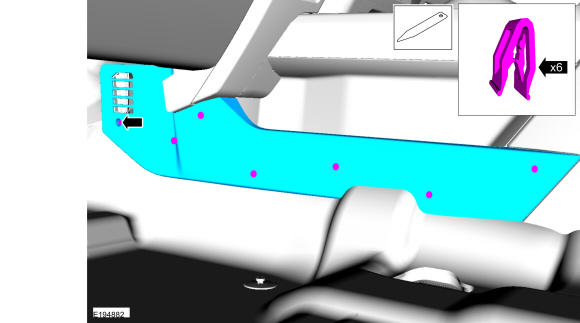

Remove the screw, release the clips and remove the LH lower floor console trim panel.
Use the General Equipment: Interior Trim Remover

Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

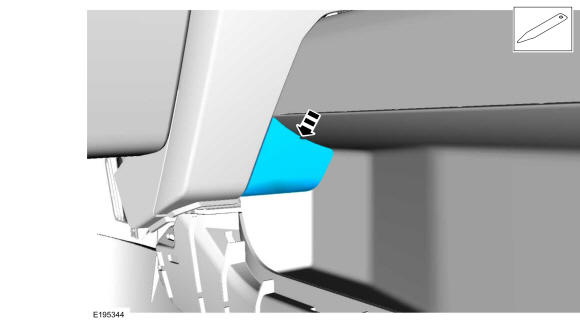

Remove the RH finish panel.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

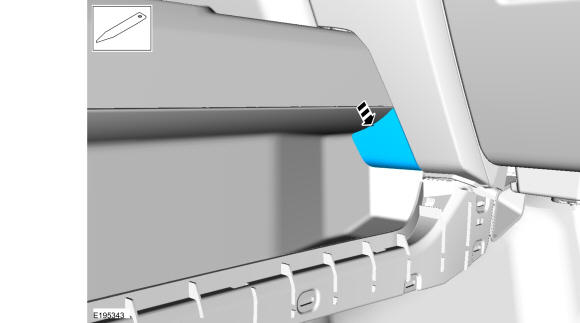

Remove the LH finish panel.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

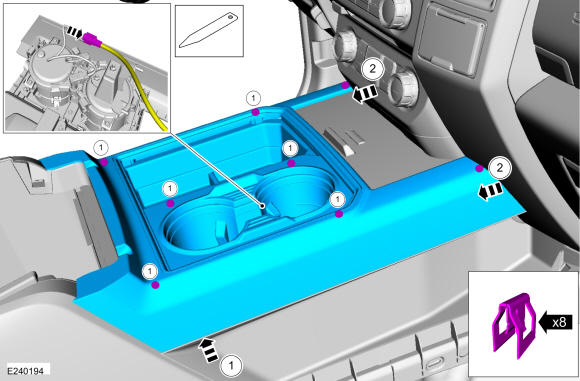

1. Release the 6 clips working from the rear of the trim panel forward.
2. Release the 2 clips that attach to the instrument panel by pulling rearward and remove the trim panel.
Courtesy of FORD MOTOR COMPANY
NOTE: Position the front seats forward to access the rear bolts, and position the front seats rearward to access the center bolts.

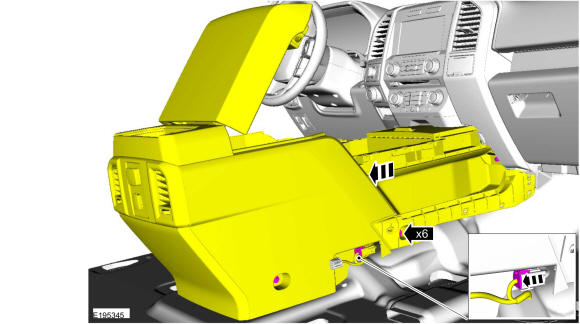

Remove the bolts and position the floor console rearward.
- Disconnect the electrical connector.
  Torque: 48 lb.in (5.4 Nm)
Courtesy of FORD MOTOR COMPANY

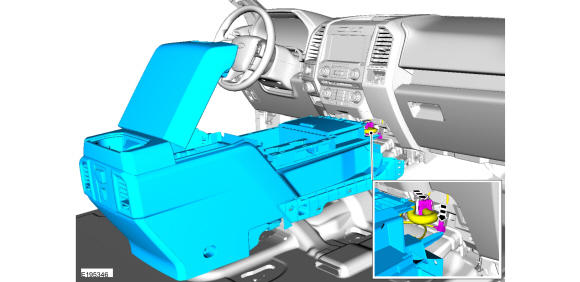

Disconnect the electrical connectors and remove the floor console.
