Transfer Case Draining and Filling

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Materials

Name	Specification
Motorcraft ® MERCON ® LV Automatic Transmission Fluid XT-10-QLVC	MERCON ® LVWSS-M2C938-A

Draining

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

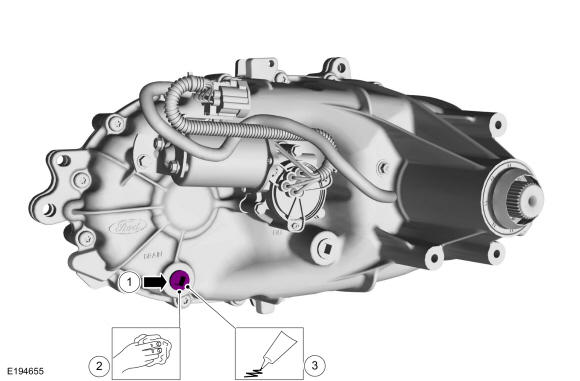

Remove the transfer case drain plug.
1. Remove the transfer case drain plug and drain the fluid.
2. Clean the transfer case drain plug and the area around transfer case drain plug.
3. Apply thread sealant to the transfer case drain plug threads and install the transfer case drain plug.
  Torque: 20 lb.ft (27 Nm)

Courtesy of FORD MOTOR COMPANY

Filling

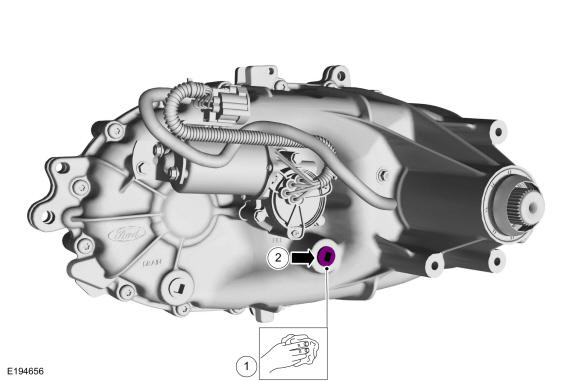

Remove the transfer case fill plug.
1. Clean the transfer case fill plug and the area around the transfer case fill plug.
2. Remove the transfer case fill plug.
Courtesy of FORD MOTOR COMPANY

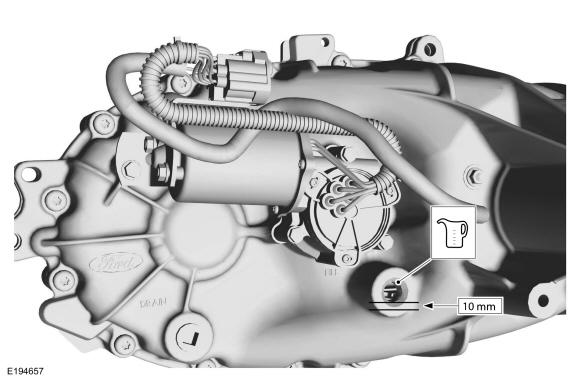

Fill the transfer case with 1.8L (3.8 pt) of clean fluid. The transfer case fluid must be within 10mm (0.393 in) below the fill plug hole.
Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)

Courtesy of FORD MOTOR COMPANY

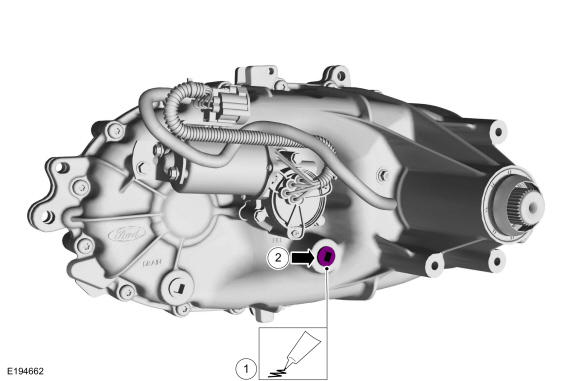

Install the transfer case fill plug.
1. Apply thread sealant to the transfer case fill plug threads.
2. Install the transfer case fill plug.
  Torque: 20 lb.ft (27 Nm)
