Power Distribution/BCM

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

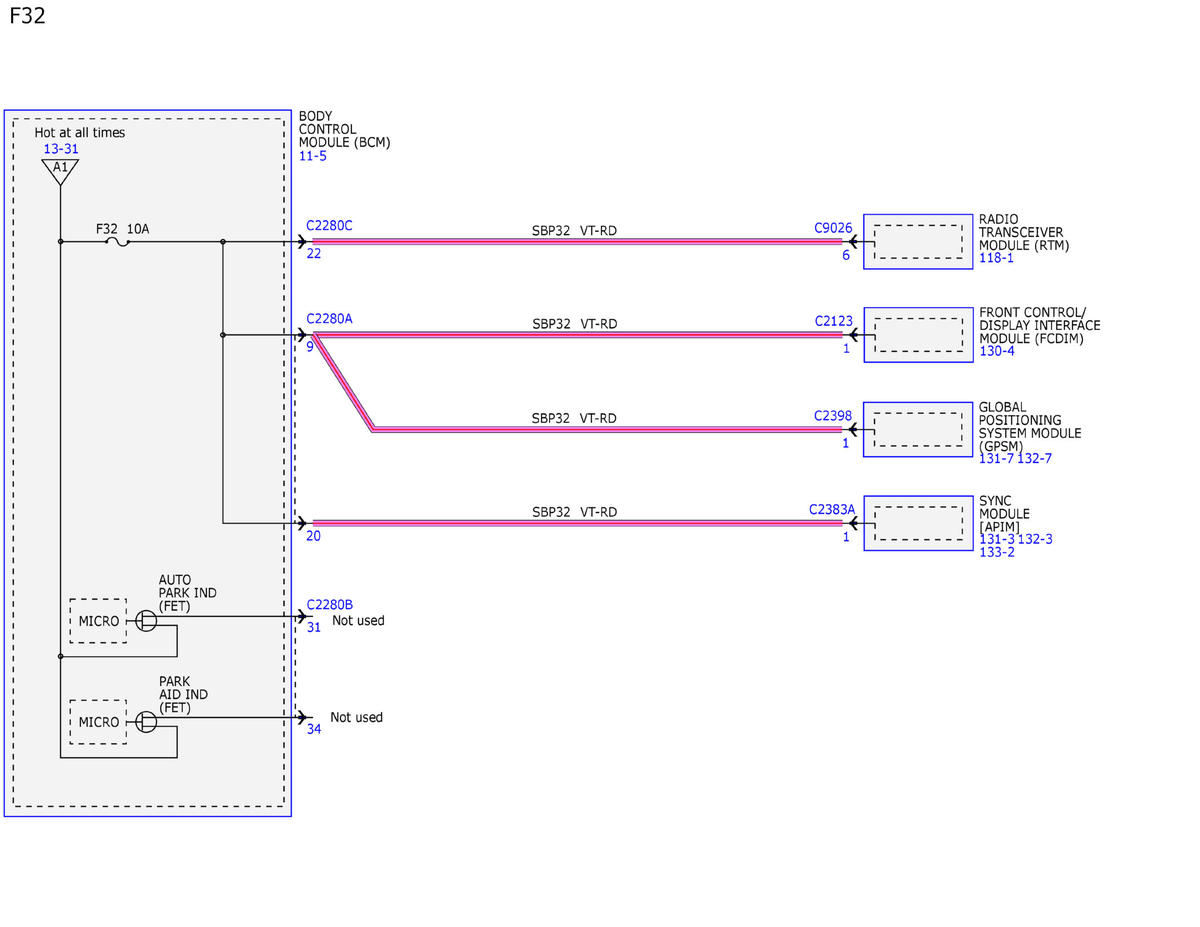

Fig 1: Power Distribution/Bcm Wiring Diagram (1 Of 51)

GFDWR57176

Courtesy of FORD MOTOR COMPANY

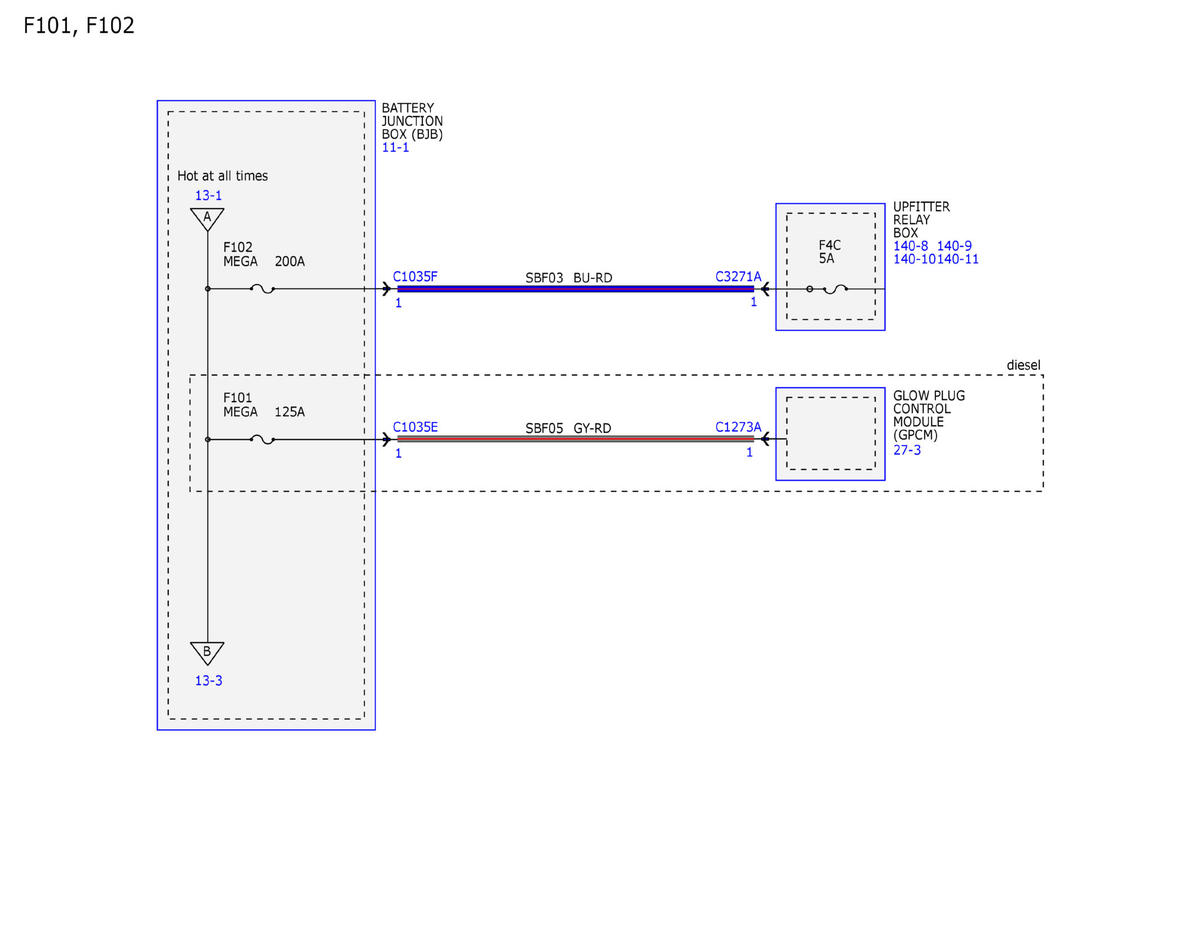

Fig 2: Power Distribution/Bcm Wiring Diagram (2 Of 51)

GFDWR57177

Courtesy of FORD MOTOR COMPANY

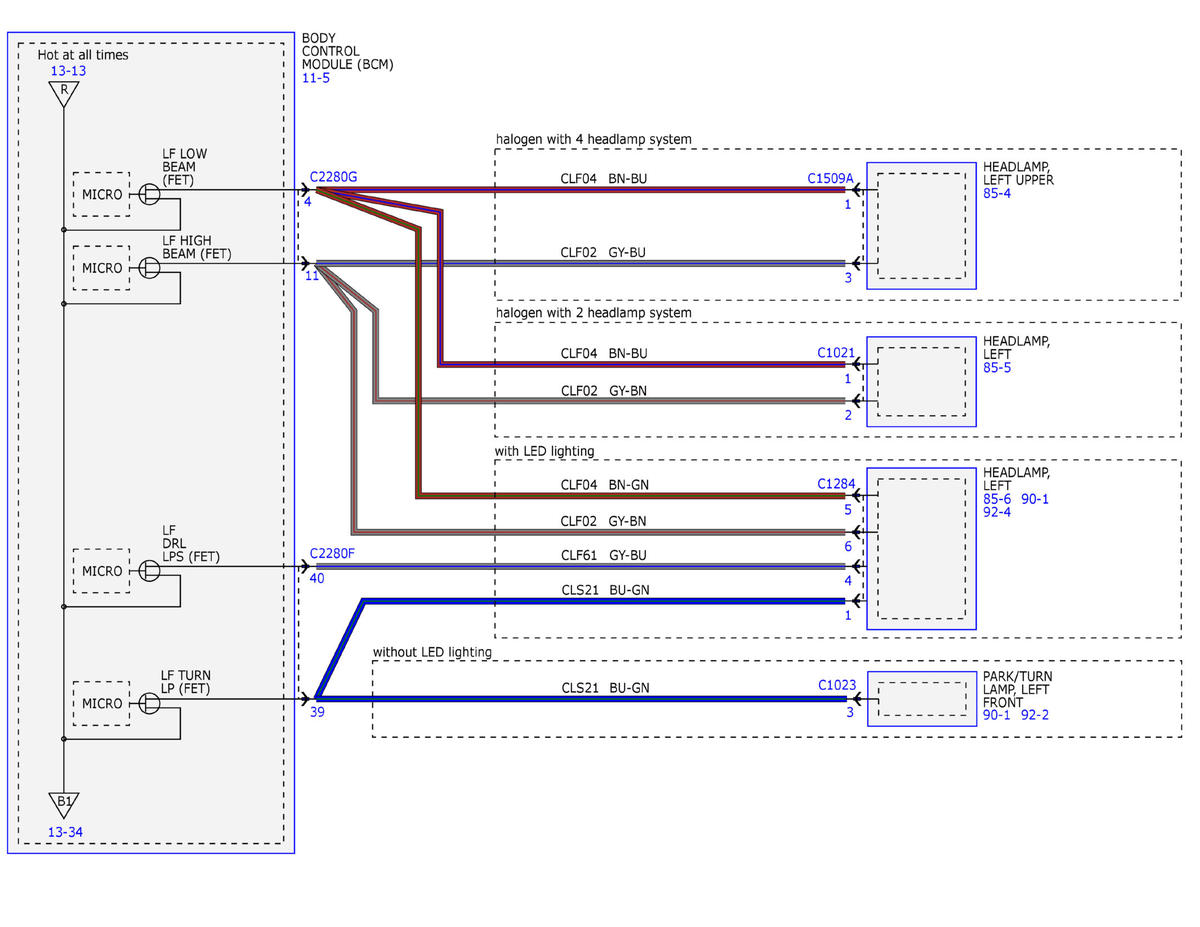

Fig 3: Power Distribution/Bcm Wiring Diagram (3 Of 51)

GFDWR57178

Courtesy of FORD MOTOR COMPANY

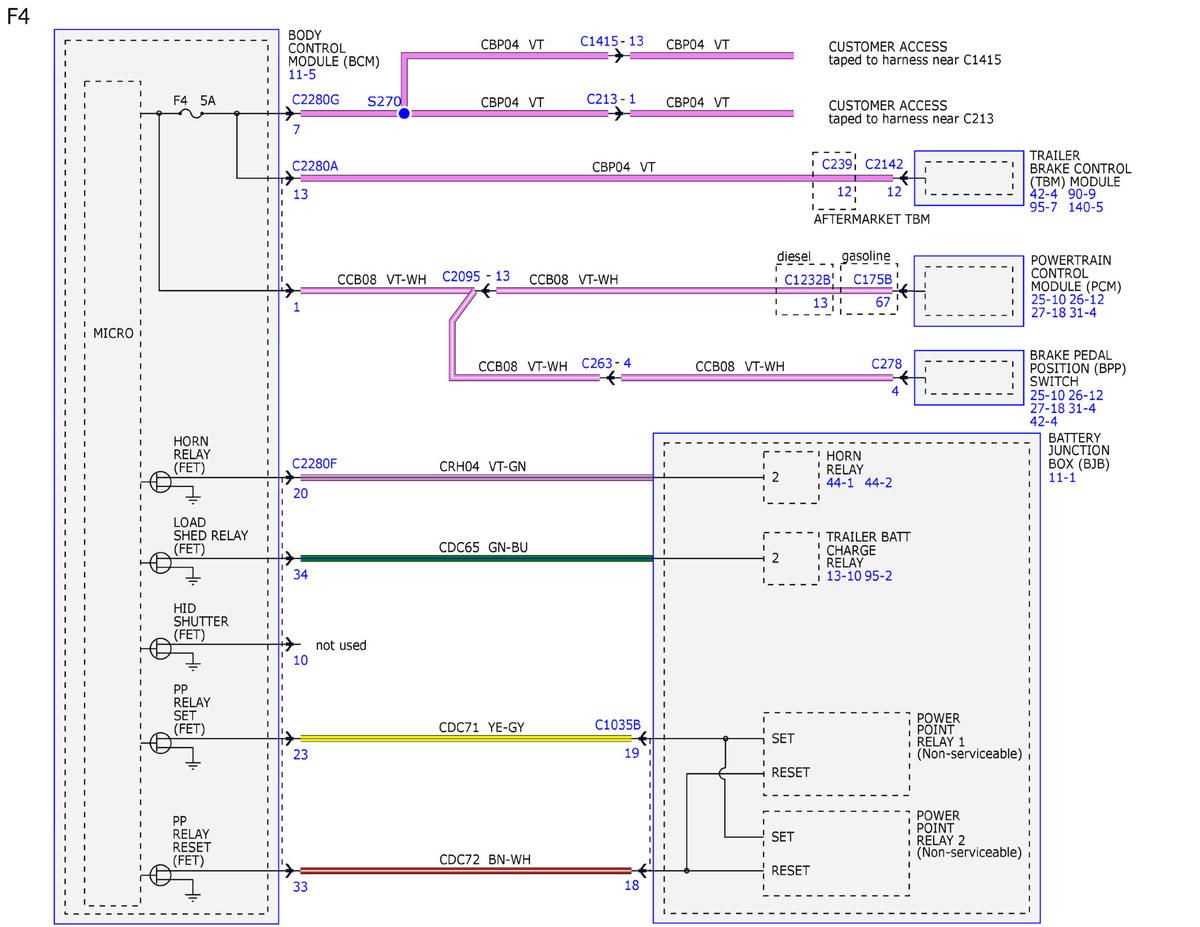

Fig 4: Power Distribution/Bcm Wiring Diagram (4 Of 51)

GFDWR57179

Courtesy of FORD MOTOR COMPANY

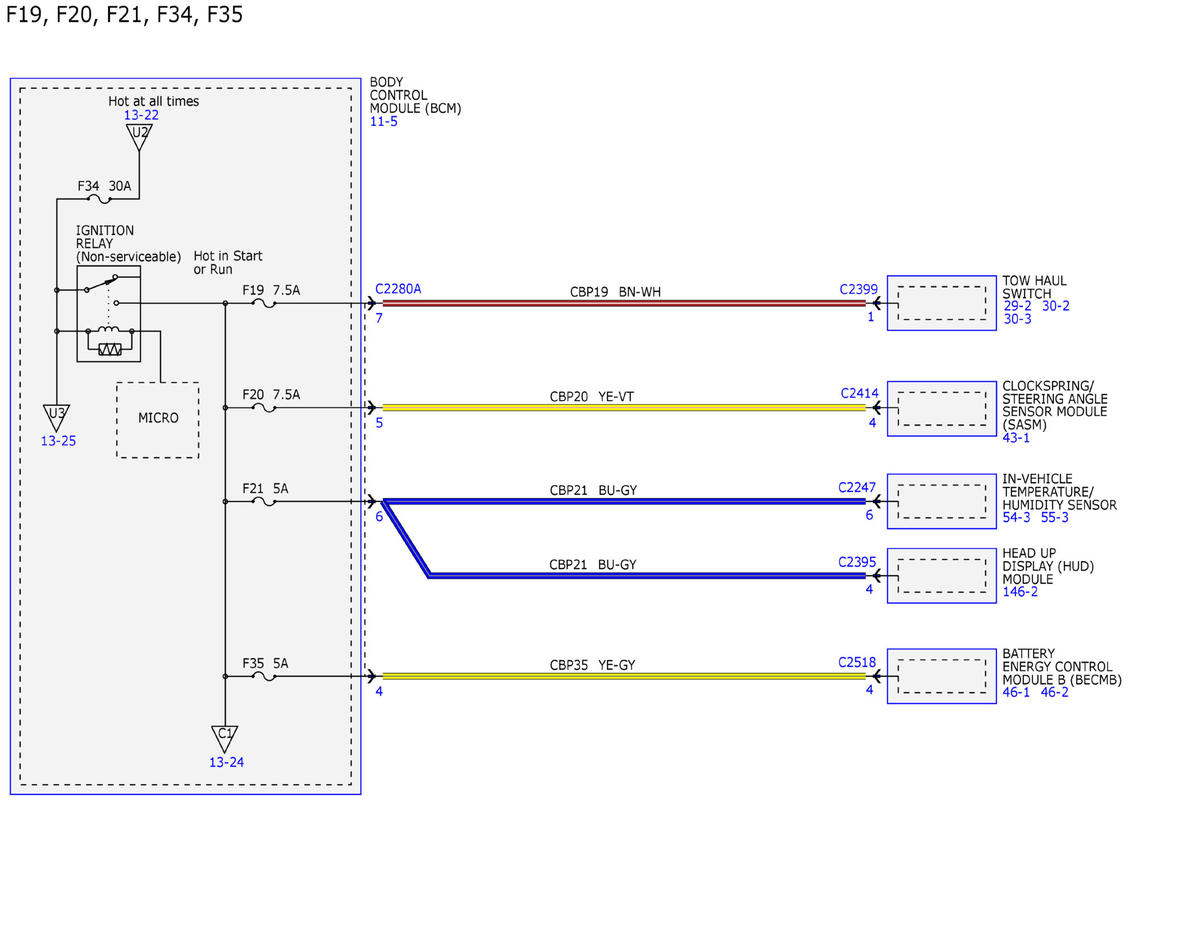

Fig 5: Power Distribution/Bcm Wiring Diagram (5 Of 51)

GFDWR57180

Courtesy of FORD MOTOR COMPANY

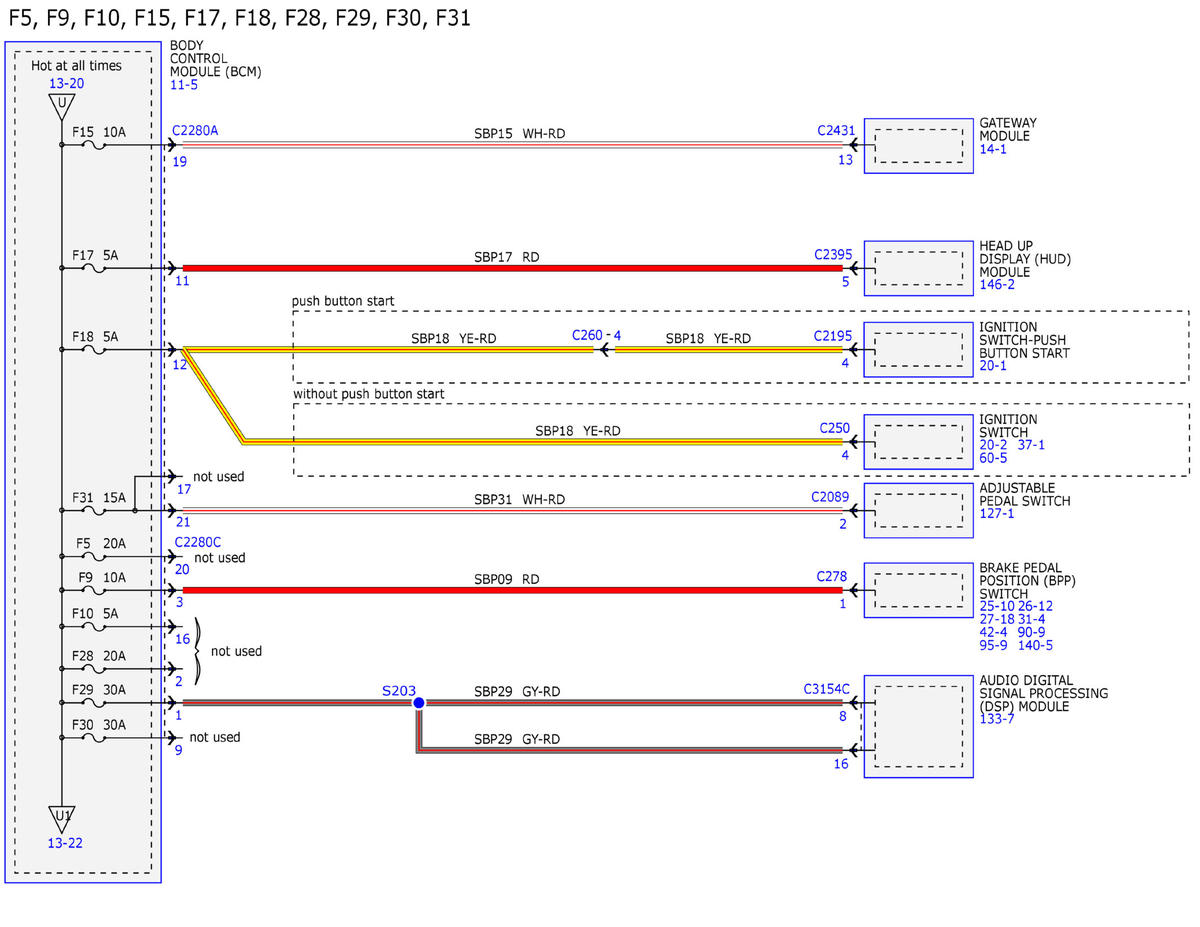

Fig 6: Power Distribution/Bcm Wiring Diagram (6 Of 51)

GFDWR57181

Courtesy of FORD MOTOR COMPANY

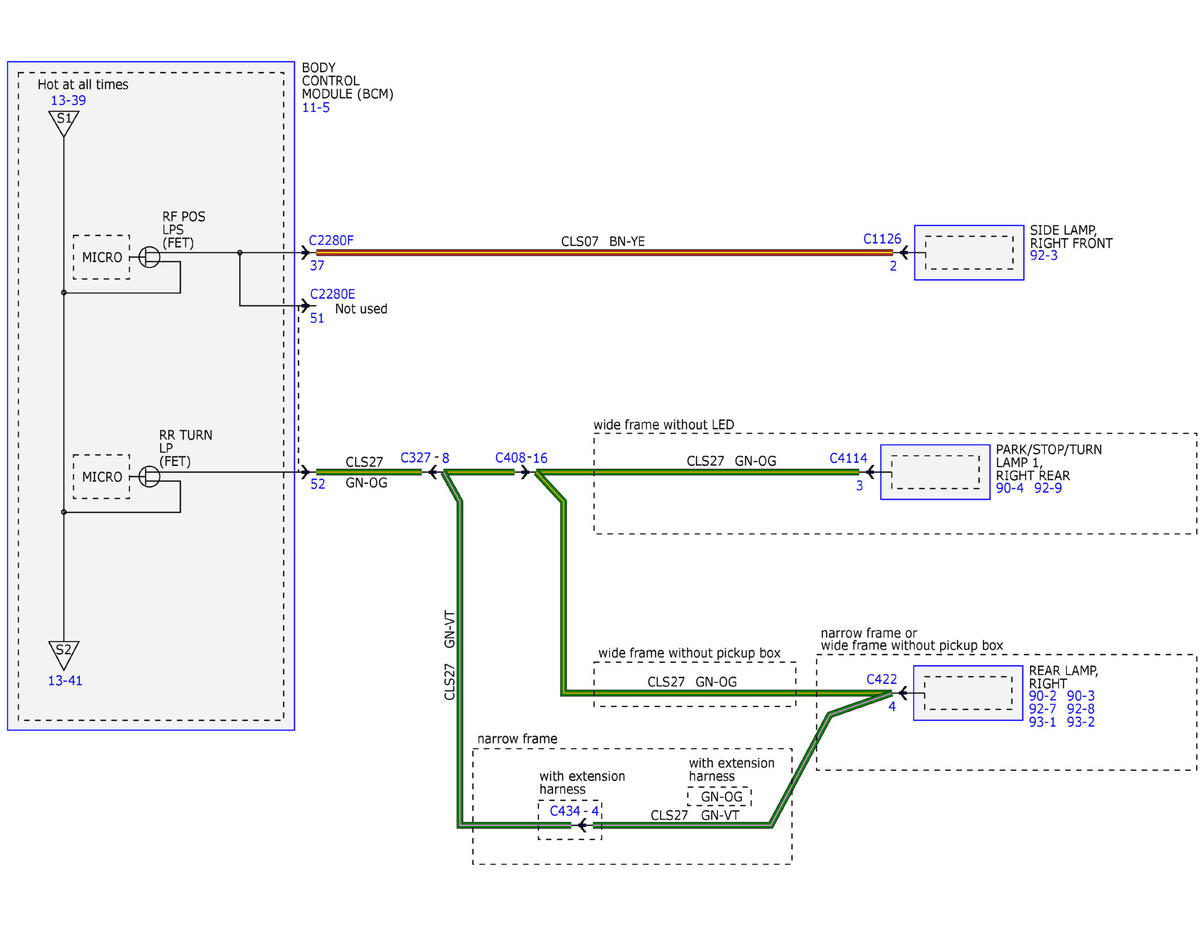

Fig 7: Power Distribution/Bcm Wiring Diagram (7 Of 51)

GFDWR57182

Courtesy of FORD MOTOR COMPANY

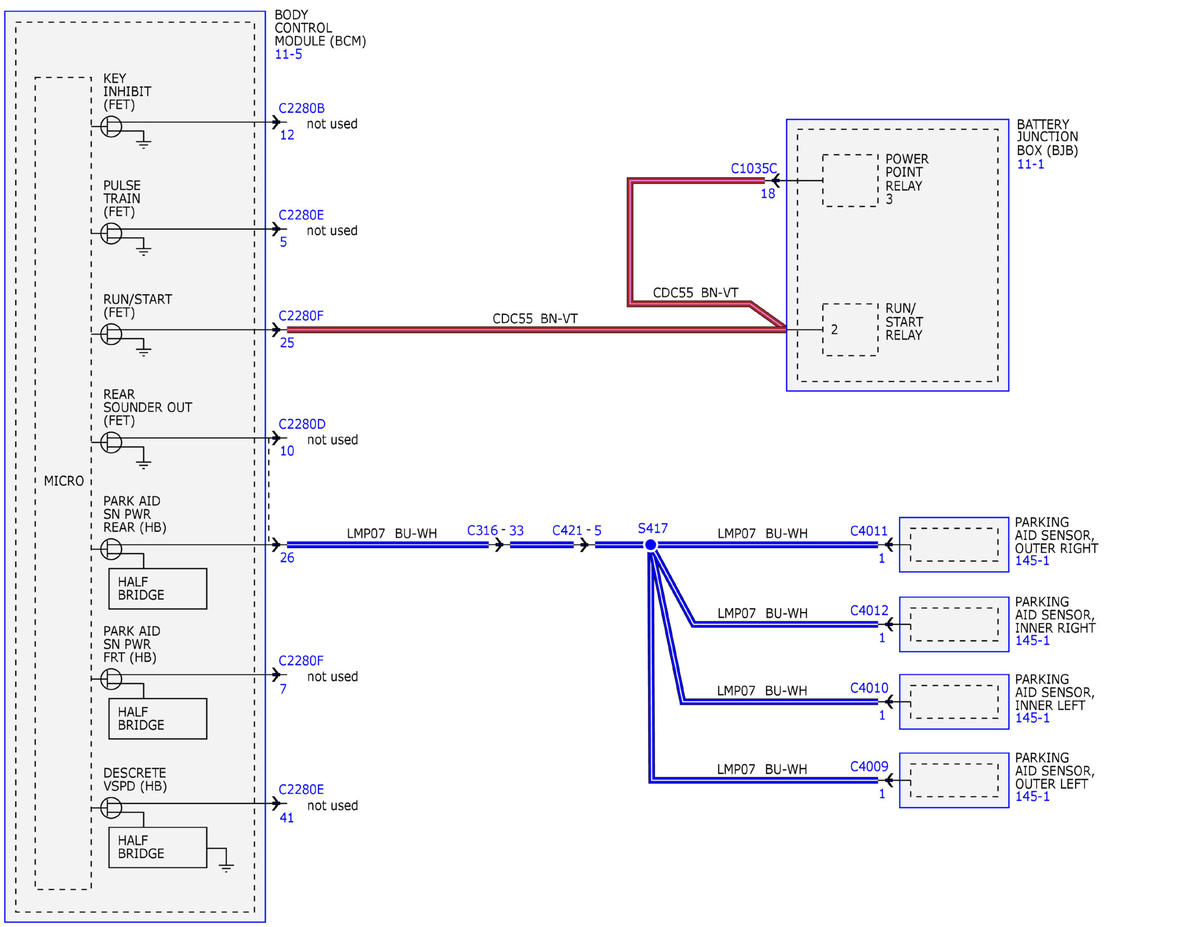

Fig 8: Power Distribution/Bcm Wiring Diagram (8 Of 51)

GFDWR57183

Courtesy of FORD MOTOR COMPANY

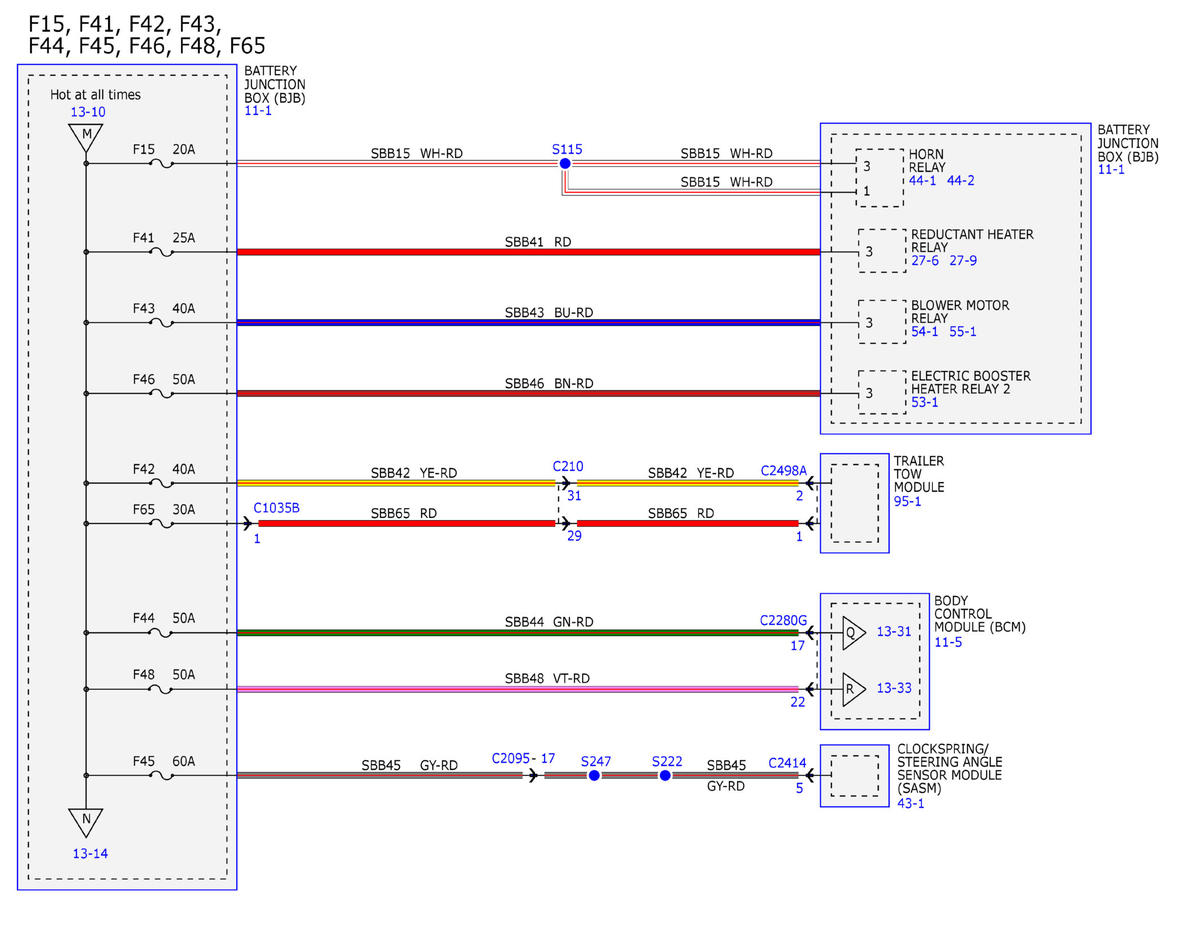

Fig 9: Power Distribution/Bcm Wiring Diagram (9 Of 51)

GFDWR57184

Courtesy of FORD MOTOR COMPANY

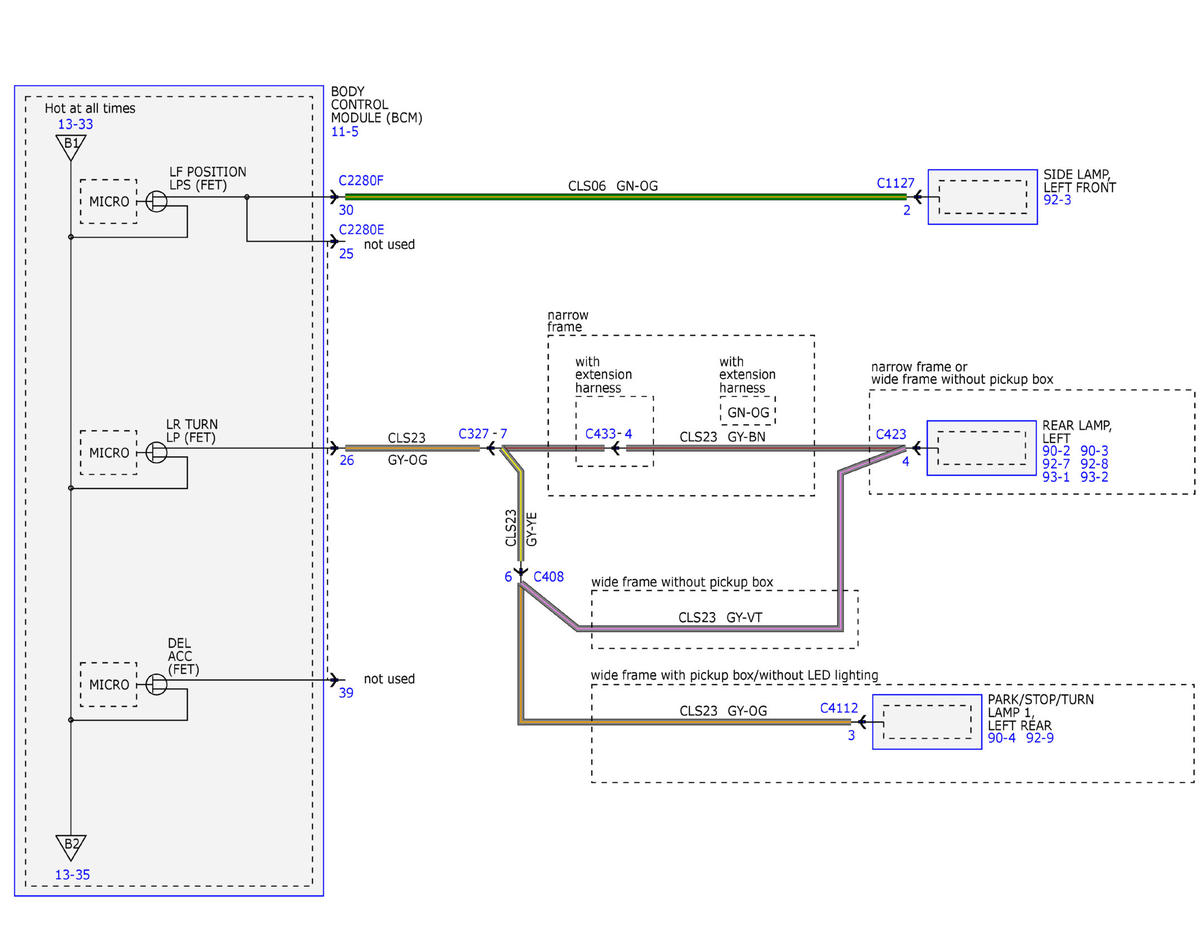

Fig 10: Power Distribution/Bcm Wiring Diagram (10 Of 51)

GFDWR57185

Courtesy of FORD MOTOR COMPANY

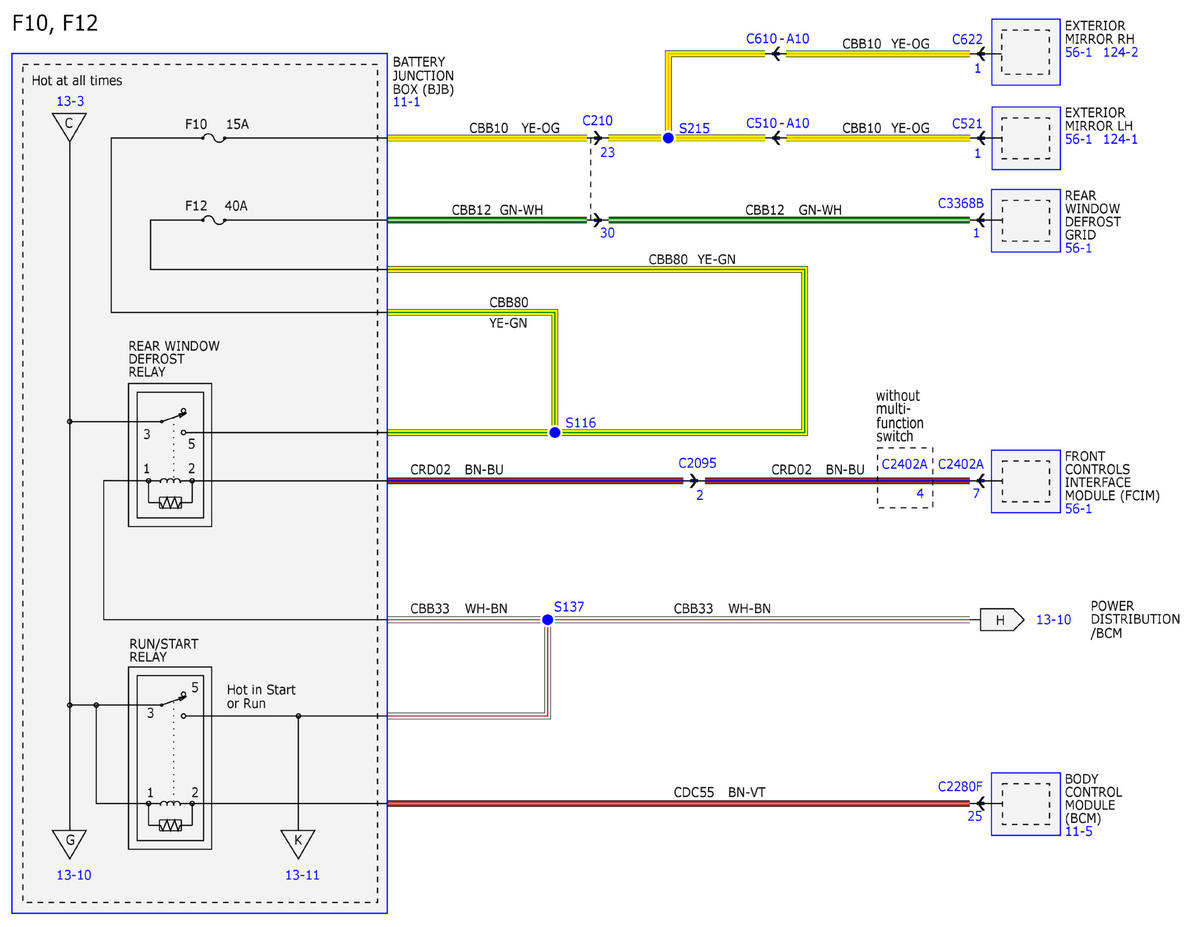

Fig 11: Power Distribution/Bcm Wiring Diagram (11 Of 51)

GFDWR57186

Courtesy of FORD MOTOR COMPANY

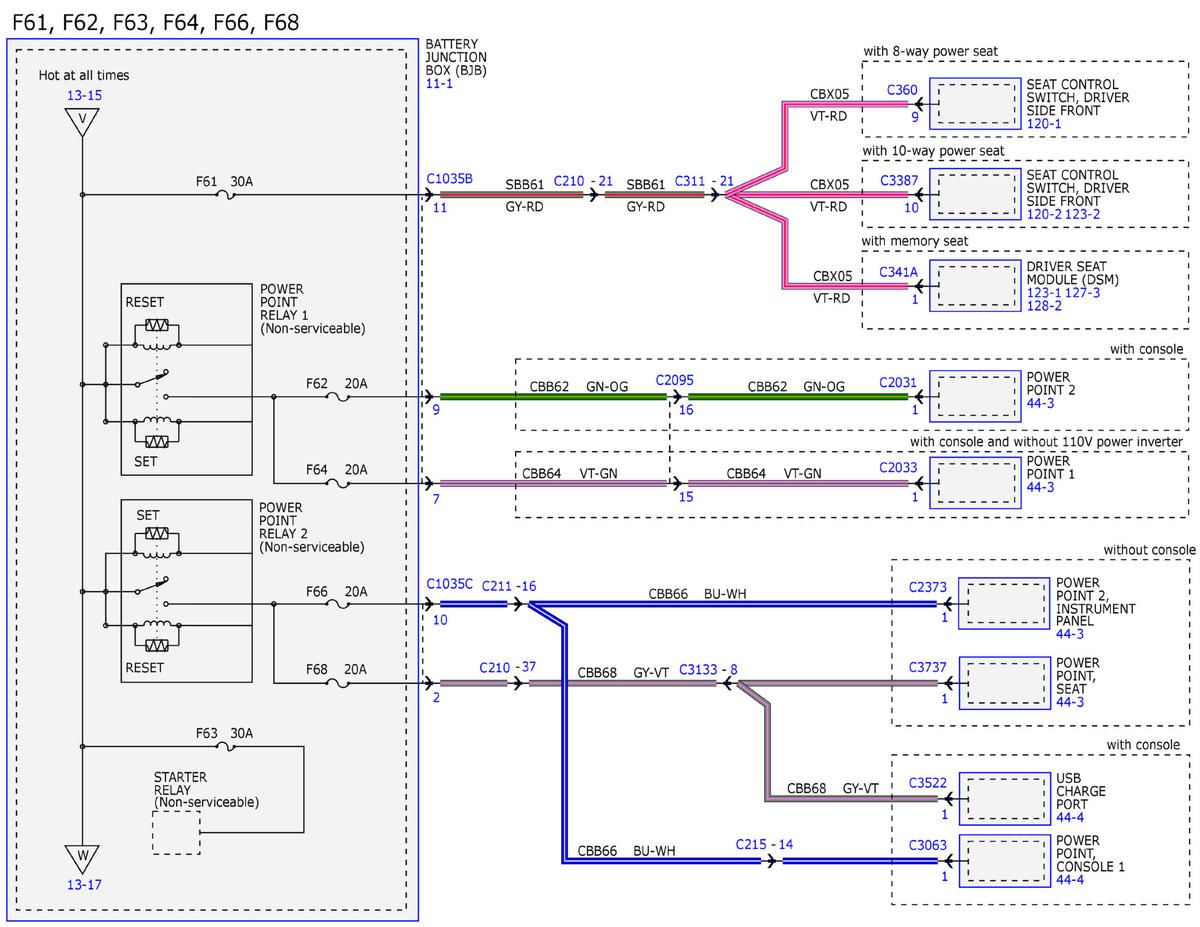

Fig 12: Power Distribution/Bcm Wiring Diagram (12 Of 51)

GFDWR57187

Courtesy of FORD MOTOR COMPANY

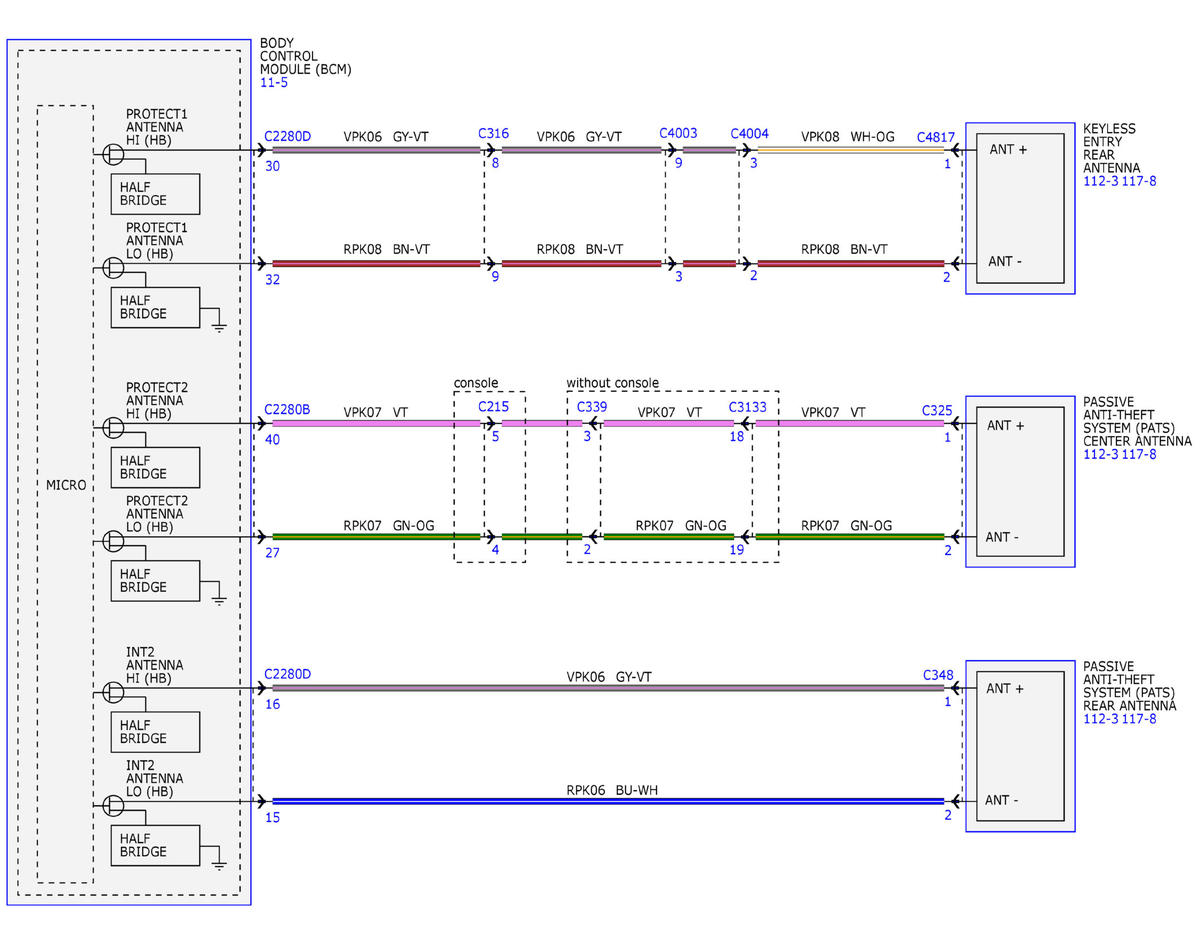

Fig 13: Power Distribution/Bcm Wiring Diagram (13 Of 51)

GFDWR57188

Courtesy of FORD MOTOR COMPANY

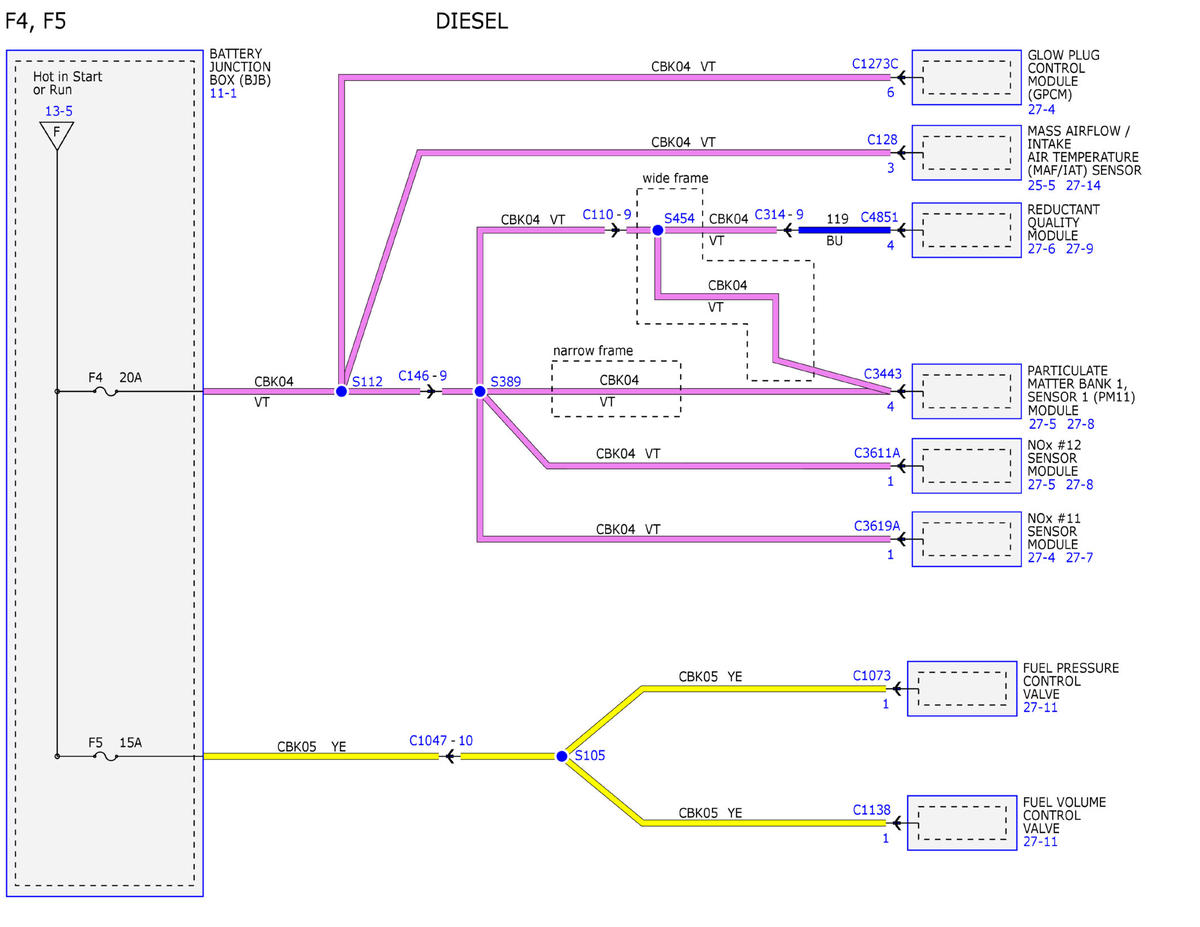

Fig 14: Power Distribution/Bcm Wiring Diagram (14 Of 51)

GFDWR57189

Courtesy of FORD MOTOR COMPANY

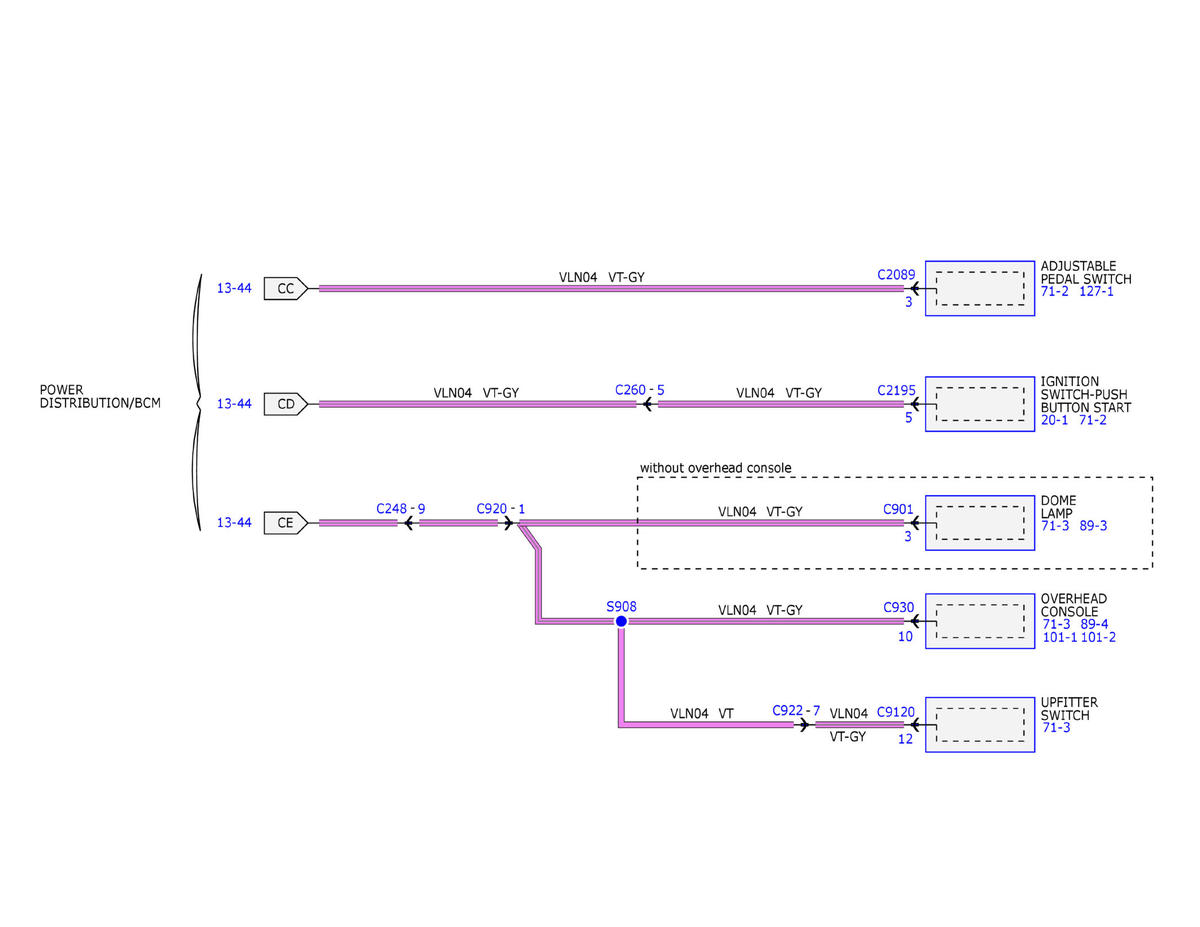

Fig 15: Power Distribution/Bcm Wiring Diagram (15 Of 51)

GFDWR57190

Courtesy of FORD MOTOR COMPANY

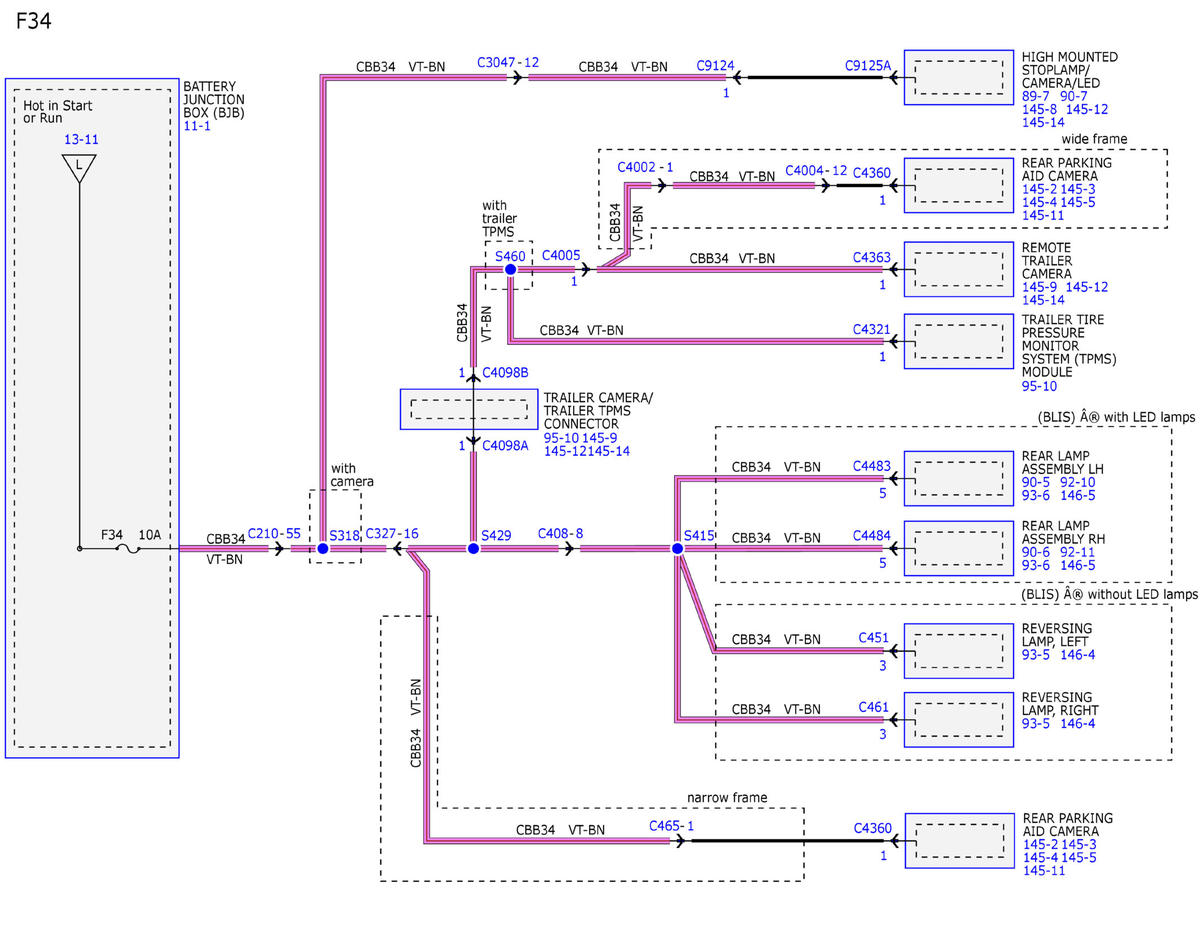

Fig 16: Power Distribution/Bcm Wiring Diagram (16 Of 51)

GFDWR57191

Courtesy of FORD MOTOR COMPANY

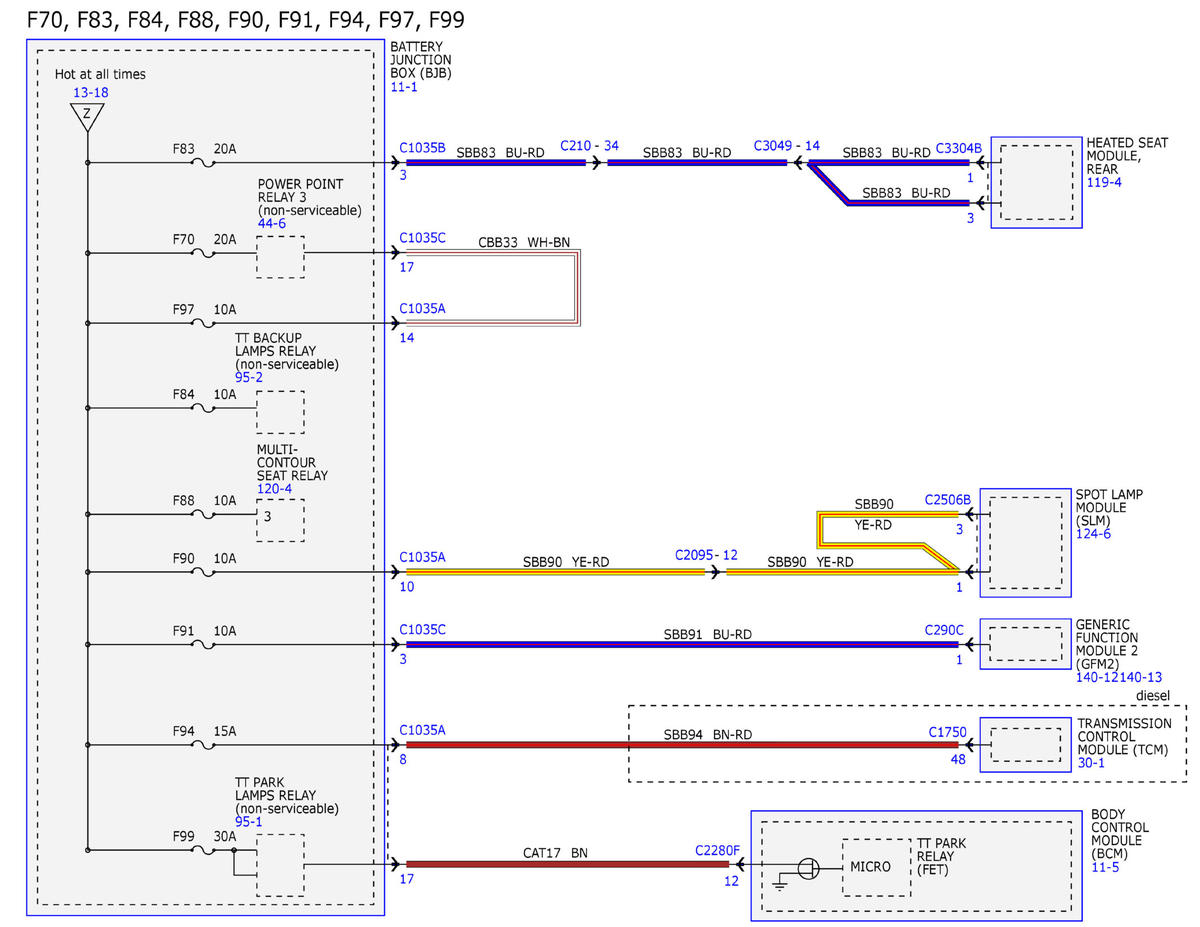

Fig 17: Power Distribution/Bcm Wiring Diagram (17 Of 51)

GFDWR57192

Courtesy of FORD MOTOR COMPANY

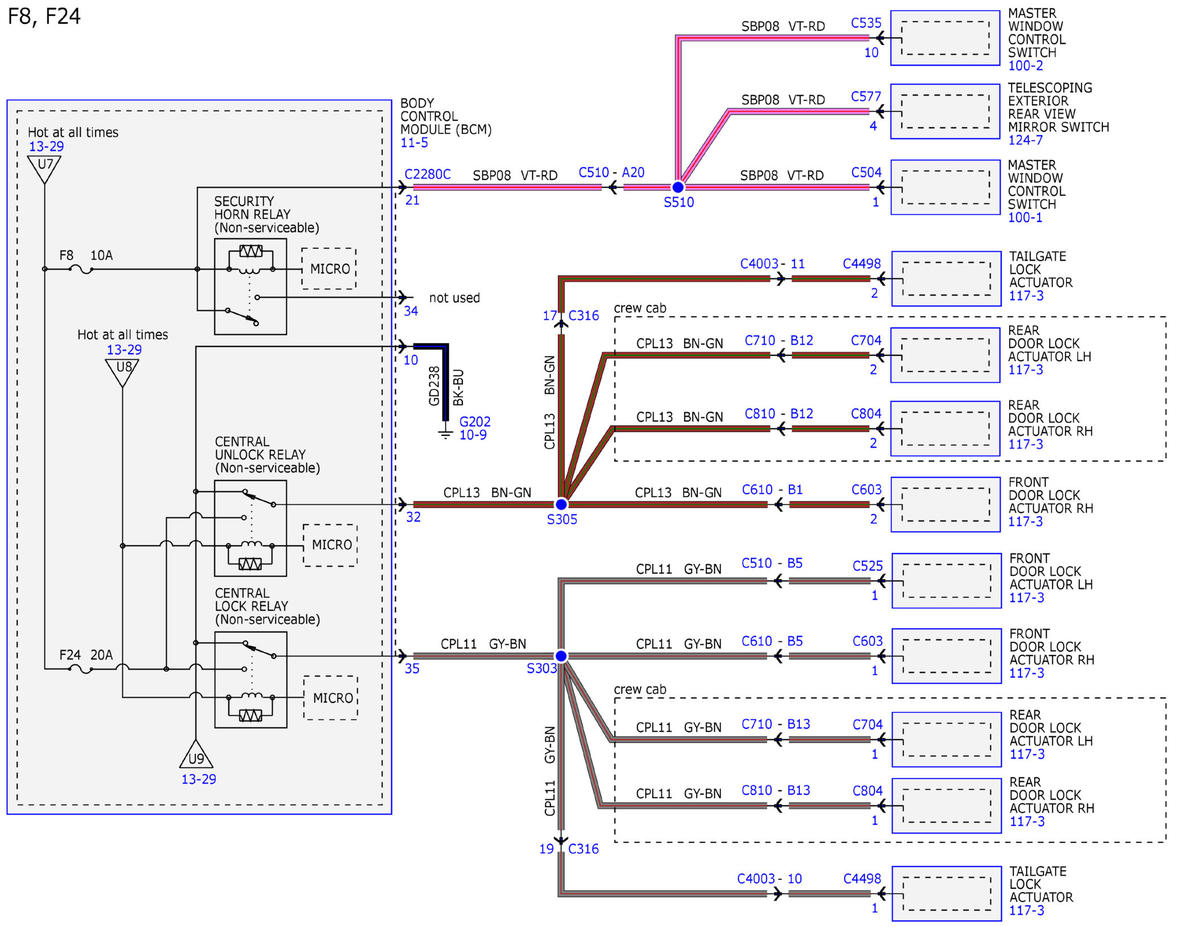

Fig 18: Power Distribution/Bcm Wiring Diagram (18 Of 51)

GFDWR57193

Courtesy of FORD MOTOR COMPANY

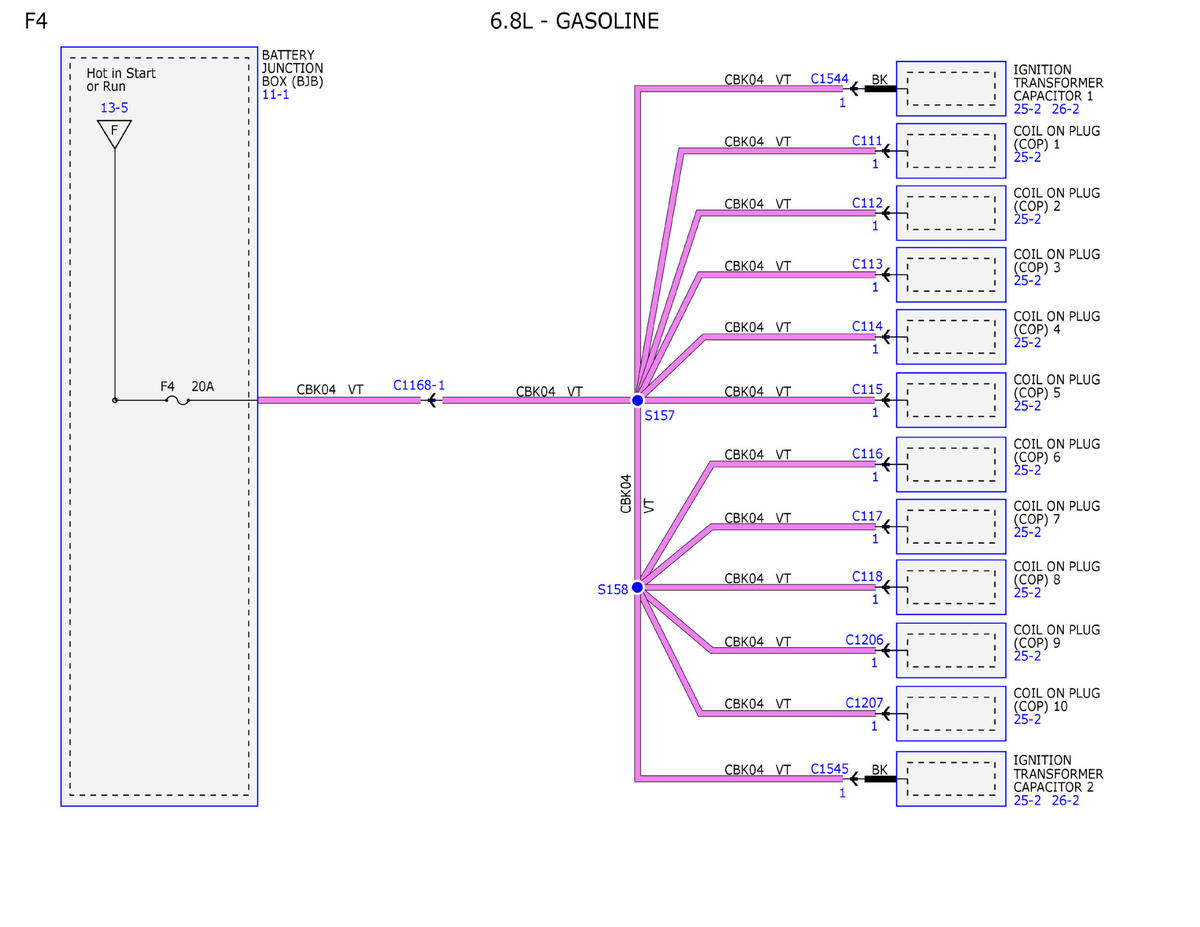

Fig 19: Power Distribution/Bcm Wiring Diagram (19 Of 51)

GFDWR57194

Courtesy of FORD MOTOR COMPANY

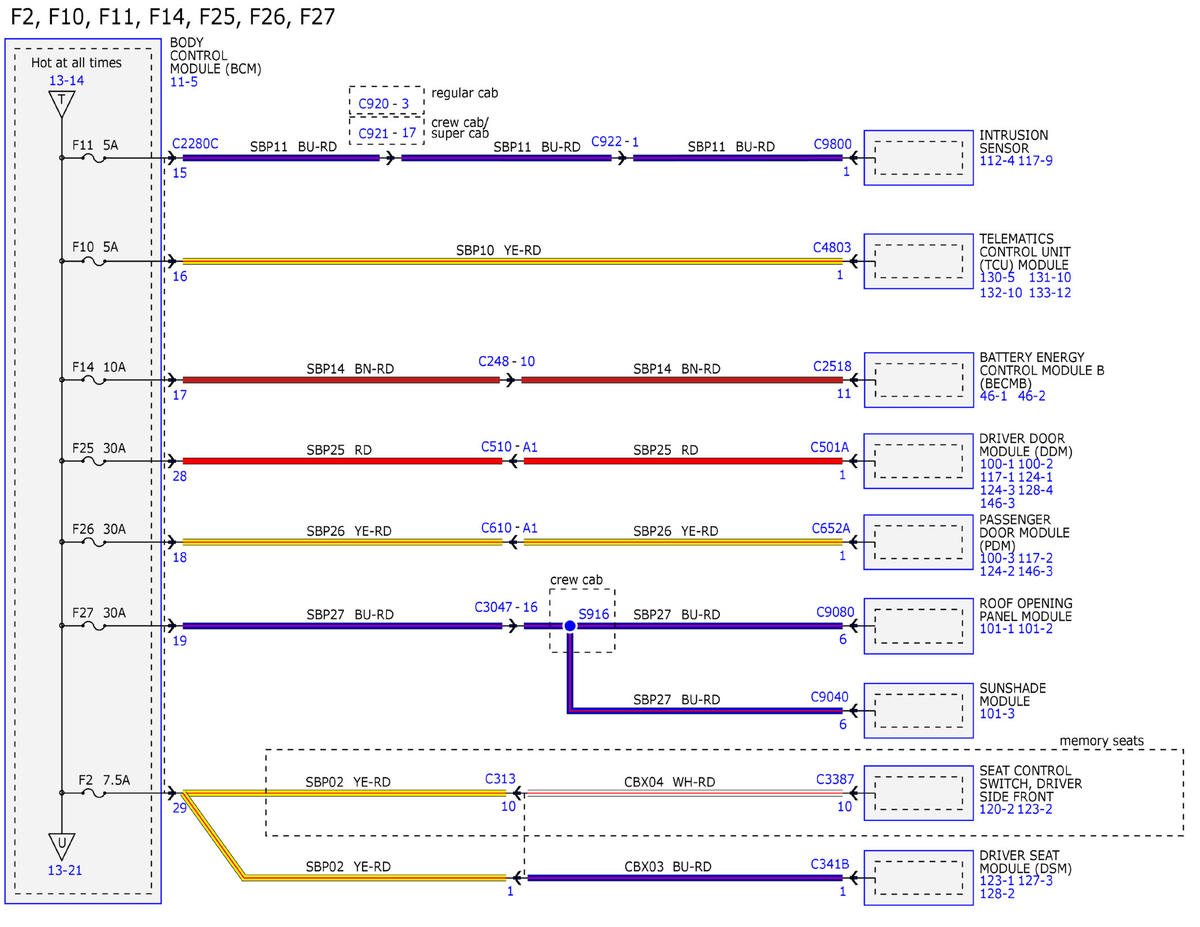

Fig 20: Power Distribution/Bcm Wiring Diagram (20 Of 51)

GFDWR57195

Courtesy of FORD MOTOR COMPANY

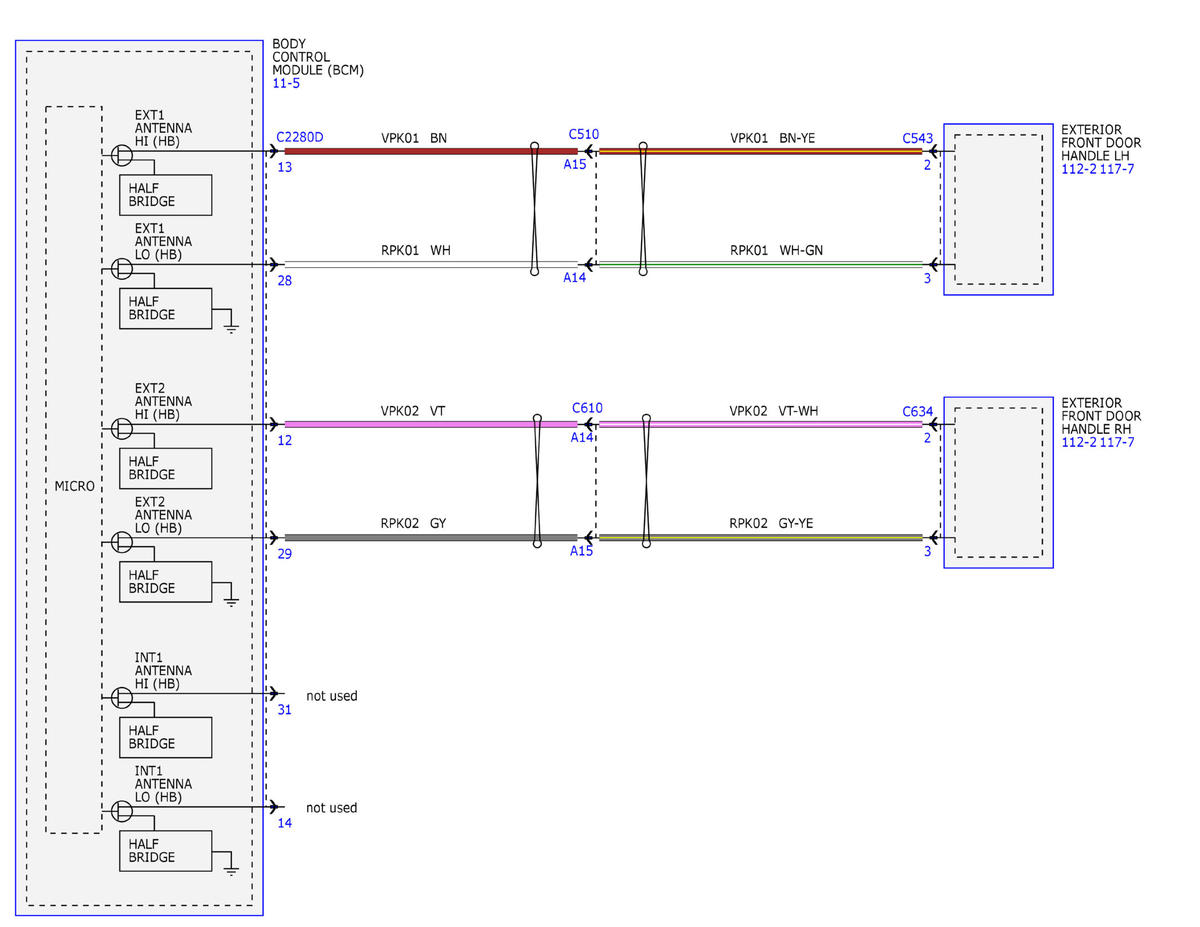

Fig 21: Power Distribution/Bcm Wiring Diagram (21 Of 51)

GFDWR57196

Courtesy of FORD MOTOR COMPANY

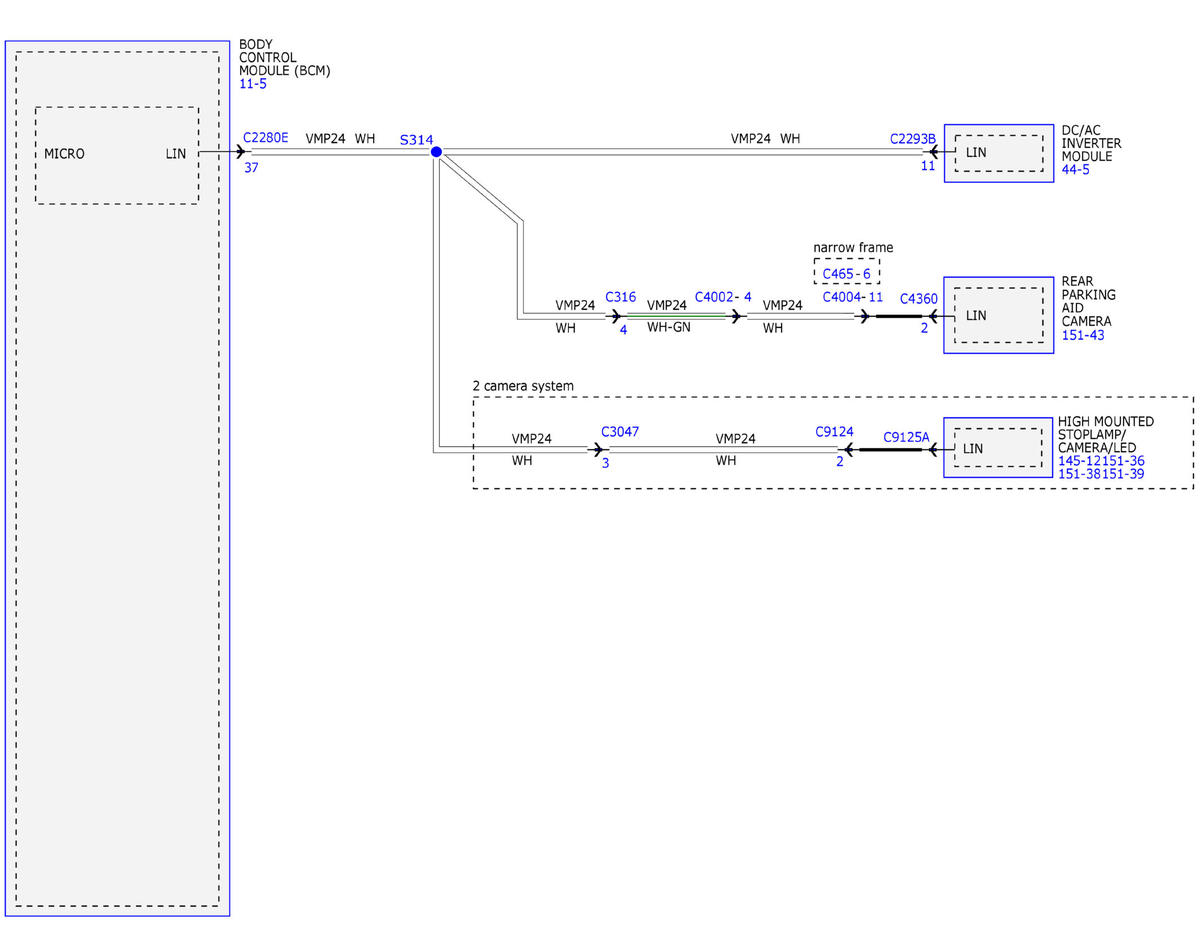

Fig 22: Power Distribution/Bcm Wiring Diagram (22 Of 51)

GFDWR57197

Courtesy of FORD MOTOR COMPANY

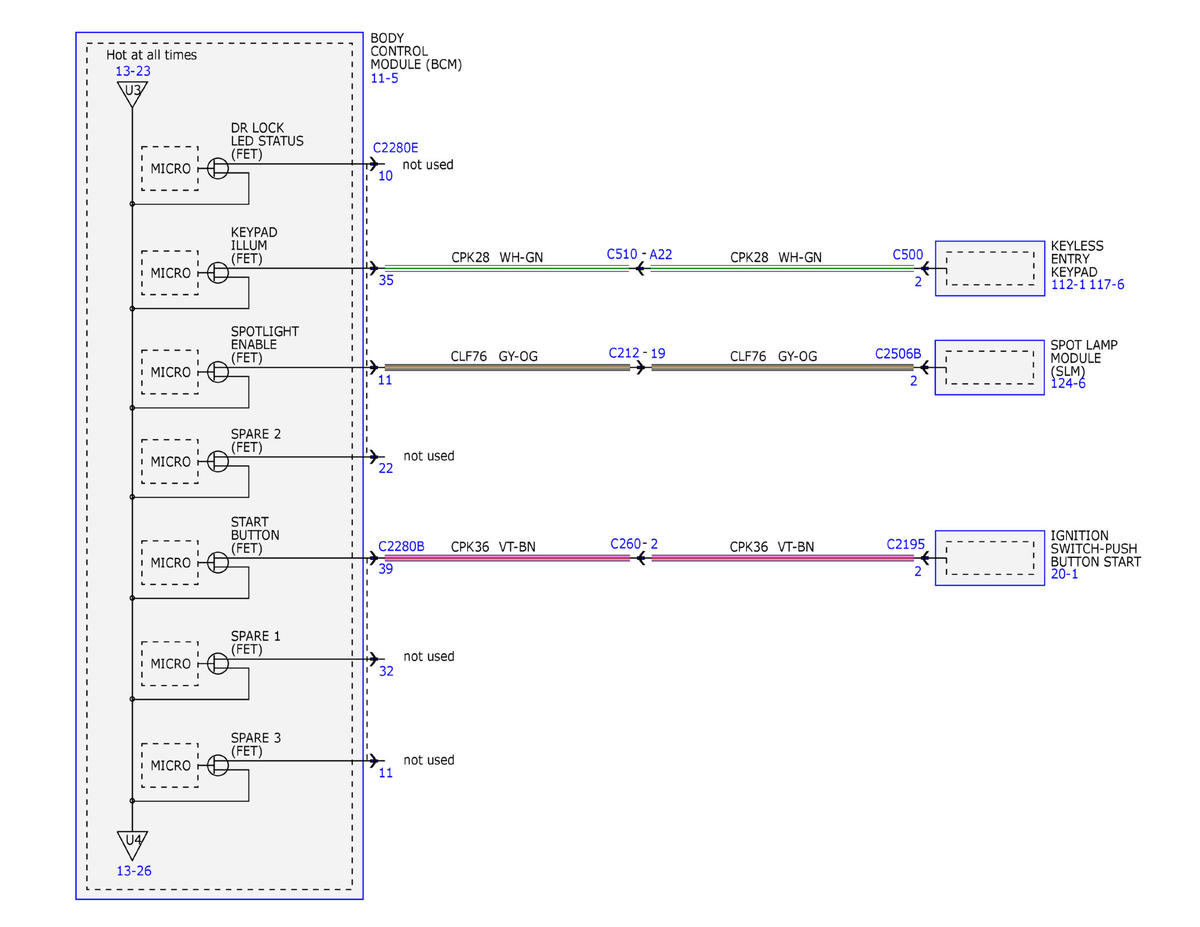

Fig 23: Power Distribution/Bcm Wiring Diagram (23 Of 51)

GFDWR57198

Courtesy of FORD MOTOR COMPANY

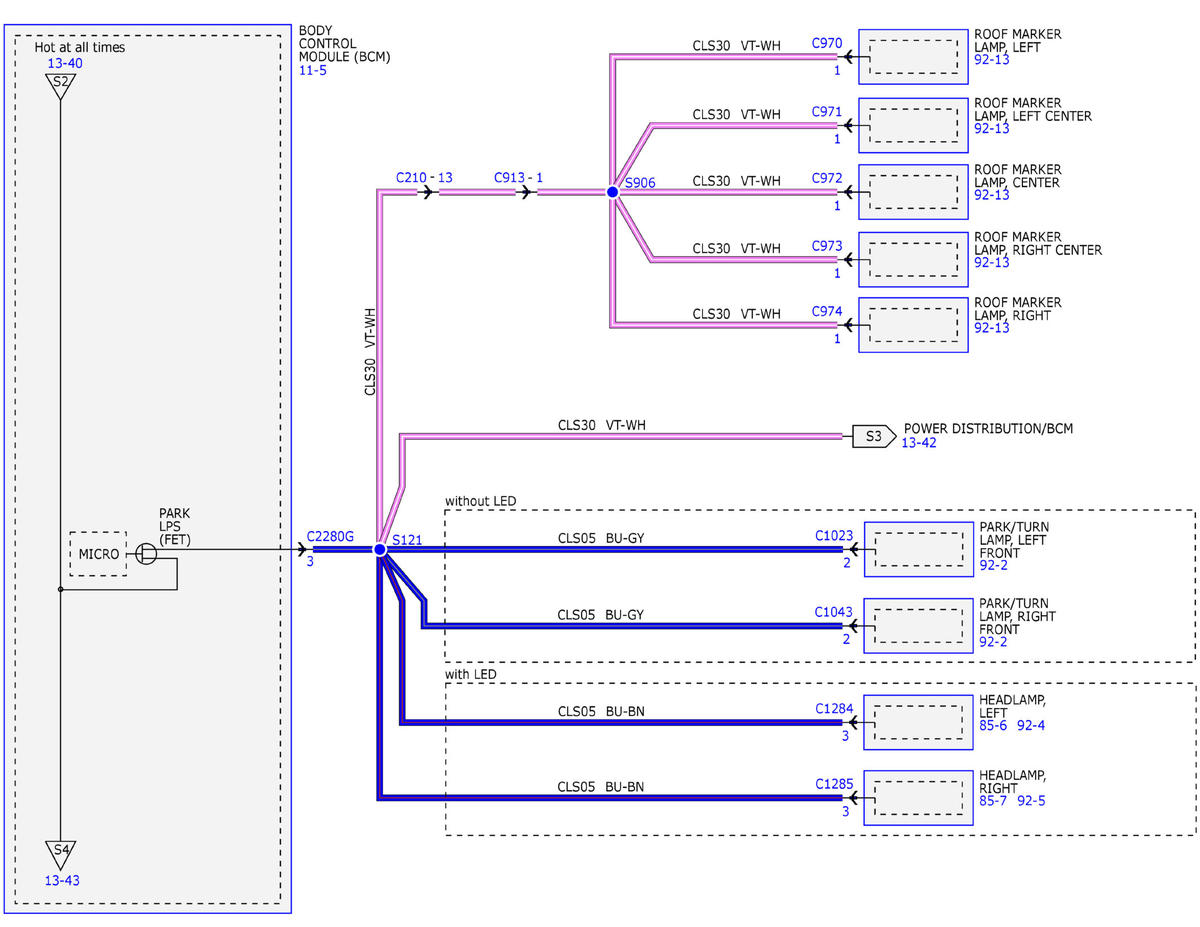

Fig 24: Power Distribution/Bcm Wiring Diagram (24 Of 51)

GFDWR57199

Courtesy of FORD MOTOR COMPANY

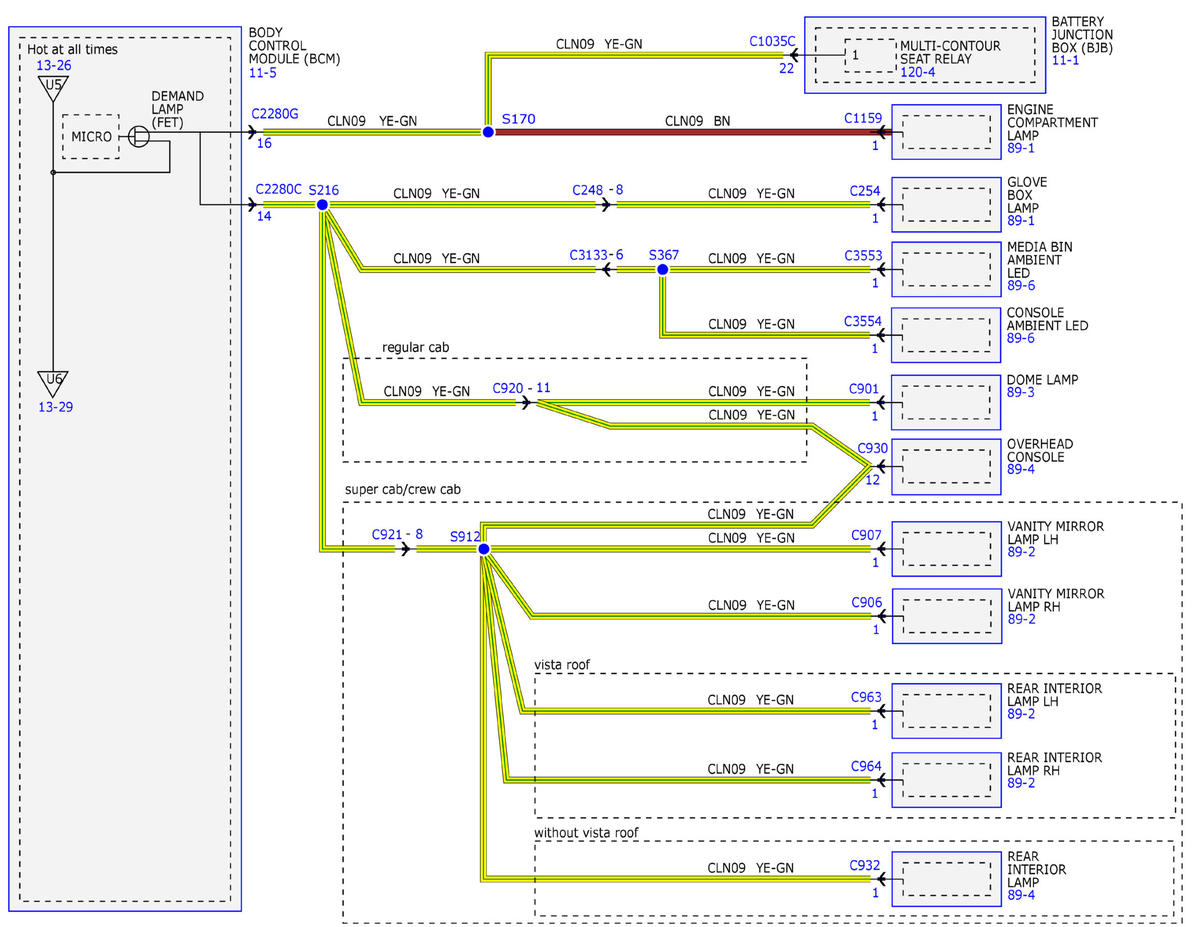

Fig 25: Power Distribution/Bcm Wiring Diagram (25 Of 51)

GFDWR57200

Courtesy of FORD MOTOR COMPANY

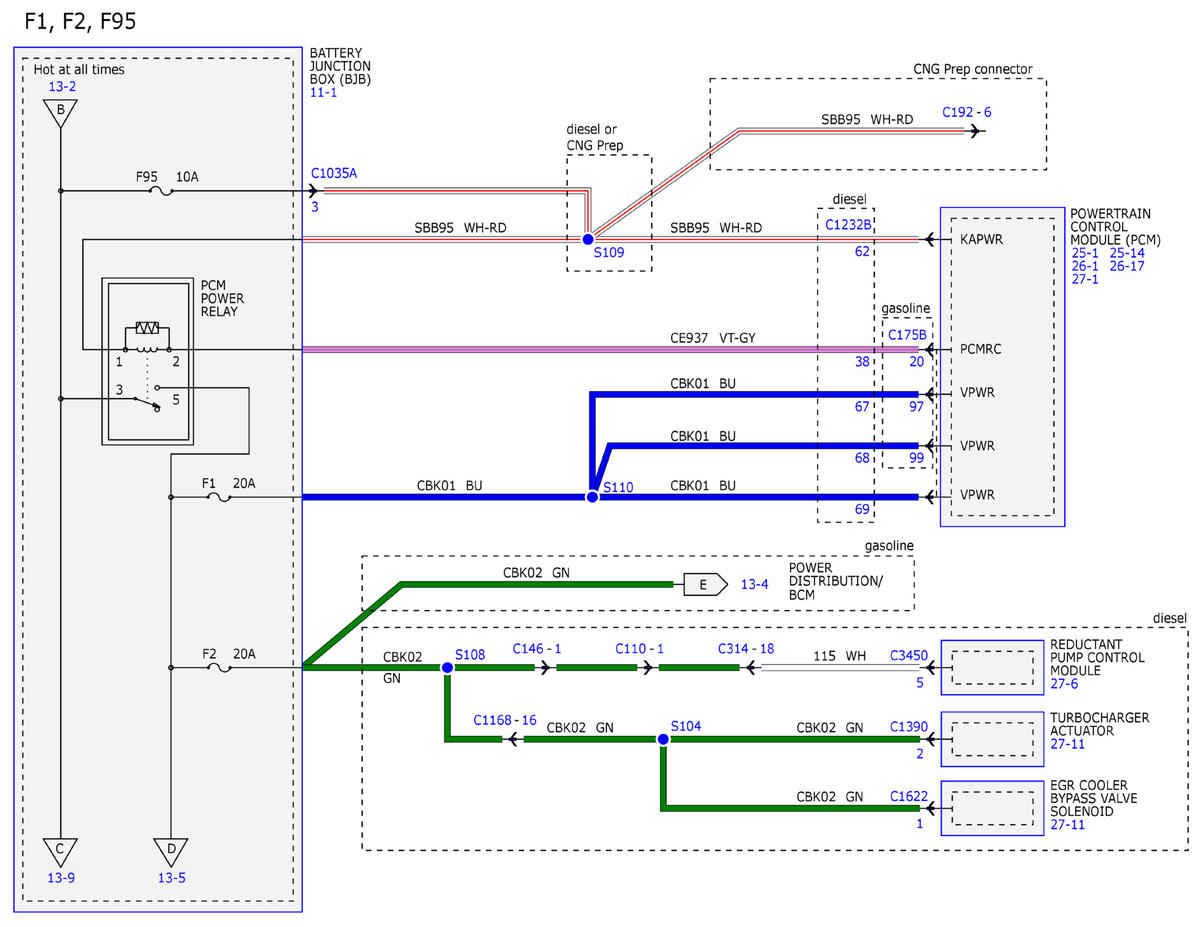

Fig 26: Power Distribution/Bcm Wiring Diagram (26 Of 51)

GFDWR57201

Courtesy of FORD MOTOR COMPANY

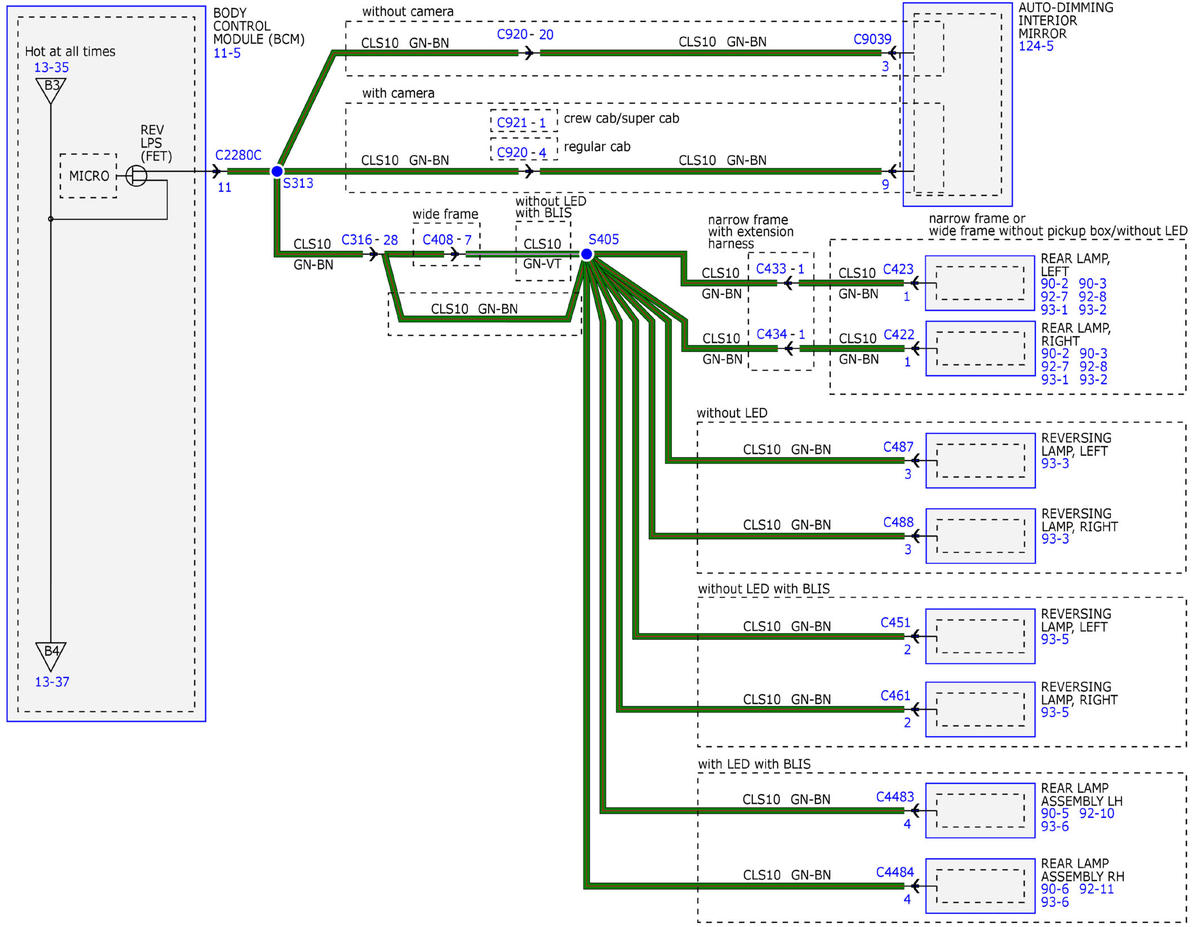

Fig 27: Power Distribution/Bcm Wiring Diagram (27 Of 51)

GFDWR57202

Courtesy of FORD MOTOR COMPANY

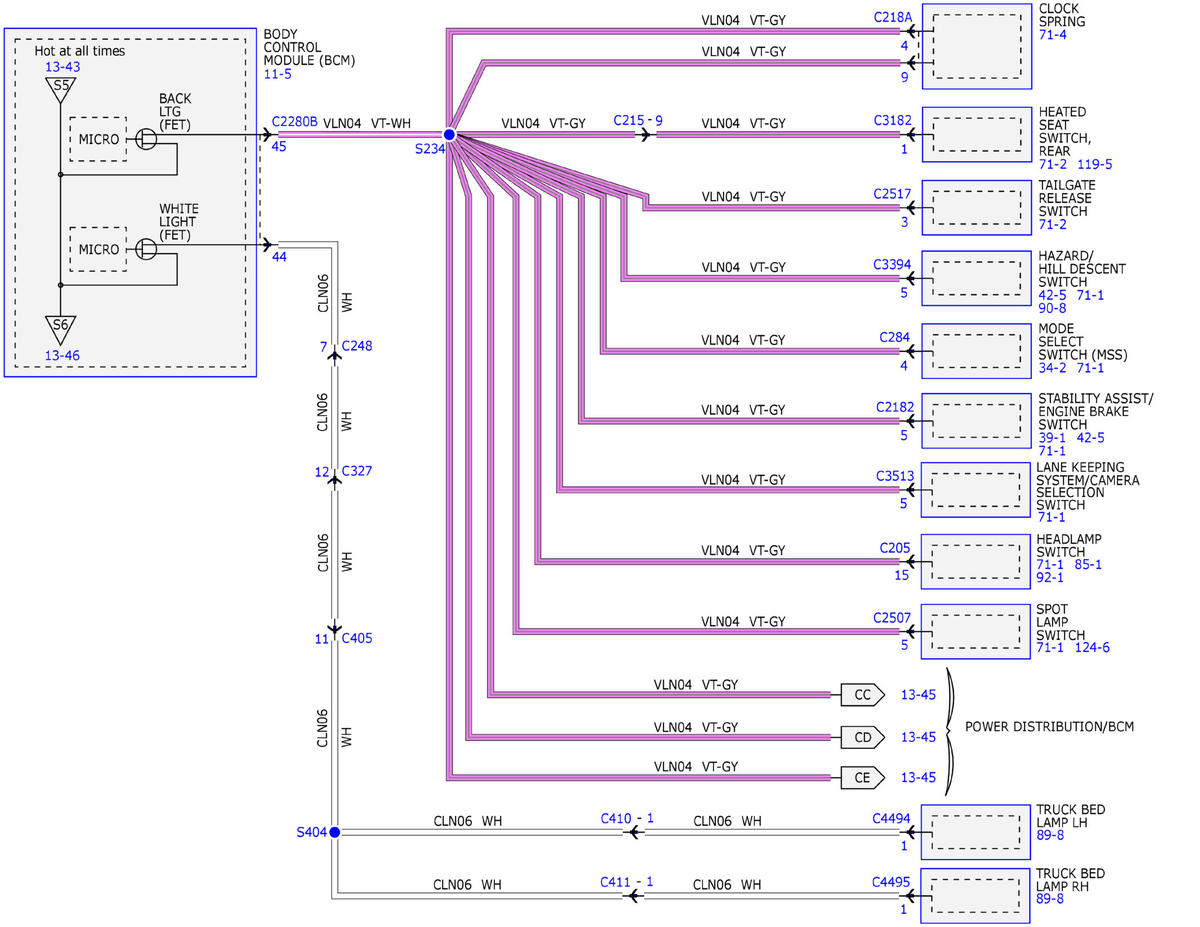

Fig 28: Power Distribution/Bcm Wiring Diagram (28 Of 51)

GFDWR57203

Courtesy of FORD MOTOR COMPANY

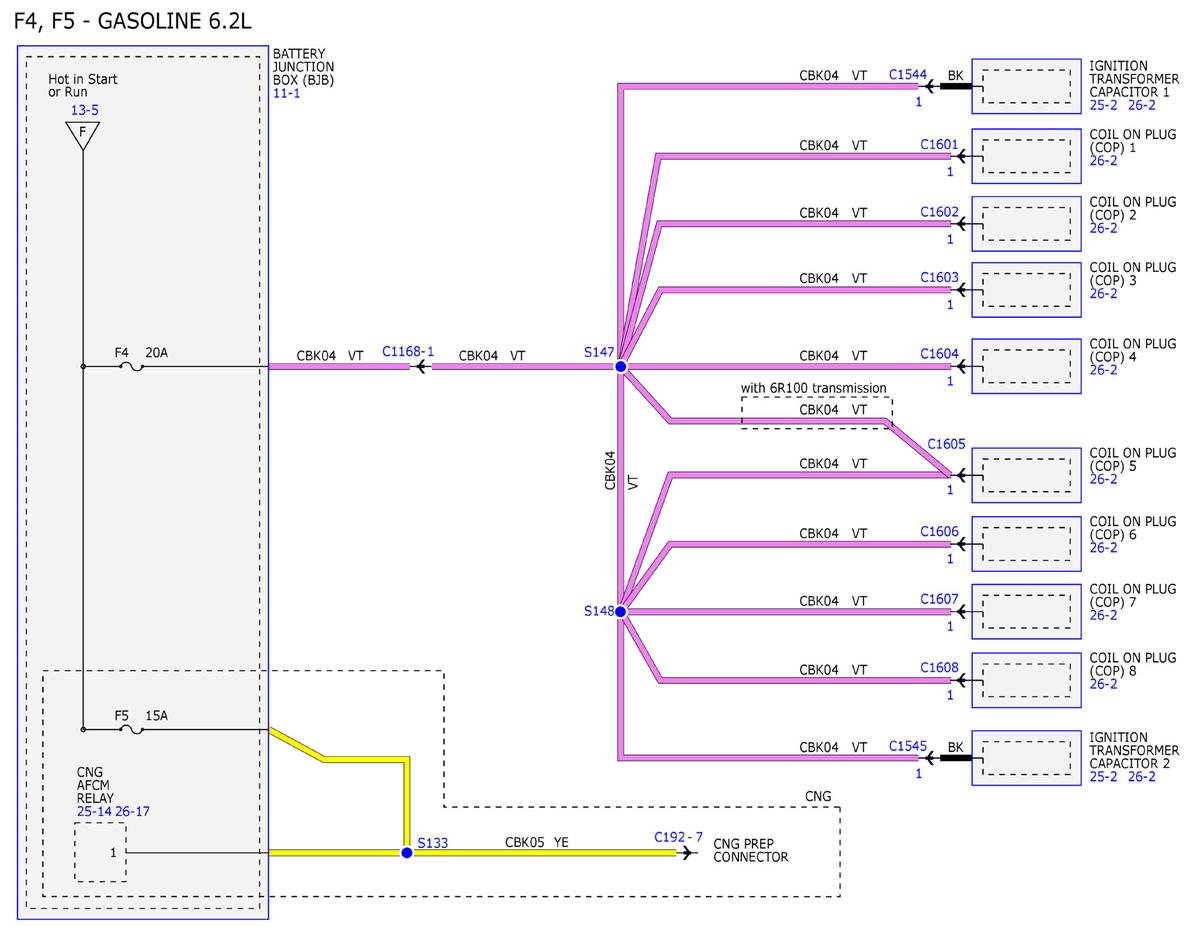

Fig 29: Power Distribution/Bcm Wiring Diagram (29 Of 51)

GFDWR57204

Courtesy of FORD MOTOR COMPANY

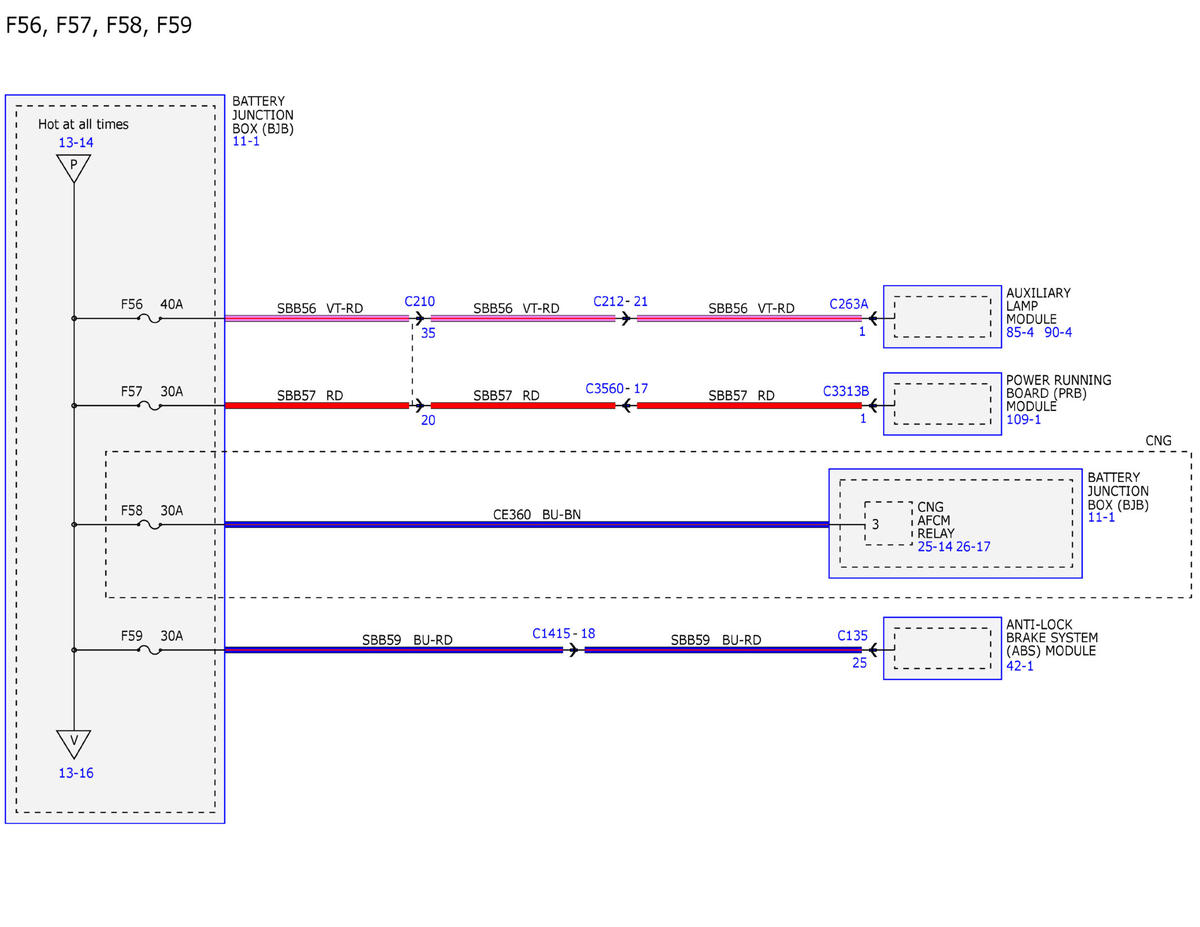

Fig 30: Power Distribution/Bcm Wiring Diagram (30 Of 51)

GFDWR57205

Courtesy of FORD MOTOR COMPANY

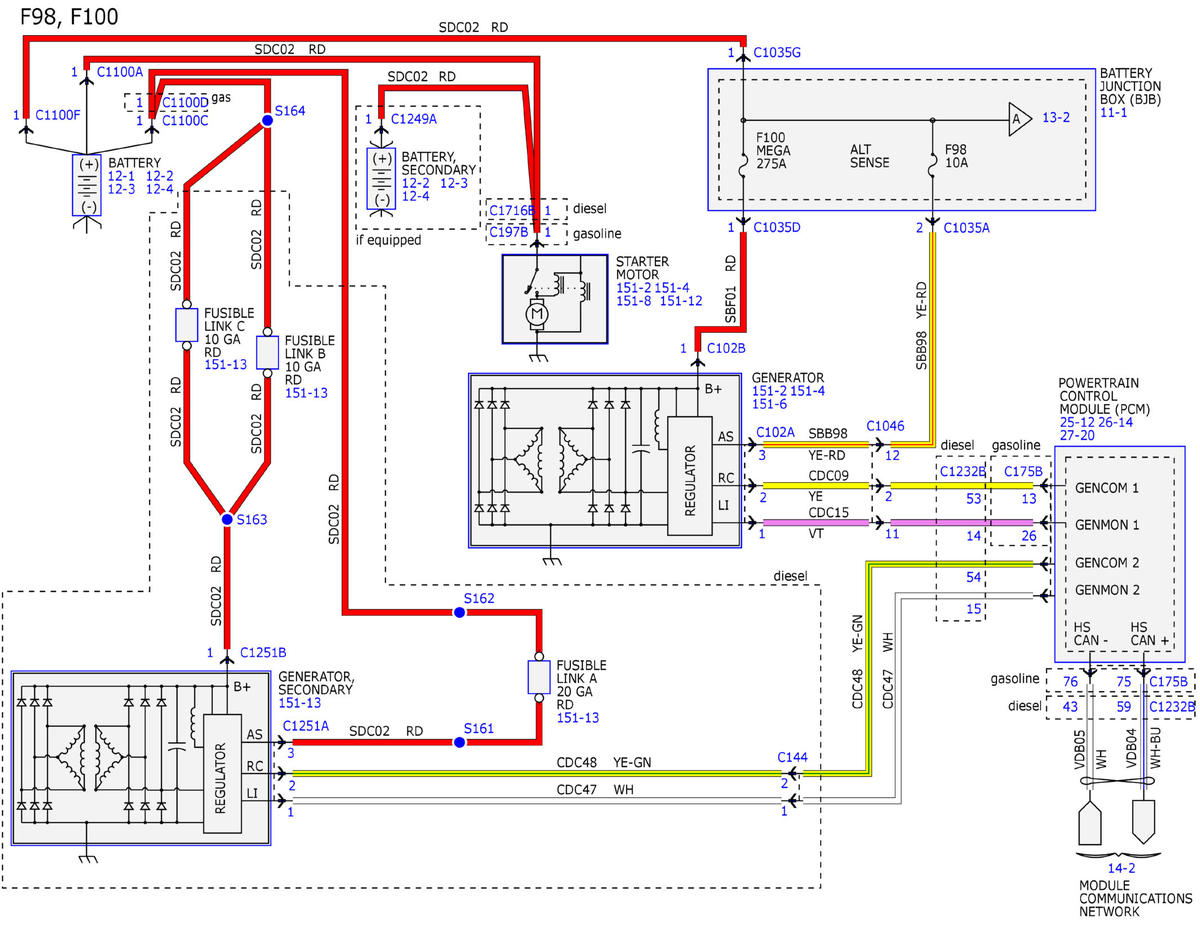

Fig 31: Power Distribution/Bcm Wiring Diagram (31 Of 51)

GFDWR57206

Courtesy of FORD MOTOR COMPANY

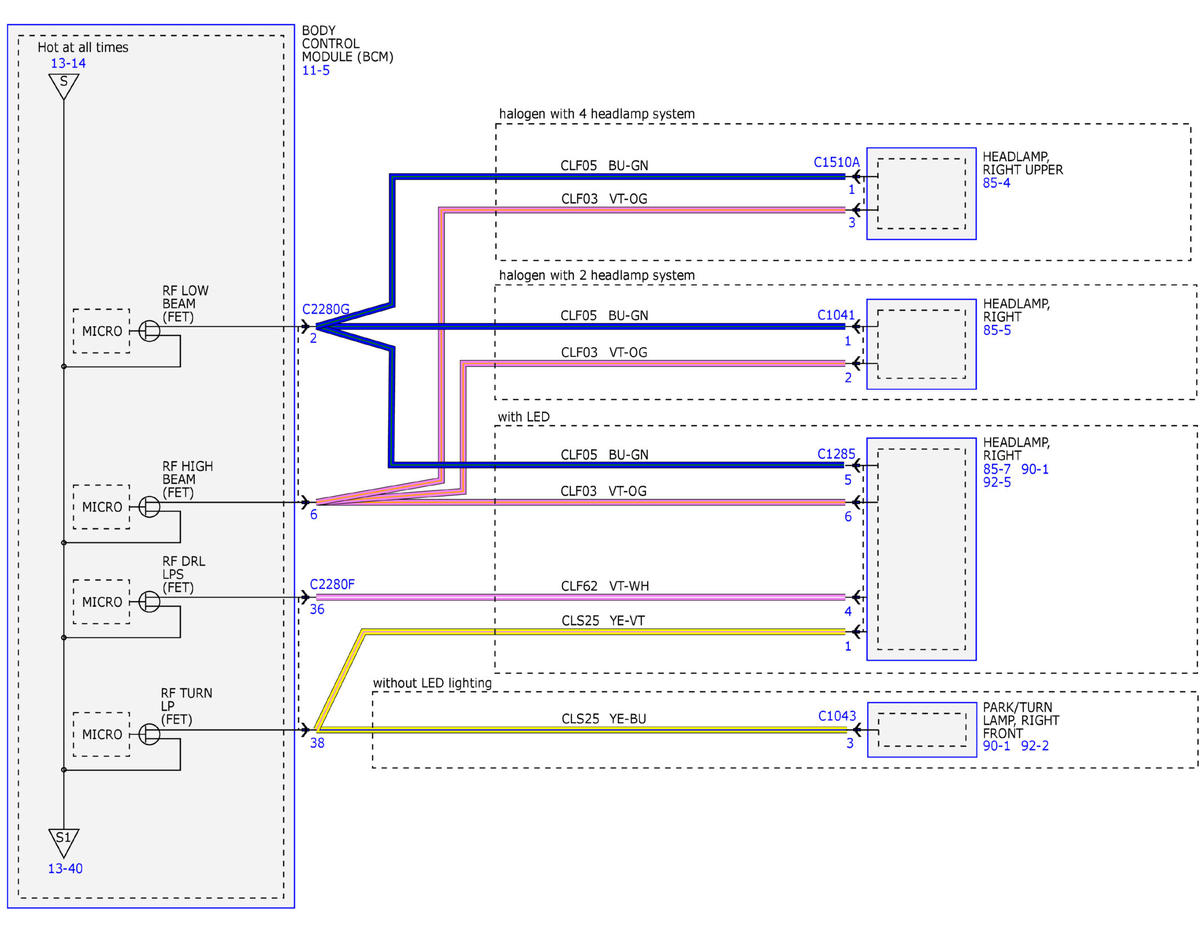

Fig 32: Power Distribution/Bcm Wiring Diagram (32 Of 51)

GFDWR57207

Courtesy of FORD MOTOR COMPANY

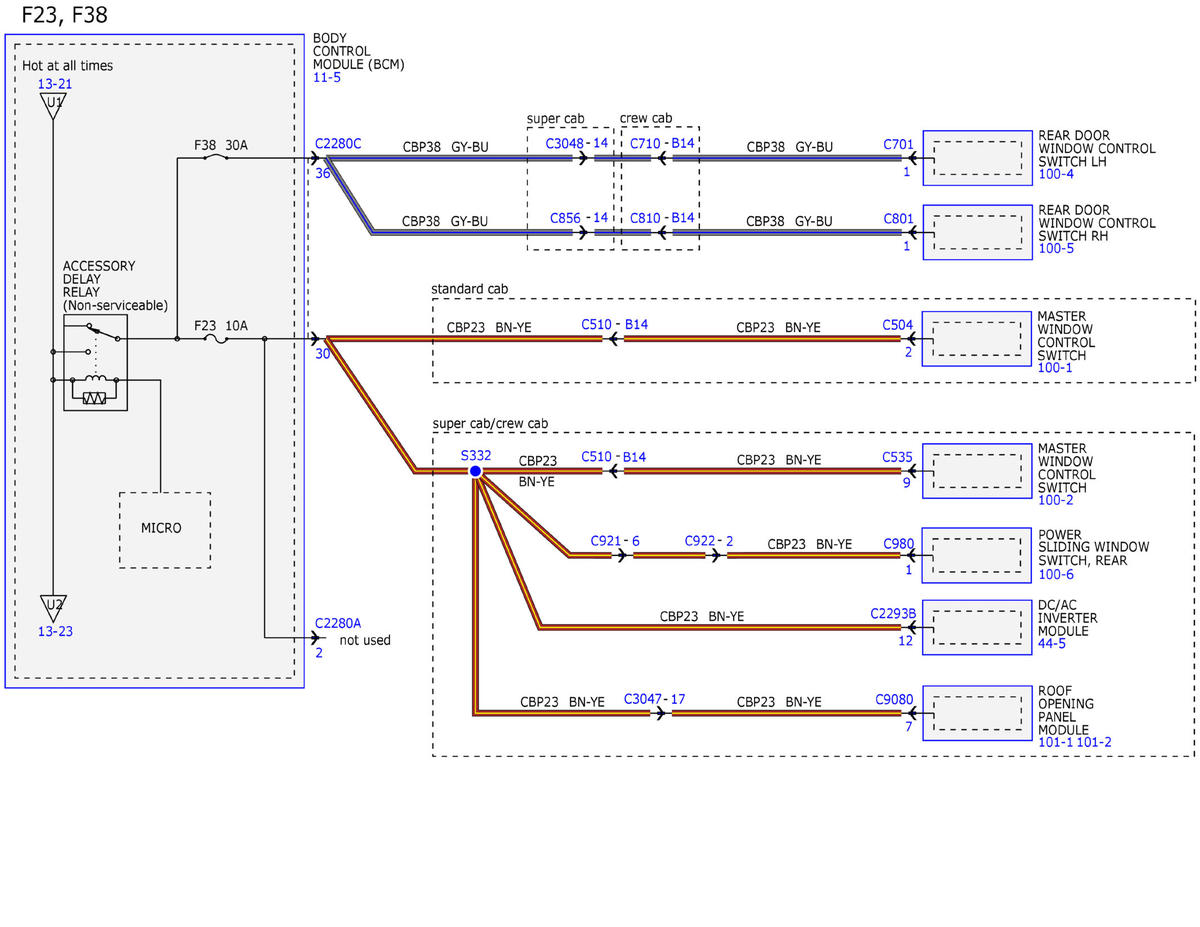

Fig 33: Power Distribution/Bcm Wiring Diagram (33 Of 51)

GFDWR57208

Courtesy of FORD MOTOR COMPANY

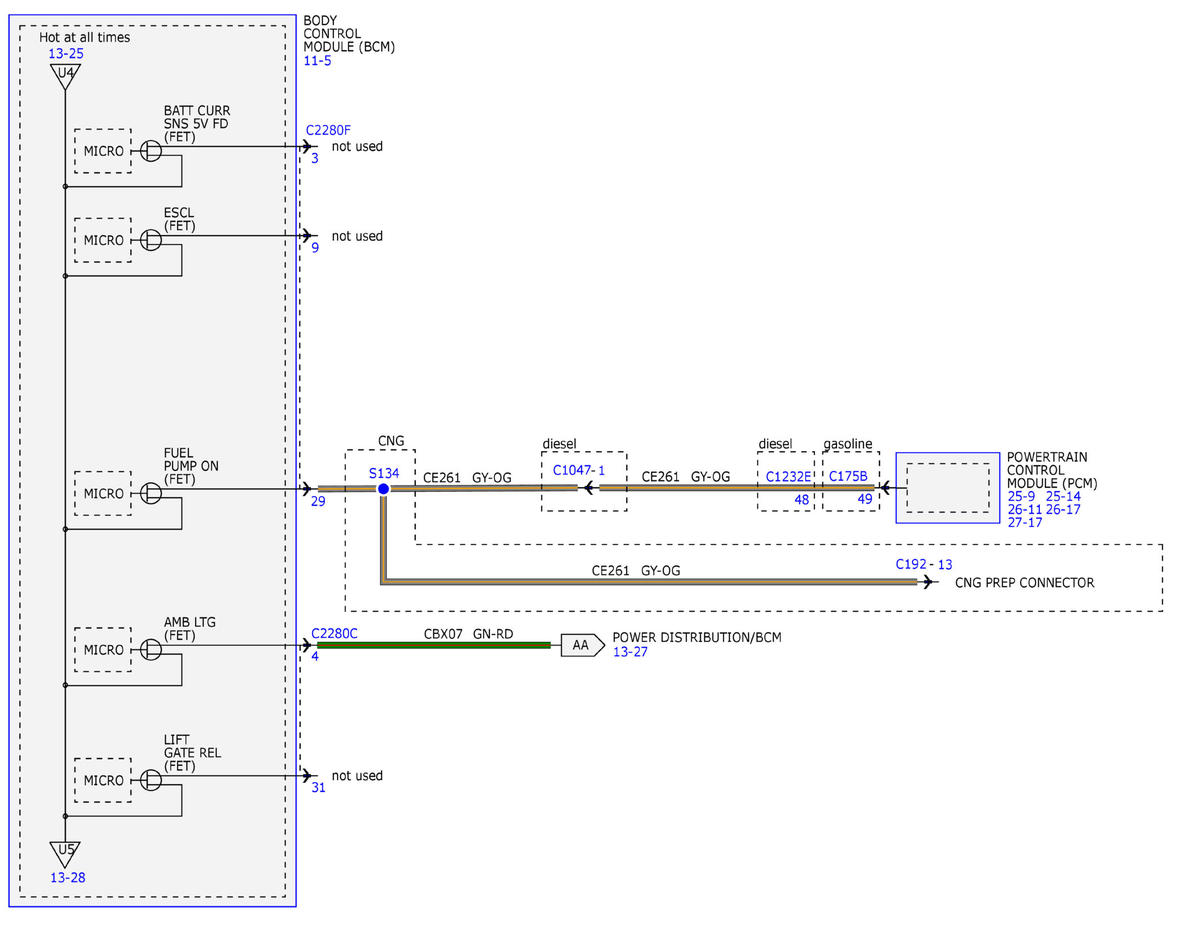

Fig 34: Power Distribution/Bcm Wiring Diagram (34 Of 51)

GFDWR57209

Courtesy of FORD MOTOR COMPANY

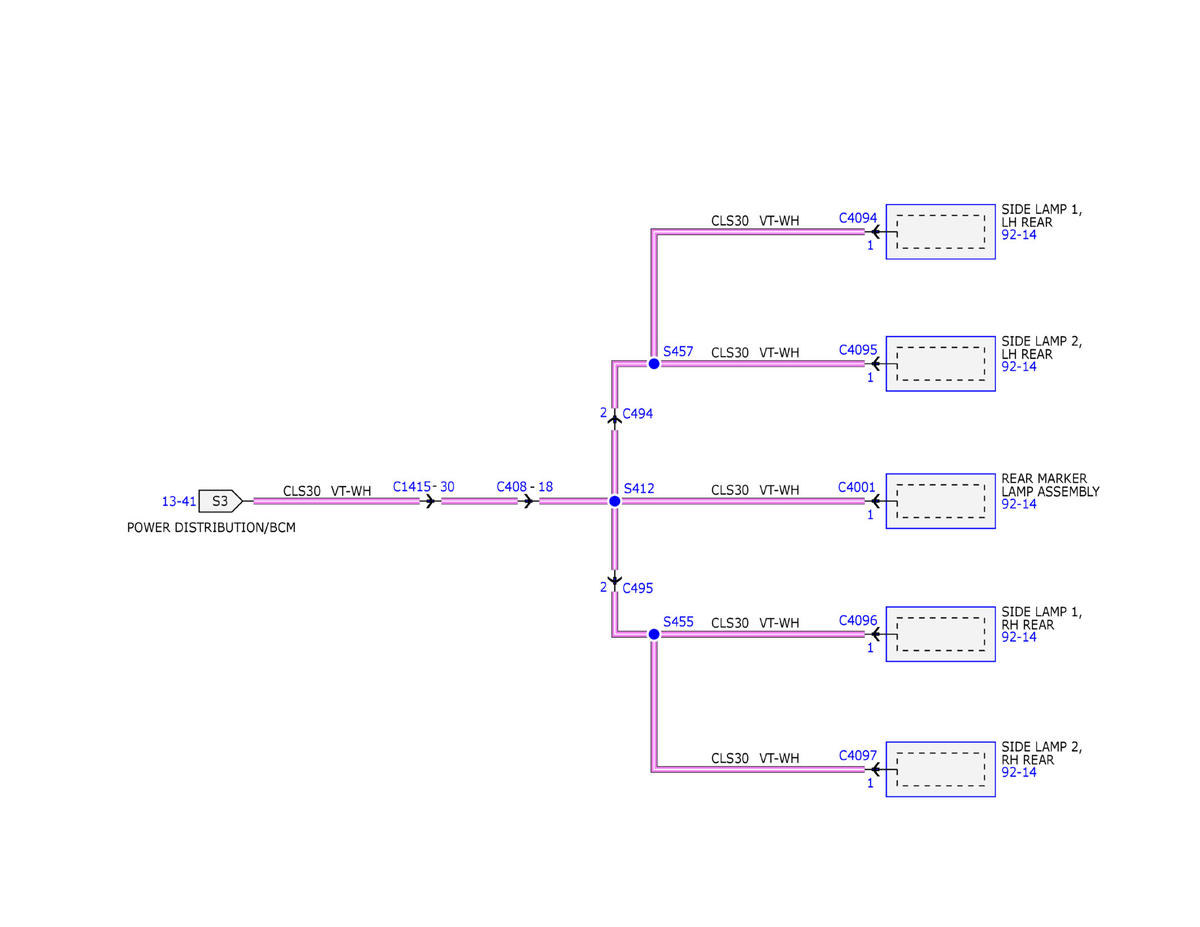

Fig 35: Power Distribution/Bcm Wiring Diagram (35 Of 51)

GFDWR57210

Courtesy of FORD MOTOR COMPANY

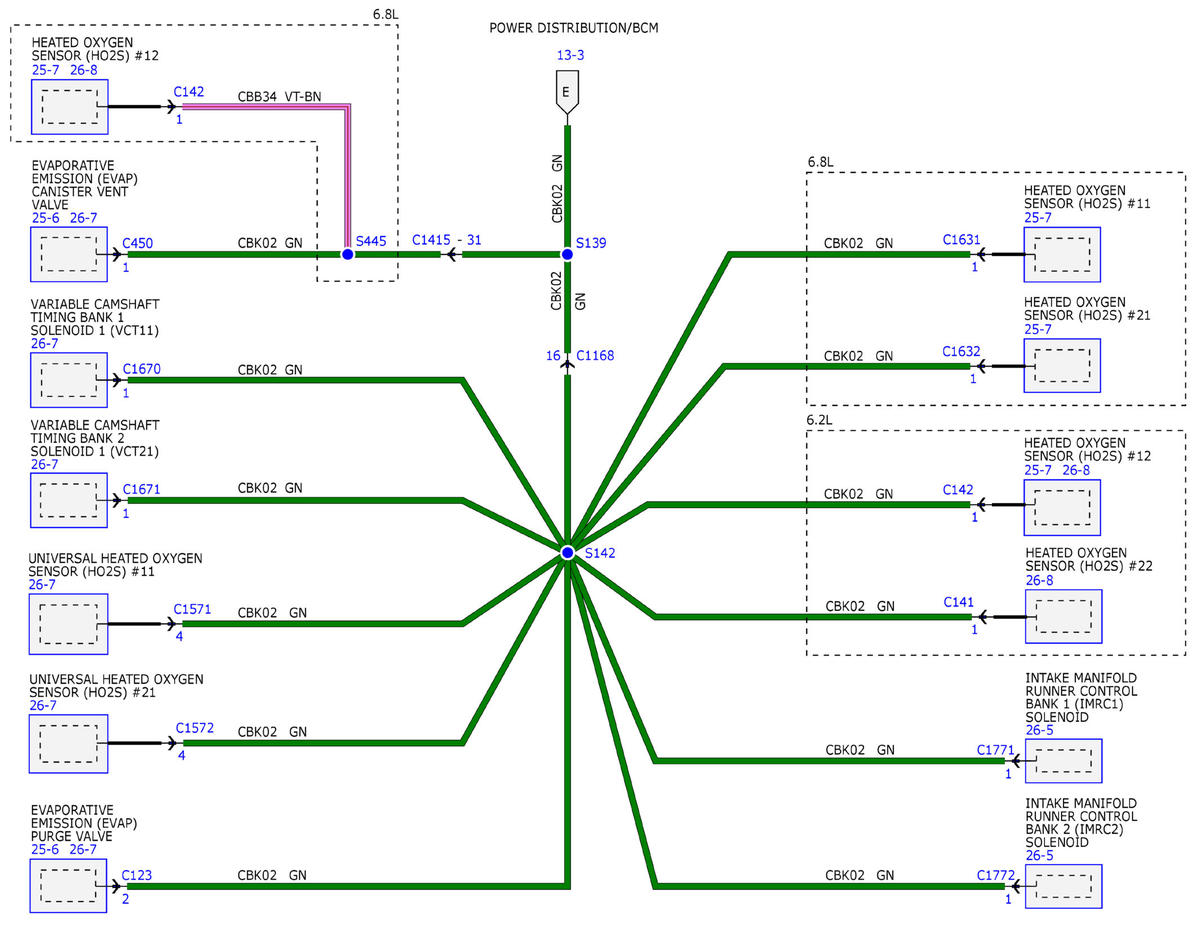

Fig 36: Power Distribution/Bcm Wiring Diagram (36 Of 51)

GFDWR57211

Courtesy of FORD MOTOR COMPANY

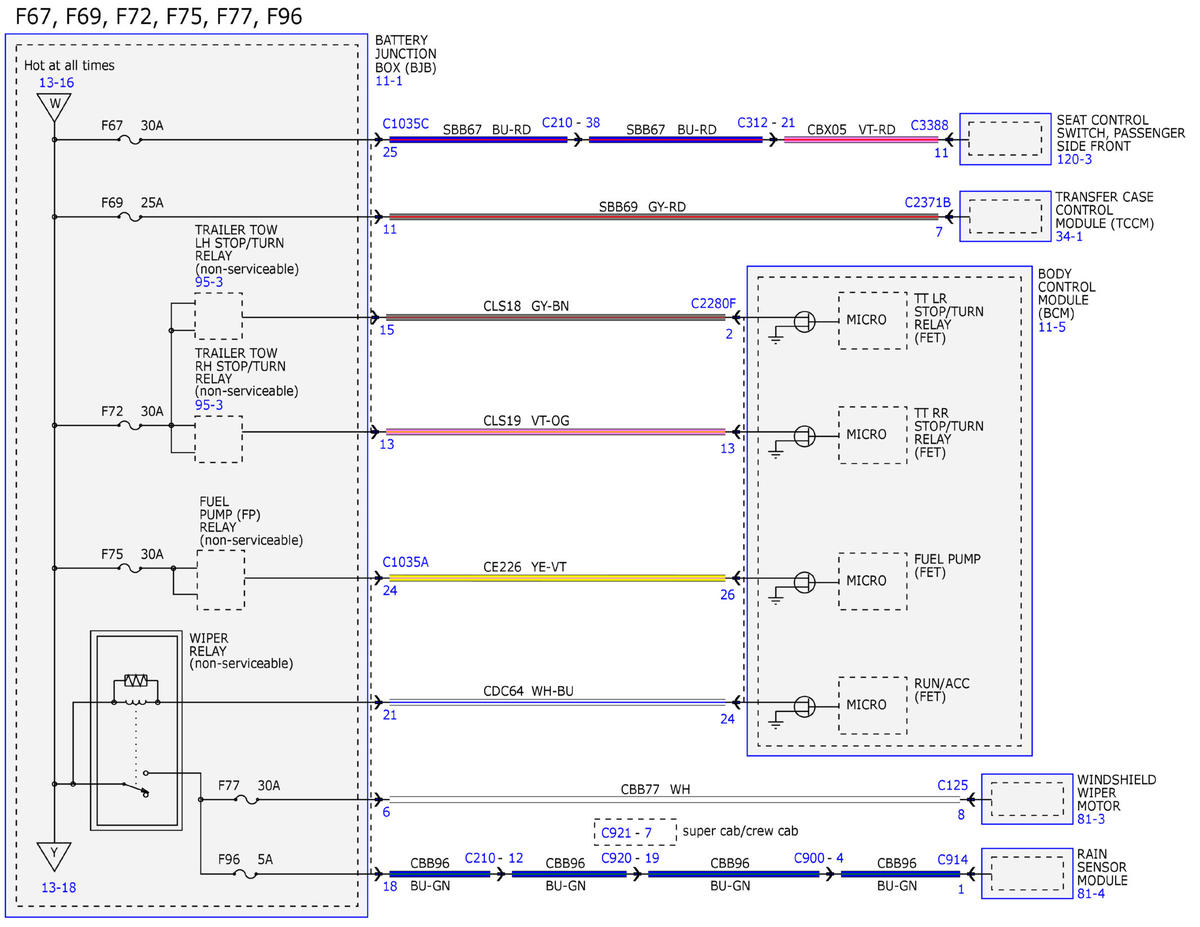

Fig 37: Power Distribution/Bcm Wiring Diagram (37 Of 51)

GFDWR57212

Courtesy of FORD MOTOR COMPANY

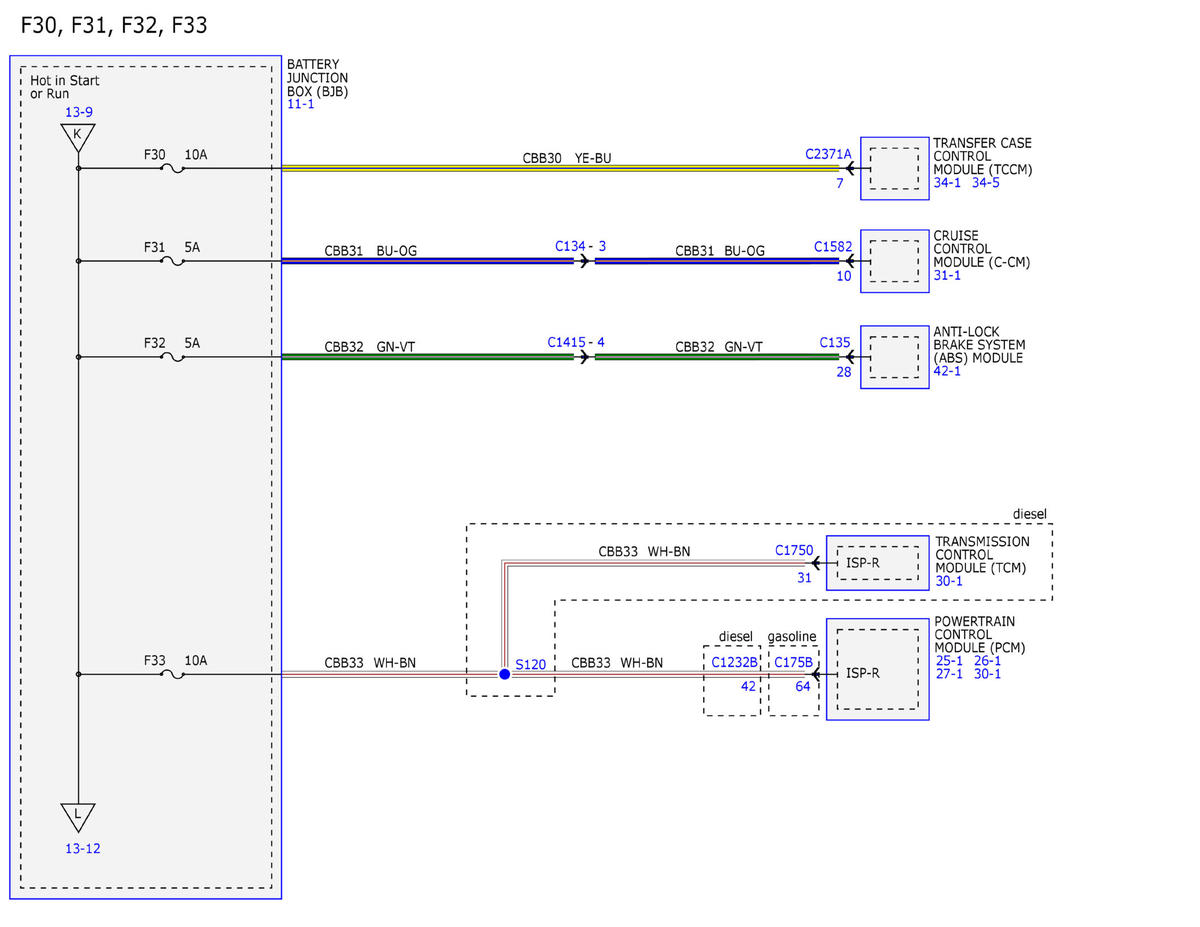

Fig 38: Power Distribution/Bcm Wiring Diagram (38 Of 51)

GFDWR57213

Courtesy of FORD MOTOR COMPANY

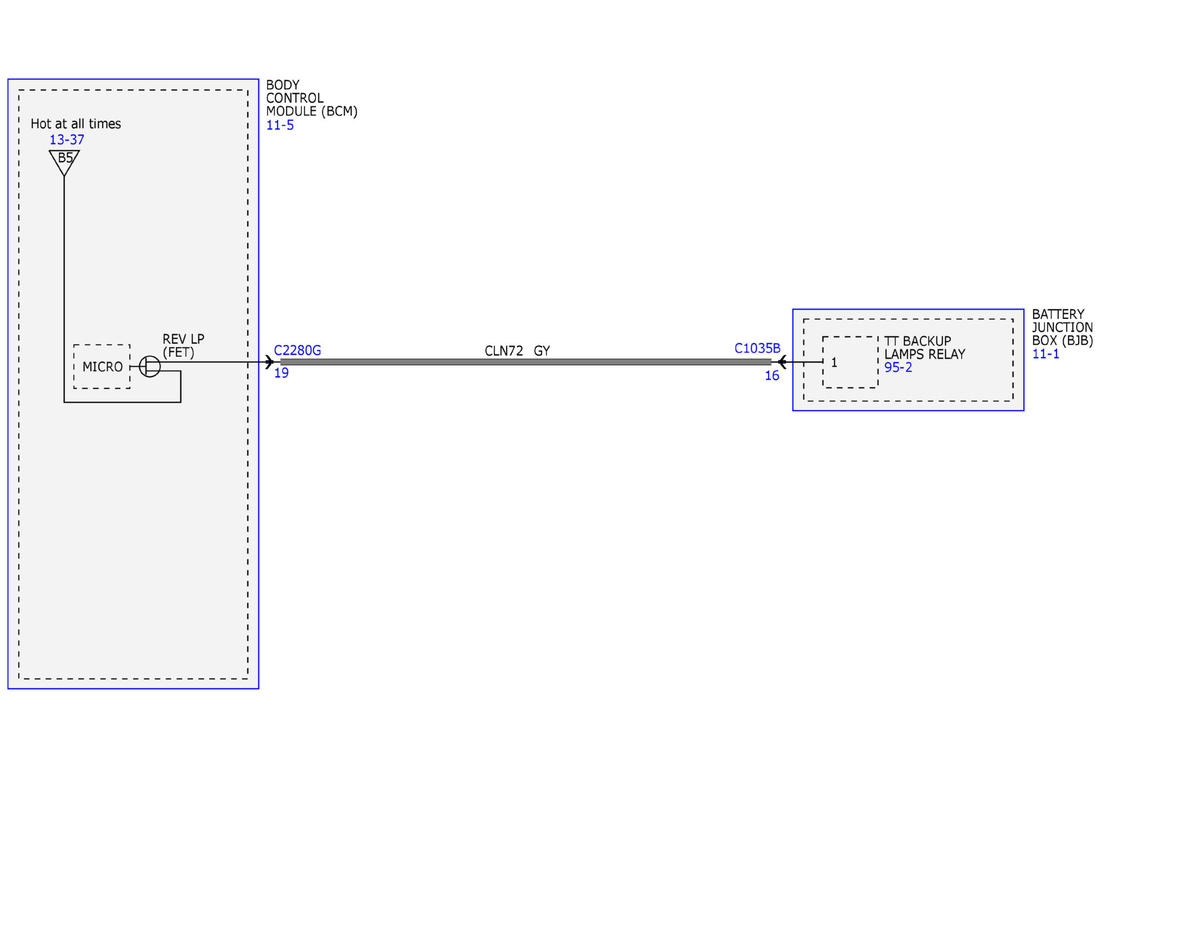

Fig 39: Power Distribution/Bcm Wiring Diagram (39 Of 51)

GFDWR57214

Courtesy of FORD MOTOR COMPANY

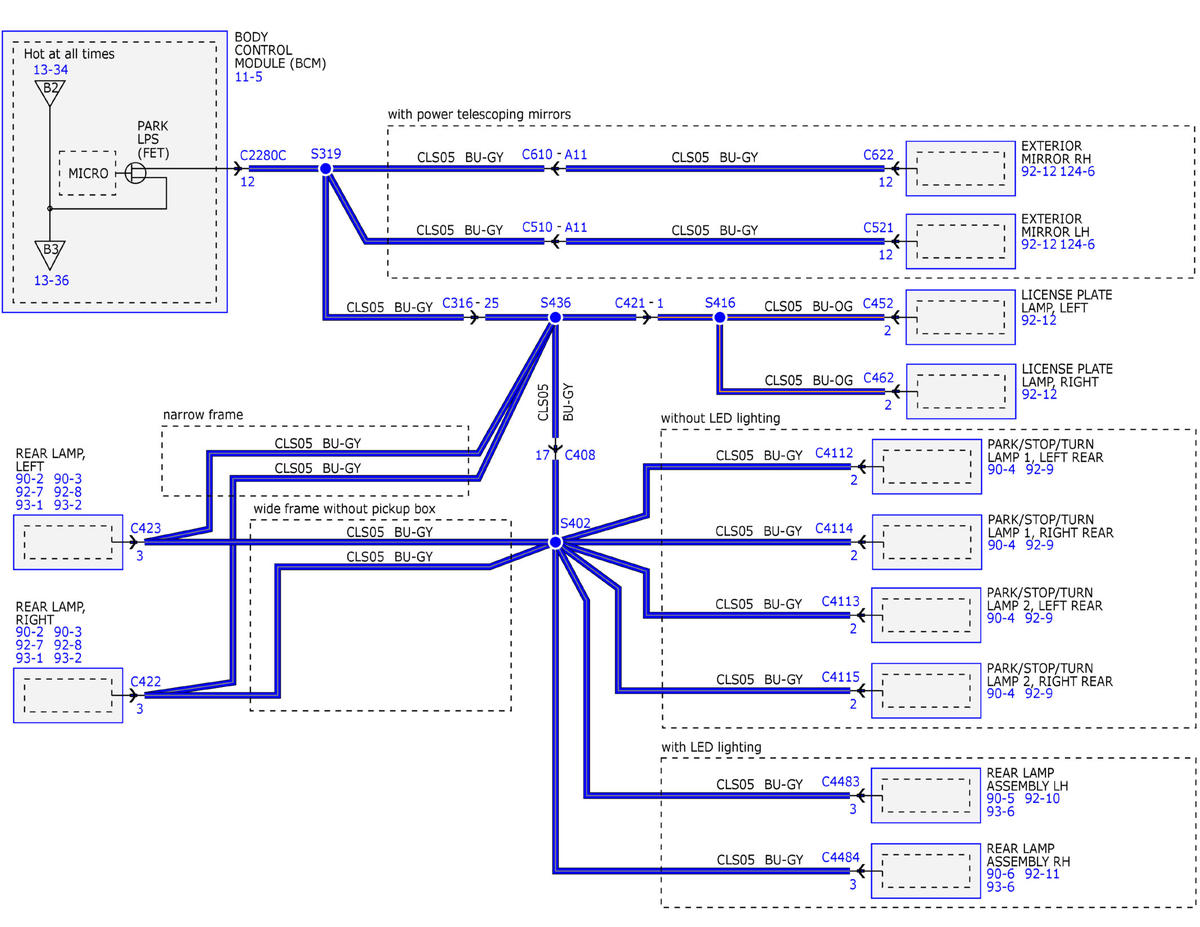

Fig 40: Power Distribution/Bcm Wiring Diagram (40 Of 51)

GFDWR57215

Courtesy of FORD MOTOR COMPANY

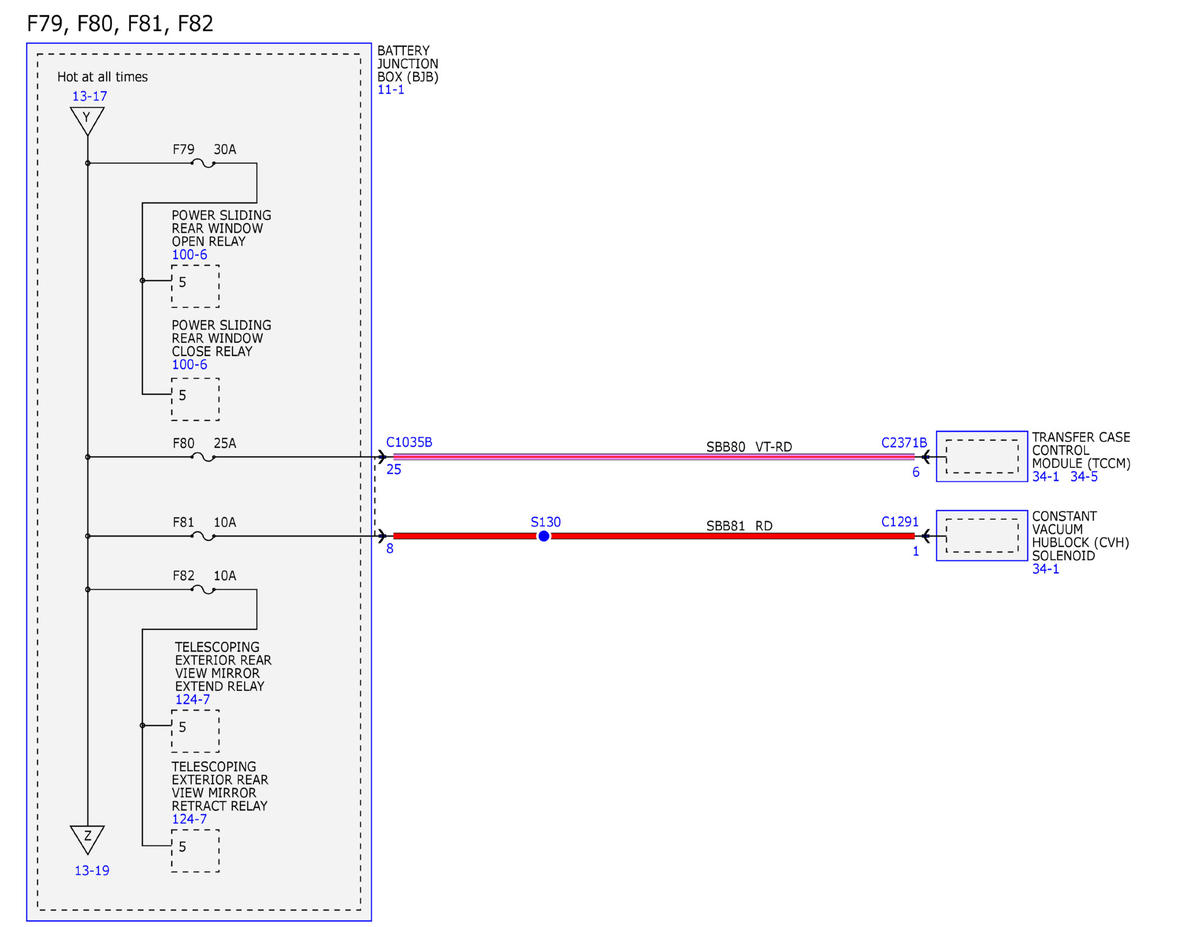

Fig 41: Power Distribution/Bcm Wiring Diagram (41 Of 51)

GFDWR57216

Courtesy of FORD MOTOR COMPANY

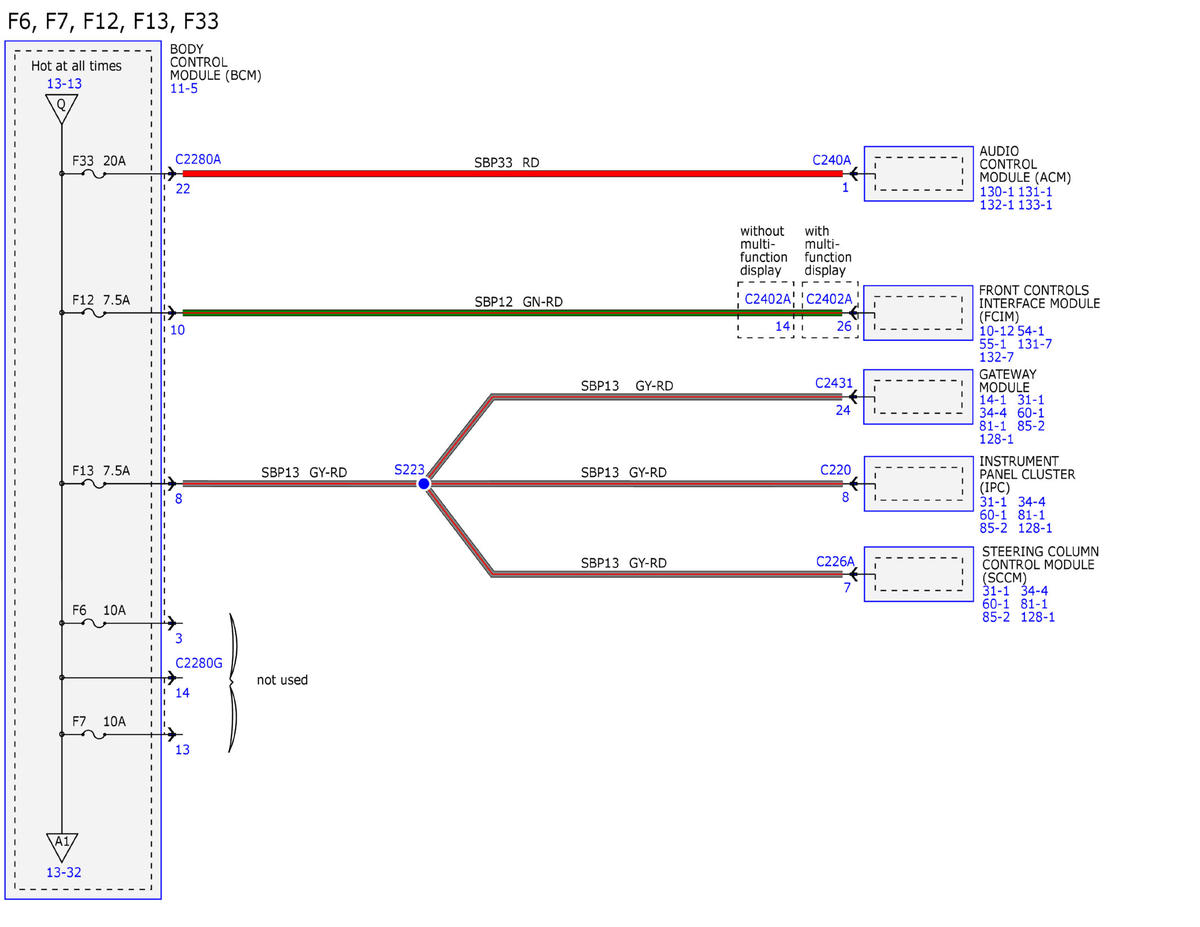

Fig 42: Power Distribution/Bcm Wiring Diagram (42 Of 51)

GFDWR57217

Courtesy of FORD MOTOR COMPANY

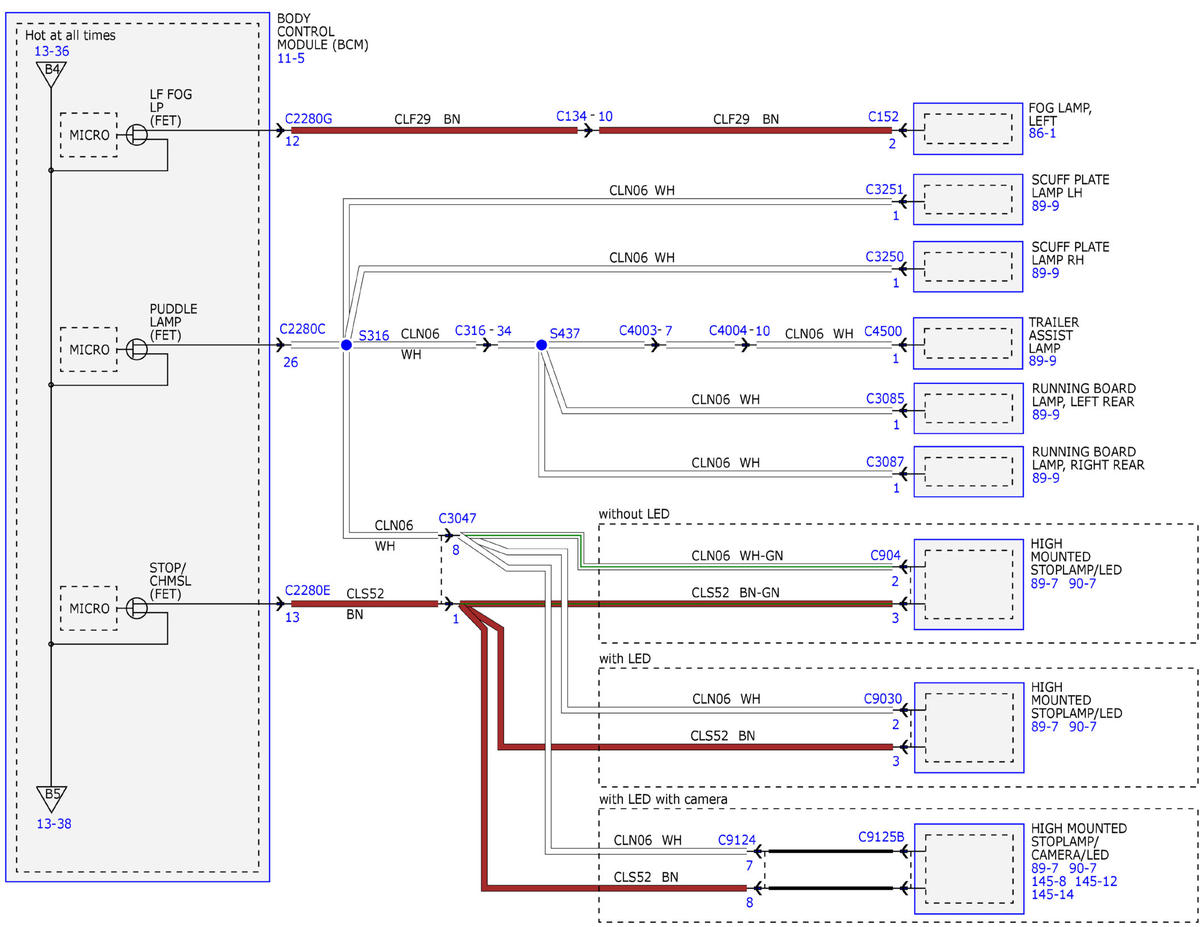

Fig 43: Power Distribution/Bcm Wiring Diagram (43 Of 51)

GFDWR57218

Courtesy of FORD MOTOR COMPANY

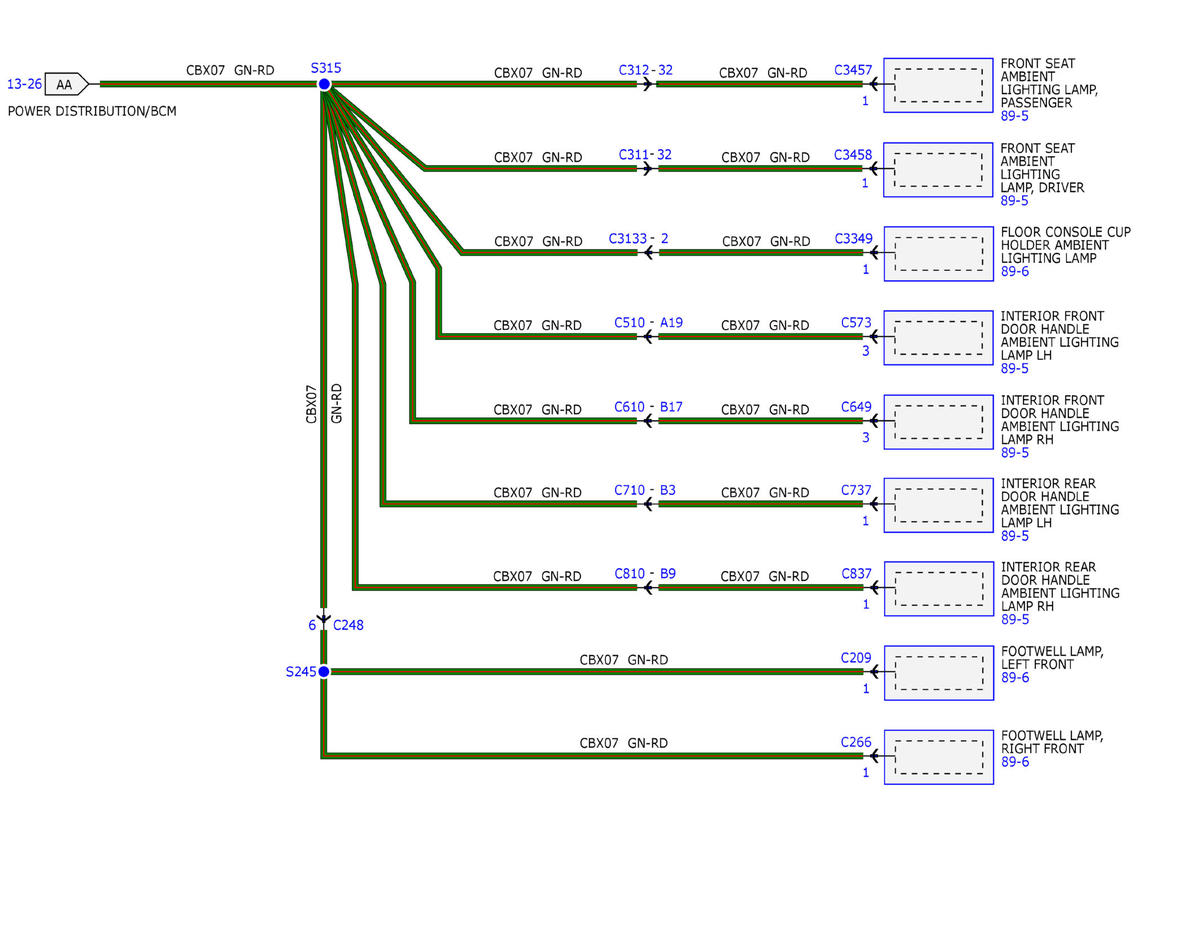

Fig 44: Power Distribution/Bcm Wiring Diagram (44 Of 51)

GFDWR57219

Courtesy of FORD MOTOR COMPANY

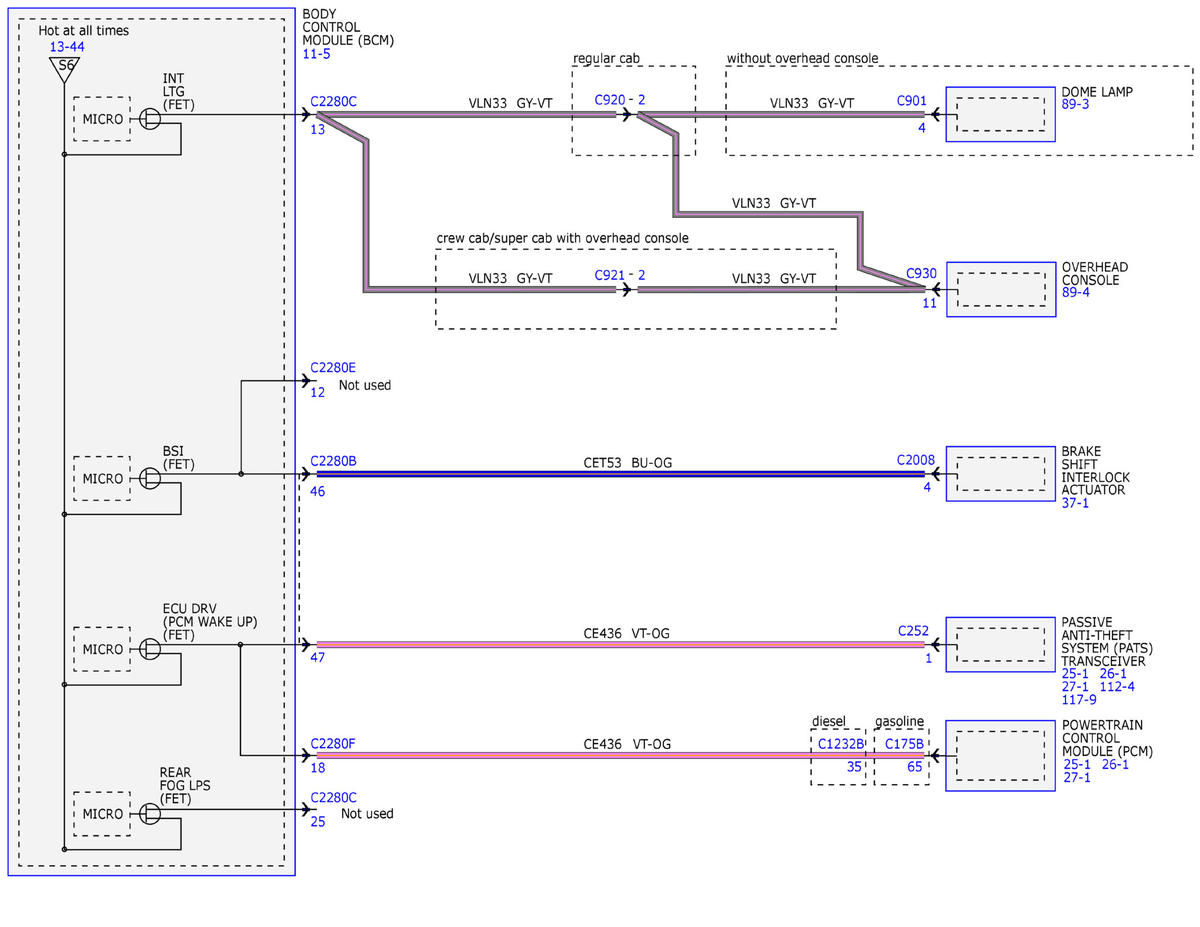

Fig 45: Power Distribution/Bcm Wiring Diagram (45 Of 51)

GFDWR57220

Courtesy of FORD MOTOR COMPANY

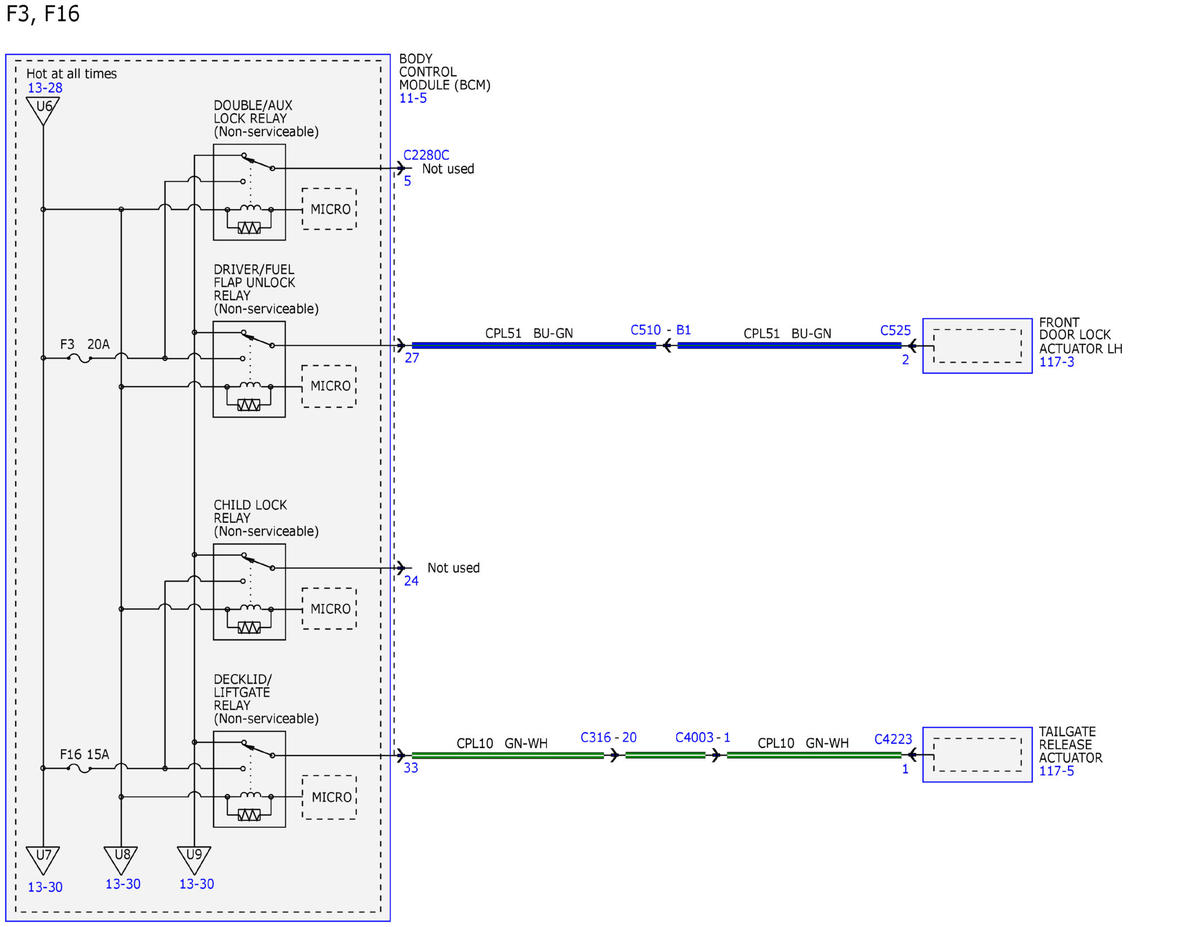

Fig 46: Power Distribution/Bcm Wiring Diagram (46 Of 51)

GFDWR57221

Courtesy of FORD MOTOR COMPANY

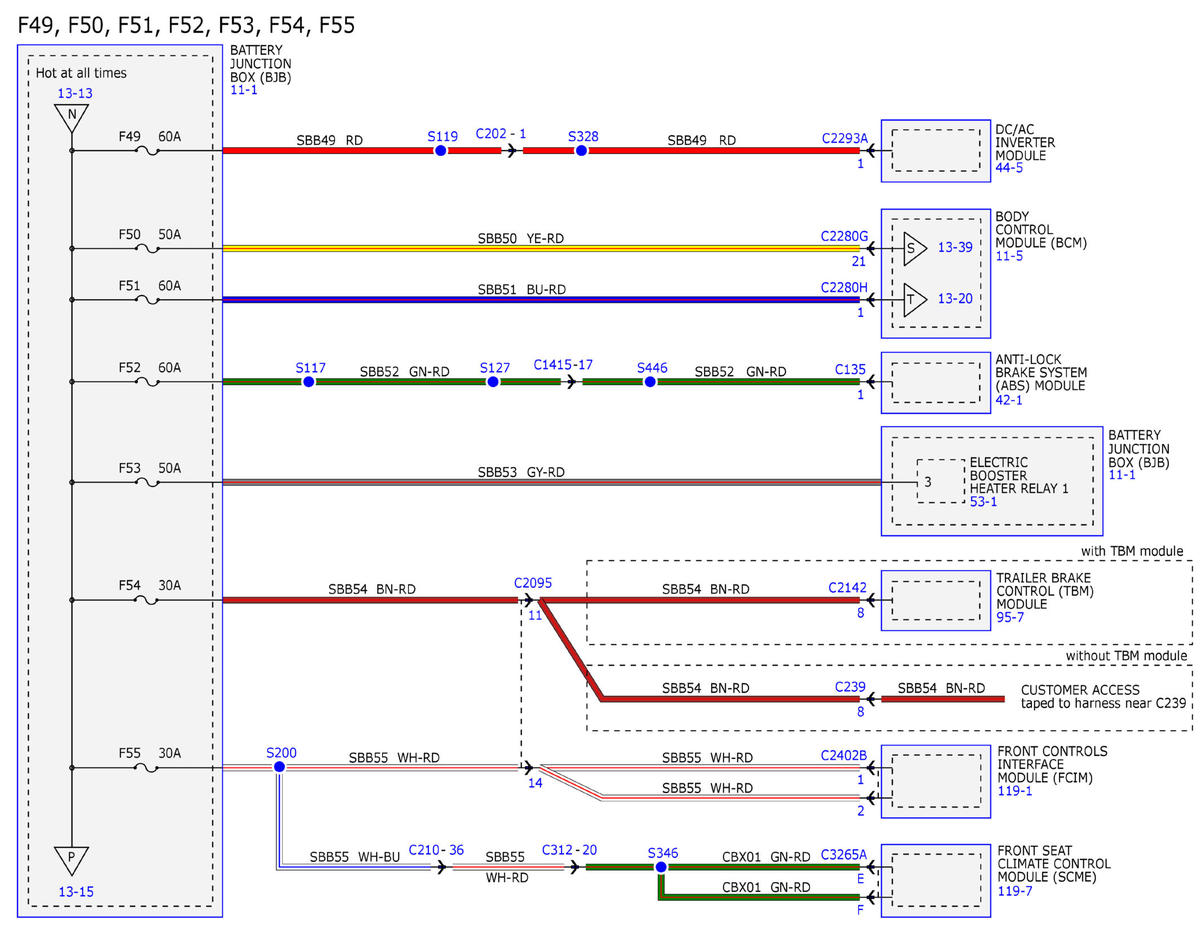

Fig 47: Power Distribution/Bcm Wiring Diagram (47 Of 51)

GFDWR57222

Courtesy of FORD MOTOR COMPANY

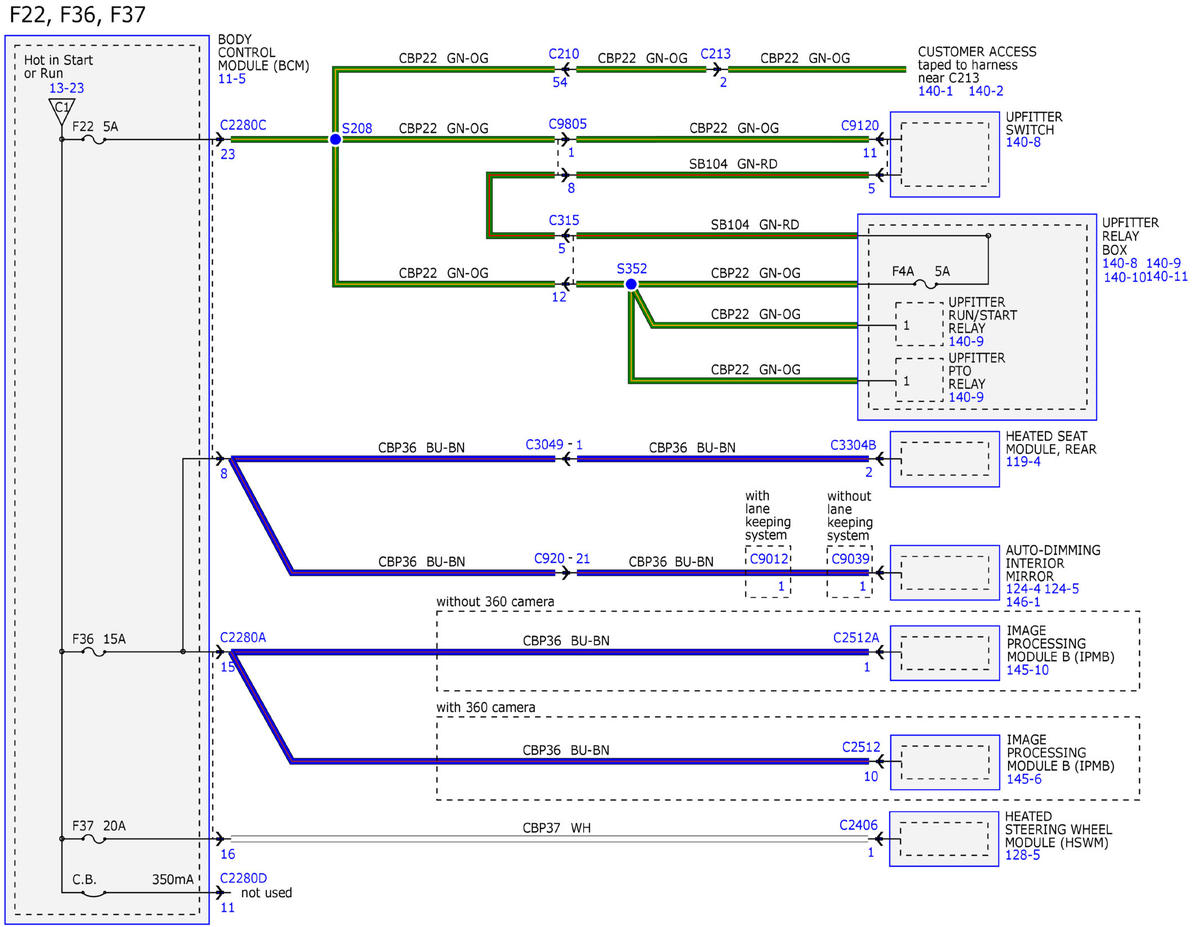

Fig 48: Power Distribution/Bcm Wiring Diagram (48 Of 51)

GFDWR57223

Courtesy of FORD MOTOR COMPANY

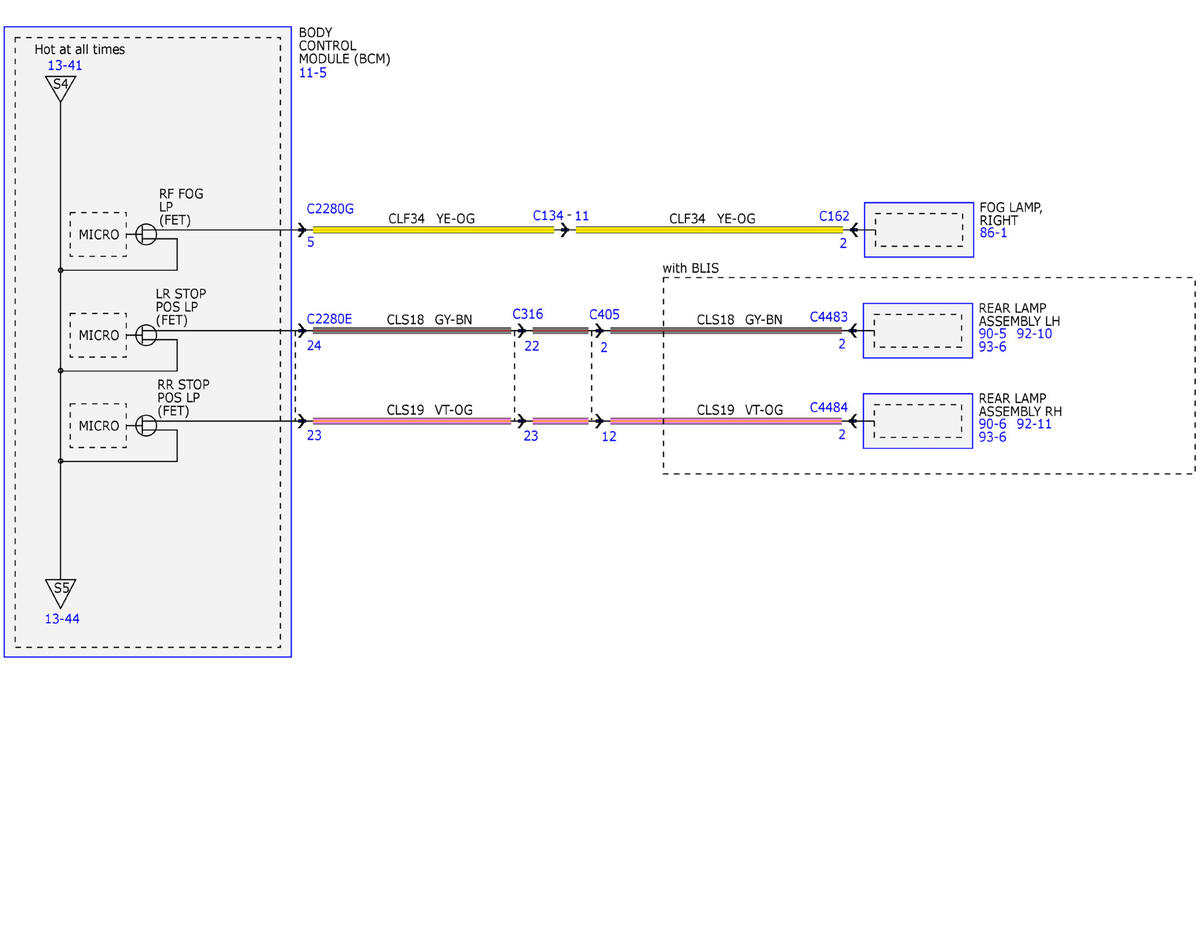

Fig 49: Power Distribution/Bcm Wiring Diagram (49 Of 51)

GFDWR57224

Courtesy of FORD MOTOR COMPANY

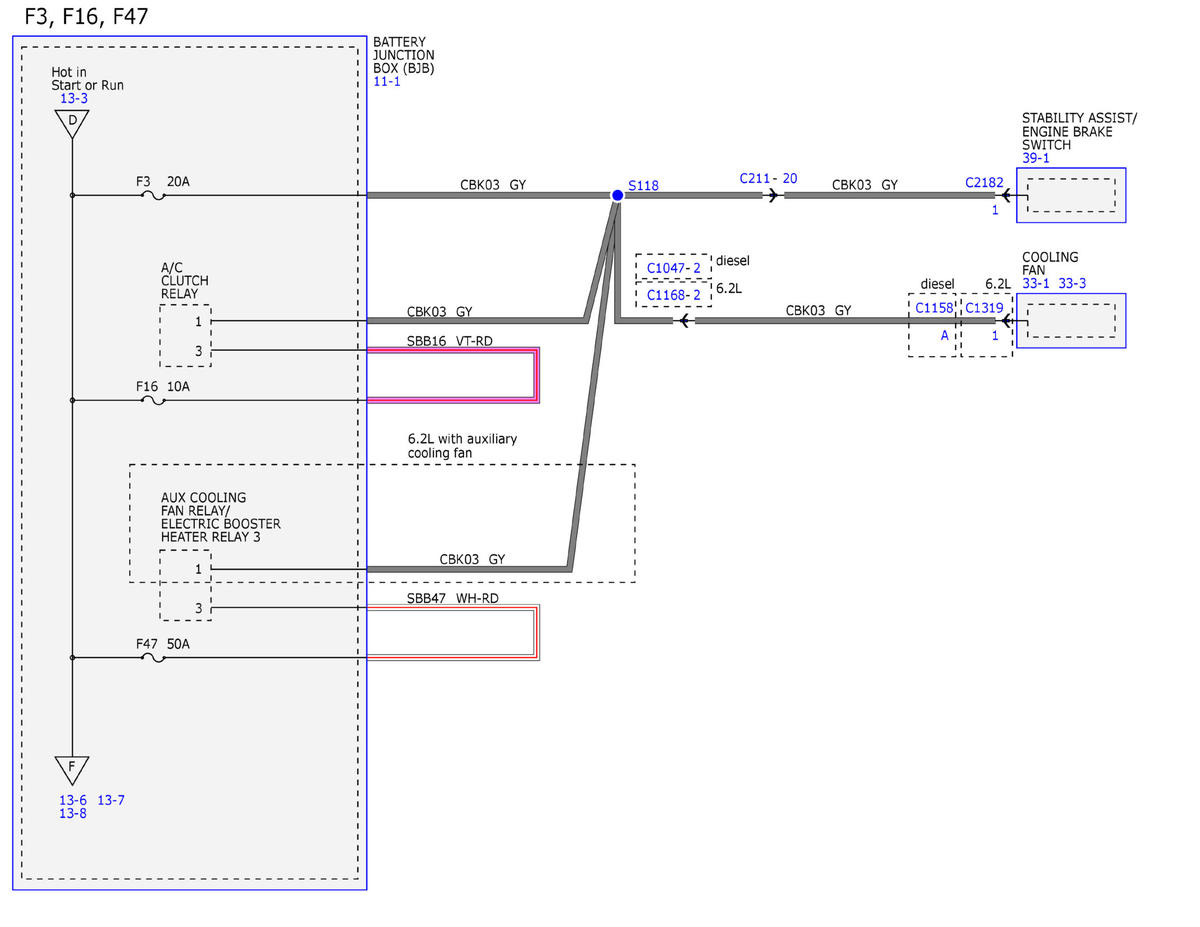

Fig 50: Power Distribution/Bcm Wiring Diagram (50 Of 51)

GFDWR57225

Courtesy of FORD MOTOR COMPANY

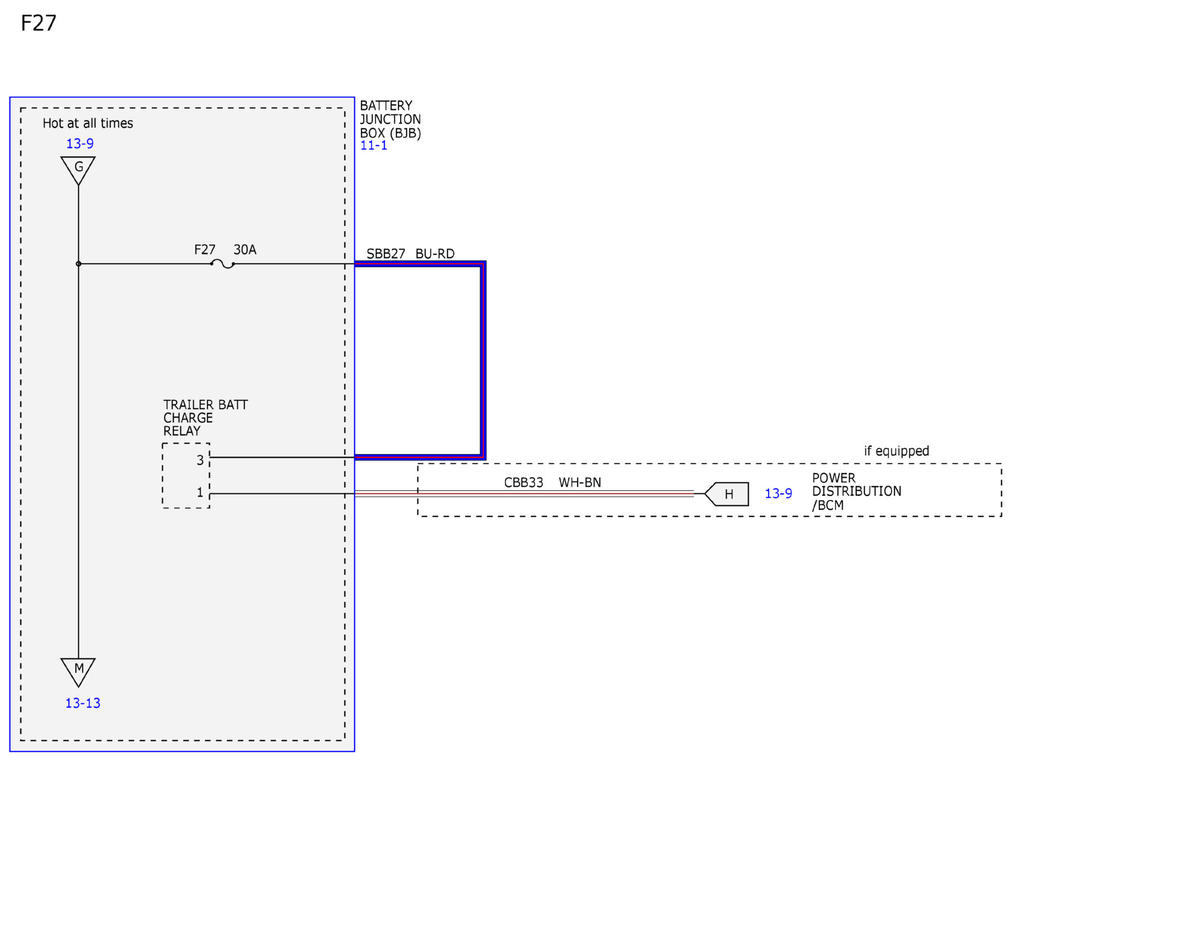

Fig 51: Power Distribution/Bcm Wiring Diagram (51 Of 51)

GFDWR57226

Courtesy of FORD MOTOR COMPANY
