Front Wheel Speed Sensor - RWD: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.
F-250/F-350

NOTE: Vehicles with Twin I-Beam axle.

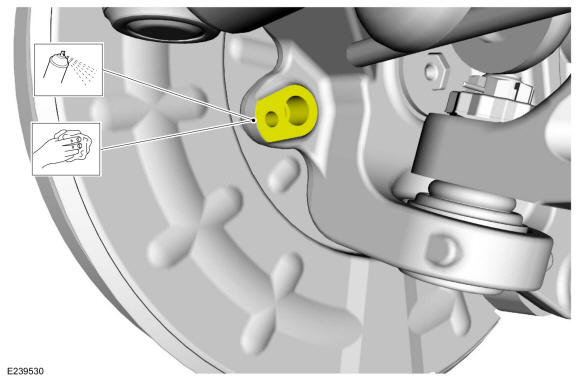

Before installing a new sensor, inspect the sensor housing to make sure the sensor cavity is clean and free of foreign material.
Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

Courtesy of FORD MOTOR COMPANY

F-450/F-550

NOTE: Vehicles with Mono-Beam axle.
Before installing a new sensor, inspect the sensor housing to make sure the sensor cavity is clean and free of foreign material.
Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

Courtesy of FORD MOTOR COMPANY
