Front Wheel Speed Sensor - RWD: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Typical RH wheel speed sensor shown.

NOTE: For RH side only.

Refer to: Air Cleaner . Refer to: Air Cleaner . Refer to: Air Cleaner .
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
F-250/F-350

NOTE: Vehicles with Twin I-Beam axle.

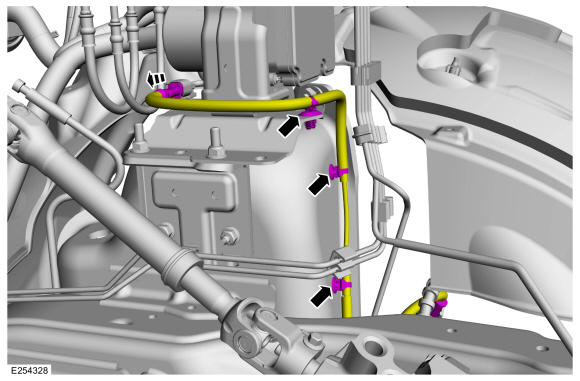

Disconnect the wheel speed sensor electrical connector and detach the retainers.

Courtesy of FORD MOTOR COMPANY

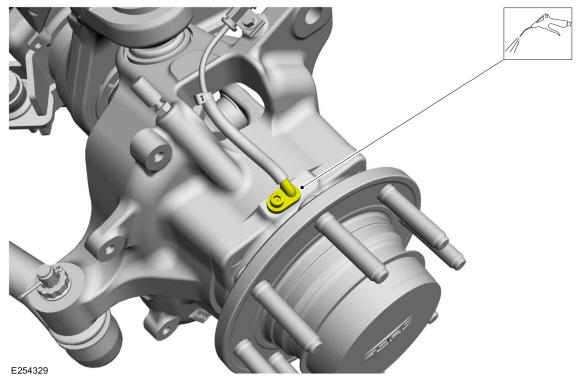

Using compressed air, clean the area surrounding the wheel speed sensor.

Courtesy of FORD MOTOR COMPANY

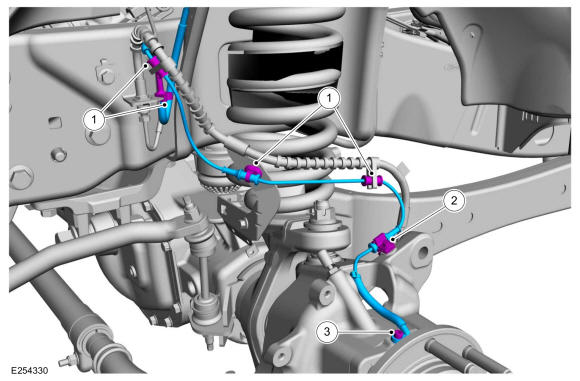

1. Detach the wheel speed sensor harness retainers.
2. Remove the wheel speed sensor harness bolt.
  Torque: 106 lb.in (12 Nm)
3. Remove the bolt and the wheel speed sensor.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY

F-450/F-550

NOTE: Vehicles with Mono-Beam axle.
Remove the brake disc shield. Refer to: Brake Disc Shield .

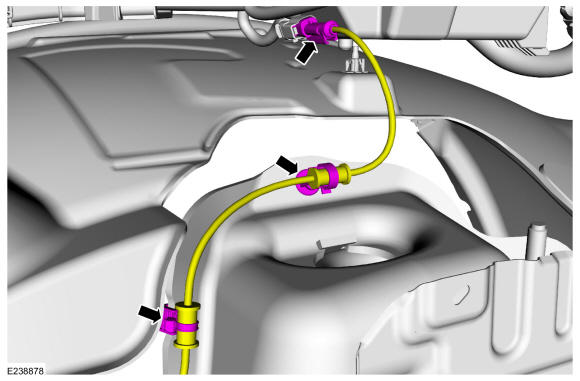

Disconnect the electrical connector and detach the harness retainers.

Courtesy of FORD MOTOR COMPANY
Using compressed air, clean the area surrounding the wheel speed sensor.

Courtesy of FORD MOTOR COMPANY

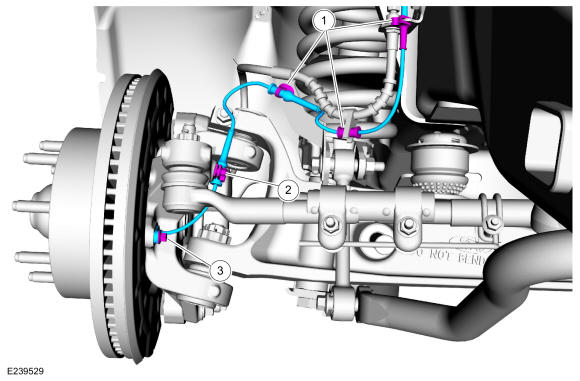

1. Detach the harness retainers.
2. Remove the harness retainer bolt.
  Torque: 106 lb.in (12 Nm)
3. Remove the bolt and the wheel speed sensor.
  Torque: 18 lb.ft (25 Nm) - Front Wheel Speed Sensor - RWD

Courtesy of FORD MOTOR COMPANY

NOTE: Front Wheel Speed Sensor - RWD
