Powertrain Control Module (PCM): Removal
WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.

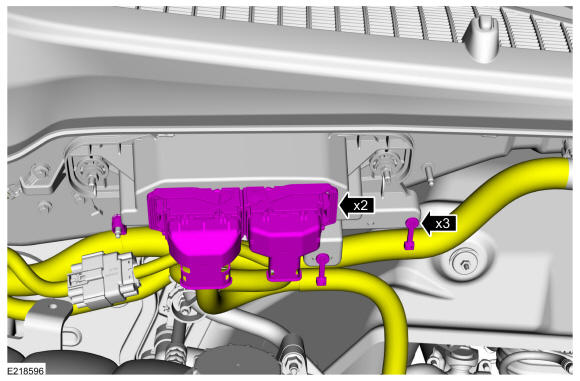

- Disconnect the PCM electrical connectors, release the harness retainers to position aside wire harness.
-

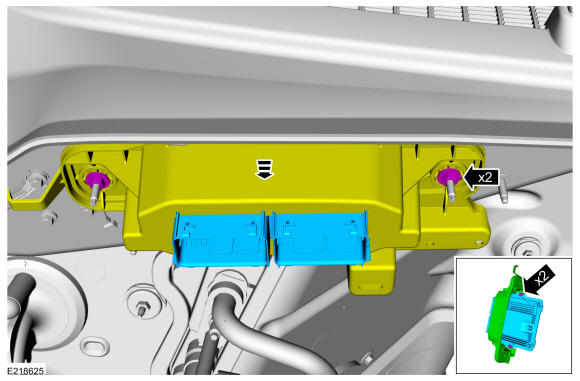

- Remove the 2 retainers and the PCM.
Torque: 62 lb.in (7 Nm)
- Remove the retainers and remove the PCM from the mounting frame.
Torque: 62 lb.in (7 Nm)
- Remove the 2 retainers and the PCM.
