Front Driveshaft: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps may contain installation instructions.

With the vehicle in NEUTRAL, position the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .
Remove and discard the front driveshaft U-joint to pinion flange retaining strap bolts and retaining straps.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

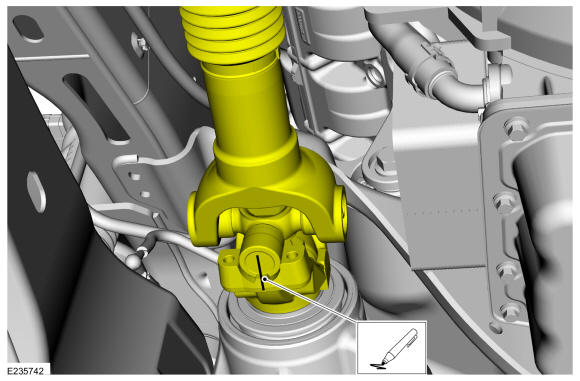

Index-mark the front driveshaft U-joint to the pinion flange.

Courtesy of FORD MOTOR COMPANY

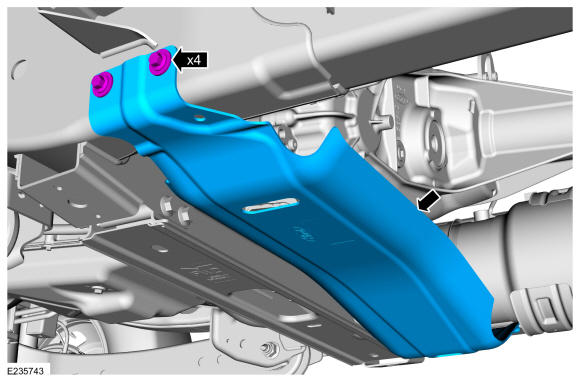

Remove the transfer case shield and bolts.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

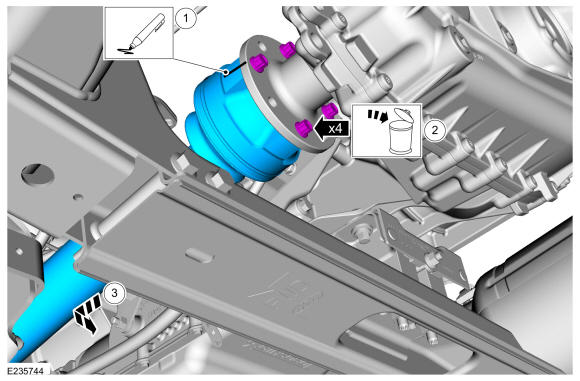

Remove the front driveshaft.
1. Index-mark the front driveshaft CV joint-to-transfer case flange.
2. Remove and discard the front driveshaft CV joint-to-transfer case flange bolts.
  Torque: 92 lb.ft (125 Nm)
3. Remove the front driveshaft.

Courtesy of FORD MOTOR COMPANY
