Glow Plug Module: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The glow plug module is located above the right front fender splash shield.
- Disconnect the battery. Refer to: Battery Disconnect and Connect .
- Remove the right fender splash shield. Refer to: Fender Splash Shield .

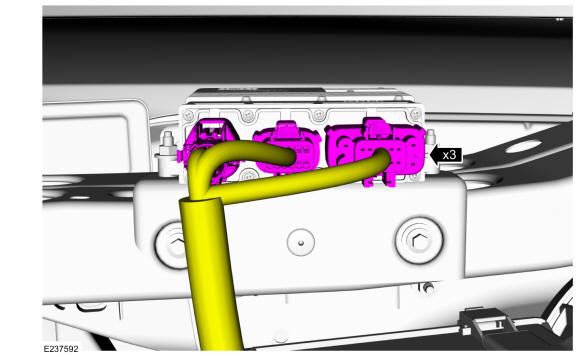

- Disconnect the glow plug module electrical connectors.

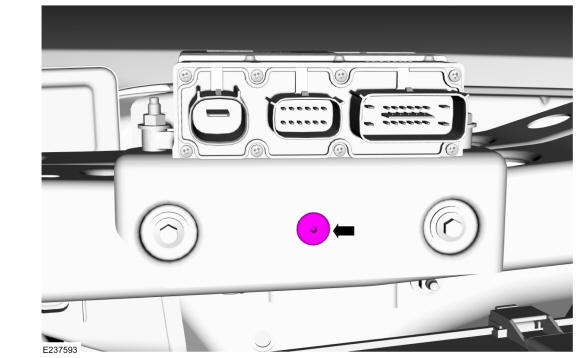

- Remove the glow plug module mounting bracket pushpin.

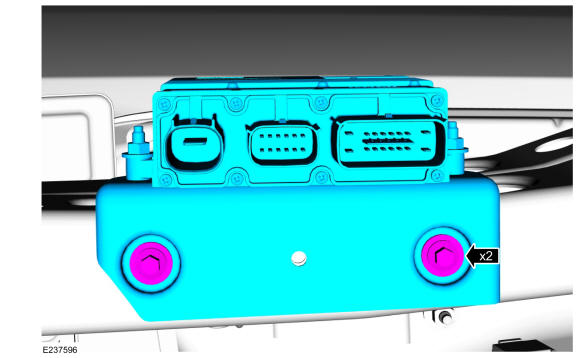

- Remove the glow plug module mounting bracket retainers, then remove the glow plug module and the glow plug module mounting bracket.

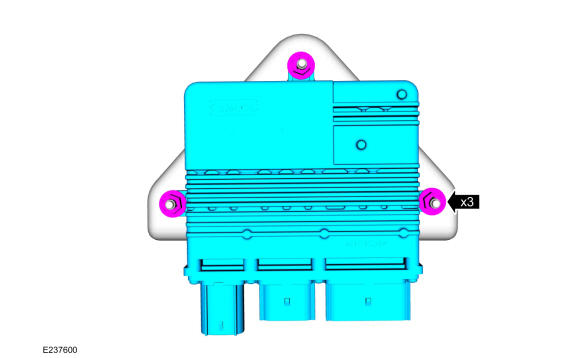

- Remove the glow plug module retainers and then remove the glow plug module.
