Selector Lever Mechanism: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: To access the top selector mechanism bolts, position the selector lever in N before removing the selector lever.
Remove the selector lever. Refer to: Selector Lever .

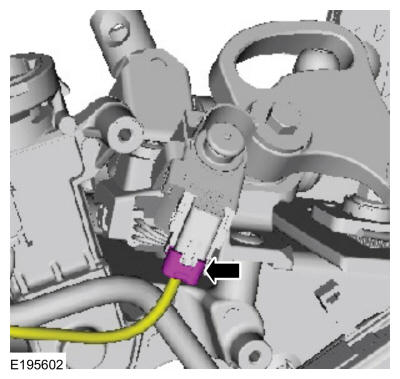

- Disconnect the brake shift interlock actuator electrical connector.

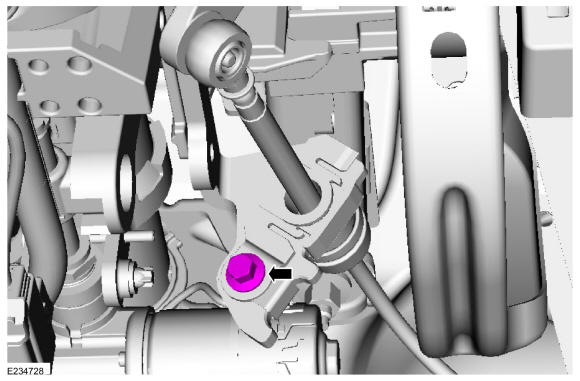

- Remove the selector lever cable retainer bolt.
Torque: 62 lb.in (7 Nm)
-

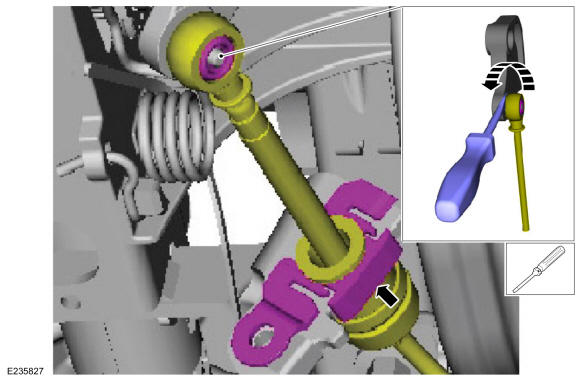

NOTE: Do not pull or pry on the selector lever cable or the selector lever cable end may be damaged. Use a screwdriver and turn the screwdriver as shown to pry the cable end off the post as close to the post as possible.
Using a screwdriver, pry the selector lever cable end from the selector lever mechanism and disconnect the cable retainer from the steering column.

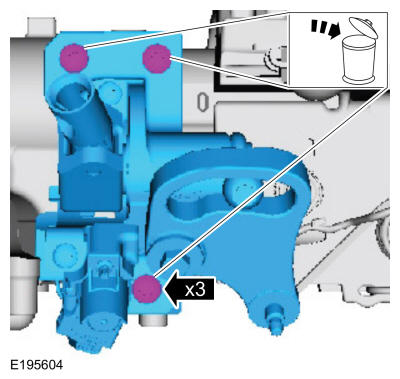

- Remove and discard the bolts and remove the selector lever mechanism.
Torque: 89 lb.in (10 Nm)
