Section 244 (Engine - 6.2L V8): Disassembly: Engine

WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Special Tool(s) / General Equipment

GFD405221Courtesy of FORD MOTOR COMPANY
100-001 (T50T-100-A)Slide Hammer
GFD405886Courtesy of FORD MOTOR COMPANY
205-142 (T80T-4000-J)Installer, Differential Bearing Cone
GFD404602Courtesy of FORD MOTOR COMPANY
205-153 (T80T-4000-W)Handle
GFD405706Courtesy of FORD MOTOR COMPANY
303-1507Brackets, Support
GFD405963Courtesy of FORD MOTOR COMPANY
303-409 (T92C-6700-CH)Remover, Crankshaft Seal | TKIT-1992-FH/FMH/FLMH | TKIT-1993-LMH/MH
GFD405628Courtesy of FORD MOTOR COMPANY
303-519 (T95P-6701-EH)Remover, Crankshaft Rear Oil Seal | TKIT-1995-FH/FLMH | TKIT-1995-LMH/MH
GFD405926Courtesy of FORD MOTOR COMPANY
303-F047Lifting Bracket, Engine
Floor Crane
Three Leg Puller
Mounting Stand
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE: Remove the cylinder heads before removing the crankshaft. Failure to do so can result in engine damage.
NOTE: If the components are to be reinstalled, they must be installed in their original location. Mark the components for installation into their original location.
NOTE: Refer to the exploded view under the Engine Component View in the DESCRIPTION AND OPERATION

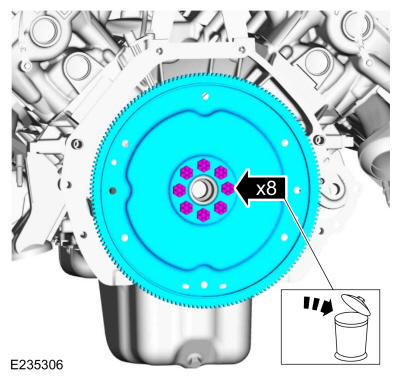

  1. NOTE: Flexplate shown, flywheel similar.

    • Remove the bolts and the flexplate.

    • Discard the bolts.

    GFD405964Courtesy of FORD MOTOR COMPANY
  2. Remove the engine-to-transmission spacer plate.
    GFD405965Courtesy of FORD MOTOR COMPANY

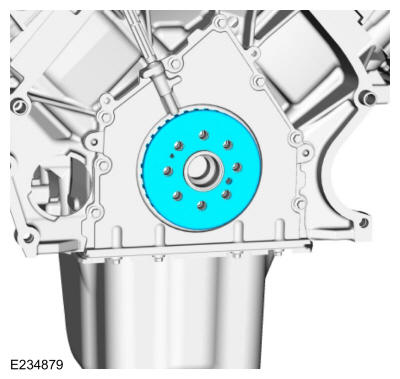

  3. Remove the crankshaft ignition pulse ring.
    GFD405801Courtesy of FORD MOTOR COMPANY
  4. Remove the bolt and the CKP sensor.
    GFD405966Courtesy of FORD MOTOR COMPANY

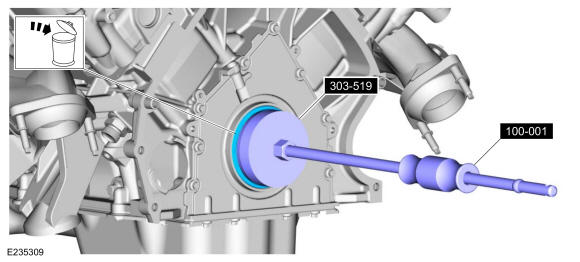

  5. Using the special tools, remove and discard the crankshaft rear seal. Use Special Service Tool: 303-519 (T95P-6701-EH) Remover, Crankshaft Rear Oil Seal., 100-001 (T50T-100-A) Slide Hammer.
    GFD405967Courtesy of FORD MOTOR COMPANY

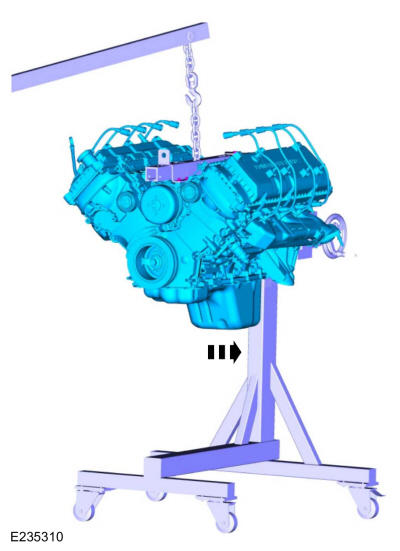

  6. Using the floor crane, mount the engine to a mounting stand.. Use the General Equipment: Floor Crane. Use the General Equipment: Mounting Stand
    GFD405968Courtesy of FORD MOTOR COMPANY
  7. Remove the bolts and the special tools. Remove Special Service Tool: 303-1507 Brackets, Support., 303-F047 Lifting Bracket, Engine.
    GFD405958Courtesy of FORD MOTOR COMPANY
  8. Remove the nuts and the radio ignition interference capacitors.
    GFD405969Courtesy of FORD MOTOR COMPANY
    • Disconnect the LH spark plug wires from the valve cover retainers.

    • Remove the spark plug wires from the lower spark plugs.

    GFD405970Courtesy of FORD MOTOR COMPANY
    • Disconnect the RH spark plug wires from the valve cover retainers.

    • Remove the spark plug wires from the lower spark plugs.

    GFD405971Courtesy of FORD MOTOR COMPANY
  9. Remove the bolts and the KS.
    GFD405972Courtesy of FORD MOTOR COMPANY
  10. Remove the bolts and the thermostat housing and upper radiator hose assembly.
    GFD405651Courtesy of FORD MOTOR COMPANY
  11. Remove and discard the thermostat housing O-ring seal.
    GFD405652Courtesy of FORD MOTOR COMPANY
  12. Remove the thermostat.
    GFD405973Courtesy of FORD MOTOR COMPANY

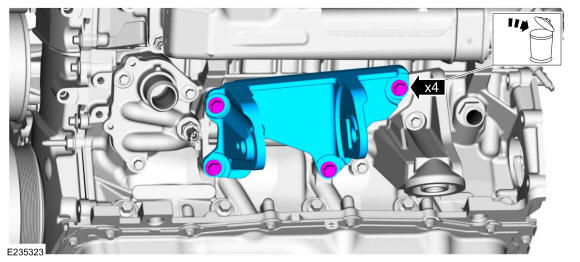

    • Remove the bolts and the LH engine mount bracket.

    • Discard the bolts.

    GFD405974Courtesy of FORD MOTOR COMPANY

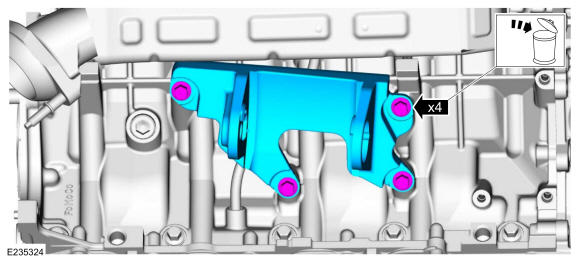

    • Remove the bolts and the RH engine mount bracket.

    • Discard the bolts.

    GFD405975Courtesy of FORD MOTOR COMPANY
  13. Remove the bolts and the RH exhaust manifold heat shield.
    GFD405976Courtesy of FORD MOTOR COMPANY

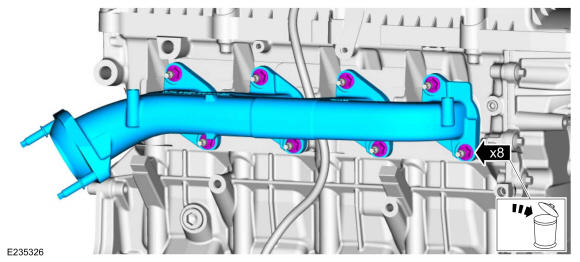

    • Remove the nuts and the RH exhaust manifold.

    • Discard the nuts.

    GFD405977Courtesy of FORD MOTOR COMPANY

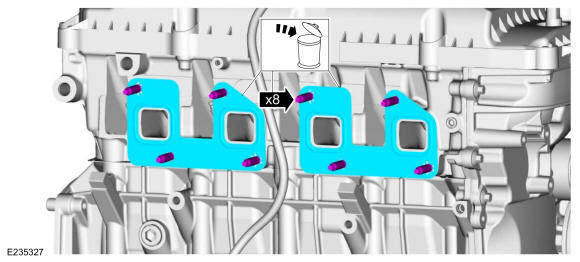

  14. Remove and discard the RH exhaust manifold stud and gaskets.
    GFD405978Courtesy of FORD MOTOR COMPANY
  15. Remove the bolts and the LH exhaust manifold heat shield.
    GFD405979Courtesy of FORD MOTOR COMPANY

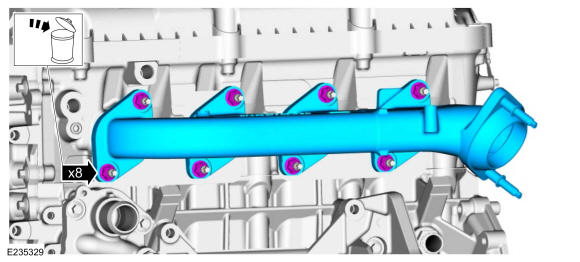

    • Remove the nuts and the LH exhaust manifold.

    • Discard the nuts.

    GFD405980Courtesy of FORD MOTOR COMPANY

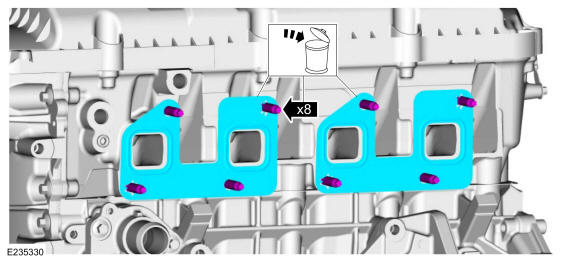

  16. Remove and discard the LH exhaust manifold stud and gaskets.
    GFD405981Courtesy of FORD MOTOR COMPANY
  17. Remove the oil level indicator.
    GFD405982Courtesy of FORD MOTOR COMPANY
  18. Remove the bolt and the oil level indicator tube.
    GFD405983Courtesy of FORD MOTOR COMPANY
  19. Inspect the oil level indicator tube O-ring seal for damaged.
    GFD405984Courtesy of FORD MOTOR COMPANY

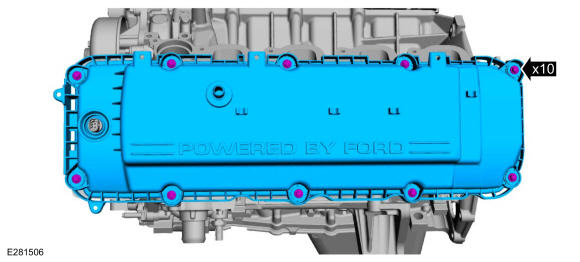

  20. Loosen the bolts and remove the LH valve cover.
    GFD405985Courtesy of FORD MOTOR COMPANY

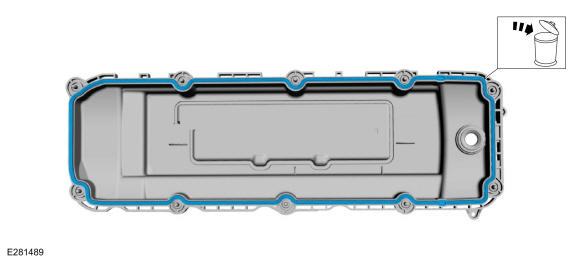

  21. Remove and discard the LH valve cover gasket.
    GFD405892Courtesy of FORD MOTOR COMPANY

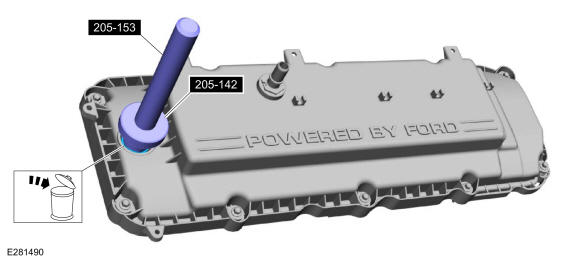

  22. Inspect the VCT oil control solenoid seal. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-142 (T80T-4000-J) Installer, Differential Bearing Cone.
    GFD405893Courtesy of FORD MOTOR COMPANY

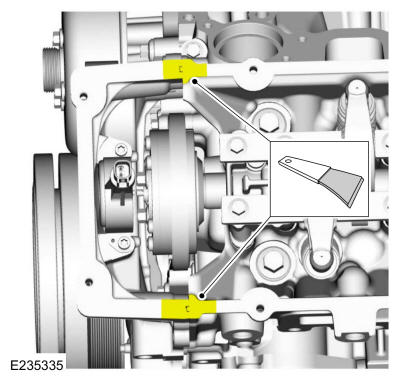

  23. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD405986Courtesy of FORD MOTOR COMPANY

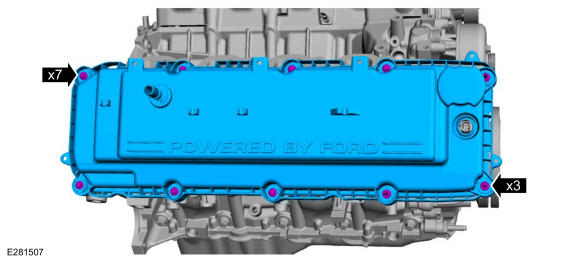

  24. Loosen the fasteners and remove the RH valve cover.
    GFD405987Courtesy of FORD MOTOR COMPANY

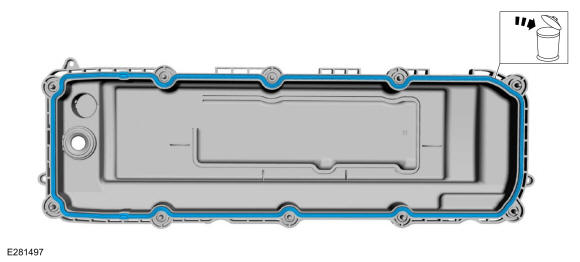

  25. Remove and discard the RH valve cover gasket.
    GFD405905Courtesy of FORD MOTOR COMPANY
  26. Remove the oil fill cap.
    GFD405906Courtesy of FORD MOTOR COMPANY

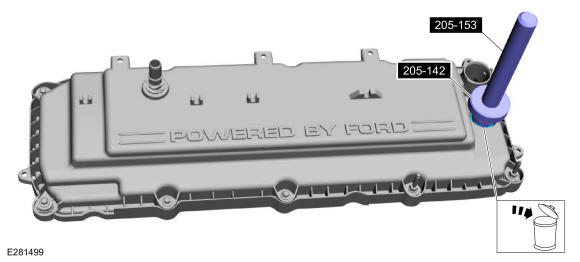

  27. Inspect the VCT oil control solenoid seal. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-142 (T80T-4000-J) Installer, Differential Bearing Cone.
    GFD405907Courtesy of FORD MOTOR COMPANY

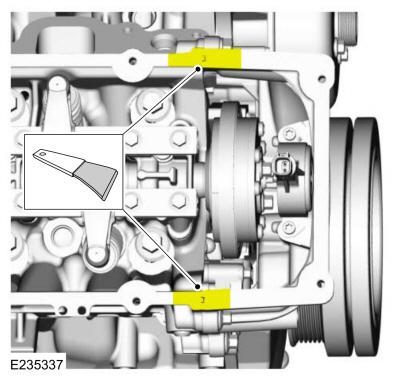

  28. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD405988Courtesy of FORD MOTOR COMPANY
  29. Remove the bolts and the oil filter adapter.
    GFD405989Courtesy of FORD MOTOR COMPANY

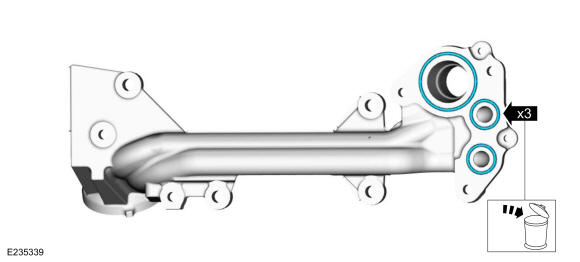

  30. Remove and discard the oil filter adapter O-ring seals.
    GFD405990Courtesy of FORD MOTOR COMPANY

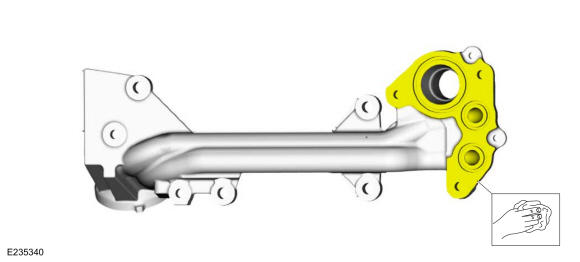

  31. Clean the oil filter adapter mating surface.
    GFD405991Courtesy of FORD MOTOR COMPANY

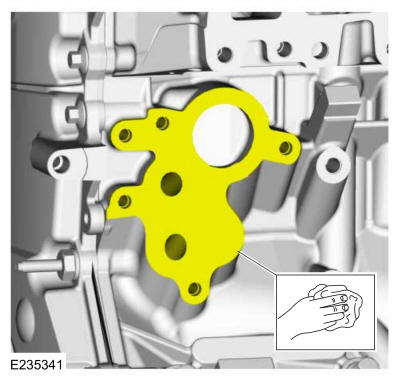

  32. Clean the engine block mating surface of the oil filter adapter.
    GFD405992Courtesy of FORD MOTOR COMPANY
  33. If equipped, remove the engine block heater.
    GFD405993Courtesy of FORD MOTOR COMPANY

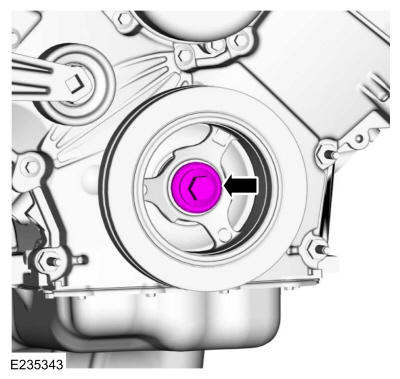

  34. NOTE: Do not discard the crankshaft pulley bolt and washer, it will be used to turn the crankshaft in disassembly and assembly.

    Remove the crankshaft pulley bolt and washer.

    GFD405994Courtesy of FORD MOTOR COMPANY

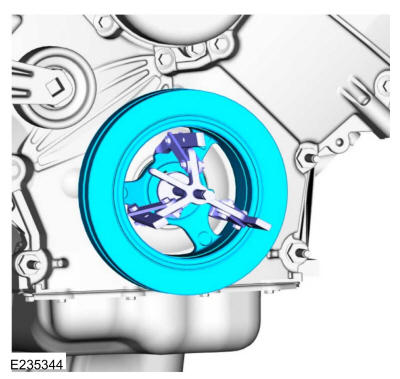

  35. Using the special tool, remove the crankshaft pulley.. Use the General Equipment: Three Leg Puller
    GFD405995Courtesy of FORD MOTOR COMPANY

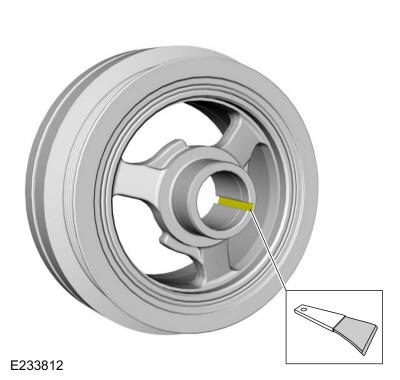

  36. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD405616Courtesy of FORD MOTOR COMPANY
  37. Remove the bolts and the coolant pump pulley.
    GFD405996Courtesy of FORD MOTOR COMPANY
  38. Remove the bolts and the accessory drive belt idler pulleys.
    GFD405997Courtesy of FORD MOTOR COMPANY
  39. Remove the bolts and the accessory drive belt tensioner.
    GFD405998Courtesy of FORD MOTOR COMPANY

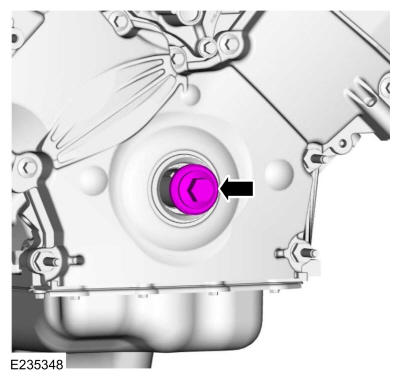

  40. Install the crankshaft pulley bolt and washer.
    GFD405999Courtesy of FORD MOTOR COMPANY

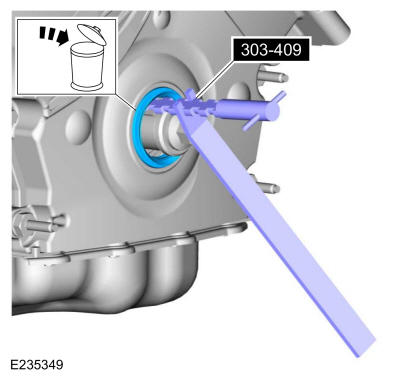

  41. Using the special tool, remove and discard the crankshaft front seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
    GFD406000Courtesy of FORD MOTOR COMPANY

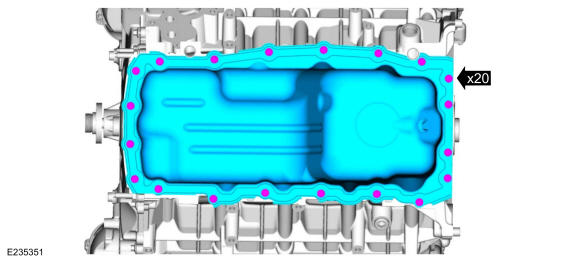

  42. Remove the bolts and the oil pan.
    GFD406001Courtesy of FORD MOTOR COMPANY

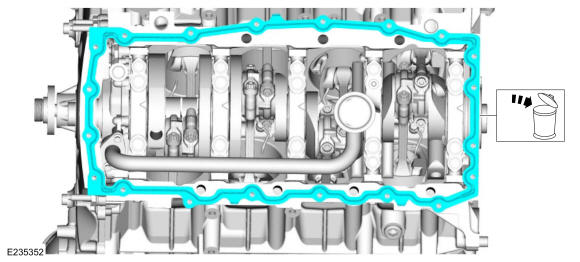

  43. Remove and discard the oil pan gasket.
    GFD406002Courtesy of FORD MOTOR COMPANY

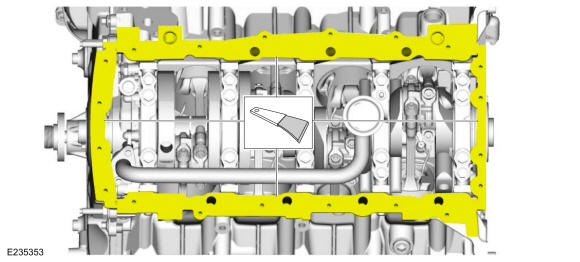

  44. Clean prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD406003Courtesy of FORD MOTOR COMPANY

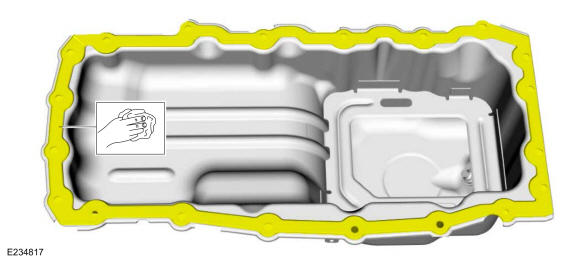

  45. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the oil pan. These tools cause scratches and gouges, which make leak paths.

    Make sure that the mating faces are clean and free of foreign material.

    GFD405806Courtesy of FORD MOTOR COMPANY

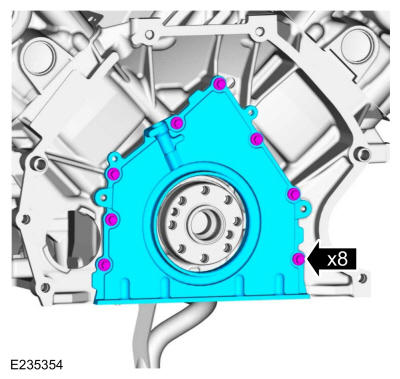

  46. Remove the bolts and the crankshaft rear seal retainer plate.
    GFD406004Courtesy of FORD MOTOR COMPANY
  47. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD406005Courtesy of FORD MOTOR COMPANY

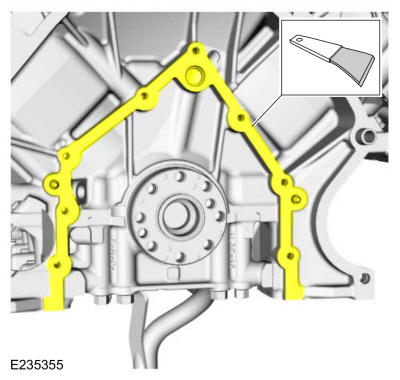

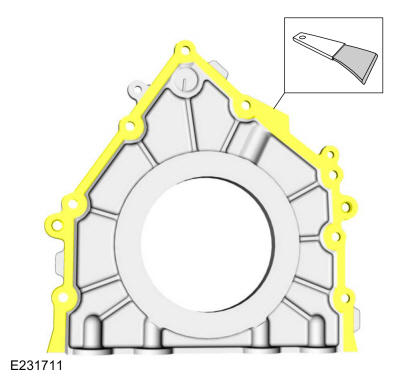

  48. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD405642Courtesy of FORD MOTOR COMPANY
  49. Loosen the bolts and remove the LH VCT oil control solenoid.
    GFD406006Courtesy of FORD MOTOR COMPANY
  50. Loosen the bolts and remove the RH VCT oil control solenoid.
    GFD406007Courtesy of FORD MOTOR COMPANY

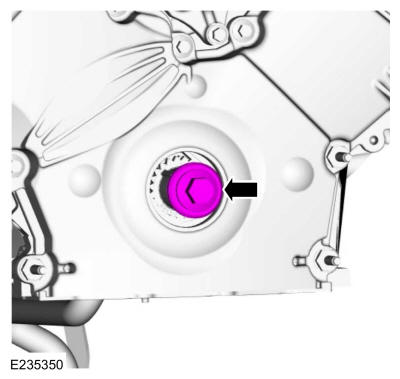

  51. Remove the crankshaft pulley bolt and washer.
    GFD406008Courtesy of FORD MOTOR COMPANY

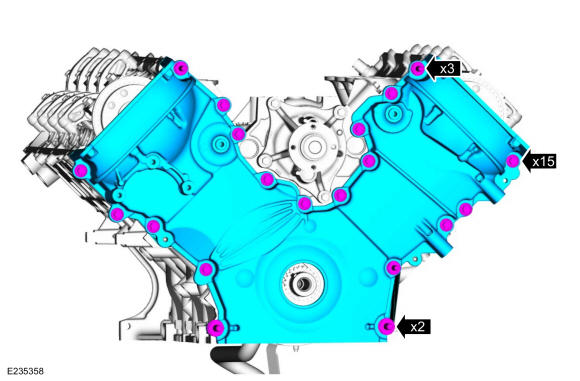

  52. Remove the bolts and the engine front cover.
    GFD406009Courtesy of FORD MOTOR COMPANY
  53. Remove and discard the engine front cover gaskets.
    GFD405697Courtesy of FORD MOTOR COMPANY

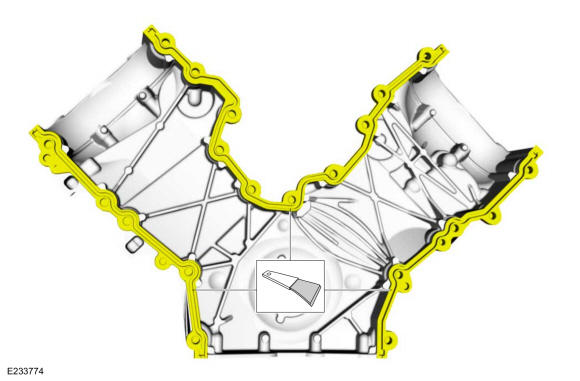

  54. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD405698Courtesy of FORD MOTOR COMPANY

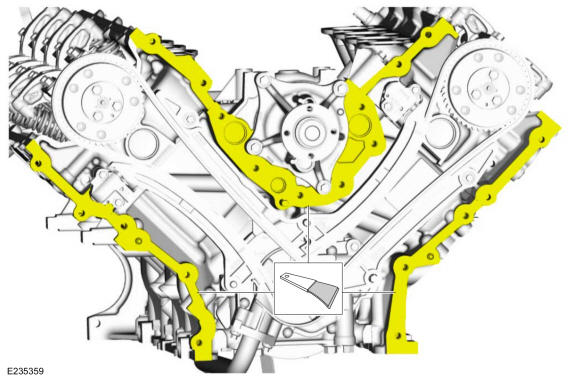

  55. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD406010Courtesy of FORD MOTOR COMPANY

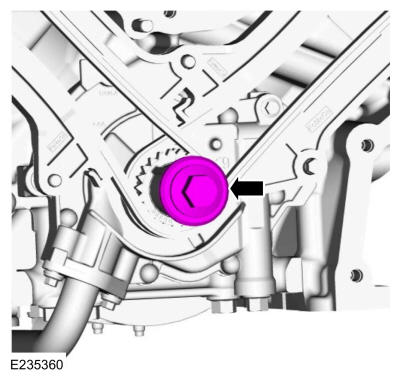

  56. Install the crankshaft pulley bolt and washer.
    GFD406011Courtesy of FORD MOTOR COMPANY

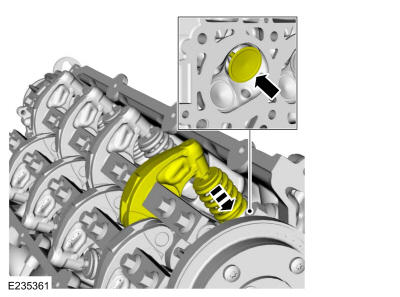

  57. NOTE: Only rotate the engine in a clockwise direction.

    Using the crankshaft bolt, rotate the engine clockwise until the No. 1 intake valve is open.

    GFD406012Courtesy of FORD MOTOR COMPANY

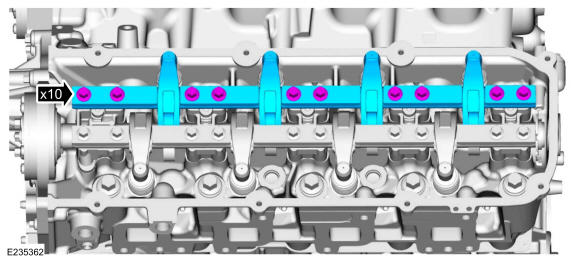

  58. Remove the bolts and the LH intake rocker arm shaft assembly.
    GFD406013Courtesy of FORD MOTOR COMPANY

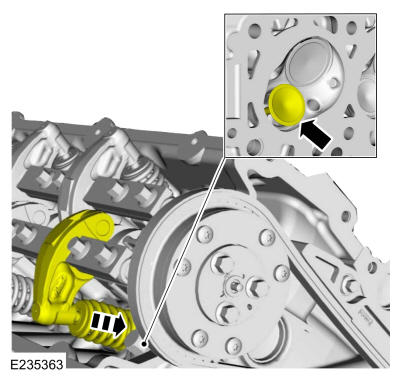

  59. NOTE: Only rotate the engine in a clockwise direction.

    Using the crankshaft bolt, rotate the engine clockwise until the No. 1 exhaust valve is open.

    GFD406014Courtesy of FORD MOTOR COMPANY

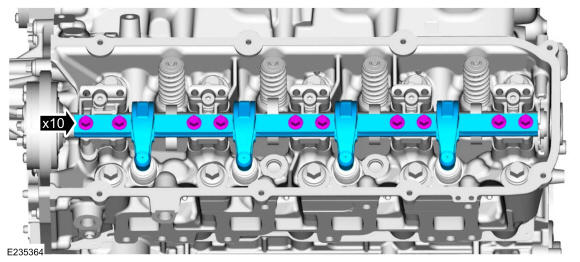

  60. Remove the bolts and the LH exhaust rocker arm shaft assembly.
    GFD406015Courtesy of FORD MOTOR COMPANY
  61. NOTE: Only rotate the engine in a clockwise direction.

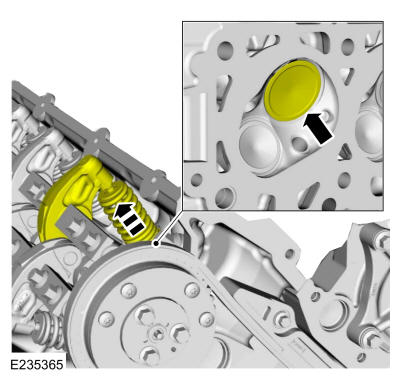

    Using the crankshaft bolt, rotate the engine clockwise until the No. 1 intake valve is closed.

    GFD406016Courtesy of FORD MOTOR COMPANY

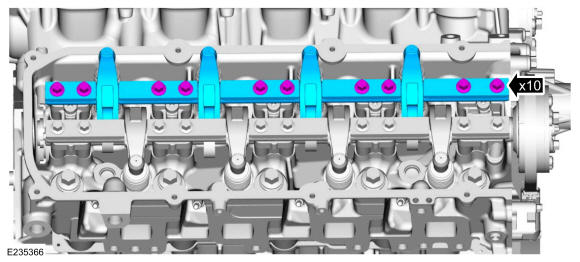

  62. Remove the bolts and the RH intake rocker arm shaft assembly.
    GFD406017Courtesy of FORD MOTOR COMPANY

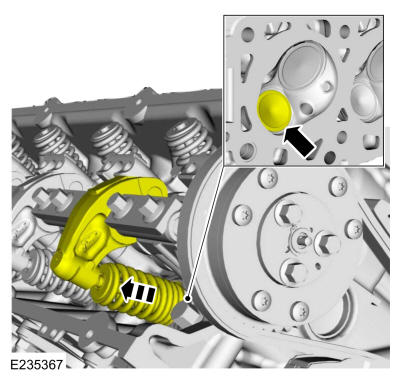

  63. NOTE: Only rotate the engine in a clockwise direction.

    Using the crankshaft bolt, rotate the engine clockwise until the No. 1 exhaust valve is closed.

    GFD406018Courtesy of FORD MOTOR COMPANY

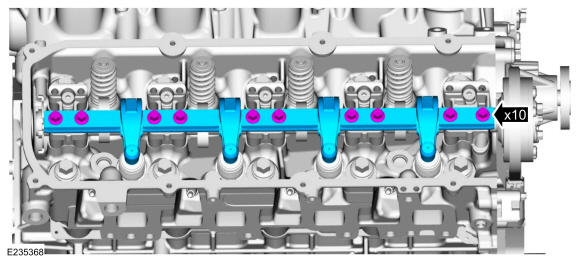

  64. Remove the bolts and the RH exhaust rocker arm shaft assembly.
    GFD406019Courtesy of FORD MOTOR COMPANY

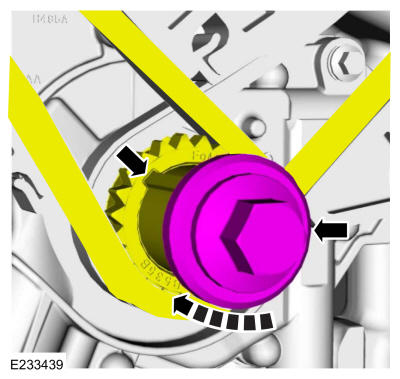

  65. NOTE: Only rotate the engine in a clockwise direction.

    Using the crankshaft bolt, rotate the engine in a clockwise direction and position the crankshaft keyway at the 11 o'clock position.

    GFD405856Courtesy of FORD MOTOR COMPANY

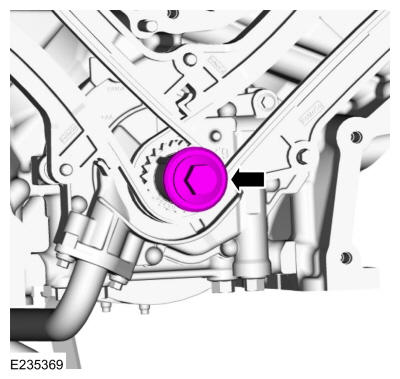

  66. Remove the crankshaft pulley bolt and washer.
    GFD406020Courtesy of FORD MOTOR COMPANY

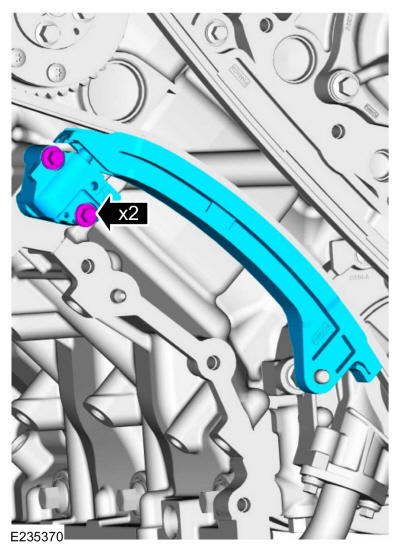

  67. Remove the bolts, the RH primary timing chain tensioner and tensioner arm.
    GFD406021Courtesy of FORD MOTOR COMPANY

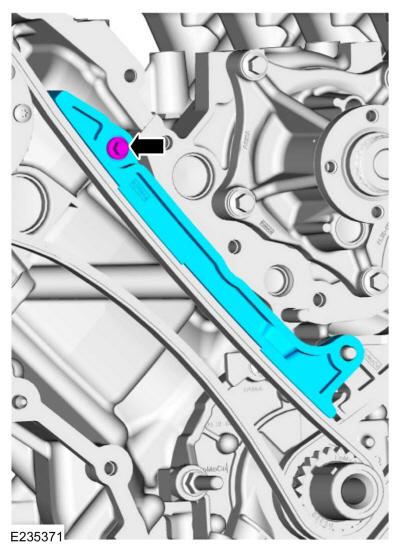

  68. Remove the bolt and the RH timing chain guide.
    GFD406022Courtesy of FORD MOTOR COMPANY

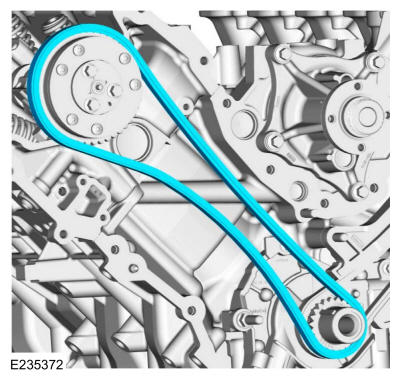

  69. Remove the RH timing chain.
    GFD406023Courtesy of FORD MOTOR COMPANY

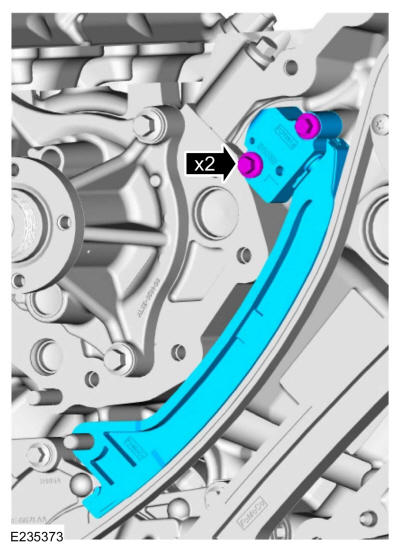

  70. Remove the bolts, the LH primary timing chain tensioner and tensioner arm.
    GFD406024Courtesy of FORD MOTOR COMPANY

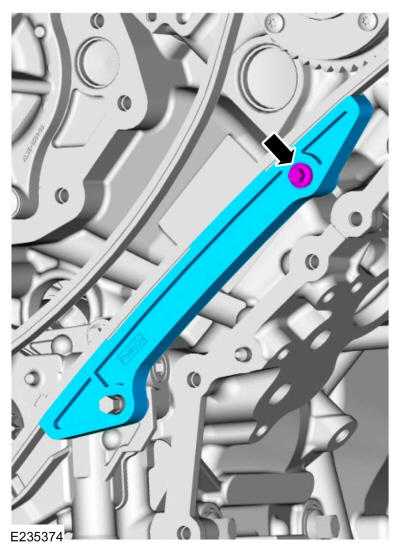

  71. Remove the bolt and the LH timing chain guide.
    GFD406025Courtesy of FORD MOTOR COMPANY

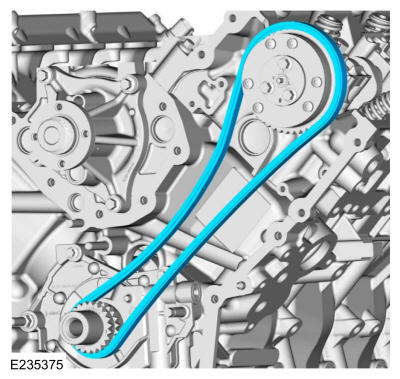

  72. Remove the LH timing chain.
    GFD406026Courtesy of FORD MOTOR COMPANY
  73. Remove the crankshaft sprocket.
    GFD406027Courtesy of FORD MOTOR COMPANY

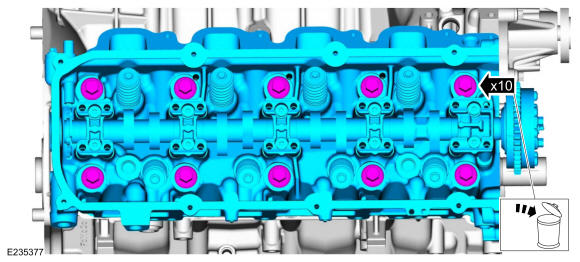

  74. NOTE: The cylinder head must be cool before removing it from the engine. Cylinder head warpage may result if a warm or hot cylinder head is removed.
    NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Failure to follow this instruction may cause engine damage.
    NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are a tighten-to-yield design and cannot be reused.

    • Remove and discard the RH cylinder head bolts.

    • Remove the RH cylinder head.

    GFD406028Courtesy of FORD MOTOR COMPANY

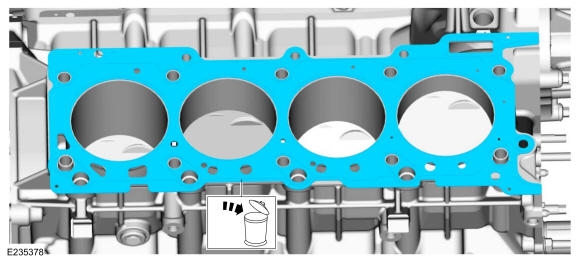

  75. Remove and discard the RH cylinder head gasket.
    GFD406029Courtesy of FORD MOTOR COMPANY

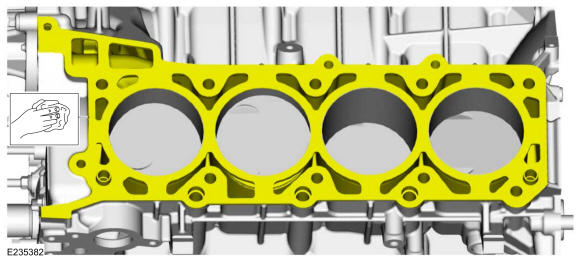

  76. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.
    NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface. Failure to follow this instruction may cause engine damage.
    NOTE: Clean the cylinder block bolt holes using compressed air. Make sure all coolant, oil or other foreign material is removed.

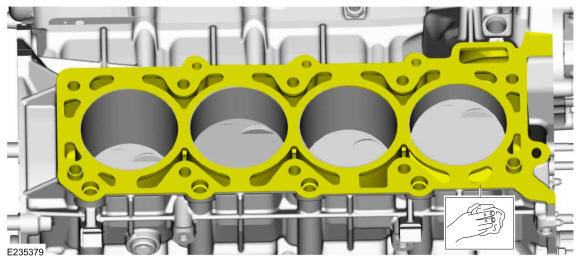

    • Clean and inspect the cylinder block mating surface.

    GFD406030Courtesy of FORD MOTOR COMPANY
  77. Remove the dowels from the RH bank of the cylinder block.
    GFD406031Courtesy of FORD MOTOR COMPANY

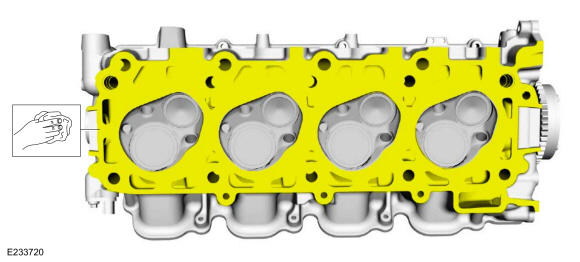

  78. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.
    NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface. Failure to follow this instruction may cause engine damage.
    NOTE: Clean the cylinder head bolt holes using compressed air. Make sure all coolant, oil or other foreign material is removed.

    • Clean and inspect the RH cylinder head mating surface.

    GFD405680Courtesy of FORD MOTOR COMPANY

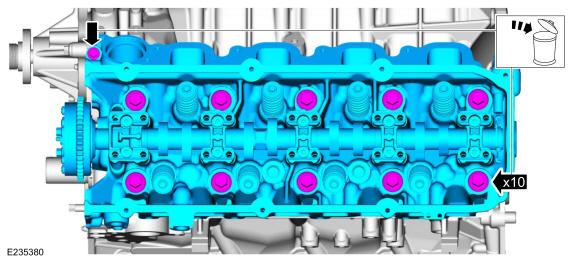

  79. NOTE: The cylinder head must be cool before removing it from the engine. Cylinder head warpage may result if a warm or hot cylinder head is removed.
    NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Failure to follow this instruction may cause engine damage.
    NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are a tighten-to-yield design and cannot be reused.

    • Remove and discard the LH cylinder head bolts.

    • Remove the cylinder head.

    GFD406032Courtesy of FORD MOTOR COMPANY

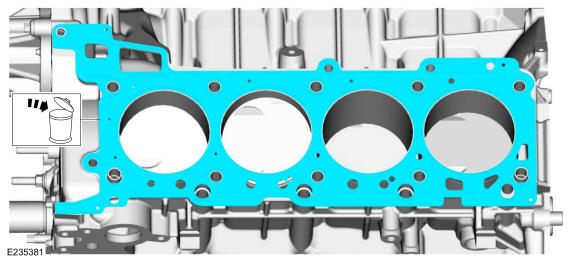

  80. Remove and discard the LH cylinder head gasket.
    GFD406033Courtesy of FORD MOTOR COMPANY
  81. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.
    NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface. Failure to follow this instruction may cause engine damage.
    NOTE: Clean the cylinder head bolt holes using compressed air. Make sure all coolant, oil or other foreign material is removed.

    • Clean and inspect the LH cylinder block mating surface.

    GFD406034Courtesy of FORD MOTOR COMPANY
  82. Remove the dowels from the LH bank of the cylinder block.
    GFD406035Courtesy of FORD MOTOR COMPANY

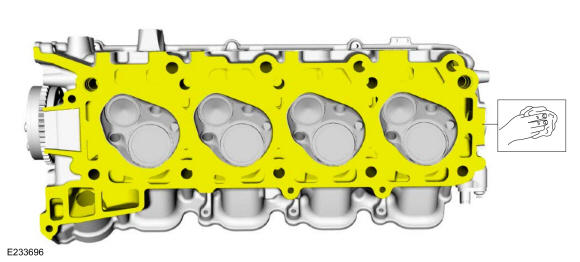

  83. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.
    NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface. Failure to follow this instruction may cause engine damage.
    NOTE: Clean the cylinder head bolt holes using compressed air. Make sure all coolant, oil or other foreign material is removed.

    • Clean and inspect the LH cylinder head mating surface.

    GFD405658Courtesy of FORD MOTOR COMPANY
  84. Remove the bolts and the coolant pump.
    GFD406036Courtesy of FORD MOTOR COMPANY

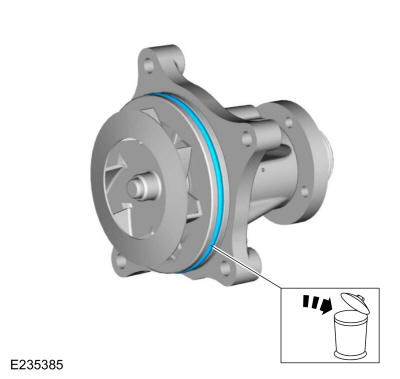

  85. Remove and discard the coolant pump O-ring seal.
    GFD406037Courtesy of FORD MOTOR COMPANY
    1. Remove the oil pump screen and pickup tube bolts.
    2. Remove and nut and the oil pump screen and pickup tube.
    GFD406038Courtesy of FORD MOTOR COMPANY
  86. Remove and discard the oil pump screen and pickup tube O-ring seal.
    GFD405805Courtesy of FORD MOTOR COMPANY
  87. Remove the upper bolts, lower stud bolts and the oil pump.
    GFD406039Courtesy of FORD MOTOR COMPANY

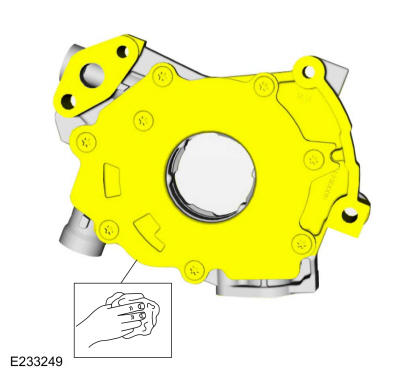

  88. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

    Make sure that the mating faces are clean and free of foreign material.

    GFD405830Courtesy of FORD MOTOR COMPANY

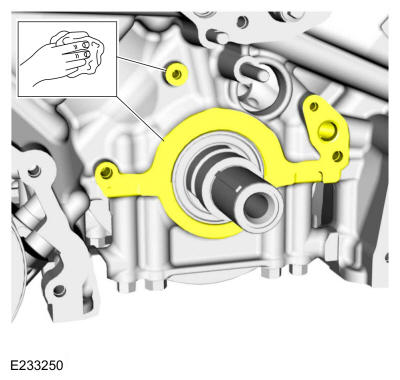

  89. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

    Make sure that the mating faces are clean and free of foreign material.

    GFD405831Courtesy of FORD MOTOR COMPANY

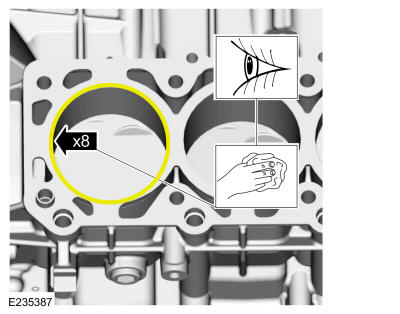

  90. Before removing the pistons, inspect the top of the cylinder bores. If necessary, remove the ridge or carbon deposits from each cylinder using an abrasive pad or equivalent.
    GFD406040Courtesy of FORD MOTOR COMPANY

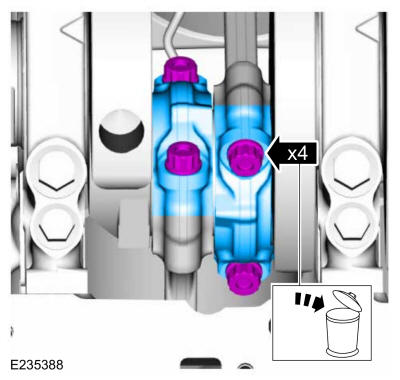

  91. NOTE: Verify that the connecting rods and rod caps have orientation numbers cast into them. If not, number the connecting rods and rod caps for correct orientation. Failure to follow these instructions may result in engine damage.

    • Remove the bolts and the connecting rod caps and bearings.

    • Discard the bolts.

    • Repeat for each set of pistons.

    GFD406041Courtesy of FORD MOTOR COMPANY

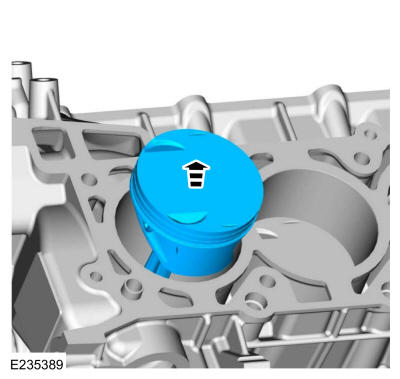

  92. NOTE: Do not scratch the cylinder walls or crankshaft journals with the connecting rod. Failure to follow this instruction may result in engine damage.

    • Remove the piston through the top of the cylinder block.

    • Repeat for each piston.

    GFD406042Courtesy of FORD MOTOR COMPANY
  93. Disassemble the pistons. Refer to: Piston .

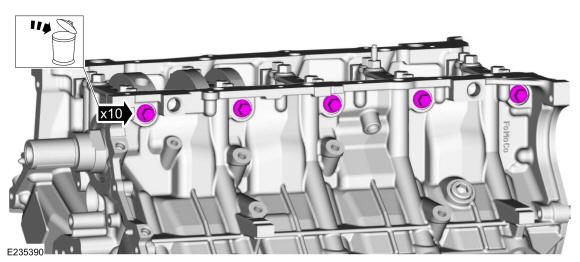

  94. Remove and discard the LH cross-mounted main cap bolts.
    GFD406043Courtesy of FORD MOTOR COMPANY

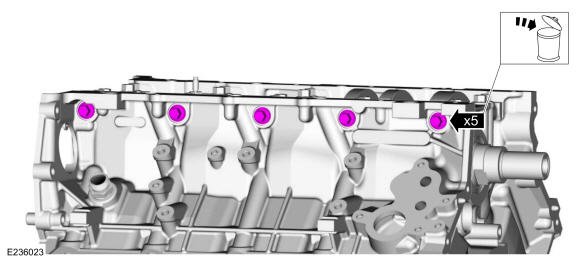

  95. Remove and discard the RH cross-mounted main cap bolts.
    GFD406044Courtesy of FORD MOTOR COMPANY

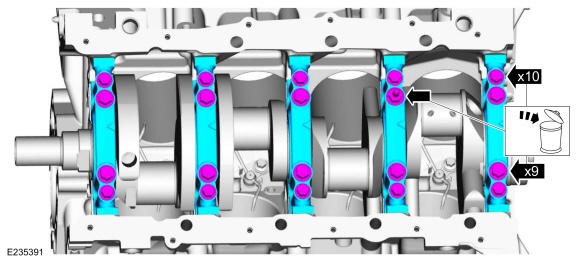

  96. NOTE: Correct stud bolt location is essential for assembly procedure. Record the stud bolt location.

    • Remove and discard the main bearing cap bolts and the stud bolt.

    • Remove the main bearing caps.

    GFD406045Courtesy of FORD MOTOR COMPANY

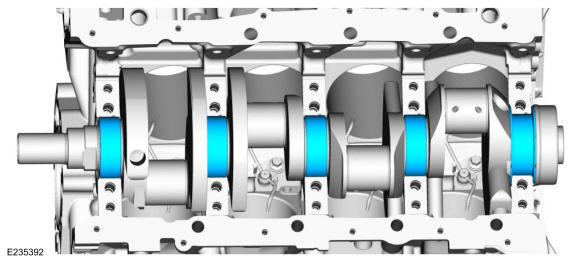

  97. Remove the lower crankshaft main bearings and the lower thrust washer.
    GFD406046Courtesy of FORD MOTOR COMPANY

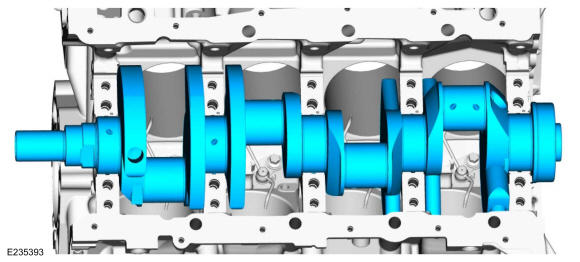

  98. Remove the crankshaft.
    GFD406047Courtesy of FORD MOTOR COMPANY

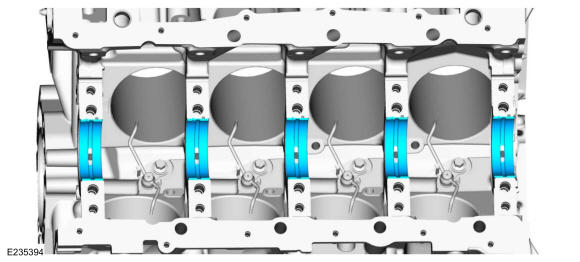

  99. Remove the upper crankshaft main bearings.
    GFD406048Courtesy of FORD MOTOR COMPANY

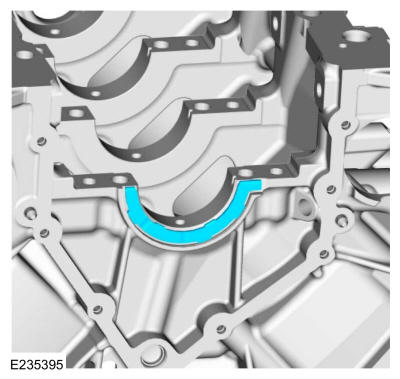

  100. Remove the upper crankshaft main bearing thrust washer.
    GFD406049Courtesy of FORD MOTOR COMPANY
  101. Remove the bolts and the piston oil cooler valves.
    GFD406050Courtesy of FORD MOTOR COMPANY
  102. Inspect the cylinder block distortion. Refer to: Cylinder Block Distortion .
