Engine Front Cover: Installation

WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Install the new gaskets on the engine front cover.

Courtesy of FORD MOTOR COMPANY
NOTE: If the engine front cover is not secured within 4 minutes, the sealant must be removed and the sealing area cleaned.

NOTE: Make sure that the engine front cover gaskets are in place on the engine front cover before installation.

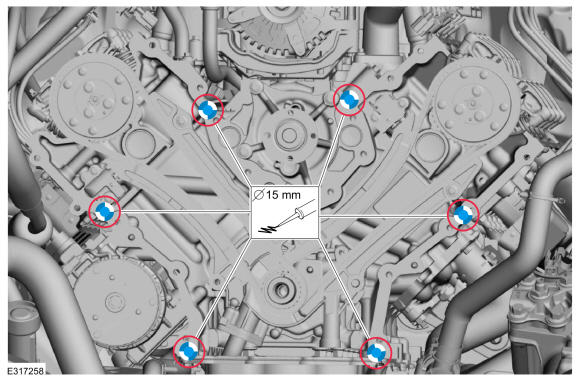

Apply a 15 mm (0.59 in) drop of silicone sealant at the cylinder head-to-cylinder block and cylinder block-to-oil pan joint areas.

Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
NOTE: The engine front cover must be rolled into place, do not slide on pan gasket.

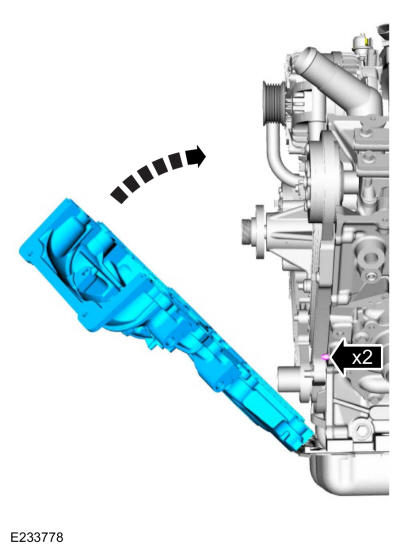

Install the engine front cover onto the dowels.

Courtesy of FORD MOTOR COMPANY
- Install the engine front cover bolts and studs bolts finger-tight.
- Tighten the engine front cover bolts and studs bolts in sequence shown.
  Torque: Tighten bolts 1 through 20: 89 lb.in (10 Nm) Tighten bolts 1 through 20: 177 lb.in (20 Nm) Tighten bolts 1 through 20 an additional: 30 deg.

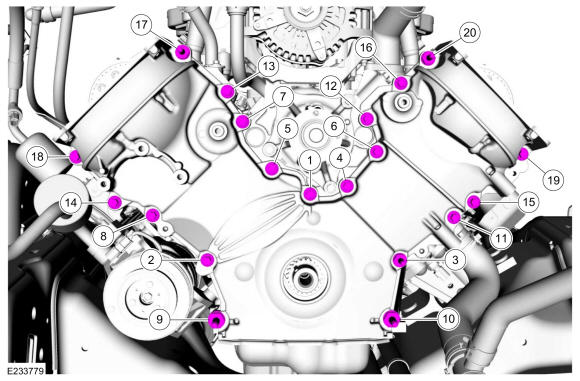

Fig 1: Engine Front Cover Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
- Loosely install the front oil pan bolts.
- Tighten the front oil pan bolts in sequence shown in 2 stages.
  Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45 deg.

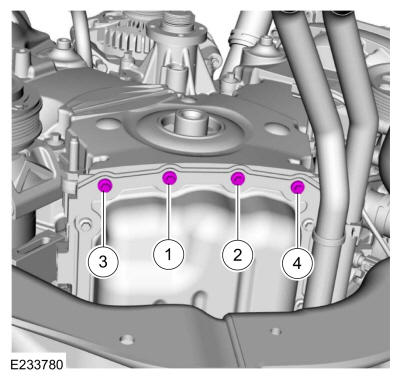

Fig 2: Front Oil Pan Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY

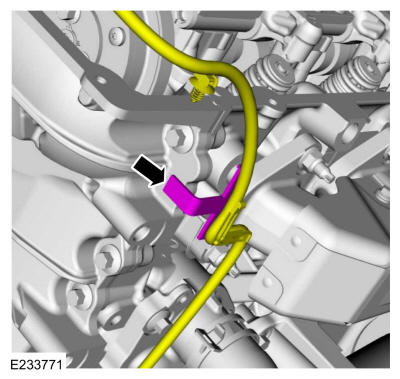

Attach the wiring harness retainer to the engine front cover.

Courtesy of FORD MOTOR COMPANY

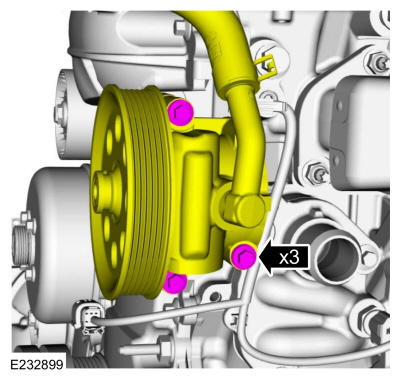

Position the power steering pump and install the new bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the power steering pump pressure line and the bolt. Torque
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the oil filter gasket with clean engine oil.

Install a new engine oil filter.

Torque: Stage 1: 44 lb.in (5 Nm) | Stage 2: 180 deg.

Courtesy of FORD MOTOR COMPANY

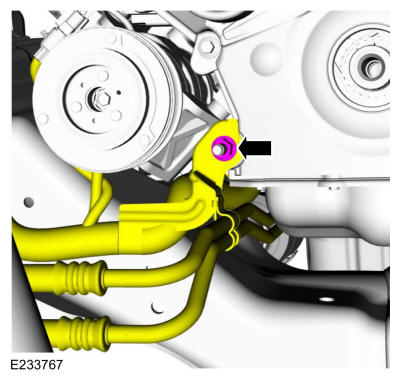

- Install the starter motor wiring harness bracket.
- If equipped with automatic transmission, install the transmission cooler lines bracket.
- Install the nut.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY

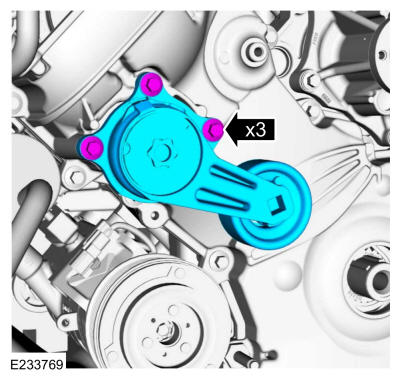

Install the accessory drive belt tensioner and the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

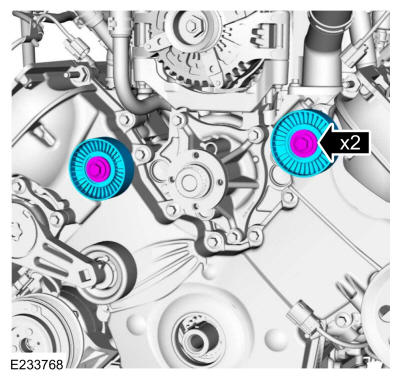

Install the accessory drive belt idler pulleys and the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

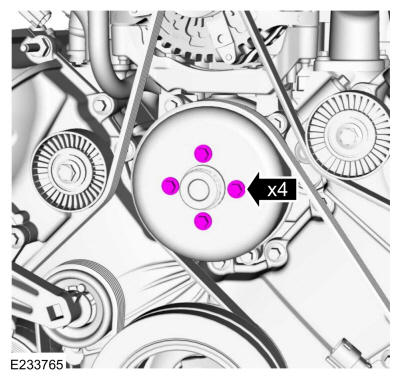

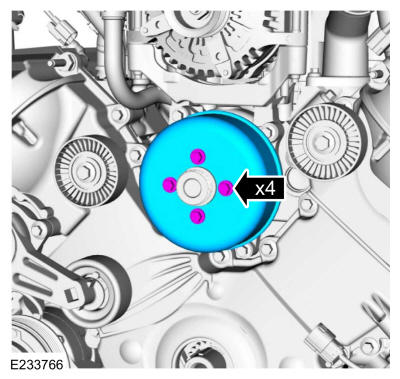

Install the coolant pump pulley and the bolts finger-tight.

Courtesy of FORD MOTOR COMPANY
Install the crankshaft front seal. Refer to: Crankshaft Front Seal .
Tighten the coolant pump pulley bolts.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

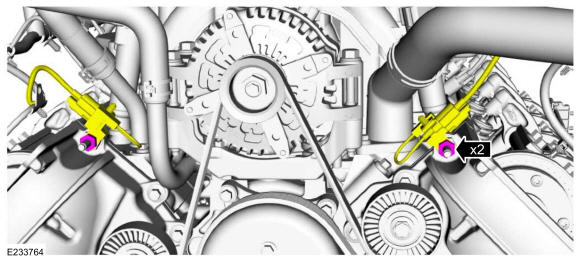

Position the radio ignition interference capacitors and install the nuts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the LH and RH variable camshaft timing (VCT) oil control solenoids. Refer to: Variable Camshaft Timing (VCT) Oil Control Solenoid .
Install the cooling fan shroud. Refer to: Cooling Fan Shroud .
Fill the engine with clean engine oil. Refer to: Specifications .
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

Courtesy of FORD MOTOR COMPANY
Fill the power steering system. Refer to: Power Steering System Filling .
