Section 256 (Engine - 6.7L Power Stroke Diesel): Assembly: Engine

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	100-001 (T50T-100-A) Slide Hammer
Courtesy of FORD MOTOR COMPANY	100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge
Courtesy of FORD MOTOR COMPANY	205-036 (T70P-4067-A) Wrench

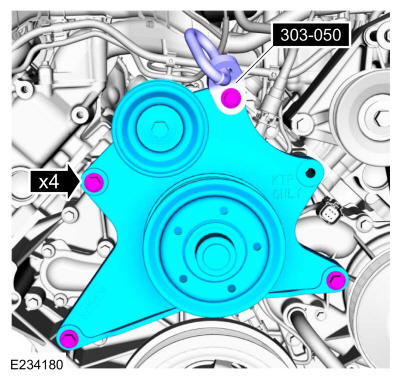

Courtesy of FORD MOTOR COMPANY	303-050 (T70P-6000) Lifting Bracket, Engine

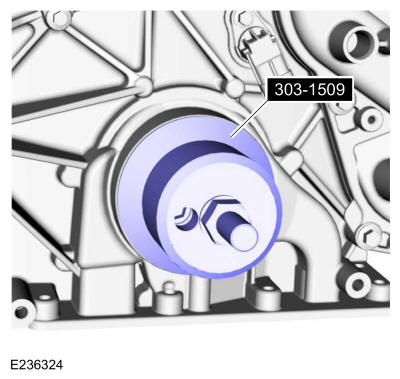

Courtesy of FORD MOTOR COMPANY	303-1509 Installer, Front Crank Seal TKIT-2009C-F TKIT-2009C-ROW
Courtesy of FORD MOTOR COMPANY	303-1514 Installer, Rear Crank Seal TKIT-2009C-F TKIT-2009C-ROW
Courtesy of FORD MOTOR COMPANY	303-1517 Adapter, Camshaft Remover/Installer TKIT-2009C-F TKIT-2009C-ROW
Courtesy of FORD MOTOR COMPANY	303-1518 Bracket, Engine Removal TKIT-2009C-F TKIT-2009C-ROW

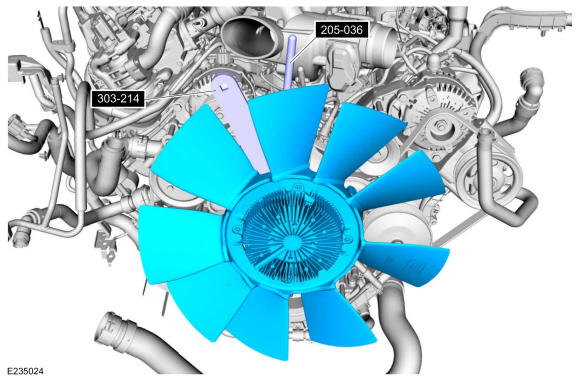

Courtesy of FORD MOTOR COMPANY	303-214 (T83T-6312-B) Wrench, Fan Clutch Nut

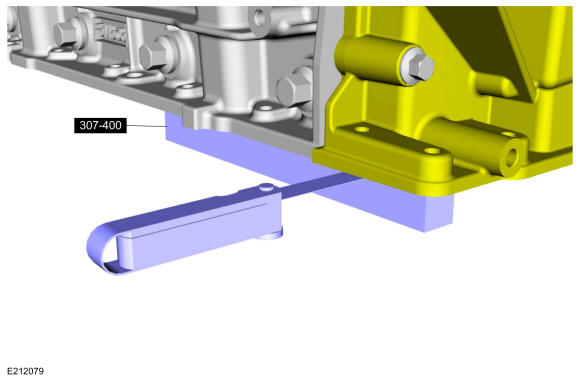

Courtesy of FORD MOTOR COMPANY	307-400 Gauge Bar TKIT-2002N-DEW TKIT-2000AP-FLM/LM
Feeler Gauge
Strap Wrench
Floor Crane
Mounting Stand
Hose Clamp Remover/Installer
Piston Ring Compressor

Materials

Name	Specification
Motorcraft® High Performance Engine RTV Silicone TA-357	WSE-M4G323-A6
Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil XO-10W30-QSDF	WSS-M2C171-F1

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, may cause engine failure.

NOTE: This procedure assumes the engine will be installed using the recommended body off engine installation procedure. If it will be necessary to install the engine using the alternate body on engine installation procedure, some of the components in this procedure should not be installed at this time. Refer to Engine - Body Off .

NOTE: During the repair or installation of fuel-related components, cap, tape or otherwise appropriately protect all fuel opening to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.

NOTE: Refer to the exploded view under the Engine Component View in the Description and Operation.

NOTE: For EXPORT ONLY vehicles (outside US/Canada) an Export Supplement is provided and should be referenced to identify differences that can impact service procedures. Vehicles can be identified by referring to the underhood Vehicle Emission Control Information (VECI) label which states, "Not certified for US EPA or CARB Regulations".

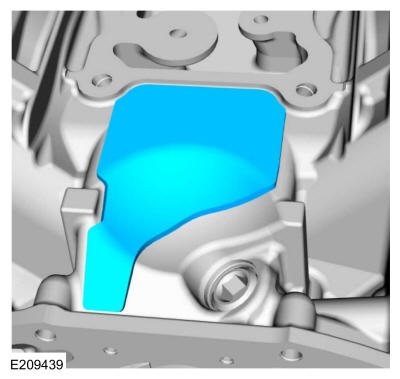

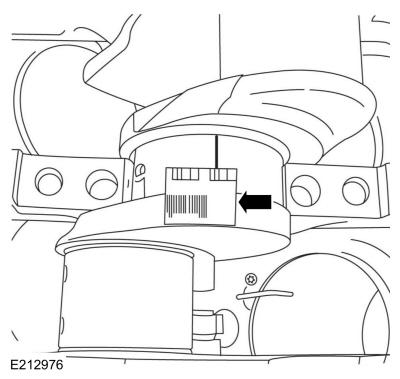

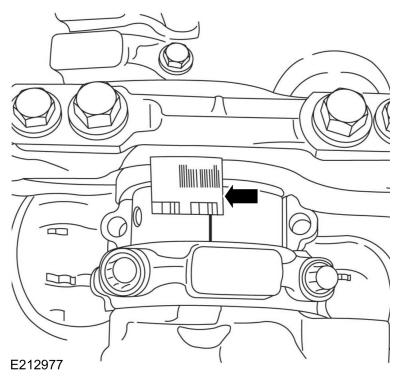

If removed, install a new cylinder block zero clearance patch on the engine.

Courtesy of FORD MOTOR COMPANY

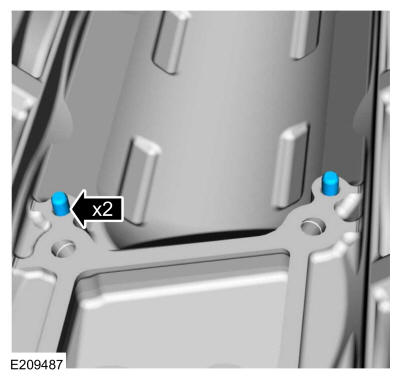

If removed, install the turbocharger alignment dowels.

Courtesy of FORD MOTOR COMPANY
If equipped, install the block heater.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

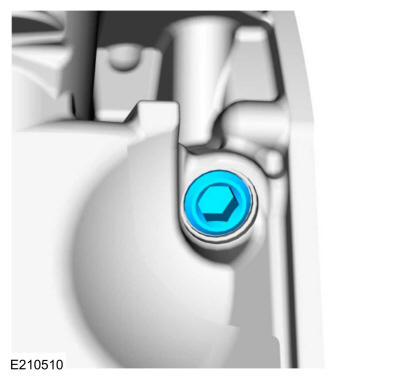

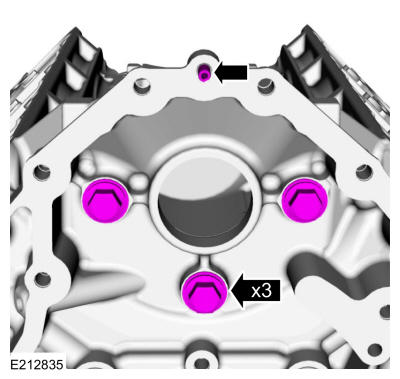

NOTE: Only one pipe plug shown.

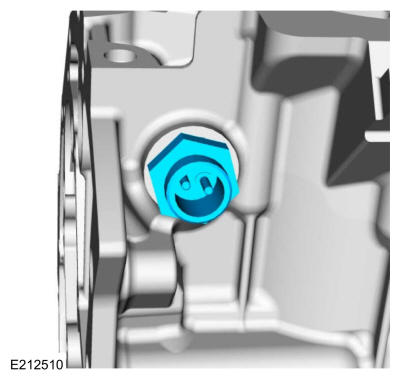

If removed, install the pipe plugs.

Torque: 3/4 x 14 cylinder block plug (HP oil): Stage 1: 177 lb.in (20 Nm) | Stage 2: 720 deg. 1/2 x 14 cylinder block upper plug (HP oil): Stage 3: 30 lb.ft (40 Nm) | Stage 4: 630 deg. 1/2 x 14 cylinder block lower plug (water jacket drains) : 30 lb.ft (40 Nm) M27 x 2 x 6 cylinder block plug : 53 lb.ft (72 Nm)

Courtesy of FORD MOTOR COMPANY
- Install the high-pressure fuel injection pump mounting bolts.
  Torque: 35 lb.ft (48 Nm)
- If removed, install the front cover roll pin.
Courtesy of FORD MOTOR COMPANY

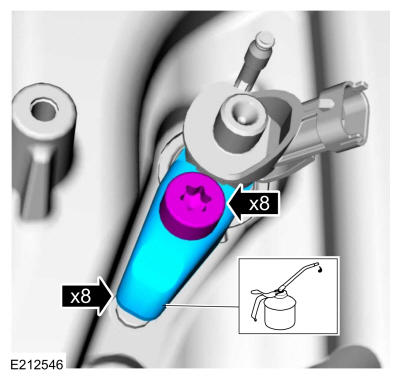

NOTE: Apply clean engine oil to the outside of the piston cooling tubes prior to installation.

NOTE: Only one piston cooling tube shown.

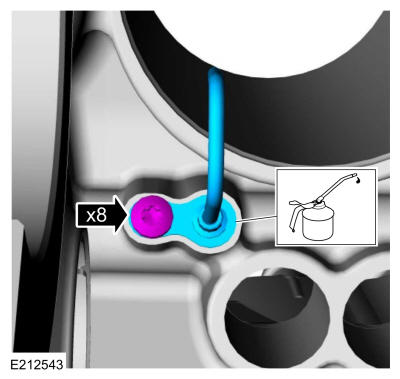

Install the piston cooling tubes and bolts.

Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If the camshaft is being replaced, the camshaft bearings have to be replaced and machined by a machine shop. Failure to follow this may result in engine damage.

NOTE: Do not nick or scratch the camshaft bearings with the camshaft lobes or engine damage may occur.

NOTE: Use the slide hammer as a handle for the camshaft. Using the slide hammer as intended may result in engine damage.

NOTE: Use care when installing the camshaft, the camshaft will slide out the other end of the cylinder block.

NOTE: Apply clean engine oil to the camshaft prior to installing.

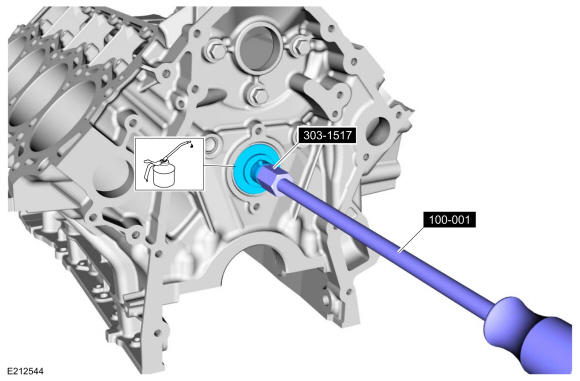

Using the special tools, install the camshaft. Use Special Service Tool: 303-1517 Adapter, Camshaft Remover/Installer., 100-001 (T50T-100-A) Slide Hammer.

Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Courtesy of FORD MOTOR COMPANY

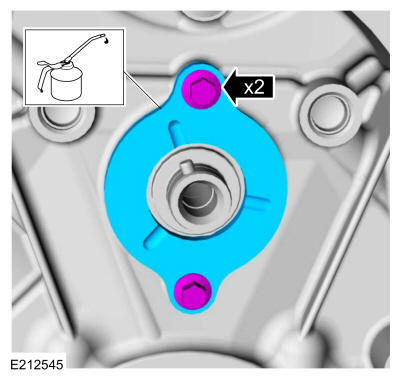

NOTE: Apply clean engine oil to both sides of the camshaft thrust plate prior to installing.

Install the camshaft thrust plate and bolts.

Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Use a suitable tool in the top camshaft gear hole to prevent the camshaft from turning. Make sure the suitable tool is secured against the cylinder block prior to tightening the camshaft bolt.

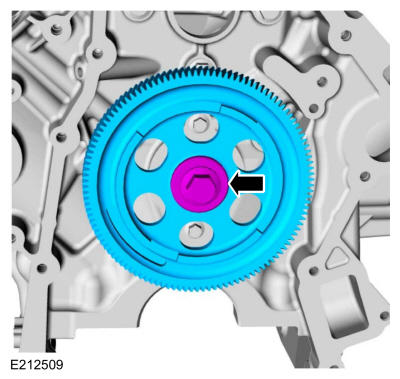

Install the camshaft gear and bolt.

Torque: Stage 1: 52 lb.ft (70 Nm) | Stage 2: 60 deg.

Courtesy of FORD MOTOR COMPANY
NOTE: The crankshaft bearings are tangless and must be positioned in the center of the bearing cap or engine damage may occur.

NOTE: Verify there is no debris in the saddles in the cylinder block or main bearing caps

NOTE: Apply clean engine oil to the upper crankshaft bearings prior to installing the crankshaft.

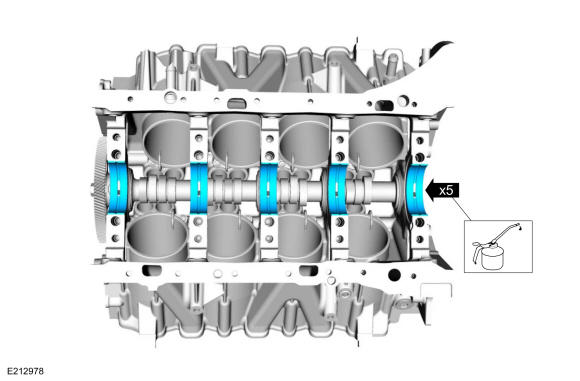

Install the new upper crankshaft main bearings into the cylinder block.

Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Courtesy of FORD MOTOR COMPANY
Position the camshaft with the 2 timing marks pointing up.

Courtesy of FORD MOTOR COMPANY
NOTE: Apply clean engine oil to the crankshaft bearing journals prior to installing.

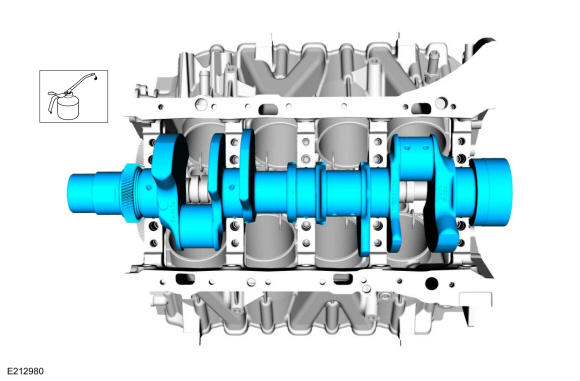

Install the crankshaft into the cylinder block, aligning the single timing mark between the 2 timing marks.

Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Courtesy of FORD MOTOR COMPANY

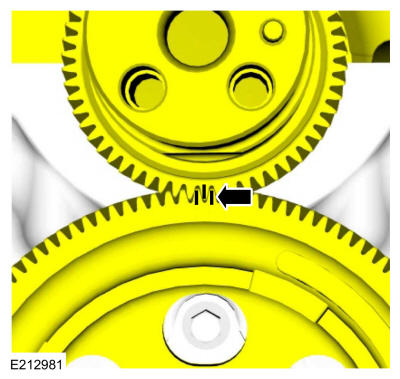

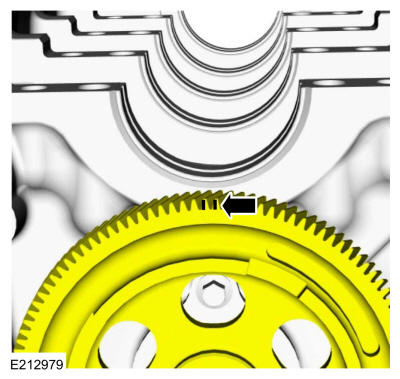

Verify the timing marks are properly aligned.

Courtesy of FORD MOTOR COMPANY

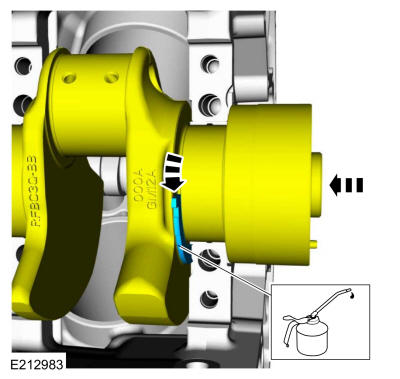

NOTE: Apply clean engine oil to the thrust faces of the crankshaft prior to installing the upper crankshaft main bearing thrust washers.

NOTE: Assemble the grooved side of the upper crankshaft main bearing thrust washer toward the crankshaft thrust surface.

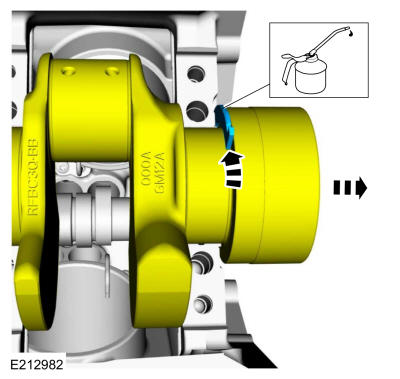

Push the crankshaft rearward and install the upper crankshaft main bearing thrust washer to the rear of the number 5 bulkhead.

Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Courtesy of FORD MOTOR COMPANY
NOTE: Apply clean engine oil to the thrust faces of the crankshaft prior to installing the upper crankshaft main bearing thrust washer.

NOTE: Assemble the grooved side of the thrust washer toward the crankshaft thrust surface.

Push the crankshaft forward and install the upper crankshaft main bearing thrust washer to the front of the number 5 bulkhead.

Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Courtesy of FORD MOTOR COMPANY
NOTE: The crankshaft bearings are tangless and must be positioned in the center of the bearing cap or engine damage may occur.

NOTE: Assemble the grooved side of the lower crankshaft main bearing thrust washer toward the crankshaft thrust surface.

NOTE: The thrust washer tang will be positioned in a groove.

NOTE: Only one lower bearing shown.

Install the new lower crankshaft main bearings into the crankshaft main bearing caps. Position the lower crankshaft main bearing thrust washer on the number 5 crankshaft main bearing cap.

Courtesy of FORD MOTOR COMPANY
NOTE: Apply clean engine oil to the lower crankshaft main bearing thrust washer and to the rear face of number 5 crankshaft main bearing cap. Align the tab on the thrust washer with the slot in the number 5 main bearing cap.

NOTE: Apply clean engine oil to the lower crankshaft main bearings.

NOTE: Lightly lubricate the crankshaft main bearing cap bolt threads and flanges with clean engine oil.

NOTE: Do not use the bolts to seat the crankshaft main bearing caps.
- Position commercially available plastigage in the center of each main bearing cap.

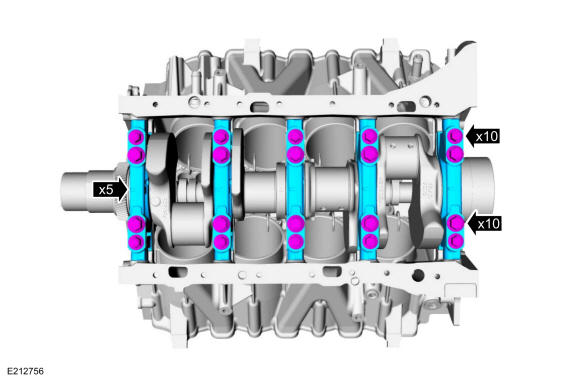

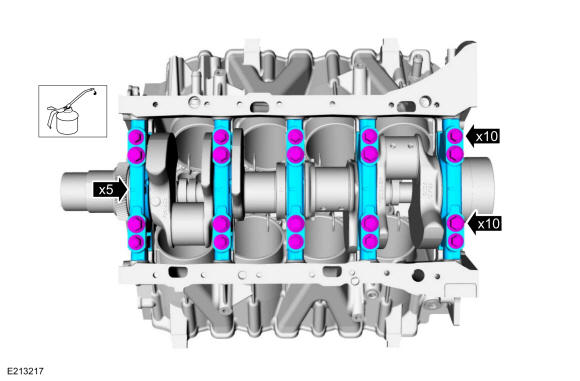

- Install the crankshaft main bearing caps into the cylinder block.
- Loosely install the crankshaft main bearing cap bolts.
  Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)
Courtesy of FORD MOTOR COMPANY

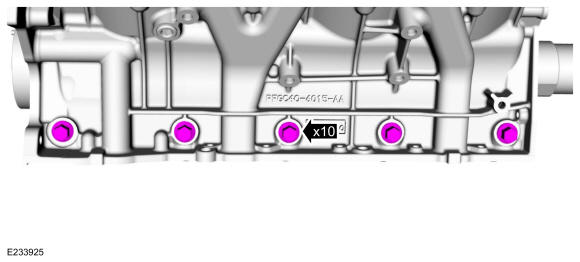

NOTE: RH side shown, LH side similar.

NOTE: Lightly lubricate the crankshaft main bearing cap side bolt threads and flanges with clean engine oil.

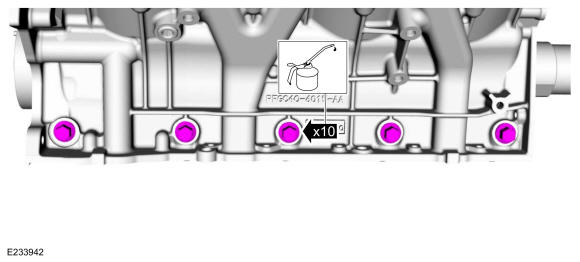

Loosely install the crankshaft main bearing cap side bolts.

Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Courtesy of FORD MOTOR COMPANY
Snug all the bolts. Tighten the crankshaft main bearing cap bolts.
Torque: Stage 1: Tighten bolts 1 through 20 to : 177 lb.in (20 Nm) | Stage 2: Tighten bolts 1 through 10 to : 59 lb.ft (80 Nm) | Stage 3: Tighten bolts 11 through 20 to : 118 lb.ft (160 Nm) | Stage 4: Tighten bolts 1 through 20 an additional : 90 deg. Stage 5: Tighten bolts 21 through 30 to : 30 lb.ft (40 Nm) | Stage 6: Tighten bolts 21 through 30 an additional : 90 deg.

Courtesy of FORD MOTOR COMPANY
NOTE: RH side shown, LH side similar.

Remove the crankshaft main bearing cap side bolts.

Courtesy of FORD MOTOR COMPANY
- Remove the crankshaft main bearing cap bolts.
- Remove the crankshaft main bearing caps from the cylinder block.
Courtesy of FORD MOTOR COMPANY
Measure the clearances for the crankshaft main bearing caps. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
NOTE: Apply clean engine oil to the lower crankshaft main bearing thrust washer and to the rear face of number 5 crankshaft main bearing cap. Align the tab on the thrust washer with the slot in the number 5 main bearing cap.

NOTE: Apply clean engine oil to the lower crankshaft main bearings.

NOTE: Lightly lubricate the crankshaft main bearing cap bolt threads and flanges with clean engine oil.

NOTE: Do not use the bolts to seat the crankshaft main bearing caps.
- Install the crankshaft main bearing caps into the cylinder block.
- Loosely install the crankshaft main bearing cap bolts.
  Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)
Courtesy of FORD MOTOR COMPANY
NOTE: RH side shown, LH side similar.

NOTE: Lightly lubricate the crankshaft main bearing cap side bolt threads and flanges with clean engine oil.

Loosely install the crankshaft main bearing cap side bolts.

Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Courtesy of FORD MOTOR COMPANY
Snug all the bolts. Tighten the crankshaft main bearing cap bolts.
Torque: Tighten bolts 1 through 20 to : 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

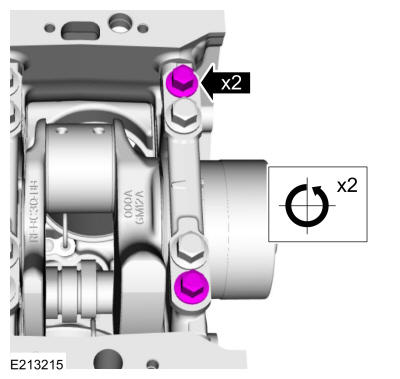

Back off the number 9 and 10 bolts.

Courtesy of FORD MOTOR COMPANY

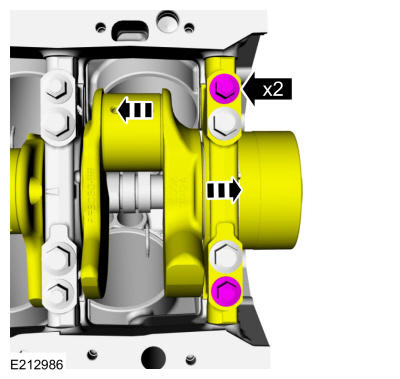

- Push the crankshaft forward and the number 5 crankshaft main bearing cap rearward to align the crankshaft rear thrust washers.
- Continue to hold the crankshaft forward and the number 5 crankshaft main bearing cap rearward against the crankshaft thrust surface while tightening the outer bolts 9 and 10 on the crankshaft main bearing cap.
  Torque: 177 lb.in (20 Nm)
Courtesy of FORD MOTOR COMPANY
Tighten the crankshaft main bearing cap bolts.
Torque: Stage 1: Tighten bolts 1 through 10 to : 59 lb.ft (80 Nm) | Stage 2: Tighten bolts 11 through 20 to : 118 lb.ft (160 Nm) | Stage 3: Tighten bolts 1 through 20 an additional : 90 deg. Stage 4: Tighten bolts 21 through 30 to : 30 lb.ft (40 Nm) | Stage 5: Tighten bolts 21 through 30 an additional : 90 deg.

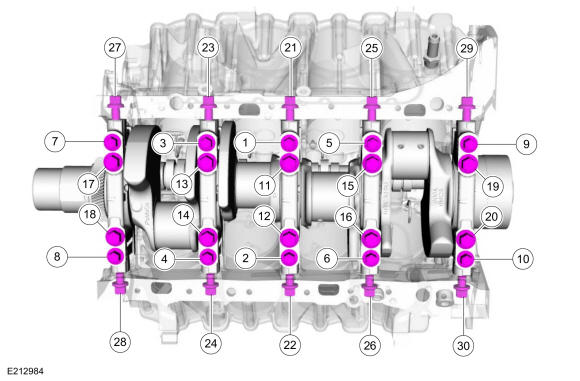

Fig 1: Main Bearing Tightening Sequence
Courtesy of FORD MOTOR COMPANY

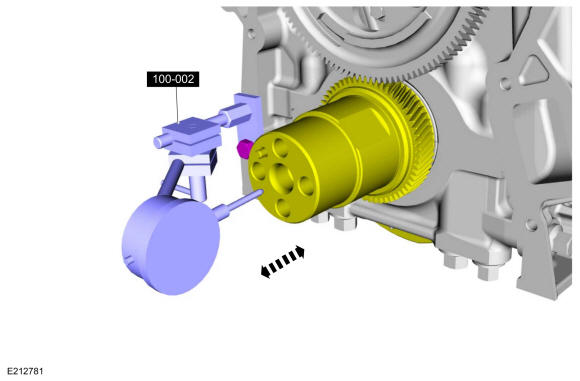

Using the special tool, measure the crankshaft end play. Refer to: Specifications . Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.

Courtesy of FORD MOTOR COMPANY

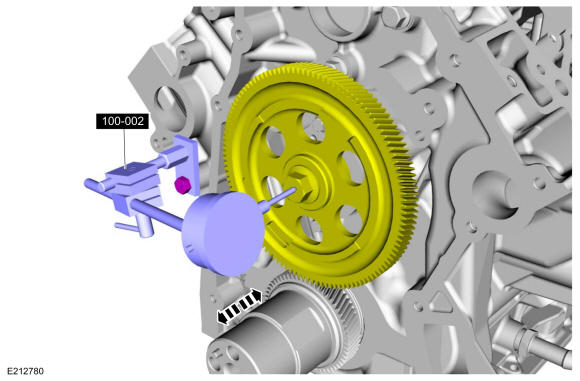

Using the special tool, measure the camshaft end play. Refer to: Specifications . Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.

Courtesy of FORD MOTOR COMPANY

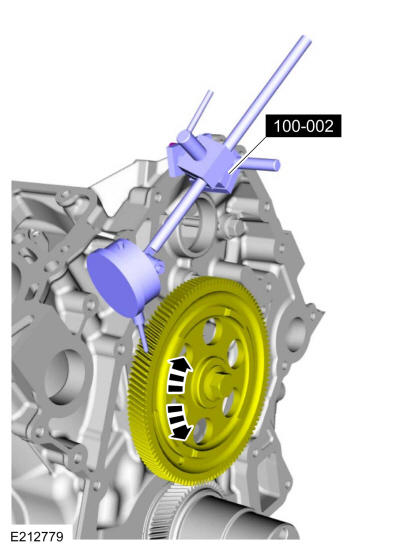

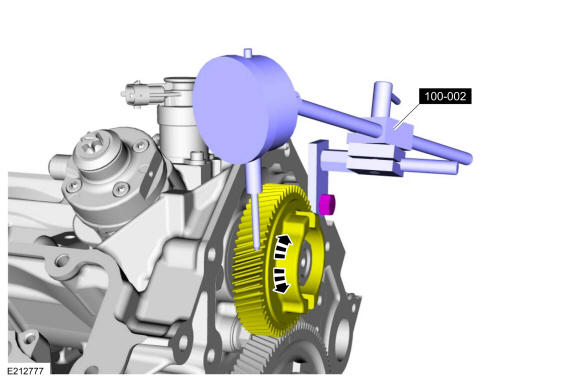

Using the special tool, measure the camshaft gear backlash. Refer to: Specifications . Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.

Courtesy of FORD MOTOR COMPANY

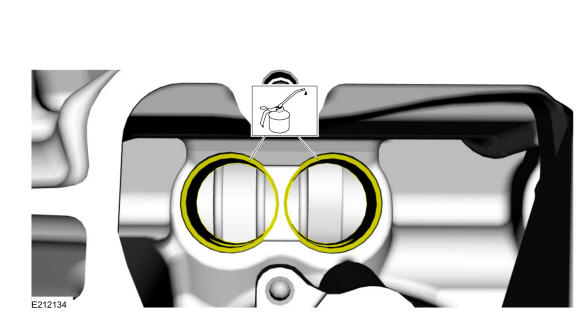

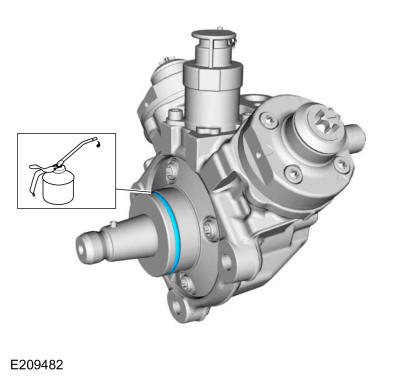

Install a new O-ring seal and lubricate.
Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Courtesy of FORD MOTOR COMPANY

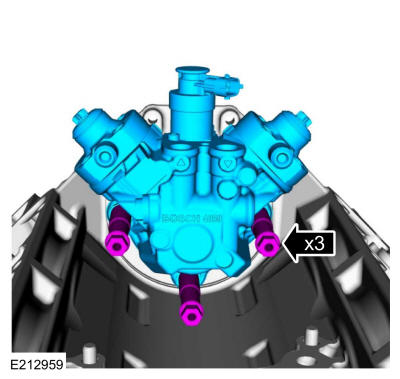

Install the high-pressure fuel injection pump and the high-pressure fuel injection pump spacers.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

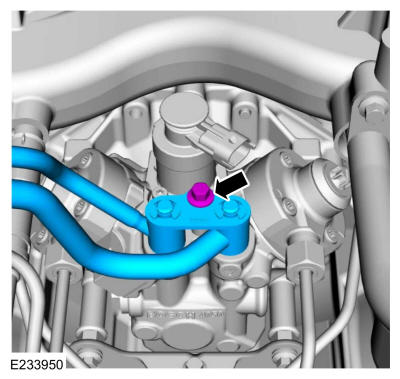

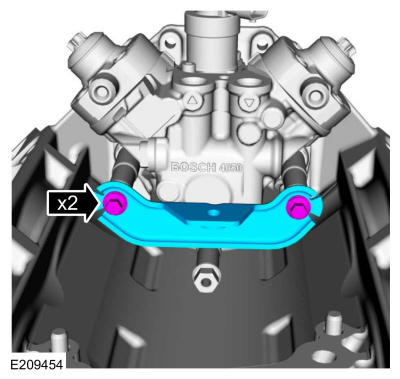

Install the fuel rail supply tube bracket and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

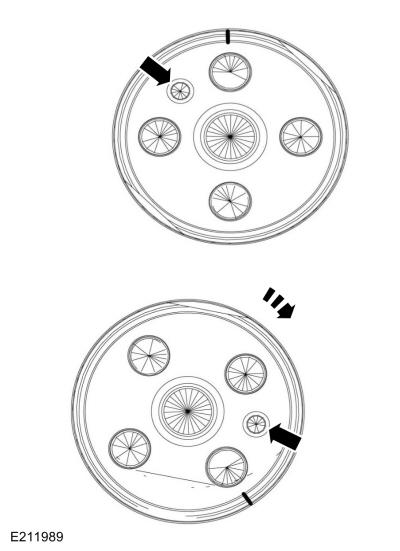

NOTE: The crankshaft gear contains a single timing mark. The camshaft gear contains a single timing mark and a double timing mark. The high-pressure fuel injection pump gear contains a double timing mark. The engine is timed correctly when the single mark on the crankshaft gear is aligned with the double mark on the camshaft gear, and the single mark on the camshaft gear is aligned with the double mark on the high-pressure fuel injection pump gear. Additionally, the keyway on the high-pressure fuel injection pump drive gear must be at 12 o'clock position.

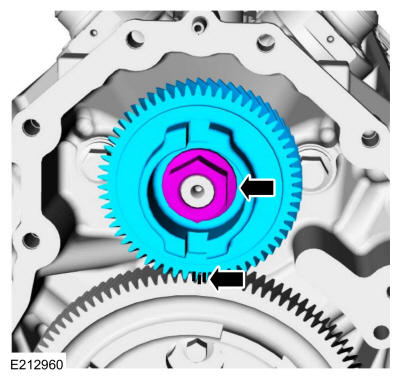

- Install the high pressure fuel injection pump drive gear and nut.
  Torque: 59 lb.ft (80 Nm)
- Verify the timing marks are aligned.
Courtesy of FORD MOTOR COMPANY

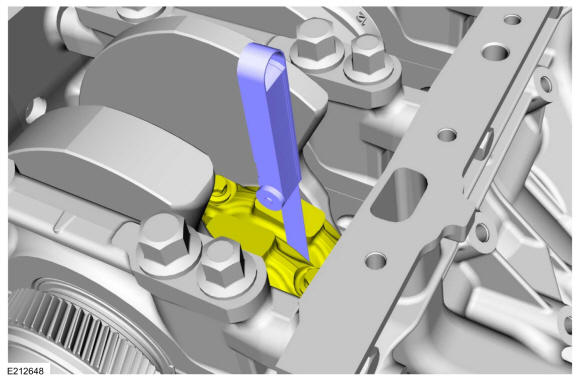

Using the special tool, check the high-pressure fuel injection pump drive gear backlash. Refer to: Specifications . Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.

Courtesy of FORD MOTOR COMPANY

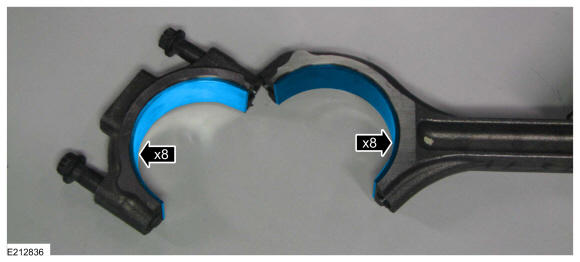

NOTE: The connecting rods are powdered metal cracked rods. Make sure the connecting rod and cap are installed as a set or engine damage may occur.

NOTE: The connecting rod bearings are tangless and must be positioned in the center of the bearing cap or engine damage may occur.

NOTE: Only one piston assembly shown.

NOTE: The dark bearing is the upper connecting rod bearing. The bright aluminum bearing is the lower connecting rod bearing.

Install the new connecting rod bearings.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the piston rings are positioned to specifications for installation. Refer to Piston .

NOTE: Install the piston assembly with the arrow toward the front of the engine.

NOTE: Use care when installing the piston assembly to not damage the piston cooling tubes. If the tube is bent during installation of the piston assembly, install a new piston cooling tube.

NOTE: Lubricate the pistons, piston rings, connecting rod bearings and the entire cylinder bores with clean engine oil.

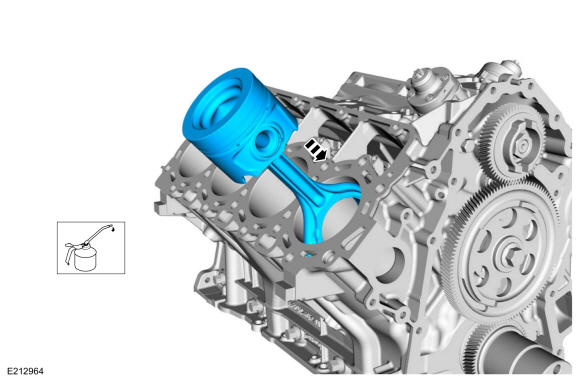

Using the piston ring compressor, install the piston and connecting rod assemblies. Repeat until all 8 piston assemblies are installed. Use the General Equipment: Piston Ring Compressor

Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Courtesy of FORD MOTOR COMPANY
NOTE: The connecting rods are powdered metal cracked rods and care should be taken to make sure that the connecting rod caps are oriented correctly with the connecting rods or engine damage may occur.

NOTE: Lubricate the connecting rod bearings with clean engine oil prior to installation.

NOTE: Only one connecting rod cap shown.
- Position a piece of plastigage across the bearing surface.

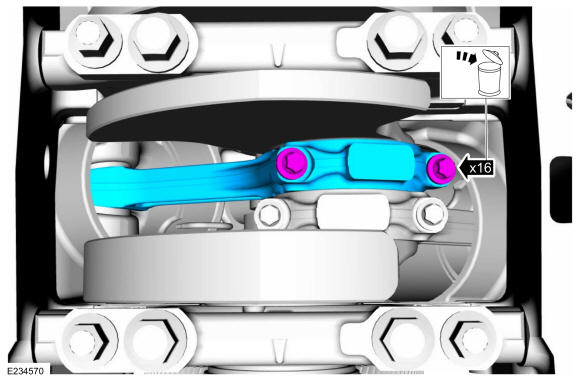

- Position the connecting rod caps and install the bolts.
  Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

  Torque: Stage 1: 177 lb.in (20 Nm) | Stage 2: 35 lb.ft (48 Nm) | Stage 3: 105 deg.
Courtesy of FORD MOTOR COMPANY
- Remove the bolts and the connecting rod caps.
- Discard the bolts.
Courtesy of FORD MOTOR COMPANY
Measure the clearances for the connecting rod cap. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
NOTE: The connecting rods are powdered metal cracked rods and care should be taken to make sure that the connecting rod caps are oriented correctly with the connecting rods or engine damage may occur.

NOTE: Lubricate the connecting rod bearings with clean engine oil prior to installation.

NOTE: Only one connecting rod cap shown.

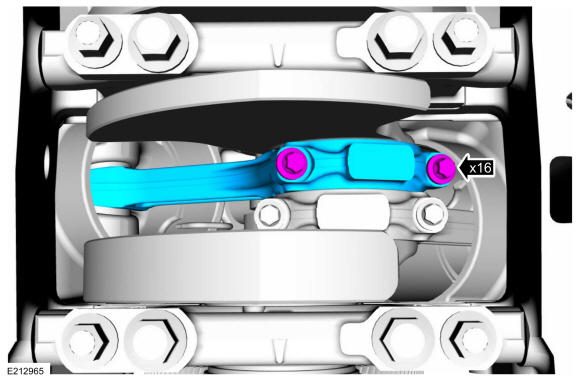

Position connecting rod caps and install the new bolts.

Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Torque: Stage 1: 177 lb.in (20 Nm) | Stage 2: 35 lb.ft (48 Nm) | Stage 3: 105 deg.

Courtesy of FORD MOTOR COMPANY
Using a feeler gauge, check the connecting rod side clearance. Refer to: Specifications . Use the General Equipment: Feeler Gauge

Courtesy of FORD MOTOR COMPANY

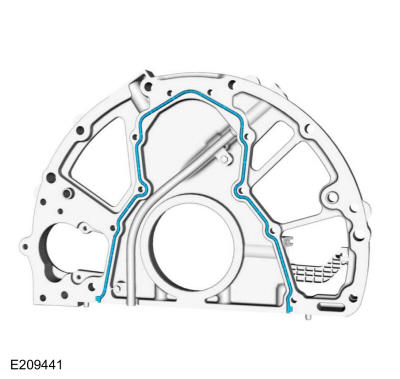

Install a new gasket in the engine rear cover.

Courtesy of FORD MOTOR COMPANY
NOTE: To prevent engine damage, replace damaged or missing dowel pins before installing the engine rear cover.

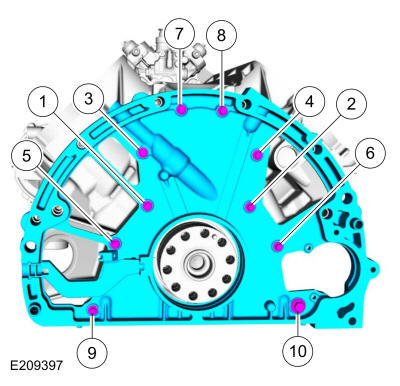

Install the engine rear cover and the bolts.

Torque: Stage 1: Tighten bolts 1 through 9 to : 89 lb.in (10 Nm) | Stage 2: Tighten bolt 10 to : 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

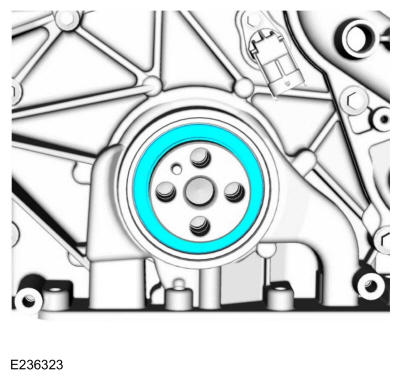

NOTE: Failure to install the rear crankshaft seal with the part numbers facing out may result in engine damage.

NOTE: Do not use grease or petroleum jelly instead of oil. Failure to follow this may result in rear crankshaft seal leakage.

NOTE: Do not discard the installation sleeve provided with the rear crankshaft seal. It is used for installation of the rear crankshaft seal.

NOTE: Check for correct orientation of the installation sleeve prior to sliding the seal on the crankshaft.

NOTE: Apply clean engine oil to the outer diameter of the crankshaft seal and crankshaft sealing surface.
- Position the installation sleeve onto the crankshaft, slide the new rear crankshaft seal over the installation sleeve onto the crankshaft. Remove the installation sleeve.
  Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

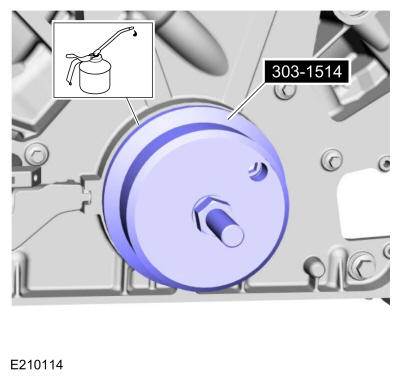

- Using the special tool, install the new rear crankshaft seal. Use Special Service Tool: 303-1514 Installer, Rear Crank Seal.
Courtesy of FORD MOTOR COMPANY
Prime the oil pump. Add 2 tablespoons of oil to the square oil pump hole and rotate the oil pump by hand.
Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

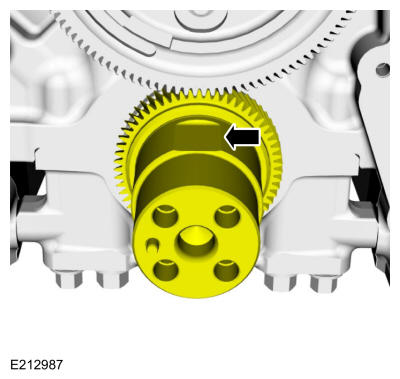

Position the crankshaft drive flats level to aid in installing the engine front cover.

Courtesy of FORD MOTOR COMPANY
Install the engine front cover gaskets.

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to properly align the engine front cover to the oil pan rail may result in engine damage.

NOTE: Use care when installing the engine front cover not to scratch the crankshaft sealing surface.

NOTE: Use the Gauge Bar to align the bottom of the engine front cover to the oil pan rail prior to torquing the engine front cover.

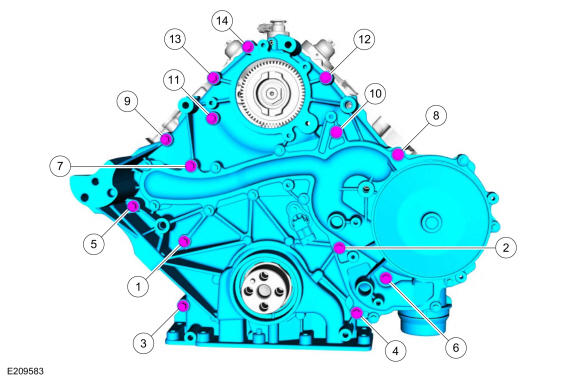

- Install the engine front cover.
- Support the oil pump gerotor assembly in the engine front cover bore.
- Position the engine front cover assembly over the crankshaft without contacting the front sealing surface.
- Align the oil pump gerotor assembly with the crankshaft drive flats.
- Align the engine front cover assembly locating pin.
- Slide the front cover assembly over the crankshaft post to the cylinder block.
- Hand start bolt numbers 1 and 2.
- Using the Gauge Bar, align the bottom of the engine front cover to the oil pan rail. Use Special Service Tool: 307-400 Gauge Bar.
- Install the remaining engine front cover bolts.
  Torque: 18 lb.ft (24 Nm)
Courtesy of FORD MOTOR COMPANY
- As a post-check, use the special tool and feeler gauge and verify the alignment of the engine front cover to the oil pan rail is within 0.25 mm (0.009 in). Use Special Service Tool: 307-400 Gauge Bar. Use the General Equipment: Feeler Gauge
- If the engine front cover is not within specifications, loosen the bolts and repeat the previous step.
Courtesy of FORD MOTOR COMPANY
NOTE: Failure to install the front crankshaft seal with the part numbers facing out may result in engine damage.

NOTE: Do not discard the installation sleeve provided with the front crankshaft seal. It is used for installation of the front crankshaft seal.

NOTE: Check for correct orientation of the installation sleeve prior to sliding the seal on the crankshaft.

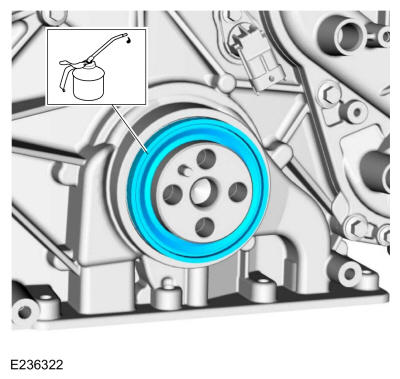

NOTE: Apply clean engine oil to the seal and crankshaft sealing surface.

Position the installation sleeve onto the crankshaft, slide the new front crankshaft seal over the installation sleeve onto the crankshaft. Remove the installation sleeve.

Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Courtesy of FORD MOTOR COMPANY
Position the new front crankshaft slinger on the crankshaft.

Courtesy of FORD MOTOR COMPANY
Using the special tool, install the new front crankshaft seal and front crankshaft slinger. Use Special Service Tool: 303-1509 Installer, Front Crank Seal.

Courtesy of FORD MOTOR COMPANY

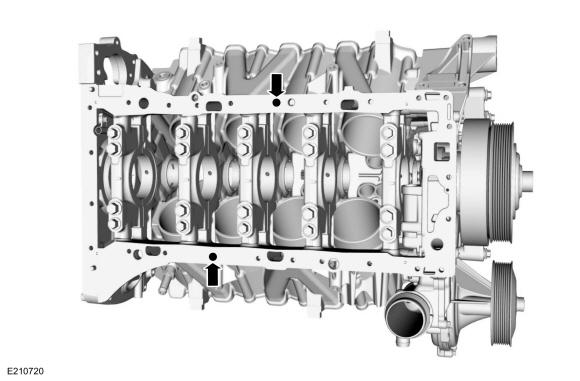

Position 2 guide studs in the cylinder block at the location shown.

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

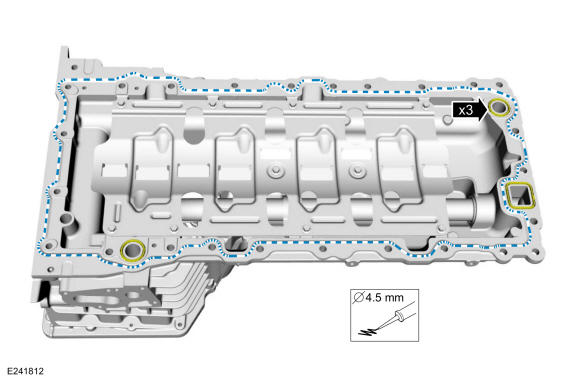

Position the press-in-place gaskets in the upper oil pan. Apply a 4.5 mm (0.177 in) bead of Motorcraft® High Performance Engine RTV Silicone Sealant 1.0 mm (0.039 in) outward of the chamfer on the oil pan sealing face.

Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: The bead of Motorcraft® High Performance Engine RTV Silicone Sealant should cover the openings of the front and rear engine cover gaskets.

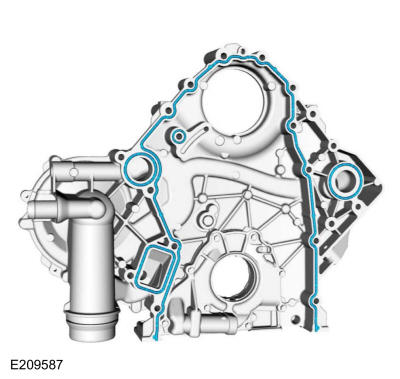

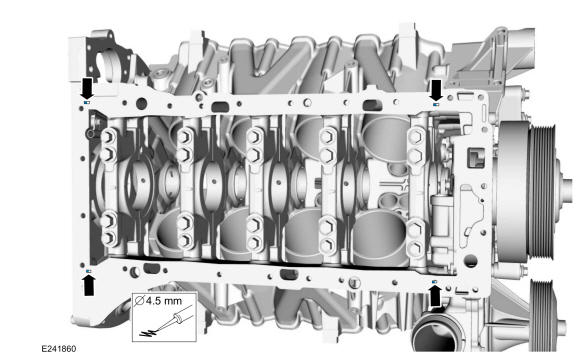

Apply a 4.5 mm (0.177 in) bead of Motorcraft® High Performance Engine RTV Silicone Sealant 10 mm (0.393 in) long at the T-joint areas.

Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
NOTE: Final torque must be reached within 60 minutes of sealant application.

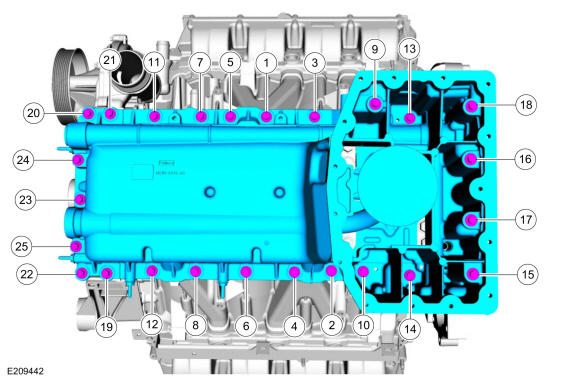

Install the upper oil pan and the bolts.

Torque: Stage 1: 18 lb.in (2 Nm) | Stage 2: Tighten bolts 1 through 8, 10 through 14 and 19 through 25 to 18 Nm (159 lb-in) plus : 25 deg. Stage 3: Tighten bolts 9 and 15 through 18 to 18 Nm (159 lb-in) plus : 90 deg.

Courtesy of FORD MOTOR COMPANY

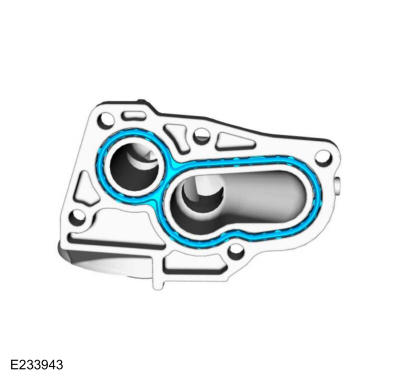

Install a new oil filter adapter gasket.

Courtesy of FORD MOTOR COMPANY
Install the oil filter adapter and retainers.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

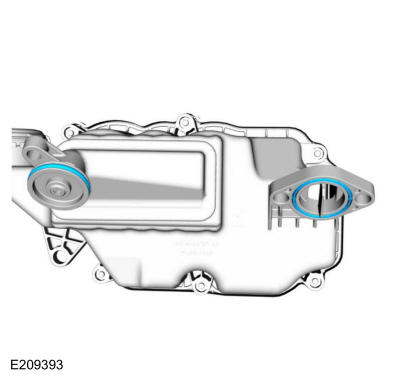

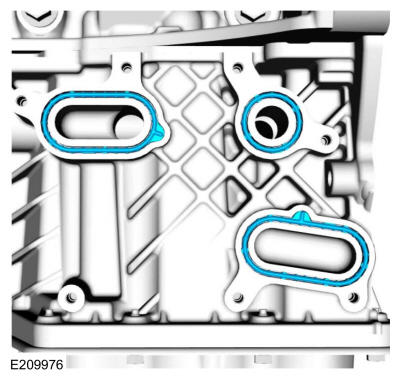

Install the new oil cooler gaskets.

Courtesy of FORD MOTOR COMPANY
NOTE: In the event of a catastrophic engine failure, or if installing a new short block, always install a new oil cooler. Foreign material cannot be removed from the oil cooler and engine damage may occur. Long blocks are equipped with a new oil cooler.

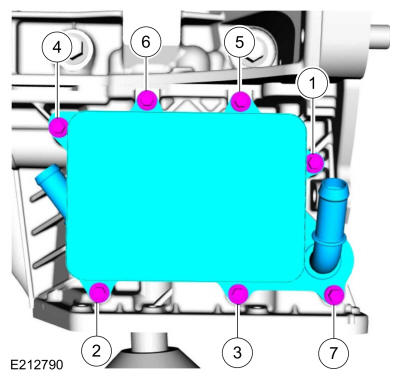

- Stage 1: Install the oil cooler and hand start number 2, 4 and 7 bolts.
- Stage 2: Hand start number 1, 3, 5 and 6 bolts.
- Stage 3: Tighten to 2 Nm (18 lb-in) in a counter clockwise sequence starting with the number 1 bolt.
- Stage 4: Tighten to 10 Nm (89 lb-in) in a counter clockwise sequence starting with the number 1 bolt.
Courtesy of FORD MOTOR COMPANY
NOTE: Use care when installing the hose on the oil cooler, damage to the oil cooler may occur during installation.

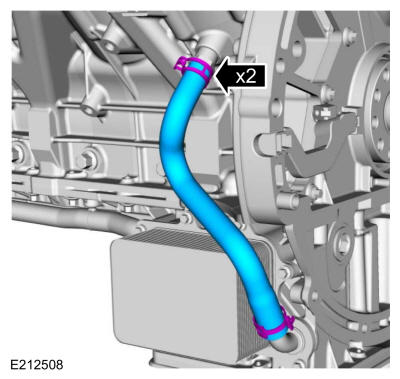

Install the oil cooler outlet hose and connect the hose retainers. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

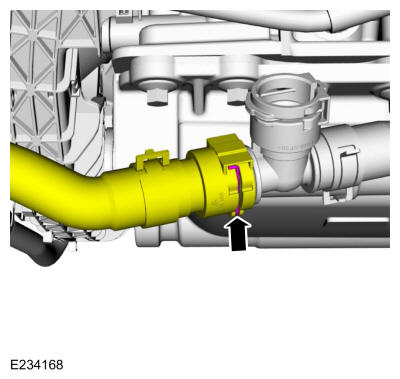

Install the oil cooler inlet hose. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

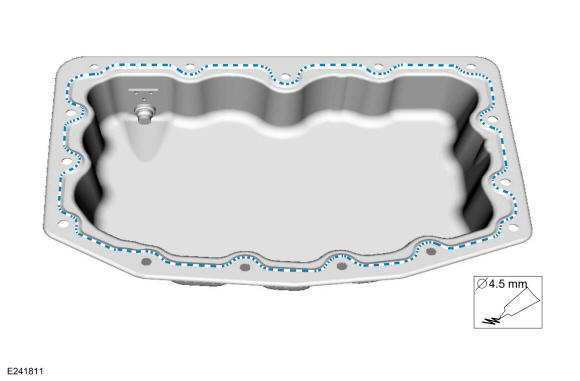

Apply a 4.5 mm (0.177 in) diameter bead of sealant 1.0 mm (0.039 in) outward of the chamfer on the lower oil pan sealing face.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY

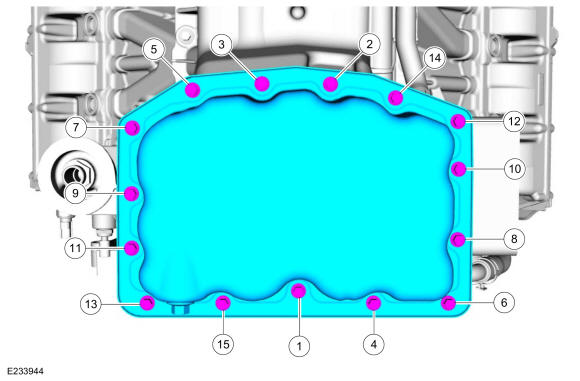

Install the lower oil pan and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only one cylinder shown.

Apply clean engine oil to the valve tappet bores.

Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Courtesy of FORD MOTOR COMPANY
NOTE: If installing a new short block, always install new valve tappets.

NOTE: To prevent engine damage, keep the valve tappets in the order in which they were removed. Install all valve tappets back in their original positions.

NOTE: Always keep the valve tappets in the upright position or the hydraulic lash adjuster may fall out.

NOTE: Only one cylinder shown.

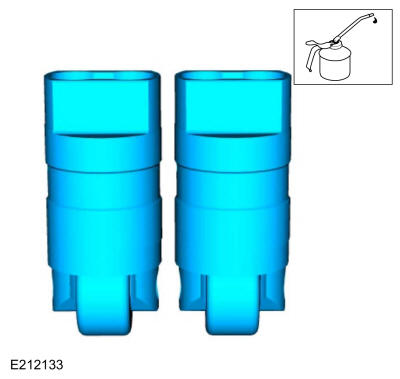

Apply clean engine oil to the valve tappets.

Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Courtesy of FORD MOTOR COMPANY
NOTE: To prevent engine damage, keep the valve tappets in the order in which they were removed. Install all valve tappets back in their original positions.

NOTE: Always keep the valve tappets in the upright position or the hydraulic lash adjuster may fall out.

NOTE: Only one cylinder shown.

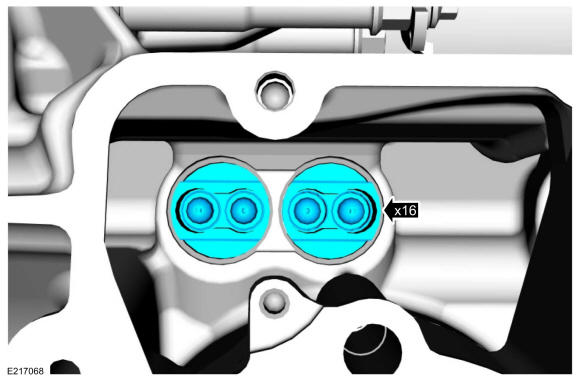

Install the valve tappets.

Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Courtesy of FORD MOTOR COMPANY
NOTE: Only one cylinder shown.

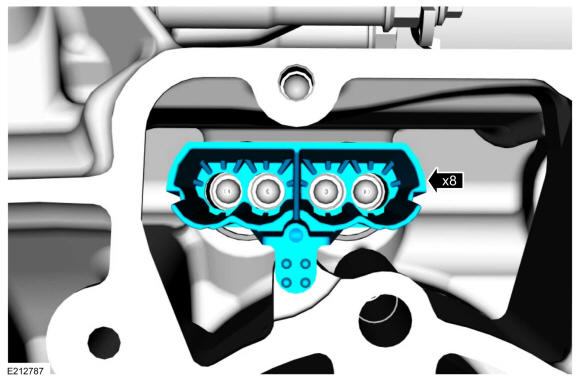

Install the valve tappet guides. Verify that the retainer is fully seated.

Courtesy of FORD MOTOR COMPANY

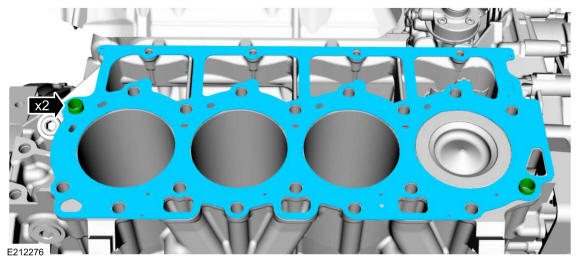

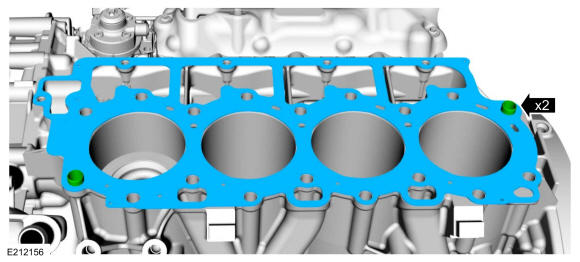

Install the new RH cylinder head dowels and cylinder head gasket.

Courtesy of FORD MOTOR COMPANY

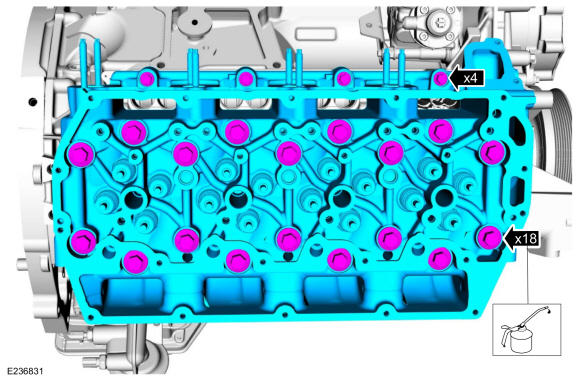

NOTE: Using too much engine oil on the threads of the cylinder head bolts may cause damage to the threads and result in poor sealing. Using anti-seize compounds, grease or any other lubricants other than engine oil on the cylinder head bolt threads may affect the true torque value of the bolts.

NOTE: Lightly lubricate the new M12 cylinder head bolt threads and flanges with clean engine oil.

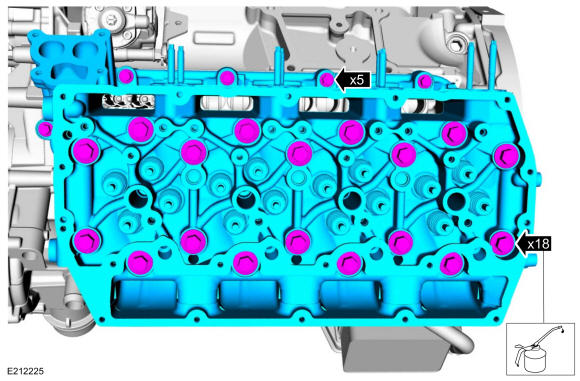

- Install the RH cylinder head.
- Install the cylinder head bolts finger tight.
  Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)
Courtesy of FORD MOTOR COMPANY

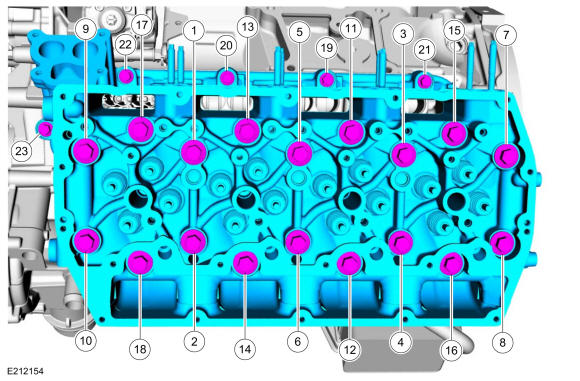

Tighten the RH cylinder head bolts.
Torque: Stage 1: Tighten bolts 1 through 18 to : 168 lb.in (19 Nm) | Stage 2: Tighten bolts 1 through 18 to : 36 lb.ft (49 Nm) | Stage 3: Tighten bolts 1 through 18, a second time to : 36 lb.ft (49 Nm) | Stage 4: Tighten bolts 1 through 18, a third time to : 36 lb.ft (49 Nm) | Stage 5: Tighten bolts 1 through 18, an additional : 90 deg. Stage 6: Tighten bolts 1 through 18, a second time, an additional : 90 deg. Stage 7: Tighten bolts 1 through 18, a third time, an additional : 90 deg. Stage 8: Tighten bolts 19 through 23 to : 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Install the new LH cylinder head dowels and cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Using too much engine oil on the threads of the cylinder head bolts may cause damage to the threads and result in poor sealing. Using anti-seize compounds, grease or any other lubricants other than engine oil on the cylinder head bolt threads may affect the true torque value of the bolts.

NOTE: Lightly lubricate the new M12 cylinder head bolt threads and flanges with clean engine oil.
- Install the LH cylinder head.
- Install the cylinder head bolts finger tight.
  Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)
Courtesy of FORD MOTOR COMPANY
Tighten the LH cylinder head bolts.
Torque: Stage 1: Tighten bolts 1 through 18 to : 168 lb.in (19 Nm) | Stage 2: Tighten bolts 1 through 18 to : 36 lb.ft (49 Nm) | Stage 3: Tighten bolts 1 through 18, a second time to : 36 lb.ft (49 Nm) | Stage 4: Tighten bolts 1 through 18, a third time to : 36 lb.ft (49 Nm) | Stage 5: Tighten bolts 1 through 18, an additional : 90 deg. Stage 6: Tighten bolts 1 through 18, a second time, an additional : 90 deg. Stage 7: Tighten bolts 1 through 18, a third time, an additional : 90 deg. Stage 8: Tighten bolt 19 through 23 to : 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: To prevent engine damage, keep the push rods in the order in which they were removed. Install all push rods back in their original positions.

NOTE: Only one cylinder shown.

Install the push rods and verify the push rod socket is engaged on the hydraulic lash adjuster.

Courtesy of FORD MOTOR COMPANY
Rotate the crankshaft clockwise and position cylinder number No. 1 approximately 155 degrees after TDC by observing the crankshaft pulley dowel pin and clocking it to the 3:40 position (as viewed from the front of the engine).

Courtesy of FORD MOTOR COMPANY

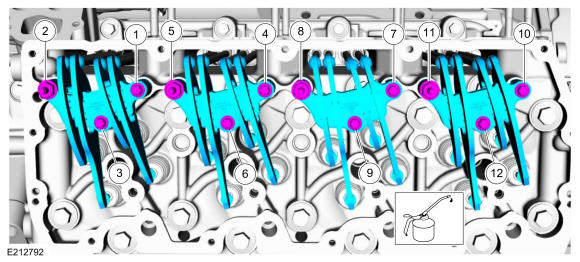

NOTE: Apply clean engine oil to the push rod ball end prior to installing the rocker arm assembly.

NOTE: Apply clean engine oil to each rocker arm pivot ball prior to installing the rocker arm assembly.

NOTE: Verify the push rod socket is on the hydraulic lash adjuster prior to installing the rocker arm assembly.
- Determine which cylinder is actually in the firing position by observing the push rods. No. 1 cylinder exhaust push rods should be raised 1.0 mm (0.039 in) and No. 4 cylinder exhaust push rods should be raised 1.5 mm (0.059 in). If the push rods are not in the correct position, rotate the engine one full revolution clockwise (360 degrees).

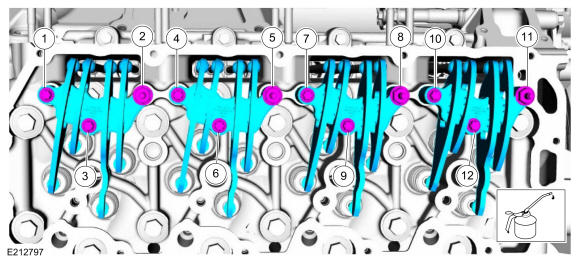

- Install the rocker arm assemblies for the RH cylinder head (cylinder numbers 1, 2, 3 and 4).
  Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)
- Verify the top of the push rod engages the socket on each rocker arm.
  Torque: Stage 1: 35 lb.in (4 Nm) | Stage 2: 71 lb.in (8 Nm) | Stage 3: 115 lb.in (13 Nm) | Stage 4: Tighten a second time to : 115 lb.in (13 Nm) | Stage 5: Tighten an additional : 80 deg.
Courtesy of FORD MOTOR COMPANY
If remove, install the new O-ring seal on the RH oil spray bar.

Courtesy of FORD MOTOR COMPANY

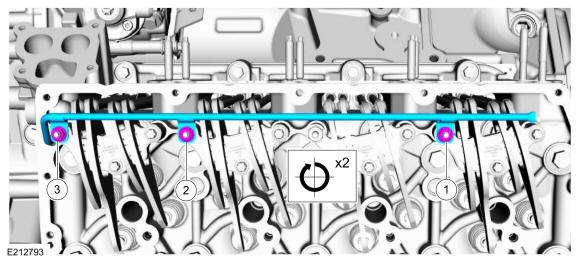

NOTE: Failure to install the oil spray bar in steps may result in damage to the oil spray bar.

Install the RH oil spray bar. Turn the nuts 2 revolutions at a time in the sequence shown until the RH oil spray bar nuts can be tightened.

Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Rotate the crankshaft clockwise one revolution (360 degrees) back to 155 degrees after TDC by observing the crankshaft pulley dowel pin and clocking it to the 3:40 position (as viewed from the front of the engine).

Courtesy of FORD MOTOR COMPANY
NOTE: Apply clean engine oil to the push rod ball end prior to installing the rocker arm assembly.

NOTE: Apply clean engine oil to each rocker arm pivot ball prior to installing the rocker arm assembly.

NOTE: Verify the push rod socket is on the hydraulic lash adjuster prior to installing the rocker arm assembly.
- Install the rocker arm assemblies for the LH cylinder head (cylinder numbers 5, 6, 7 and 8).
  Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)
- Verify the top of the push rod engages the socket on each rocker arm.
  Torque: Stage 1: 35 lb.in (4 Nm) | Stage 2: 71 lb.in (8 Nm) | Stage 3: 115 lb.in (13 Nm) | Stage 4: Tighten a second time to : 115 lb.in (13 Nm) | Stage 5: Tighten an additional : 80 deg.
Courtesy of FORD MOTOR COMPANY
If remove, install the new O-ring seal on the LH oil spray bar.

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to install the oil spray bar in steps may result in damage to the oil spray bar.

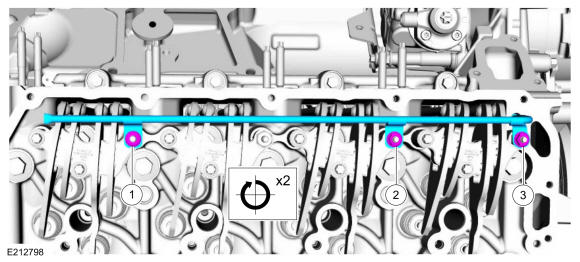

Install the LH oil spray bar. Turn the nuts 2 revolutions at a time in the sequence shown until the LH oil spray bar nuts can be tightened.

Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

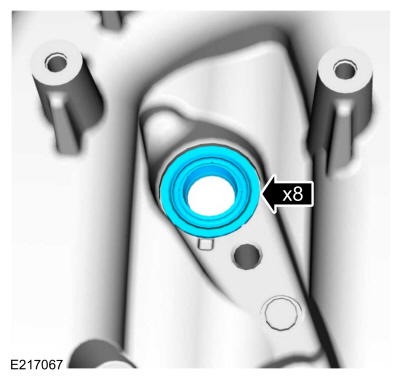

NOTE: Verify that the fuel injector-to-valve cover seal is squarely seated in the valve cover.

Using a 22 mm (0.866 in) socket or equivalent, install the new fuel injector-to-valve cover seals.

Courtesy of FORD MOTOR COMPANY

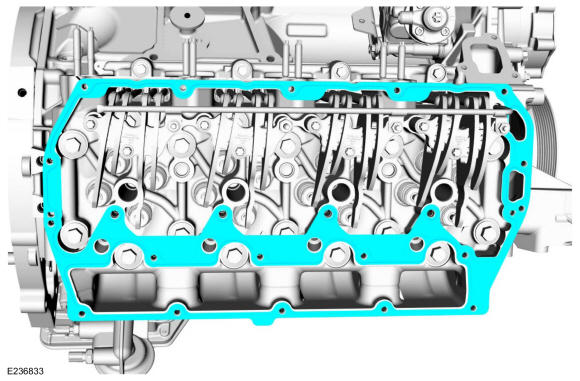

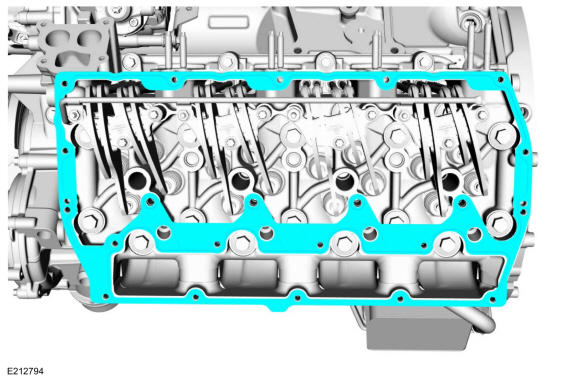

Install a new LH valve cover gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to install the fuel injectors during the valve cover installation may result in engine failure.

NOTE: The valve cover will have to be tightened a second time after the fuel injectors are installed.

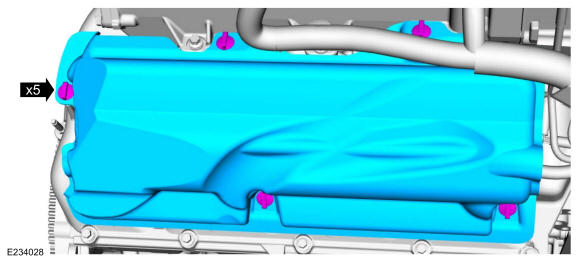

Install the LH valve cover, stud bolts and the bolts.

Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Install a new RH valve cover gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to install the fuel injectors during the valve cover installation may result in engine failure.

NOTE: The valve cover will have to be tightened a second time after the fuel injectors are installed.

Install the RH valve cover, stud bolts and the bolts.

Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Do not apply engine oil to the fuel injectors.

NOTE: Only one fuel injector shown.

NOTE: If the fuel injector is being reused, make sure to install it in the original location.

Install a new copper combustion gasket, O-ring seal and fuel injector return fuel O-ring on the fuel injectors. Position the fuel injectors into the engine.

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to tighten the fuel injector correctly can lead to engine failure.

NOTE: Apply clean engine oil to the concave surface of the fuel injector hold-down clamp.

NOTE: Only one fuel injector shown.

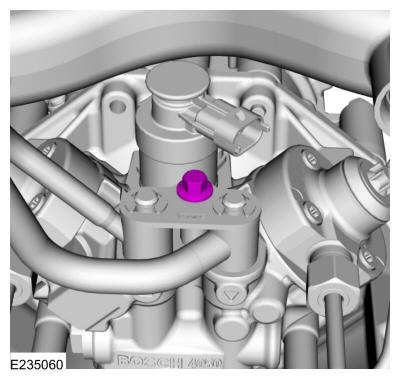

Install the fuel injector hold-down clamps and new fuel injector bolts.

Torque: Stage 1: 22 lb.ft (30 Nm) | Stage 2: 90 deg.

Courtesy of FORD MOTOR COMPANY

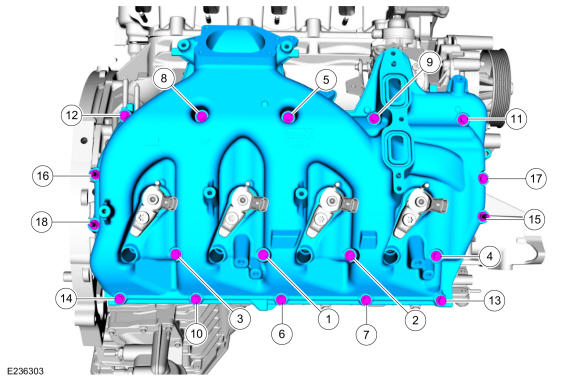

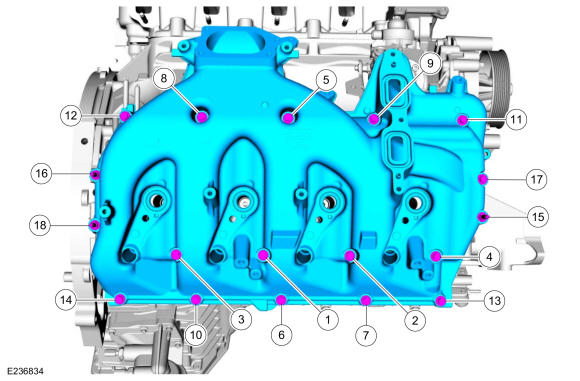

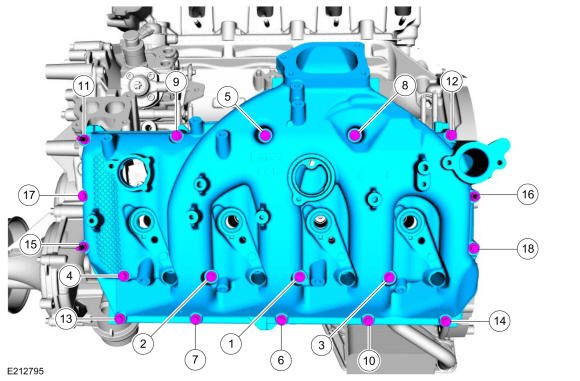

Final tighten the LH valve cover bolts in the sequence shown.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Final tighten the RH valve cover bolts in the sequence shown.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

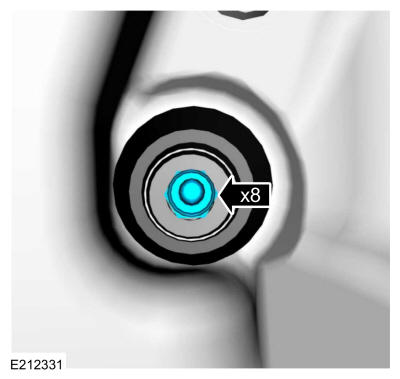

Install the glow plugs.
Torque: Stage 1: 35 lb.in (4 Nm) | Stage 2: 50 deg.

Courtesy of FORD MOTOR COMPANY

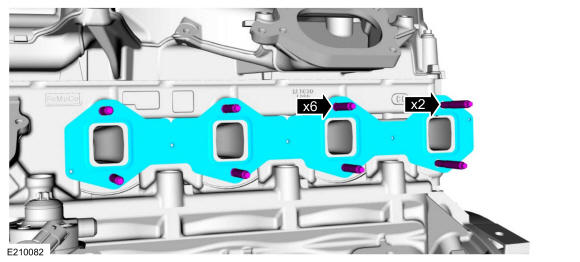

NOTE: Cylinder number 4 will have longer exhaust studs.
- Install the new exhaust manifold stud(s) as needed.
  Torque: 115 lb.in (13 Nm)
- Install a new exhaust manifold gasket.
Courtesy of FORD MOTOR COMPANY
NOTE: Install the spacers as marked on removal.

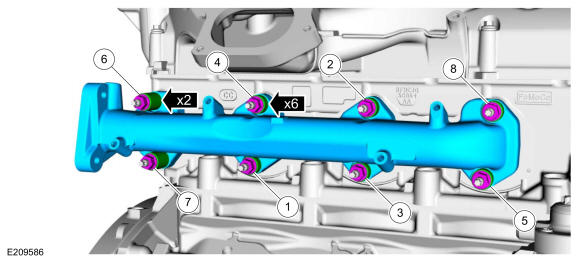

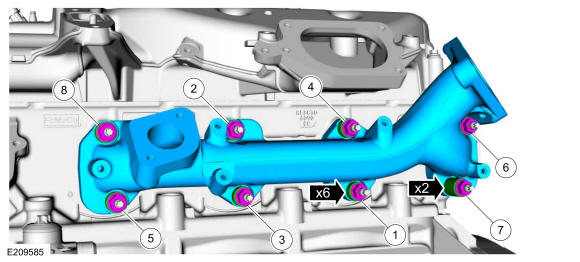

Install the RH exhaust manifold, spacers and new nuts.

Torque: Stage 1: 159 lb.in (18 Nm) | Stage 2: 18 lb.ft (25 Nm) | Stage 3: Tighten a second time to : 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Cylinder number 8 will have longer exhaust studs.
- Install the new exhaust manifold stud(s) as needed.
  Torque: 115 lb.in (13 Nm)
- Install a new exhaust manifold gasket.
Courtesy of FORD MOTOR COMPANY
NOTE: Install the spacers as marked on removal.

Install the LH exhaust manifold, spacers and new nuts.

Torque: Stage 1: 159 lb.in (18 Nm) | Stage 2: 18 lb.ft (25 Nm) | Stage 3: Tighten a second time to : 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

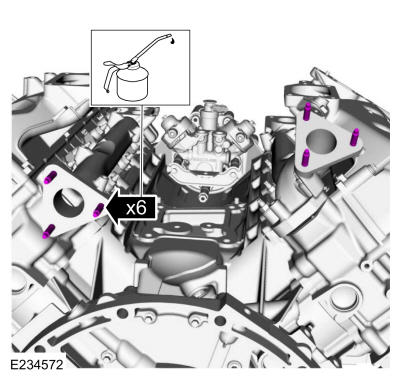

Apply oil to the threads and install the exhaust manifold studs.
Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Torque: 115 lb.in (13 Nm)

Courtesy of FORD MOTOR COMPANY

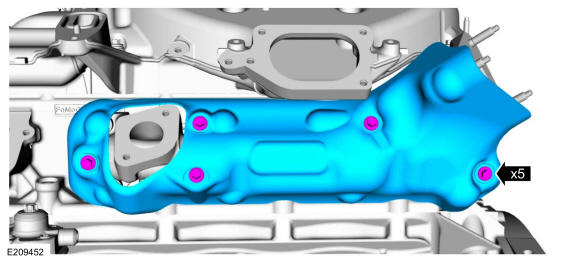

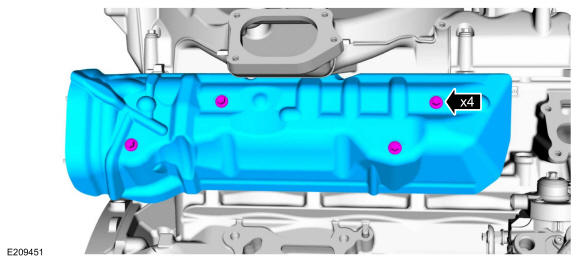

Install the RH exhaust manifold heat shield and bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the LH exhaust manifold heat shield and bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use magnetic screwdrivers or other magnetic tools around the CKP sensor and the crankshaft sensor pulse ring or damage to the components may occur.

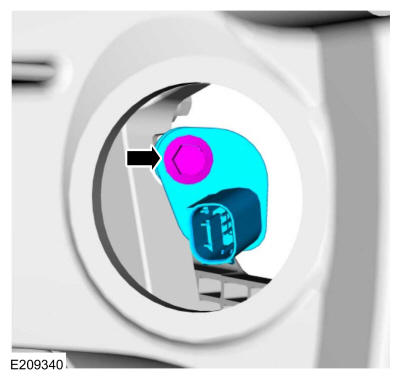

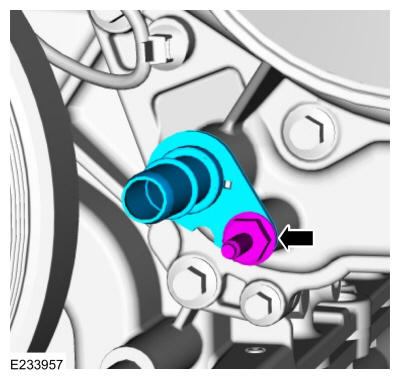

Install the CKP sensor and the bolt.

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

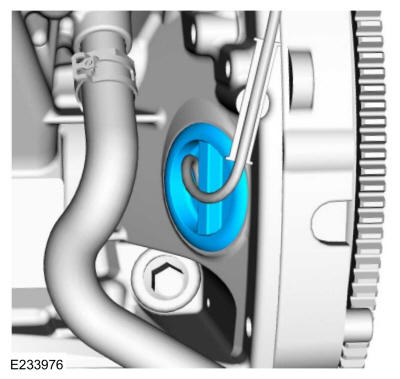

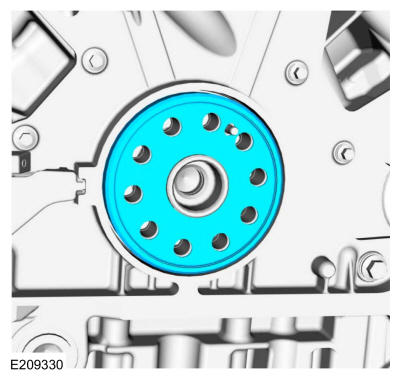

Install the crankshaft sensor pulse ring.

Courtesy of FORD MOTOR COMPANY

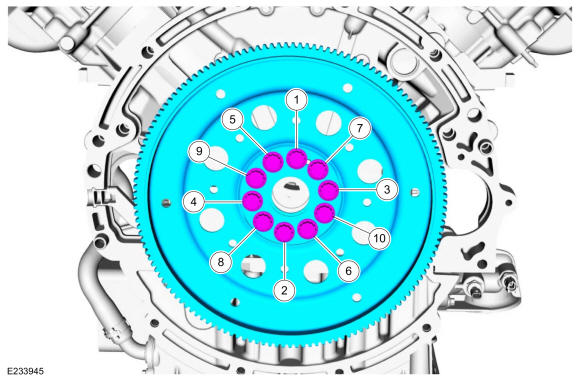

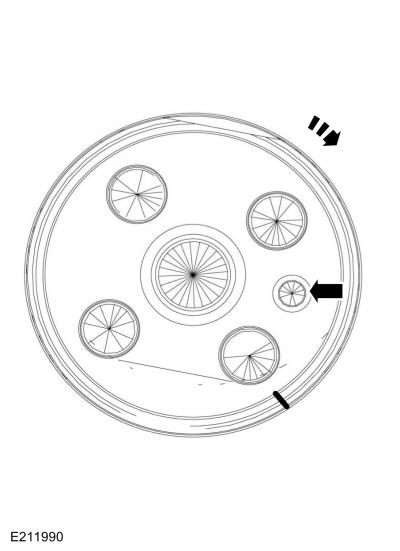

Install the flexplate and the new bolts.
Torque: Stage 1: 44 lb.in (5 Nm) | Stage 2: 74 lb.ft (100 Nm)

Courtesy of FORD MOTOR COMPANY

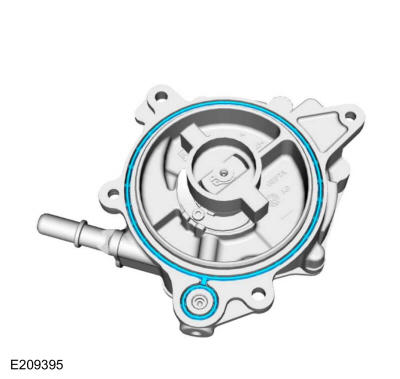

Install a new vacuum pump gasket.

Courtesy of FORD MOTOR COMPANY

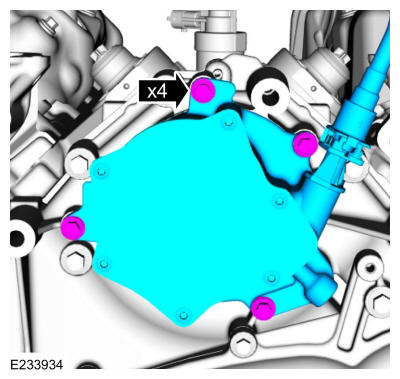

Install the vacuum pump and the bolts.
Torque: Stage 1: 71 lb.in (8 Nm) | Stage 2: 30 deg.

Courtesy of FORD MOTOR COMPANY
NOTE: To prevent engine damage, always install new bolts when installing the crankshaft pulley.

NOTE: Use the strap wrench to prevent the engine from turning while tightening the bolts.

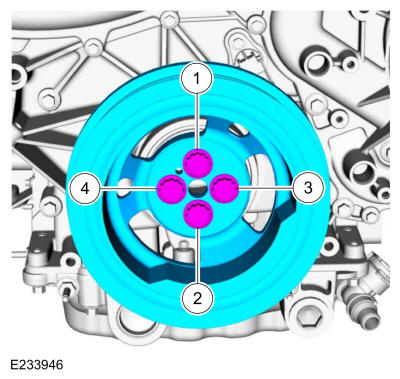

Position the crankshaft pulley and install the new bolts. Use the General Equipment: Strap Wrench

Torque: Stage 1: 22 lb.ft (30 Nm) | Stage 2: 90 deg.

Courtesy of FORD MOTOR COMPANY

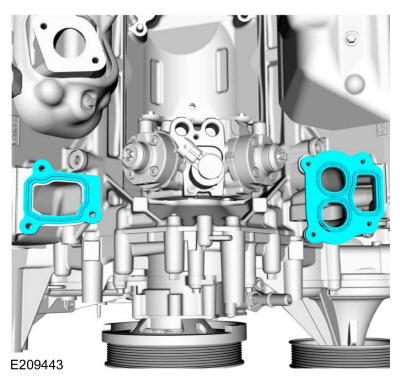

Install new coolant crossover manifold gaskets.

Courtesy of FORD MOTOR COMPANY

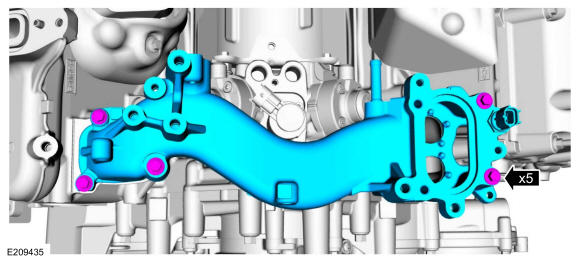

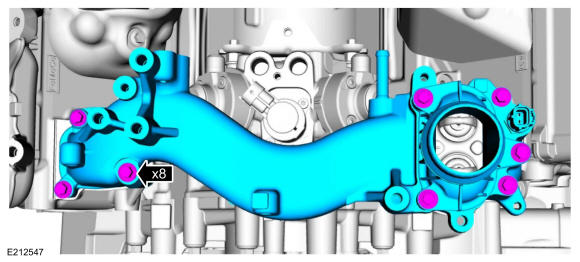

Install the coolant crossover manifold and bolts. Finger-tighten the bolts.

Courtesy of FORD MOTOR COMPANY

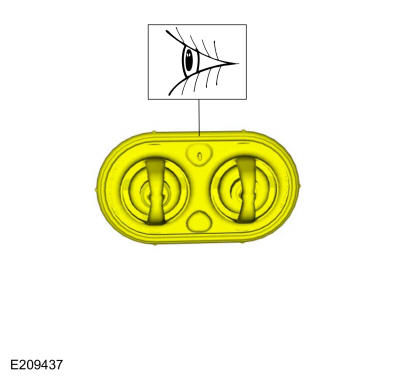

Inspect the thermostat seal for tears, nicks or cuts. Inspect the thermostat springs and valve seats for wear or damage. Replace if necessary.

Courtesy of FORD MOTOR COMPANY

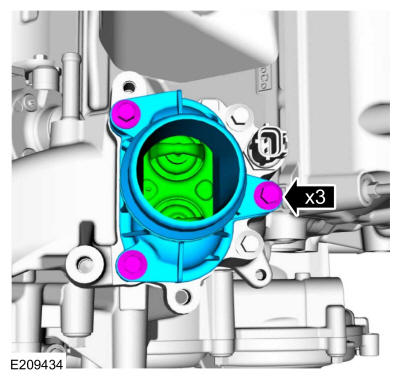

Install the thermostat, thermostat housing and bolts. Finger-tighten the bolts.

Courtesy of FORD MOTOR COMPANY
Tighten the coolant crossover manifold bolts and the thermostat housing bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

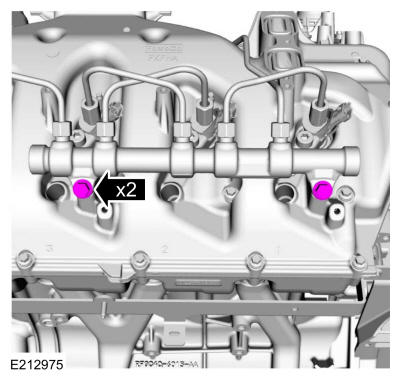

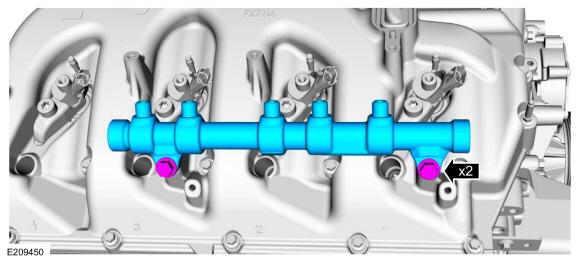

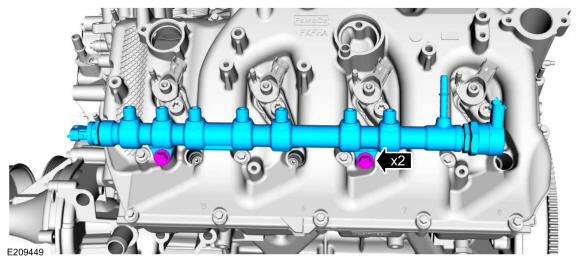

Position the RH fuel rail and loosely install the bolts.

Courtesy of FORD MOTOR COMPANY
Position the LH fuel rail and loosely install the bolts.

Courtesy of FORD MOTOR COMPANY
Position the fuel rail supply tube assembly. Hand start the fuel rail supply tube assembly connectors.

Courtesy of FORD MOTOR COMPANY

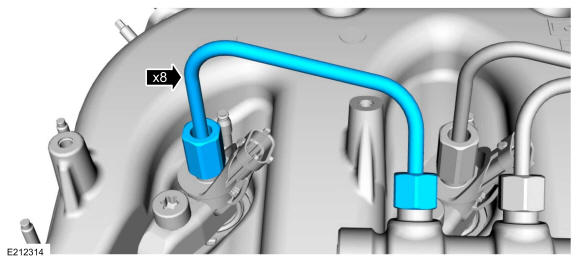

NOTE: Only 1 fuel injector supply tube shown.

NOTE: Only hand start the fuel injector supply tube.
- Install the fuel injector supply tubes.
- Start from front to rear of the engine.
Courtesy of FORD MOTOR COMPANY
NOTE: Only hand start the fuel rail supply tube assembly bolts.

Install the fuel rail supply tube assembly bolts.

Courtesy of FORD MOTOR COMPANY

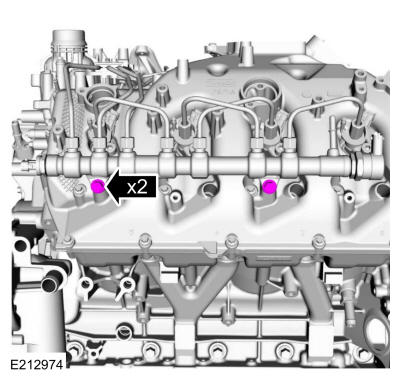

Tighten the LH fuel rail bolts.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the RH fuel rail bolts.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

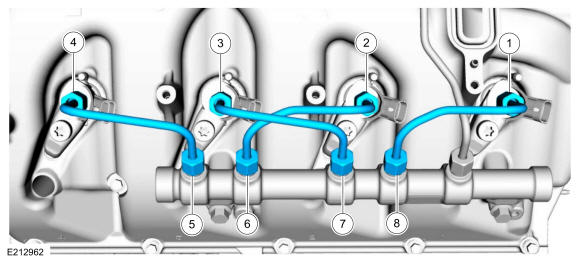

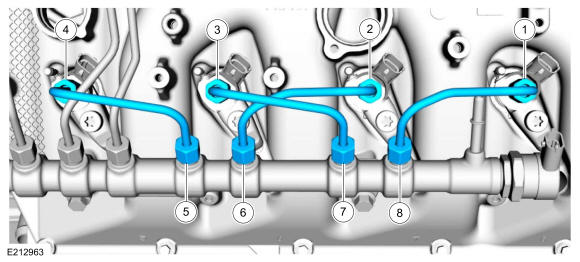

Tighten the LH fuel injector supply tubes in the sequence shown.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the RH fuel injector supply tubes in the sequence shown.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

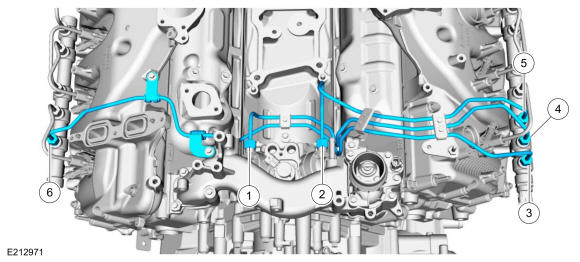

Tighten the fuel rail supply tube assembly connectors in the sequence shown.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the LH fuel injector supply tubes in the sequence shown.
Torque: 65 deg.

Courtesy of FORD MOTOR COMPANY
Tighten the RH fuel injector supply tubes in the sequence shown.
Torque: 65 deg.

Courtesy of FORD MOTOR COMPANY
Tighten the fuel rail supply tube assembly connectors in the sequence shown.
Torque: 65 deg.

Courtesy of FORD MOTOR COMPANY

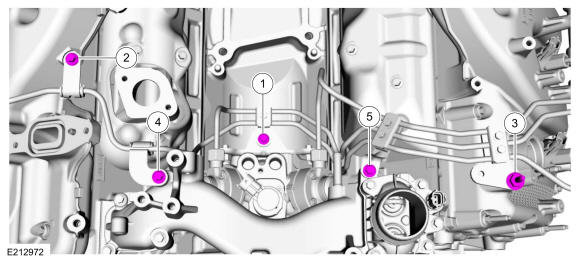

Tighten the fuel rail supply tube assembly bolts in the sequence shown.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

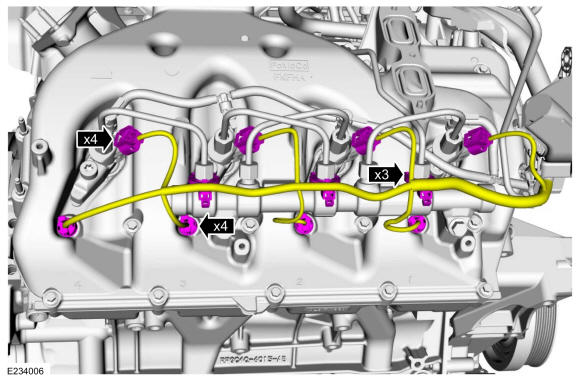

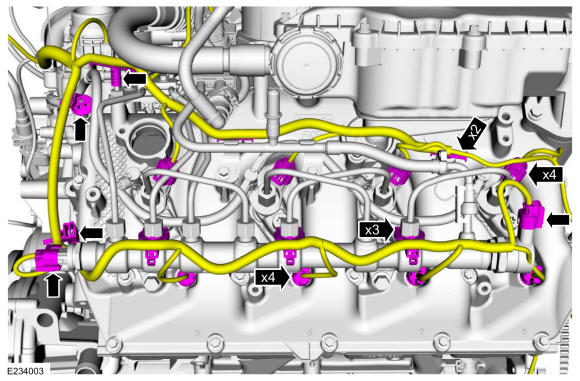

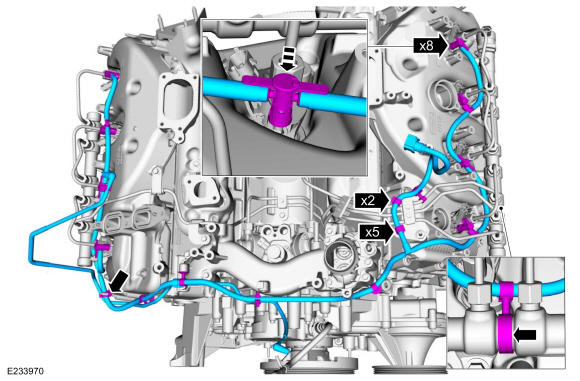

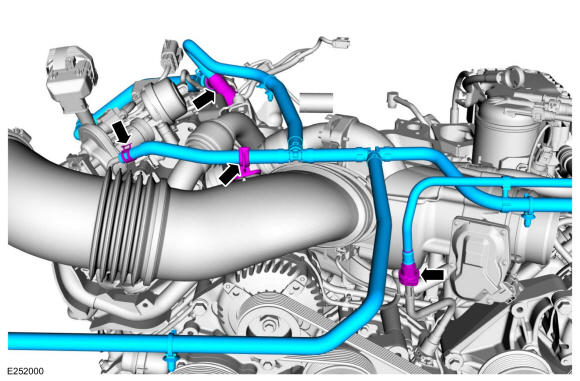

- Position the fuel injector return hose and vacuum hose assembly on the engine and connect the retaining clips.
- Connect the fuel injector return hose fittings to the fuel injectors.
- Push down on the center of the fuel injector return hose fitting to lock the fitting.
Courtesy of FORD MOTOR COMPANY
Install a new O-ring on the heater supply tube and lubricate. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY

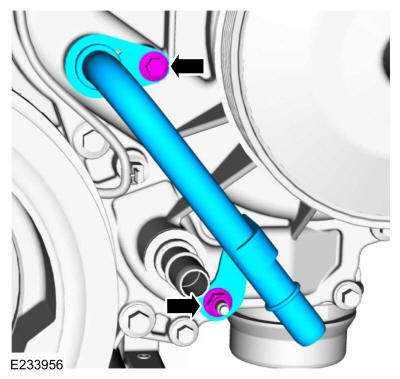

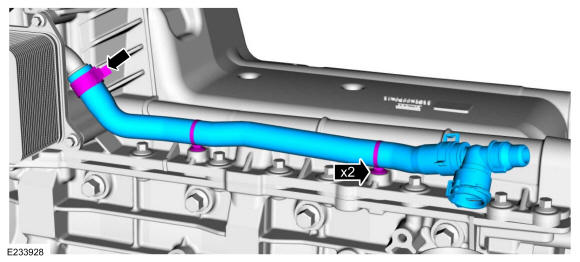

Install the heater supply tube and bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

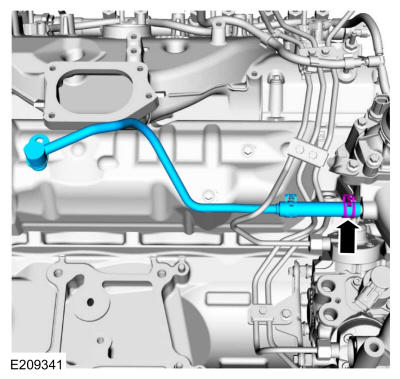

Install a new O-ring on the turbocharger coolant tube.

Courtesy of FORD MOTOR COMPANY
Install the turbocharger coolant tube. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

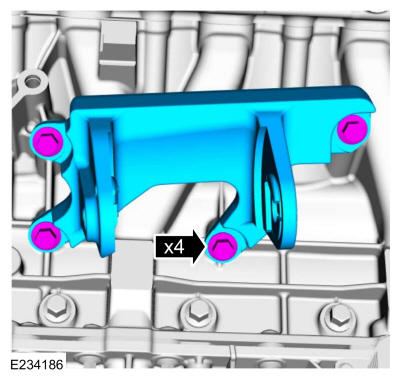

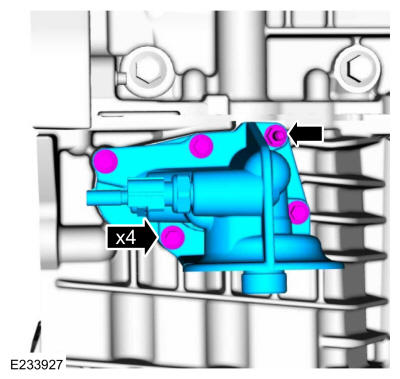

Install the secondary fuel filter bracket and bolts.
Torque: Stage 1: 71 lb.in (8 Nm) | Stage 2: 45 deg.

Courtesy of FORD MOTOR COMPANY

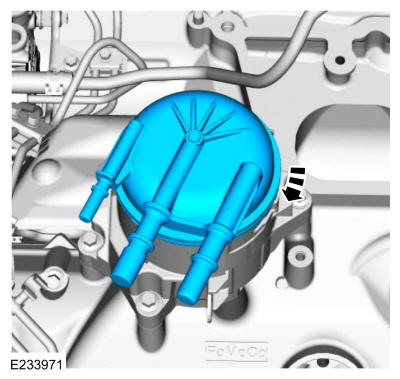

NOTE: Rotate the fuel filter clockwise to install.

Install the new secondary fuel filter.

Courtesy of FORD MOTOR COMPANY
If necessary, install the new crankcase vent oil separator gasket and O-ring seal.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not lubricate the O-ring seal or gasket prior to installation.

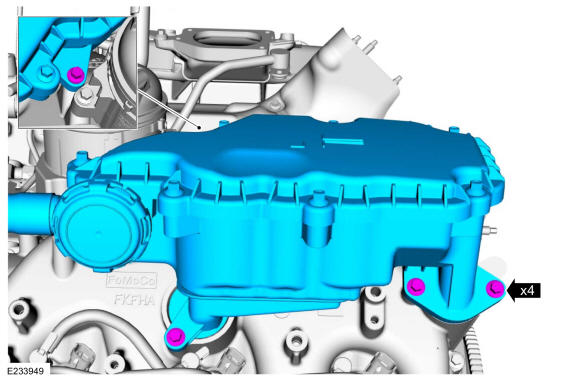

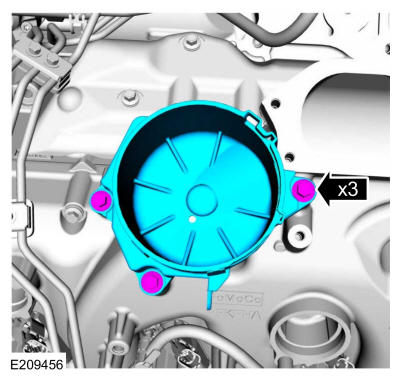

Install the crankcase vent oil separator and bolts.

Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45 deg.

Courtesy of FORD MOTOR COMPANY
Install the new O-ring seals on the fuel injection pump supply tube and lubricate.
Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Courtesy of FORD MOTOR COMPANY

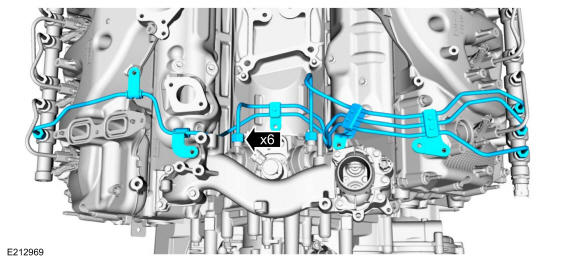

Install the fuel injection pump supply tube assembly and hand start the bolt.

Courtesy of FORD MOTOR COMPANY

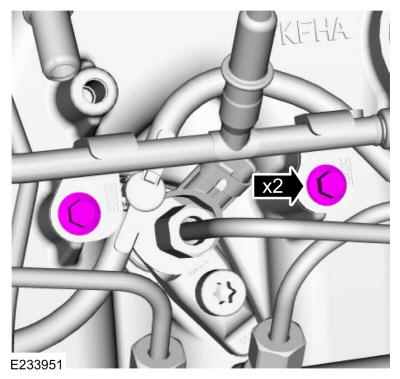

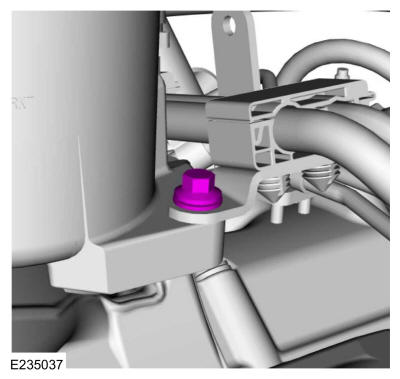

Hand start the fuel injection pump supply tube assembly bolt.

Courtesy of FORD MOTOR COMPANY
Hand start the fuel injection pump supply tube assembly bolts.

Courtesy of FORD MOTOR COMPANY
Tighten the fuel injection pump supply tube assembly bolt.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45 deg.

Courtesy of FORD MOTOR COMPANY
Tighten the fuel injection pump supply tube assembly bolts.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45 deg.

Courtesy of FORD MOTOR COMPANY
Tighten the fuel injection pump supply tube assembly bolt.
Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45 deg.

Courtesy of FORD MOTOR COMPANY
Connect the fuel injector return hose to the secondary fuel filter and connect the hose retainer. Install the fuel injection pump supply tube. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
Connect the fuel injection pump hose to the fuel rail. Refer to: Spring Lock Couplings .

Courtesy of FORD MOTOR COMPANY

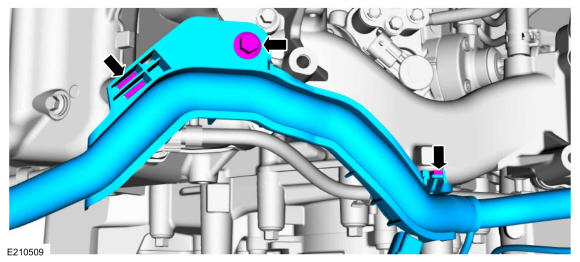

Position the engine wire harness over the engine. Connect the retainers and install the bolt.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the RH valve cover wiring.

Courtesy of FORD MOTOR COMPANY

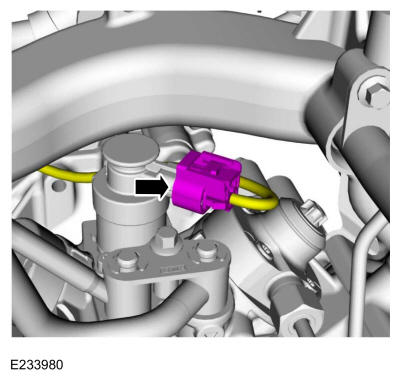

Connect the fuel volume control valve electrical connector.

Courtesy of FORD MOTOR COMPANY
Connect the CMP sensor electrical connector and the retainers.

Courtesy of FORD MOTOR COMPANY

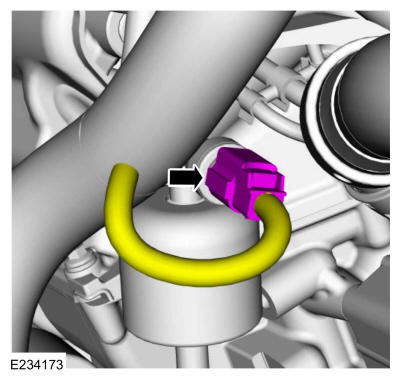

Connect the ECT sensor electrical connector and the wire retainer.

Courtesy of FORD MOTOR COMPANY

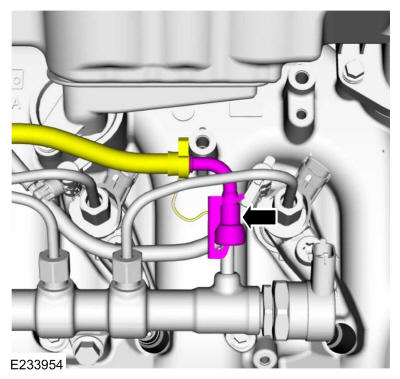

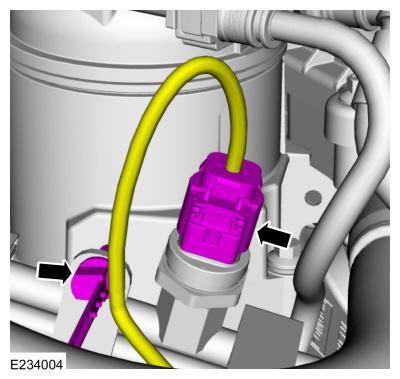

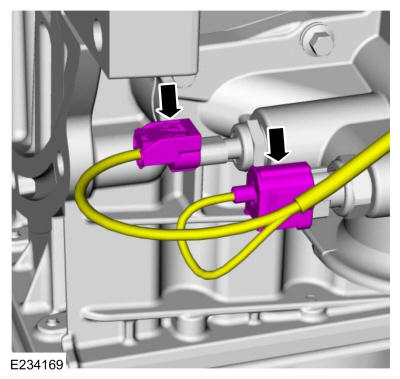

Connect the fuel pressure and temperature sensor electrical connector and the wire retainer.

Courtesy of FORD MOTOR COMPANY
Connect the LH valve cover wiring.

Courtesy of FORD MOTOR COMPANY

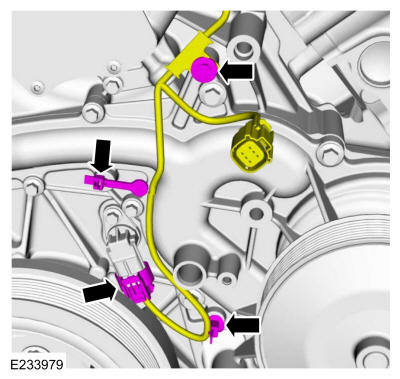

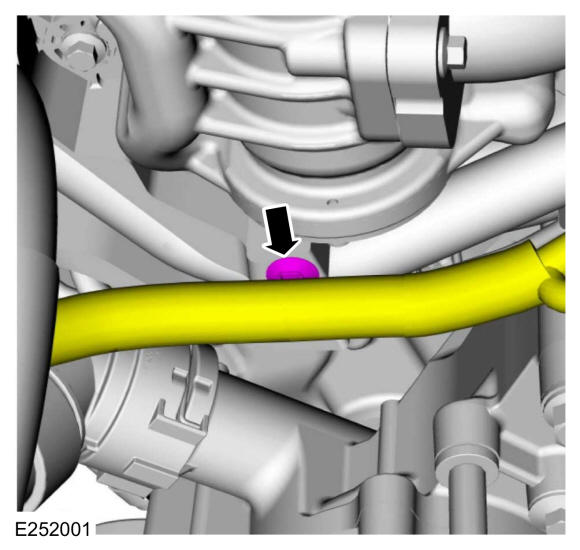

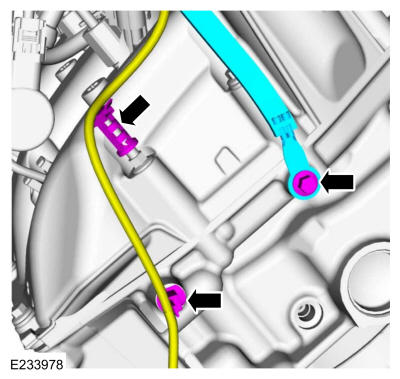

- Connect the wire retainers.
- Install the ground strap and the bolt.
  Torque: 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

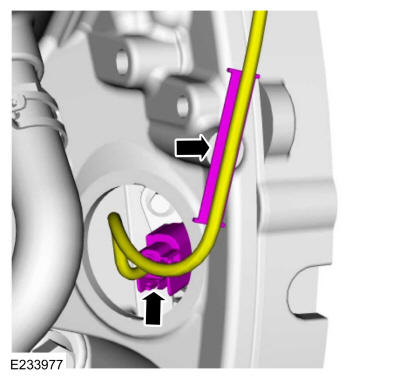

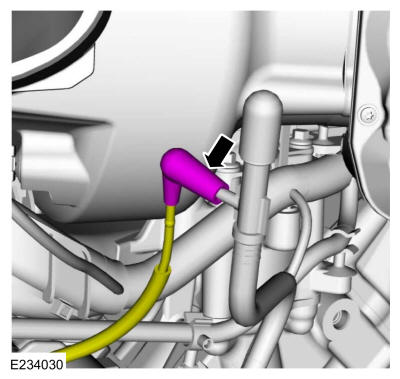

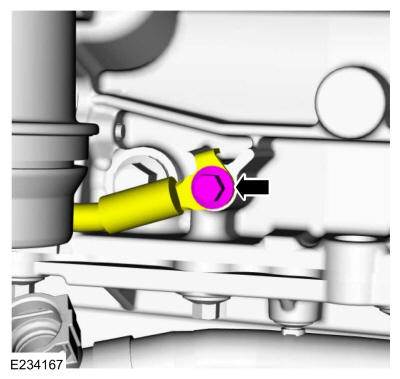

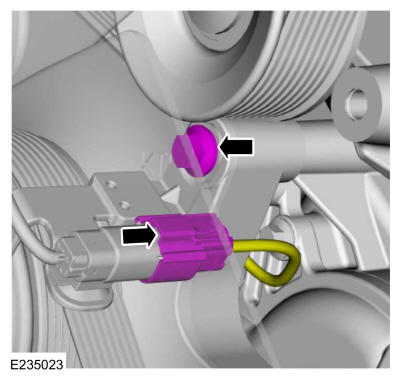

Connect the CKP sensor electrical connector and the wire retainer.

Courtesy of FORD MOTOR COMPANY
Install the CKP sensor cover.

Courtesy of FORD MOTOR COMPANY

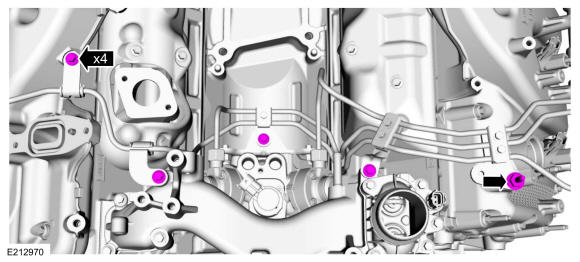

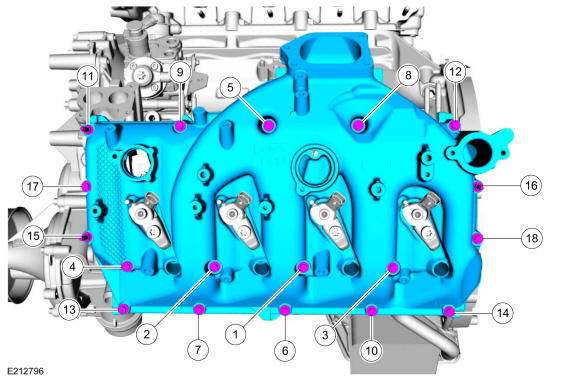

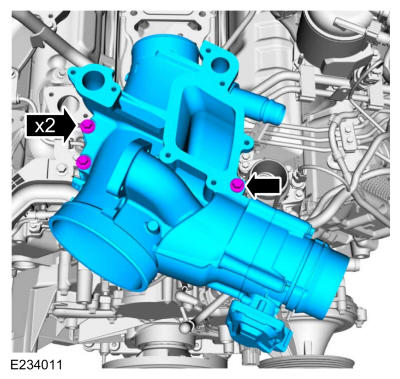

Install the lower intake manifold and the bolts.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

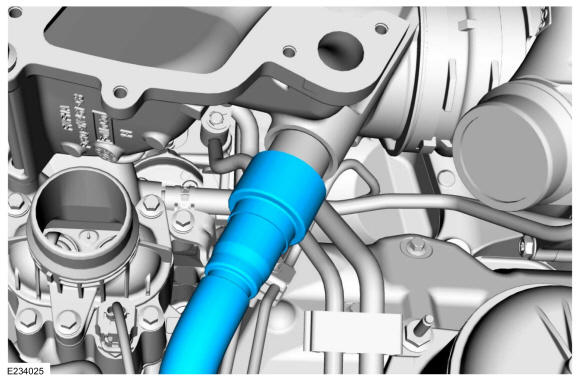

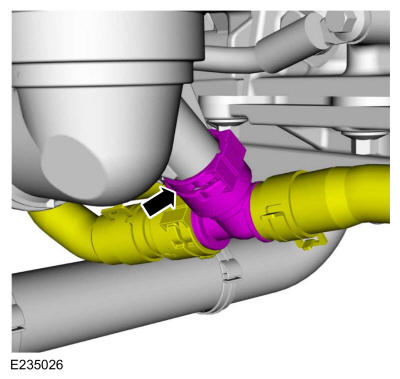

Connect the crankcase vent oil separator hose to the lower intake manifold.

Courtesy of FORD MOTOR COMPANY

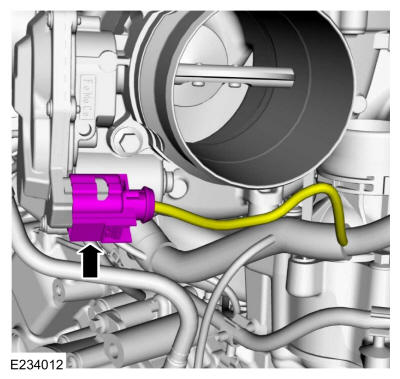

Connect the TB (throttle body) electrical connector.

Courtesy of FORD MOTOR COMPANY

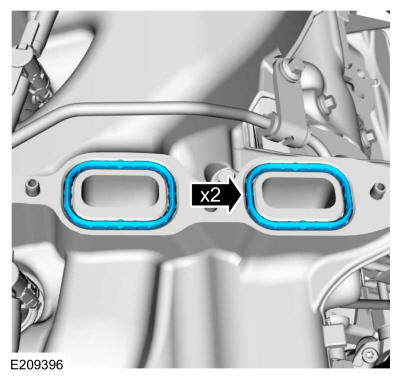

Install the new EGR cooler gaskets.

Courtesy of FORD MOTOR COMPANY

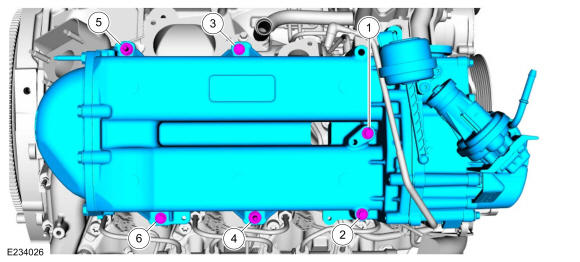

Install the EGR cooler assembly and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

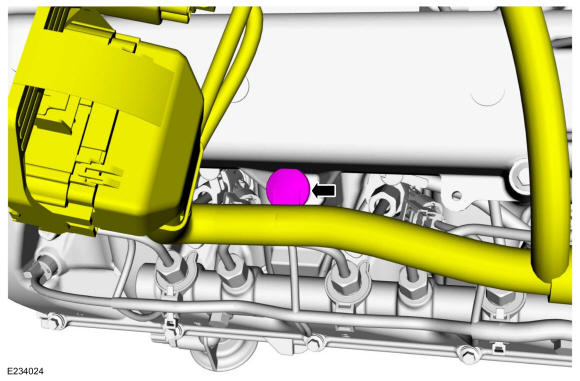

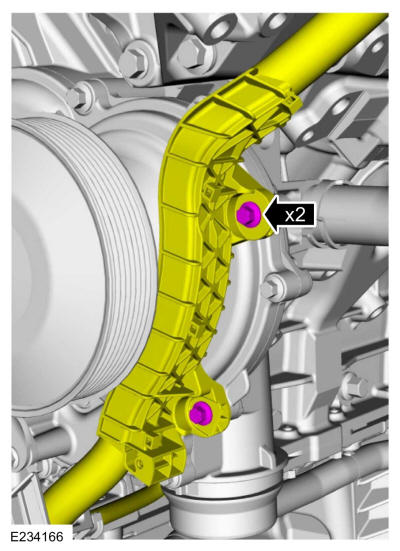

Position the engine wire harness and install the bolts.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

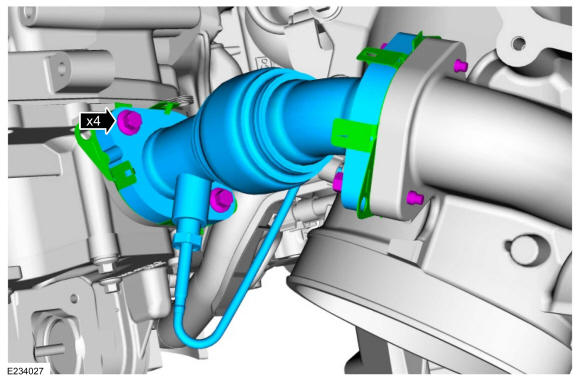

Using new gaskets, install the EGR cooler outlet pipe and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the EGRT electrical connector and the wire retainers.

Courtesy of FORD MOTOR COMPANY

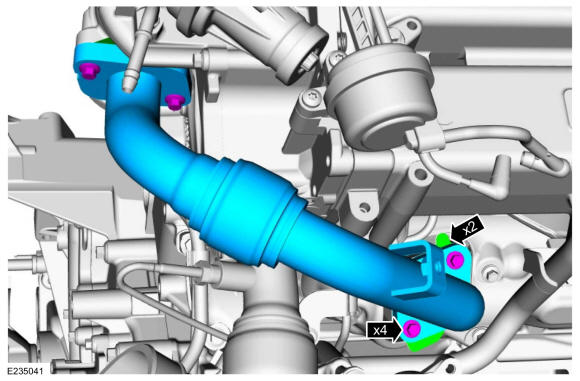

- Using new gaskets, install the EGR cooler inlet pipe and the bolts.
- Tighten the bolts at the exhaust manifold.
  Torque: 89 lb.in (10 Nm)
- Tighten the bolts at the EGR cooler.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

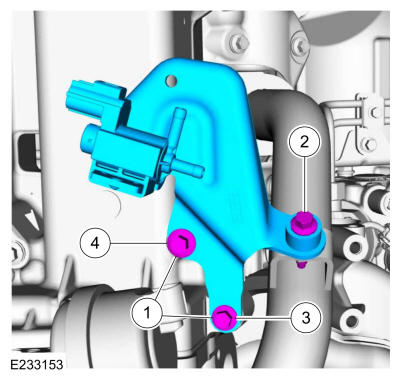

1. Install the EGR cooler inlet pipe bracket and hand start the bolts.
2. Install the bolt.
  Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45 deg.
3. Tighten the bolt.
  Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45 deg.
4. Tighten the bolt.
  Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45 deg.
Courtesy of FORD MOTOR COMPANY

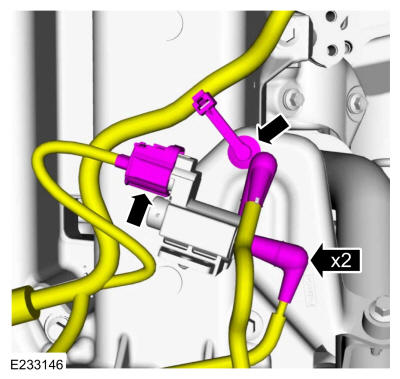

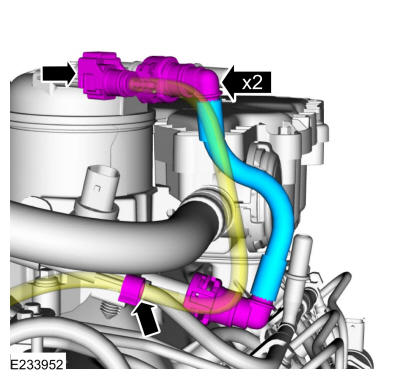

Connect the electrical connector and the vacuum tubes to the EGR bypass valve solenoid. Attach the wire harness retainer.

Courtesy of FORD MOTOR COMPANY
Connect the EGR valve electrical connector and the wire retainer.

Courtesy of FORD MOTOR COMPANY

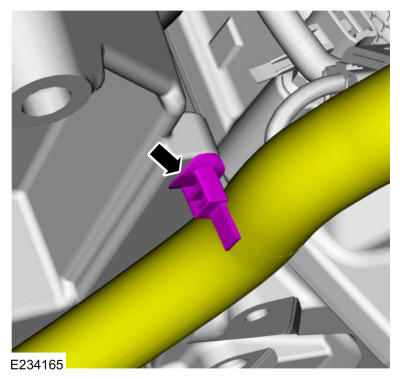

Connect the retainer for the PCM wire harness.

Courtesy of FORD MOTOR COMPANY
Install new O-rings on the oil level indicator tube and lubricate.
Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Courtesy of FORD MOTOR COMPANY

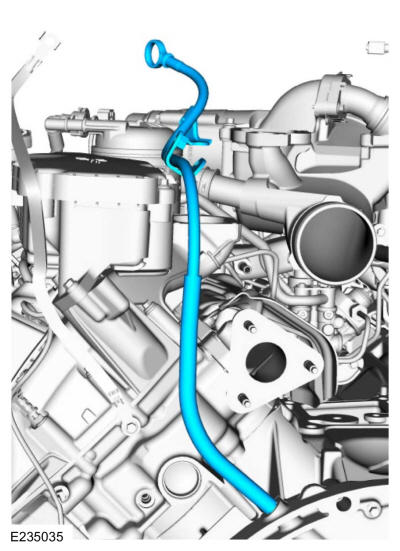

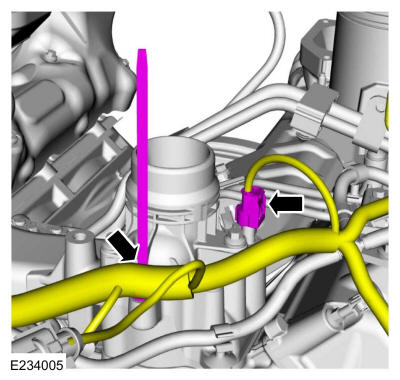

Install the oil level indicator tube.

Courtesy of FORD MOTOR COMPANY
Install a new O-ring seal on the oil fill pipe and lubricate.
Material: Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil / XO-10W30-QSDF (WSS-M2C171-F1)

Courtesy of FORD MOTOR COMPANY

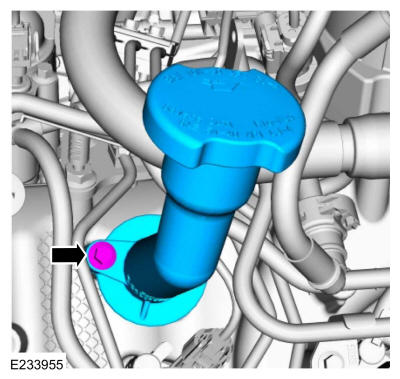

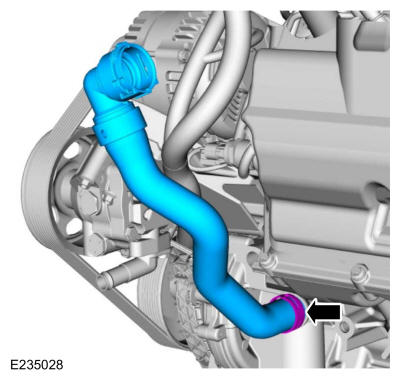

Install the oil fill pipe and bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

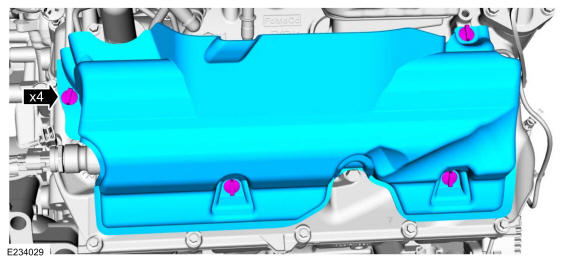

Install the LH sound shield and the push pins.

Courtesy of FORD MOTOR COMPANY
Install the RH sound shield and the push pins.

Courtesy of FORD MOTOR COMPANY

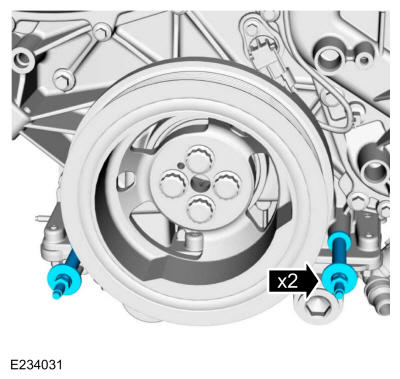

Install the stator standoffs.
Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only one tube shown.

Install the new transmission oil cooler coolant tube O-rings and lubricate. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY

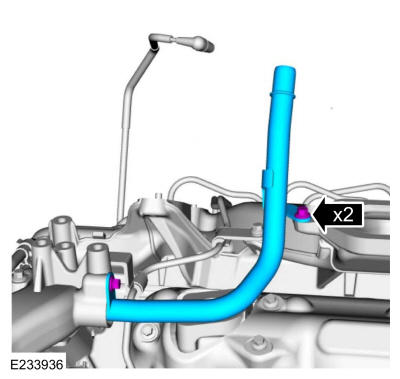

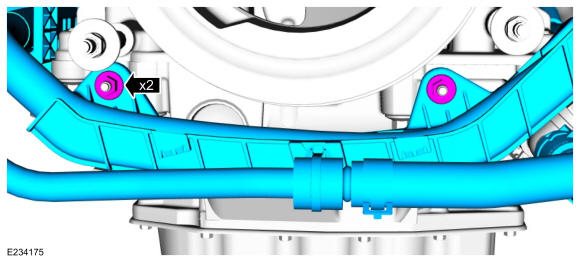

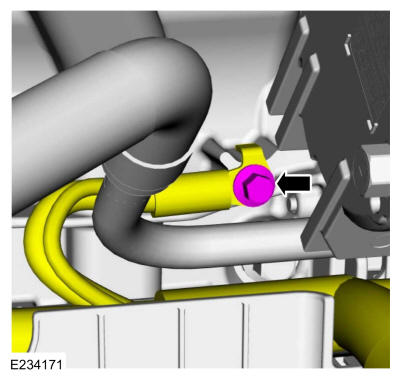

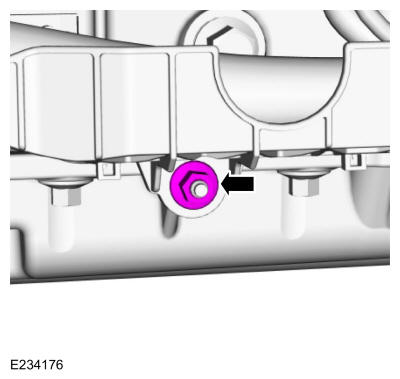

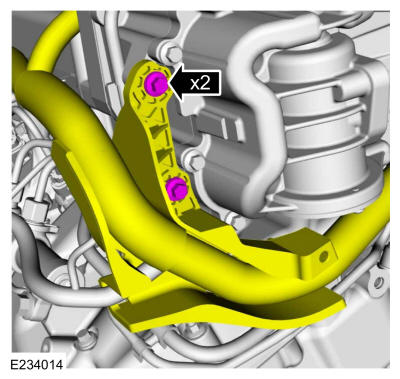

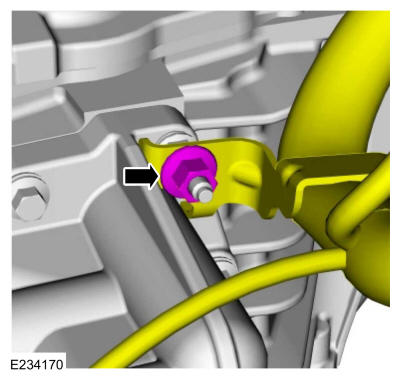

Install the transmission oil cooler coolant tube and stud bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the transmission oil cooler coolant tube, bolt and nut.
Torque: Nut: 115 lb.in (13 Nm) Bolt: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the engine vacuum hose at the tee.

Courtesy of FORD MOTOR COMPANY

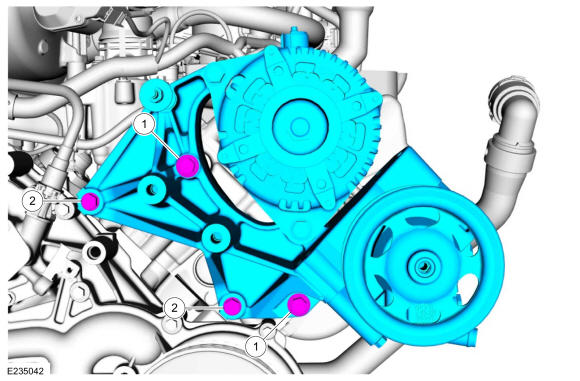

1. Install the power steering pump mounting bracket and the 2 bolts.
  Torque: 18 lb.ft (25 Nm)
2. Install the remaining bolts.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY

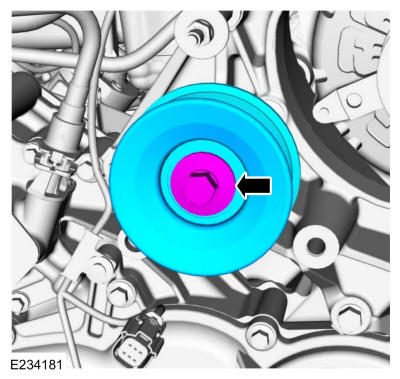

If equipped with dual generator, install the idler pulley.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Install the cooling fan drive assembly, lifting eye and the bolts. Use Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Dual generator shown, single generator similar.

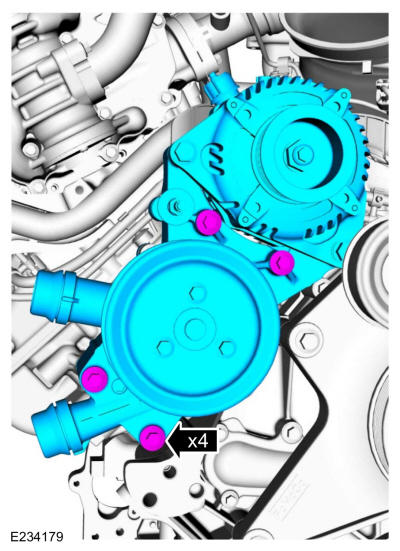

Install the secondary coolant pump assembly and the bolts.

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped with dual generators, connect the wire retainer.

Courtesy of FORD MOTOR COMPANY

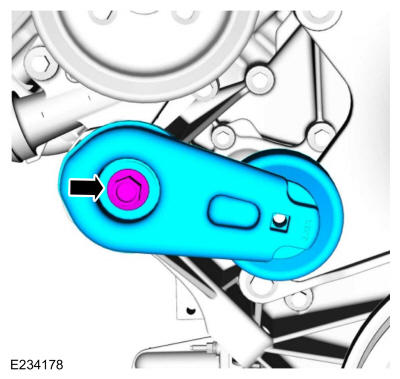

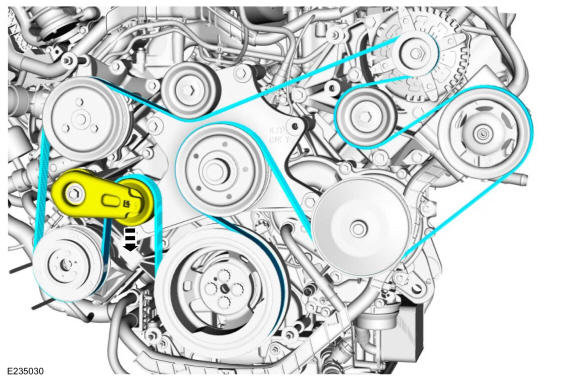

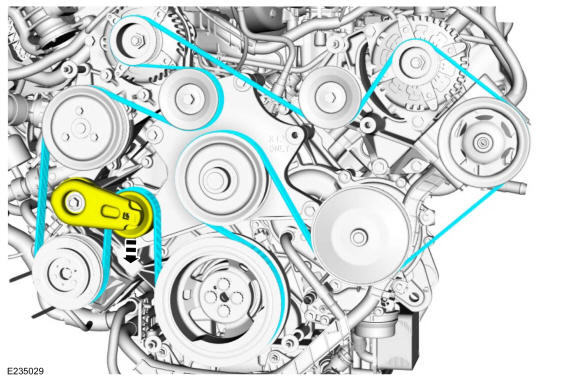

Install the accessory drive belt tensioner and the bolt.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

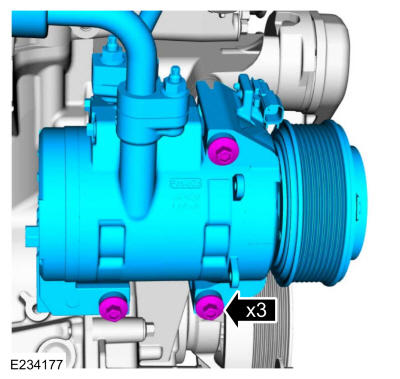

Install the A/C compressor and the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

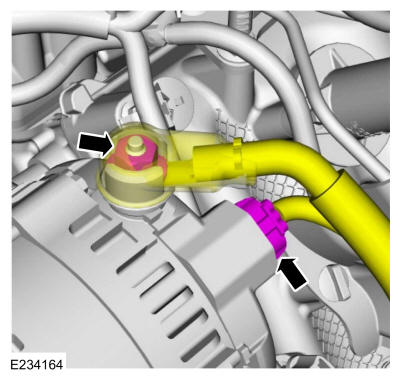

Install the battery wire harness and the nuts.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Install the battery wire harness nut.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

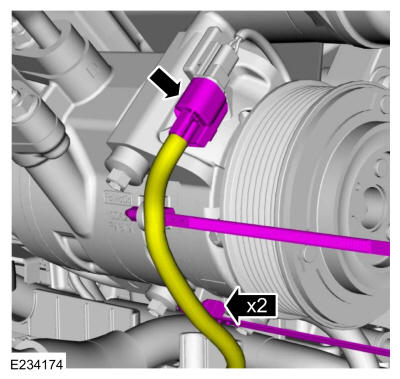

Connect the A/C clutch electrical connector and the wire retainers.

Courtesy of FORD MOTOR COMPANY
Connect the A/C pressure switch electrical connector.

Courtesy of FORD MOTOR COMPANY
Position back the RH ground cable and install the bolt.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the nut for the battery wire harness.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

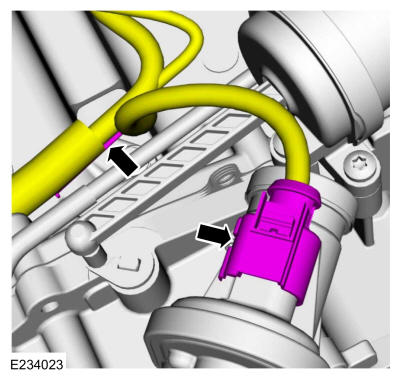

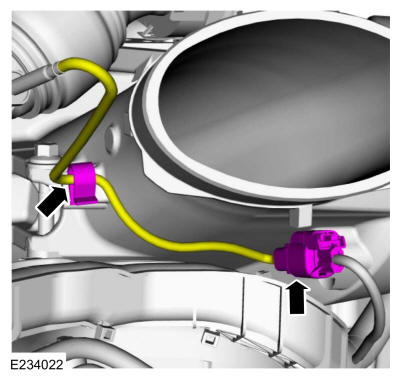

Connect the oil pressure switch and the oil temperature sensor electrical connectors.

Courtesy of FORD MOTOR COMPANY
Connect the heater hose and install the clip.

Courtesy of FORD MOTOR COMPANY
Position back the LH ground cable and install the bolt.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the bolts for the battery wire harness.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the wire harness retainer to the bracket.

Courtesy of FORD MOTOR COMPANY
- Position back the cable and install the nut. Position back the boot.
  Torque: 159 lb.in (18 Nm)
- Connect the generator electrical connector.
Courtesy of FORD MOTOR COMPANY
If equipped with single generator, install the accessory drive belt.

Courtesy of FORD MOTOR COMPANY
If equipped with dual generators, install the accessory drive belt.

Courtesy of FORD MOTOR COMPANY
Install the coolant engine fill hose. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

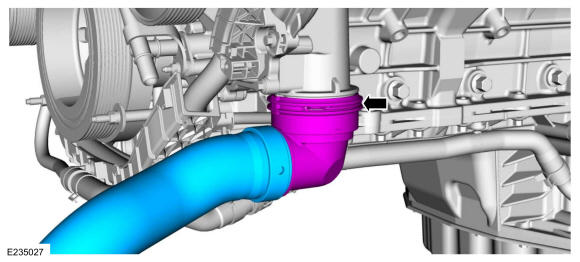

Install the lower radiator hose and install the clip.

Courtesy of FORD MOTOR COMPANY
Connect the coolant hose and install the clip.

Courtesy of FORD MOTOR COMPANY
Using the special tools, install the fan clutch. Use Special Service Tool: 205-036 (T70P-4067-A) Wrench., 303-214 (T83T-6312-B) Wrench, Fan Clutch Nut.
Torque: 98 lb.ft (133 Nm)

Courtesy of FORD MOTOR COMPANY
- Install the fan clutch electrical connector bolt.
  Torque: 18 lb.ft (25 Nm)
- Connect the fan clutch electrical connector.
Courtesy of FORD MOTOR COMPANY

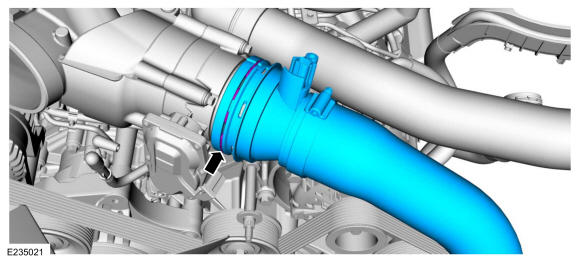

Install the CAC pipe and the clip.

Courtesy of FORD MOTOR COMPANY

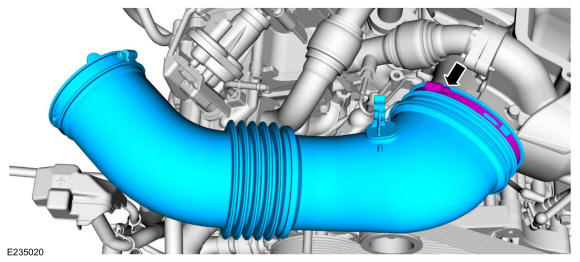

Install the air cleaner outlet pipe and tighten the clamp.
Torque: 35 lb.in (4 Nm)

Courtesy of FORD MOTOR COMPANY
- Position the coolant tube assembly. If equipped, connect the vacuum hose connector.
- Connect the coolant hose assembly. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY

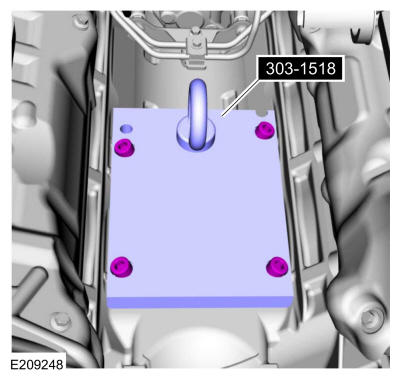

Install Special Service Tool: 303-1518 Bracket, Engine Removal.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

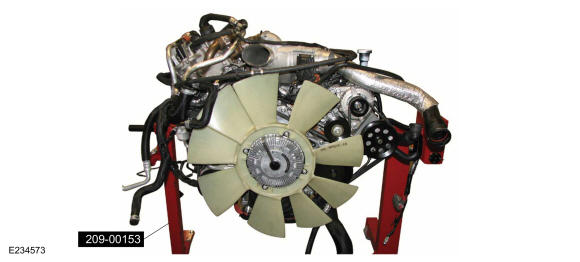

Using a floor crane and the ratchet strap, remove the engine from the mounting stand. Use the General Equipment: Mounting Stand Use the General Equipment: Floor Crane

Courtesy of FORD MOTOR COMPANY

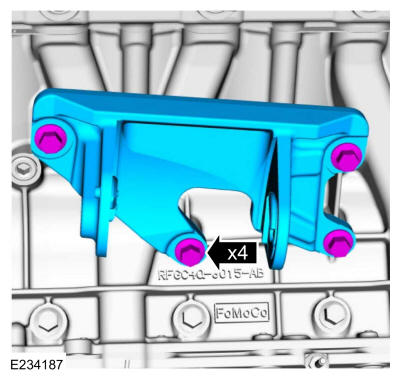

NOTE: Do not tighten the engine mount bracket bolts more than 90 degrees after initial torque or damage to the bolts may occur.

NOTE: Clean the engine mount mating surfaces of any dirt or foreign material prior to installation. Failure to follow these instructions may result in engine mount bracket or engine mount damage.

NOTE: Place a visible mark on the engine mount bracket and bracket bolts. Turning the bolt 1 flat of the bolt head is equal to 60 degrees.

Install the RH engine mount bracket and the new bolts.

Torque: Stage 1: 41 lb.ft (55 Nm) | Stage 2: 60 deg.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not tighten the engine mount bracket bolts more than 90 degrees after initial torque or damage to the bolts may occur.

NOTE: Clean the engine mount mating surfaces of any dirt or foreign material prior to installation. Failure to follow these instructions may result in engine mount bracket or engine mount damage.

NOTE: Place a visible mark on the engine mount bracket and bracket bolts. Turning the bolt 1 flat of the bolt head is equal to 60 degrees.

Install the LH engine mount bracket and the new bolts.

Torque: Stage 1: 41 lb.ft (55 Nm) | Stage 2: 60 deg.

Courtesy of FORD MOTOR COMPANY
Install the engine. Refer to: Engine - Body Off . Refer to: Engine - Body On .
