Section 393 (Engine - 3.3L DURATEC-V6): Assembly: Engine

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

GFD459920Courtesy of FORD MOTOR COMPANY
 100-002 (TOOL-4201-C)Holding Fixture with Dial Indicator Gauge
GFD459431Courtesy of FORD MOTOR COMPANY

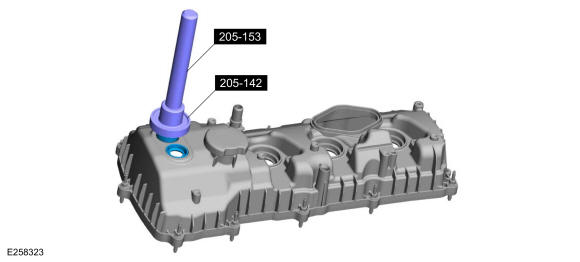

 205-142 (T80T-4000-J)Installer, Differential Bearing Cone
GFD459432Courtesy of FORD MOTOR COMPANY

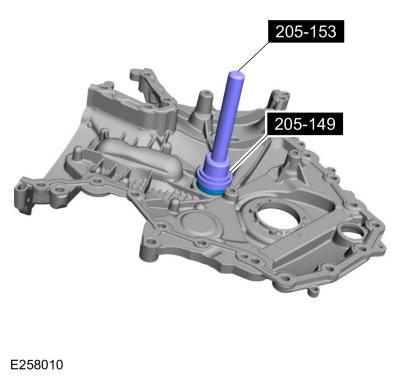

 205-149 (T80T-4000-R)Installer, Spindle Bearing
GFD458988Courtesy of FORD MOTOR COMPANY
 205-153 (T80T-4000-W)Handle
GFD459921Courtesy of FORD MOTOR COMPANY

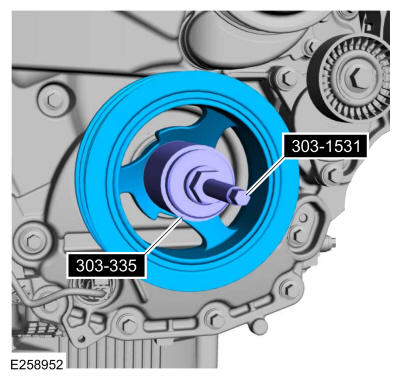

 303-102Installer, Crankshaft Pulley
GFD458989Courtesy of FORD MOTOR COMPANY

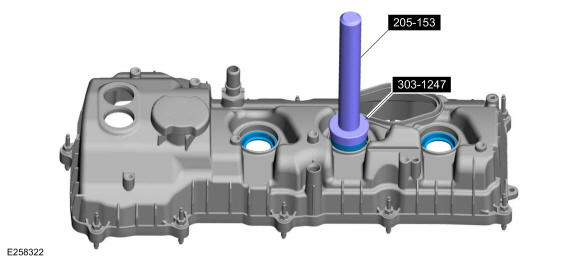

 303-1247VCT Spark Plug Tube Seal Remover and InstallerTKIT-2006UF-FLMTKIT-2006UF-ROW
GFD459014Courtesy of FORD MOTOR COMPANY

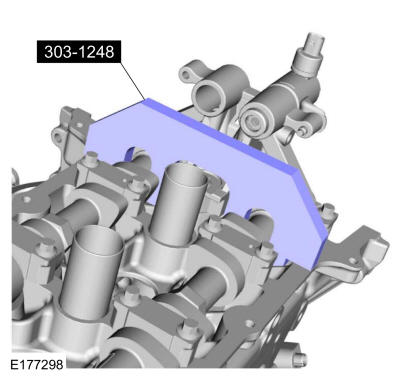

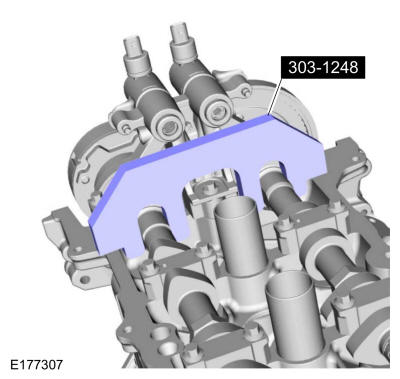

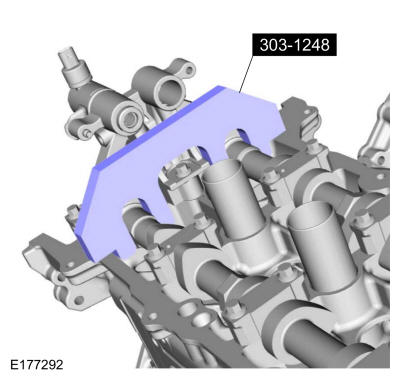

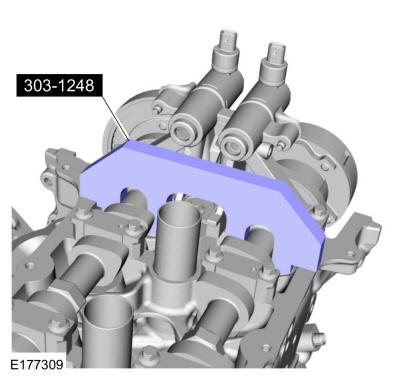

 303-1248Camshaft holding toolsTKIT-2006UF-FLMTKIT-2006UF-ROW
GFD459363Courtesy of FORD MOTOR COMPANY
 303-1251Installer, Front SealTKIT-2006UF-FLMTKIT-2006UF-ROW
GFD459338Courtesy of FORD MOTOR COMPANY

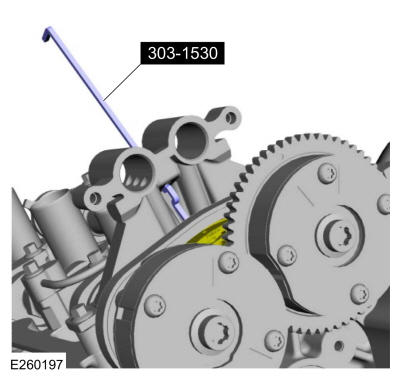

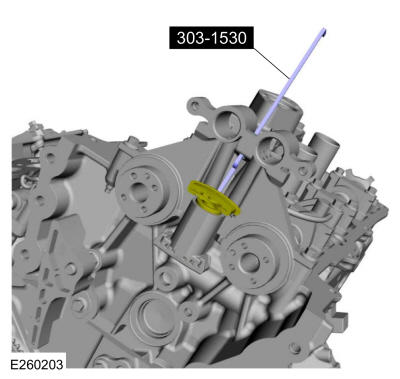

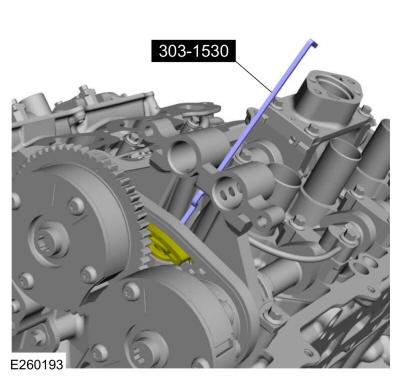

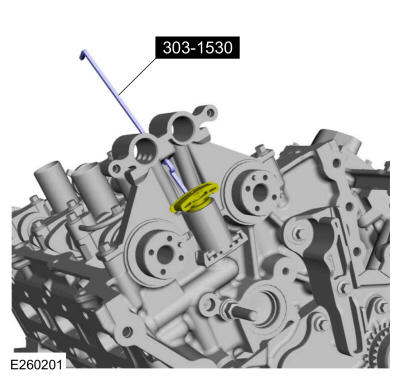

 303-1530Tool, Chain Tensioner Hold DownTKIT-2010A-FTKIT-2010A-LMTKIT-2010A-ROW
GFD459434Courtesy of FORD MOTOR COMPANY

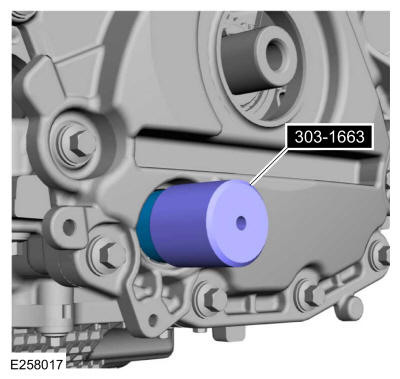

 303-1663Installer, VDOP Seal
GFD458796Courtesy of FORD MOTOR COMPANY
 303-335 (T88T-6701-A)Installer, Front Cover Oil SealTKIT-1988-FLMTKIT-1988-F

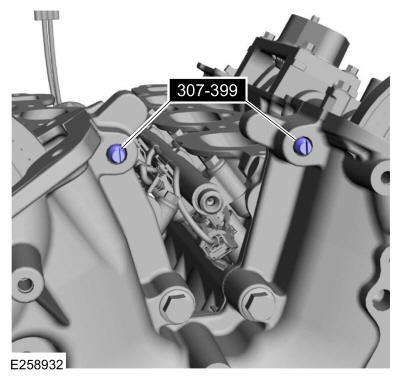

GFD459435Courtesy of FORD MOTOR COMPANY

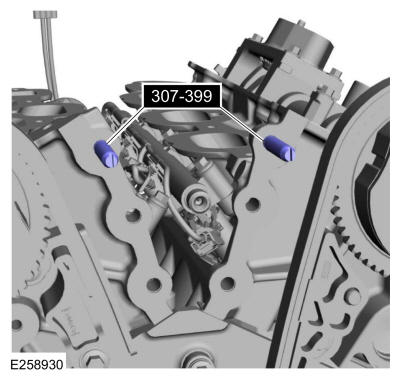

 307-399Alignment Pins, Transmission Fluid PumpTKIT-2002N-DEWTKIT-2000AP-FLM/LM
Feeler Gauge
Floor Crane
Mounting Stand
Round-Ended Steel Rule
Piston Ring Compressor

Materials

Name Specification
Motorcraft® High Performance Engine RTV SiliconeTA-357 WSE-M4G323-A6
Motorcraft® High Temperature Nickel Anti-Seize LubricantXL-2 -
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, may cause engine failure.
NOTE: Assembly of the engine requires various inspections/measurements of the engine components. These inspections/measurements will aid in determining if the engine components will require replacement. Refer to ENGINE SYSTEM - GENERAL INFORMATION .
NOTE: If the cylinder head(s) is replaced, a new secondary timing chain tensioner will need to be installed.

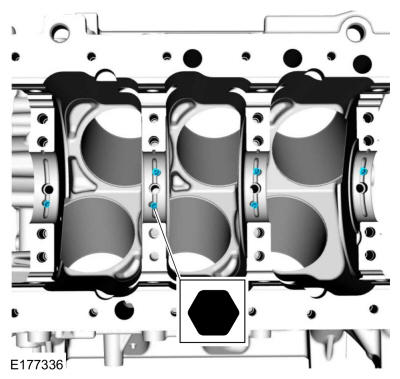

  1. Using a hex bit, install the piston oil cool valves.

    Torque: 35 lb.in (4 Nm)

    GFD459871Courtesy of FORD MOTOR COMPANY

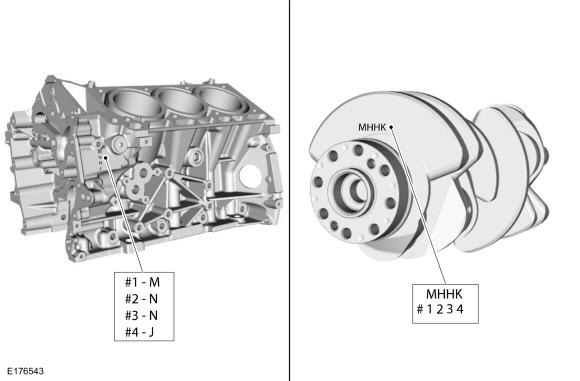

  2. NOTE: This step is for selecting the correct main bearings.
    NOTE: The #1 main bearing is at the front of the engine block.

    • Select the crankshaft main bearings for each crankshaft journal.

    • Record the code that is on the cylinder block face.

    • Record the code that is on the crankshaft flange.

    • The first letter is for main No. 1 and the next letters are for mains 2, 3 and 4.

    GFD459922Courtesy of FORD MOTOR COMPANY
  3. NOTE: This chart is continued in the next step.
    NOTE: This chart is for selecting main bearings 1 and 4 only.

    • Using the data recorded earlier and the Bearing Select Fit Chart, Standard Bearings, determine the required bearing grade for main bearings 1 and 4.

    • Read the first letter of the engine block main bearing code and the first letter of the crankshaft main bearing code.

    • Read down the column below the engine block main bearing code letter and across the row next to the crankshaft main bearing code letter, until the 2 intersect. This is the required bearing grade(s) for the No. 1 crankshaft main bearing.

    • As an example, if the engine block code letter is "M" and the crankshaft code letter is "M", the correct bearing grade for this main bearing is a "2" for the upper bearing and a "2" for the lower bearing.

    • Repeat the above steps using the fourth letter of the block and crankshaft codes to select the No. 4 bearing.

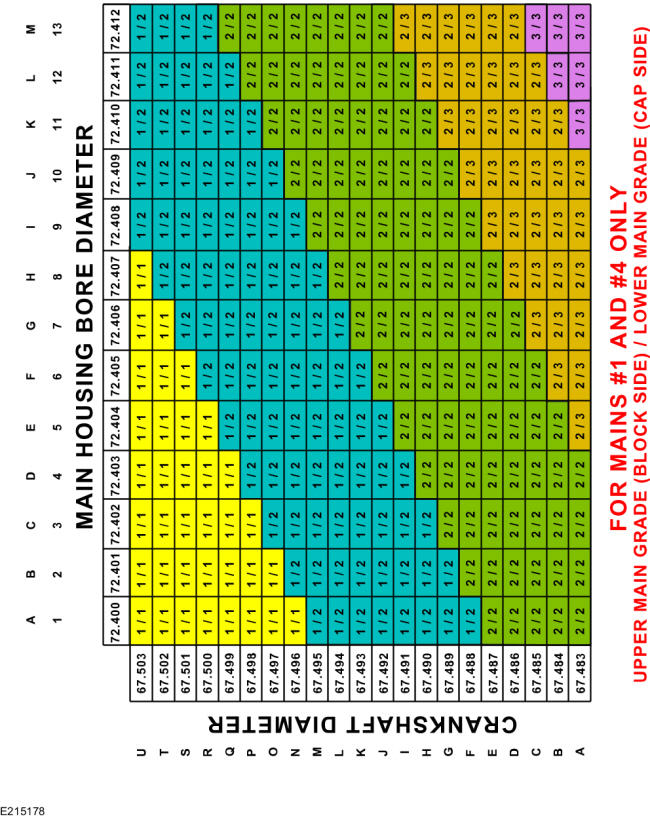

    GFD459923Courtesy of FORD MOTOR COMPANY
  4. NOTE: This chart is for selecting main bearings 1 and 4 only.

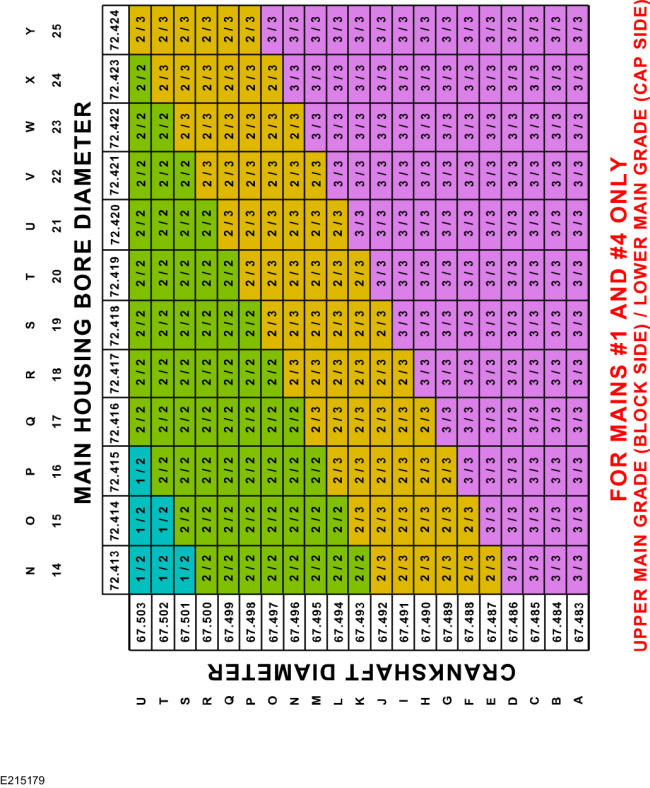

    GFD459924Courtesy of FORD MOTOR COMPANY
  5. NOTE: This chart is continued in the next step.
    NOTE: This chart is for selecting main bearings 2 and 3 only.

    • Using the data recorded earlier and the Bearing Select Fit Chart, Standard Bearings, determine the required bearing grade for main bearings 2 and 3.

    • Read the second letter of the engine block main bearing code and the second letter of the crankshaft main bearing code.

    • Read down the column below the engine block main bearing code letter and across the row next to the crankshaft main bearing code letter, until the 2 intersect. This is the required bearing grade for the No. 2 crankshaft main bearing.

    • As an example, if the engine block code letter is "N" and the crankshaft code letter is "H", the correct bearing grade for this main bearing is "2".

    • Repeat the above steps using the third letter of the block and crankshaft codes to select the No. 3.

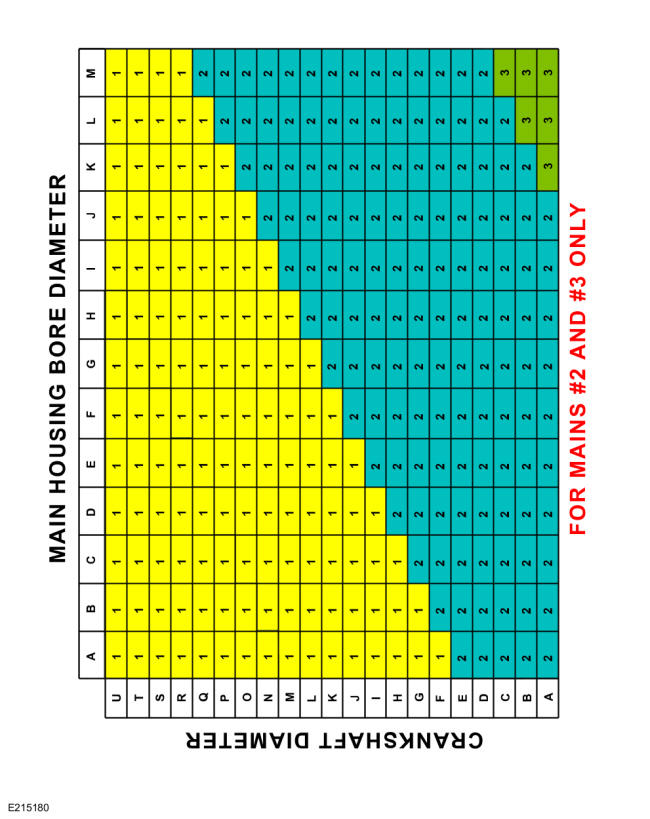

    GFD459925Courtesy of FORD MOTOR COMPANY

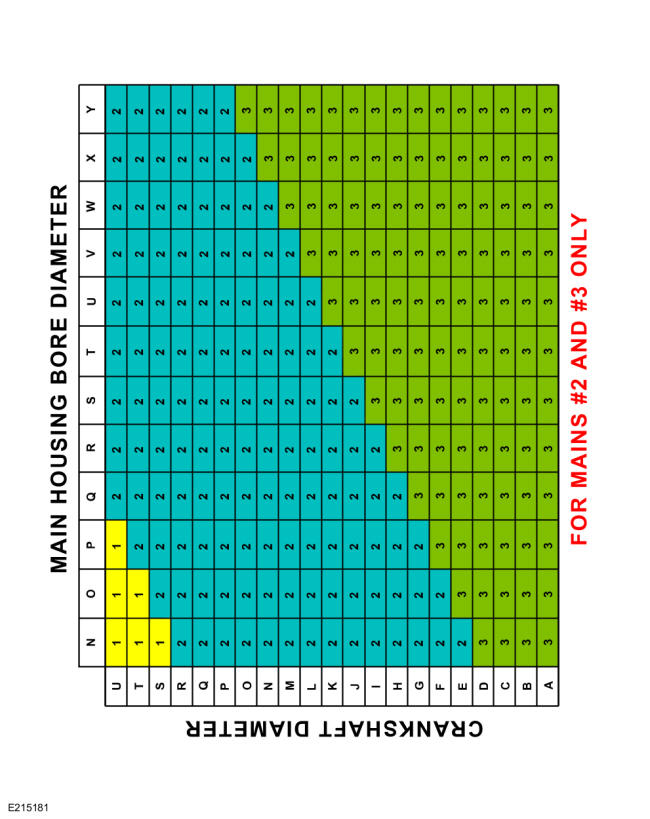

  6. NOTE: This chart is for selecting main bearings 2 and 3 only.
    GFD459926Courtesy of FORD MOTOR COMPANY

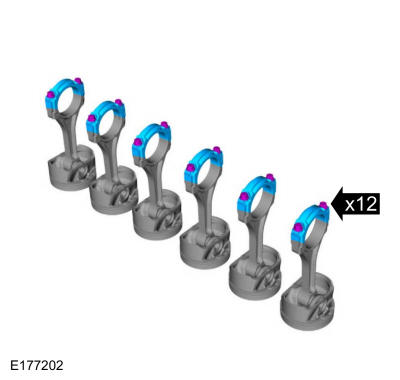

  7. NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.

    Using the original connecting rod cap bolts, install the connecting rod caps and bolts.

    Torque: Stage 1: 17 lb.ft (23 Nm) | Stage 2: 32 lb.ft (43 Nm) | Stage 3: 105°

    GFD459927Courtesy of FORD MOTOR COMPANY

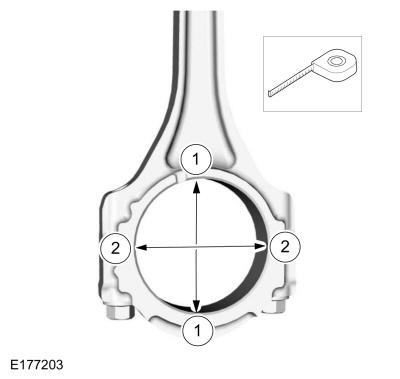

  8. Measure the connecting rod large end bore in 2 directions.
    GFD459928Courtesy of FORD MOTOR COMPANY

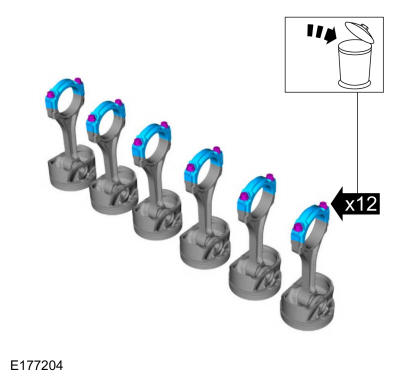

    • Remove the bolts and the rod cap.

    • Discard the bolts.

    GFD459929Courtesy of FORD MOTOR COMPANY
  10. Measure each of the crankshaft connecting rod bearing journal diameters in at least 2 directions.
    GFD459930Courtesy of FORD MOTOR COMPANY

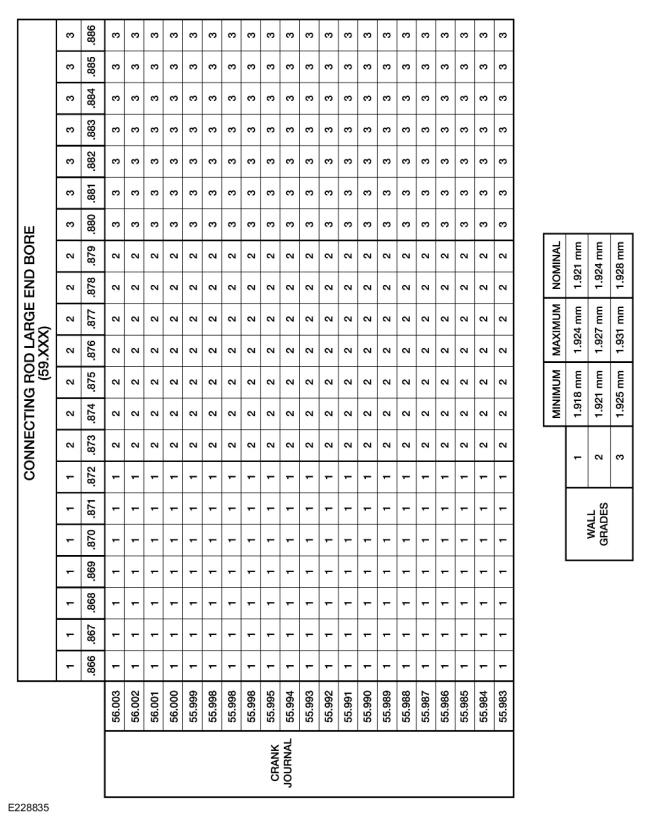

  11. Using the chart, select the correct connecting rod bearings for each crankshaft connecting rod journal.
    GFD459931Courtesy of FORD MOTOR COMPANY

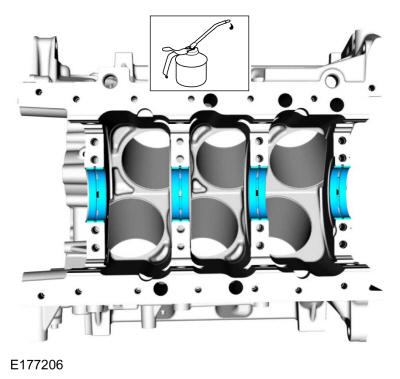

  12. NOTE: Before assembling the cylinder block, all sealing surfaces must be free of chips, dirt, paint and foreign material. Also, make sure the coolant and oil passages are clear.

    Lubricate the upper crankshaft main bearings with clean engine oil and install in the cylinder block.

    GFD459932Courtesy of FORD MOTOR COMPANY
  13. NOTE: Do not install the upper thrust bearings until the crankshaft is installed.
    NOTE: Lubricate the thrust surfaces of the crankshaft with clean engine oil.

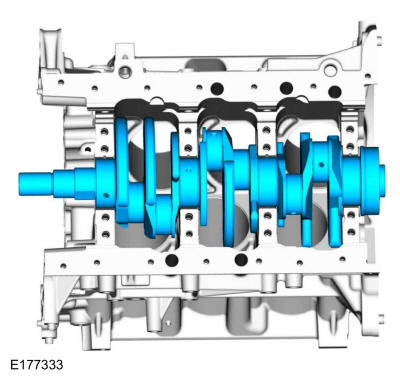

    Install the crankshaft.

    GFD459868Courtesy of FORD MOTOR COMPANY
  14. NOTE: Make sure the side of the thrust washer, with the wide oil grooves, faces the crankshaft thrust surface.

    Push the crankshaft rearward and install the rear crankshaft upper thrust washer at the back of the No. 4 rear bulkhead.

    GFD459933Courtesy of FORD MOTOR COMPANY

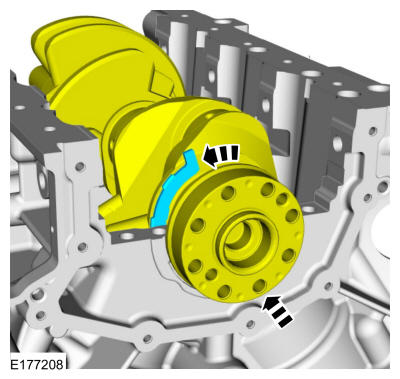

  15. NOTE: Make sure the side of the thrust washer, with the wide oil grooves, faces the crankshaft thrust surface.

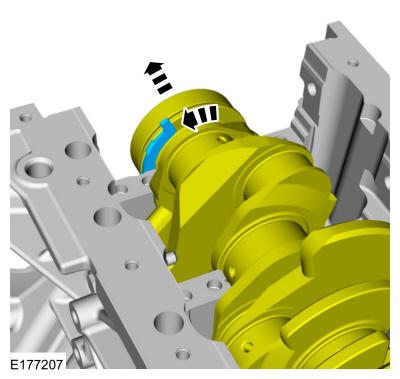

    Push the crankshaft forward and install the front crankshaft upper thrust washer at the front of the No. 4 rear bulkhead.

    GFD459934Courtesy of FORD MOTOR COMPANY

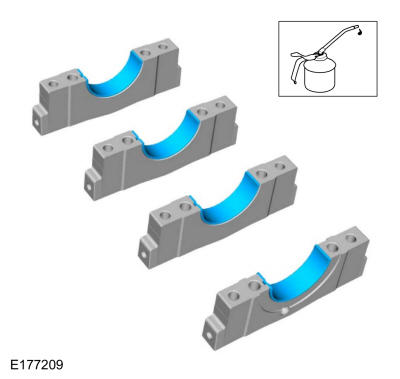

  16. Lubricate the crankshaft lower main bearings with clean engine oil and install them into the main bearing caps. Check seating and squareness of the bearings to make sure of proper seating in caps.
    GFD459935Courtesy of FORD MOTOR COMPANY

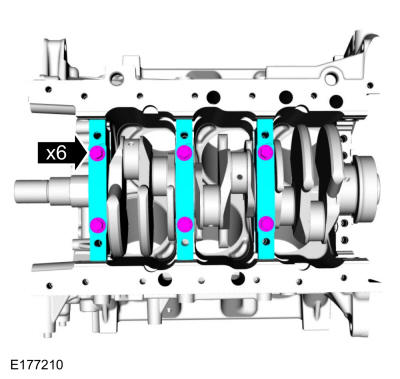

  17. Position the No. 1, No. 2 and No. 3 main bearing caps on the cylinder block and, keeping the caps as square as possible, alternately draw the caps down evenly using the new bolts until the main bearing caps are seated.
    GFD459936Courtesy of FORD MOTOR COMPANY
  18. NOTE: Make sure the side of the thrust washer, with the wide oil grooves, faces the crankshaft thrust surface.
    NOTE: To aid in assembly, apply petroleum jelly to the back of the crankshaft thrust washer.

    Install the lower crankshaft thrust washer to the back side of the No. 4 rear main bearing cap, with the tab aligned with the cutout in the main bearing cap.

    GFD459866Courtesy of FORD MOTOR COMPANY

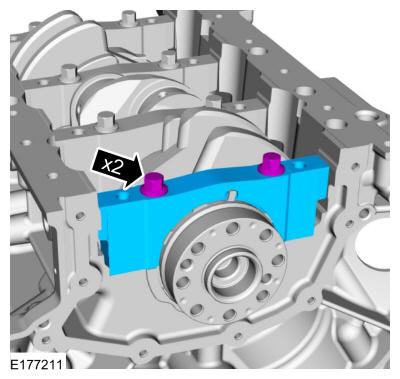

  19. Position main bearing cap No. 4 on the cylinder block and keeping the cap as square as possible, alternately draw the cap down evenly using the new bolts until the main bearing cap is seated.
    GFD459937Courtesy of FORD MOTOR COMPANY
  20. NOTE: While tightening the main bearing vertical bolts, push the crankshaft forward and the No. 4 main bearing cap rearward to seat the crankshaft thrust washers.

    Tighten the main bearing bolts.

    Torque: Stage 1: 20 lb.ft (27 Nm) | Stage 2: 180°

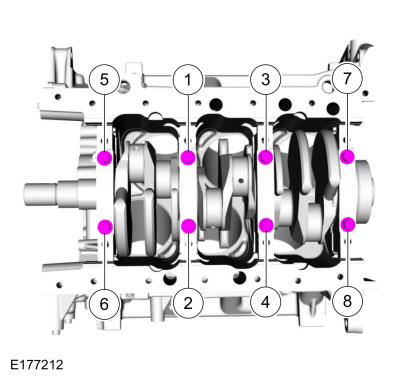

    Fig 1: Main Bearing Tightening Sequence (1 of 2)
    GFD459938Courtesy of FORD MOTOR COMPANY
  21. Install the new main bearing cap side bolts.

    Torque: Stage 1: 33 lb.ft (45 Nm) | Stage 2: 90°

    Fig 2: Main Bearing Tightening Sequence (2 of 2)

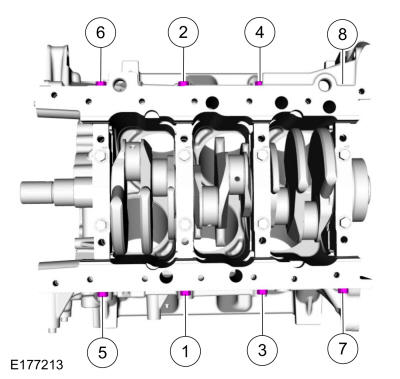

    GFD459939Courtesy of FORD MOTOR COMPANY

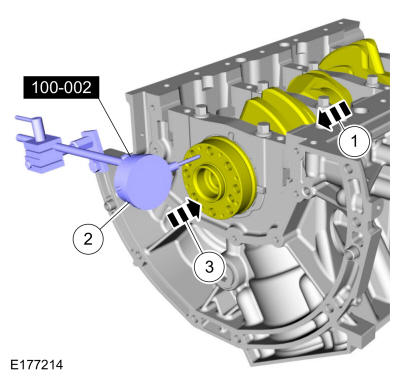

    1. Position the crankshaft to the rear of the cylinder block. Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.
    2. Zero the Dial Indicator Gauge.
    3. Move the crankshaft to the front of the cylinder block. Measure and record the crankshaft end play.
    GFD459940Courtesy of FORD MOTOR COMPANY
  23. NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.

    • Prepare the connecting rod and cap

    • Insert the new bolts in the rod cap.

    • Insert the upper and lower rod bearings into the rod and cap.

    GFD459941Courtesy of FORD MOTOR COMPANY

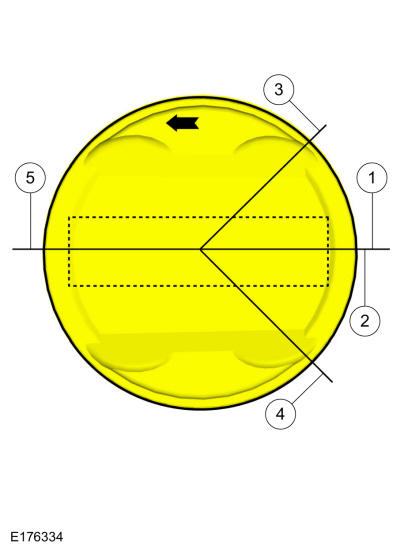

  24. NOTE: The piston compression upper and lower ring should be installed with the "O" mark on the ring face pointing up toward the top of the piston.
    NOTE: The arrow on the top of the piston indicates the front of the engine.

    1. Center line of the piston parallel to the wrist pin bore.
    2. Upper compression ring gap location.
    3. Upper oil control segment ring gap location.
    4. Lower oil control segment ring gap location.
    5. Expander ring and lower compression ring gap location.

    GFD459919Courtesy of FORD MOTOR COMPANY

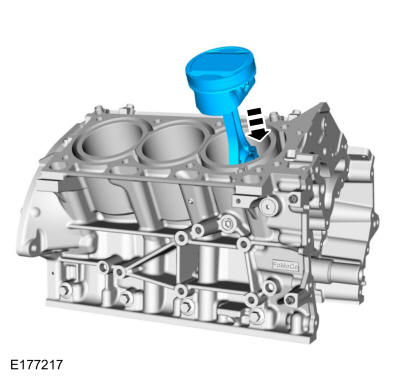

  25. NOTE: Be sure not to scratch the cylinder wall or crankshaft journal with the connecting rod. Push the piston down until the connecting rod bearing seats on the crankshaft journal.
    NOTE: Lubricate the pistons, piston rings, connecting rod bearings and the entire cylinder bores with clean engine oil.
    NOTE: Make sure the piston rings are positioned to specifications for installation. Refer to Piston .
    NOTE: If the piston and or connecting rod are being installed new, the piston rod orientation marks and the arrow on the top of the dome of the piston should be facing toward the front of the engine block.
    NOTE: If the piston and connecting rod are to be reinstalled, they must be installed in the same orientation as disassembled.

    • Using the piston ring compressor, install the piston and connecting rod assemblies. Use the General Equipment: Piston Ring Compressor

    • Repeat until all 6 piston assemblies are installed.

    GFD459942Courtesy of FORD MOTOR COMPANY
  26. NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.
    NOTE: After installation of each piston, connecting rod, rod cap and bolts, rotate the crankshaft to verify smooth operation.

    Install the connecting rod cap and the new bolts.

    Torque: Stage 1: 17 lb.ft (23 Nm) | Stage 2: 32 lb.ft (43 Nm) | Stage 3: 105°

    GFD459862Courtesy of FORD MOTOR COMPANY

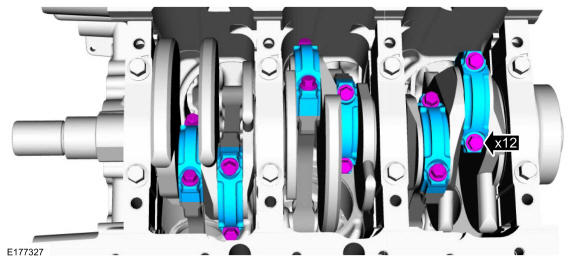

  27. Install the main bearing cap support brace and the new bolts.

    Torque: Stage 1: 20 lb.ft (27 Nm) | Stage 2: 225°

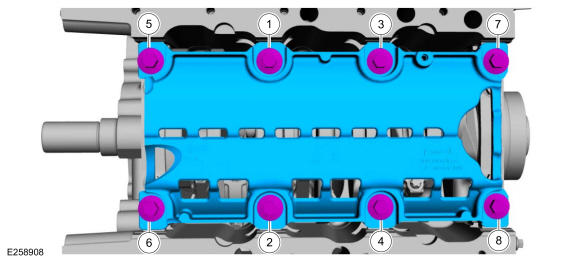

    Fig 3: Main Bearing Cap Support Brace Tightening Sequence
    GFD459943Courtesy of FORD MOTOR COMPANY
  28. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: The crankshaft rear seal retainer must be installed and the bolts tightened within 4 minutes of sealant application.

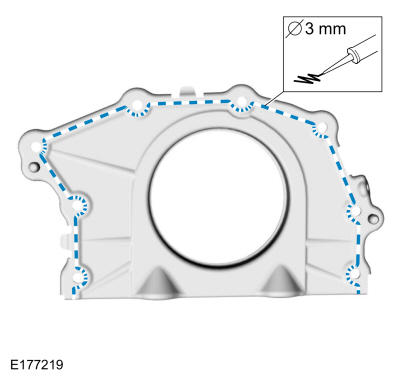

    Apply a 3 mm (0.11 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the crankshaft rear seal retainer.

    GFD459944Courtesy of FORD MOTOR COMPANY

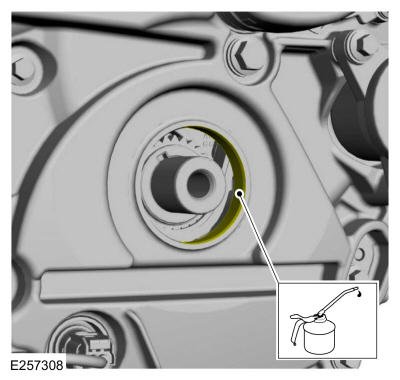

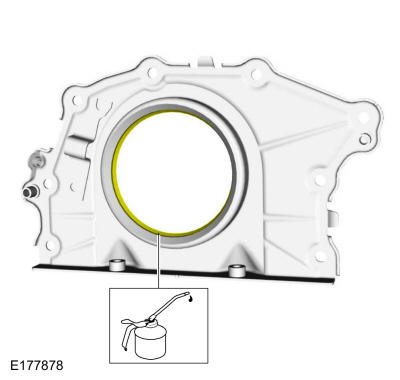

  29. Lubricate the crankshaft rear seal with clean engine oil.
    GFD459382Courtesy of FORD MOTOR COMPANY

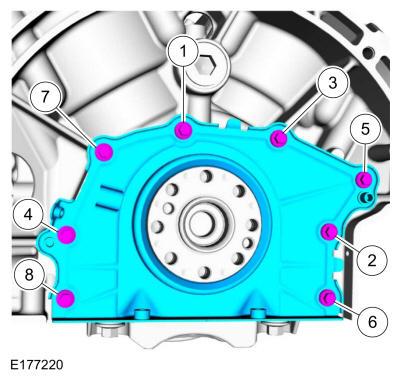

  30. Install the crankshaft rear seal and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD459945Courtesy of FORD MOTOR COMPANY
  31. Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
  32. Install the oil pump and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD459857Courtesy of FORD MOTOR COMPANY

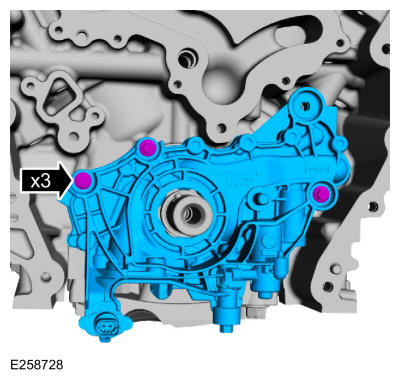

  33. Install a new oil pump screen and pickup tube O-ring seal.
    GFD459946Courtesy of FORD MOTOR COMPANY

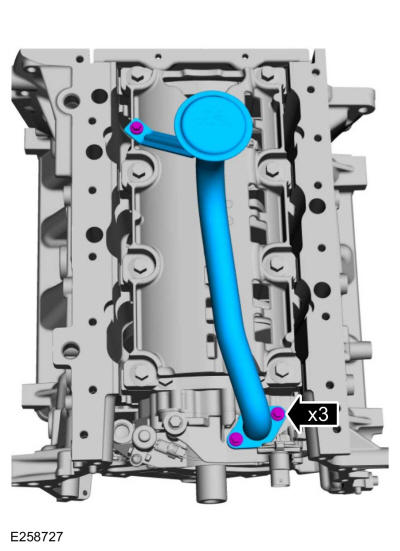

  34. Install the oil pump screen and pickup tube and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD459855Courtesy of FORD MOTOR COMPANY

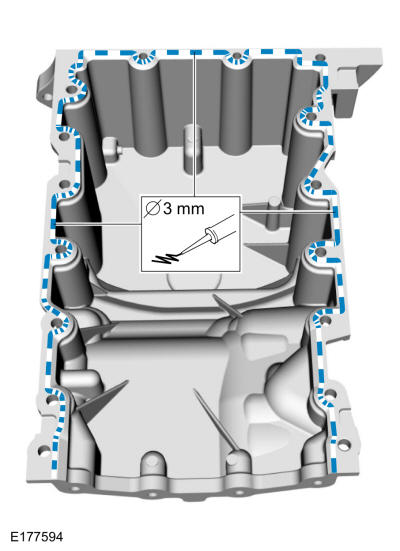

  35. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

    Apply a 3 mm (0.11 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the oil pan.

    GFD459588Courtesy of FORD MOTOR COMPANY
  36. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

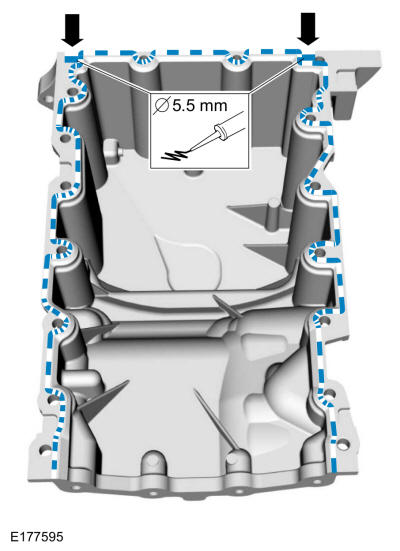

    Apply a 5.5 mm (0.21 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the oil pan.

    GFD459589Courtesy of FORD MOTOR COMPANY
  37. Install the oil pan and bolts.

    Torque: Stage 1: 27 lb.in (3 Nm) | Stage 2: Loosen: 180°

    GFD459947Courtesy of FORD MOTOR COMPANY
  38. Using a straight edge, align the oil pan flush with the rear of the cylinder block at the 2 areas shown below. Use the General Equipment: Round-Ended Steel Rule

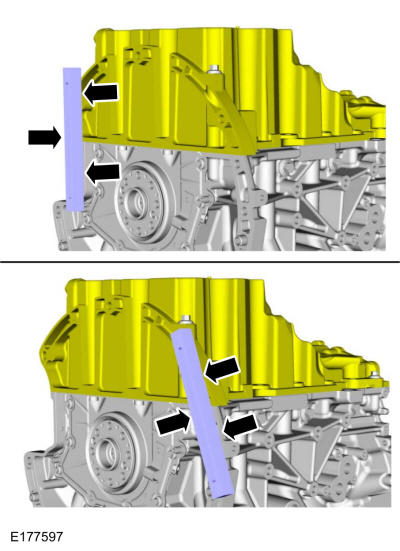

    GFD459948Courtesy of FORD MOTOR COMPANY

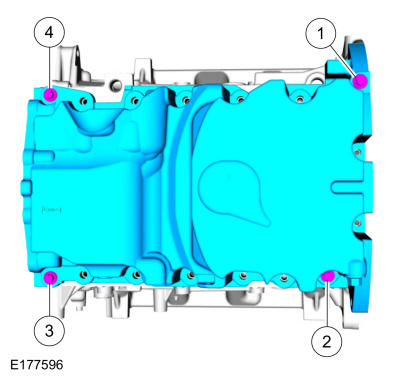

  39. Tighten the bolts in the sequence.

    Torque: 27 lb.in (3 Nm)

    GFD459949Courtesy of FORD MOTOR COMPANY

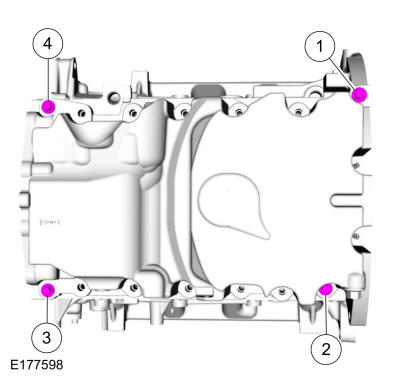

  40. Install the remaining oil pan bolts. Tighten in the sequence shown below.

    Torque: Stage 1: Tighten bolts 1-9 and 11-14 to: 177 lb.in (20 Nm) | Stage 2: Tighten bolts 1-9 and 11-14 an additional: 45° | Stage 3: Tighten bolt 10 to: 177 lb.in (20 Nm) | Stage 4: Tighten bolt 10 an additional: 45° | Stage 5: Tighten bolts 15 and 16 to: 89 lb.in (10 Nm) | Stage 6: Tighten bolts 15 and 16 an additional: 90°

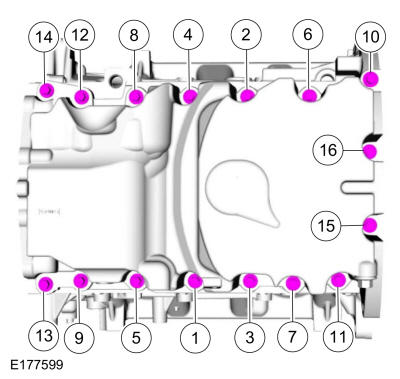

    Fig 4: Oil Pan Bolts Tightening Sequence
    GFD459950Courtesy of FORD MOTOR COMPANY

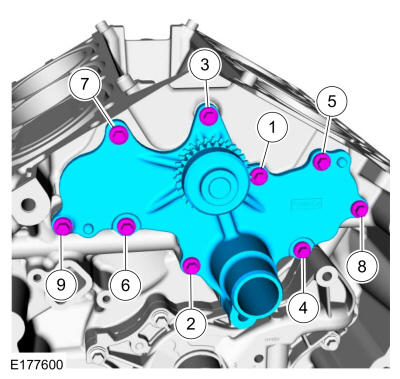

  41. Install the channel cover plate and the bolts.

    Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45°

    Fig 5: Channel Cover Plate Tightening Sequence
    GFD459951Courtesy of FORD MOTOR COMPANY

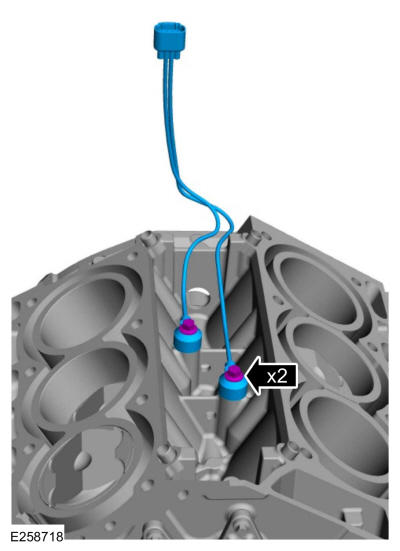

  42. Install the KS and the bolts.

    Torque: 177 lb.in (20 Nm)

    GFD459850Courtesy of FORD MOTOR COMPANY

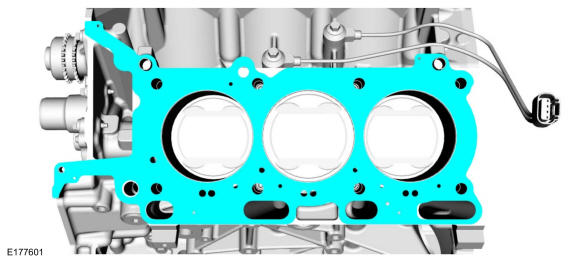

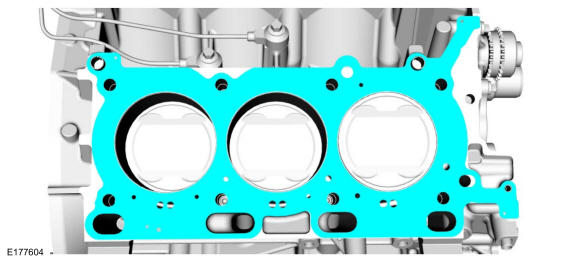

  43. Install the LH cylinder head gasket.
    GFD459952Courtesy of FORD MOTOR COMPANY
  44. NOTE: If the cylinder head is replaced, a new secondary timing chain tensioner will need to be installed.

    Install the cylinder head and the new bolts.

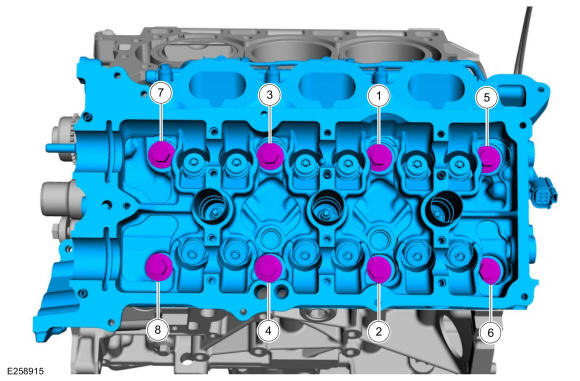

    Torque: Stage 1: 177 lb.in (20 Nm) | Stage 2: 26 lb.ft (35 Nm) | Stage 3: 90° | Stage 4: 90° | Stage 5: 45°

    GFD459953Courtesy of FORD MOTOR COMPANY

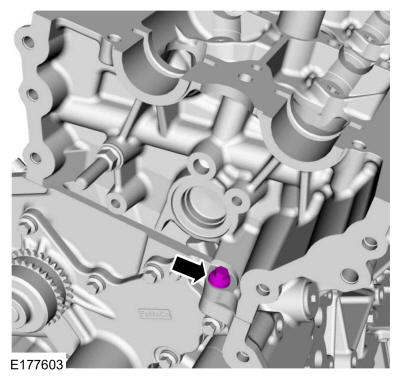

  45. Install the M6 bolt.

    Torque: 89 lb.in (10 Nm)

    GFD459954Courtesy of FORD MOTOR COMPANY
  46. Install the RH cylinder head gasket.
    GFD459955Courtesy of FORD MOTOR COMPANY

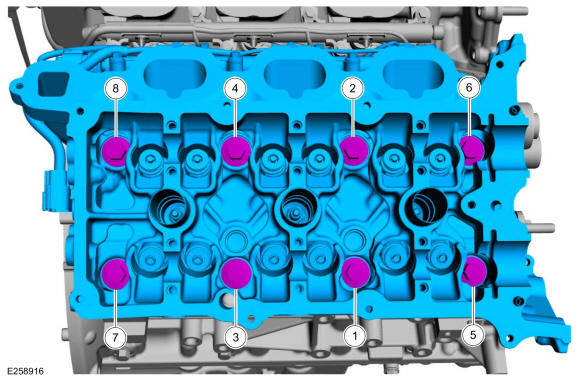

  47. NOTE: If the cylinder head is replaced, a new secondary timing chain tensioner will need to be installed.

    Install the cylinder head and the new bolts.

    Torque: Stage 1: 177 lb.in (20 Nm) | Stage 2: 26 lb.ft (35 Nm) | Stage 3: 90° | Stage 4: 90° | Stage 5: 45°

    GFD459956Courtesy of FORD MOTOR COMPANY
  48. Install the M6 bolt.

    Torque: 89 lb.in (10 Nm)

    GFD459957Courtesy of FORD MOTOR COMPANY

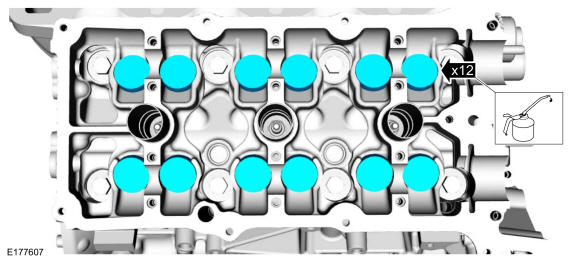

  49. NOTE: Coat the valve tappets with clean engine oil prior to installation.
    NOTE: The valve tappets must be installed in their original positions.
    NOTE: RH shown, LH similar.

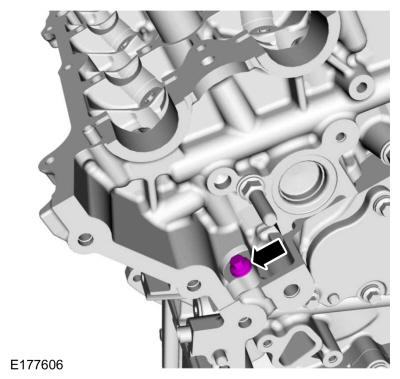

    Install the valve tappets.

    GFD459664Courtesy of FORD MOTOR COMPANY

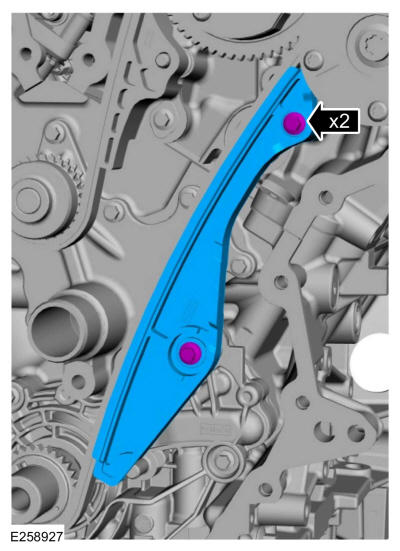

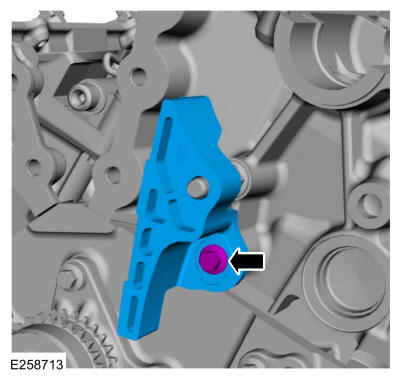

  50. Install the LH upper primary timing chain guide and the bolt.

    Torque: 89 lb.in (10 Nm)

    GFD459839Courtesy of FORD MOTOR COMPANY

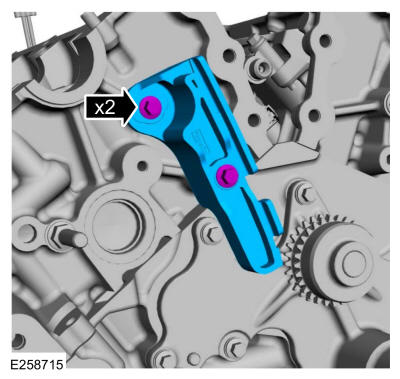

  51. Install the RH primary timing chain guide and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD459838Courtesy of FORD MOTOR COMPANY

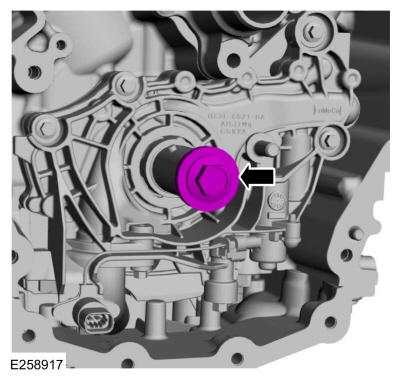

  52. Install the original crankshaft bolt and washer.
    GFD459958Courtesy of FORD MOTOR COMPANY

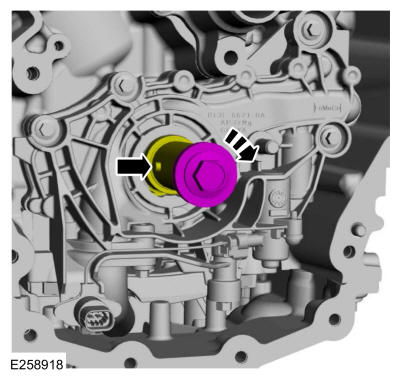

  53. NOTE: The crankshaft must remain in the freewheeling position (crankshaft dowel pin at 9 o'clock) until after the camshafts are installed and the valve clearance is checked/adjusted. Do not turn the crankshaft until instructed to do so. Failure to follow this process will result in severe engine damage.

    Using the crankshaft bolt, position the crankshaft dowel pin in the 9 o'clock position.

    GFD459959Courtesy of FORD MOTOR COMPANY

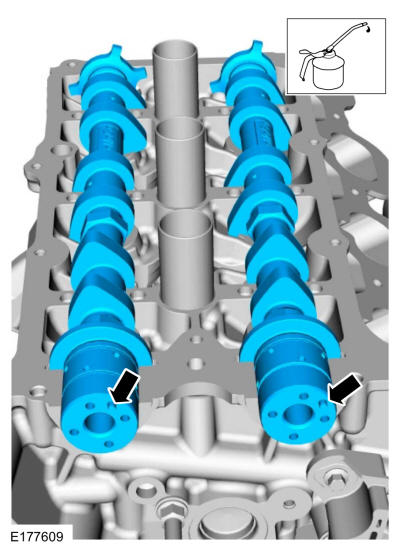

  54. NOTE: Coat the camshafts with clean engine oil prior to installation.

    Lubricate the camshafts with clean engine oil and position the camshafts onto the RH cylinder head in the neutral position as shown below.

    GFD459960Courtesy of FORD MOTOR COMPANY

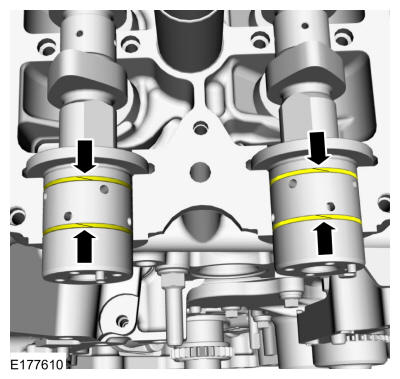

  55. NOTE: The camshaft seal gaps must be at the 12 o'clock position or damage to the engine may occur.

    Position the RH camshaft seals gaps as shown below.

    GFD459347Courtesy of FORD MOTOR COMPANY

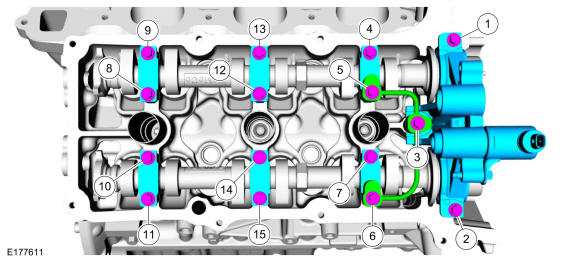

  56. NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.

    • Install the camshaft caps, oil tube and the bolts.

      Torque: Stage 1: Tighten bolts 1, 2, 4, 5, 6 and 7 to: 71 lb.in (8 Nm) | Stage 2: Tighten bolts 1, 2, 4, 5, 6 and 7 an additional: 45° | Stage 3: Tighten bolts 8, 9, 10 and 11 to: 71 lb.in (8 Nm) | Stage 4: Tighten bolts 12, 13, 14 and 15 to: 71 lb.in (8 Nm) | Stage 5: Tighten bolts 12, 13, 14 and 15 an additional: 45°

    • The camshaft torque sequence (bolt 3) will be finished after the timing chain is installed.

    GFD459961Courtesy of FORD MOTOR COMPANY

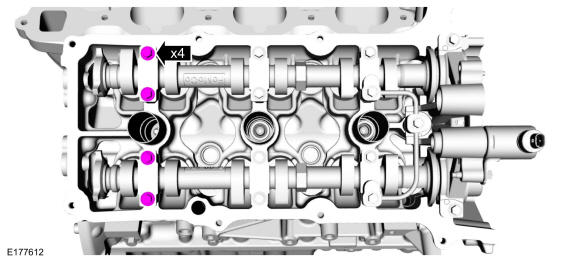

  57. Loosen the camshaft cap bolts.
    GFD459962Courtesy of FORD MOTOR COMPANY
  58. Tighten the camshaft cap bolts.

    Torque: Stage 1: 71 lb.in (8 Nm) | Stage 2: 60°

    GFD459963Courtesy of FORD MOTOR COMPANY
  59. NOTE: If any components are installed new, the engine valve clearance must be checked/adjusted or engine damage may occur.
    NOTE: Use a camshaft sprocket bolt to turn the camshafts.

    Confirm that the valve tappet clearances are within specification. If valve tappet clearances are not within specification, the clearance must be adjusted by installing new valve tappet(s) of the correct size. Refer to: Valve Clearance Adjustment . Use the General Equipment: Feeler Gauge

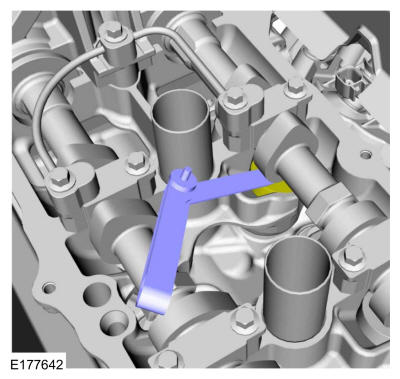

    GFD459964Courtesy of FORD MOTOR COMPANY

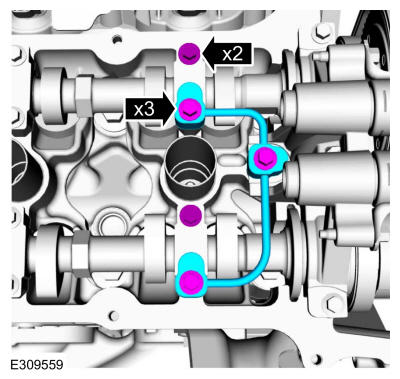

    • Remove the bolts and the RH oil tube.

    • Loosen the 2 bolts.

    GFD459352Courtesy of FORD MOTOR COMPANY

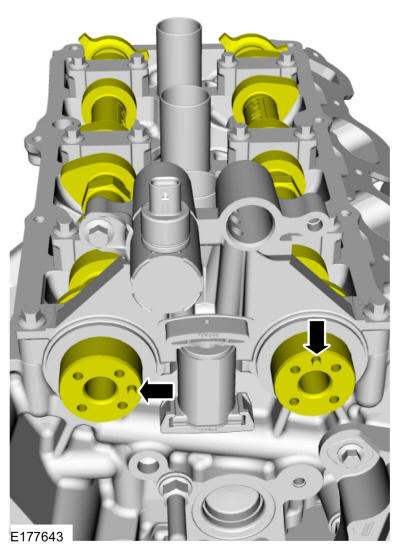

  61. Rotate the RH camshafts to TDC.
    GFD459965Courtesy of FORD MOTOR COMPANY
  62. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install Special Service Tool: 303-1248 Camshaft holding tools.

    GFD459343Courtesy of FORD MOTOR COMPANY
  63. NOTE: The VCT oil control solenoids are removed for clarity.

    Install Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

    GFD459966Courtesy of FORD MOTOR COMPANY

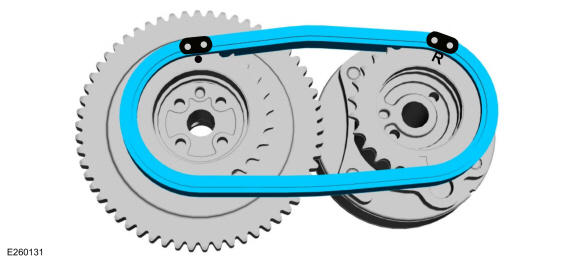

  64. Align the colored links with the timing marks and assemble the RH VCT units.
    GFD459683Courtesy of FORD MOTOR COMPANY
  65. NOTE: It may be necessary to rotate the camshafts slightly, to install the RH secondary timing assembly.

    Position the RH VCT units and secondary timing chain onto the camshafts by aligning the holes in the VCT units with the dowel pins in the camshafts.

    GFD459835Courtesy of FORD MOTOR COMPANY

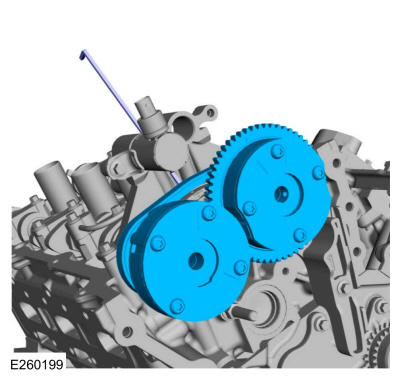

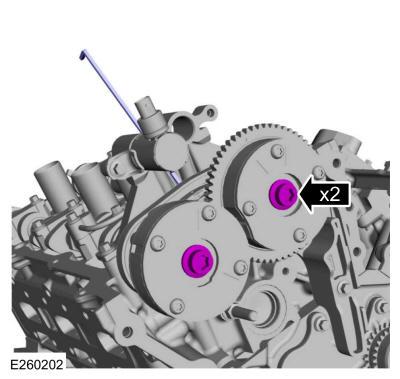

  66. Install the new RH VCT unit bolts.

    Torque: Stage 1: 30 lb.ft (40 Nm) | Stage 2: Loosen: 1turn(s) | Stage 3: 18 lb.ft (25 Nm) | Stage 4: 180°

    GFD459967Courtesy of FORD MOTOR COMPANY
  67. NOTE: Make sure the secondary timing chain is centered on the timing chain tensioner guides.
    NOTE: The VCT oil control solenoids are removed for clarity.

    Remove Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

    GFD459833Courtesy of FORD MOTOR COMPANY

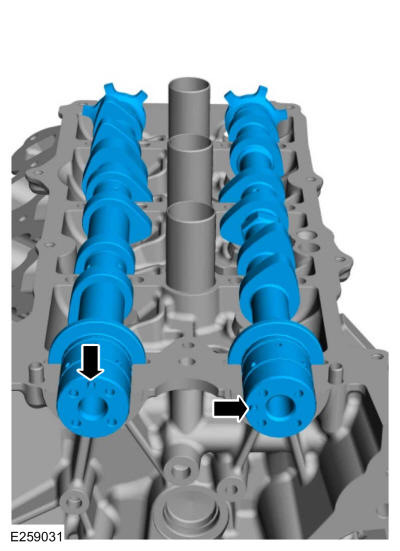

  68. NOTE: Coat the camshafts with clean engine oil prior to installation.

    Lubricate the camshafts with clean engine oil and position the camshafts onto the LH cylinder head in the neutral position as shown below.

    GFD459968Courtesy of FORD MOTOR COMPANY
  69. NOTE: The camshaft seal gaps must be at the 12 o'clock position or damage to the engine may occur.

    Position the LH camshaft seals gaps as shown below.

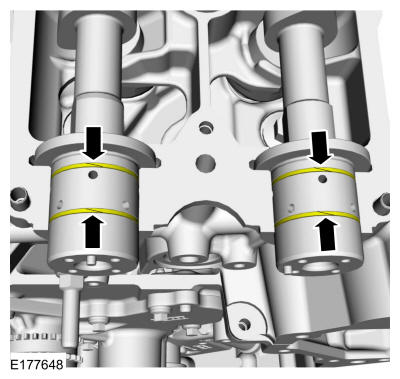

    GFD459355Courtesy of FORD MOTOR COMPANY
  70. NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.

    • Install the camshaft caps, oil tube and the bolts.

      Torque: Stage 1: Tighten bolts 1, 2, 4, 5, 6 and 7 to: 71 lb.in (8 Nm) | Stage 2: Tighten bolts 1, 2, 4, 5, 6 and 7 an additional: 45° | Stage 3: Tighten bolts 8, 9, 10 and 11 to: 71 lb.in (8 Nm) | Stage 4: Tighten bolts 12, 13, 14 and 15 to: 71 lb.in (8 Nm) | Stage 5: Tighten bolts 12, 13, 14 and 15 an additional: 45°

    • The camshaft torque sequence (bolt 3) will be finished after the timing chain is installed.

    GFD459969Courtesy of FORD MOTOR COMPANY
  71. Loosen the camshaft cap bolts.

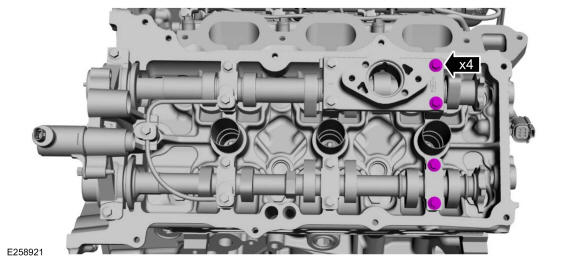

    GFD459970Courtesy of FORD MOTOR COMPANY

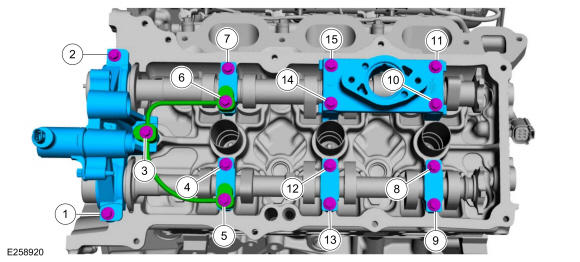

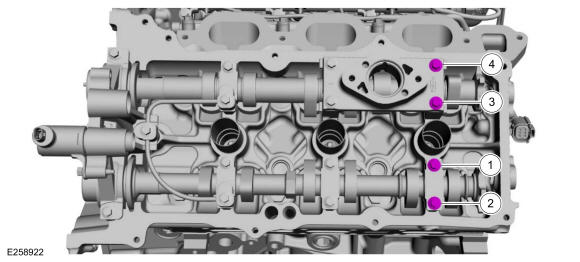

  72. Tighten the camshaft cap bolts in sequence shown below.

    Torque: Stage 1: 71 lb.in (8 Nm) | Stage 2: 60°

    Fig 6: Camshaft Cap Bolts Tightening Sequence
    GFD459971Courtesy of FORD MOTOR COMPANY
  73. NOTE: If any components are installed new, the engine valve clearance must be checked/adjusted or engine damage may occur.
    NOTE: Use a camshaft sprocket bolt to turn the camshafts.

    Confirm that the valve tappet clearances are within specification. If valve tappet clearances are not within specification, the clearance must be adjusted by installing new valve tappet(s) of the correct size. Refer to: Valve Clearance Adjustment . Use the General Equipment: Feeler Gauge

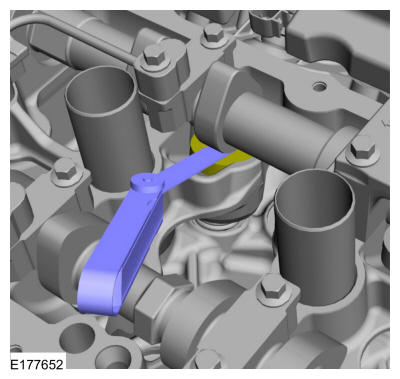

    GFD459972Courtesy of FORD MOTOR COMPANY

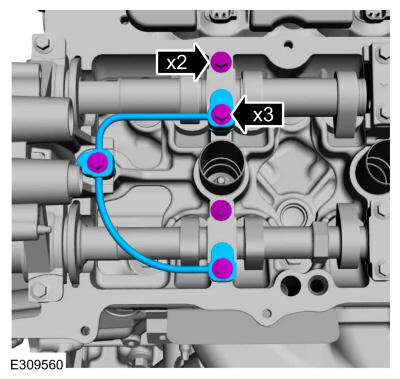

    • Remove bolts and the LH oil tube.

    • Loosen the 2 bolts.

    GFD459360Courtesy of FORD MOTOR COMPANY
  75. Rotate the LH camshafts to TDC.

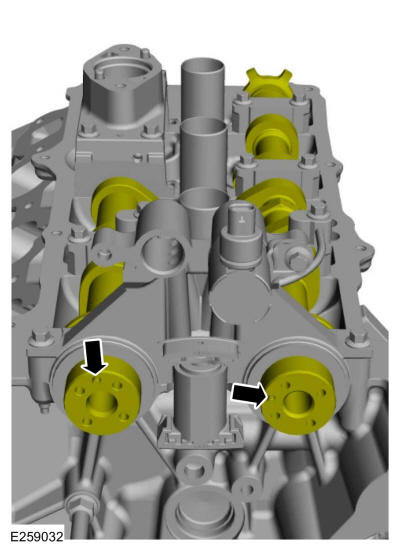

    GFD459973Courtesy of FORD MOTOR COMPANY
  76. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install Special Service Tool: 303-1248 Camshaft holding tools.

    GFD459340Courtesy of FORD MOTOR COMPANY
  77. NOTE: The VCT oil control solenoids are removed for clarity.

    Install Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

    GFD459974Courtesy of FORD MOTOR COMPANY

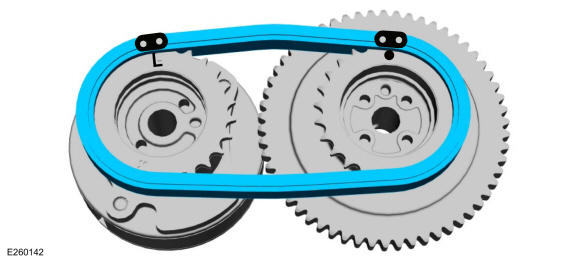

  78. Align the colored links with the timing marks and assemble the LH VCT units.
    GFD459693Courtesy of FORD MOTOR COMPANY
  79. NOTE: It may be necessary to rotate the camshafts slightly, to install the LH secondary timing assembly.

    Position the LH VCT units and secondary timing chain onto the camshafts by aligning the holes in the VCT units with the dowel pins in the camshafts.

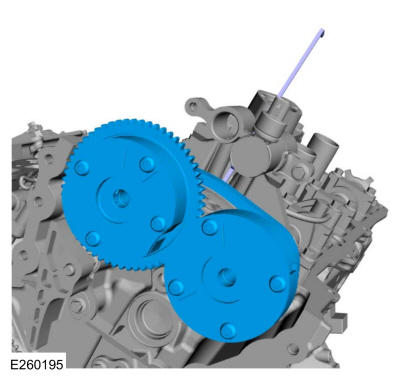

    GFD459830Courtesy of FORD MOTOR COMPANY

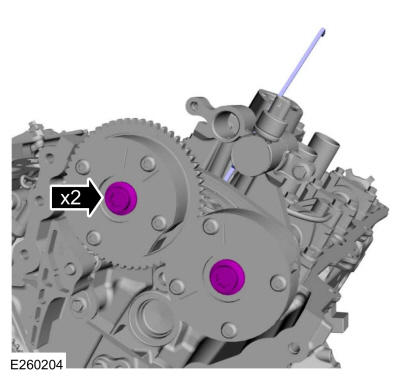

  80. Install the new LH VCT unit bolts.

    Torque: Stage 1: 30 lb.ft (40 Nm) | Stage 2: Loosen: 1turn(s) | Stage 3: 18 lb.ft (25 Nm) | Stage 4: 180°

    GFD459975Courtesy of FORD MOTOR COMPANY
  81. NOTE: Make sure the secondary timing chain is centered on the timing chain tensioner guides.
    NOTE: The VCT oil control solenoids are removed for clarity.

    Remove Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

    GFD459828Courtesy of FORD MOTOR COMPANY
  82. Using the crankshaft bolt, rotate the crankshaft clockwise 60 degrees to the TDC position (crankshaft dowel pin at 11 o'clock).
    GFD459976Courtesy of FORD MOTOR COMPANY

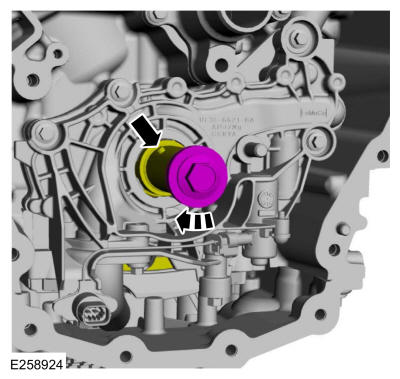

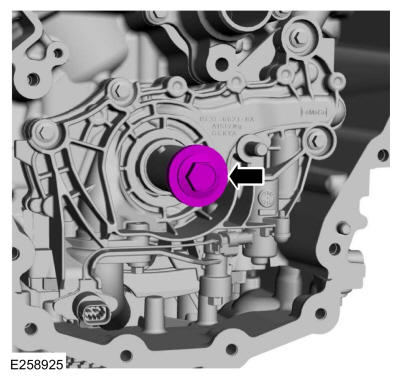

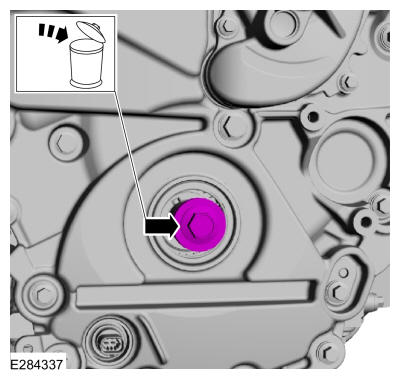

  83. Remove and discard the crankshaft pulley bolt.
    GFD459977Courtesy of FORD MOTOR COMPANY

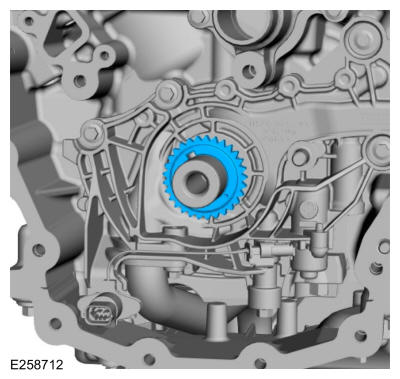

  84. Install the crankshaft sprocket.
    GFD459827Courtesy of FORD MOTOR COMPANY
  85. NOTE: It may be necessary to rotate the camshafts slightly, to align the timing marks.

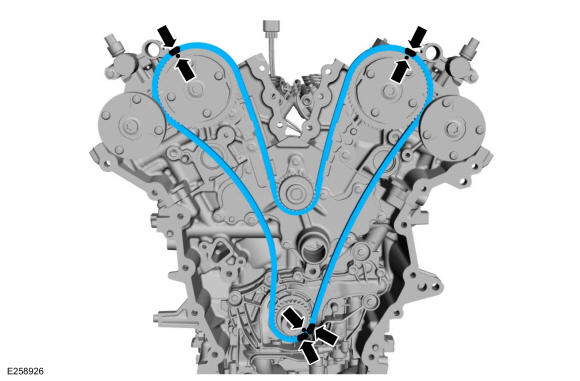

    Install the timing chain with the colored links aligned with the timing marks on the VCT units and the crankshaft sprocket.

    GFD459978Courtesy of FORD MOTOR COMPANY
  86. Install the lower LH timing chain guide and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD459595Courtesy of FORD MOTOR COMPANY

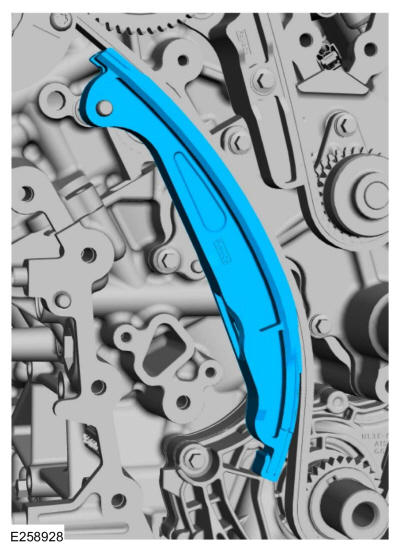

  87. Install the timing chain tensioner arm.
    GFD459596Courtesy of FORD MOTOR COMPANY

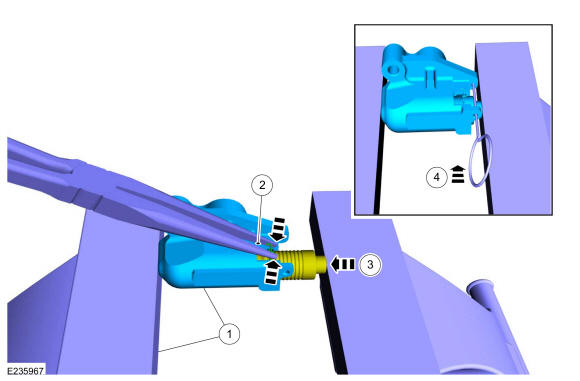

    1. Position the tensioner in a soft-jawed vise.
    2. Using pliers, squeeze the ends of the ratchet wire clip together.
    3. Using the soft-jawed vise, compress the plunger to the reset position.
    4. Install a locking pin in the 2 holes of the tensioner body to hold the plunger in place.
    GFD459597Courtesy of FORD MOTOR COMPANY

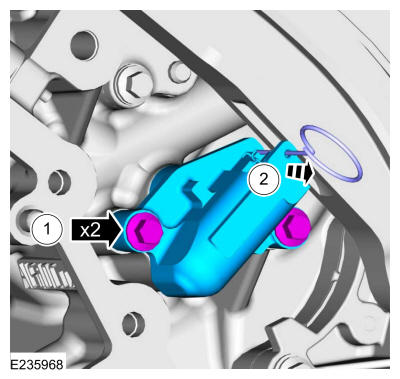

  89. NOTE: It may be necessary to rotate the camshafts slightly to remove slack from the timing chain to install the tensioner.

    1. Install the timing chain tensioner and the bolts.

      Torque: 89 lb.in (10 Nm)

    2. Remove the lockpin.

    GFD459602Courtesy of FORD MOTOR COMPANY

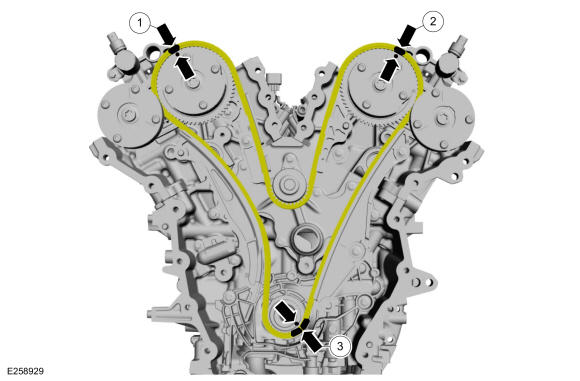

    • As a post-check, verify correct alignment of all timing marks.

    • There are 48 links in between the RH intake VCT unit colored link (1) and the LH intake VCT unit colored link (2).

    • There are 35 links in between LH intake VCT unit colored link (2) and the 2 crankshaft sprocket links (3).

    GFD459979Courtesy of FORD MOTOR COMPANY
  91. NOTE: Do not use excessive force when installing the VCT oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VCT oil control solenoid, inspect the bore and VCT oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.

    Install the VCT oil control solenoids and the bolts.

    Torque: Stage 1: 71 lb.in (8 Nm) | Stage 2: 20°

    GFD459824Courtesy of FORD MOTOR COMPANY

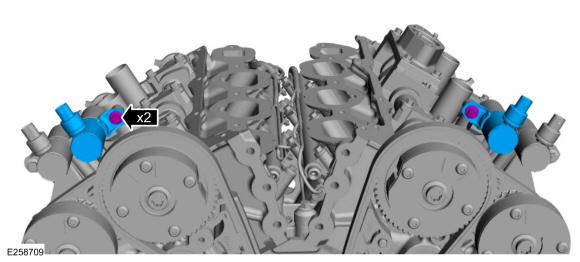

  92. Remove Special Service Tool: 303-1248 Camshaft holding tools.
    GFD459566Courtesy of FORD MOTOR COMPANY

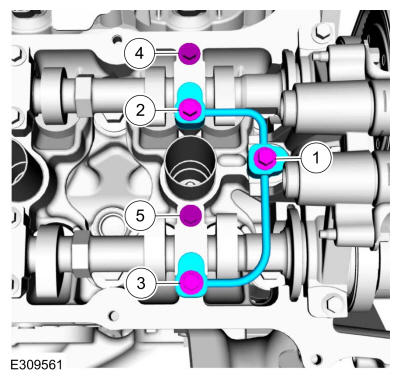

  93. Install the RH oil tube and the bolts finger tight.

    Torque: Stage 1: Tighten bolts 1, 2 and 3 to: 71 lb.in (8 Nm) | Stage 2: Tighten bolts 1, 2 and 3 an additional: 60° | Stage 3: Tighten bolts 4 and 5 to: 71 lb.in (8 Nm) | Stage 4: Tighten bolts 4 and 5 an additional: 45°

    GFD459980Courtesy of FORD MOTOR COMPANY
  94. Remove Special Service Tool: 303-1248 Camshaft holding tools.
    GFD459564Courtesy of FORD MOTOR COMPANY

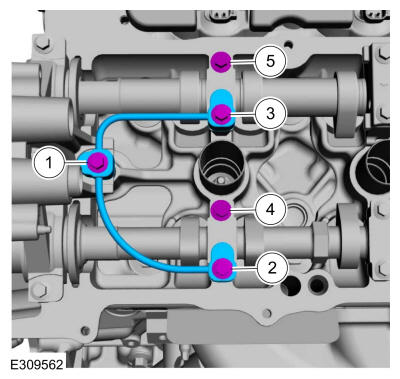

  95. Install the LH oil tube and the bolts finger tight.

    Torque: Stage 1: Tighten bolts 1, 2 and 3 to: 71 lb.in (8 Nm) | Stage 2: Tighten bolts 1, 2 and 3 an additional: 60° | Stage 3: Tighten bolts 4 and 5 to: 71 lb.in (8 Nm) | Stage 4: Tighten bolts 4 and 5 an additional: 45°

    GFD459981Courtesy of FORD MOTOR COMPANY
  96. Using the special tools, install the front cover to coolant pipe seal. Use Special Service Tool: 205-149 (T80T-4000-R) Installer, Spindle Bearing., 205-153 (T80T-4000-W) Handle.
    GFD459455Courtesy of FORD MOTOR COMPANY
  97. Install Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.
    GFD459982Courtesy of FORD MOTOR COMPANY
  98. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: The engine front cover and 6 bolts must be installed within 4 minutes of the initial sealant application. The remainder of the engine front cover bolts must be installed and tightened within 35 minutes of the initial sealant application. If the time limits are exceeded, the sealant must be removed, the sealing area cleaned and sealant reapplied. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.

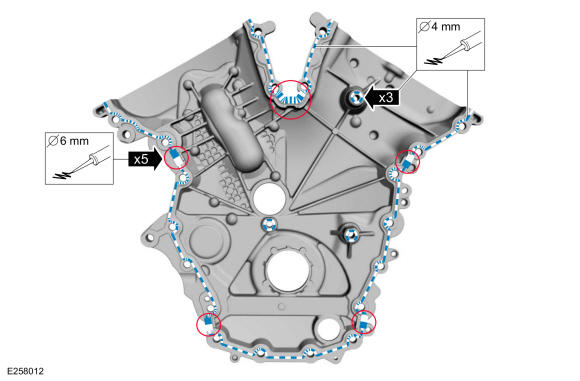

    • Apply a 4 mm (0.16 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover sealing surfaces including the inner bolt bosses.

      Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    • Apply a 6 mm (0.24 in) bead of Motorcraft® High Performance Engine RTV Silicone to the oil pan-to-cylinder block joint and the cylinder head-to-cylinder block joint areas of the engine front cover in places as indicated.

      Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD459457Courtesy of FORD MOTOR COMPANY
  99. NOTE: Make sure the locating dowel pins are seated correctly in the cylinder block.

    Install the engine front cover and the bolts.

    Torque: 27 lb.in (3 Nm)

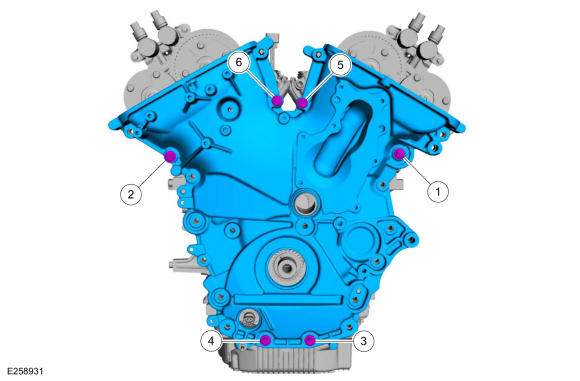

    GFD459983Courtesy of FORD MOTOR COMPANY
  100. Remove Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.
    GFD459984Courtesy of FORD MOTOR COMPANY

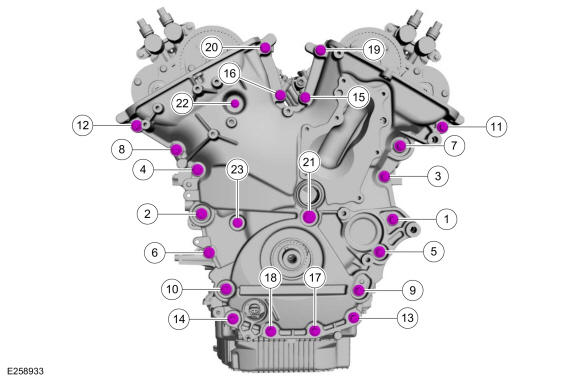

  101. Install the remaining engine front cover bolts.

    Torque: Stage 1: Tighten bolts 1 through 21 to: 89 lb.in (10 Nm) | Stage 2: Tighten bolts 1 through 20 and 23 to: 177 lb.in (20 Nm) | Stage 3: Tighten bolts 1 through 20 and 23 an additional: 45° | Stage 4: Tighten bolt 21 to: 177 lb.in (20 Nm) | Stage 5: Tighten bolt 21 an additional: 90° | Stage 6: Tighten bolt 22 to: 89 lb.in (10 Nm) | Stage 7: Tighten bolt 22 an additional: 45°

    GFD459985Courtesy of FORD MOTOR COMPANY
  102. Using the special tool and a hammer, install the oil pump electrical connector seal. Use Special Service Tool: 303-1663 Installer, VDOP Seal.
    GFD459462Courtesy of FORD MOTOR COMPANY

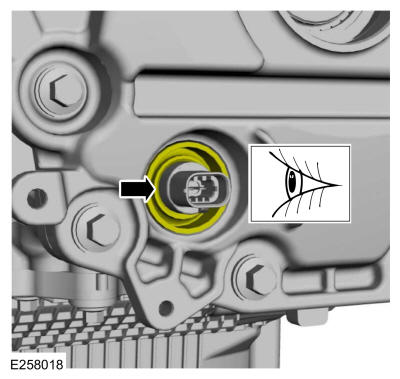

  103. Make sure the oil pump electrical connector seal is below the top of the oil pump electrical connector or the oil pump electrical connector seal may leak oil.
    GFD459463Courtesy of FORD MOTOR COMPANY

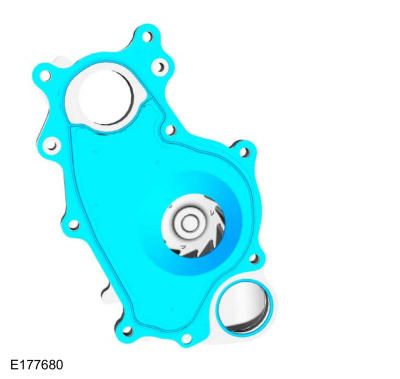

  104. Install a new coolant pump gasket and O-ring seal.
    GFD459986Courtesy of FORD MOTOR COMPANY
  105. Install the coolant pump and the bolts.

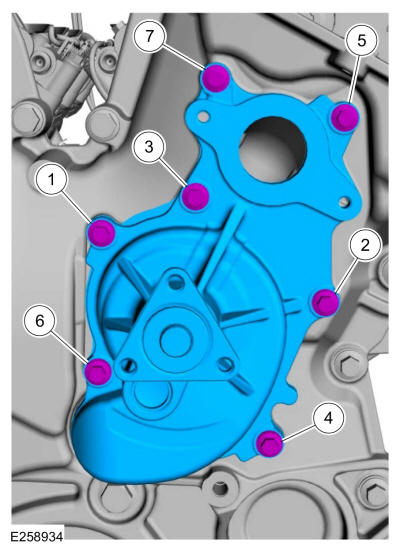

    Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45°

    Fig 7: Coolant Pump Tightening Sequence
    GFD459987Courtesy of FORD MOTOR COMPANY

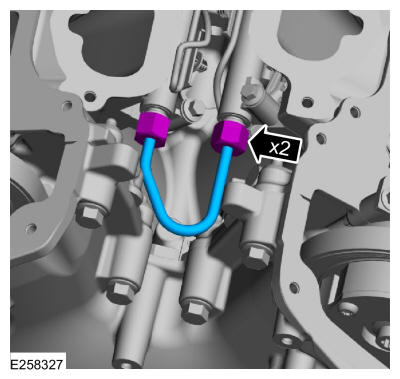

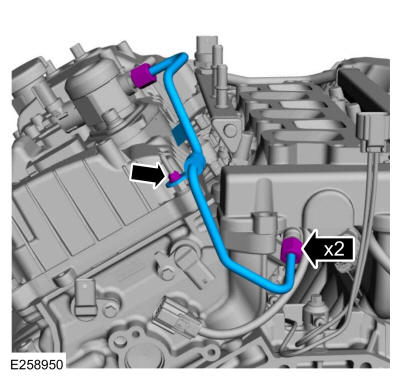

  106. NOTE: Make sure that a new fuel rail to fuel rail high-pressure fuel tube is installed.

    • Install the fuel rail to fuel rail high-pressure fuel tube and finger tight the flare nuts.

    • Tighten the flare nuts in the following 3 stages.

      Torque: Stage 1: 62 lb.in (7 Nm) | Stage 2: 89 lb.in (10 Nm) | Stage 3: If the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 75 Nm (55 lb-ft), the high pressure fuel tube must be discarded and replaced with another new high-pressure fuel tube.: 30°

    GFD459988Courtesy of FORD MOTOR COMPANY

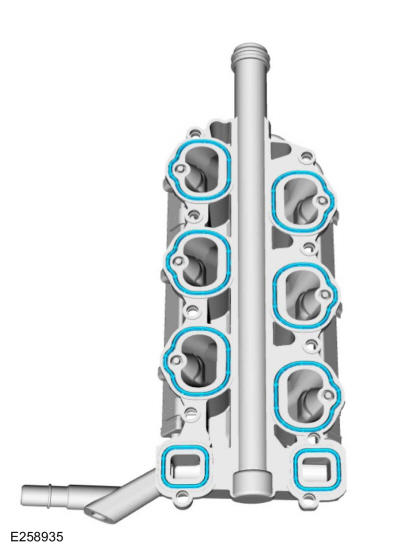

  107. Install the new lower intake manifold gaskets.
    GFD459989Courtesy of FORD MOTOR COMPANY
  108. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

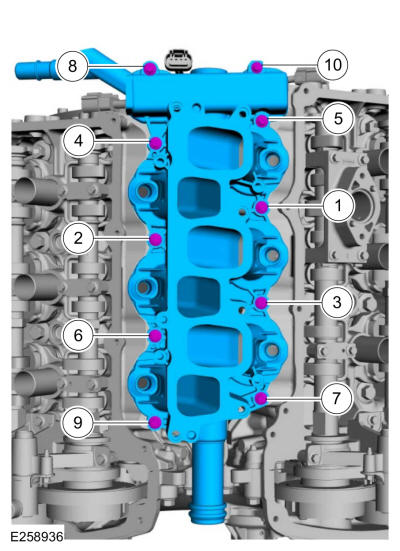

    Install the lower intake manifold and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD459990Courtesy of FORD MOTOR COMPANY

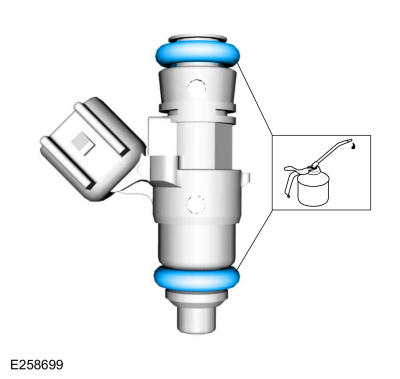

  109. NOTE: Use O-ring seals that are made of special fuel-resistant material. Use of ordinary O-rings can cause the fuel system to leak. Do not reuse the O-ring seals.
    NOTE: Make sure that new fuel injector O-ring seals are installed.

    • Install the new fuel injector O-ring seals onto the fuel injectors.

    • Lubricate the new fuel injector O-ring seals with clean engine oil.

    GFD459991Courtesy of FORD MOTOR COMPANY

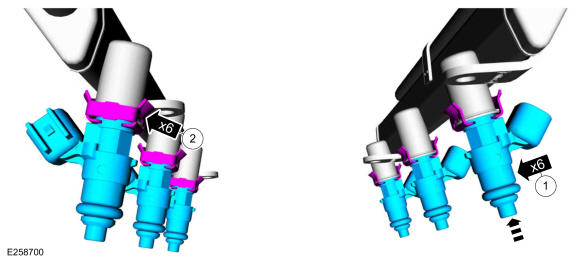

    1. Install the fuel injectors into the fuel rail.
    2. Install the fuel injectors retaining clips.
    GFD459992Courtesy of FORD MOTOR COMPANY

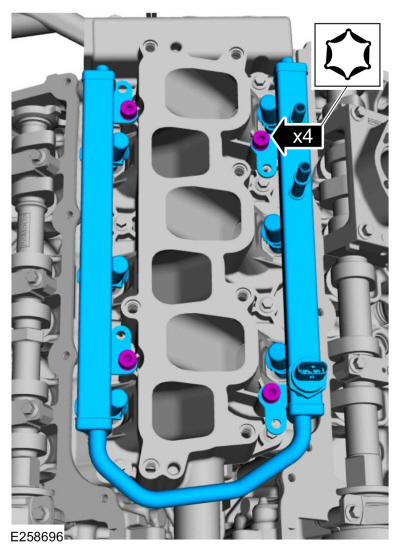

  111. Install the port injection fuel rail and the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD459812Courtesy of FORD MOTOR COMPANY
  112. NOTE: Apply clean engine oil to the CMP sensor O-ring seals.

    Install the CMP sensors and the bolts.

    Torque: 89 lb.in (10 Nm)

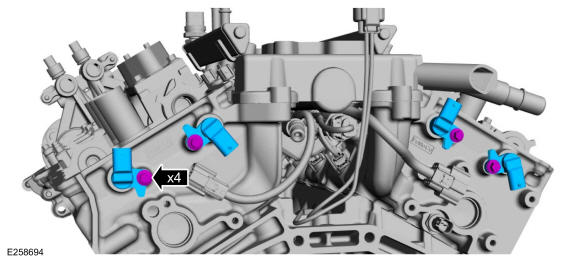

    GFD459811Courtesy of FORD MOTOR COMPANY

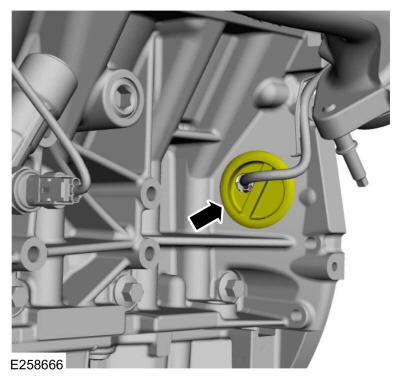

  113. Install the RH block coolant drain plug.

    Torque: Stage 1: 142 lb.in (16 Nm) | Stage 2: 180°

    GFD459810Courtesy of FORD MOTOR COMPANY

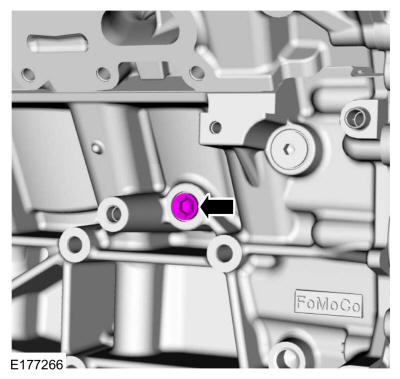

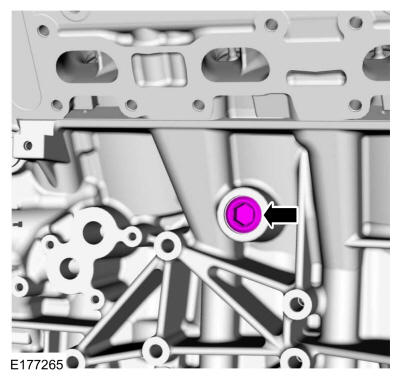

  114. Install the LH block coolant drain plug.

    Torque: 30 lb.ft (40 Nm)

    GFD459809Courtesy of FORD MOTOR COMPANY

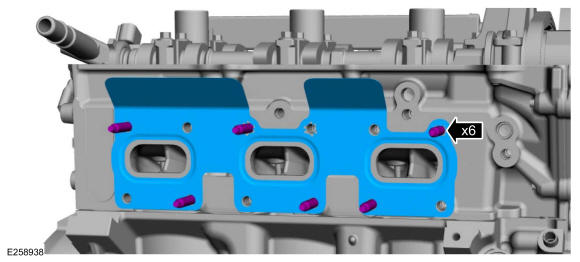

    • Install the exhaust manifold studs.

      Torque: 106 lb.in (12 Nm)

    • Install the exhaust manifold gasket.

    GFD459993Courtesy of FORD MOTOR COMPANY

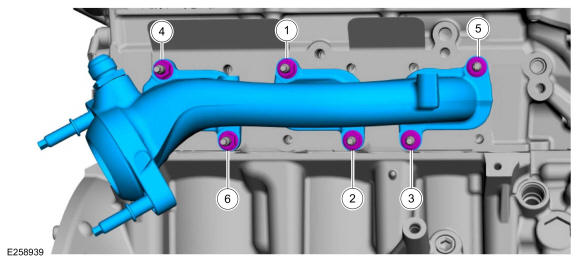

  116. Install the exhaust manifold and the new nuts.

    Torque: Stage 1: 168 lb.in (19 Nm) | Stage 2: 18 lb.ft (25 Nm)

    GFD459994Courtesy of FORD MOTOR COMPANY
  117. Install the oil filter adapter and the bolts.

    Torque: Stage 1: 89 lb.in (10 Nm) | Stage 2: 45°

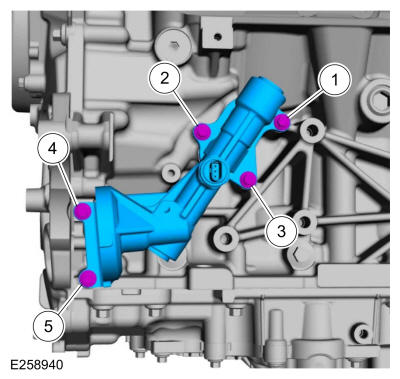

    Fig 8: Oil Filter Adapter Tightening Sequence
    GFD459995Courtesy of FORD MOTOR COMPANY

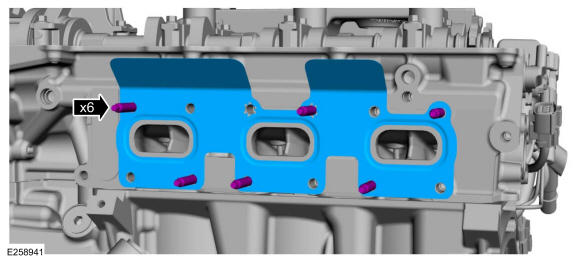

    • Install the exhaust manifold studs.

      Torque: 106 lb.in (12 Nm)

    • Install the exhaust manifold gasket.

    GFD459996Courtesy of FORD MOTOR COMPANY

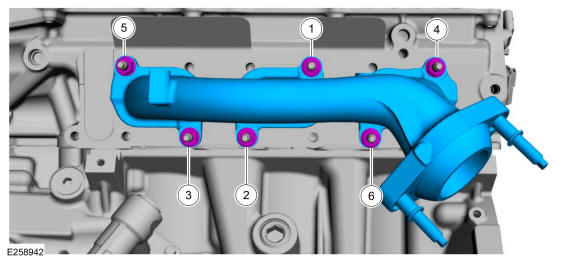

  119. Install the exhaust manifold and the new nuts.

    Torque: Stage 1: 168 lb.in (19 Nm) | Stage 2: 18 lb.ft (25 Nm)

    GFD459997Courtesy of FORD MOTOR COMPANY

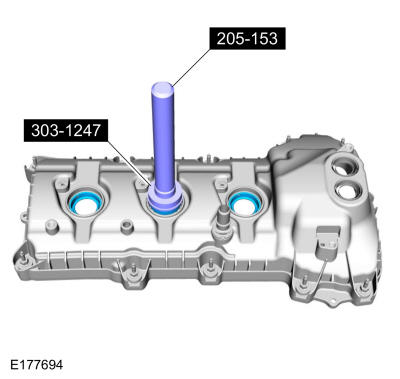

  120. NOTE: Installation of new seals is only required if damaged seals were removed.

    If removed, using the special tools, install the spark plug tube seals. Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer., 205-153 (T80T-4000-W) Handle.

    GFD459657Courtesy of FORD MOTOR COMPANY

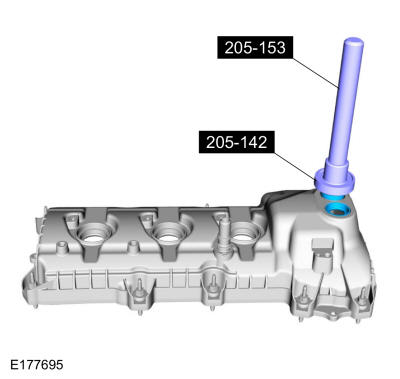

  121. NOTE: Installation of new seals is only required if damaged seals were removed.

    If removed, using the special tools, install the VCToil control solenoid seals. Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone., 205-153 (T80T-4000-W) Handle.

    GFD459658Courtesy of FORD MOTOR COMPANY

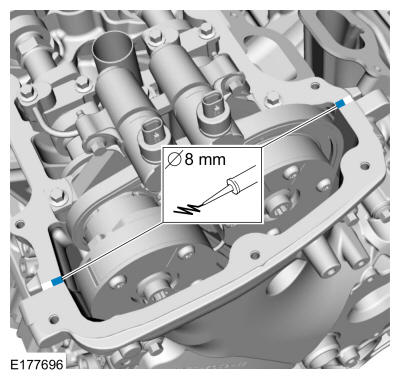

  122. NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.

    Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD459998Courtesy of FORD MOTOR COMPANY

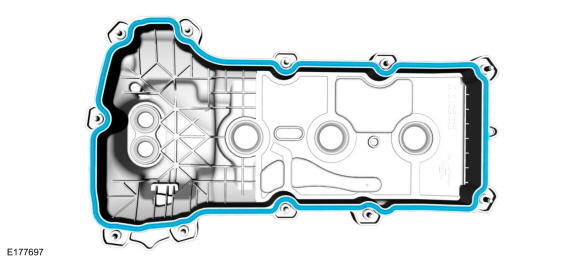

  123. Install a new valve cover gasket.
    GFD459660Courtesy of FORD MOTOR COMPANY

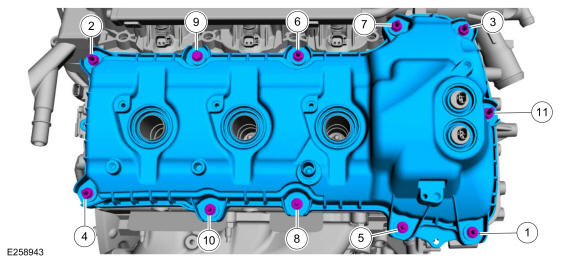

  124. Install the valve cover and tighten the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD459999Courtesy of FORD MOTOR COMPANY

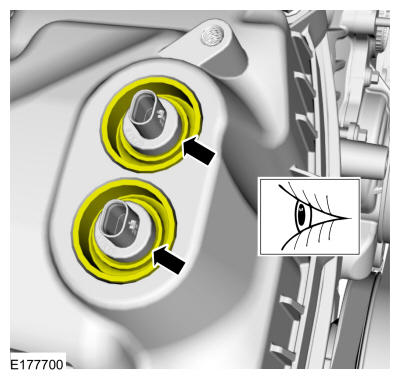

  125. Make sure the VCT seals in the valve cover are below the top of the VCT oil control solenoid electrical connector or the VCT seal may leak oil.
    GFD459662Courtesy of FORD MOTOR COMPANY

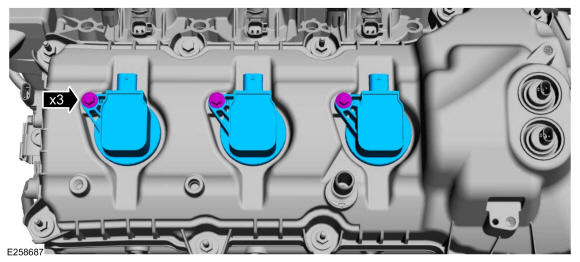

  126. Install the RH coil-on-plugs and the bolts.

    Torque: 62 lb.in (7 Nm)

    GFD459801Courtesy of FORD MOTOR COMPANY
  127. NOTE: Installation of new seals is only required if damaged seals were removed.

    If removed, using the special tools, install the spark plug tube seals. Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer., 205-153 (T80T-4000-W) Handle.

    GFD459640Courtesy of FORD MOTOR COMPANY
  128. NOTE: Installation of new seals is only required if damaged seals were removed.

    If removed, using the special tools, install the VCToil control solenoid seals. Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone., 205-153 (T80T-4000-W) Handle.

    GFD459641Courtesy of FORD MOTOR COMPANY
  129. NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.

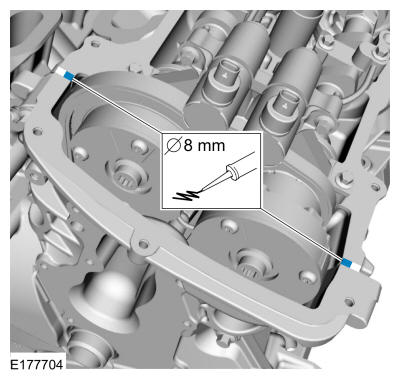

    Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD460000Courtesy of FORD MOTOR COMPANY

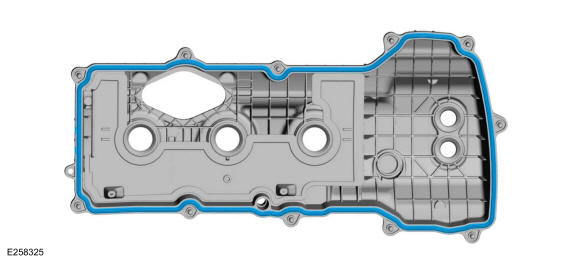

  130. Install a new valve cover gasket.
    GFD459643Courtesy of FORD MOTOR COMPANY

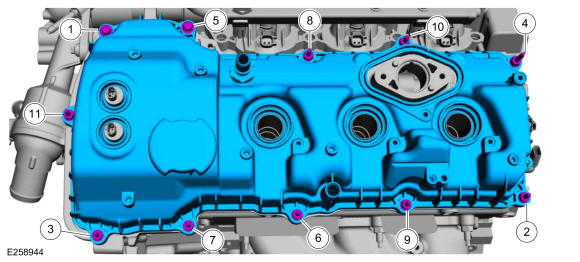

  131. Install the valve cover and tighten the bolts.

    Torque: 89 lb.in (10 Nm)

    GFD460001Courtesy of FORD MOTOR COMPANY

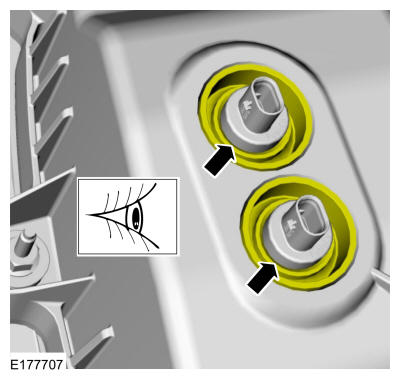

  132. Make sure the VCT seals in the valve cover are below the top of the VCT oil control solenoid electrical connector or the VCT seal may leak oil.
    GFD459645Courtesy of FORD MOTOR COMPANY

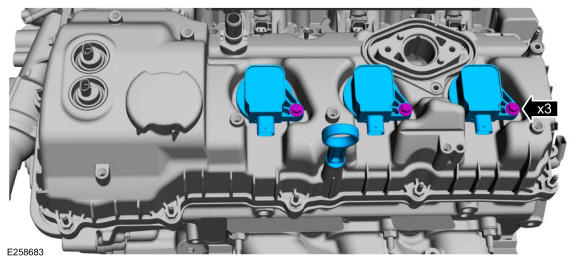

    • Install the LH coil-on-plugs and the bolts.

      Torque: 62 lb.in (7 Nm)

    • Install the oil level indicator.

    GFD459797Courtesy of FORD MOTOR COMPANY
  134. NOTE: Only rotate the crankshaft clockwise or damage to the engine may occur.
    NOTE: The drive lobe for the high-pressure fuel pump must be at BDC for the high-pressure fuel pump installation.

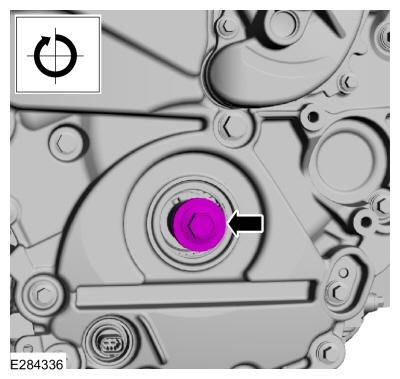

    Using the crankshaft pulley bolt, turn the crankshaft until the high-pressure fuel pump drive lobe is at BDC.

    GFD460002Courtesy of FORD MOTOR COMPANY

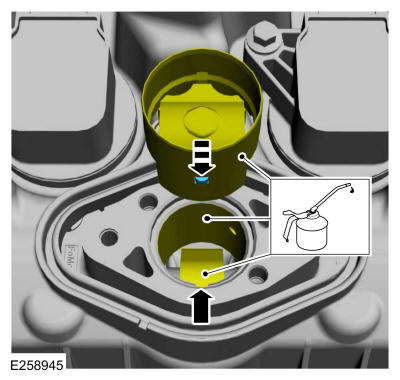

  135. Apply clean engine oil to the high-pressure fuel pump mounting pedestal bore, the drive lobe and the roller tappet and install the high-pressure fuel pump roller tappet.
    GFD460003Courtesy of FORD MOTOR COMPANY

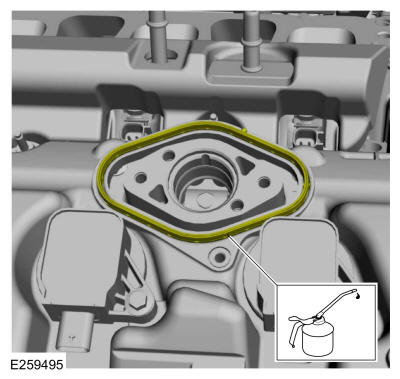

  136. Lubricate the high-pressure fuel pump mounting plate seal with clean engine oil and install.
    GFD460004Courtesy of FORD MOTOR COMPANY

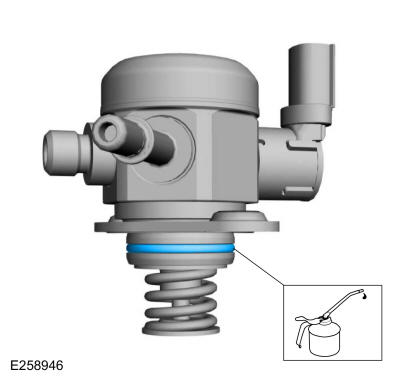

    • Install a new high-pressure fuel pump O-ring seal.

    • Lubricate with clean engine oil.

    GFD460005Courtesy of FORD MOTOR COMPANY

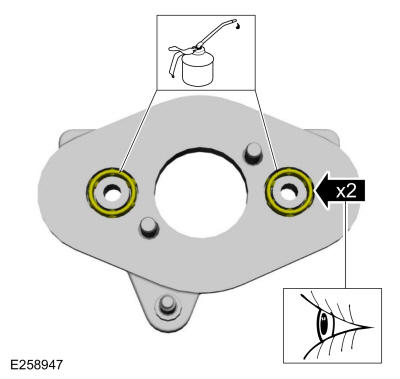

    • Inspect the high-pressure fuel pump mounting plate O-ring seals and replace as needed.

    • Lubricate with clean engine oil.

    GFD460006Courtesy of FORD MOTOR COMPANY

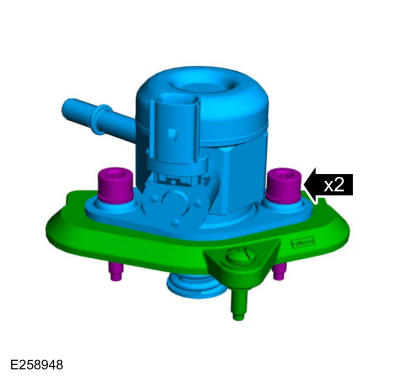

  139. Install the high-pressure fuel pump mounting plate on to the high-pressure fuel pump and install the high-pressure fuel pump bolts.
    GFD460007Courtesy of FORD MOTOR COMPANY

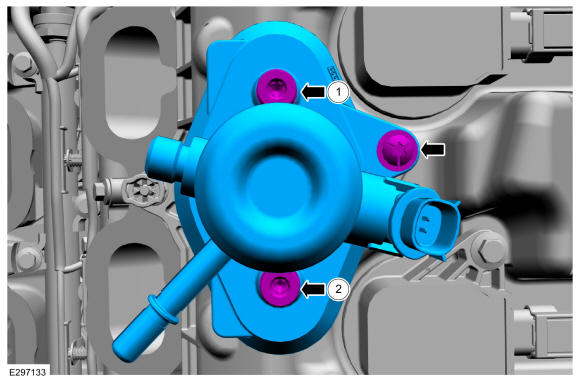

  140. Install the high-pressure fuel pump with the mounting plate and the bolts. Tighten the fuel high-pressure fuel pump bolts in the following 5 stages.

    Torque: Stage 1: Finger tighten all of the bolts : 0 lb.in (0 Nm) | Stage 2: Tighten bolt 1 : 1turn(s) | Stage 3: Tighten bolt 2 : 1turn(s) | Stage 4: Repeat stages 2 and 3, until reaching : 89 lb.in (10 Nm) | Stage 5: Tighten bolts 1 and 2, in sequence an additional : 45°

    GFD460008Courtesy of FORD MOTOR COMPANY

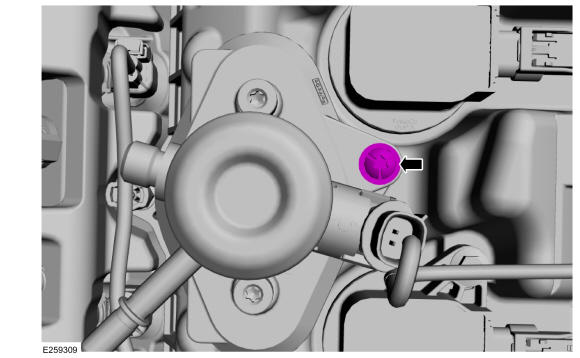

  141. Tighten the high-pressure fuel pump mounting plate bolt.

    Torque: 89 lb.in (10 Nm)

    GFD460009Courtesy of FORD MOTOR COMPANY
    • Remove the crankshaft pulley bolt and washer.

    • Discard the bolt.

    GFD460010Courtesy of FORD MOTOR COMPANY
    • Install the new fuel rail high-pressure fuel tube and finger tight the flare nuts.

    • Install the new high-pressure fuel pump to direct injection fuel rail tube nut finger tight.

    • Tighten the fuel rail high-pressure fuel tube flare nuts.

      Torque: Stage 1: 71 lb.in (8 Nm) | Stage 2: 89 lb.in (10 Nm) | Stage 3: If the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 75 Nm (55 lb-ft), then that high pressure fuel tube must be discarded and replaced with another new high-pressure fuel tube.: 30°

    • Tighten the high-pressure fuel pump to direct injection fuel rail tube nut.

      Torque: 62 lb.in (7 Nm)

    GFD460011Courtesy of FORD MOTOR COMPANY

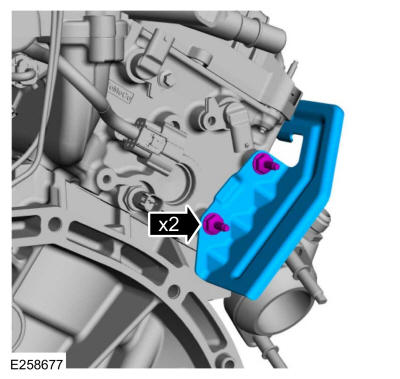

  144. Install the heat shield and the stud bolts.

    Torque: 89 lb.in (10 Nm)

    GFD459788Courtesy of FORD MOTOR COMPANY

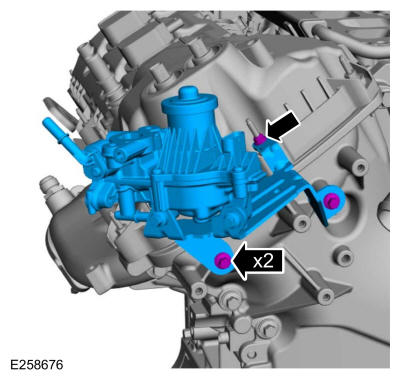

  145. Install the EGR valve and the bolts and nut finger tight.
    GFD459787Courtesy of FORD MOTOR COMPANY

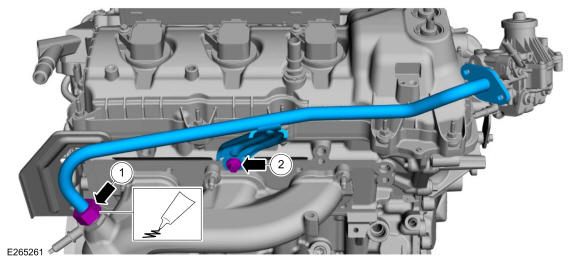

    1. NOTE: Apply anti-seize to the EGR exhaust manifold tube nut threads before installation.

      Install the EGR valve to exhaust manifold tube and install the nut finger tight.

      Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2

    2. Install the support bracket bolt finger tight.
    GFD460012Courtesy of FORD MOTOR COMPANY

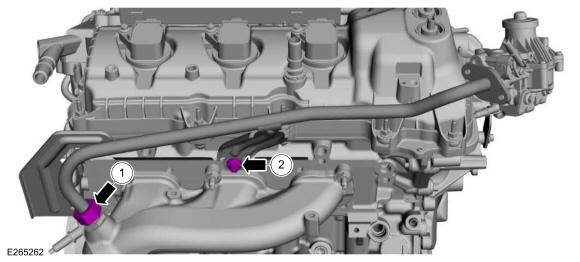

    1. Tighten the EGR valve to exhaust manifold tube nut.

      Torque: 30 lb.ft (40 Nm)

    2. Tighten the support bracket bolt.

      Torque: Stage 1: 177 lb.in (20 Nm) | Stage 2: 45°

    GFD460013Courtesy of FORD MOTOR COMPANY

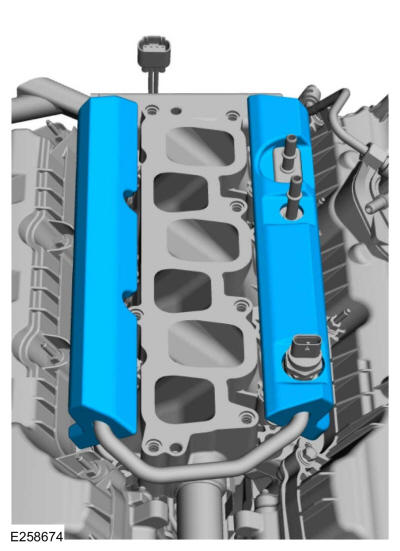

  148. Install the fuel rail insulators.
    GFD459785Courtesy of FORD MOTOR COMPANY

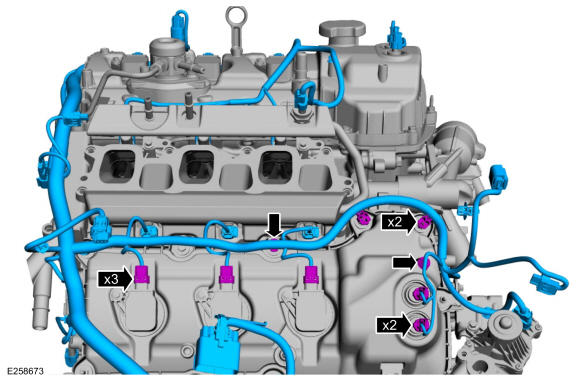

    • Install the engine wiring harness and attach the wiring harness retainers.

    • Connect the ignition coil-on-plug electrical connectors.

    • Connect the VCT oil control solenoids electrical connectors.

    GFD459784Courtesy of FORD MOTOR COMPANY

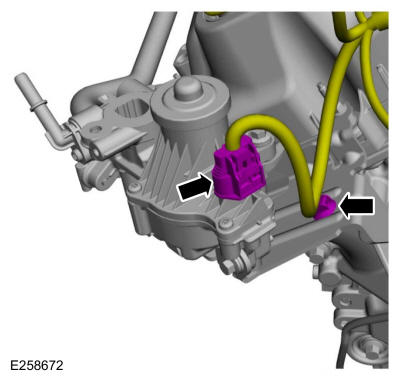

  150. Connect the EGR valve electrical connector and attach the wiring harness retainer.
    GFD459783Courtesy of FORD MOTOR COMPANY

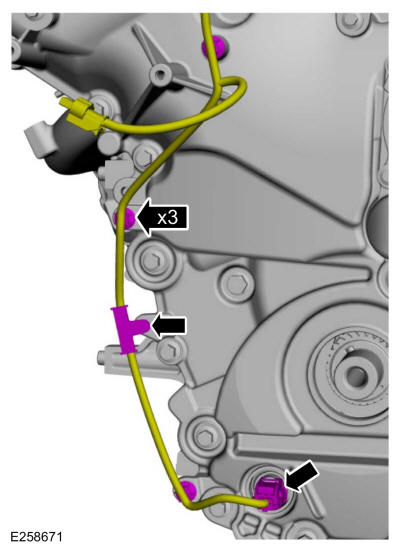

  151. Connect the oil pressure control solenoid electrical connector and attach the wiring harness retainers.
    GFD459782Courtesy of FORD MOTOR COMPANY

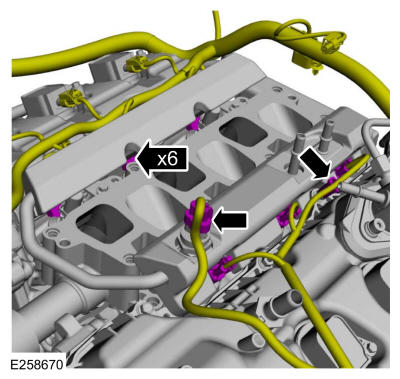

    • Connect the port injector fuel rail electrical connectors.

    • Connect the FRP temperature sensor electrical connector.

    GFD459781Courtesy of FORD MOTOR COMPANY

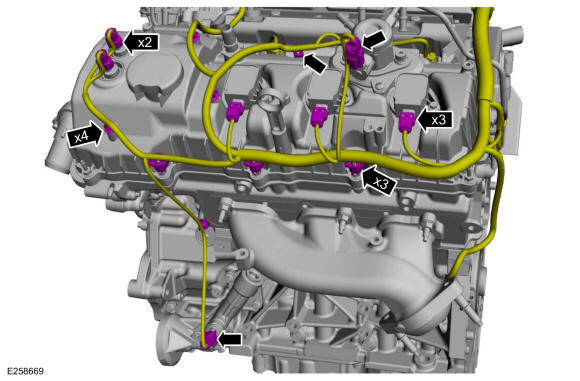

    • Attach the wiring harness retainers.

    • Connect the oil pressure switch electrical connector.

    • Connect the ignition coil-on-plug electrical connectors.

    • Connect the VCT oil control solenoids electrical connectors.

    • Connect the high-pressure fuel pump electrical connector.

    GFD459780Courtesy of FORD MOTOR COMPANY

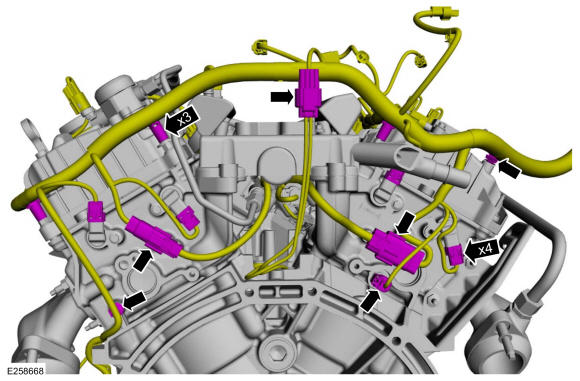

    • Attach the wiring harness retainers.

    • Connect the direct injection fuel rail electrical connectors.

    • Connect the CMP sensor electrical connectors.

    • Connect the KS and CHT sensor electrical connectors.

    GFD459779Courtesy of FORD MOTOR COMPANY

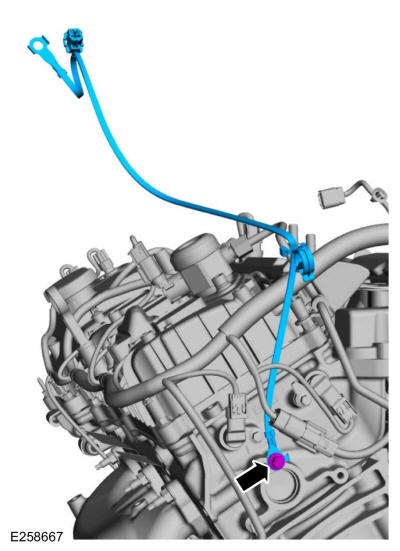

  155. Install the ground strap and the bolt.

    Torque: 106 lb.in (12 Nm)

    GFD459778Courtesy of FORD MOTOR COMPANY

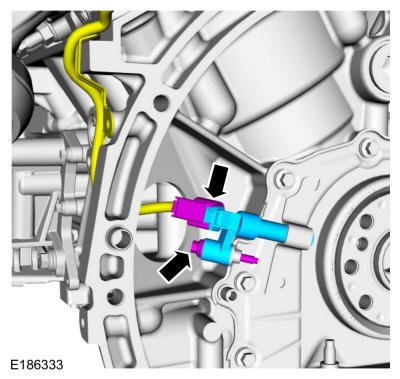

    • Install the CKP sensor and the bolt.

      Torque: 53 lb.in (6 Nm)

    • Connect the CKP sensor electrical connector.

    GFD459777Courtesy of FORD MOTOR COMPANY
  157. Install the wiring harness grommet.
    GFD459776Courtesy of FORD MOTOR COMPANY

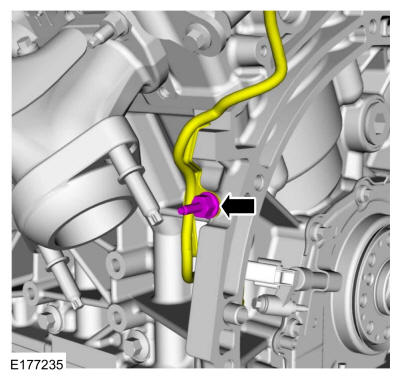

  158. Install the wiring harness retainer stud bolt.

    Torque: 89 lb.in (10 Nm)

    GFD459775Courtesy of FORD MOTOR COMPANY
  159. Install the heat shield, nut and bolt.

    Torque: 89 lb.in (10 Nm)

    GFD459774Courtesy of FORD MOTOR COMPANY

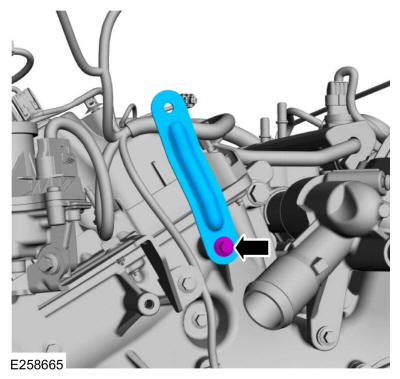

  160. NOTE: The bolt will be tighten after the installation of the upper intake manifold.

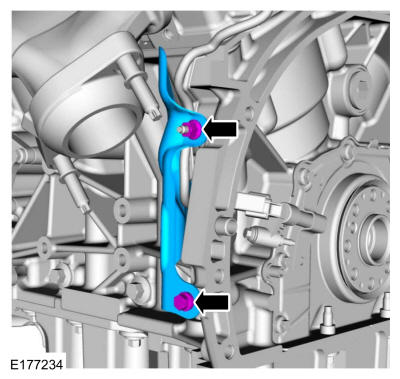

    Install the upper intake manifold support bracket and bolt finger tight.

    GFD459773Courtesy of FORD MOTOR COMPANY

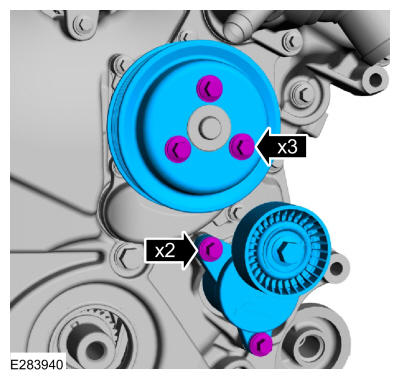

    • Install the coolant pump pulley and the bolts.

      Torque: 18 lb.ft (24 Nm)

    • Install the accessory drive belt tensioner and the bolts.

      Torque: 18 lb.ft (25 Nm)

    GFD459772Courtesy of FORD MOTOR COMPANY
  162. Lubricate the crankshaft front seal bore with clean engine oil.
    GFD459367Courtesy of FORD MOTOR COMPANY

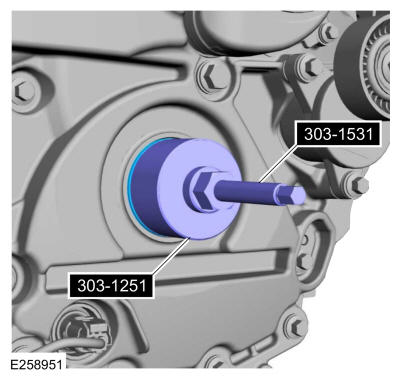

  163. Using the special tools, install the crankshaft front seal. Use Special Service Tool: 303-102 Installer, Crankshaft Pulley., 303-1251 Installer, Front Seal.
    GFD460014Courtesy of FORD MOTOR COMPANY

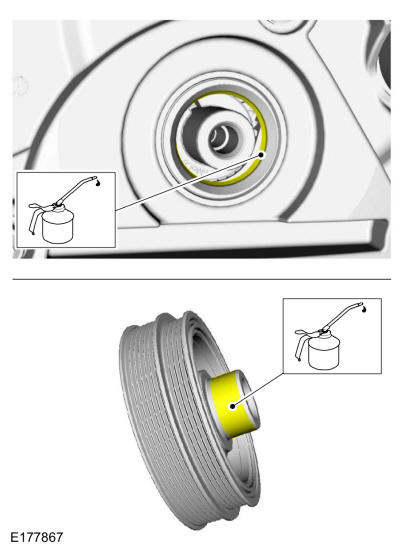

  164. Lubricate the crankshaft front seal and the crankshaft pulley with clean engine oil.
    GFD460015Courtesy of FORD MOTOR COMPANY
  165. Using the special tools, install the crankshaft pulley. Use Special Service Tool: 303-102 Installer, Crankshaft Pulley., 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal.
    GFD460016Courtesy of FORD MOTOR COMPANY
  166. NOTE: Use a universal pulley holder (such as an OTC 4754, or equivalent).

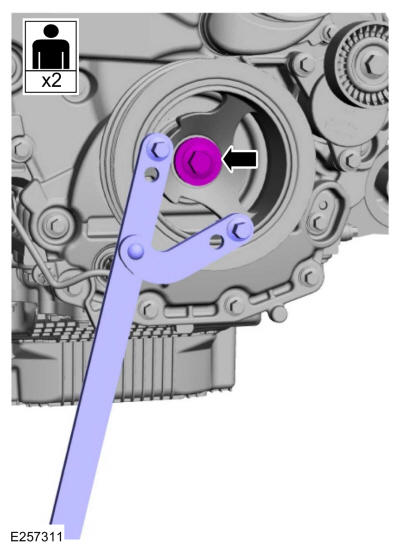

    With the aid of an assistant, using a universal pulley holder, install and tighten a new crankshaft pulley bolt and the washer and tighten in 3 stages.

    Torque: Stage 1: 37 lb.ft (50 Nm) | Stage 2: 90° | Stage 3: 60°

    GFD460017Courtesy of FORD MOTOR COMPANY

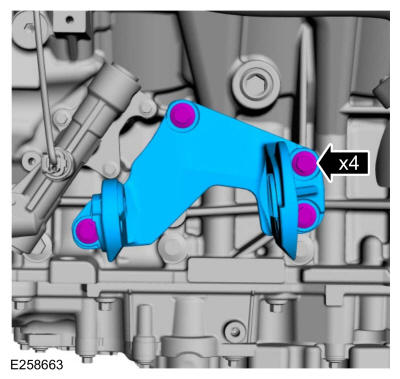

  167. NOTE: Clean the engine support insulator-to-cylinder block mating surfaces of any dirt or foreign material prior to installation.

    Install the LH engine mount bracket and the bolts.

    Torque: 57 lb.ft (77 Nm)

    GFD459767Courtesy of FORD MOTOR COMPANY

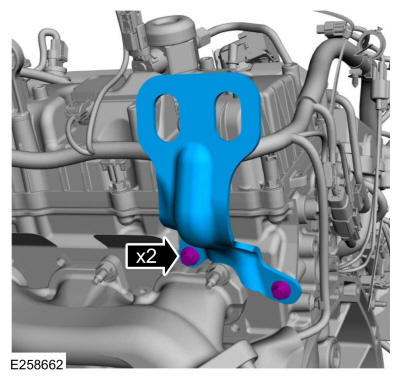

  168. Install the LH lift eye and the bolts.

    Torque: 18 lb.ft (24 Nm)

    GFD459766Courtesy of FORD MOTOR COMPANY
  169. NOTE: Clean the engine support insulator-to-cylinder block mating surfaces of any dirt or foreign material prior to installation.

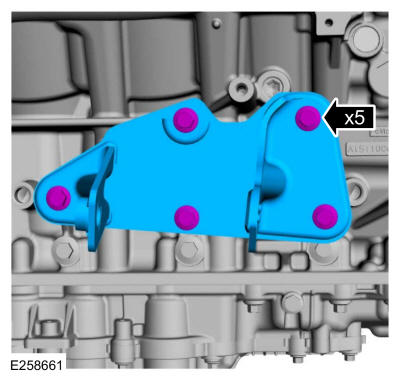

    Install the RH engine mount bracket and the bolts.

    Torque: 57 lb.ft (77 Nm)

    GFD459765Courtesy of FORD MOTOR COMPANY

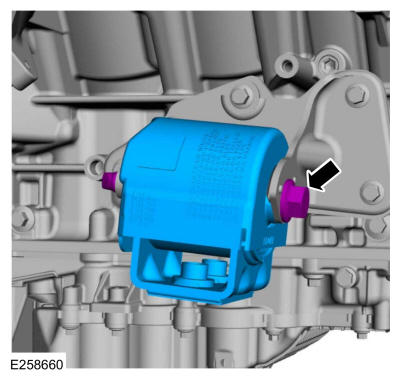

  170. Install the RH engine mount and the new bolt.

    Torque: 258 lb.ft (350 Nm)

    GFD460018Courtesy of FORD MOTOR COMPANY

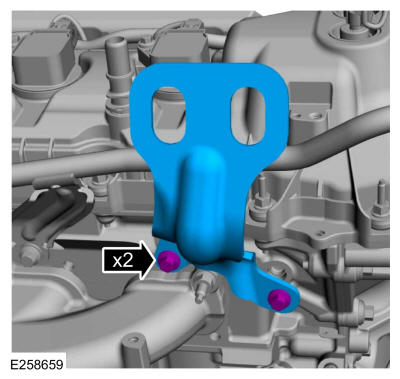

  171. Install the RH lift eye and the bolts.

    Torque: 18 lb.ft (24 Nm)

    GFD459763Courtesy of FORD MOTOR COMPANY

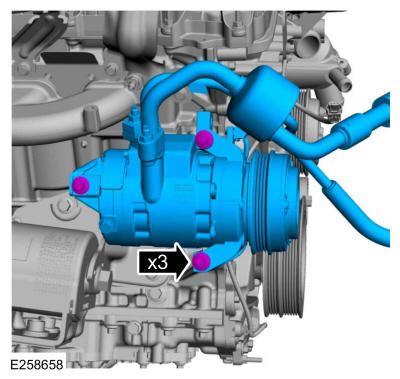

  172. Install the A/C compressor and the bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD459762Courtesy of FORD MOTOR COMPANY

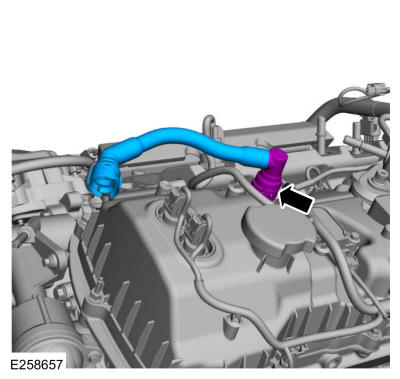

  173. Install the crankcase vent tube.
    GFD459761Courtesy of FORD MOTOR COMPANY

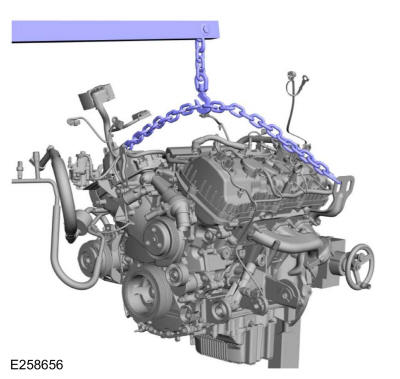

  174. Install the floor crane and chains. Use the General Equipment: Floor Crane
    GFD459760Courtesy of FORD MOTOR COMPANY

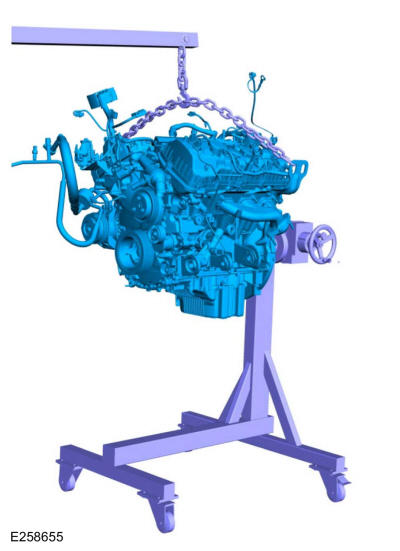

  175. Remove the engine from the mounting stand. Use the General Equipment: Mounting Stand
    GFD459759Courtesy of FORD MOTOR COMPANY

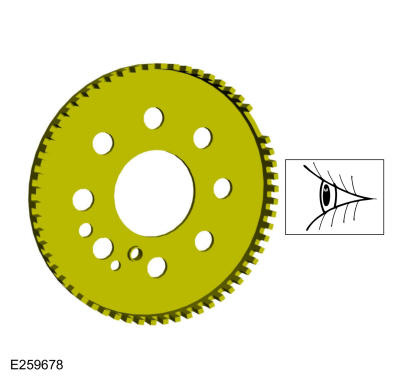

  176. Inspect the ignition pulse ring for damage. If the ignition pulse ring has been dropped or has any visual damage, it must be replaced.
    GFD459385Courtesy of FORD MOTOR COMPANY
  177. NOTE: Make sure the crankshaft ignition pulse ring is aligned with the inset hole on the crankshaft flange.

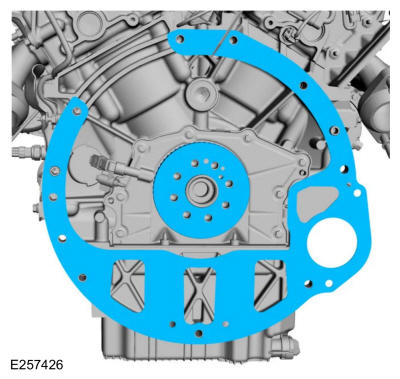

    Install the crankshaft sensor ring and the engine-to-transmission spacer plate.

    GFD459374Courtesy of FORD MOTOR COMPANY

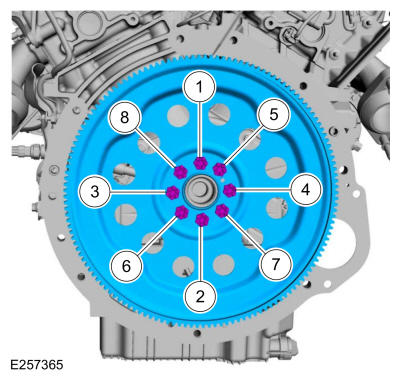

  178. NOTE: One of the 8 flexplate holes are offset so the flexplate can only be installed in one position.

    Install the flexplate and the bolts.

    Torque: 59 lb.ft (80 Nm)

GFD459520Courtesy of FORD MOTOR COMPANY
About FixVault
