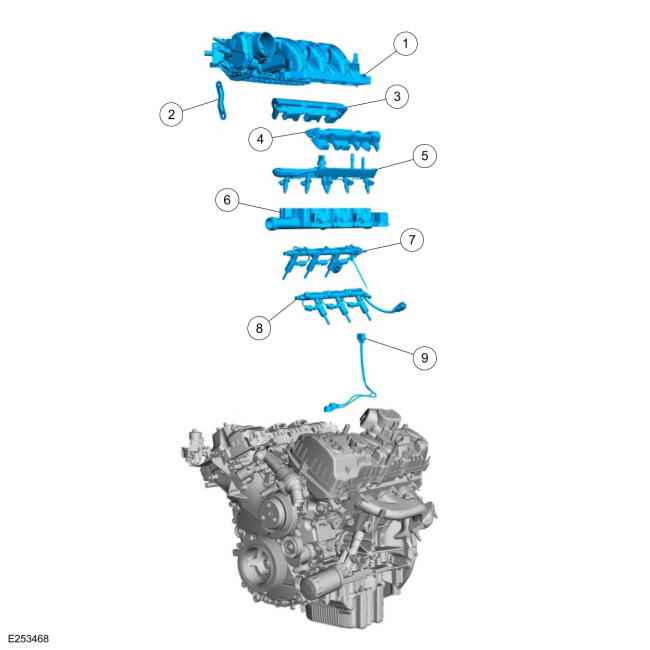

Exploded View Of Engine Upper
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 9424 | Upper intake manifold |
| 2 | 9J444 | Upper intake manifold support bracket |
| 3 | 6P013 | RH fuel rail noise shield insulator |
| 4 | 6P013 | LH fuel rail noise shield insulator |
| 5 | 9H487 | Port injection fuel rail |
| 6 | 9J447 | Lower intake manifold |
| 7 | 9F797 | Direct injection fuel rail RH |
| 8 | 9F797 | Direct injection fuel rail LH |
| 9 | 12A699 | Knock Sensor(KS) |
