Spot Lamp Control Module: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

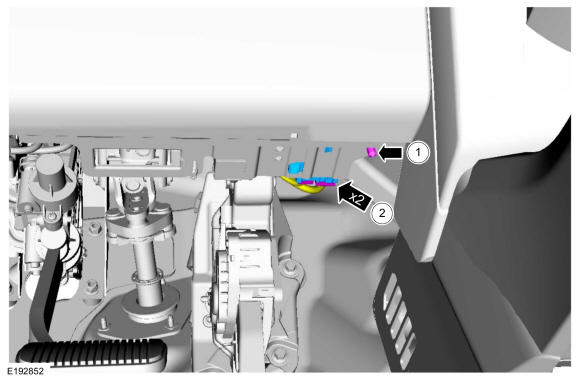

  1. Remove the spot lamp control module.

    1. Release the push pin and position the spot lamp control module aside.
    2. Disconnect the spot lamp control module electrical connectors.

GFD206052Courtesy of FORD MOTOR COMPANY
