Transfer Case Shift Motor: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: There are variations of transfer cases, however all electronic shift transfer cases are similar.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Disconnect the harness connector.
    GFD205272Courtesy of FORD MOTOR COMPANY

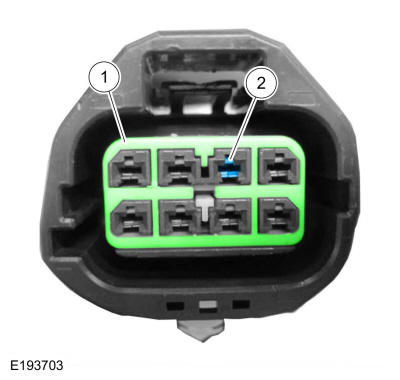

  3. Remove the coil wire pin from the electrical connector.

    1. Remove the inner retainer from the wire connector.
    2. Press the release tab and remove the coil wire pin.

    GFD205273Courtesy of FORD MOTOR COMPANY
  4. Remove the transfer case shift motor bracket bolt.
    GFD205274Courtesy of FORD MOTOR COMPANY
  5. Remove the mounting bolts and the transfer case shift motor.
GFD205275Courtesy of FORD MOTOR COMPANY
