Auxiliary Relay Box: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Located on LH side of engine compartment.

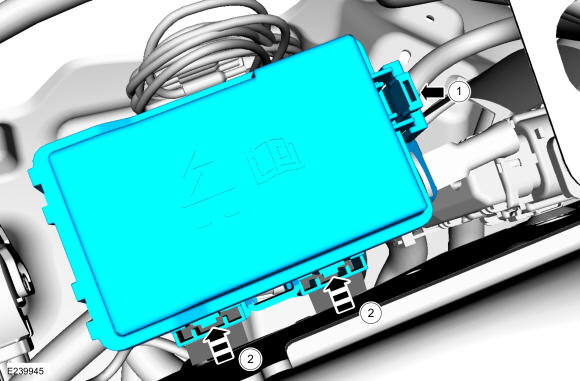

    1. Disconnect the electrical connector.
    2. Release tabs and lift upwards to remove.
GFD206121Courtesy of FORD MOTOR COMPANY
