Vehicle Dynamic Systems

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

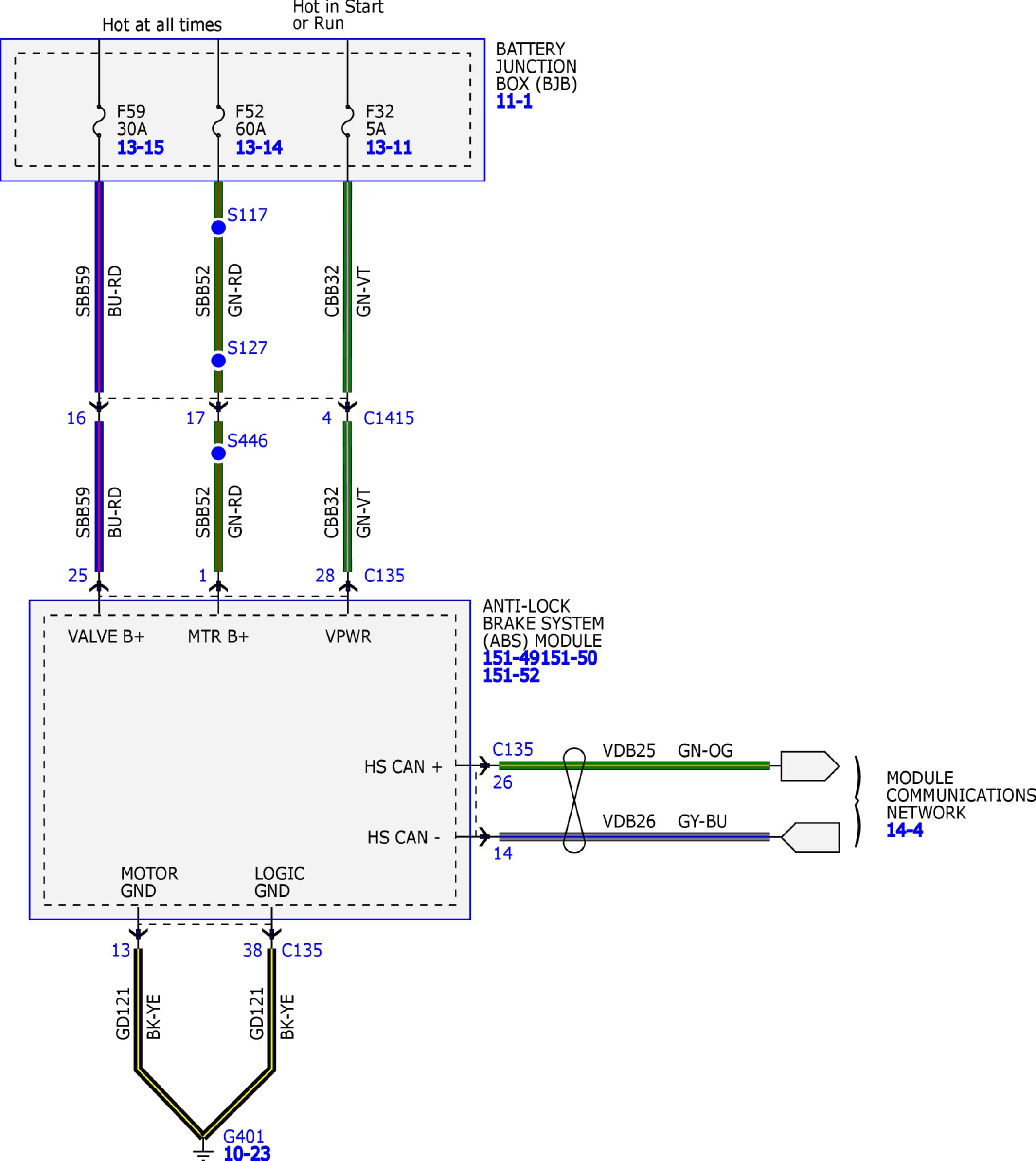

Fig 1: Vehicle Dynamic Systems Wiring Diagram (1 of 5)

GFDW83552

Courtesy of FORD MOTOR COMPANY

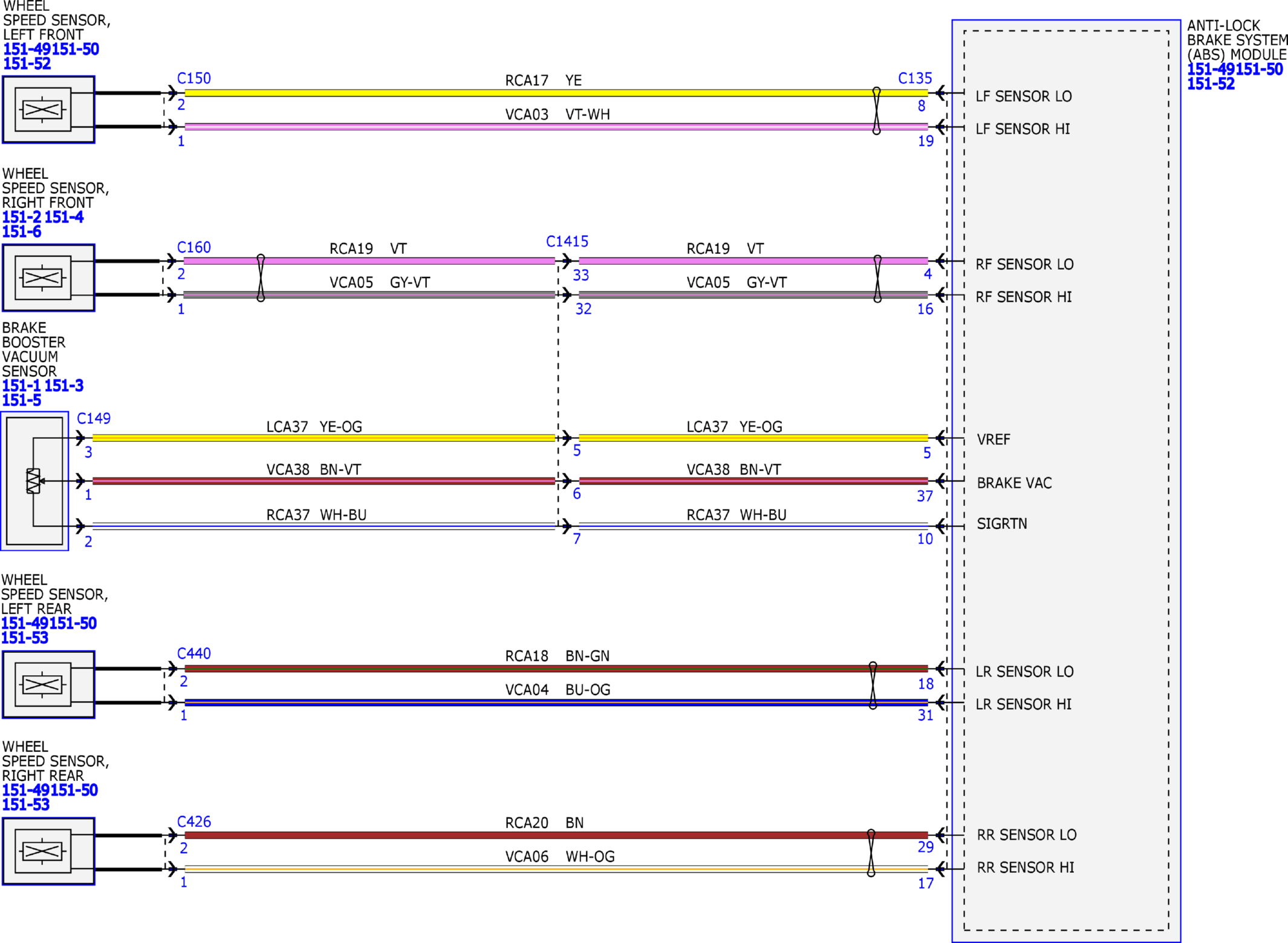

Fig 2: Vehicle Dynamic Systems Wiring Diagram (2 of 5)

GFDW83553

Courtesy of FORD MOTOR COMPANY

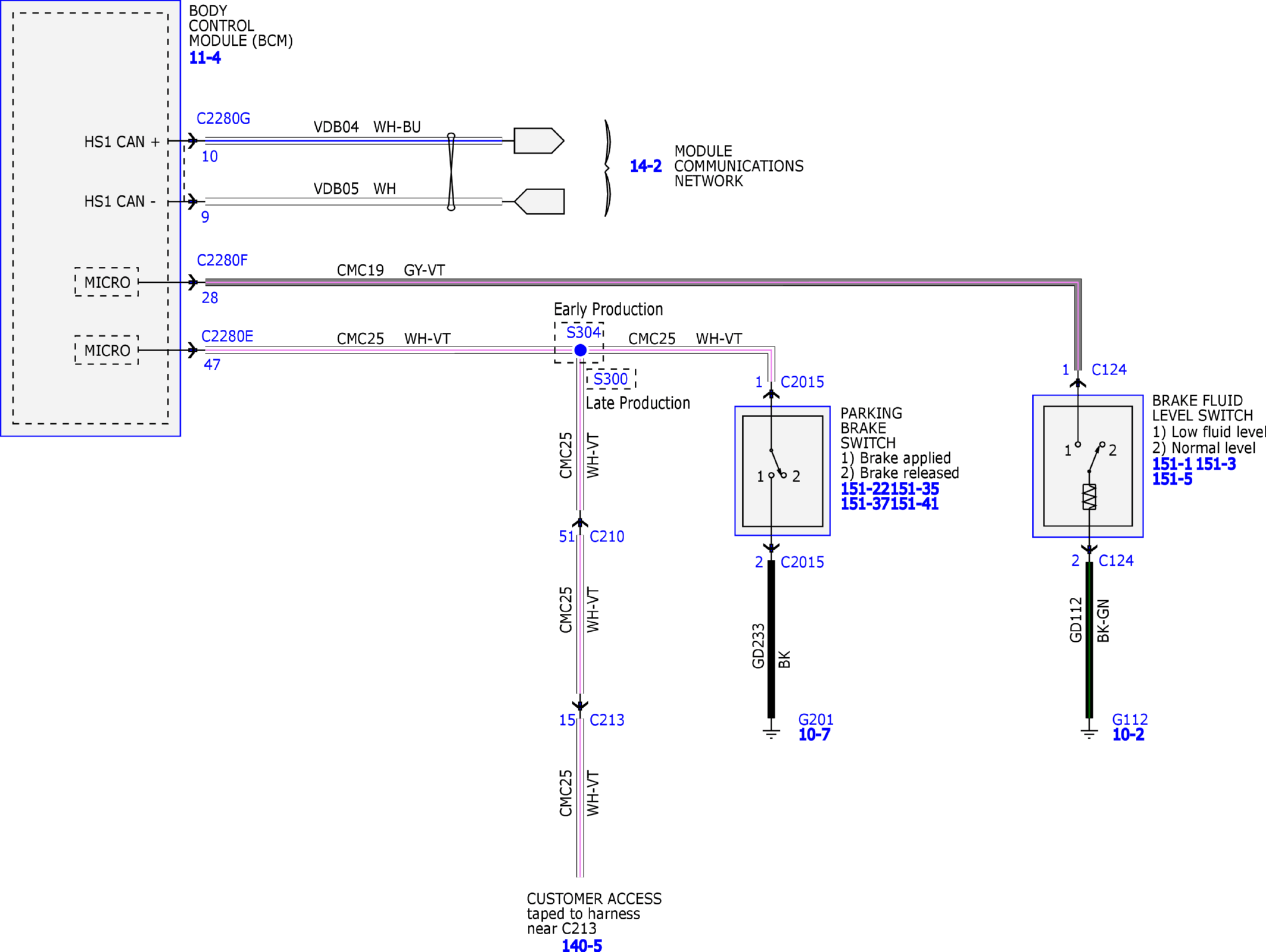

Fig 3: Vehicle Dynamic Systems Wiring Diagram (3 of 5)

GFDW83554

Courtesy of FORD MOTOR COMPANY

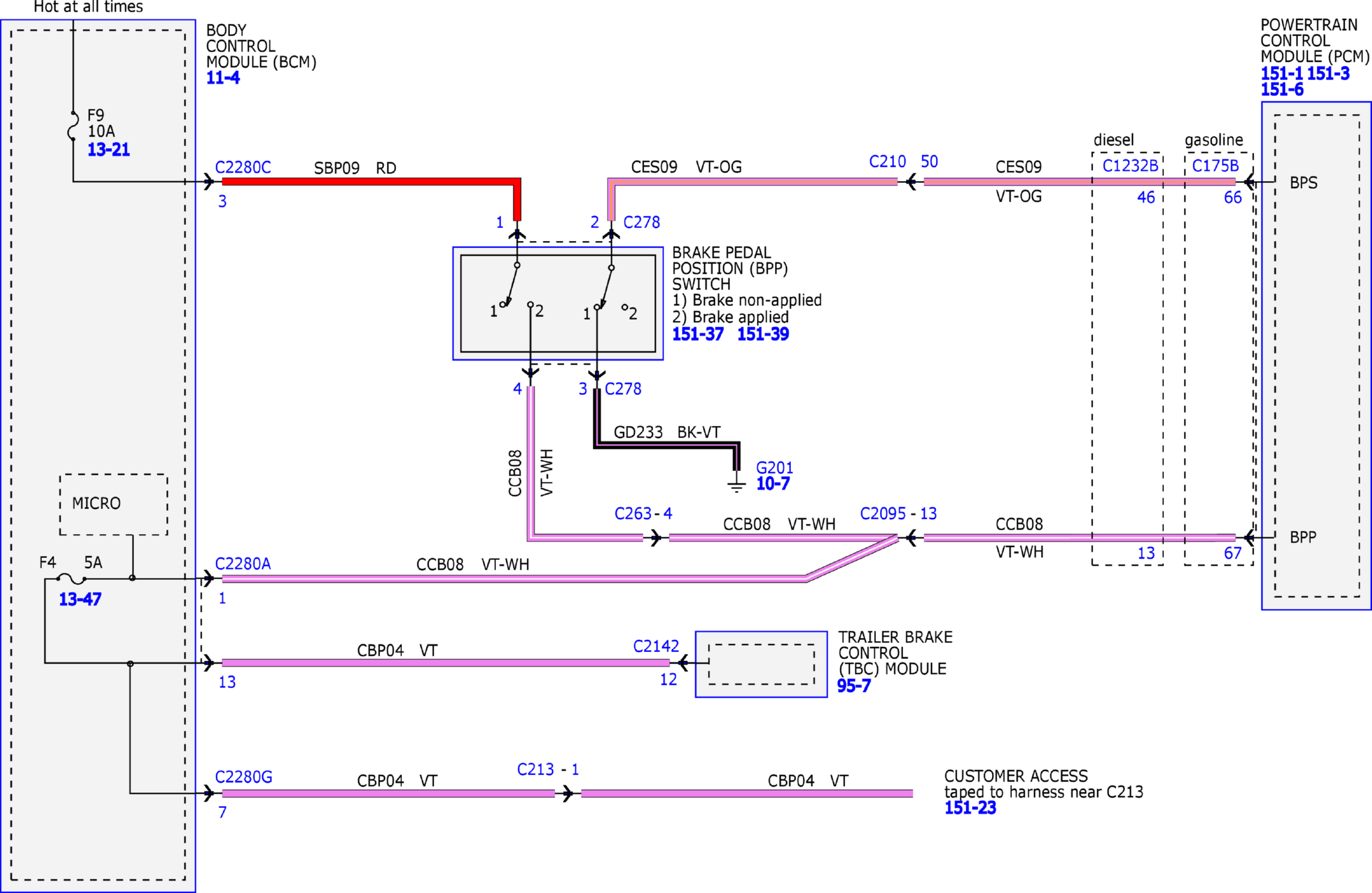

Fig 4: Vehicle Dynamic Systems Wiring Diagram (4 of 5)

GFDW83555

Courtesy of FORD MOTOR COMPANY

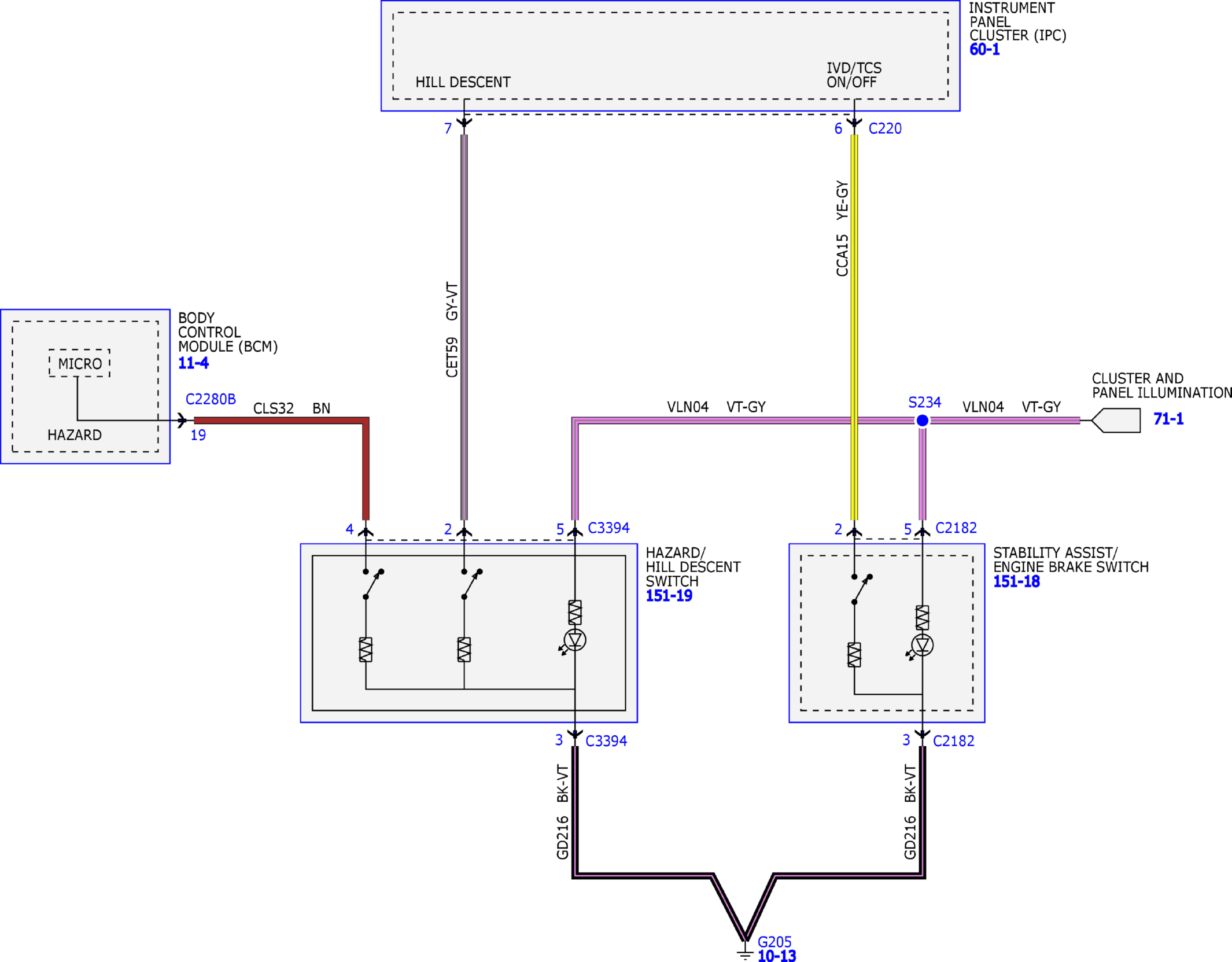

Fig 5: Vehicle Dynamic Systems Wiring Diagram (5 of 5)

GFDW83556

Courtesy of FORD MOTOR COMPANY
