Driveshaft Center Bearing: Disassembly
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps may contain installation direction.
Center bearings with a slip yoke
- Remove the slip yoke. Refer to: Driveshaft Slip Yoke .
Center bearings with a U-joint flange
- Remove the driveshaft. Refer to: Rear Driveshaft .
- Separate the driveshaft center bearing flange and slip yoke.

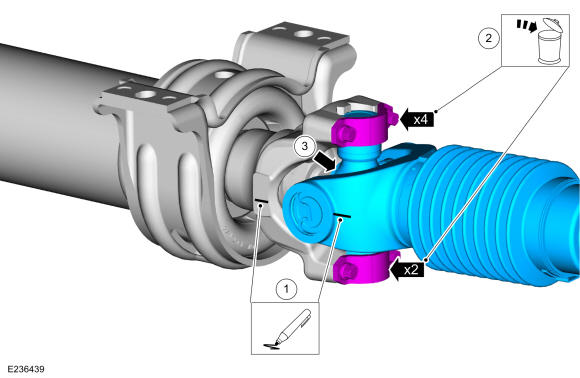

- Index mark the center bearing flange and driveshaft slip yoke.
- Remove and discard the U-joint strap bolts and straps
- Separate the slip yoke from the center bearing flange.

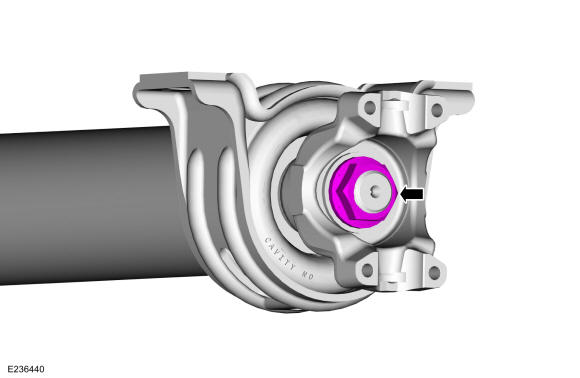

- Remove the center bearing U-joint flange nut.
Torque: 425 lb.ft (576 Nm)

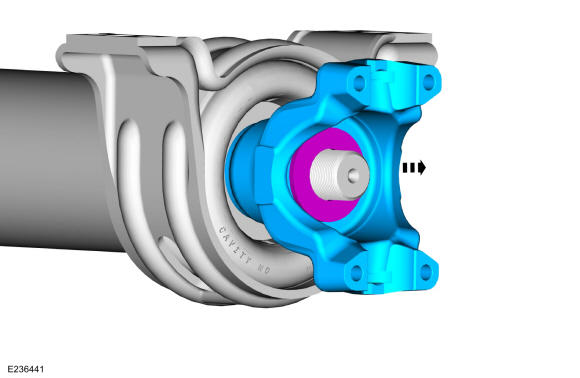

- Remove the center bearing U-joint flange and washer.
All vehicles

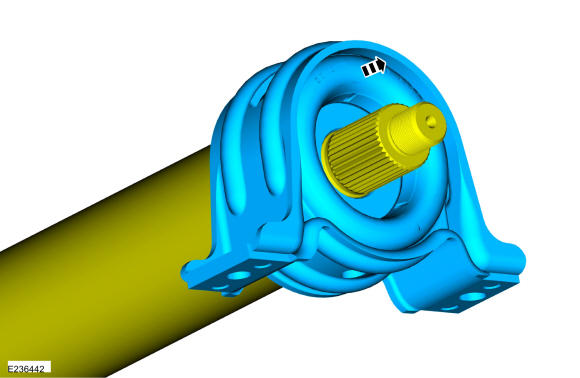

- Remove the center bearing.
Use the General Equipment: Hydraulic Press

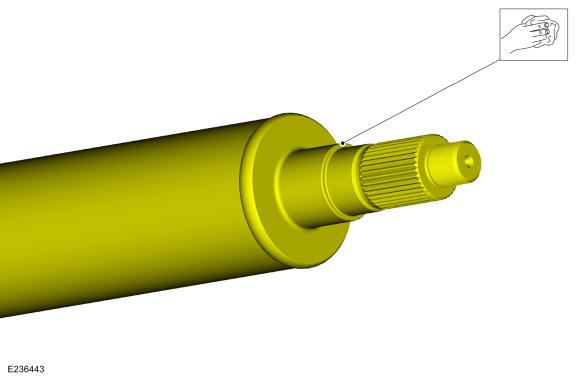

- Clean the center bearing mating surface.
