Steering Gear Boot: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the tie rod end. Refer to: Tie Rod End .
NOTE: Count and record the number of turns required to remove the outer tie-rod end jamb nut for reference during installation.

Remove the tie-rod end jamb nut.

Courtesy of FORD MOTOR COMPANY
Remove the front engine undershield. Refer to: Engine Front Undershield .

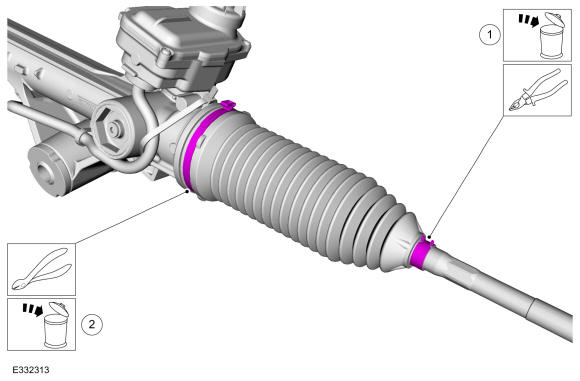

1. Remove and discard the outer steering gear boot clamp.
2. Remove and discard the inner steering gear boot clamp.
Courtesy of FORD MOTOR COMPANY
NOTE: If servicing the RH (right-hand) tie rod, both bellows boots must be removed.

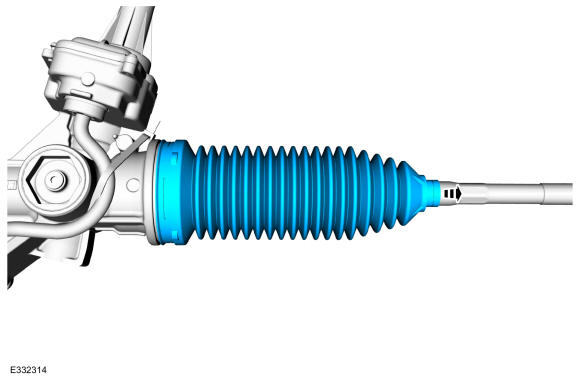

Remove the bellows boot.

Courtesy of FORD MOTOR COMPANY
