Wheel Speed Sensor Ring: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the axle shaft. Refer to: Axle Shaft - Vehicles With: Ford 8.8 Inch Ring Gear . Refer to: Axle Shaft - Vehicles With: Ford 9.75 Inch Ring Gear .

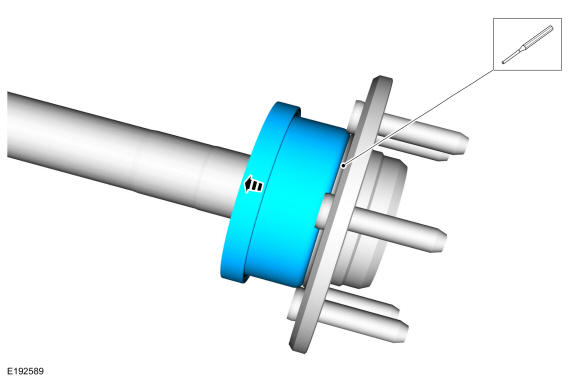

- Using a suitable driver, remove the wheel speed sensor ring.
Use the General Equipment: Punch
