Cruise Control Module (CCM): Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
Cruise control module (CCM)
-
NOTE: If installing a new CCM (cruise control module), it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new CCM (cruise control module) after installation.
Using a diagnostic scan tool, begin the PMI process for the CCM following the onscreen instructions.
- Release the clips and remove the CCM front bumper trim cover.

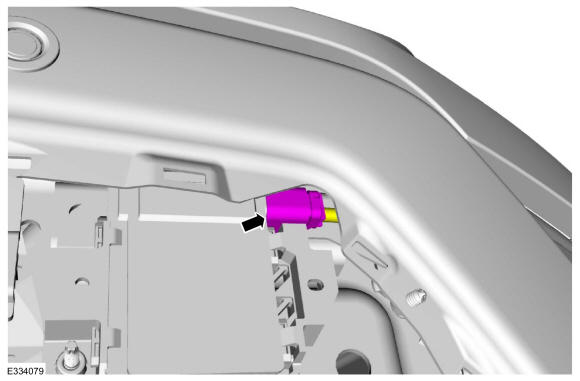

- Disconnect the CCM electrical connector.
-
NOTE: The CCM (cruise control module) and base bracket shown removed for clarity.
Remove the CCM.
- Release the CCM base bracket top clip.
- Slide the CCM up and out of the CCM base bracket.
CCM (cruise control module) and base bracket
-
NOTE: If installing a new CCM (cruise control module), it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new CCM (cruise control module) after installation.
Using a diagnostic scan tool, begin the PMI process for the CCM following the onscreen instructions.
- Remove the front bumper. Refer to: Front Bumper .
- Release the clips and remove the CCM front bumper trim cover.
- Disconnect the CCM electrical connector.

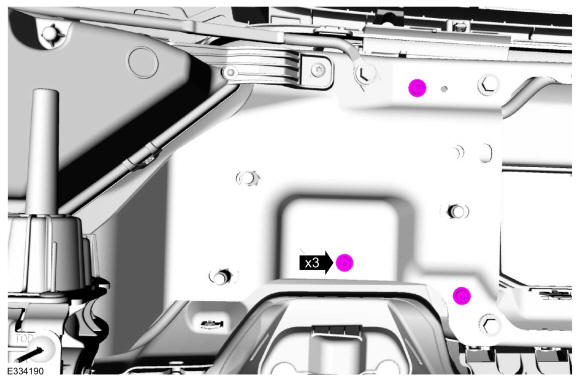

- Remove the CCM bolts and the CCM and base bracket.
Torque
: 80 lb.in (9 Nm)
